InteractiveCP-SAT Rostering: Complete Guide to Constraint Programming for Workforce Scheduling

Constraint Programming (CP) - Satisfiability (SAT) Rostering (CP-SAT)

Constraint Programming (CP) is an approach for solving combinatorial optimization problems by modeling them as constraint satisfaction problems. CP-SAT (Constraint Programming - Satisfiability) is Google OR-Tools' constraint programming solver that combines the expressiveness of constraint programming with the efficiency of modern SAT (Boolean Satisfiability) solvers. When applied to rostering problems, CP-SAT excels at finding feasible schedules that satisfy complex business rules and constraints.

Rostering problems involve assigning employees to shifts while satisfying various constraints such as labor laws, employee preferences, skill requirements, and operational needs. These problems are inherently combinatorial - with multiple employees, shifts, and time periods, the number of possible assignments grows exponentially. Traditional approaches like manual scheduling or simple heuristics may struggle to find optimal or even feasible solutions when constraints become complex.

CP-SAT is particularly well-suited for rostering because it can handle both hard constraints (that must be satisfied) and soft constraints (that we prefer to satisfy), while also allowing for objective functions that optimize for cost, fairness, or other business metrics. Unlike linear programming approaches that require linear constraints, CP-SAT can model logical relationships, conditional constraints, and complex business rules directly.

Advantages

CP-SAT offers several key advantages for rostering problems. First, it provides good modeling flexibility - you can express complex business rules, labor regulations, and operational constraints using intuitive logical operators and relationships. This makes it easier to translate real-world requirements into mathematical constraints compared to traditional linear programming approaches.

Second, CP-SAT can handle both feasibility and optimization problems seamlessly. You can start by finding any feasible solution that satisfies all hard constraints, then optimize for objectives like minimizing labor costs or maximizing employee satisfaction. The solver can also provide multiple solutions, allowing decision-makers to choose between different trade-offs.

Finally, CP-SAT is generally efficient for many rostering problems, often finding good solutions quickly even for large-scale problems with hundreds of employees and thousands of time slots. The underlying SAT solver technology has been extensively optimized and can leverage modern hardware effectively.

Disadvantages

Despite its strengths, CP-SAT has some limitations for rostering applications. The most significant limitation is that it's primarily designed for discrete optimization problems, so it cannot directly handle continuous variables or fractional assignments. While this is rarely an issue for rostering (where assignments are typically binary), it can limit flexibility in some workforce planning scenarios.

Another limitation is that CP-SAT may struggle with problems that have very tight constraint sets, where finding any feasible solution becomes extremely difficult. In such cases, the solver might need to explore a large portion of the solution space, leading to longer computation times or timeouts.

Finally, while CP-SAT is well-suited for modeling logical constraints, it may not be as efficient as specialized algorithms for certain types of rostering problems. For example, problems with very regular patterns or simple constraints might be solved more efficiently using custom heuristics or other optimization approaches.

Formula

At its core, rostering is a question of yes or no: should Alice work the morning shift on Monday? Should Bob cover the night shift on Friday? Each of these questions demands a binary answer. There's no such thing as "half an assignment." This fundamental observation leads us directly to the mathematical structure that makes CP-SAT rostering effective for this type of problem.

The Foundation: Binary Decision Variables

Imagine you're a manager creating next week's schedule. For every possible combination of employee, shift type, and day, you face a simple decision: assign them or don't. There are no shades of gray. An employee either works a shift or they don't. This binary nature of rostering decisions is precisely what we capture mathematically.

We represent each possible assignment as a binary decision variable:

where:

• $E$: the set of all employees (indexed by $e$)
• $S$: the set of all shift types, such as Morning, Afternoon, Evening, and Night (indexed by $s$)
• $T$: the set of all time periods, typically days of the week (indexed by $t$)
• $x_{e,s,t}$: binary decision variable equal to 1 if employee $e$ is assigned to shift $s$ in time period $t$, and 0 otherwise

Why binary variables? Because rostering is inherently discrete. You cannot assign someone to "0.7 of a shift" or "part-time coverage." The binary representation forces our model to make clear, unambiguous decisions that match the reality of workforce scheduling. This mathematical choice isn't arbitrary. It directly reflects the nature of the problem we're solving.

But here's where it gets interesting: with just a few employees, shifts, and days, the number of these binary decisions explodes. If you have 5 employees, 4 shift types, and 7 days, you're making $5 \times 4 \times 7 = 140$ independent yes-or-no decisions. Each decision variable can be either 0 or 1, which means you're navigating a solution space with $2^{140}$ possible combinations. This is an astronomically large number that makes brute-force search completely impractical.

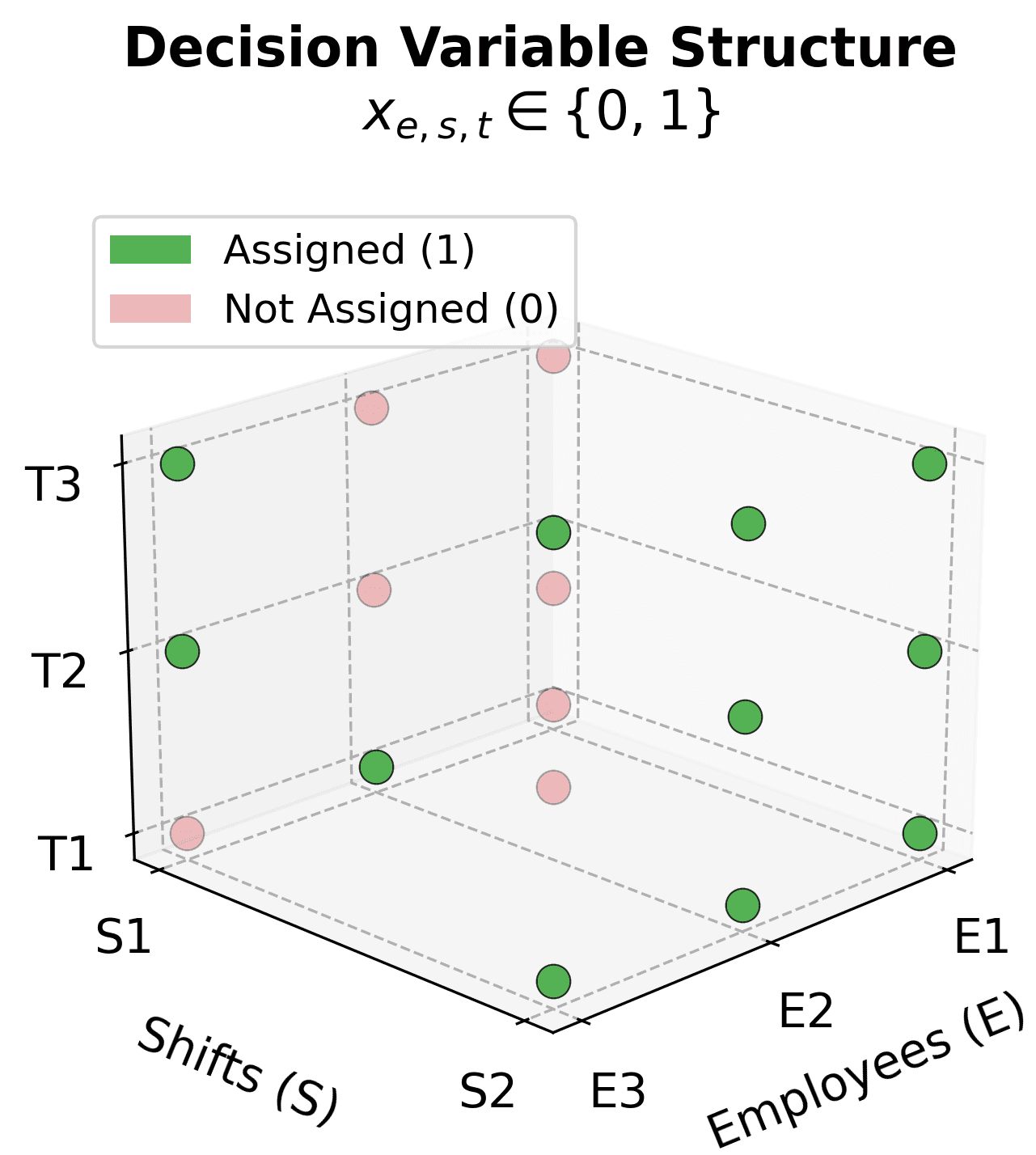

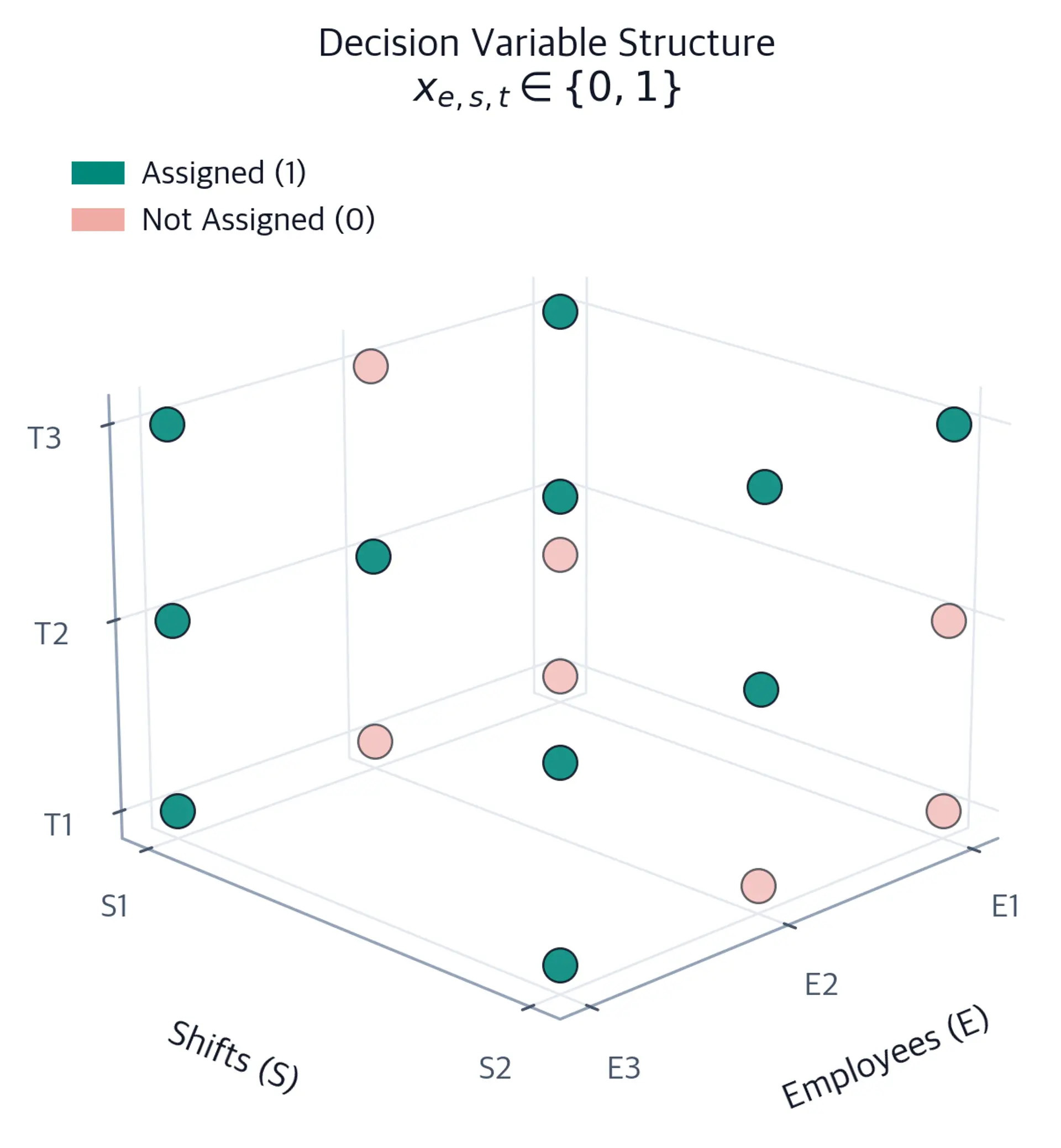

To visualize the structure of these decision variables, imagine a three-dimensional space where each dimension represents one aspect of the assignment: employees, shifts, and time periods. Each point in this space corresponds to a binary decision variable that can take the value 0 (not assigned) or 1 (assigned).

Bringing Order to Chaos: Constraints

Having decision variables is just the beginning. Without rules, we could assign anyone to any shift at any time, but that would create chaos. Real-world rostering typically needs to satisfy multiple competing requirements simultaneously. These requirements become constraints in our mathematical model: rules that any valid solution should obey.

Think of constraints as the guardrails that keep our solution on track. They transform an impossibly large space of potential assignments into a manageable set of feasible solutions. Each constraint type addresses a different real-world concern, and together they ensure our roster is both operationally viable and legally compliant.

Coverage Constraints: The most fundamental requirement is that every shift should be staffed. Imagine a hospital emergency room that needs at least 3 nurses on the night shift, or a restaurant that requires 2 servers during dinner rush. Coverage constraints ensure we meet these minimum staffing levels:

This formula says: for every shift type $s$ and every time period $t$, the sum of all assignments (where $x_{e,s,t} = 1$) should equal the required number of employees $r_{s,t}$. The summation $\sum_{e \in E}$ counts how many employees are assigned. We're adding up the ones. Why equality rather than "at least"? Because we can also model "exactly $r_{s,t}$ employees" if needed, though in practice you might use $\geq$ to allow overstaffing.

where:

• $r_{s,t}$: the minimum number of employees required for shift $s$ in time period $t$ (also called the staffing requirement)

This constraint is non-negotiable. If coverage isn't met, operations fail. But coverage alone isn't enough. We also need to respect the reality that employees have lives outside work.

Employee Availability: People can't work when they're unavailable. Alice might have classes on Tuesday mornings, Bob might be on vacation, or Charlie might have childcare responsibilities. Availability constraints prevent impossible assignments:

where:

• $\mathcal{U}$: the set of all infeasible assignments $(e,s,t)$ where employee $e$ is unavailable for shift $s$ in period $t$ (a subset of $E \times S \times T$)

By setting $x_{e,s,t} = 0$ for all $(e,s,t) \in \mathcal{U}$, we're telling the solver: "These assignments are off-limits. Don't even consider them." This significantly reduces the search space and helps prevent schedules that violate employee availability. The constraint applies to each infeasible triple individually, effectively removing those decision variables from consideration.

Maximum Shifts per Employee: Fairness matters. We can't have one employee working 10 shifts while another works 2. Maximum shift constraints ensure balanced workloads:

where:

• $m_e$: the maximum number of shifts employee $e$ can work during the planning period (a non-negative integer, typically set based on labor regulations or organizational policies)

The summation $\sum_{s \in S, t \in T} x_{e,s,t}$ counts all assignments for employee $e$ across all shifts and time periods. This sum equals the total number of shifts assigned to employee $e$ (since each $x_{e,s,t}$ is either 0 or 1). By requiring this sum to be $\leq m_e$, we cap each employee's total workload. This constraint prevents burnout and ensures compliance with labor regulations that limit working hours.

Rest Periods: Perhaps the most critical constraint for employee well-being is that people need rest. Working consecutive shifts without adequate recovery time is unsafe, illegal in many jurisdictions, and leads to poor performance. The rest period constraint prevents this:

where:

• $\Delta t$: the time gap between consecutive shifts (measured in the same units as $t$, typically hours or time periods)
• $\rho$: the minimum required rest period between shifts (often 8-12 hours, measured in the same units as $\Delta t$)
• $s_1, s_2$: two different shift types (the constraint applies to any pair of shifts)
• $t$: the time period of the first shift
• $t + \Delta t$: the time period of the second shift, occurring $\Delta t$ time units after the first

The constraint $x_{e,s_1,t} + x_{e,s_2,t + \Delta t} \leq 1$ works as follows: if an employee works shift $s_1$ at time $t$ (so $x_{e,s_1,t} = 1$), and the time gap $\Delta t$ is less than the minimum rest period $\rho$, then they cannot work shift $s_2$ at time $t + \Delta t$ (forcing $x_{e,s_2,t + \Delta t} = 0$). The sum of these two binary variables cannot exceed 1, meaning at most one of them can be 1. This mathematical relationship directly encodes the physical reality that people need time to rest.

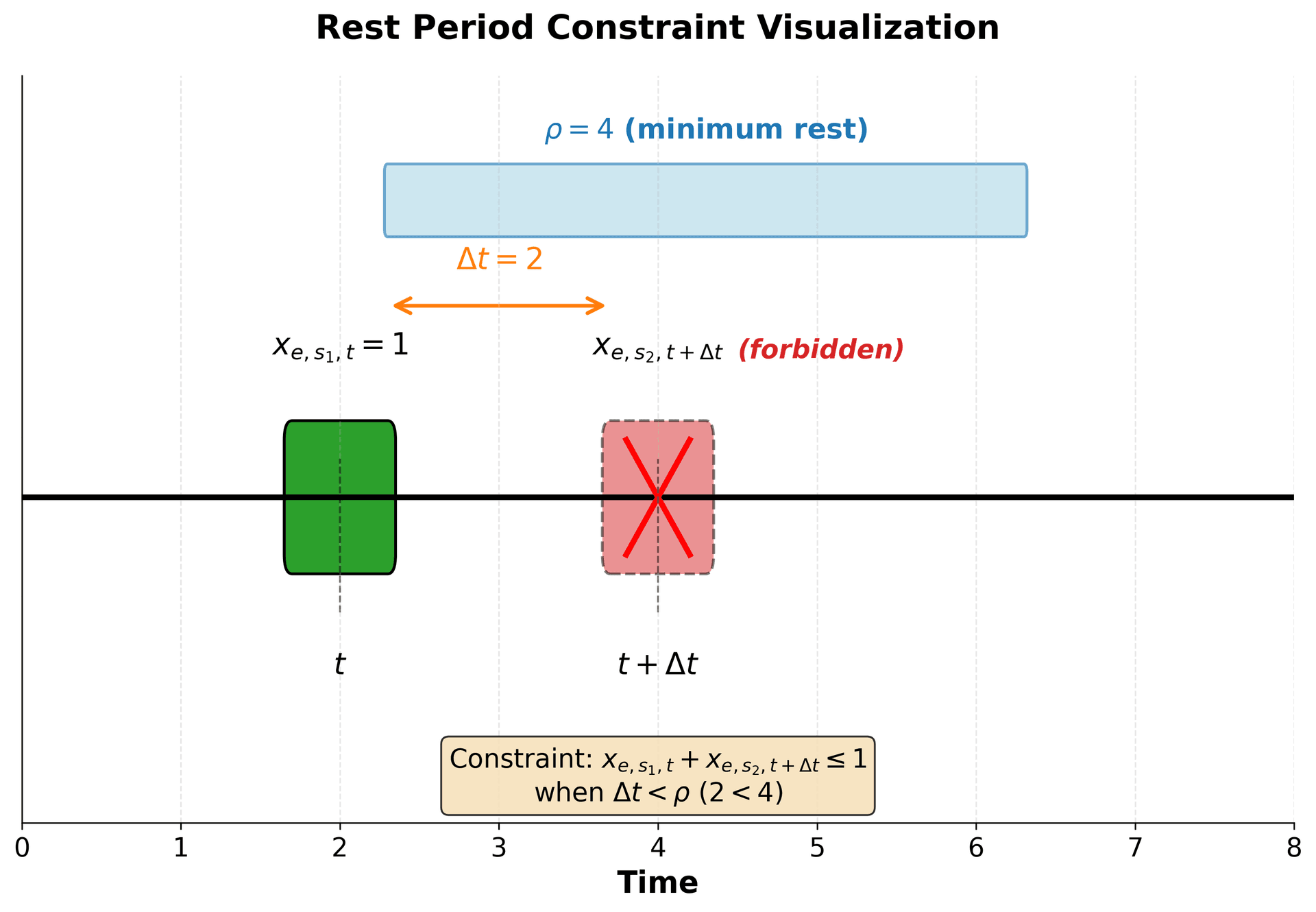

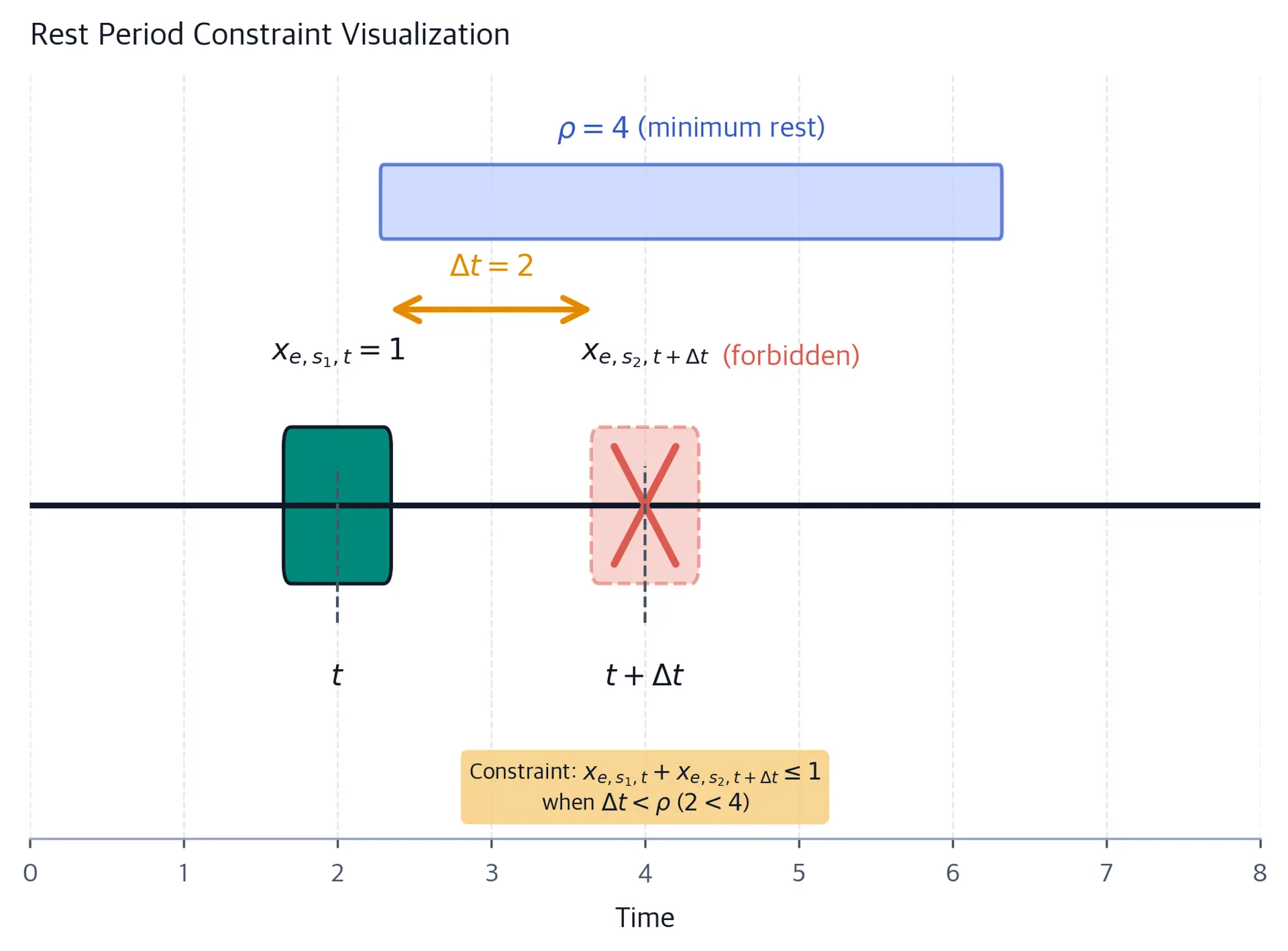

The rest period constraint can be visualized as a timeline showing how consecutive shift assignments are restricted. When an employee works a shift at time $t$, they cannot work another shift at time $t + \Delta t$ if the time gap $\Delta t$ is less than the minimum rest period $\rho$.

Finding the Best Solution: The Objective Function

Constraints tell us what's allowed, but they don't tell us what's best. Among all feasible solutions, and there may be thousands, which one should we choose? This is where the objective function comes in. It quantifies what "best" means for our specific situation.

Most commonly, we want to minimize costs. Every assignment has a cost: regular wages, overtime premiums, or penalties for assigning someone to an undesirable shift. The objective function sums these costs across all assignments:

where:

• $c_{e,s,t}$: the cost of assigning employee $e$ to shift $s$ in period $t$ (a non-negative real number, typically measured in currency units or preference scores)

The binary nature of $x_{e,s,t}$ works well here: when $x_{e,s,t} = 0$ (no assignment), the term contributes nothing to the sum. When $x_{e,s,t} = 1$ (assignment made), the cost $c_{e,s,t}$ is added. The triple summation $\sum_{e \in E} \sum_{s \in S} \sum_{t \in T}$ ensures we consider every possible assignment, but only the ones that actually occur (where $x_{e,s,t} = 1$) contribute to the total cost.

The cost $c_{e,s,t}$ can encode various business priorities:

• Labor costs: Base wages for the shift
• Overtime premiums: Higher costs for shifts that push employees over their regular hours
• Preference penalties: Costs that discourage assigning employees to shifts they dislike
• Skill premiums: Costs that reflect the value of assigning highly skilled employees to critical shifts

By minimizing this sum, we find the schedule that satisfies all constraints while keeping total costs as low as possible. But cost isn't the only possible objective. We could maximize fairness, minimize schedule changes from previous periods, or balance multiple objectives simultaneously.

Understanding the Challenge: Mathematical Properties

Now that we've built our mathematical model, let's understand the scale of the problem we're solving. The properties we'll explore explain why sophisticated algorithms like CP-SAT are necessary and why naive approaches fail spectacularly.

Solution Space Size: The combinatorial explosion

With $|E|$ employees, $|S|$ shift types, and $|T|$ time periods, we have $|E| \times |S| \times |T|$ binary decision variables. Each variable can independently be 0 or 1, which means the total number of possible assignments is:

where:

• $\mathcal{S}$: the set of all possible solutions (before applying constraints)
• $|E|$: the cardinality (size) of the employee set $E$, i.e., the number of employees
• $|S|$: the cardinality (size) of the shift type set $S$, i.e., the number of shift types
• $|T|$: the cardinality (size) of the time period set $T$, i.e., the number of time periods
• $|E| \times |S| \times |T|$: the total number of decision variables (the product of the three set sizes)

This exponential growth is the heart of the challenge. Consider a modest problem: 10 employees, 4 shift types, 7 days. That's $10 \times 4 \times 7 = 280$ decision variables, creating $2^{280} \approx 10^{84}$ possible solutions. To put this in perspective, there are estimated to be $10^{80}$ atoms in the observable universe. We're dealing with numbers so large that exhaustive enumeration is computationally infeasible. Even if we could check a billion solutions per second, it would take longer than the age of the universe to explore them all.

This is why constraints are so powerful: they eliminate vast swaths of this solution space. But even with constraints, the remaining feasible space can be enormous. We need algorithms that can intelligently search this space without exploring every possibility.

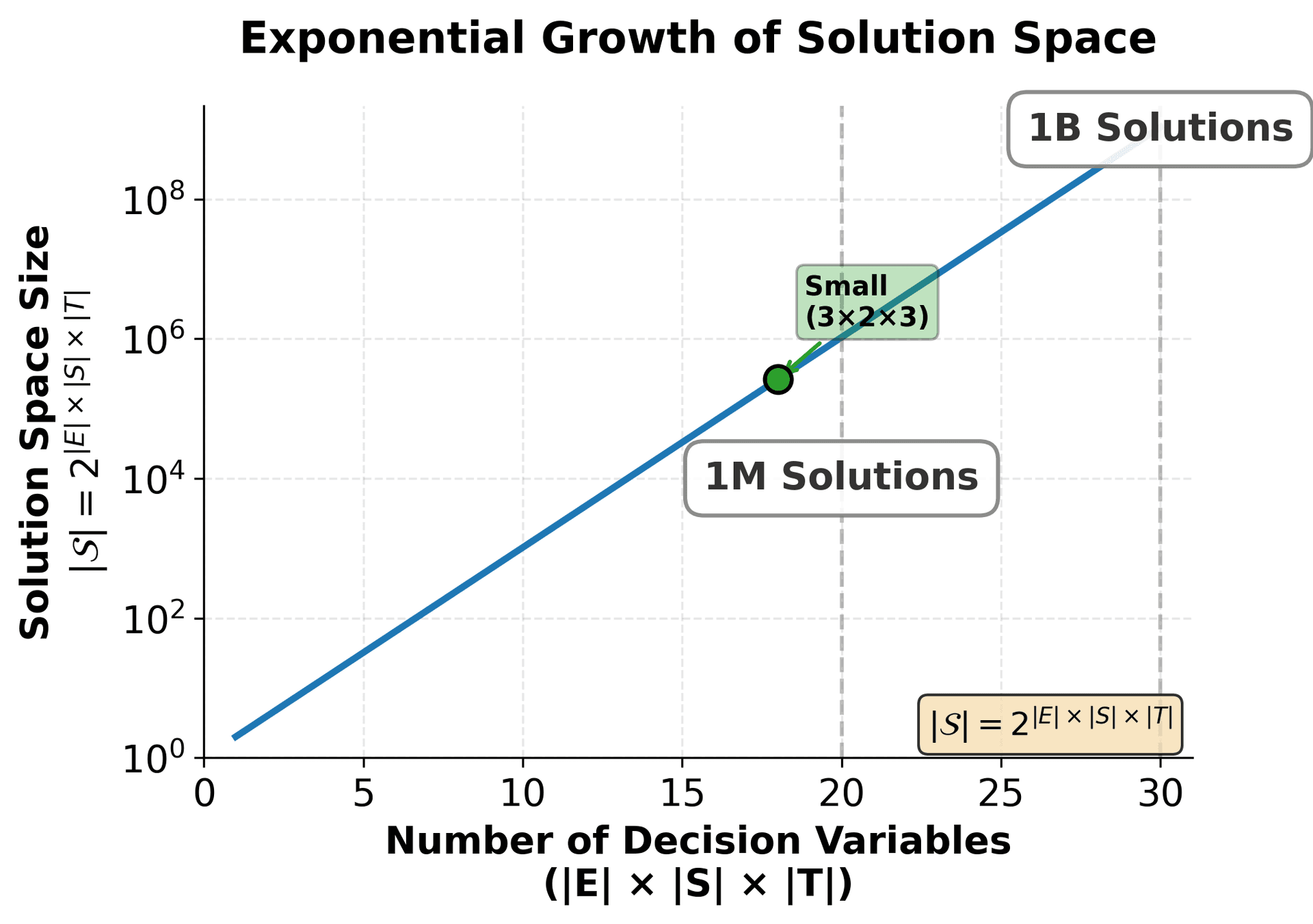

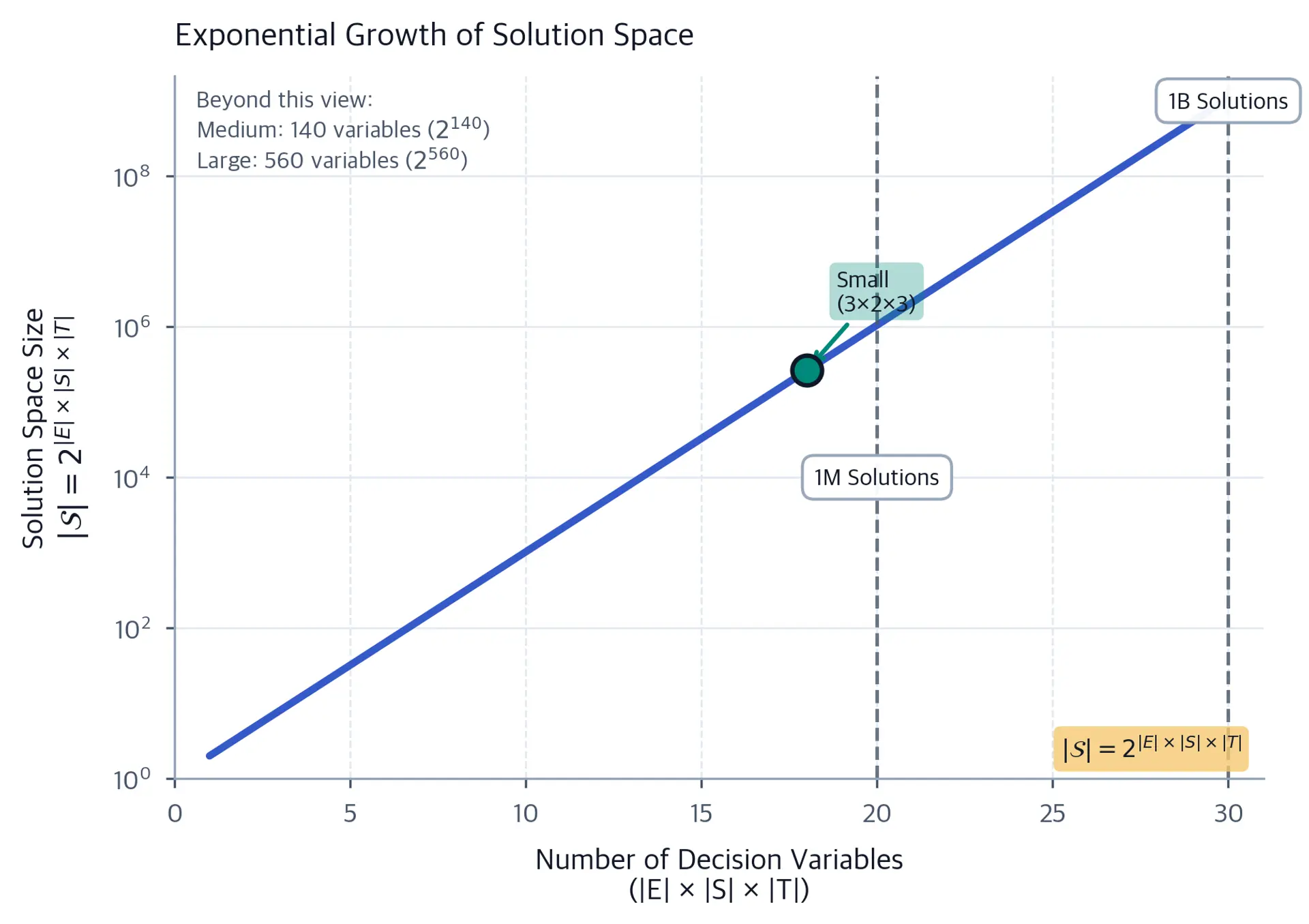

The exponential growth of the solution space can be visualized to understand why exhaustive search becomes infeasible even for moderately-sized problems. As the number of decision variables increases, the solution space grows at an exponential rate, making it computationally intractable to explore all possibilities.

Constraint Satisfaction Structure: Putting it all together

We can now see the complete mathematical structure. The rostering problem is a constraint satisfaction problem (CSP): we're searching for assignments that satisfy all constraints simultaneously. Formally:

This formulation reveals the structure that CP-SAT exploits. Each constraint type operates on different subsets of variables:

• Coverage constraints link variables across employees for a given shift-time combination
• Availability constraints fix specific variables to zero
• Maximum shift constraints aggregate variables across shifts and times for each employee
• Rest period constraints create relationships between variables at different time points

The power of constraint programming comes from how these constraints interact. When the solver sets one variable, it can immediately infer consequences for related variables through constraint propagation. For example, if Alice is the only available employee for a shift that requires 2 people, the solver immediately knows the problem is infeasible, without exploring millions of other assignments.

Computational Complexity: Why sophisticated algorithms matter

The exponential solution space means that naive approaches, such as trying every combination or even random sampling, are doomed to failure. But the constraint structure gives us hope: by propagating constraints intelligently, CP-SAT can eliminate huge portions of the search space without explicitly exploring them. The solver uses techniques like:

• Constraint propagation: Inferring variable values from constraints
• Conflict-driven learning: Remembering why certain assignments failed to avoid repeating mistakes
• Branching heuristics: Choosing which variables to set first to maximize constraint propagation

These techniques transform an intractable search into a manageable optimization problem. For most practical rostering problems, CP-SAT can find optimal or near-optimal solutions in seconds to minutes, even when the underlying solution space contains trillions of possibilities.

Visualizing CP-SAT Rostering

Let's create visualizations to understand how CP-SAT rostering works in practice. We'll start by setting up the necessary libraries and creating a simple example.

Now let's create a simple rostering example to visualize the concepts:

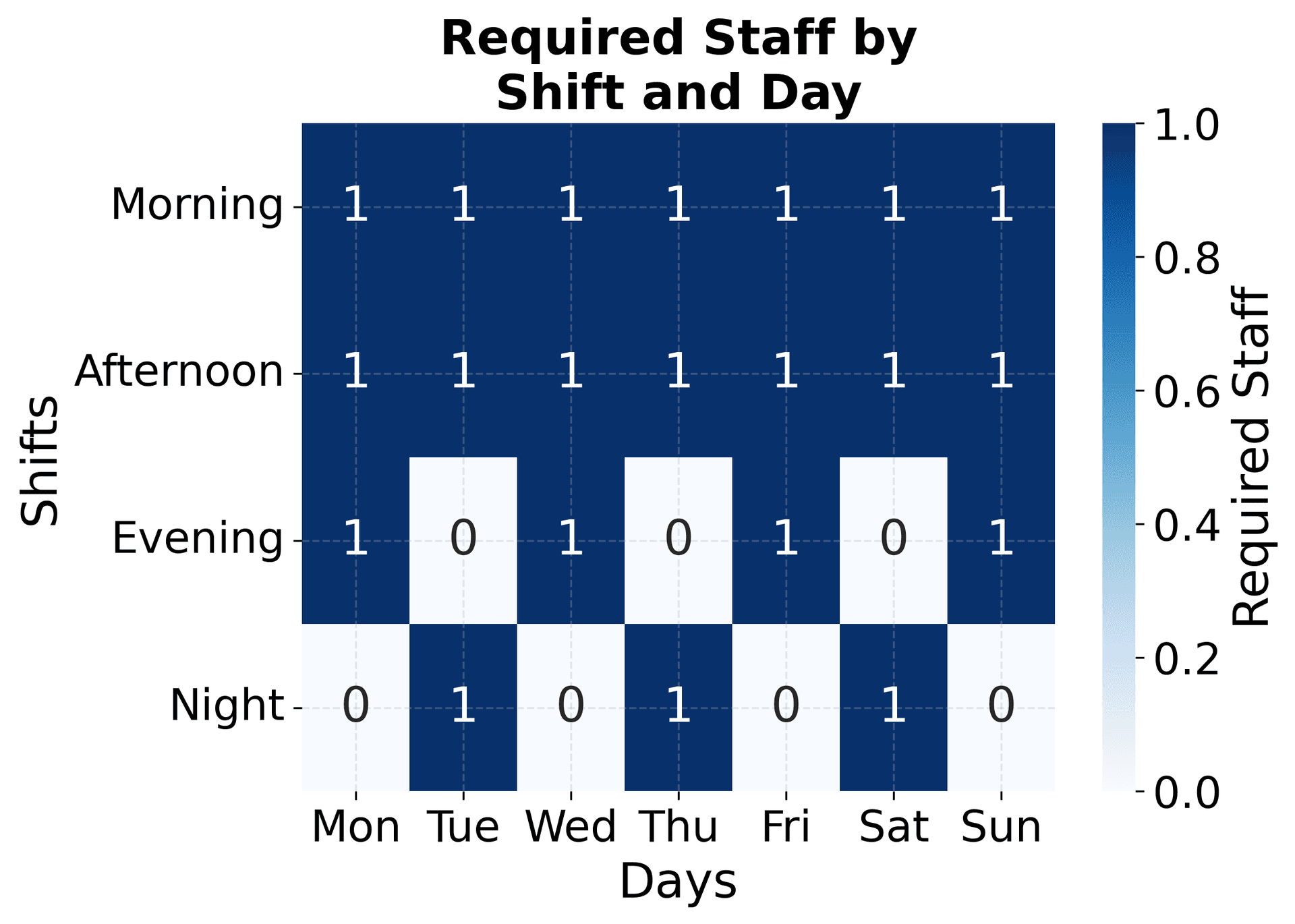

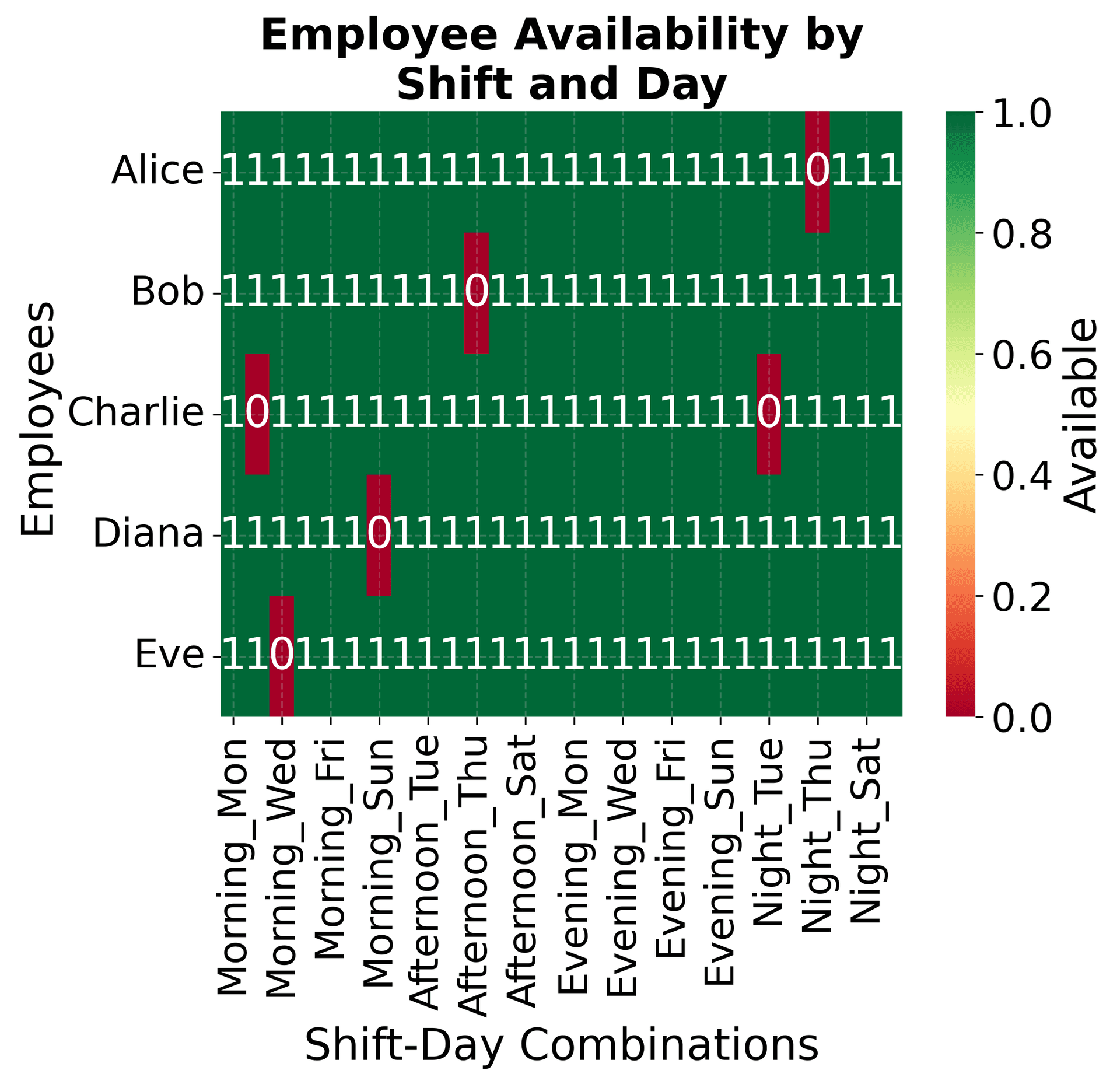

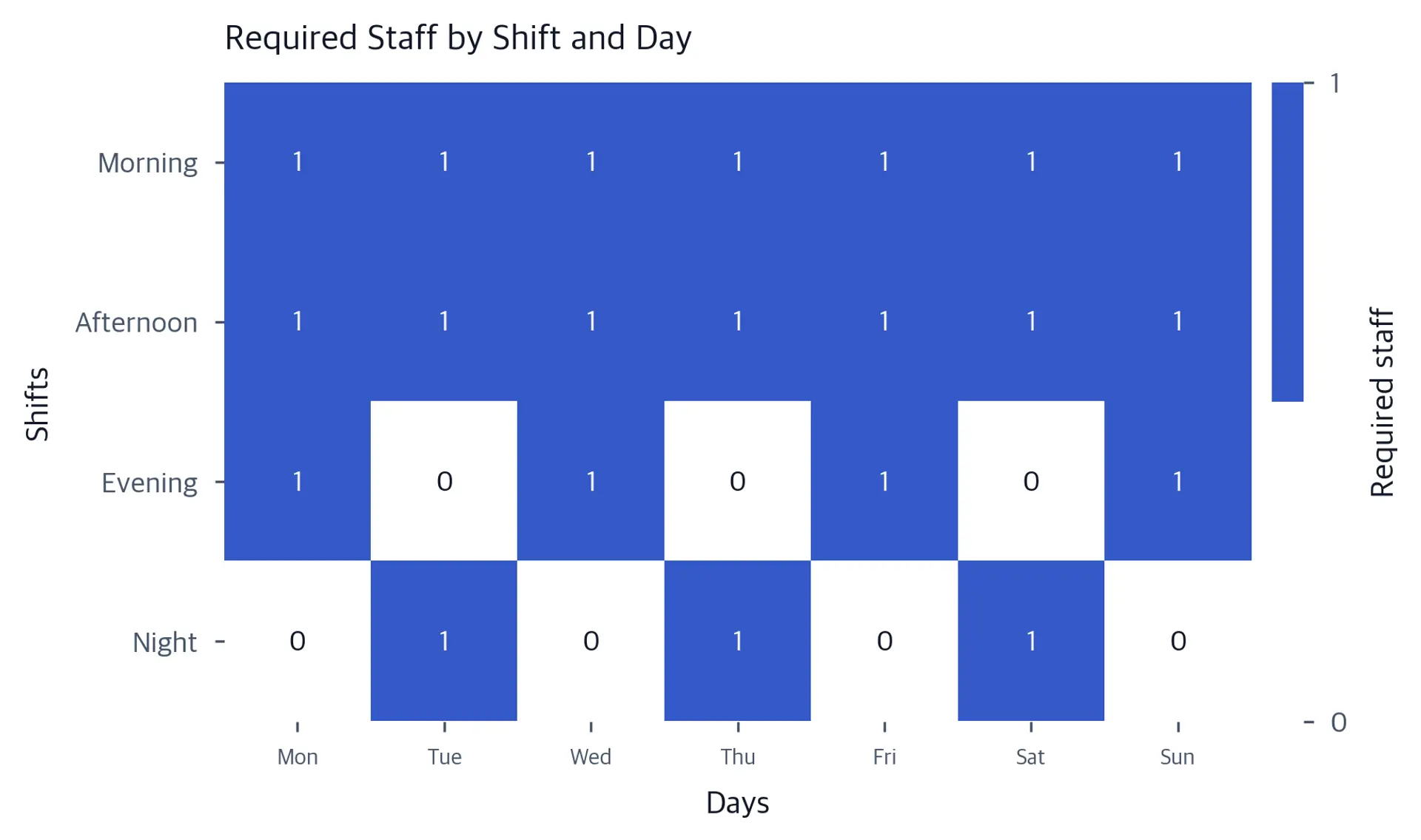

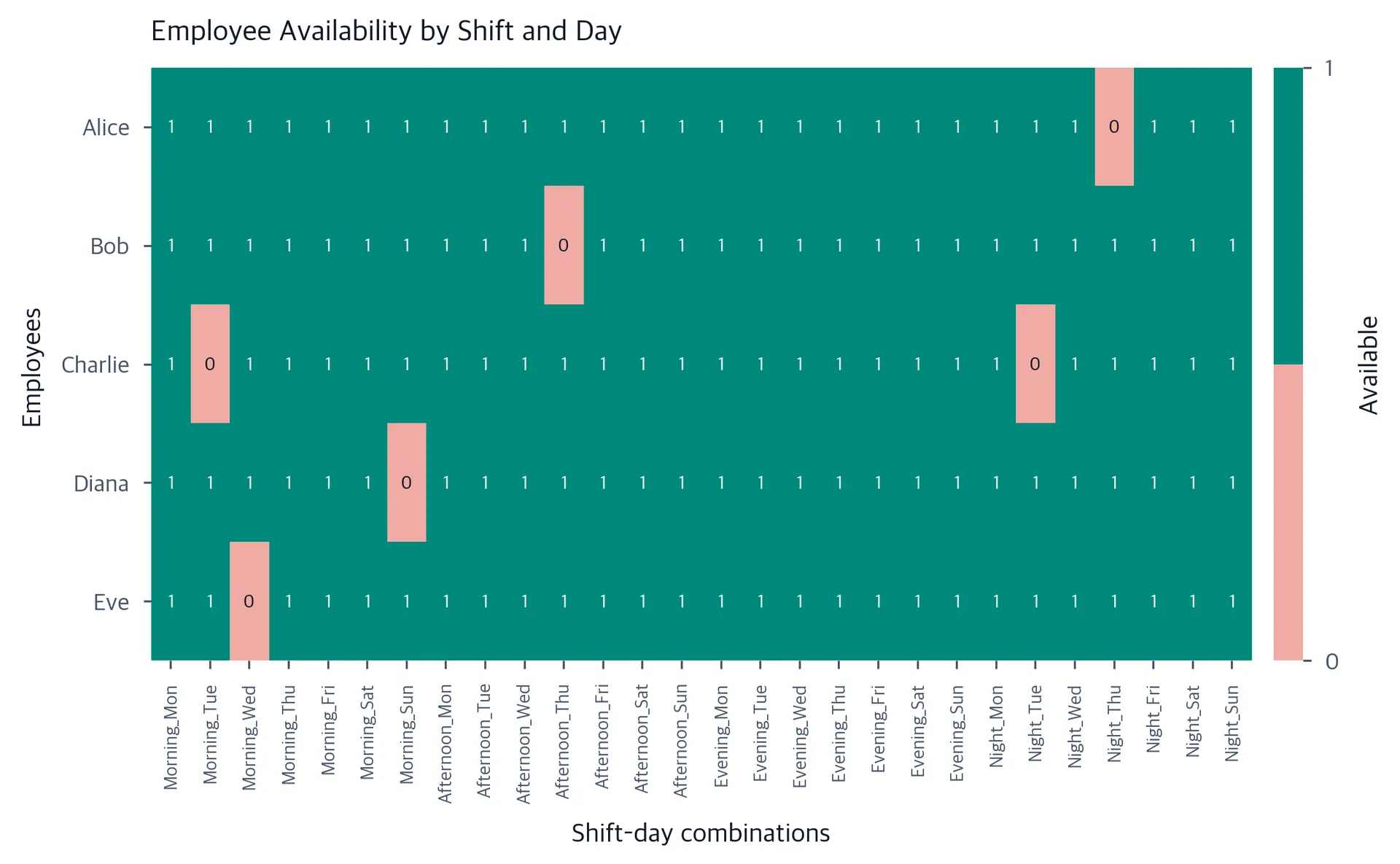

Understanding the rostering problem requires visualizing both employee availability and staffing requirements. These visualizations help identify potential scheduling challenges and ensure that the CP-SAT solver has sufficient information to find feasible solutions. The availability matrix reveals which employees can work specific shifts, while the staffing requirements define the minimum coverage needed for operations.

Now let's implement the CP-SAT model:

The CP-SAT model has now been created with several key constraints:

• Coverage: Each shift must have exactly the required number of staff.
• Availability: Employees can only be assigned to shifts when they are available.
• Maximum shifts: No employee is assigned to more than 5 shifts per week.
• No consecutive night shifts: Employees are not scheduled for night shifts on back-to-back days.

Let's solve the model and visualize the results:

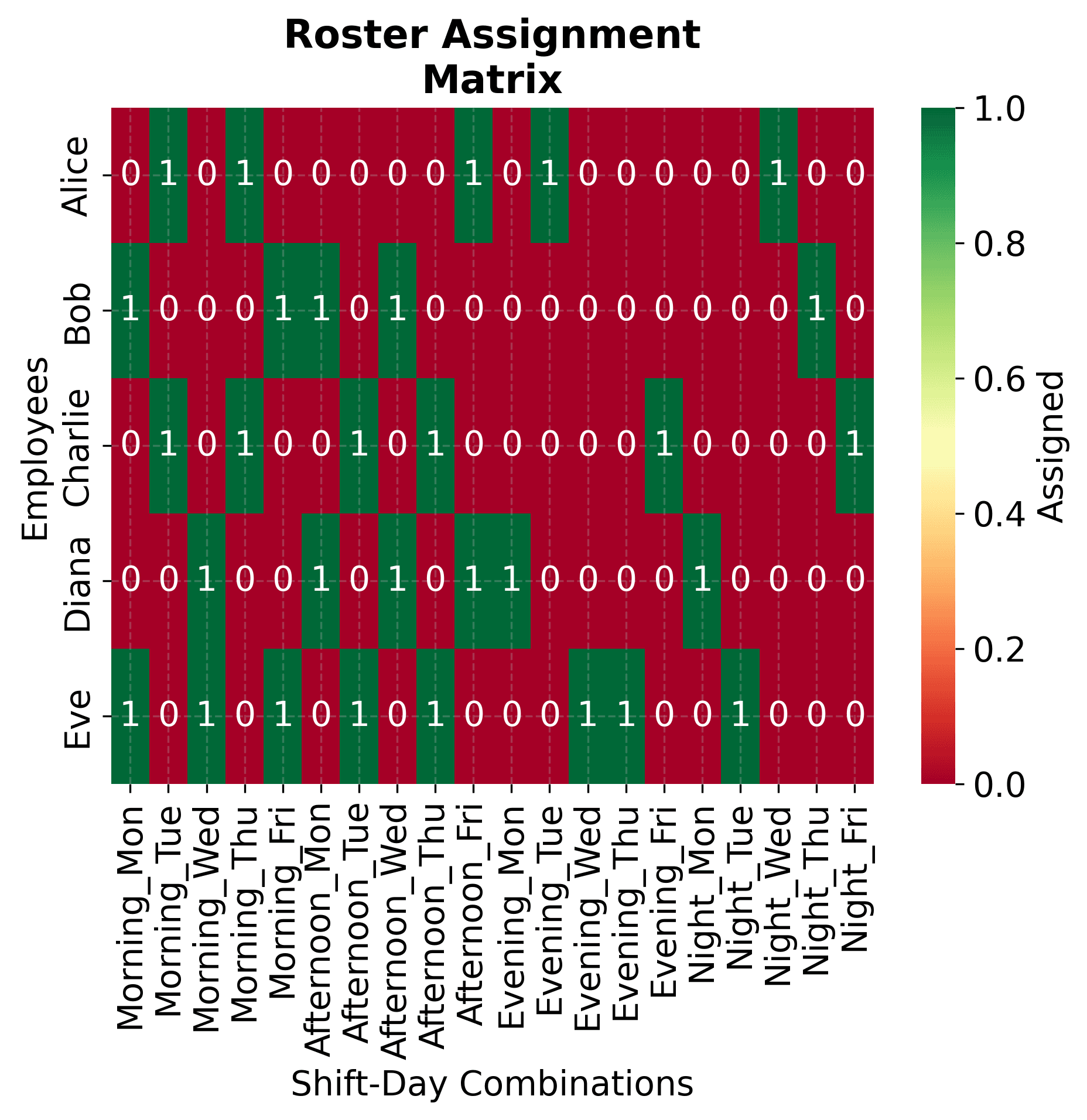

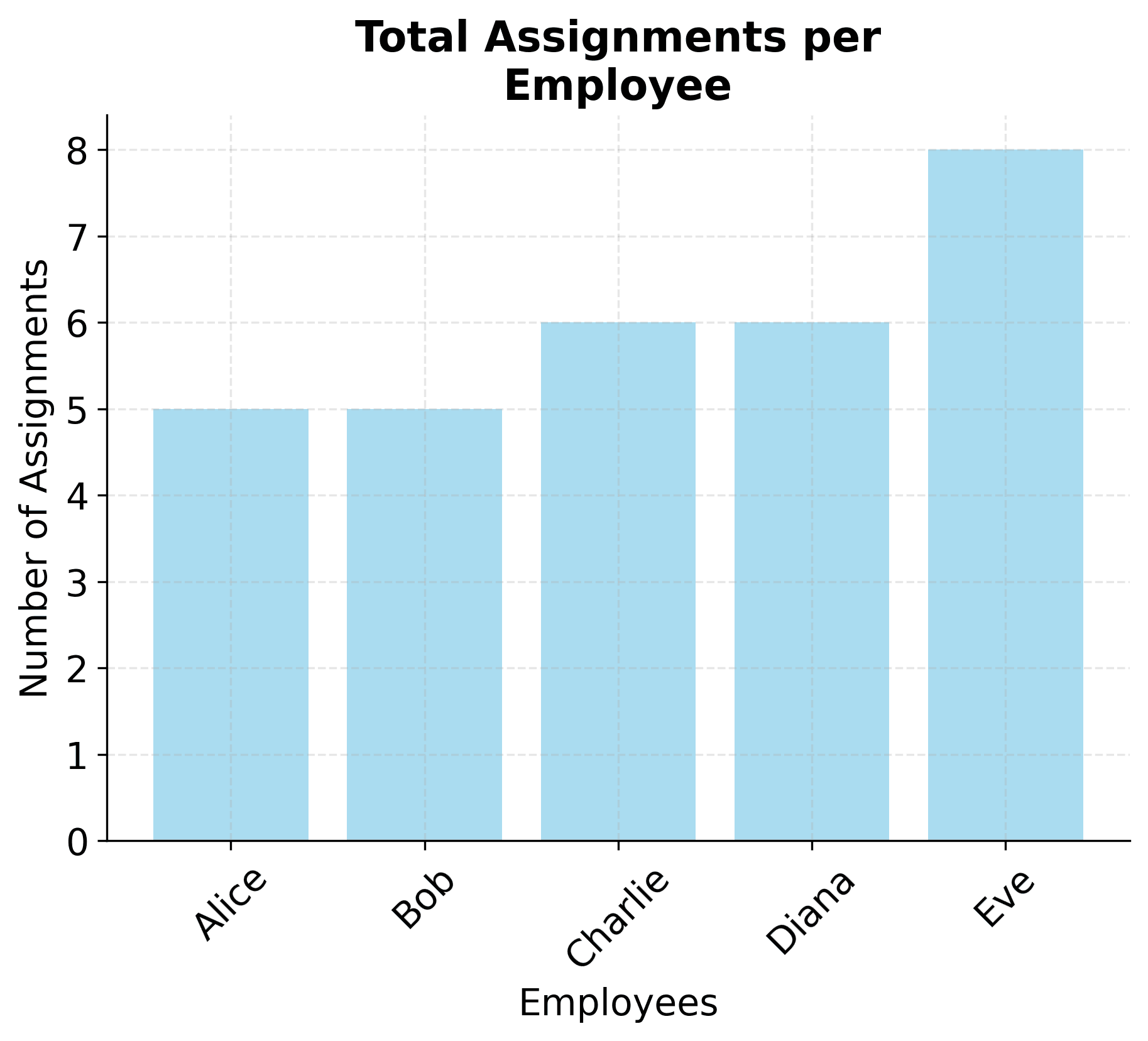

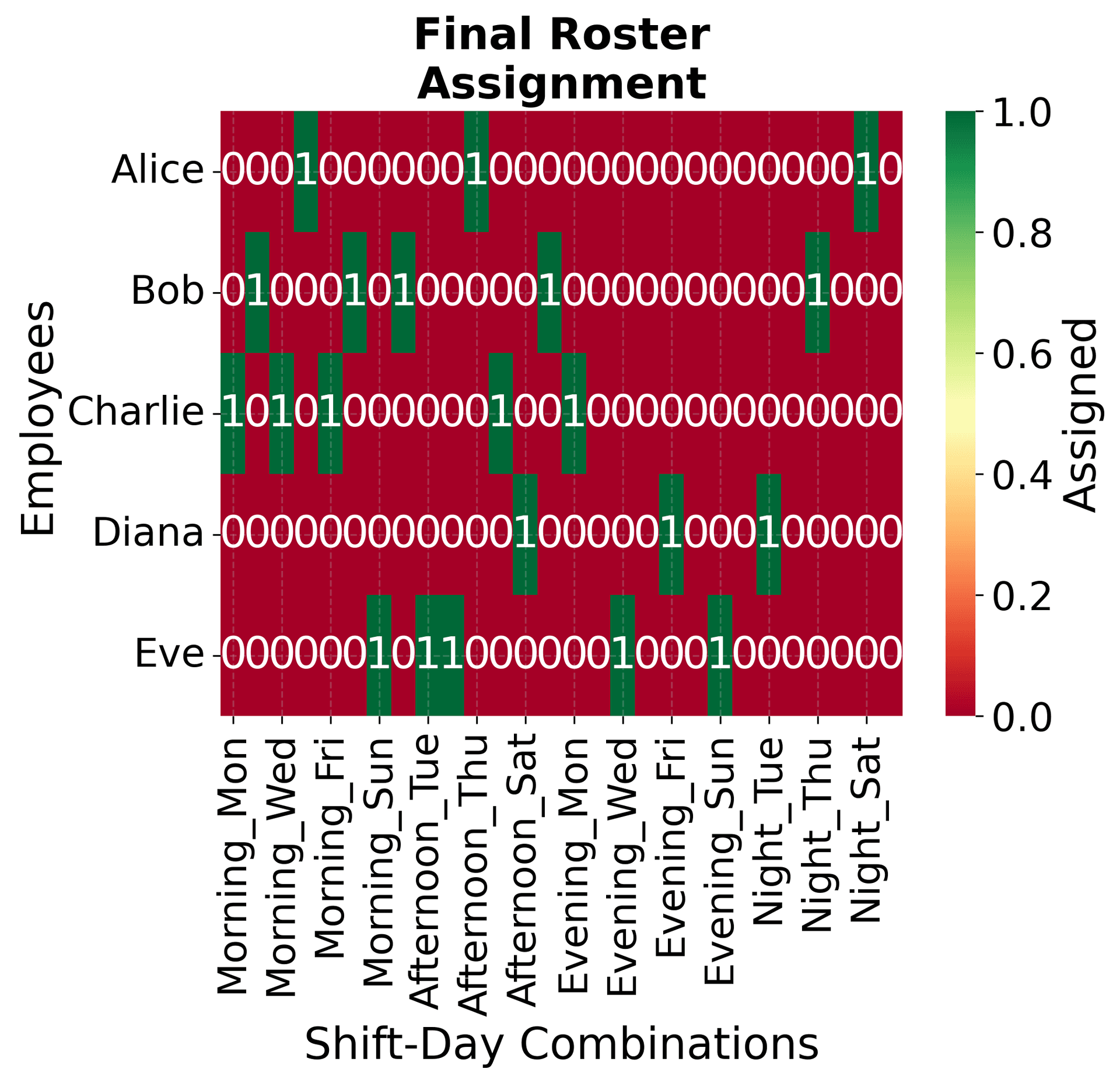

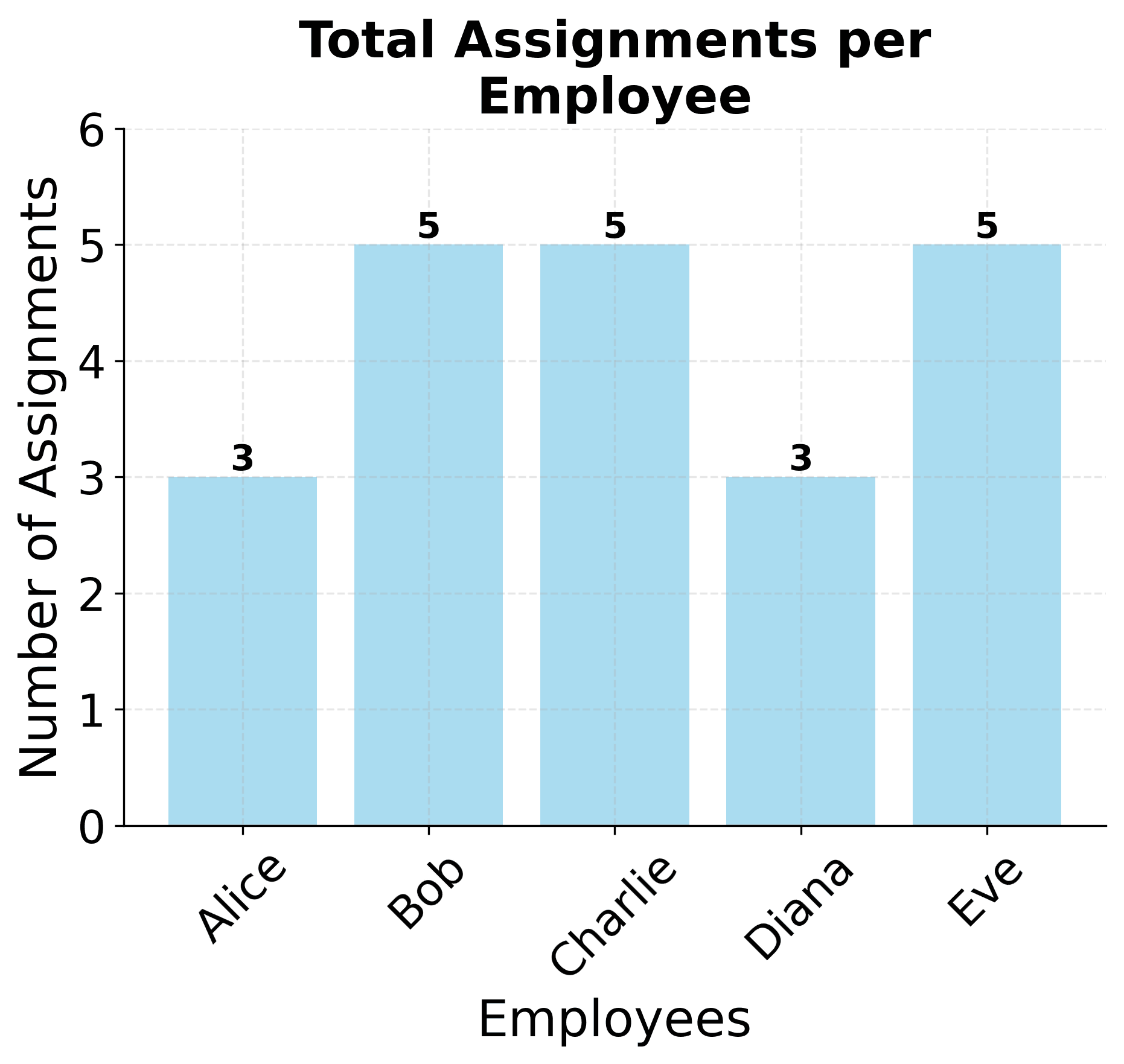

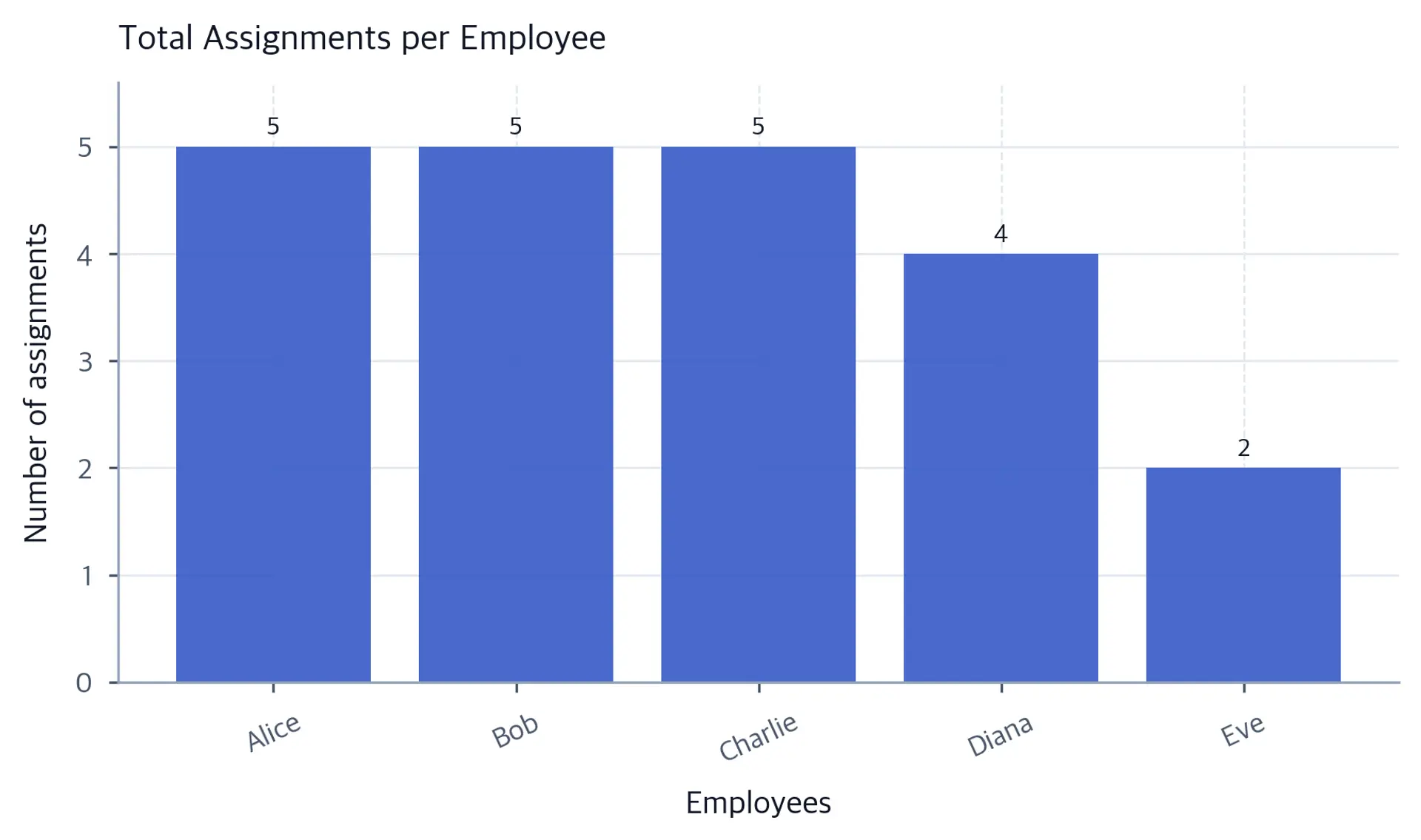

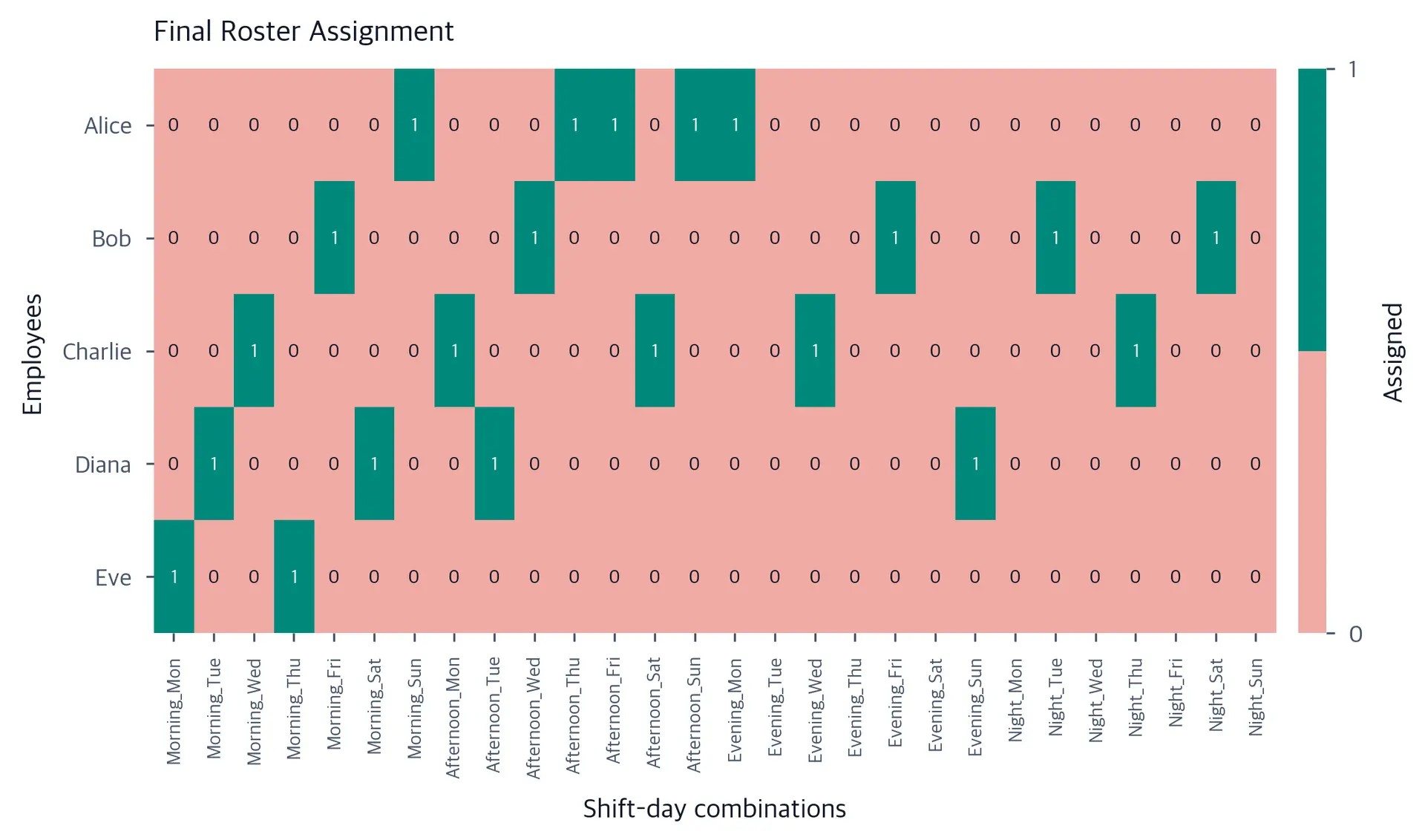

The CP-SAT solver's solution can be visualized to understand how the optimization process assigns employees to shifts. These visualizations reveal the final schedule structure and help assess the quality and fairness of the solution. The assignment matrix shows exactly which employees are scheduled for each shift, while the workload distribution chart helps evaluate whether the solution provides balanced assignments across all employees.

Implementation

Let's work through a detailed implementation to understand how CP-SAT rostering works step by step. We'll create a small problem with 3 employees, 2 shifts, and 3 days to make the calculations manageable and easy to follow.

Step 1: Problem Setup

First, we define our problem parameters including employees, shifts, and scheduling period. This creates the foundation for our rostering problem:

The problem setup includes 3 employees, 2 shift types, and 3 days, creating 18 decision variables (3 × 2 × 3). The availability matrix reveals which employees can work specific shifts. For example, Alice is available for all Day shifts but only Monday Night shift. The required staff matrix shows our coverage targets, with Day shifts needing 2, 2, and 1 staff across the three days, and Night shifts each needing 1 staff member. This foundation provides sufficient employees and reasonable availability patterns to find a feasible solution.

Step 2: Model Construction

Now we build the CP-SAT model step by step. This involves creating the mathematical model and adding constraints that represent our business rules.

Adding Coverage Constraints: These ensure each shift has the required number of staff. This is an important constraint as it directly affects operational requirements:

Adding Availability Constraints: These respect employee schedules and prevent assignments when employees are unavailable:

Adding Workload Constraints: These limit the maximum number of shifts per employee to ensure fair workload distribution:

The model construction creates 18 binary decision variables (one for each employee-shift-day combination) and adds constraints that encode our business rules. The coverage constraints ensure each shift meets staffing requirements. For example, Monday Day shift must have exactly 2 employees assigned. The availability constraints prevent impossible assignments, such as Bob working Tuesday Day shift when he's unavailable. The maximum shifts constraint limits each employee to at most 3 shifts during the 3-day period, ensuring fair workload distribution. Together, these constraints define the feasible solution space that the solver will search.

Step 3: Model Solving

Now we solve the model and extract the solution. This is where the CP-SAT solver finds assignments that satisfy all our constraints:

The solver successfully found a feasible solution that satisfies all constraints. The solve time is typically under 0.1 seconds for small problems like this one, which indicates good performance. The solution shows that all required shifts are covered while respecting employee availability and workload limits. The total assignments match the required assignments, confirming that coverage constraints are satisfied. This result demonstrates that the solver found a feasible assignment that meets all business requirements, including coverage, availability, and maximum shift constraints.

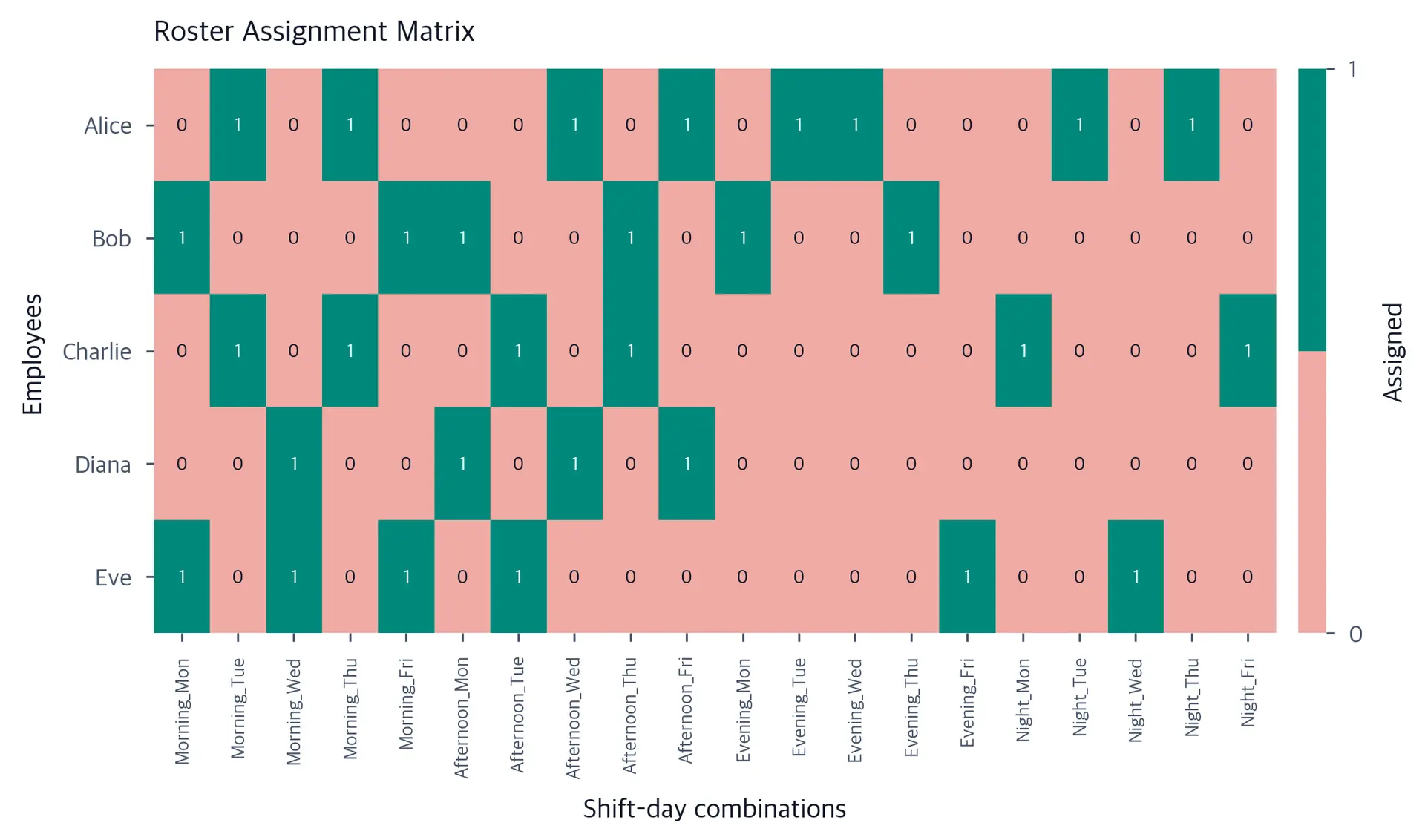

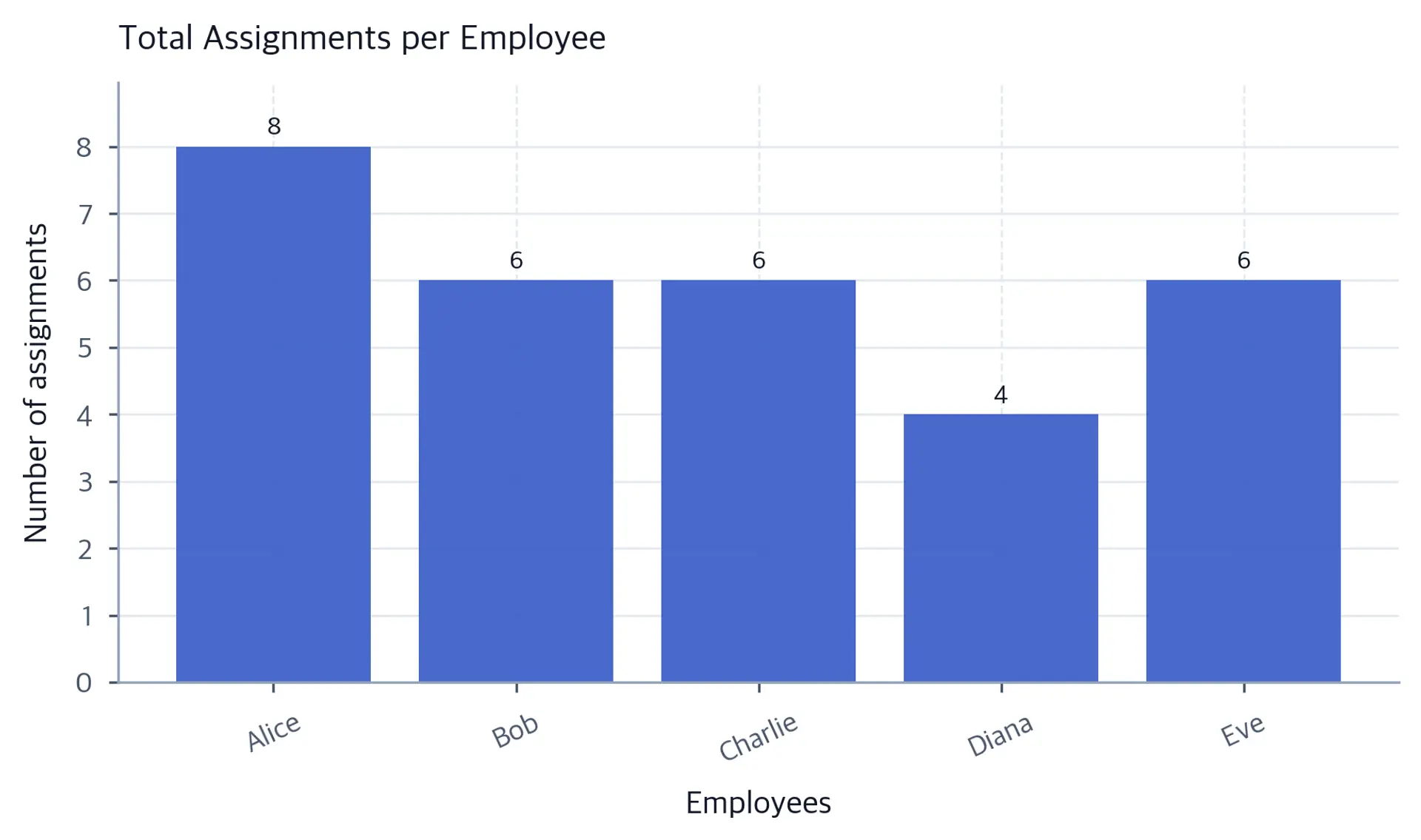

Advanced Implementation with Google OR-Tools

For production systems, we need a more comprehensive approach. Google OR-Tools provides a robust CP-SAT solver that can handle complex rostering problems with advanced features. Let's implement a complete rostering system that demonstrates real-world capabilities.
