N-BEATS: Neural Basis Expansion Analysis for Time Series

N-BEATS (Neural Basis Expansion Analysis for Time Series) is a deep learning architecture specifically designed for time series forecasting that combines the interpretability of traditional statistical methods with the flexibility of neural networks. Unlike many black-box deep learning approaches, N-BEATS provides clear insights into how it makes predictions by decomposing forecasts into interpretable components like trend and seasonality.

The architecture was introduced to address a fundamental challenge in time series forecasting: creating models that are both highly accurate and interpretable. Traditional statistical methods like ARIMA or exponential smoothing are interpretable but may lack the flexibility to capture complex patterns, while deep learning models can capture intricate relationships but often operate as black boxes. N-BEATS bridges this gap by using a specialized neural network architecture that explicitly models trend and seasonal components.

N-BEATS operates by learning to decompose time series into interpretable basis functions, similar to how Fourier analysis breaks down signals into sine and cosine components. The model learns to identify and extrapolate trends and seasonal patterns separately, then combines them to produce forecasts. This decomposition approach makes the model's predictions transparent and allows practitioners to understand which components are driving the forecast.

Advantages

N-BEATS offers several key advantages that make it particularly valuable for time series forecasting. First, its interpretable architecture allows you to understand exactly how the model makes predictions by examining the trend and seasonal components separately. This transparency is important for business applications where stakeholders need to understand and trust the forecasting process. The model can identify whether a forecast is driven primarily by trend, seasonality, or both, providing valuable insights for decision-making.

Second, N-BEATS demonstrates strong performance across diverse time series without requiring extensive hyperparameter tuning or domain-specific knowledge. The architecture is designed to be robust and general-purpose, often outperforming both traditional statistical methods and other deep learning approaches on standard benchmarks. This makes it particularly valuable when working with multiple time series that may have different characteristics.

Finally, the model's modular design allows for easy extension and customization. You can modify the basis functions, add new components, or adjust the architecture to better suit specific forecasting problems. This flexibility makes N-BEATS adaptable to various domains, from financial forecasting to demand planning and beyond.

Disadvantages

Despite its strengths, N-BEATS has several limitations that practitioners should consider. The model's computational requirements can be substantial, especially for long time series or when training on large datasets. The deep architecture with multiple fully connected layers requires significant computational resources, which may limit its applicability in resource-constrained environments or when real-time forecasting is needed.

Another limitation is that N-BEATS assumes the time series can be decomposed into trend and seasonal components, which may not always be appropriate. Some time series have complex, non-stationary patterns that don't fit this decomposition framework well. In such cases, the model may struggle to capture the underlying dynamics effectively, leading to poor forecasts.

The model also requires sufficient historical data to learn the underlying patterns effectively. For very short time series or those with limited historical context, N-BEATS may not have enough information to identify meaningful trends and seasonality, potentially leading to overfitting or poor generalization. Additionally, the interpretability comes at the cost of some flexibility compared to more general deep learning architectures that can capture arbitrary non-linear relationships.

Formula

Imagine you're analyzing monthly sales data for a retail store. The numbers tell a story: steady growth over the years, but also predictable spikes every December. The challenge is that these two patterns, the long-term growth and the seasonal cycles, are woven together in a single stream of numbers. How do we separate them? More importantly, how do we predict future values when both patterns might evolve in complex ways?

This is the fundamental problem N-BEATS addresses: forecasting time series that contain multiple overlapping patterns. The solution lies in a mathematical idea called basis expansion, the same principle that allows us to decompose a musical chord into individual notes, or break down a complex signal into simpler frequencies.

The Core Insight: Decomposition as the Foundation

Before diving into formulas, let's build intuition. When you look at a time series, what you're seeing is the sum of different underlying forces:

1. Long-term trends: The overall direction. Is the business growing, declining, or stable?
2. Seasonal patterns: Repeating cycles. Do sales peak in certain months, days, or seasons?
3. Random noise: Unpredictable fluctuations that we can't model

The key insight is that if we can mathematically separate these components, we can:

• Understand what's driving our forecasts (interpretability)
• Extrapolate each component independently (flexibility)
• Learn the right combination from data (adaptability)

This separation is exactly what N-BEATS does. The model doesn't just predict numbers. It decomposes the time series into interpretable building blocks, then combines them to produce forecasts.

Formalizing the Decomposition

To make this intuition precise, N-BEATS expresses any time series value $y_t$ as the sum of trend components, seasonal components, and a small error term. This is the fundamental decomposition structure:

where:

• $y_t$: observed value at time $t$
• $g_k^t(x_t)$: contribution of the $k$-th trend basis function at time $t$ (captures long-term patterns)
• $g_k^s(x_t)$: contribution of the $k$-th seasonal basis function at time $t$ (captures periodic patterns)
• $K$: number of basis functions for each component type
• $\epsilon_t$: error term (residual noise we can't predict)
• $x_t$: input features at time $t$ (typically a window of historical values)

Why this structure matters: This equation tells us that every observation is built from two types of interpretable components plus noise. The trend components capture long-term direction and growth patterns, while the seasonal components capture repeating cycles. By separating these, we can understand not just what the forecast is, but why it takes that value.

Note: When making forecasts, this decomposition is applied at each forecast horizon $h$. The basis functions $g_k^t$ and $g_k^s$ are evaluated using coefficients learned by the neural network, which we'll see in detail below.

But here's the key question: How do we choose the right basis functions $g_k^t$ and $g_k^s$? We need functions that:

1. Can represent the types of patterns we see in real time series
2. Allow us to learn how much each function contributes to the forecast
3. Maintain interpretability so we can understand what's driving predictions

This is where N-BEATS' mathematical design addresses each component systematically.

Trend Basis Functions: Capturing Growth Patterns

When we examine a time series, trends reveal the underlying direction of change. But trends come in many shapes:

• A startup's revenue might grow steadily month after month (linear growth)
• A company gaining market share might start slow and accelerate as it scales (quadratic growth)
• A product lifecycle might show growth, then plateau, then decline (cubic with inflection points)

The challenge: We don't know in advance which pattern our time series will exhibit. We need a flexible way to represent all these possibilities.

Why polynomials? Polynomials are mathematical functions that can represent different types of growth patterns. The key insight is that we don't have to choose just one. We can include multiple polynomial degrees and let the model learn how much each one contributes. This is the foundation of N-BEATS' trend modeling.

For a forecast horizon $H$ (the number of future periods we want to predict), we compute the trend component at each forecast step $h$. The trend component at horizon $h$ is:

where:

• $\alpha_{k,h}$: learned coefficient for the $k$-th trend basis function at forecast horizon $h$
• $H$: total forecast horizon (e.g., 6 months, 12 months)
• $h$: specific forecast step within the horizon ($h \in \{1, 2, \ldots, H\}$)
• $k$: polynomial degree (typically $k \in \{1, 2, 3\}$)
• $K$: number of polynomial basis functions used

Understanding the normalization: The term $\left(\frac{h}{H}\right)^k$ is carefully designed. By normalizing the horizon $h$ by the total horizon $H$, we create a scale that ranges from 0 to 1. This normalization is important because it makes the basis functions scale-invariant. The same model architecture works whether we're forecasting 6 months or 12 months ahead. Without this normalization, we'd need different models for different forecast horizons.

How the exponent $k$ shapes the pattern:

The exponent $k$ determines the mathematical shape of the trend pattern:

1. $k=1$ (linear): The function $\frac{h}{H}$ creates a straight line. This works well for steady, consistent growth or decline. If the learned coefficient $\alpha_{1,h}$ is positive, the trend increases linearly; if negative, it decreases linearly.

2. $k=2$ (quadratic): The function $\left(\frac{h}{H}\right)^2$ creates a curve that accelerates or decelerates. This captures scenarios where growth starts slow and speeds up (positive acceleration), or starts fast and slows down (negative acceleration).

3. $k=3$ (cubic): The function $\left(\frac{h}{H}\right)^3$ creates more complex curves with inflection points, places where the curve changes direction. This allows the model to capture trends that grow, plateau, and then decline, or other complex directional changes.

The power of learned coefficients: The coefficients $\alpha_{k,h}$ make this approach flexible. Rather than forcing a single polynomial degree, N-BEATS learns coefficients for multiple degrees simultaneously. The neural network examines the historical data and automatically determines: "This time series needs 70% linear trend, 20% quadratic trend, and 10% cubic trend."

This automatic selection makes N-BEATS both flexible (it adapts to different patterns) and interpretable (we can see which trend components are driving the forecast). The model fits a curve by decomposing the trend into understandable components.

Seasonal Basis Functions: Modeling Periodic Patterns

While trends capture long-term direction, seasonal patterns capture repeating cycles. Think of retail sales: they might peak every December (yearly seasonality), or show weekly patterns with higher sales on weekends. These patterns repeat at regular intervals, creating waves in the time series.

The challenge: Seasonal patterns can have different shapes. Some are smooth sine waves, others have multiple peaks and valleys within a single cycle. How do we represent all these possibilities?

Why trigonometric functions? Trigonometric functions (sine and cosine) are the natural mathematical language for periodic patterns. This isn't arbitrary. It's grounded in Fourier analysis, which tells us that any periodic signal can be decomposed into sine and cosine waves. This theoretical foundation gives us confidence that trigonometric basis functions can represent the seasonal patterns we see in real time series.

The seasonal component at forecast horizon $h$ is:

where:

• $\beta_{k,h}, \gamma_{k,h}$: learned coefficients for sine and cosine components of the $k$-th harmonic at forecast horizon $h$
• $P$: seasonal period (e.g., 12 for monthly data with yearly seasonality)
• $k$: harmonic frequency (typically $k \in \{1, 2, 3, 4\}$)
• $h$: specific forecast step within the horizon ($h \in \{1, 2, \ldots, H\}$)
• $K$: number of harmonic basis functions used

Why both sine and cosine? This is an important question. A pure sine wave starts at zero and oscillates, but real seasonal patterns can start at any point in the cycle. For example, retail sales might peak in December (month 12), but a sine wave that starts at zero would peak at a different time.

The solution lies in phase shifts. Mathematically, any sinusoidal pattern can be written as $A \sin(\omega t + \phi)$, where $\phi$ is the phase shift. Using trigonometric identities, this can be expanded to $A_1 \sin(\omega t) + A_2 \cos(\omega t)$. By combining sine and cosine with learned coefficients, we can represent any phase-shifted pattern. The coefficients $\beta_{k,h}$ and $\gamma_{k,h}$ automatically learn the right combination to match the phase of the actual seasonal pattern.

Understanding harmonics with parameter $k$: The parameter $k$ controls the frequency of oscillations. When $k=1$, we capture the fundamental seasonal pattern, the main yearly cycle, for example. But real seasonal patterns are often more complex.

Consider a retail time series: it might have a yearly cycle (higher in December) but also sub-cycles within the year (higher in spring and fall). Higher values of $k$ capture these harmonics:

• $k=1$: The fundamental pattern (one complete cycle per period)
• $k=2$: Patterns that repeat twice per cycle (e.g., spring and fall peaks)
• $k=3$: Patterns that repeat three times per cycle
• $k=4$: Even more complex patterns with multiple peaks and valleys

By including multiple harmonics, N-BEATS can represent complex seasonal patterns that have multiple peaks and valleys within a single cycle. The model learns which harmonics are needed for each specific time series.

The role of period $P$: The period $P$ determines the length of one complete cycle. For monthly data with yearly seasonality, $P=12$ means the pattern repeats every 12 months. The model learns the coefficients $\beta_{k,h}$ and $\gamma_{k,h}$ to determine both:

1. Amplitude: How strong the seasonal effect is (the height of the peaks)
2. Phase: When the peaks and valleys occur (the timing within the cycle)

This automatic learning allows the model to adapt to different seasonal patterns without manual tuning. The same architecture can handle yearly seasonality ($P=12$), quarterly patterns ($P=4$), or weekly patterns ($P=7$), simply by adjusting the period parameter.

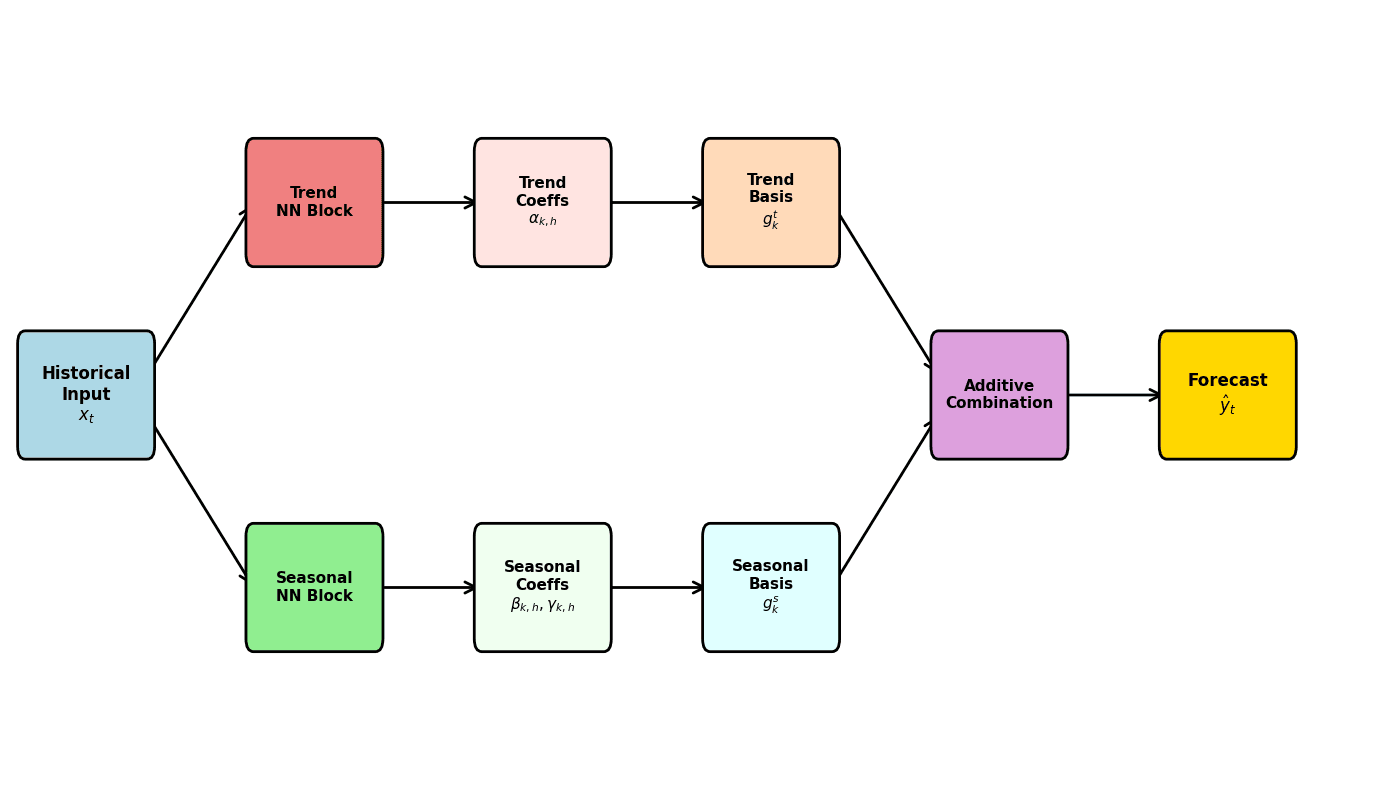

Neural Network Architecture: Learning Coefficients from Data

Here's where N-BEATS becomes particularly effective: the coefficients $\alpha_{k,h}$, $\beta_{k,h}$, and $\gamma_{k,h}$ are not fixed values chosen by hand, but are learned automatically from data by a neural network. This automatic learning makes N-BEATS adaptive and general-purpose.

The network examines historical patterns in your specific time series and automatically determines: "For this particular dataset, I need 60% linear trend, 30% quadratic trend, and 10% cubic trend, with a seasonal pattern that peaks in month 6 and has a secondary peak in month 12." Feed it different data, and it learns a different decomposition.

Why a neural network? The relationship between historical patterns and future coefficients is complex and non-linear. Consider this: if recent values are increasing rapidly, we might need strong linear and quadratic trend components. But if the increase is accelerating, we might need more quadratic than linear. If there's a seasonal peak approaching, we need specific sine/cosine coefficients to capture that phase.

A simple linear model couldn't capture these nuanced relationships. The neural network learns these patterns through training, discovering relationships that would be difficult to specify manually.

The learning mechanism: The network takes a window of historical values as input and outputs all the coefficients needed for forecasting:

where:

• $\boldsymbol{\theta} = [\alpha_{1,1}, \alpha_{1,2}, \ldots, \beta_{1,1}, \beta_{1,2}, \ldots, \gamma_{1,1}, \gamma_{1,2}, \ldots]^T$: vector of all coefficients
• $\mathbf{x}_t$: input features (typically a window of historical values)
• $\text{NN}(\cdot)$: neural network function

How the network processes information: The neural network consists of multiple fully connected layers that transform the input historical data into the coefficient vector. Think of each layer as learning increasingly abstract patterns:

1. First layer: Detects simple features like "recent values are increasing" or "there's a peak in the last 12 months"
2. Second layer: Combines these simple features into more complex patterns like "accelerating growth with seasonal peaks" or "steady decline with quarterly cycles"
3. Final layer: Translates these abstract patterns into the specific coefficients needed for forecasting

The mathematical structure: Each layer applies a linear transformation followed by a ReLU activation:

where:

• $\mathbf{x}_t$: input vector (window of historical time series values)
• $\mathbf{h}_1, \mathbf{h}_2$: hidden layer activations (intermediate representations)
• $\mathbf{W}_i$: weight matrix for layer $i$ (learned parameters that transform the input)
• $\mathbf{b}_i$: bias vector for layer $i$ (learned parameters that shift the transformation)
• $\boldsymbol{\theta}$: output vector containing all learned coefficients $[\alpha_{1,1}, \alpha_{1,2}, \ldots, \beta_{1,1}, \beta_{1,2}, \ldots, \gamma_{1,1}, \gamma_{1,2}, \ldots]^T$
• $\text{ReLU}(z) = \max(0, z)$: Rectified Linear Unit activation function (applied element-wise)

Why ReLU activation? The ReLU (Rectified Linear Unit) activation function introduces non-linearity by setting negative values to zero. This is important because it allows the network to learn complex, non-linear relationships between historical patterns and future coefficients. Without this non-linearity, the network would only be able to learn linear relationships, severely limiting its ability to capture the complex patterns in time series data.

Interpreting coefficients: The final layer outputs the coefficient vector $\boldsymbol{\theta}$ without activation, as coefficients can be positive or negative. This design choice is important:

• A positive coefficient means that basis function contributes positively to the forecast (e.g., increasing trend, seasonal peak)
• A negative coefficient means it contributes negatively (e.g., decreasing trend, seasonal trough)

This allows the model to represent both upward and downward patterns, and to cancel out components when needed to match the actual time series behavior.

Loss Function: Guiding the Learning Process

We've seen how N-BEATS represents time series using basis functions and how the neural network learns coefficients. But here's an important question: How does the network know if it's learning the right coefficients?

This is where the loss function comes in. It measures how well the model's predictions match the actual values, providing feedback that guides the learning process. Without this feedback mechanism, the network would have no way to know whether its learned coefficients are producing good forecasts.

The optimization objective: The model learns the optimal coefficients by minimizing prediction error on training data. The loss function measures how far the model's predictions are from the actual values using mean squared error:

where:

• $N$: total number of predictions (across all training samples and forecast horizons)
• $\hat{y}_i$: predicted value for the $i$-th prediction
• $y_i$: actual value for the $i$-th prediction
• $\mathcal{L}$: mean squared error loss

In practice, for multi-step forecasting with $T$ training samples and forecast horizon $H$, we have $N = T \cdot H$ total predictions, and the loss averages the squared errors across all of them.

Why mean squared error? This is the mean squared error (MSE), which penalizes large prediction errors more than small ones. Squaring the errors means that being off by 10 units is penalized 100 times more than being off by 1 unit. This encourages the model to avoid large mistakes, which is particularly important in forecasting where a few large errors can be more costly than many small ones.

How predictions are computed: For each forecast horizon $h$, the predicted value $\hat{y}_{t+h}$ is computed by combining the trend and seasonal components:

where:

• $\hat{y}_{t+h}$: predicted value at time $t+h$ (forecast $h$ steps ahead)
• $\text{trend}_h$: trend component at forecast horizon $h$
• $\text{seasonal}_h$: seasonal component at forecast horizon $h$
• All other symbols are as defined previously

This is where everything comes together: the basis functions are evaluated at each forecast step $h$ using the learned coefficients, then combined additively to produce the forecast.

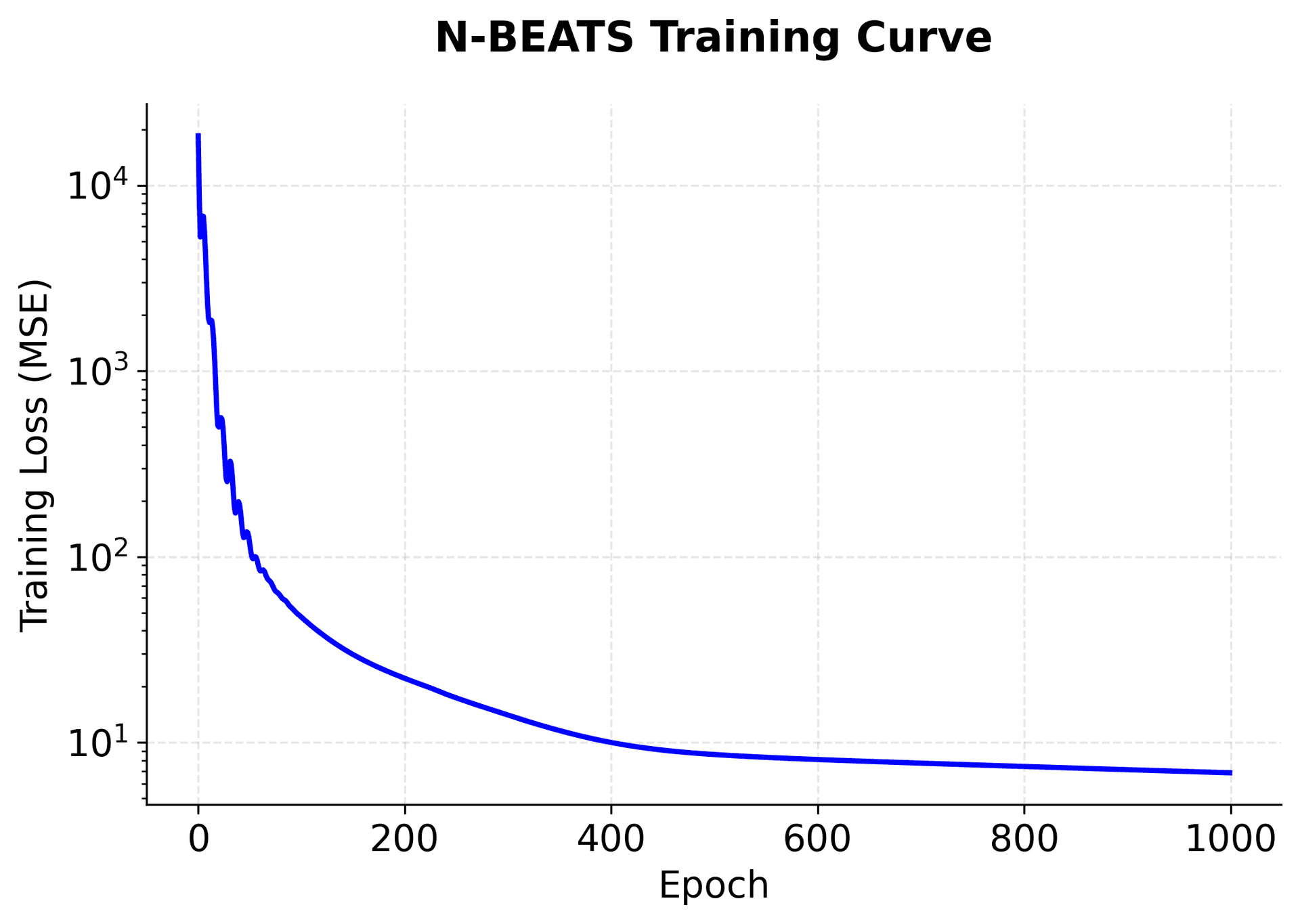

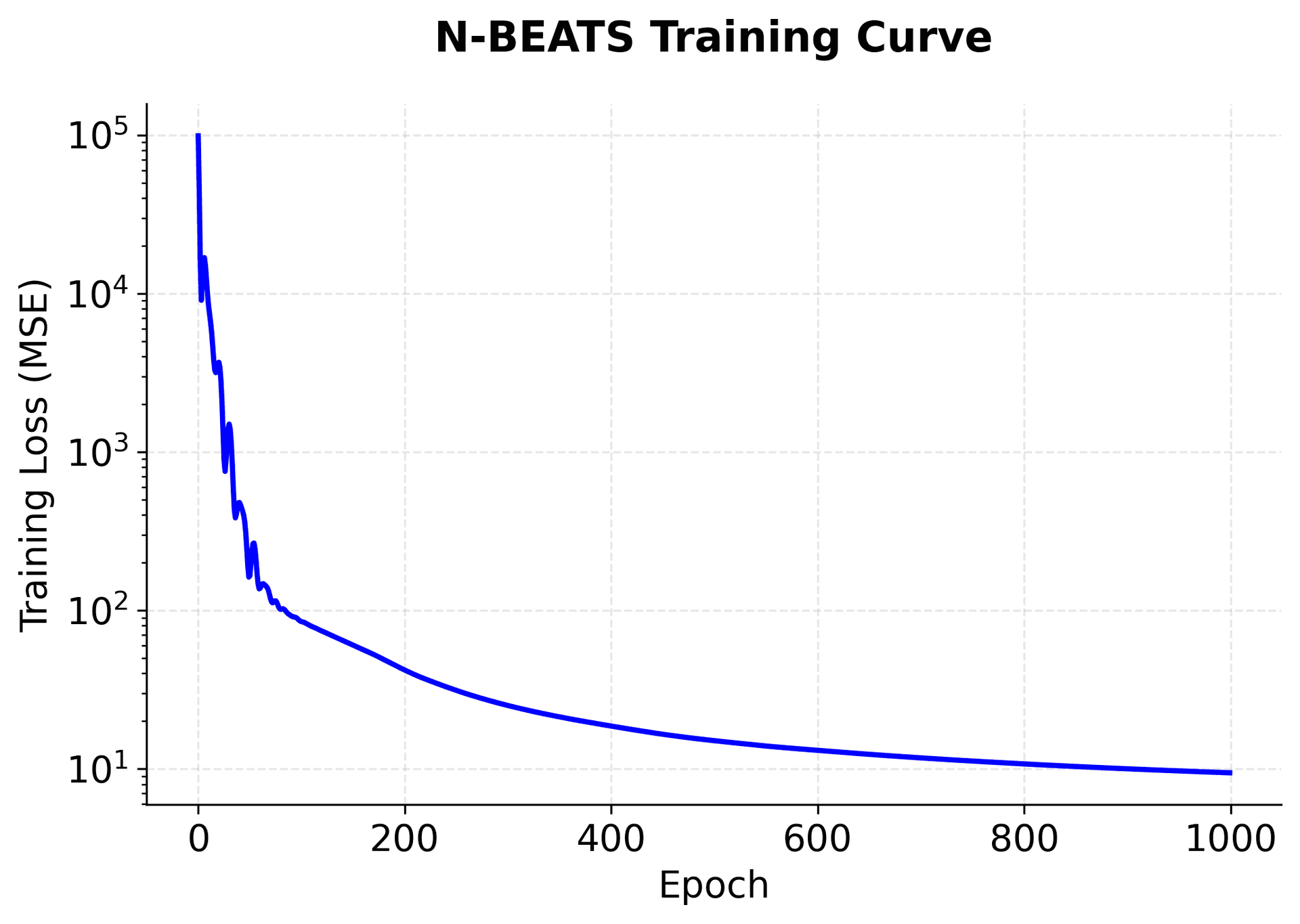

The learning process: During training, the neural network adjusts its weights through backpropagation to minimize this loss. The process works iteratively:

1. The network makes a prediction using current coefficients
2. It compares the prediction to the actual value
3. It calculates the loss (how far off it was)
4. It adjusts its weights to reduce the loss
5. Repeat over many iterations

Over many iterations, the network learns to extract coefficients that produce accurate forecasts.

The deeper insight: The loss function measures accuracy and also guides the decomposition. When the model minimizes the loss, it's simultaneously learning:

1. How to separate trend from seasonality: The model needs to figure out which patterns are long-term trends versus repeating cycles
2. Which polynomial degrees are needed: Does this time series need linear, quadratic, or cubic trend components?
3. Which harmonics are needed: What seasonal frequencies are present in the data?
4. The appropriate coefficients: How much should each basis function contribute?

All of this happens automatically through the optimization process. The model doesn't need us to tell it what patterns to look for. It discovers them by minimizing prediction error. This automatic discovery makes N-BEATS both effective (it adapts to different patterns) and general-purpose (the same architecture works across diverse forecasting problems).

Why This Mathematical Framework Works: The Complete Picture

We've now built up the complete mathematical framework, from decomposition to basis functions to neural network learning. Let's step back and understand why this particular combination of ideas is so effective for time series forecasting. Each design choice serves a specific purpose, and together they create a system that is both theoretically sound and practically powerful.

1. Theoretical foundation: The basis expansion approach is grounded in fundamental mathematical theory. Two key theorems guarantee that our approach can represent the patterns we need:

• Weierstrass approximation theorem: Polynomials can approximate any smooth function to arbitrary precision. This means our polynomial trend basis functions can represent any smooth growth pattern we encounter.
• Fourier's theorem: Trigonometric functions can represent any periodic function. This means our trigonometric seasonal basis functions can capture any repeating pattern.

By combining both, we get a framework that's theoretically sound: we know mathematically that our basis functions are capable of representing the types of patterns we see in real time series. This theoretical guarantee gives us confidence that the model architecture isn't fundamentally limited in what it can learn.

2. Additive decomposition for interpretability: The choice to add trend and seasonal components together (rather than multiply them) is important for interpretability. When components are additive, they don't interfere with each other. This means:

• We can examine the trend component and understand long-term growth patterns without seasonal fluctuations obscuring our view
• We can examine the seasonal component and understand periodic patterns without the trend distorting the seasonal shape
• We can see exactly how much each component contributes to the final forecast

This separation makes N-BEATS interpretable: we can see what's driving our forecasts. The additive nature also makes the model robust, as it doesn't impose strong assumptions about how trend and seasonality interact.

3. Automatic adaptation through learning: The neural network learning mechanism transforms this mathematical framework from a theoretical possibility into a practical tool. The network learns coefficients and the right decomposition for each specific time series.

When you feed it historical sales data, it might learn: "This time series needs a strong linear trend with a moderate seasonal pattern that peaks in December." Feed it different data, and it learns a different decomposition. This automatic adaptation makes N-BEATS general-purpose: the same architecture works across diverse forecasting problems without requiring domain-specific knowledge or extensive hyperparameter tuning.

4. Scale invariance: The normalization in the trend basis functions ($\frac{h}{H}$) and the period-based scaling in seasonal functions ($\frac{2\pi k h}{P}$) make the model scale-invariant. This means:

• The same model architecture can work with different forecast horizons (6 months, 12 months, etc.) without modification
• The same architecture can handle different seasonal periods (yearly, quarterly, weekly) by adjusting the period parameter
• The normalization automatically adjusts the basis functions to the appropriate scale

This design choice means we don't need separate models for different forecasting scenarios. One architecture adapts to them all.

The synthesis: Together, these mathematical properties create a forecasting system that is simultaneously interpretable, flexible, and adaptive, a rare combination in the world of deep learning models. The theoretical foundation ensures we're not missing important patterns, the additive decomposition ensures we can understand what we're learning, the neural network ensures we can adapt to any specific time series automatically, and the scale invariance ensures the same architecture works across different forecasting scenarios.

This is the power of N-BEATS: it combines mathematical rigor with practical flexibility, creating a model that is both theoretically sound and practically useful.

Visualizing N-BEATS

Let's create comprehensive visualizations that demonstrate how N-BEATS decomposes time series into interpretable components. These plots will help you understand the model's internal workings and how it separates trend from seasonal patterns.

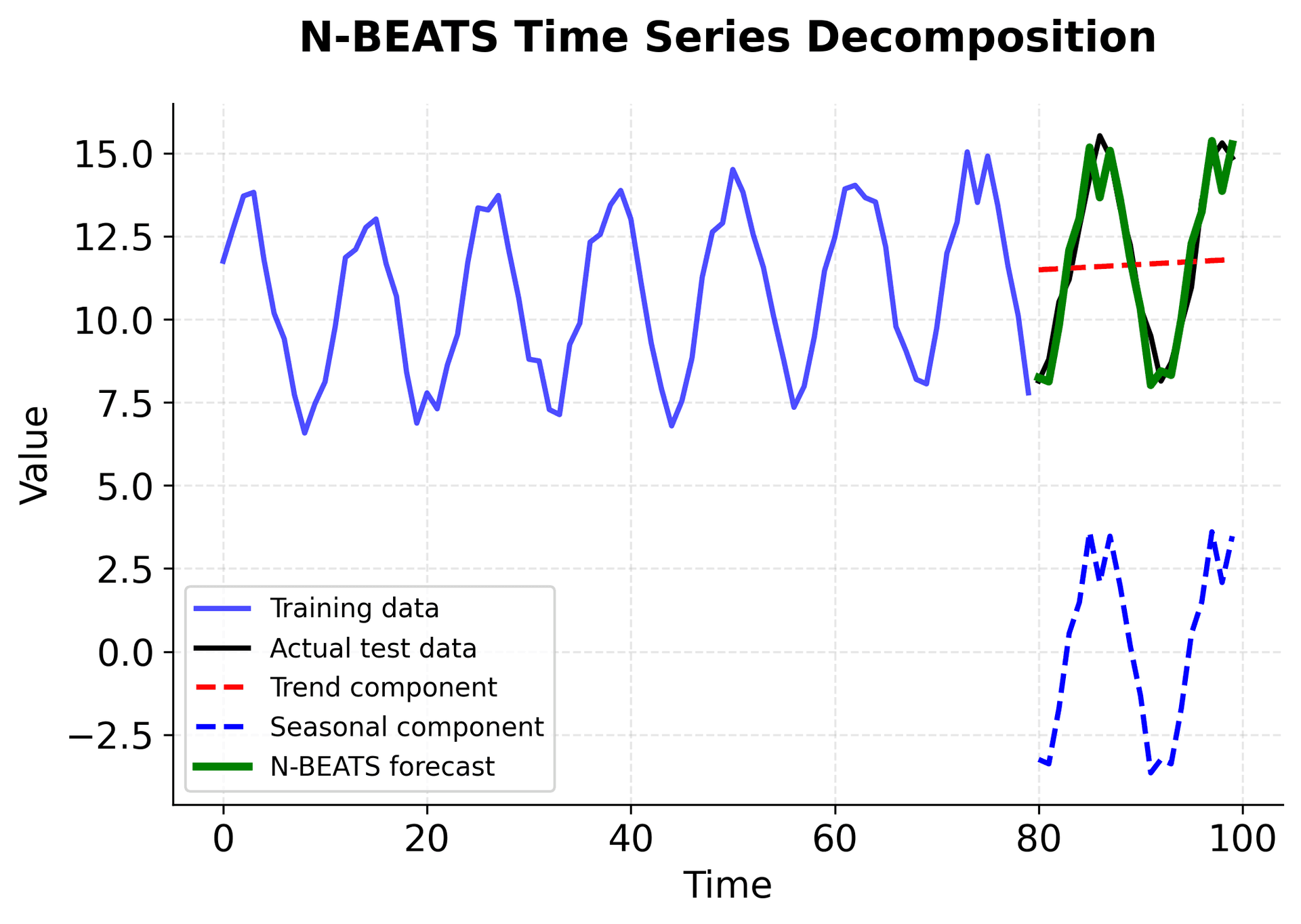

The first plot shows a synthetic time series with both trend and seasonal components, along with N-BEATS' decomposition. You'll see how the model identifies the underlying trend (red line) and seasonal pattern (blue line) separately, then combines them to produce the final forecast (green line). Here you can see the model's ability to separate different types of patterns in the data.

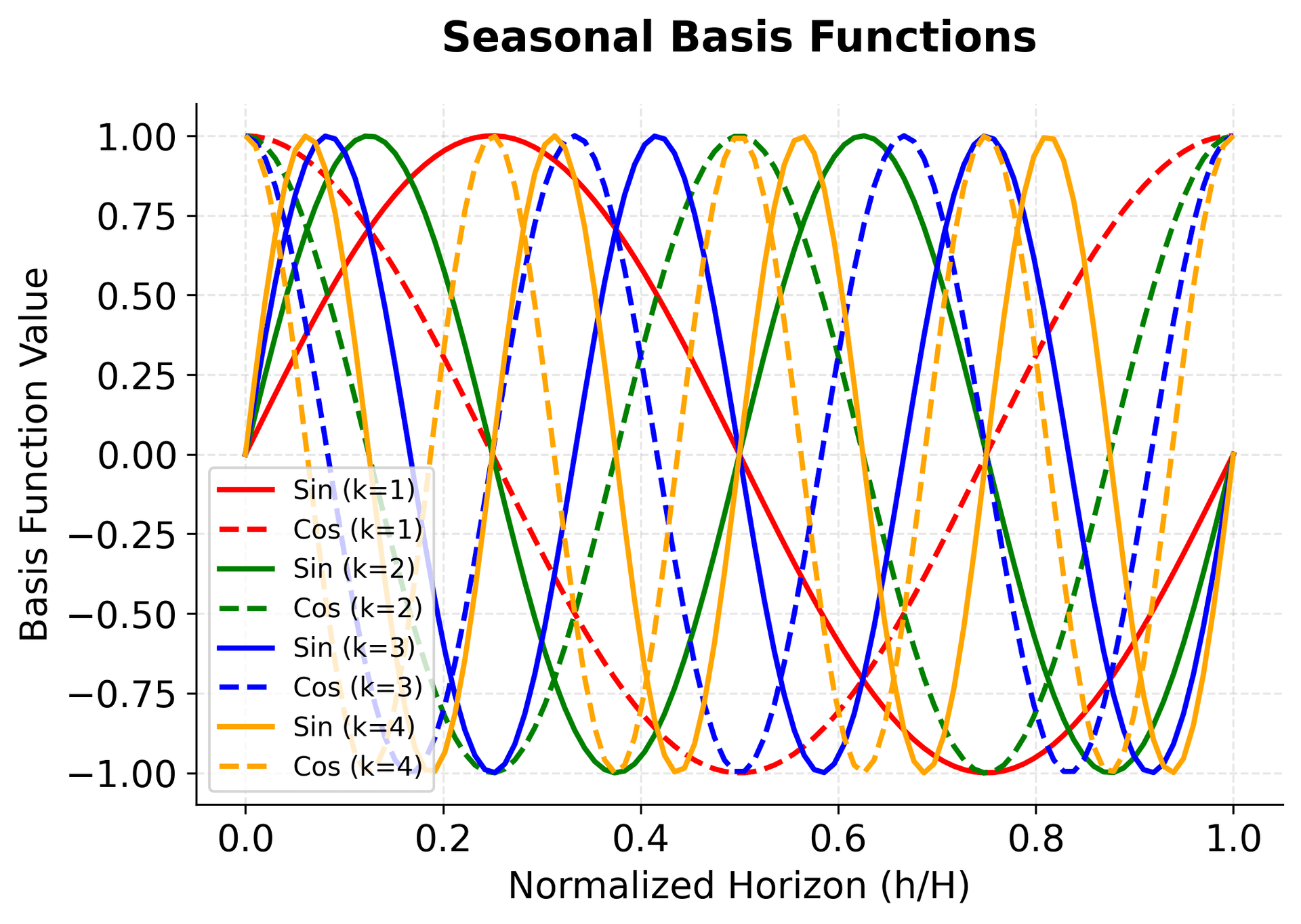

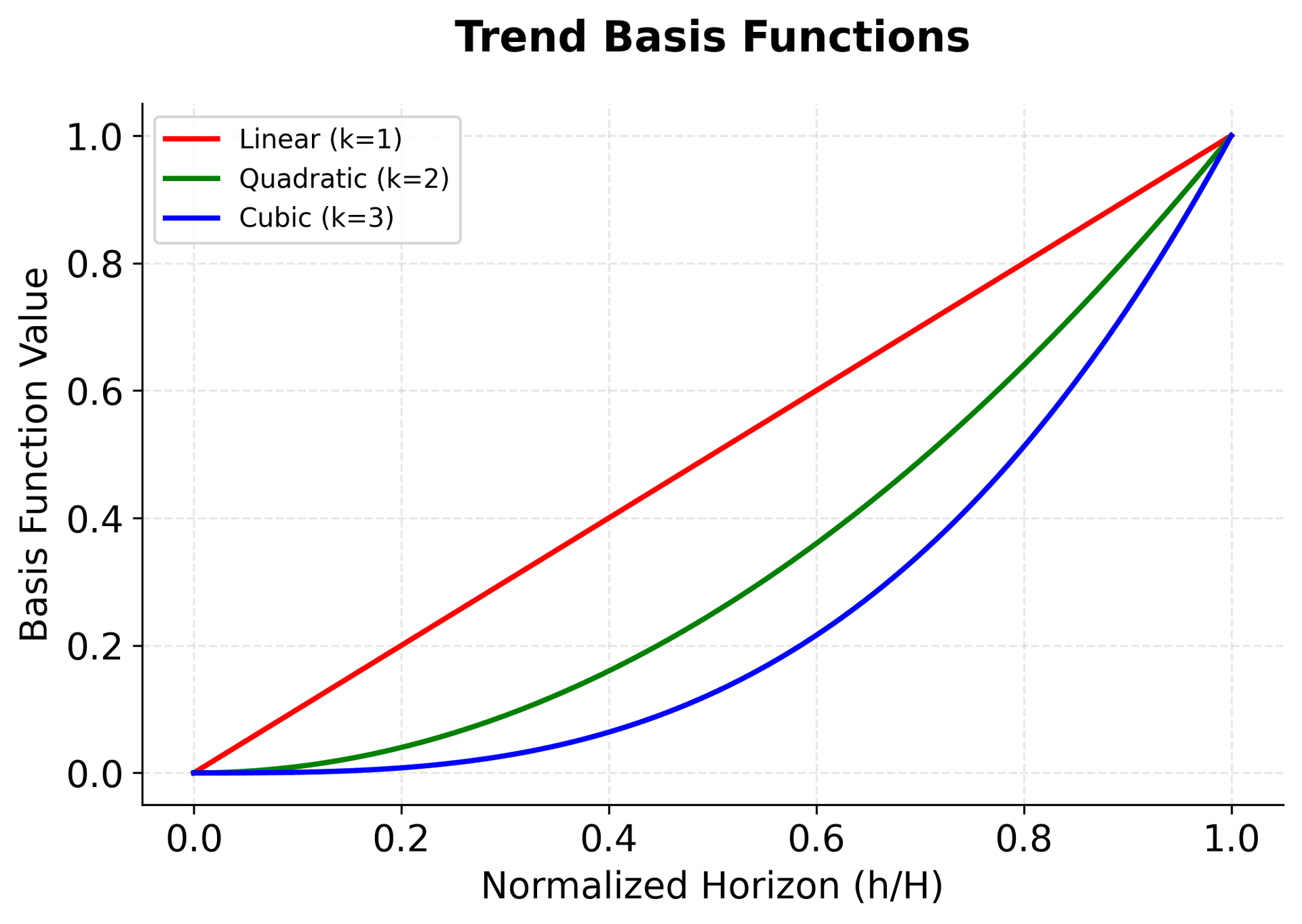

The second and third plots focus on the basis functions themselves, showing how the polynomial trend functions and trigonometric seasonal functions work. These plots help you understand the mathematical foundation of the decomposition and how different basis functions contribute to the overall forecast.

Example

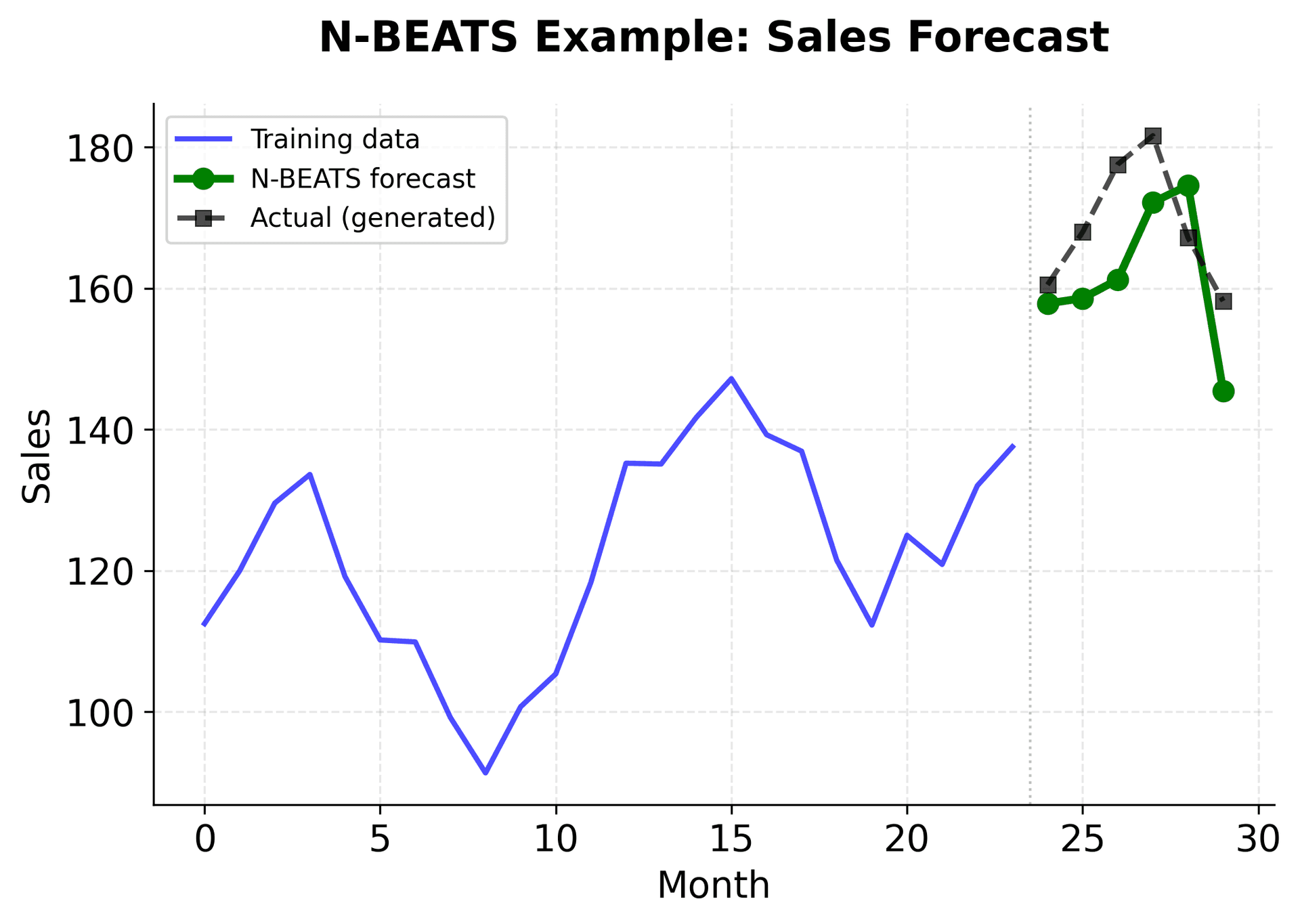

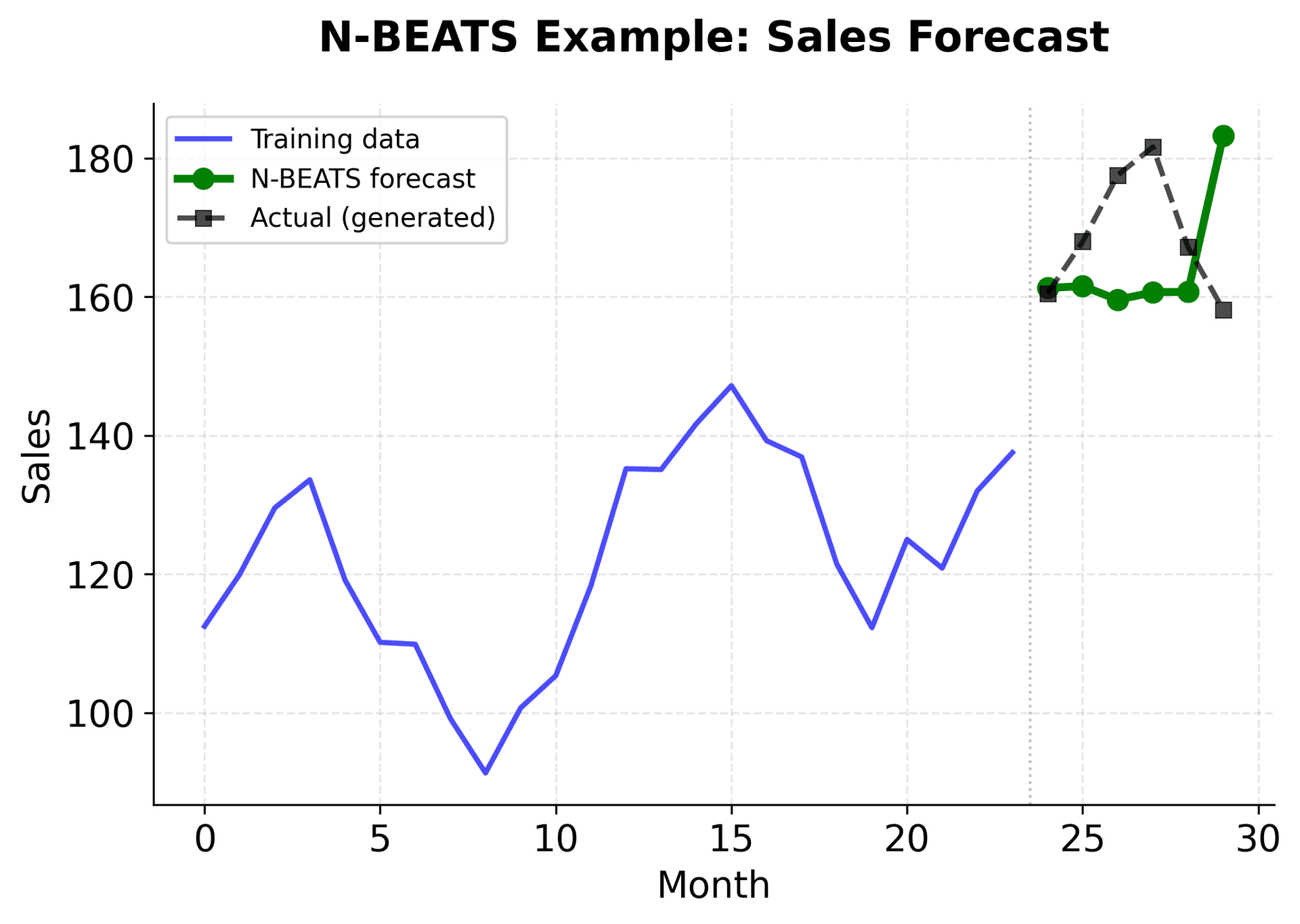

Now that we understand the mathematical framework, let's see N-BEATS in action. We'll work through a concrete example that demonstrates how the formulas we've discussed translate into a working forecasting model.

The scenario: Suppose we have monthly sales data for a retail store over 24 months, and we want to forecast the next 6 months. This is a realistic forecasting problem where we need to separate the underlying growth trend from seasonal patterns.

What we'll learn: Through this example, you'll see:

• How the decomposition formula $y_t = \sum_{k=1}^{K} g_k^t(x_t) + \sum_{k=1}^{K} g_k^s(x_t) + \epsilon_t$ is applied in practice
• How the neural network learns the coefficients $\alpha_{k,h}$, $\beta_{k,h}$, and $\gamma_{k,h}$ from data
• How the basis functions combine to produce interpretable forecasts

Let's begin by creating synthetic data that mimics a real-world scenario with both trend and seasonality.

Step 1: Prepare the Input Data

First, we need to format our time series data for N-BEATS. The model typically takes a window of historical values as input. This is the $\mathbf{x}_t$ in our formula. We'll create data that has both a linear growth trend and yearly seasonality, which will allow us to see how N-BEATS separates these components:

The sales data shows monthly values with both trend and seasonal components. Notice how the values combine a steady upward trend (the linear growth) with periodic fluctuations (the seasonal pattern). The first 10 months demonstrate the underlying pattern that N-BEATS will learn to decompose and forecast.

What's happening mathematically: This data follows the decomposition formula we discussed: $y_t = \text{trend} + \text{seasonal} + \epsilon_t$. The trend component is $100 + 2t$ (linear growth), the seasonal component is $20\sin(2\pi t/12) + 10\cos(2\pi t/12)$ (yearly cycle), and we've added noise $\epsilon_t$ to make it realistic. N-BEATS will learn to separate these components automatically.

Step 2: Define the N-BEATS Architecture

Now let's implement a simplified version of N-BEATS to understand how it works. This implementation will demonstrate the key components we discussed in the Formula section:

• The neural network that learns coefficients ($\boldsymbol{\theta} = \text{NN}(\mathbf{x}_t)$)
• The trend basis functions ($g_k^t$ with polynomial terms)
• The seasonal basis functions ($g_k^s$ with trigonometric terms)
• The additive combination to produce forecasts

The model architecture has a moderate number of parameters, making it suitable for learning the trend and seasonal patterns in the sales data.

Step 3: Prepare Training Data

We need to create input-output pairs for training:

The sliding window approach creates multiple training samples from the 24 months of data. Each sample uses 12 months as input (this is our $\mathbf{x}_t$) to predict the next 6 months (this is our forecast horizon $H$). This approach allows the model to learn from different segments of the time series, seeing how historical patterns relate to future values.

Why this matters: By creating multiple training samples, we give the neural network many examples of how historical patterns (the input window) should translate into coefficient values (the learned $\alpha_{k,h}$, $\beta_{k,h}$, $\gamma_{k,h}$) that produce accurate forecasts.

Step 4: Train the Model

Now let's train our N-BEATS model. This is where the loss function we discussed comes into play. The model will learn the optimal coefficients by minimizing the mean squared error:

During training, the network will:

1. Make predictions using current coefficients
2. Calculate the loss (how far predictions are from actual values)
3. Adjust its weights to reduce the loss
4. Repeat until the coefficients produce accurate forecasts

The training loss decreases over epochs, indicating that the model is learning to capture the underlying patterns in the sales data. The final loss value shows how well the model fits the training data, with lower values indicating better fit.

What's happening mathematically: As the loss decreases, the neural network is learning the optimal coefficients $\alpha_{k,h}$, $\beta_{k,h}$, and $\gamma_{k,h}$ that minimize prediction error. The network is simultaneously learning:

• How to separate trend from seasonality
• Which polynomial degrees are needed for the trend
• Which harmonics are needed for the seasonality
• The appropriate coefficients for each basis function

Step 5: Make Predictions

Finally, let's use our trained model to make forecasts. This is where all the pieces come together:

1. The neural network takes the last 12 months as input ($\mathbf{x}_t$)
2. It outputs the learned coefficients ($\boldsymbol{\theta} = \text{NN}(\mathbf{x}_t)$)
3. These coefficients are applied to the basis functions ($g_k^t$ and $g_k^s$)
4. The trend and seasonal components are combined additively to produce the forecast

This is the decomposition formula in action. For each forecast horizon $h$, we compute:

The forecast shows the predicted sales values for the next 6 months. These values combine the learned trend and seasonal patterns from the historical data. The model extrapolates the linear growth trend and applies the seasonal pattern learned from the 24 months of training data.

What we've accomplished: This example demonstrates the complete N-BEATS workflow:

1. Decomposition: The model learned to separate the time series into trend and seasonal components, following the formula $y_t = \sum_{k=1}^{K} g_k^t(x_t) + \sum_{k=1}^{K} g_k^s(x_t) + \epsilon_t$

2. Coefficient learning: The neural network automatically learned the coefficients $\alpha_{k,h}$, $\beta_{k,h}$, and $\gamma_{k,h}$ that best fit the data, without us having to specify them manually

3. Basis function application: The learned coefficients were applied to polynomial trend functions and trigonometric seasonal functions, creating interpretable components

4. Additive combination: The trend and seasonal components were combined additively to produce forecasts that we can understand and trust

This is the power of N-BEATS: it combines mathematical rigor (the basis expansion framework) with practical learning (the neural network) to create forecasts that are both accurate and interpretable.

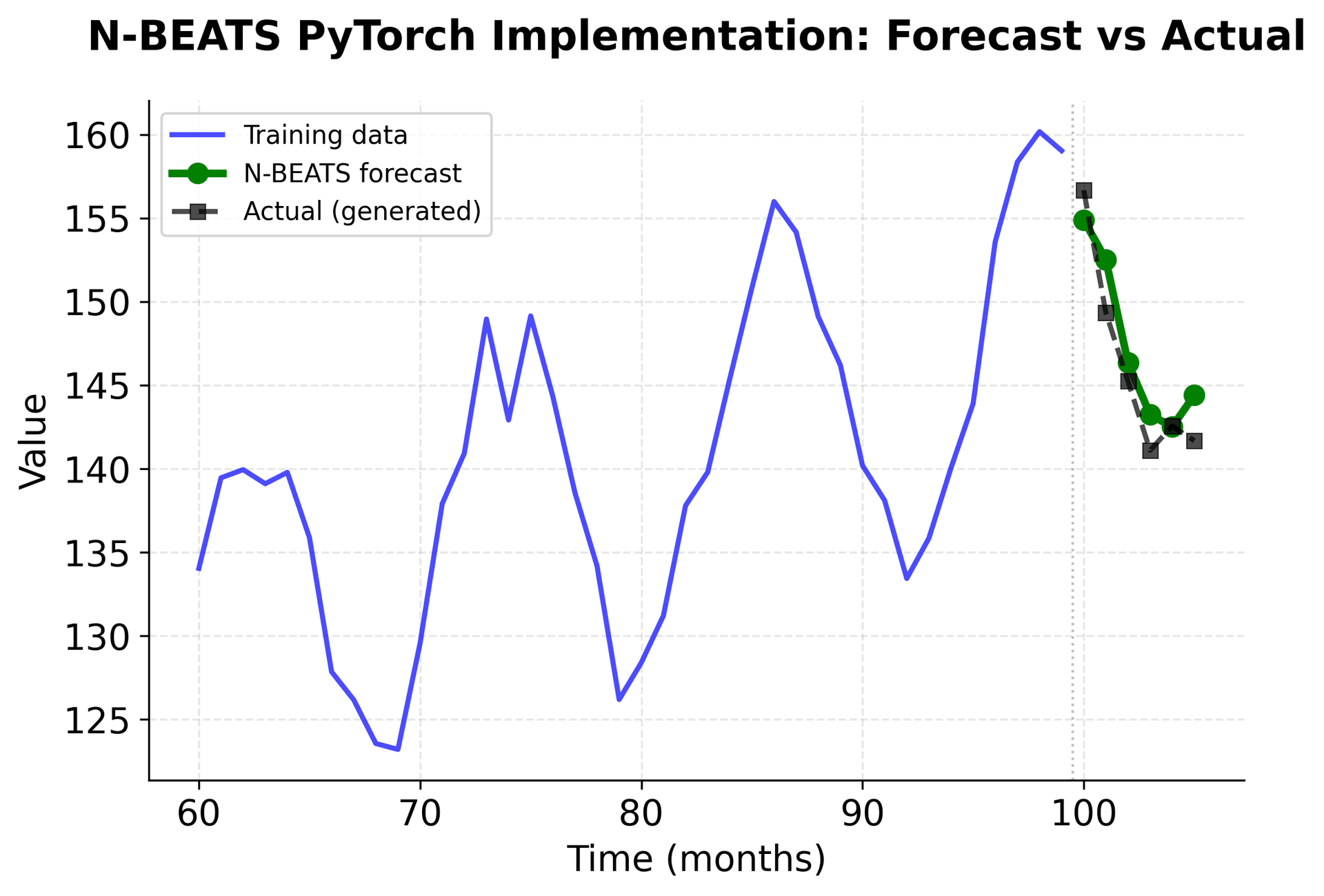

Implementation in PyTorch

Now that we understand the mathematical framework and have seen a working example, let's build a complete, production-ready implementation. This implementation will translate the formulas we've discussed into actual PyTorch code that you can use for your own time series forecasting projects.

What we'll implement: We'll create a full N-BEATS model that includes:

• The neural network architecture that learns coefficients ($\boldsymbol{\theta} = \text{NN}(\mathbf{x}_t)$)
• The trend basis functions ($g_k^t$ with polynomial terms)
• The seasonal basis functions ($g_k^s$ with trigonometric terms)
• The training loop that minimizes the loss function ($\mathcal{L} = \frac{1}{T} \sum_{t=1}^{T} (y_t - \hat{y}_t)^2$)

This implementation follows the mathematical framework we've established, making it easy to see how the formulas translate into code.

Step 1: Import Required Libraries

Step 2: Define the N-BEATS Architecture

The model contains a moderate number of parameters, which balances model capacity with computational efficiency. For this configuration with input_size=12, forecast_horizon=6, and hidden_size=64, the parameter count is reasonable for most time series forecasting tasks. This size allows the model to learn complex patterns without requiring excessive computational resources or risking overfitting on smaller datasets.

Step 3: Data Preparation and Training
