Option Strategies: Spreads, Combinations & Payoff Diagrams

Michael BrenndoerferNovember 13, 202564 min read

Master option strategies by combining basic building blocks. Learn to construct spreads, straddles, and iron condors to visualize payoffs and manage risk.

Reading Level

Choose your expertise level to adjust how many terms are explained. Beginners see more tooltips, experts see fewer to maintain reading flow. Hover over underlined terms for instant definitions.

Option Strategies and Payoff Combinations

Options are powerful financial instruments on their own, but their true versatility emerges when you combine them. A single call option offers asymmetric upside exposure, while a single put option provides downside protection. By combining multiple options with each other or with the underlying asset, you can engineer payoff profiles that precisely match your market view, risk tolerance, and investment objectives.

You rarely trade naked options in isolation. Instead, you construct option strategies, carefully designed combinations that express specific views on direction, volatility, or both. If you believe a stock will move significantly but are unsure of the direction, you might buy both a call and a put. If you want to generate income from a stock position, you might sell calls against it. If you seek to limit downside while maintaining upside participation, you might buy protective puts.

This chapter teaches you to think about options as building blocks. Each option contributes a distinct payoff shape, and when you combine them, those shapes add together to create new structures. By the end, you'll understand how to construct common strategies, visualize their payoffs, and recognize when each strategy makes sense given different market conditions and objectives.

Payoff Diagrams as Building Blocks

Before constructing complex strategies, you need to internalize how individual option payoffs work as building blocks. Every option strategy is simply a linear combination of basic payoff functions. This insight simplifies option analysis. Rather than memorizing each strategy, you can understand it by decomposing it into its constituent parts.

The linearity of payoff combinations is crucial. When you hold multiple options simultaneously, their individual payoffs simply add together at every possible stock price. If one option gains $5 at a particular price while another loses $3, your combined position gains $2. This additive property means you can analyze complex strategies by first understanding each component, then summing their contributions across all possible outcomes.

Payoff vs. Profit

The payoff of an option at expiration is its intrinsic value: max(STK,0)\max(S_T - K, 0) for a call and max(KST,0)\max(K - S_T, 0) for a put. The profit subtracts the premium paid (or adds the premium received) from the payoff. Payoff diagrams show the value at expiration; profit diagrams account for the initial cost.

The four basic building blocks form the foundation of all option strategies. Each building block has a distinctive shape that reflects the economic nature of the position. Understanding these shapes, particularly where they bend and what slopes they exhibit, enables you to mentally construct any combination before committing capital.

  • Long call: Payoff is:
max(STK,0)\max(S_T - K, 0)

where STS_T is the stock price at expiration, KK is the strike price of the option, and max(STK,0)\max(S_T - K, 0) is the intrinsic value of the call (positive when stock exceeds strike, zero otherwise). This formula shows that call options are asymmetric. The max function ensures that the payoff can never be negative, which means your downside is limited to the premium paid. When the stock price rises above the strike, the call's value increases dollar-for-dollar with the stock, capturing all the upside without limit. The payoff is zero below the strike and then rises linearly above it. You pay premium upfront, so profit starts negative.

  • Short call: Payoff is:
max(STK,0)-\max(S_T - K, 0)

where STS_T is the stock price at expiration, KK is the strike price of the option, and max(STK,0)-\max(S_T - K, 0) is the negative of call intrinsic value (obligation to sell stock at strike if exercised). The negative sign shows how short positions work: you are on the opposite side of the long call holder. Whatever they gain, you lose. This creates a mirror-image payoff structure.

The payoff is flat at zero below the strike, then falls linearly. Since you receive a premium, profit starts positive but decreases as the price rises.

  • Long put: Payoff is:
max(KST,0)\max(K - S_T, 0)

where KK is the strike price of the option, STS_T is the stock price at expiration, and max(KST,0)\max(K - S_T, 0) is the intrinsic value of the put (positive when stock falls below strike, zero otherwise). Notice that the terms inside the max function are reversed compared to the call: the strike price comes first, then the stock price. This reversal reflects the put's role as downside protection. As the stock price falls further below the strike, the put becomes more valuable because it guarantees you can sell at a higher price than the market offers.

The payoff rises linearly as the price drops below the strike and is zero above it. Since you pay a premium, profit starts negative.

  • Short put: Payoff is:
max(KST,0)-\max(K - S_T, 0)

where KK is the strike price of the option, STS_T is the stock price at expiration, and max(KST,0)-\max(K - S_T, 0) is the negative of put intrinsic value (obligation to buy stock at strike if exercised). Selling a put obligates you to purchase shares at the strike price if the option is exercised. This obligation becomes costly when the stock falls significantly below the strike, as you must buy shares at above-market prices.

The payoff falls as the price drops below the strike and is zero above it. Since you receive a premium, profit starts positive.

The key insight is that these payoffs are linear in different regions. When you add them together, the slopes add. This is how complex payoff structures emerge from simple components. Consider what happens when we combine a long call and a long put at the same strike: below the strike, the call contributes slope 0 while the put contributes slope -1, yielding a combined slope of -1. Above the strike, the call contributes slope +1 while the put contributes slope 0, yielding a combined slope of +1. The result is a V-shaped payoff that profits from movement in either direction.

In[2]:
Code
import numpy as np
import warnings

warnings.filterwarnings("ignore")


def call_payoff(S, K, premium=0, position="long"):
    """Calculate call option payoff/profit."""
    payoff = np.maximum(S - K, 0)
    if position == "short":
        payoff = -payoff
        return payoff + premium
    return payoff - premium


def put_payoff(S, K, premium=0, position="long"):
    """Calculate put option payoff/profit."""
    payoff = np.maximum(K - S, 0)
    if position == "short":
        payoff = -payoff
        return payoff + premium
    return payoff - premium


def stock_payoff(S, entry_price):
    """Calculate stock position payoff."""
    return S - entry_price


## Define price range and basic parameters for visualizations
S = np.linspace(50, 150, 200)
K = 100
premium = 5

Let's visualize these four building blocks to see how they combine. Examining the visual representation helps build intuition for how each component contributes to a combined strategy.

Out[3]:
Visualization

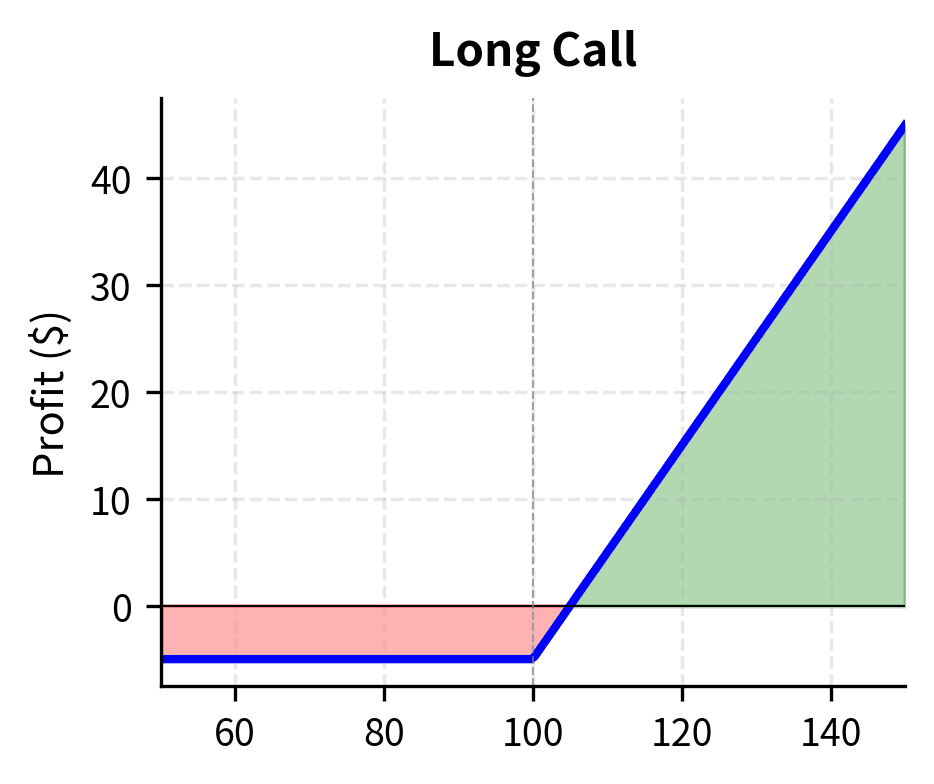

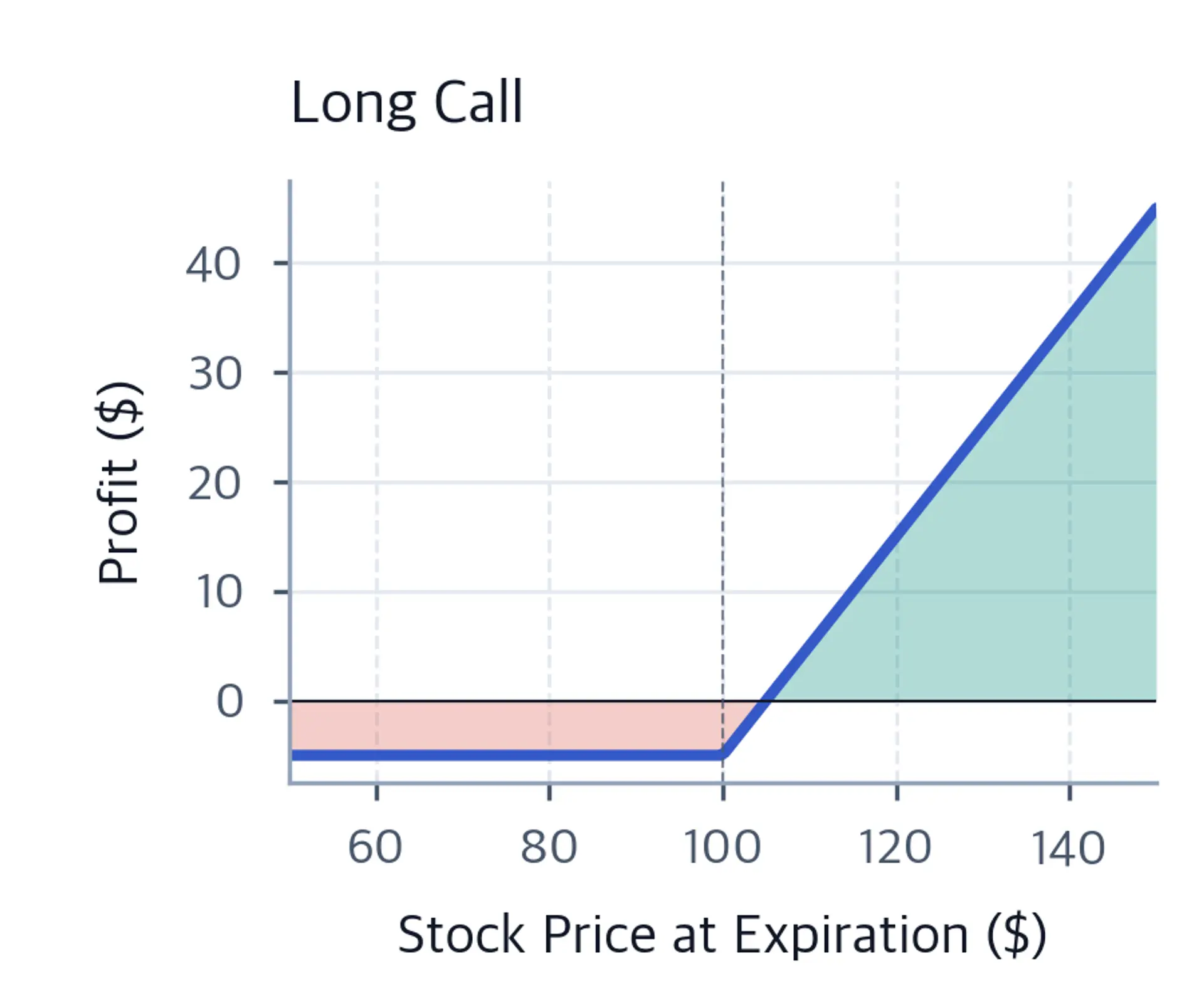

Profit and loss profile of a long call option across a range of stock prices. The position exhibits limited downside risk defined by the premium paid, with unlimited upside potential once the stock price rises above the strike price.
Profit and loss profile of a long call option across a range of stock prices. The position exhibits limited downside risk defined by the premium paid, with unlimited upside potential once the stock price rises above the strike price.

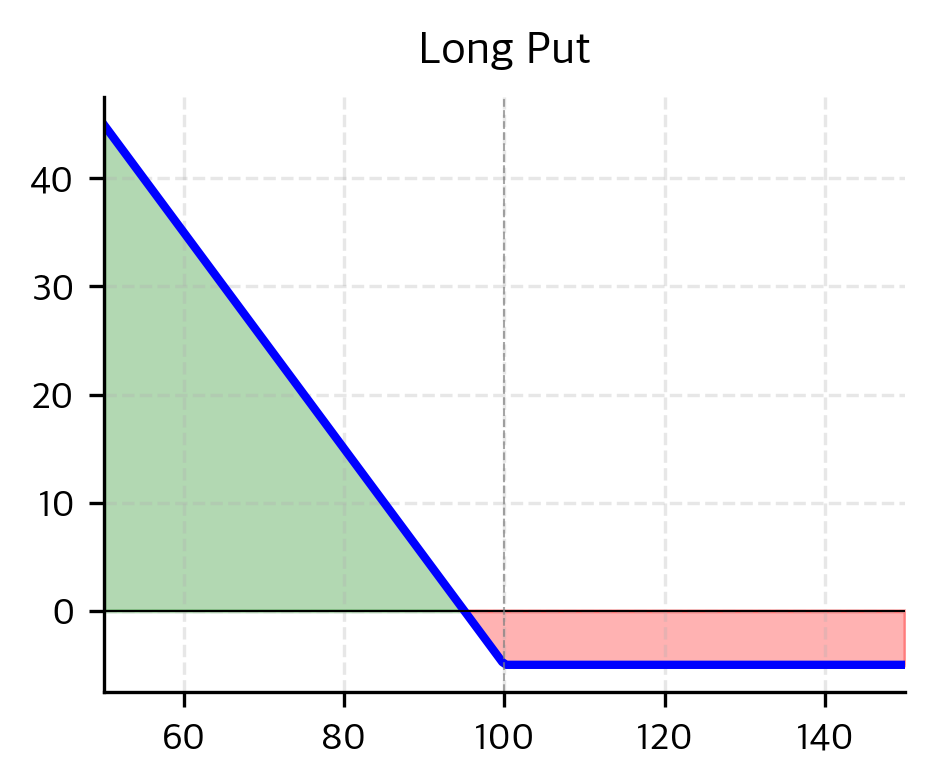

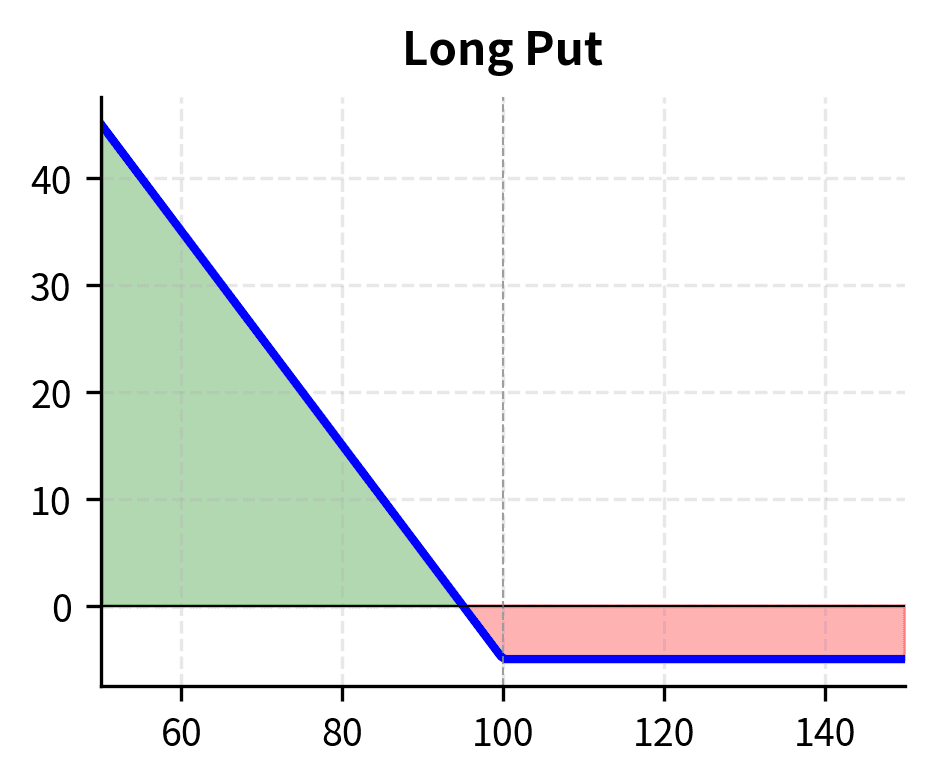

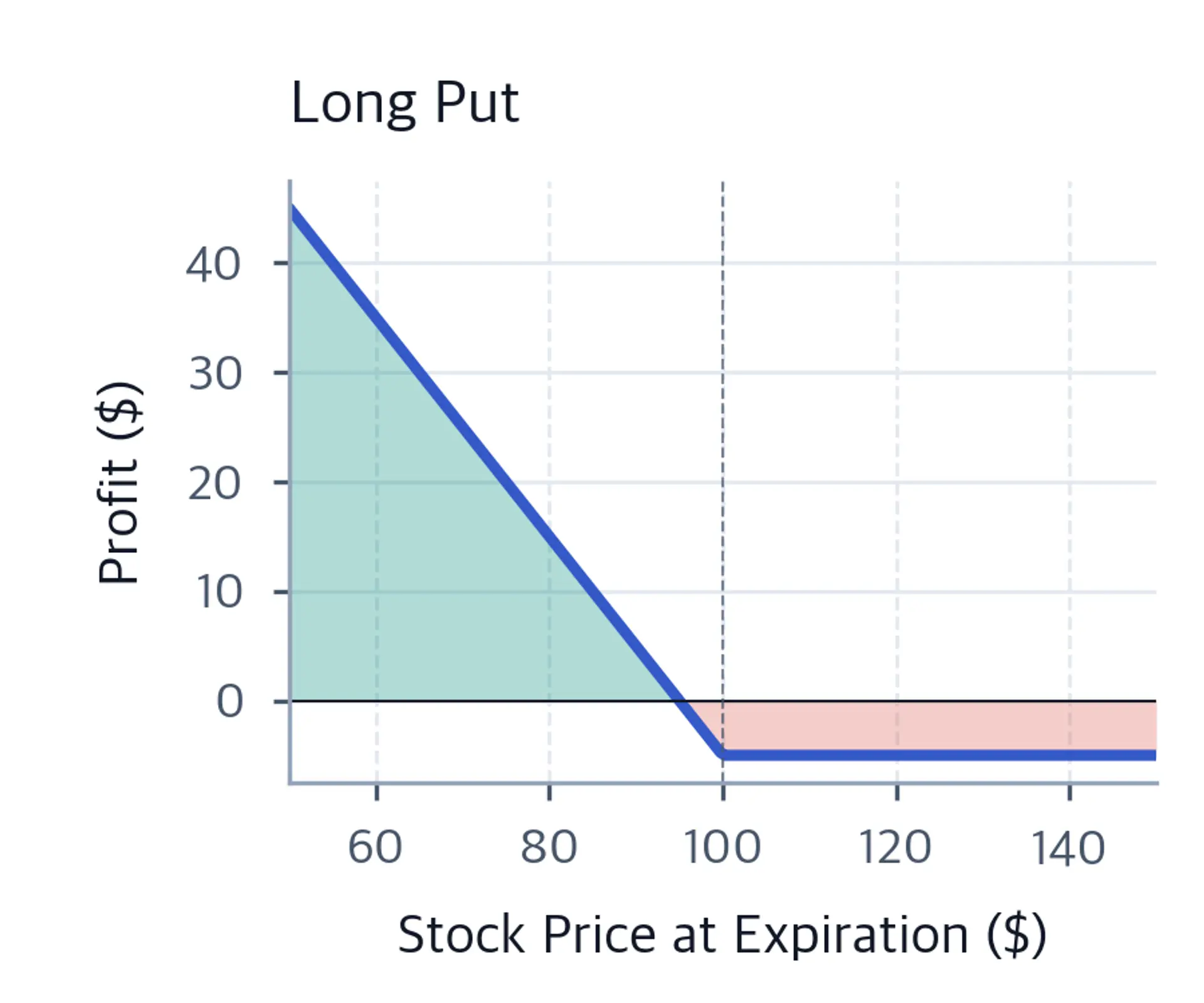

Profit and loss profile of a long put option across a range of stock prices. The position gains value as the stock price falls below the strike, while risk is strictly limited to the initial premium paid if the stock price rises.
Profit and loss profile of a long put option across a range of stock prices. The position gains value as the stock price falls below the strike, while risk is strictly limited to the initial premium paid if the stock price rises.

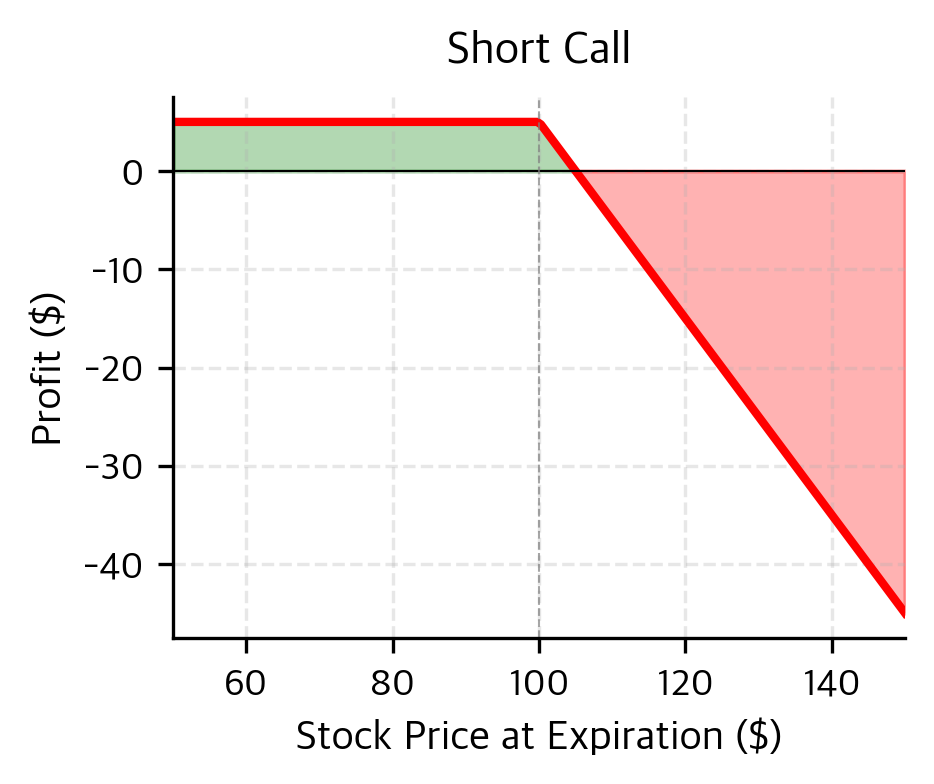

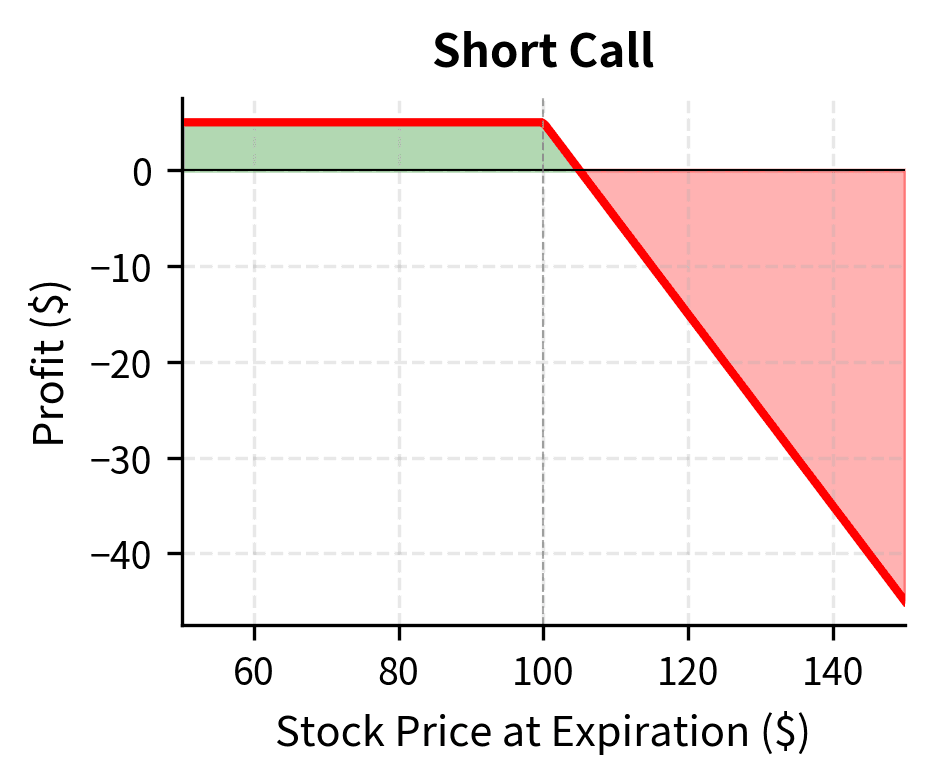

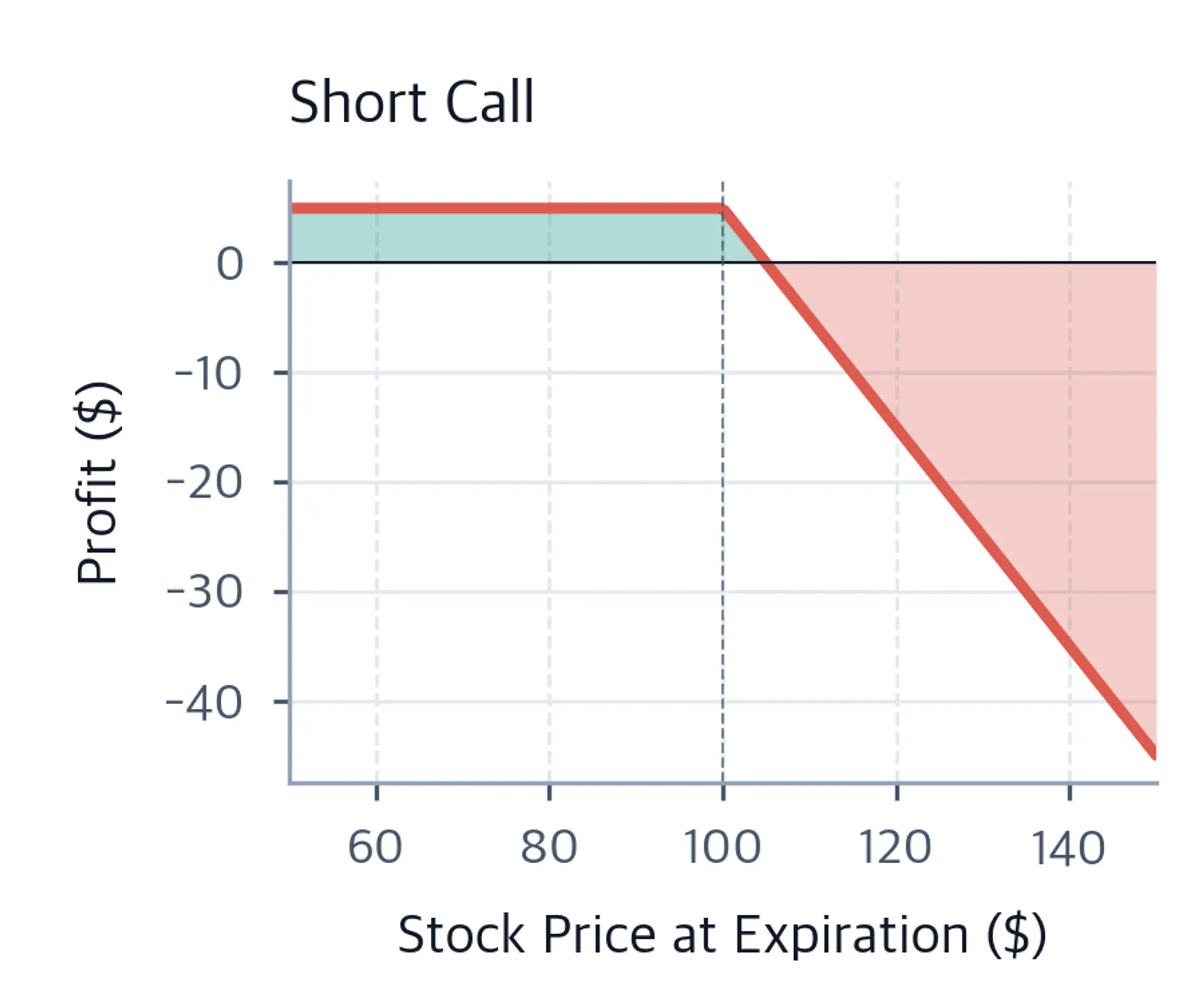

Profit and loss profile of a short call option across a range of stock prices. The position generates immediate premium income but faces theoretically unlimited risk if the stock price rises significantly above the strike.
Profit and loss profile of a short call option across a range of stock prices. The position generates immediate premium income but faces theoretically unlimited risk if the stock price rises significantly above the strike.

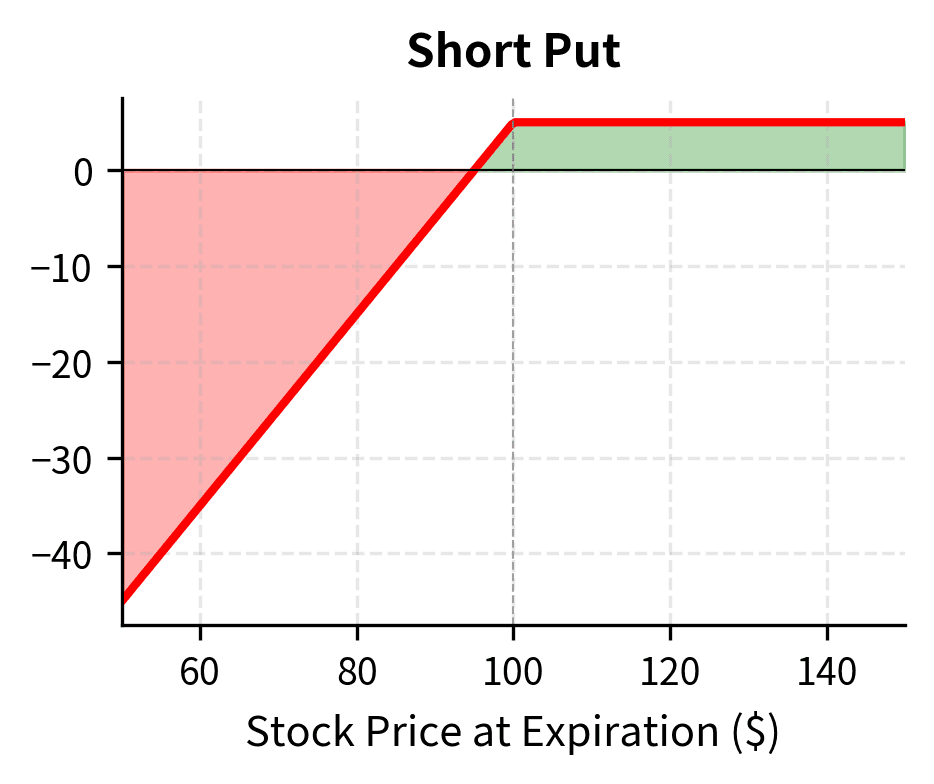

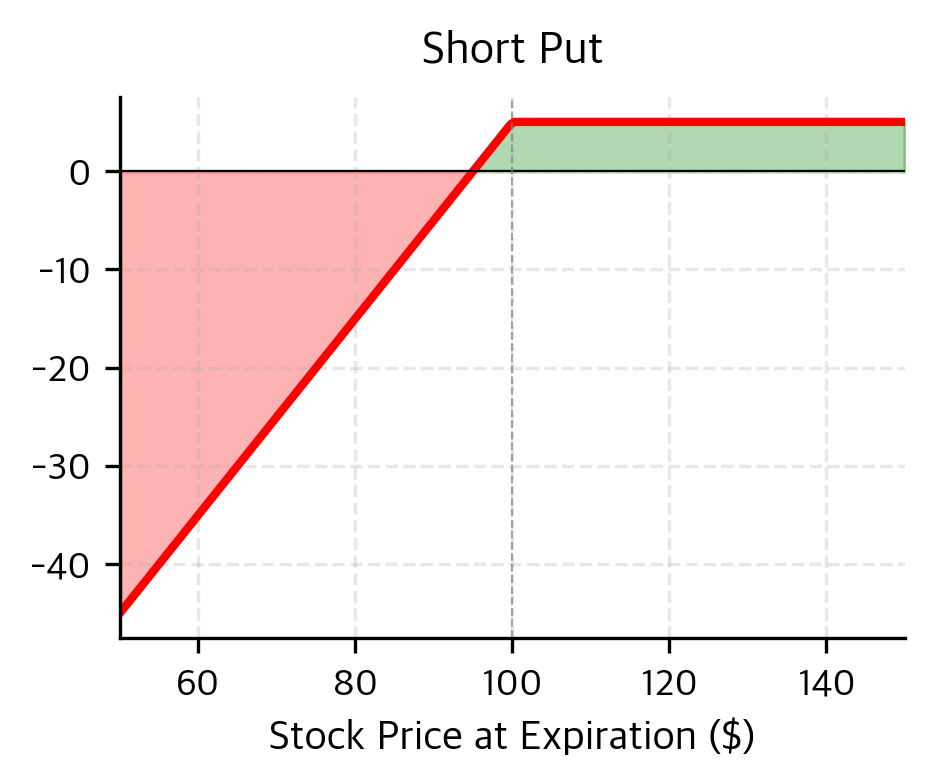

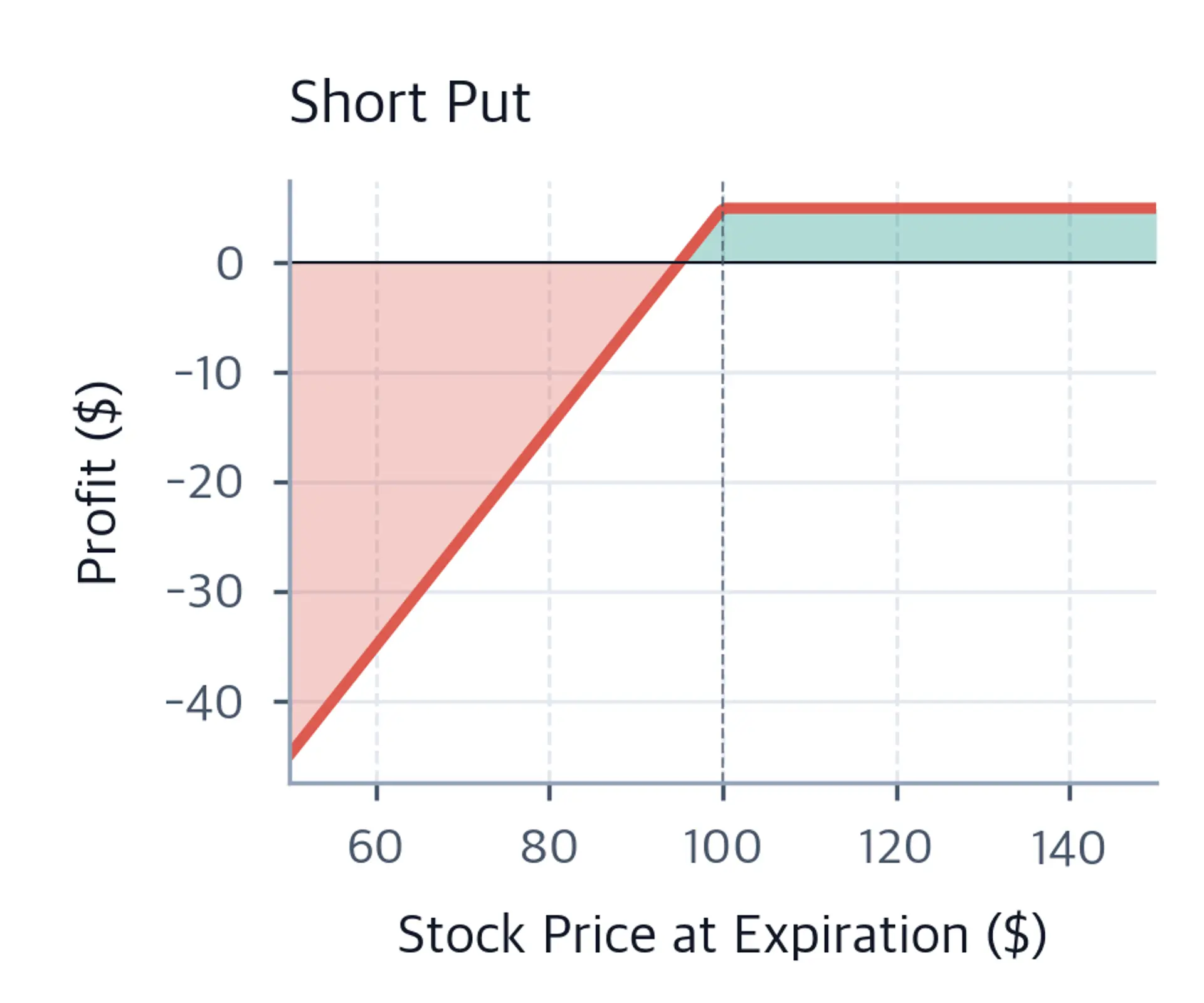

Profit and loss profile of a short put option across a range of stock prices. The position generates immediate premium income but faces substantial downside risk as the stock price falls toward zero.
Profit and loss profile of a short put option across a range of stock prices. The position generates immediate premium income but faces substantial downside risk as the stock price falls toward zero.

Notice the symmetry: long and short positions are mirror images of each other across the horizontal axis. Also observe that calls have their "action" above the strike price, while puts have their "action" below it. These visual patterns become essential when you start combining positions.

Out[4]:
Visualization

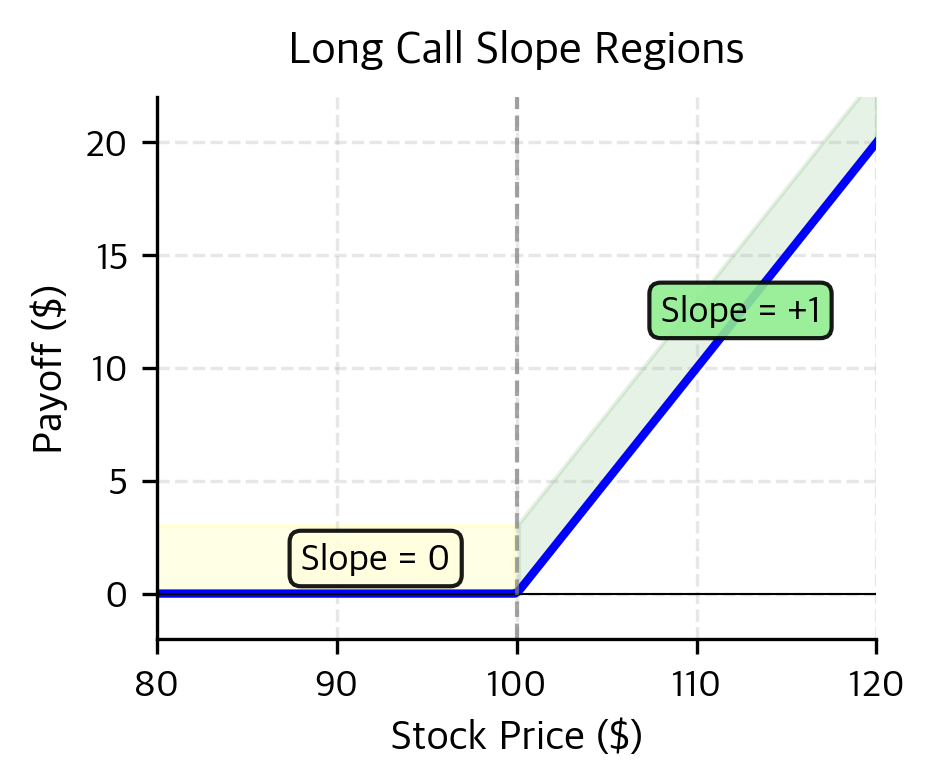

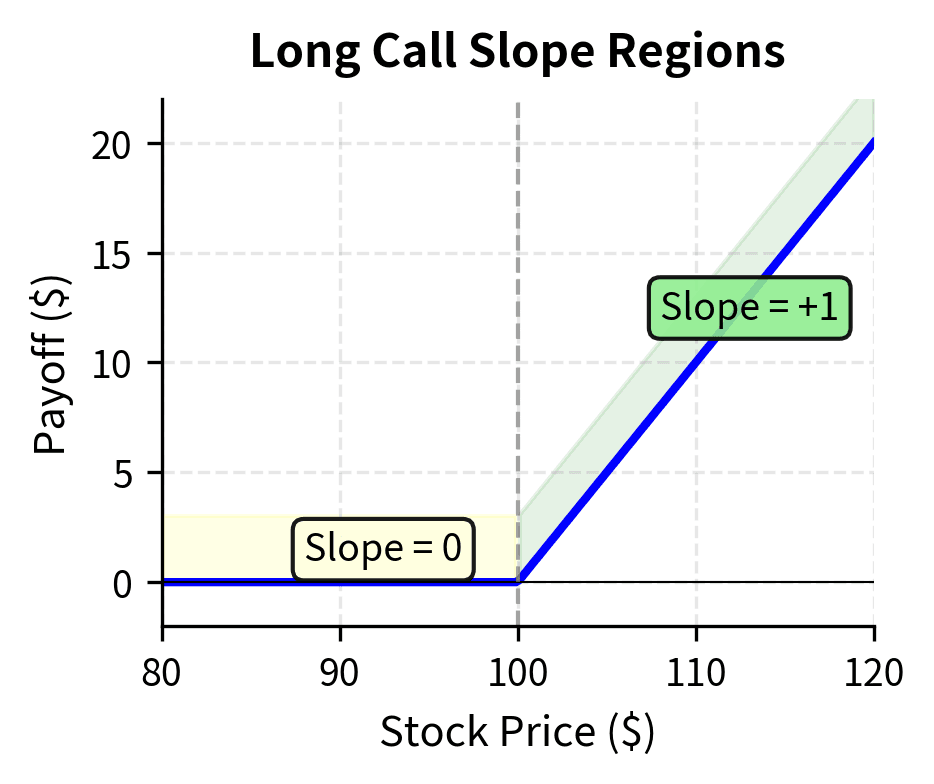

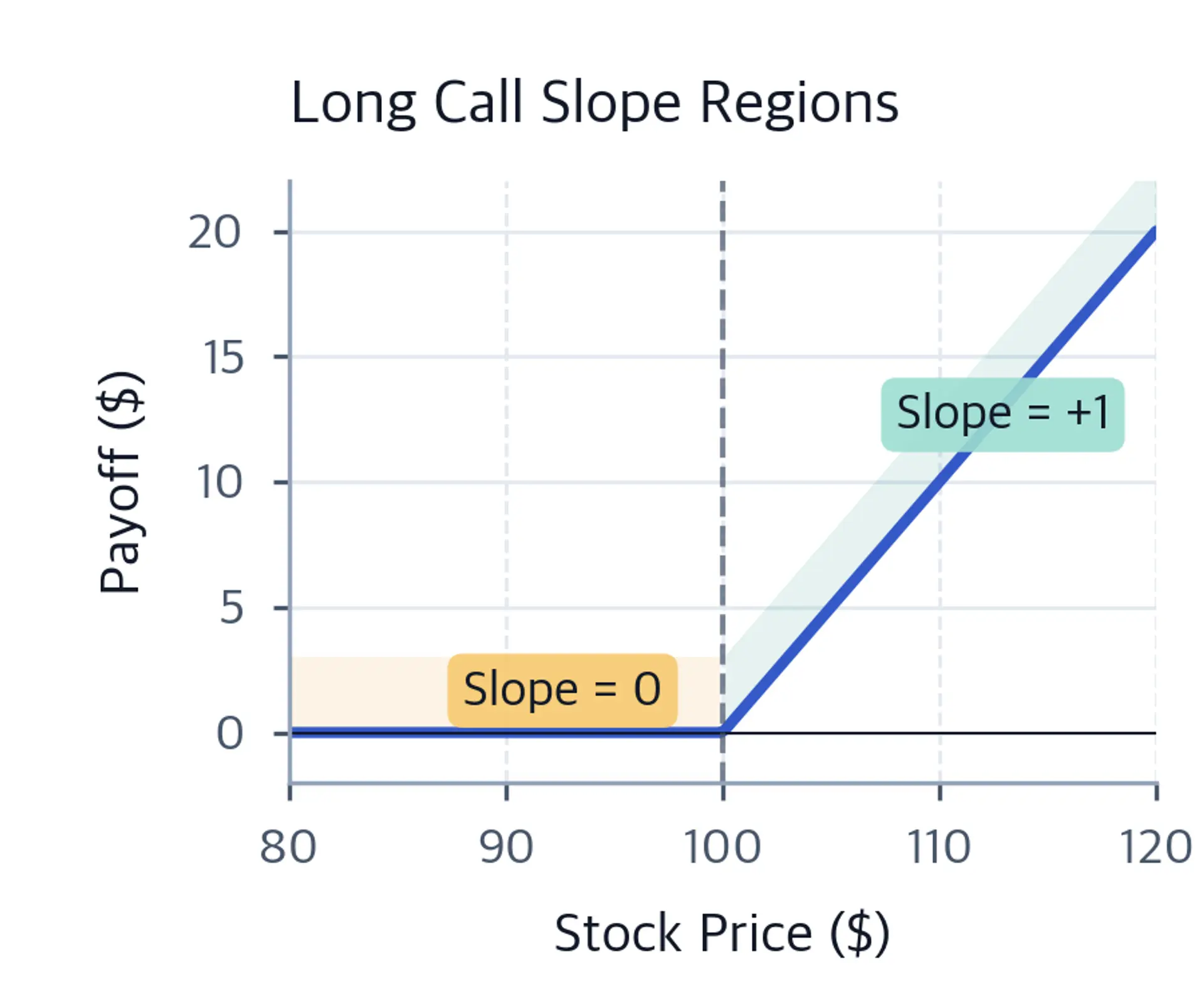

Slope regions for a long call option payoff across stock price movements. The slope remains at zero below the strike and transitions to positive one above it, creating a profile that limits downside while capturing gains.
Slope regions for a long call option payoff across stock price movements. The slope remains at zero below the strike and transitions to positive one above it, creating a profile that limits downside while capturing gains.

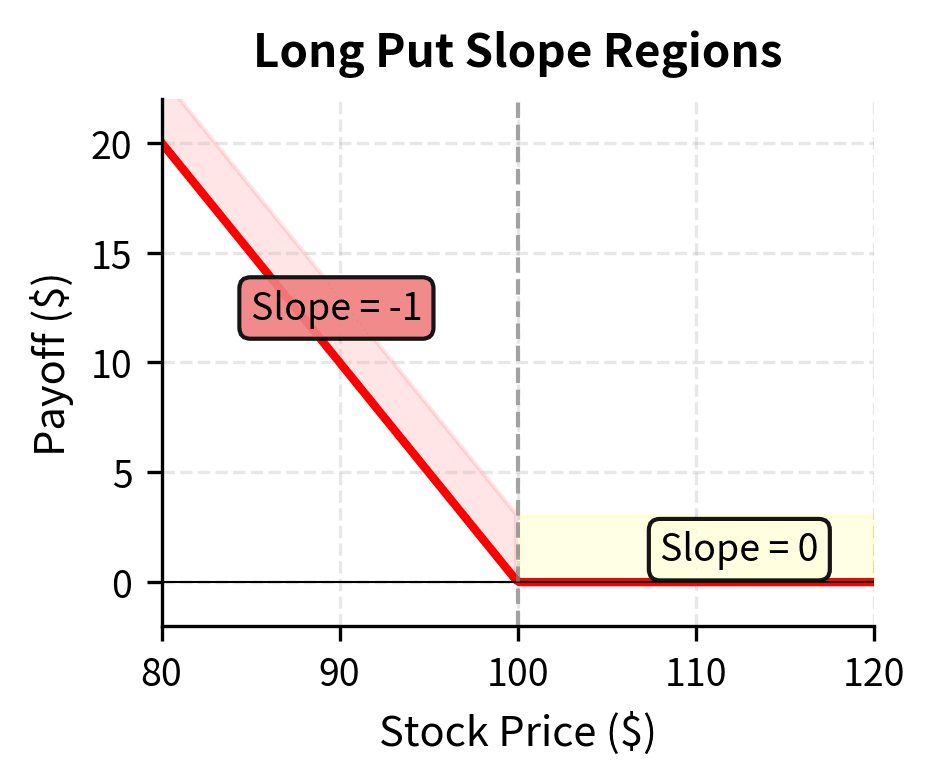

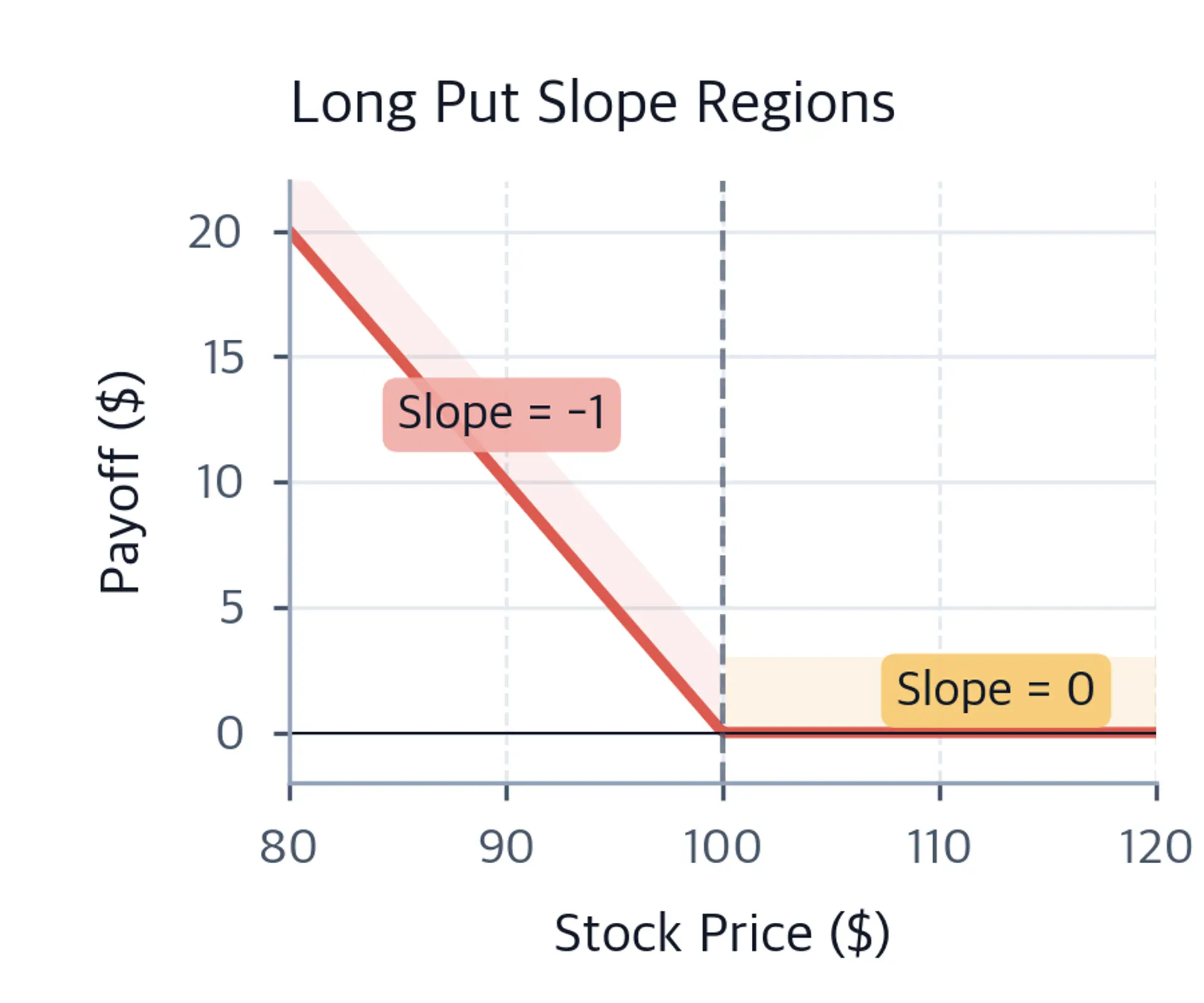

Slope regions for a long put option payoff across stock price movements. The slope is negative one below the strike and zero above it, providing downside exposure that terminates once the stock price exceeds the strike.
Slope regions for a long put option payoff across stock price movements. The slope is negative one below the strike and zero above it, providing downside exposure that terminates once the stock price exceeds the strike.

Protective Strategies

The most intuitive option strategies combine options with an existing stock position. These strategies modify the risk profile of stock ownership, either by limiting downside losses or by generating income at the cost of capping upside gains.

Protective Put

A protective put consists of a long stock position combined with a long put option on the same underlying. This strategy is sometimes called a "married put" when both positions are established simultaneously.

The logic is straightforward: you own the stock and want upside participation, but you also want insurance against a significant decline. The put option provides that insurance. If the stock price falls below the put's strike price, the put gains value, offsetting your stock losses. If the stock rises, the put expires worthless, but you keep the stock gains minus the premium paid.

The combined payoff at expiration is:

Protective_Put_Profit=(STS0)+max(KST,0)P\text{Protective\_Put\_Profit} = (S_T - S_0) + \max(K - S_T, 0) - P

where:

  • STS_T: stock price at expiration
  • S0S_0: stock purchase price at initiation
  • KK: strike price of the protective put
  • PP: premium paid for the put option
  • (STS0)(S_T - S_0): profit or loss from the long stock position
  • max(KST,0)\max(K - S_T, 0): payoff from the long put option (positive when stock falls below strike)

This formula represents the sum of three components. First, the term (STS0)(S_T - S_0) captures the stock's profit or loss, which is simply the difference between where the stock ends up and where you bought it. Second, the max term represents the put's intrinsic value at expiration, which kicks in only when the stock falls below the strike. Third, the subtracted premium PP accounts for the cost of purchasing this insurance.

The put acts as insurance. It has no value when the stock is above the strike (no claim needed), but gains value dollar-for-dollar as the stock falls below the strike, offsetting stock losses. Just as homeowner's insurance pays out when your house suffers damage, the put pays out when your stock position suffers losses beyond a certain threshold.

To understand how this works in different market conditions, we can break the payoff into two cases:

Profit={KS0Pif STKSTS0Pif ST>K\text{Profit} = \begin{cases} K - S_0 - P & \text{if } S_T \leq K \\ S_T - S_0 - P & \text{if } S_T > K \end{cases}

where:

  • KS0PK - S_0 - P: maximum loss when stock falls below strike (capped downside)
  • STS0PS_T - S_0 - P: profit from stock appreciation minus premium cost when stock rises

This shows how the protective put works and helps you determine the position's value at expiration.

Below the strike (STKS_T \leq K): The put is in-the-money, providing value KSTK - S_T that offsets stock losses. Total loss is capped at (S0K)+P(S_0 - K) + P, regardless of how far the stock falls. To see why this works algebraically, note that when the put is in-the-money, your stock loss is (S0ST)(S_0 - S_T), but your put gain is (KST)(K - S_T). Adding these together yields (KS0)(K - S_0), a fixed quantity independent of how far the stock has fallen. After subtracting the premium paid, your net loss becomes (S0K+P)(S_0 - K + P), which cannot get worse no matter how catastrophic the stock's decline.

Above the strike (ST>KS_T > K): The put expires worthless, and the position behaves like owning stock, with profit STS0S_T - S_0 reduced by the premium paid. In this scenario, you paid for insurance that you did not need. However, this cost is simply the price of peace of mind and protection against adverse outcomes that could have occurred.

In[5]:
Code
## Protective put example
S0 = 100  # Stock purchase price
K_put = 95  # Put strike (5% below current price)
put_premium = 3  # Premium paid for put

S = np.linspace(70, 130, 200)
stock_profit = S - S0

## Component payoffs
put_profit = put_payoff(S, K_put, put_premium, "long")

## Combined strategy
protective_put_profit = stock_profit + put_profit

## Calculate key metrics
max_loss = K_put - S0 - put_premium
breakeven = S0 + put_premium
Out[6]:
Visualization

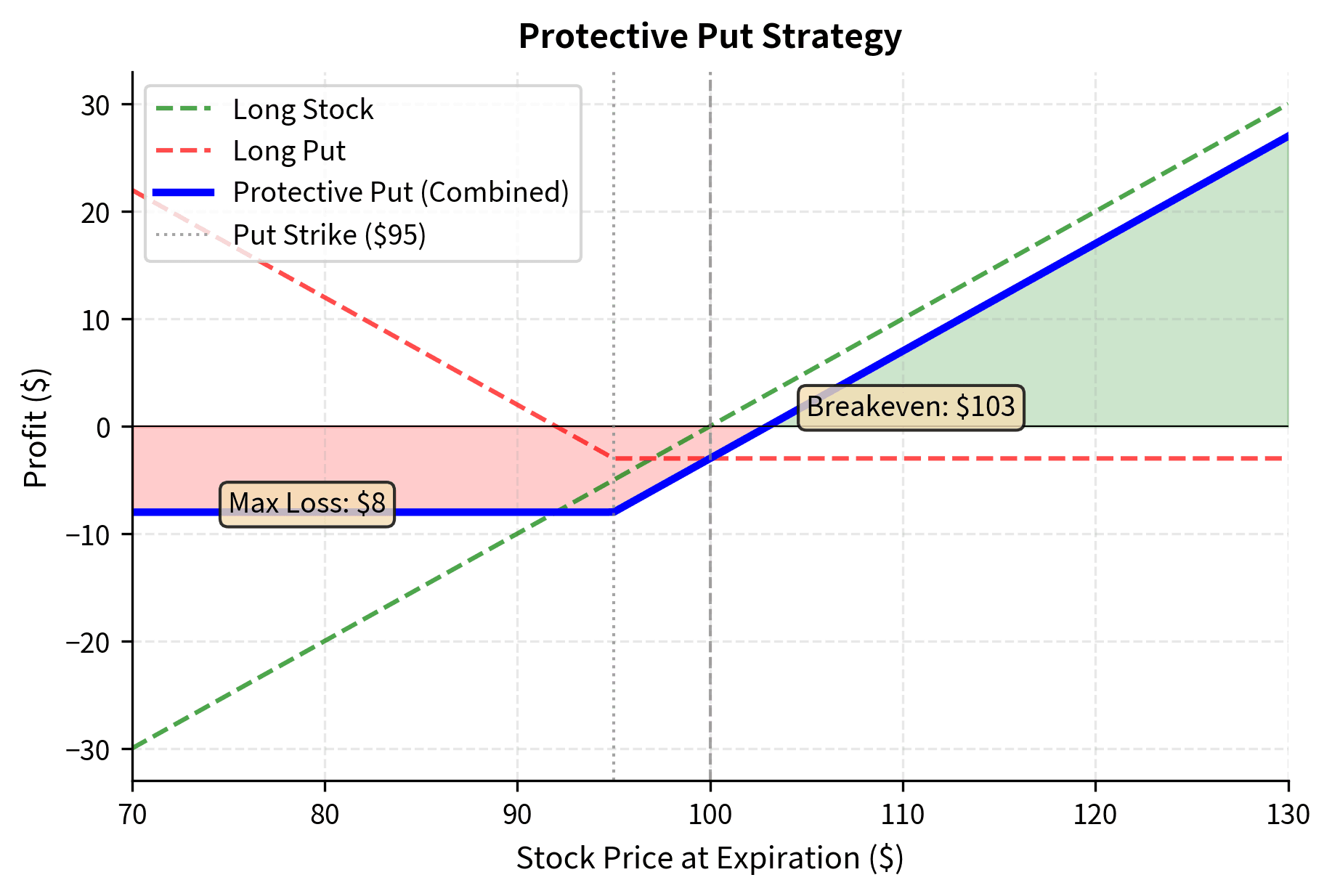

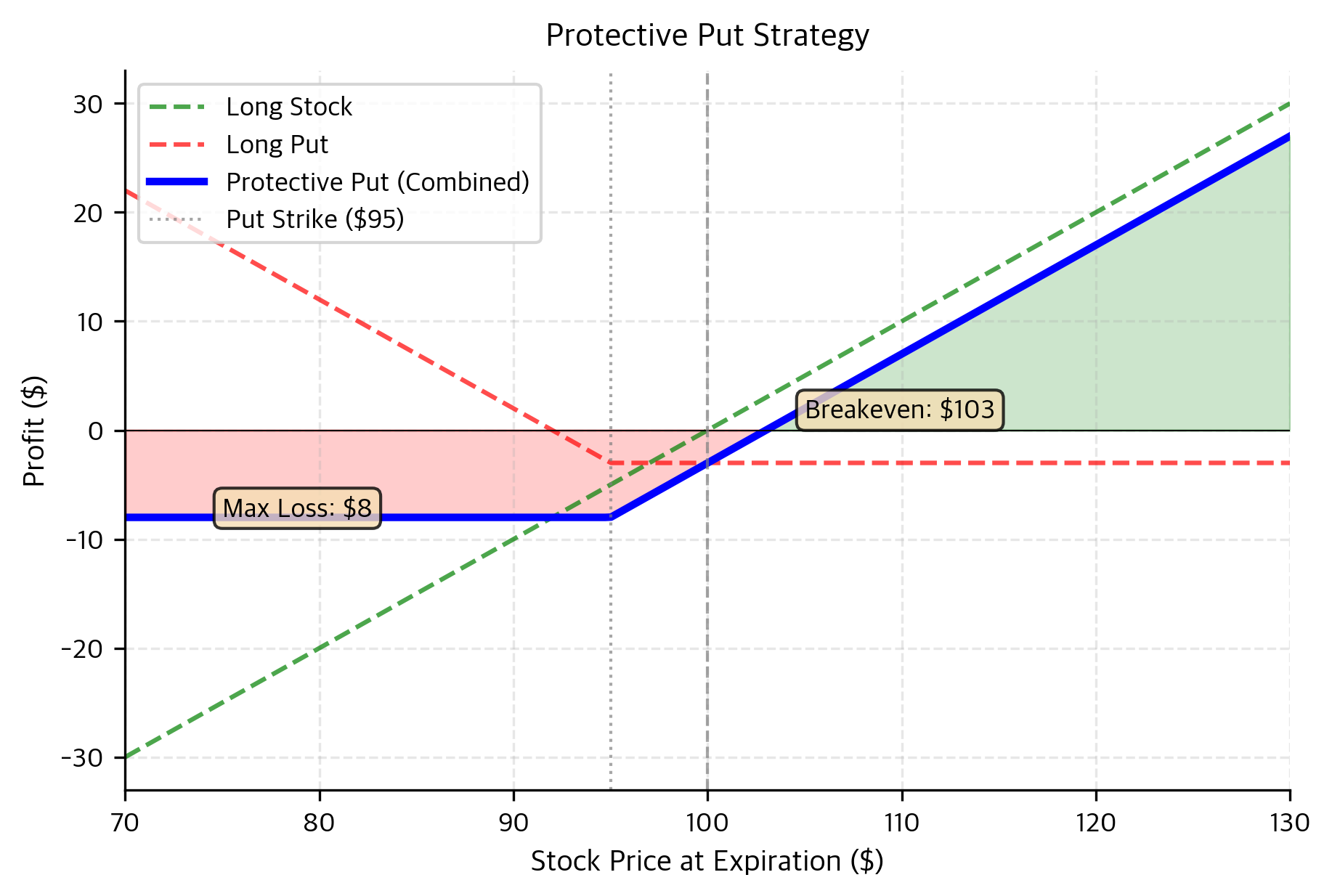

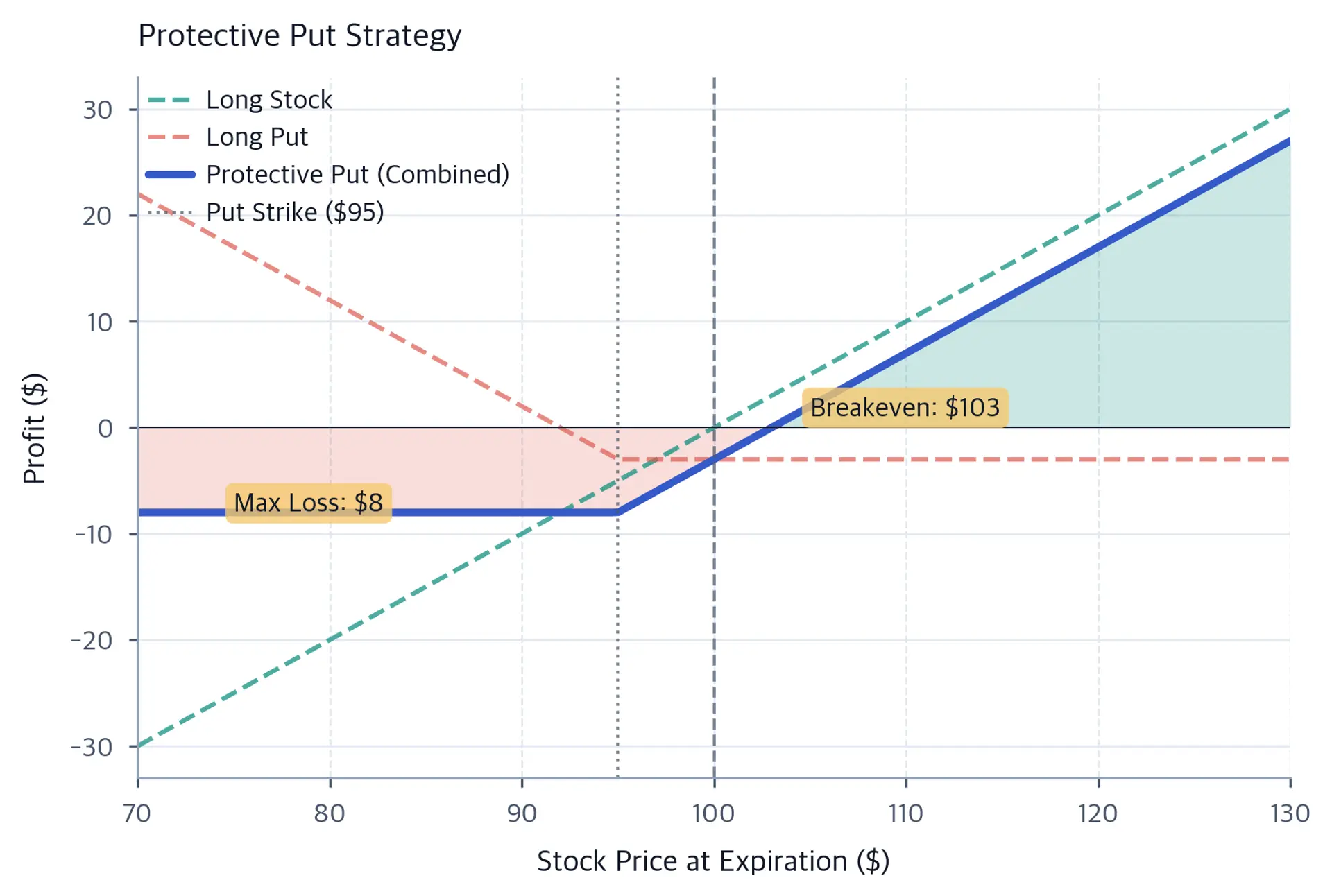

Protective put strategy payoff profile compared to a standalone long stock position. The combination of owning the stock and buying a put option creates a floor on potential losses (max loss) while preserving unlimited upside potential above the breakeven point. The shift in the breakeven price reflects the premium paid for this downside insurance.
Protective put strategy payoff profile compared to a standalone long stock position. The combination of owning the stock and buying a put option creates a floor on potential losses (max loss) while preserving unlimited upside potential above the breakeven point. The shift in the breakeven price reflects the premium paid for this downside insurance.
Out[7]:
Console
Maximum Loss: $8.00
Breakeven: $103.00

The protective put limits downside to a maximum loss of $8.00, which equals the difference between the entry price ($100) and put strike ($95) plus the premium paid ($3). This protection requires paying the put premium upfront, shifting the breakeven point to $103.00. Above this level, the position profits dollar-for-dollar with the stock's appreciation. This demonstrates how protective puts convert unlimited downside risk into a defined, manageable loss while preserving full upside participation minus the insurance cost.

The protective put is economically equivalent to owning a call option plus holding cash. This equivalence comes from put-call parity: S+P=C+KerTS + P = C + Ke^{-rT}. When you own stock and buy a put, you've effectively synthesized a call option. This insight explains why the protective put payoff looks like a long call: flat losses below the strike, rising profits above it. The mathematical equivalence between these two positions illustrates a deep principle in options: there are often multiple ways to construct the same economic exposure.

Covered Call

A covered call is the opposite risk transformation: instead of paying premium for protection, you collect premium by selling upside potential. The strategy combines a long stock position with a short call option.

The rationale is income generation. If you own a stock and believe it will remain relatively flat or rise modestly, you can sell call options against your position and collect the premium. If the stock stays below the strike at expiration, you keep both the stock and the premium. If the stock rises above the strike, your shares get "called away" at the strike price. You've capped your upside but generated income regardless.

The combined payoff is:

Covered_Call_Profit=(STS0)max(STK,0)+C\text{Covered\_Call\_Profit} = (S_T - S_0) - \max(S_T - K, 0) + C

where:

  • STS_T: stock price at expiration
  • S0S_0: stock purchase price
  • KK: strike price of the short call
  • CC: premium received for selling the call
  • (STS0)(S_T - S_0): profit from the stock position
  • max(STK,0)-\max(S_T - K, 0): obligation from the short call (negative payoff when stock rises above strike)

The formula shows the covered call as stock ownership enhanced by call premium income, with the obligation to deliver shares if the stock rises above the strike. The negative sign on the max term reflects that this obligation reduces your profit when the call moves in-the-money. You can think of this as having sold someone else the right to your stock appreciation beyond the strike price. The premium you received compensates you for giving up this potential upside.

We can express this more clearly by examining what happens in different price scenarios:

Profit={STS0+Cif STKKS0+Cif ST>K\text{Profit} = \begin{cases} S_T - S_0 + C & \text{if } S_T \leq K \\ K - S_0 + C & \text{if } S_T > K \end{cases}

where:

  • STS0+CS_T - S_0 + C: stock profit plus premium collected when call expires worthless
  • KS0+CK - S_0 + C: capped maximum profit when stock is called away at strike

This shows the tradeoff of covered call writing and the outcomes you must accept.

Below the strike (STKS_T \leq K): The call expires worthless, and you keep the premium. Profit is the stock gain plus the premium, STS0+CS_T - S_0 + C. If the stock falls, losses are only partially offset by the premium. The premium provides a cushion but not complete protection. For example, if the stock falls $10 and you collected $4 in premium, your net loss is $6 rather than $10. Above the strike (ST>KS_T > K): The call is exercised against you. Your shares are called away at KK, capping your profit at KS0+CK - S_0 + C regardless of how high the stock rises. This is the regret scenario for you: you sold your shares at a predetermined price while watching the stock continue higher. However, you knew this was a possibility when you sold the call, and the premium received compensated you for accepting this cap.

In[8]:
Code
## Covered call example
S0 = 100  # Stock purchase price
K_call = 105  # Call strike (5% above current price)
call_premium = 4  # Premium received for call

S = np.linspace(70, 130, 200)
stock_profit = S - S0

## Component payoffs
short_call_profit = call_payoff(S, K_call, call_premium, "short")

## Combined strategy
covered_call_profit = stock_profit + short_call_profit

## Calculate key metrics
max_profit_cc = K_call - S0 + call_premium
breakeven_cc = S0 - call_premium
Out[9]:
Visualization

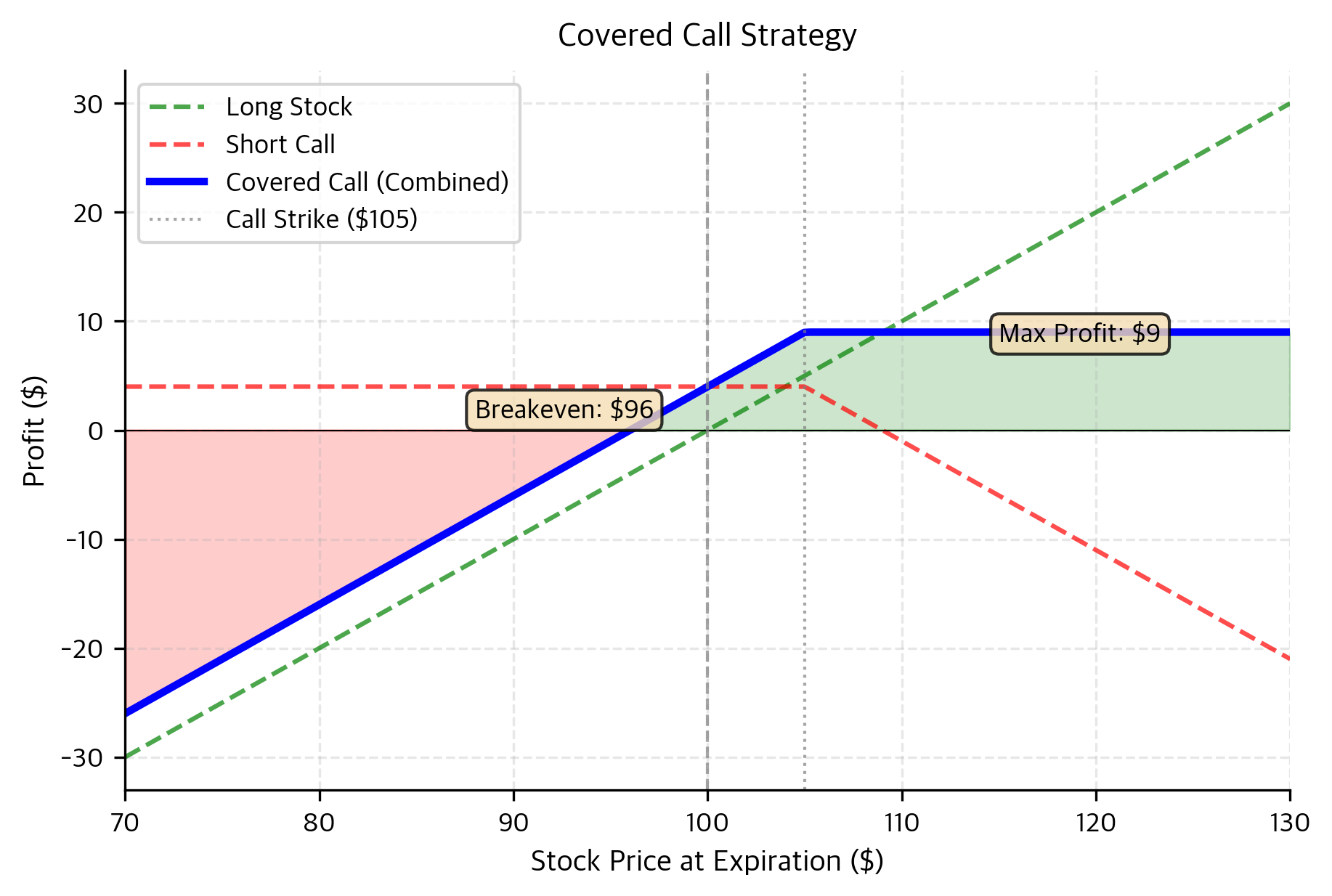

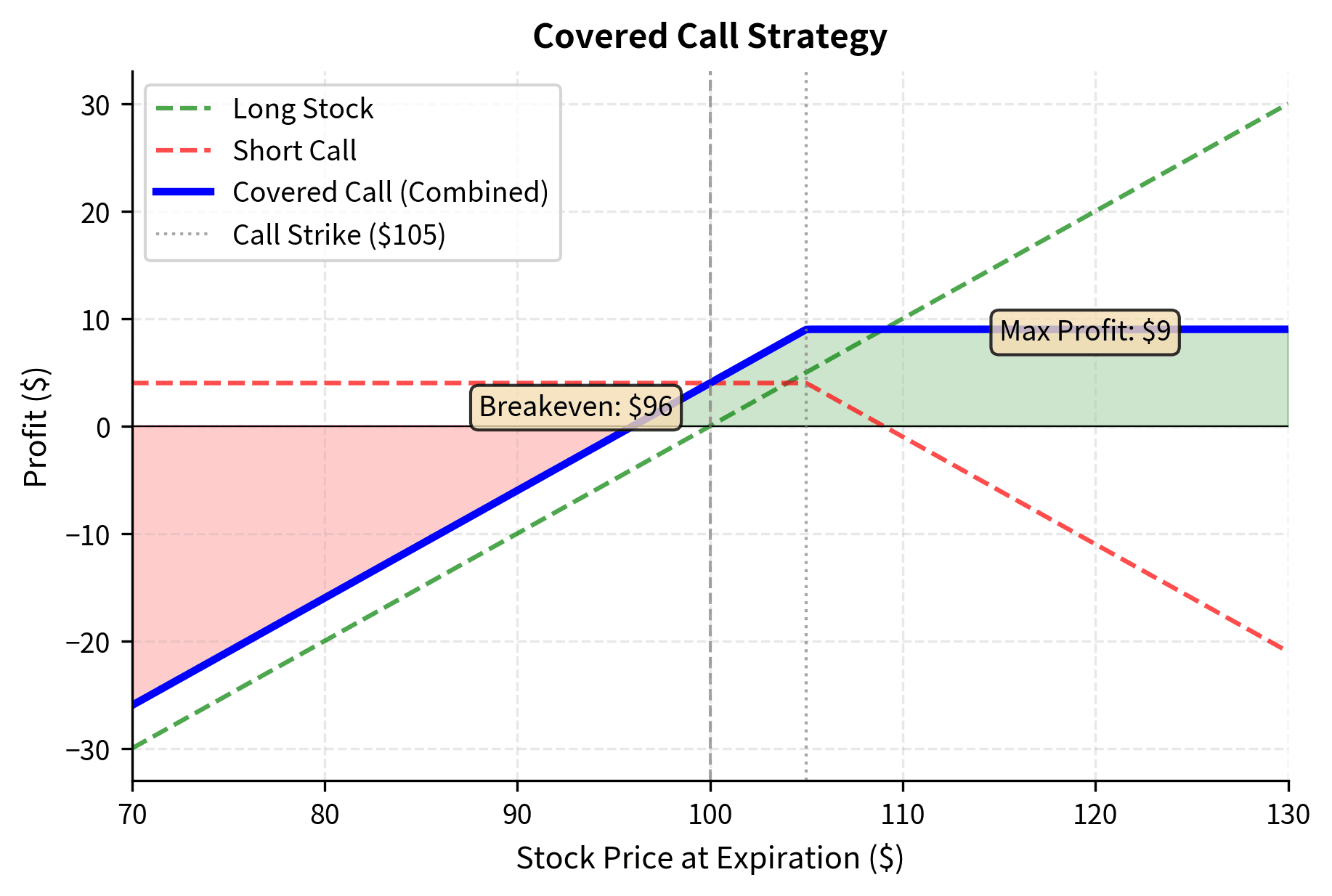

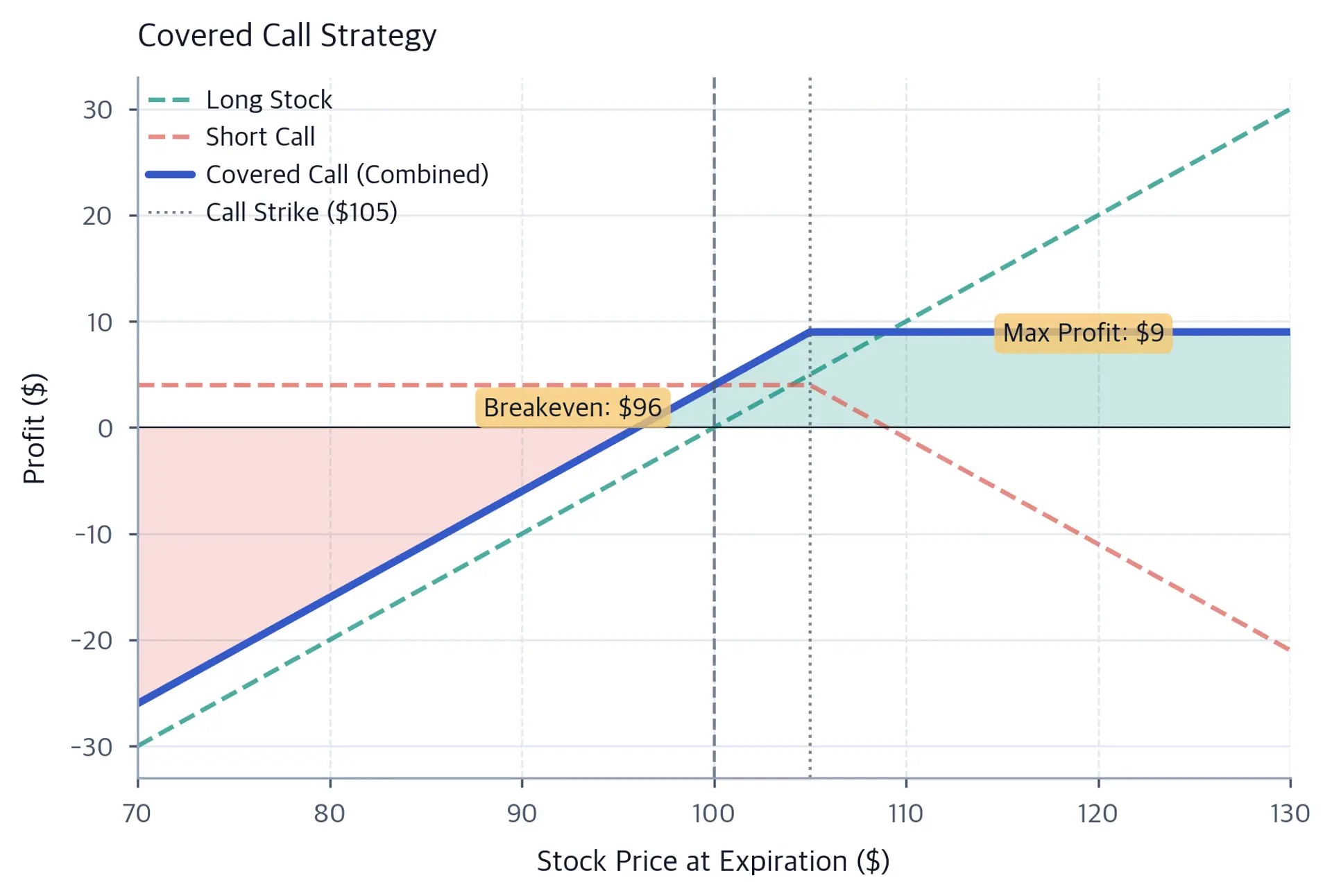

Covered call strategy payoff profile compared to a standalone long stock position. Selling a call option against stock ownership generates immediate premium income but caps the maximum profit potential if the stock rises above the strike price. This strategy outperforms the stock-only position in flat or slightly bearish markets due to the collected premium.
Covered call strategy payoff profile compared to a standalone long stock position. Selling a call option against stock ownership generates immediate premium income but caps the maximum profit potential if the stock rises above the strike price. This strategy outperforms the stock-only position in flat or slightly bearish markets due to the collected premium.
Out[10]:
Console
Maximum Profit: $9.00
Breakeven: $96.00

The covered call caps maximum profit even if the stock rises substantially higher. The premium collected lowers the breakeven point, providing a cushion against downside moves. However, this protection is limited, and the strategy sacrifices unlimited upside potential in exchange for immediate income. The covered call is economically equivalent to a short put. By put-call parity, SC=KerTPS - C = Ke^{-rT} - P. The payoff diagram confirms this: it looks like a short put, with flat profits above the strike and losses mounting as the price falls.

Covered calls are popular among many investors, but they involve an important tradeoff. The premium received is small relative to the potential foregone gains if the stock rallies significantly. Additionally, the strategy provides only limited downside protection. If the stock crashes, the small premium collected barely cushions the blow.

Out[11]:
Visualization

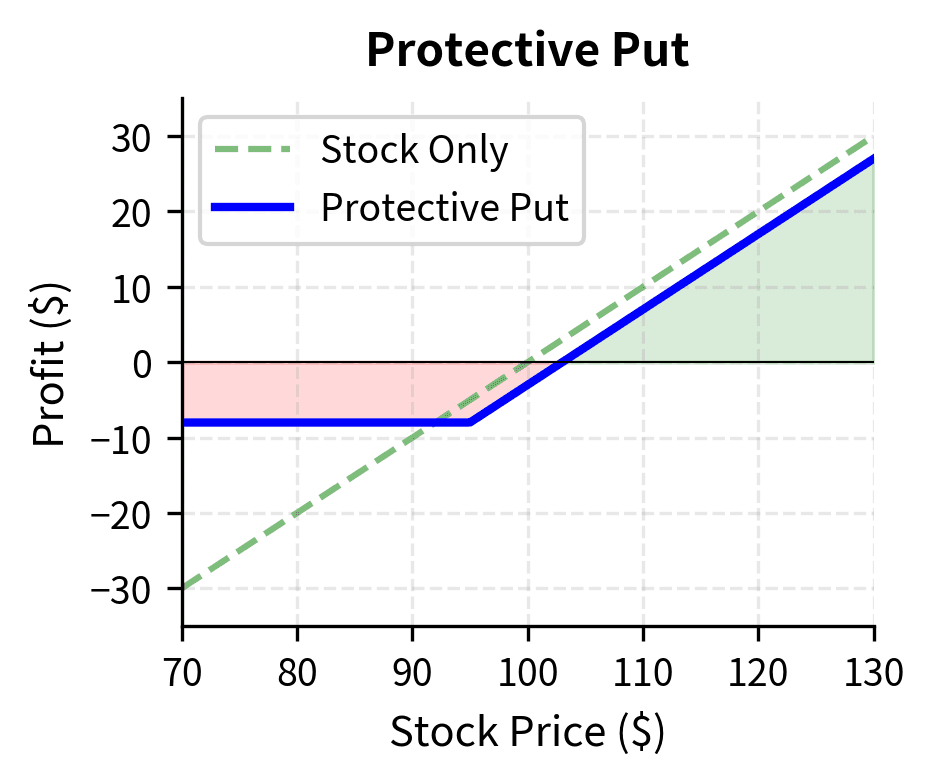

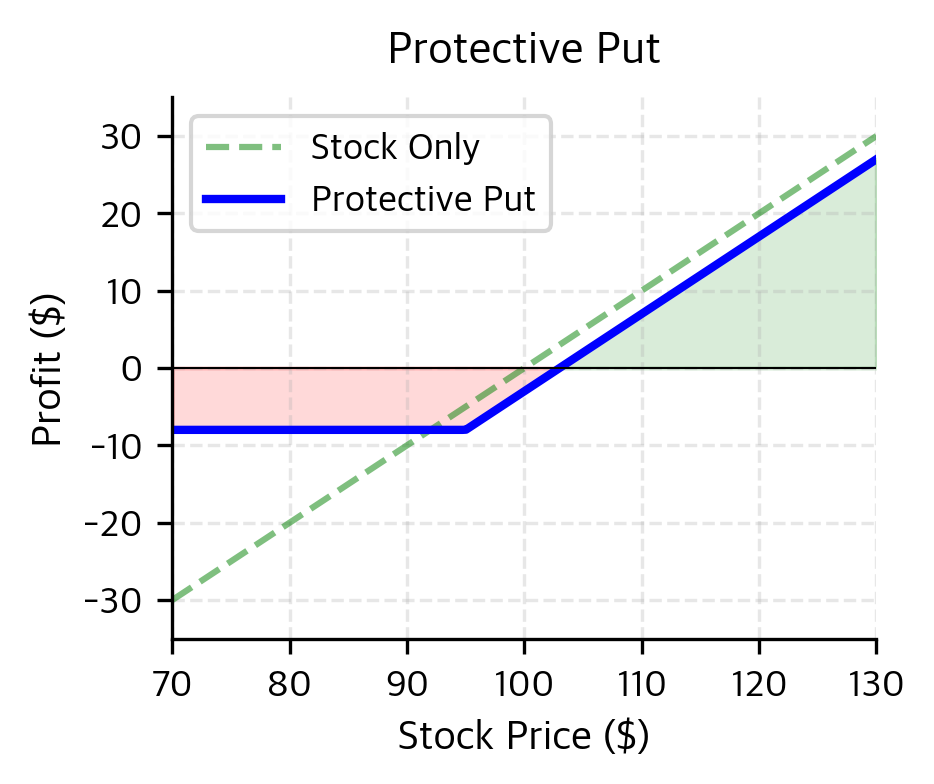

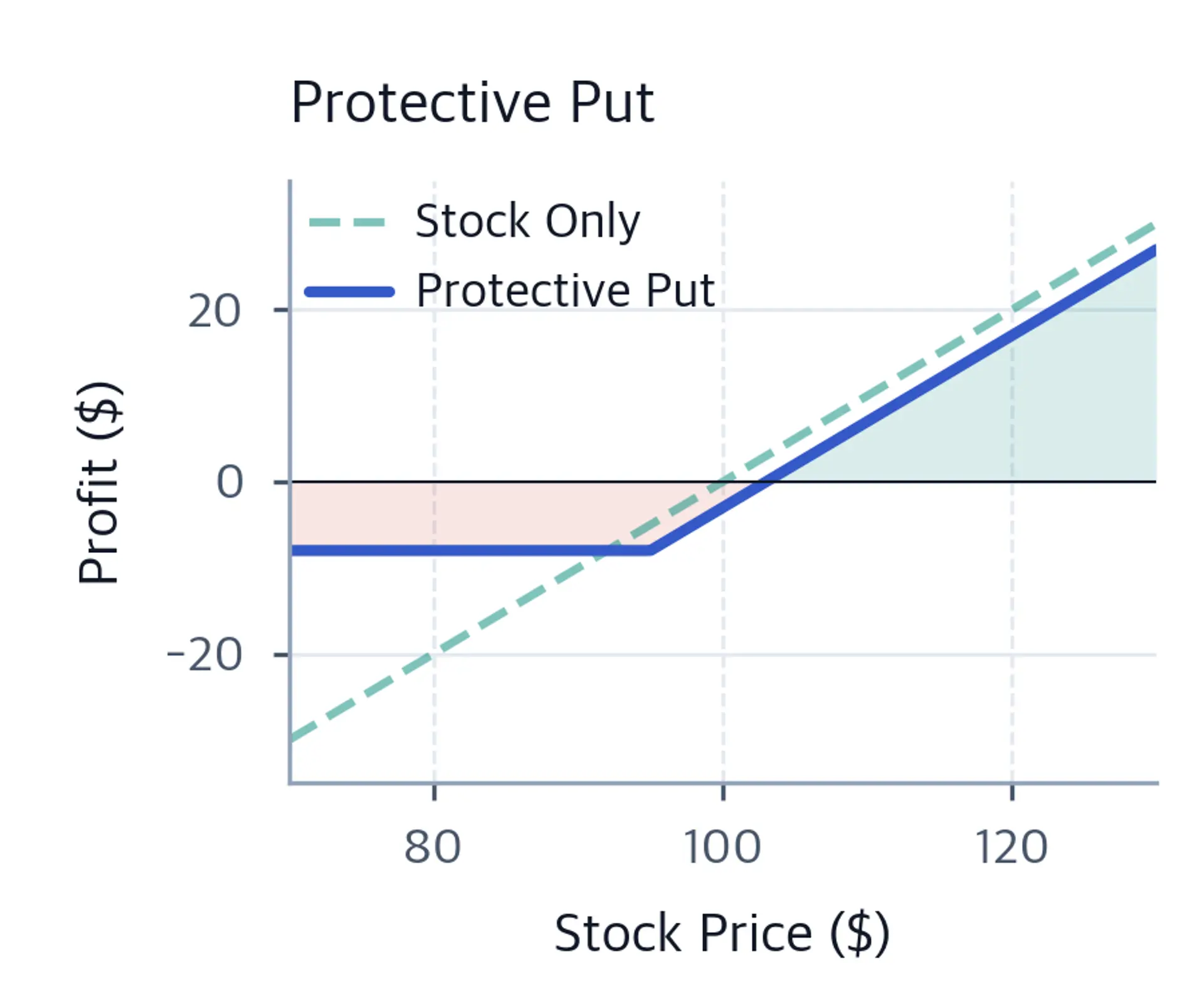

Protective put profit profile compared against standalone stock ownership. The strategy establishes a hard floor on losses while retaining unlimited upside potential, with the profit curve shifted by the cost of the put premium.
Protective put profit profile compared against standalone stock ownership. The strategy establishes a hard floor on losses while retaining unlimited upside potential, with the profit curve shifted by the cost of the put premium.

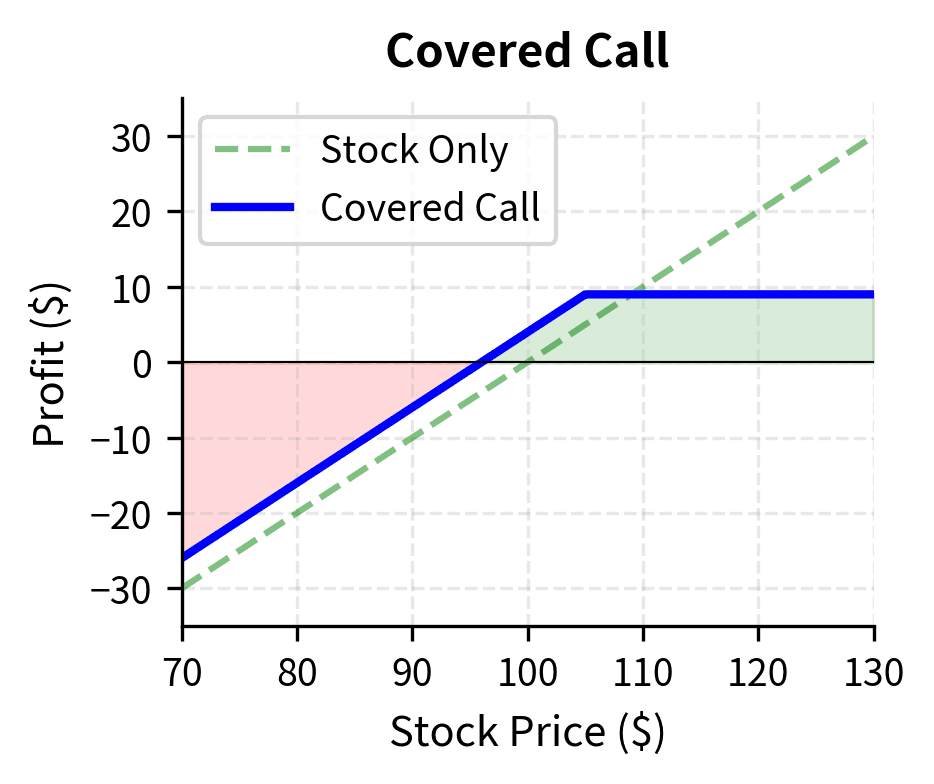

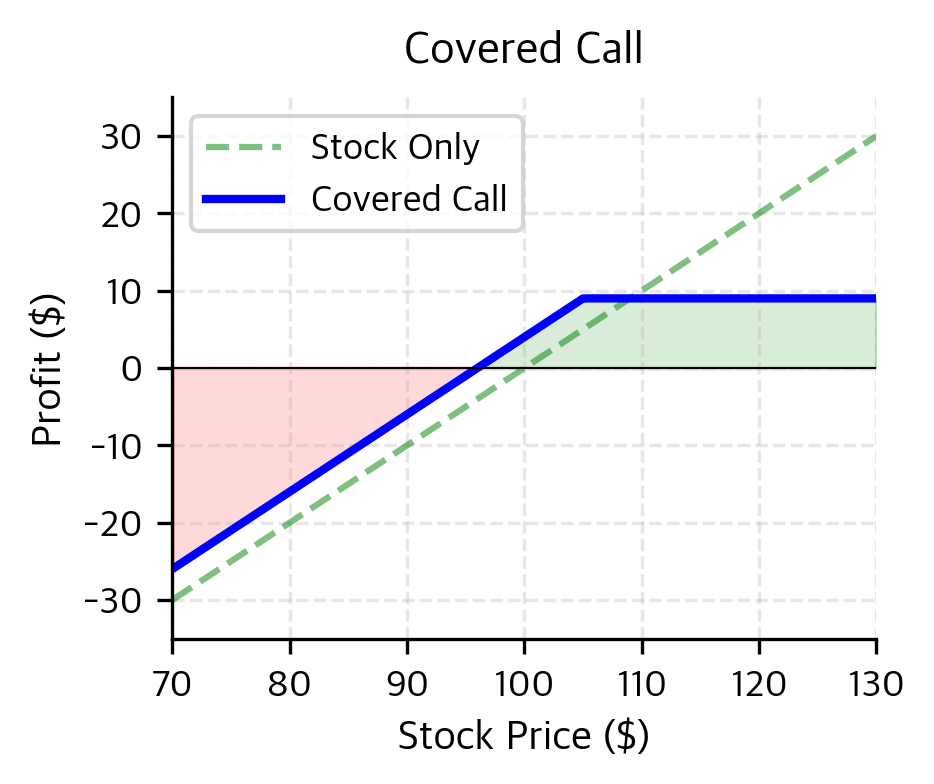

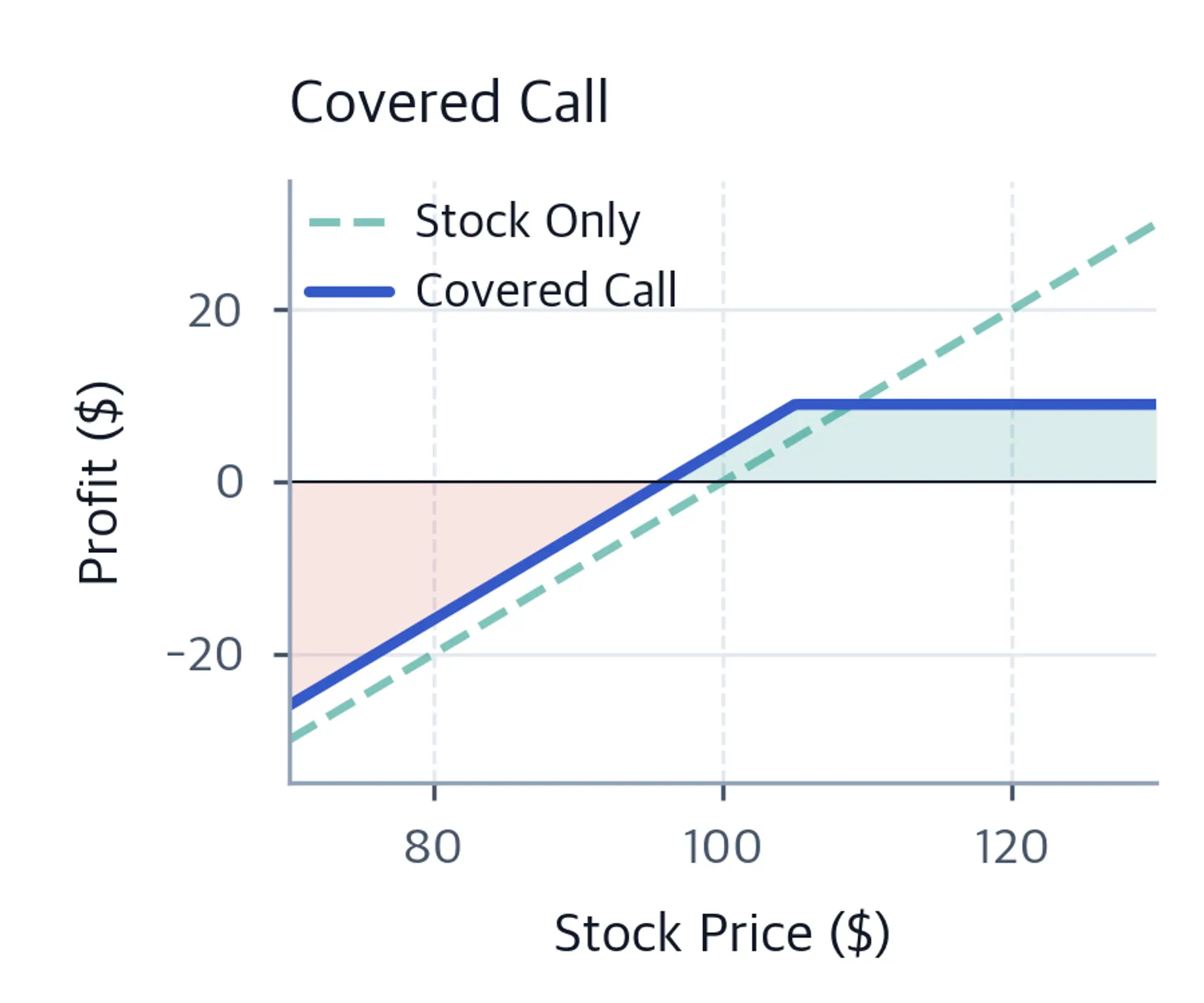

Covered call profit profile compared against standalone stock ownership. The strategy sacrifices upside potential beyond the strike to generate income, offering a limited buffer against small price declines.
Covered call profit profile compared against standalone stock ownership. The strategy sacrifices upside potential beyond the strike to generate income, offering a limited buffer against small price declines.

Vertical Spreads

Vertical spreads involve buying and selling options of the same type (both calls or both puts) with the same expiration but different strike prices. The "vertical" terminology comes from how options are traditionally displayed, with strikes listed vertically.

Spreads reduce both the cost and the profit potential compared to single options. They're useful when you have a directional view but want to limit your capital outlay or when you believe the underlying will move to a certain level but not beyond it.

Bull Call Spread

A bull call spread profits from a moderate rise in the underlying price. You construct it by:

  1. Buying a call at a lower strike price K1K_1
  2. Selling a call at a higher strike price K2K_2 (where K2>K1K_2 > K_1)

Both options have the same expiration. The premium received from selling the higher-strike call partially offsets the cost of buying the lower-strike call, reducing your net investment.

The combined payoff is:

Bull_Call_Spread=max(STK1,0)max(STK2,0)(C1C2)\text{Bull\_Call\_Spread} = \max(S_T - K_1, 0) - \max(S_T - K_2, 0) - (C_1 - C_2)

where:

  • STS_T: stock price at expiration
  • K1K_1: lower strike price (long call)
  • K2K_2: higher strike price (short call), where K2>K1K_2 > K_1
  • C1C_1: premium paid for the K1K_1 call
  • C2C_2: premium received for the K2K_2 call
  • (C1C2)(C_1 - C_2): net debit paid to establish the spread
  • max(STK1,0)\max(S_T - K_1, 0): payoff from the long call
  • max(STK2,0)-\max(S_T - K_2, 0): obligation from the short call

The spread works by buying upside exposure at K1K_1 and selling away upside above K2K_2. The short call partially finances the long call, reducing the net cost. When the stock rises above K2K_2, both options are in-the-money and their intrinsic values offset each other, capping the spread's profit at the difference between strikes minus the net cost. This capping mechanism is essential to understand: above K2K_2, every additional dollar the stock rises adds one dollar to your long call's value but also adds one dollar to your short call's obligation, netting to zero additional profit.

Analyzing the payoff structure at different price levels shows three regions with different outcomes.

Below K1K_1 (STK1S_T \leq K_1): Both calls are out-of-the-money and expire worthless. The loss is the net debit paid. This represents the worst-case scenario where your bullish view was entirely wrong. The consolation is that your loss is limited to what you paid to enter the position.

Between K1K_1 and K2K_2 (K1<ST<K2K_1 < S_T < K_2): The long call at K1K_1 is in-the-money with value STK1S_T - K_1, while the short call at K2K_2 remains worthless. Profit increases linearly. This is the range where your directional bet is paying off. Each dollar increase in the stock price adds a dollar to your profit.

Above K2K_2 (STK2S_T \geq K_2): Both calls are in-the-money. The long call gains (STK1)(S_T - K_1) but the short call loses (STK2)(S_T - K_2), netting to a constant (K2K1)(K_2 - K_1). You have reached maximum profit. Further stock appreciation doesn't help you because you sold away that upside when you established the short call.

This creates three distinct regions:

Profit={(C1C2)if STK1STK1(C1C2)if K1<ST<K2(K2K1)(C1C2)if STK2\text{Profit} = \begin{cases} -(C_1 - C_2) & \text{if } S_T \leq K_1 \\ S_T - K_1 - (C_1 - C_2) & \text{if } K_1 < S_T < K_2 \\ (K_2 - K_1) - (C_1 - C_2) & \text{if } S_T \geq K_2 \end{cases}

where:

  • (C1C2)-(C_1 - C_2): net debit paid (maximum loss when both calls expire worthless)
  • STK1(C1C2)S_T - K_1 - (C_1 - C_2): long call intrinsic value minus net cost (linear profit zone)
  • (K2K1)(C1C2)(K_2 - K_1) - (C_1 - C_2): maximum profit when both calls are in-the-money

Each region represents a different outcome. The first region represents complete failure of your bullish thesis. The second region shows partial success where your view was directionally correct. The third region represents full success where the stock moved enough to maximize your profit.

In[12]:
Code
## Bull call spread
K1 = 95  # Lower strike (buy call)
K2 = 105  # Higher strike (sell call)
C1 = 8  # Premium paid for lower-strike call
C2 = 3  # Premium received for higher-strike call
net_debit = C1 - C2  # Net cost of the spread

S = np.linspace(70, 130, 200)

## Component payoffs
long_call_K1 = call_payoff(S, K1, C1, "long")
short_call_K2 = call_payoff(S, K2, C2, "short")

## Combined spread
bull_call_spread = long_call_K1 + short_call_K2

## Calculate key metrics
max_profit_bull = (K2 - K1) - net_debit
max_loss_bull = net_debit
breakeven_bull = K1 + net_debit
Out[13]:
Visualization

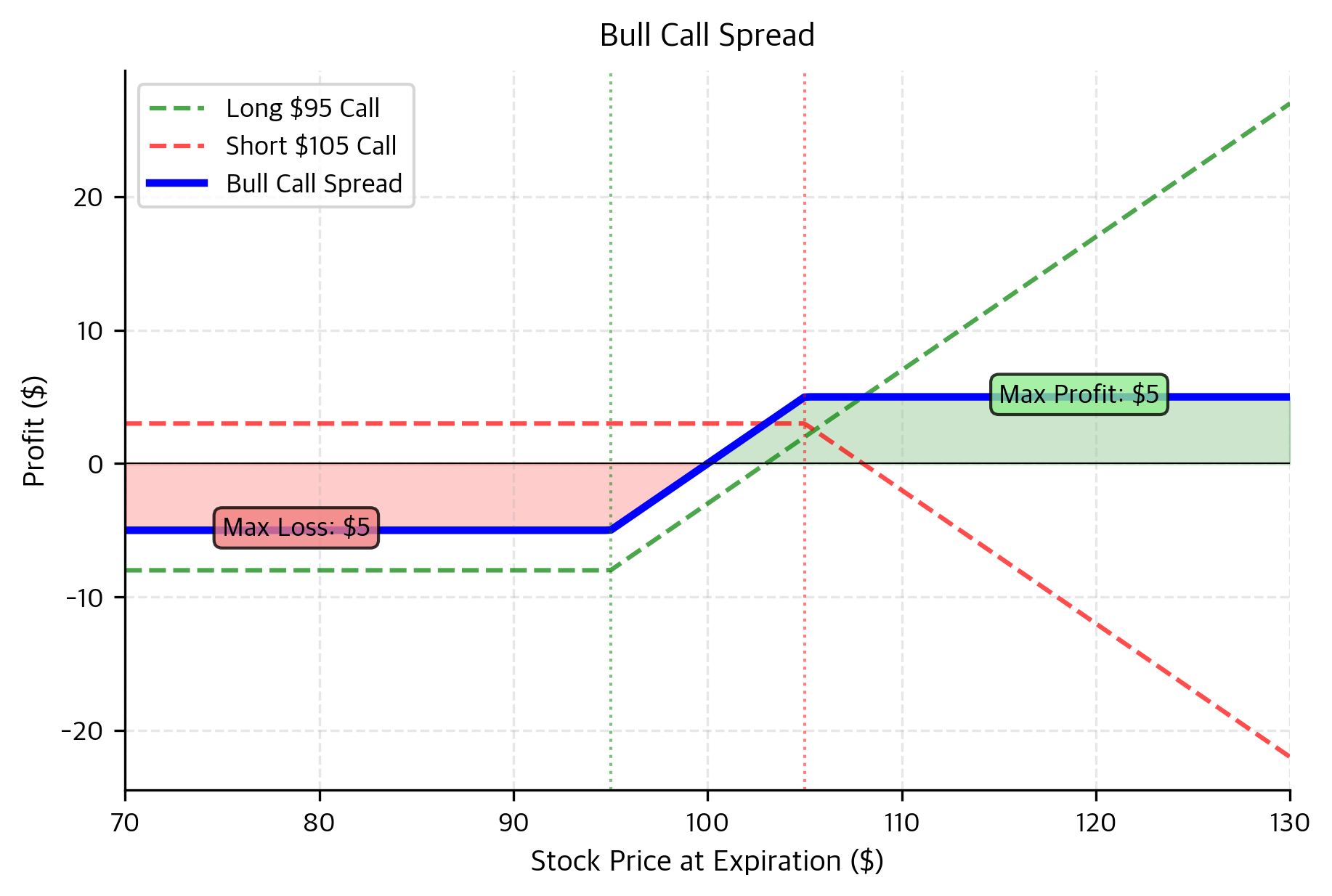

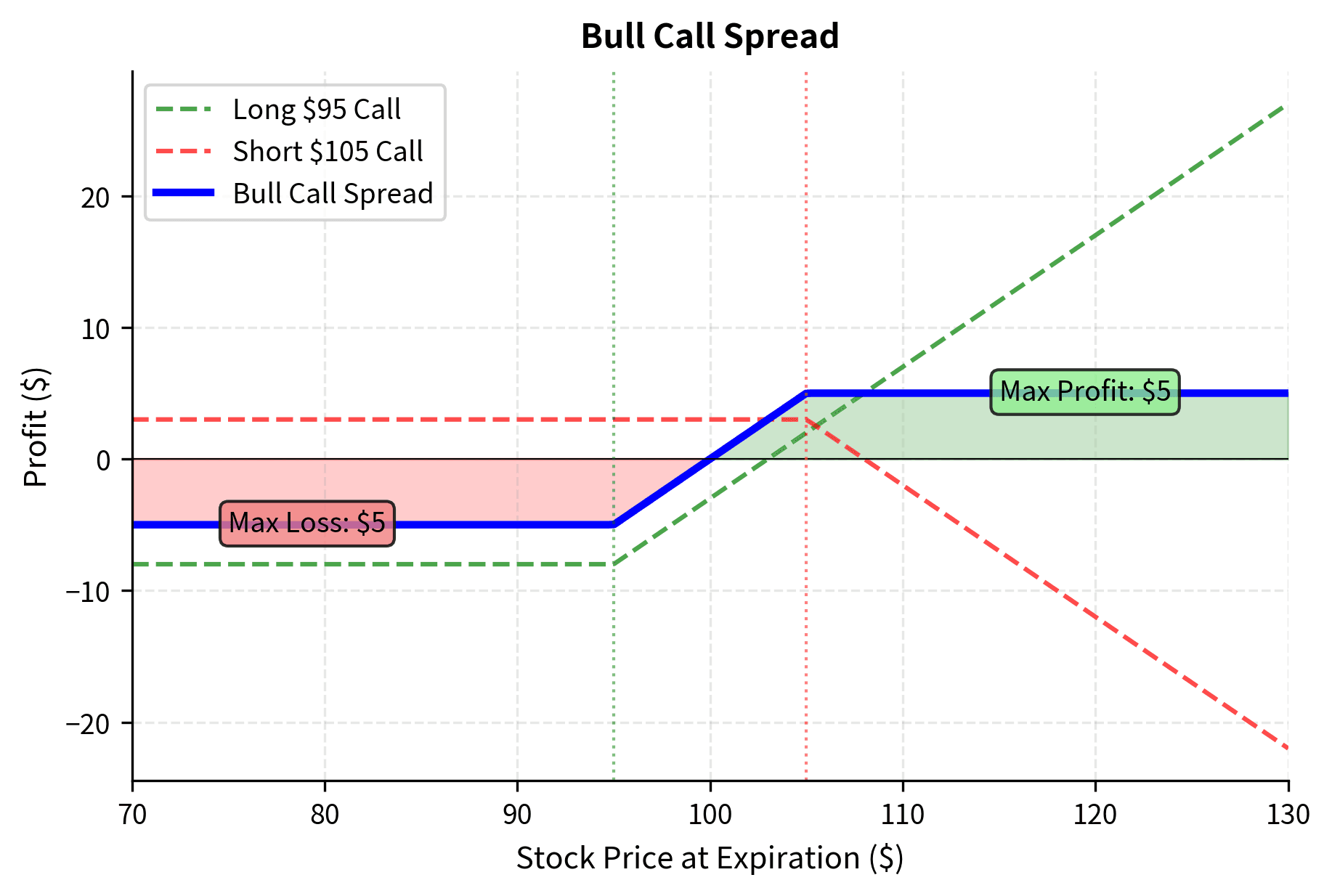

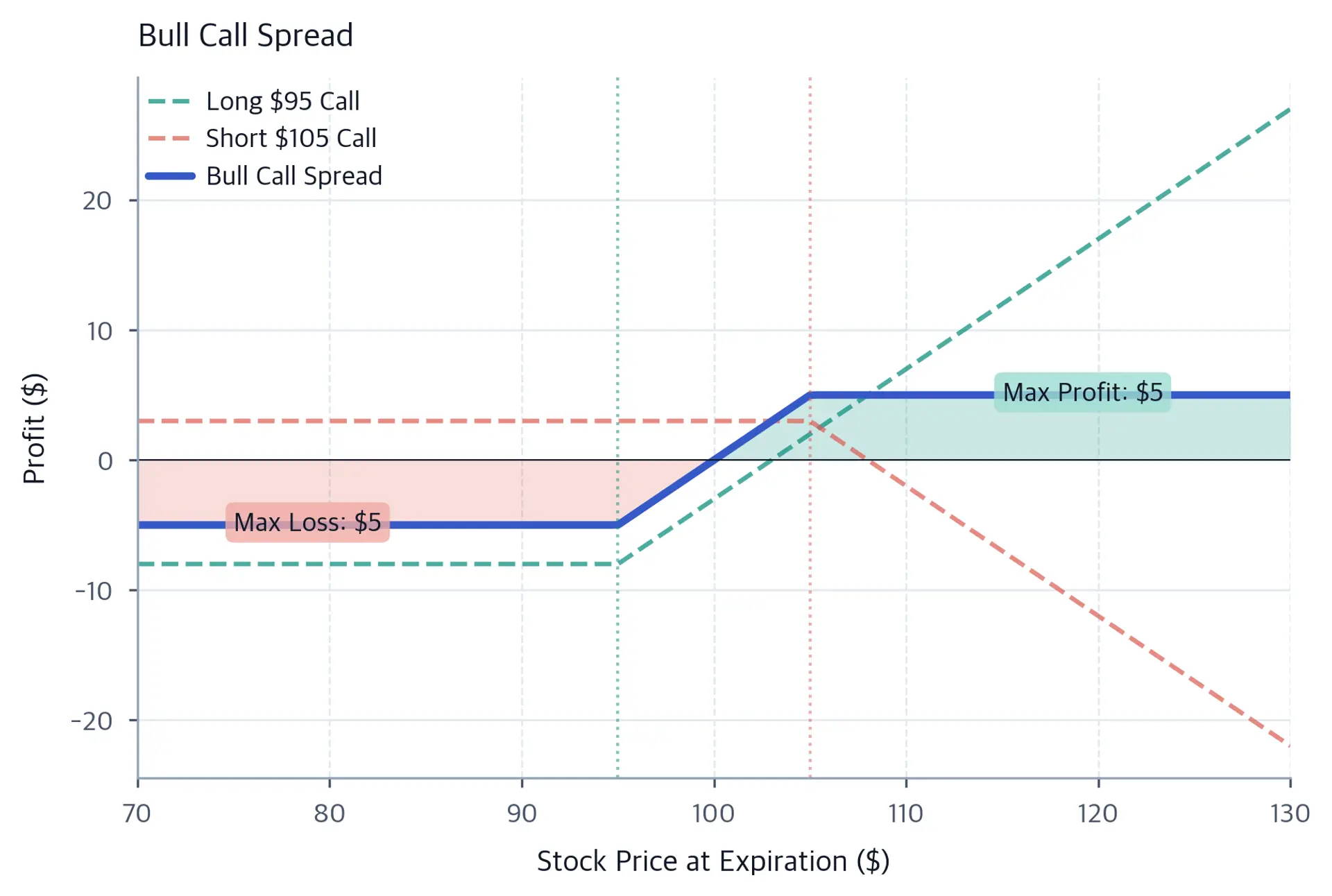

Bull call spread payoff profile constructed from a long lower-strike call and a short higher-strike call. This vertical spread limits both the maximum loss (net debit paid) and maximum profit (difference between strikes minus debit). The strategy captures value from moderate price increases while mitigating the cost of a standalone call option.
Bull call spread payoff profile constructed from a long lower-strike call and a short higher-strike call. This vertical spread limits both the maximum loss (net debit paid) and maximum profit (difference between strikes minus debit). The strategy captures value from moderate price increases while mitigating the cost of a standalone call option.
Out[14]:
Console
Maximum Profit: $5.00
Maximum Loss: $5.00
Breakeven: $100.00

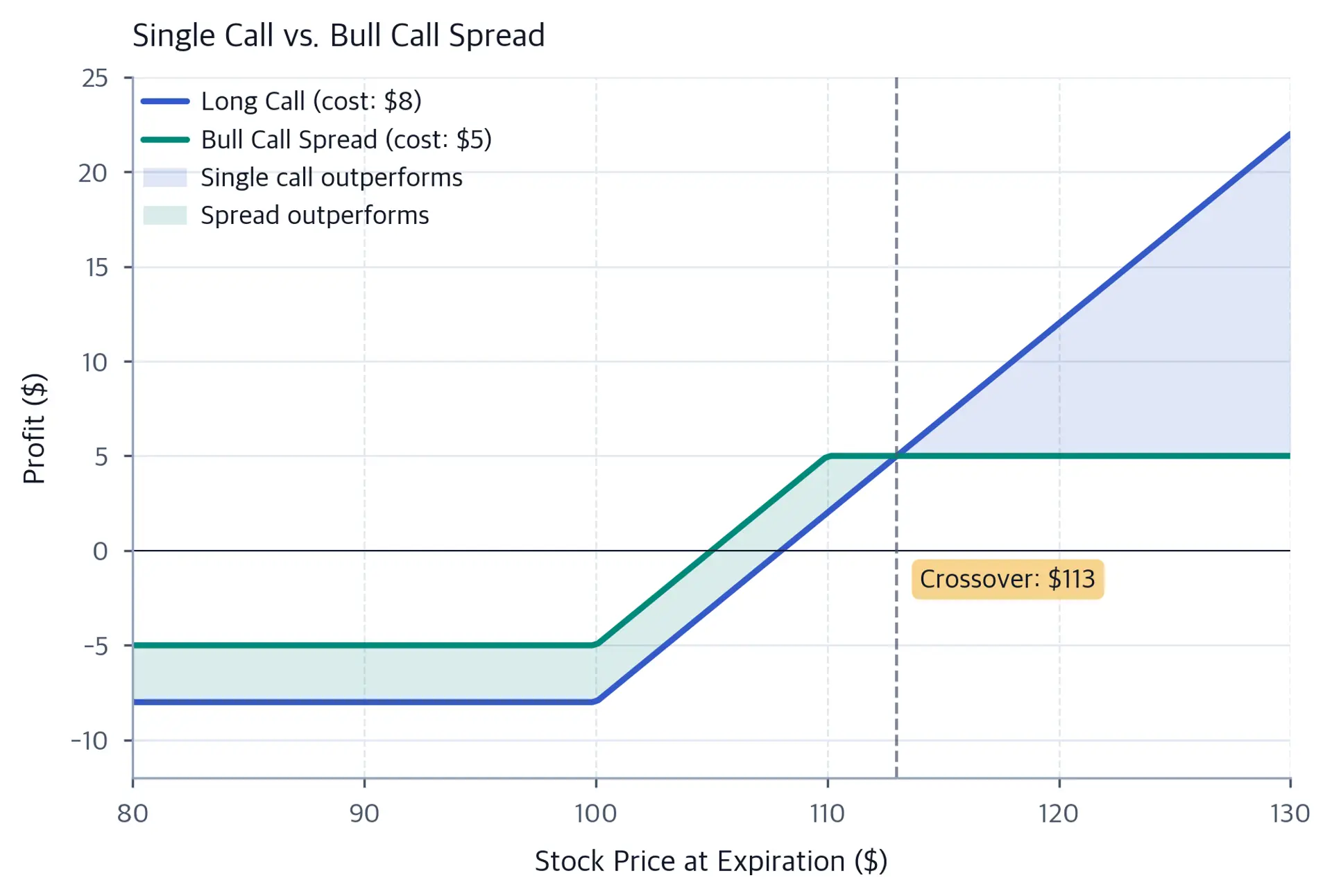

The bull call spread caps maximum profit, sacrificing unlimited upside in exchange for reduced capital outlay. This net cost also represents the maximum loss, creating a defined-risk profile that simplifies position sizing. The breakeven point falls between the two strikes, requiring a moderate move to achieve profitability. This structure trades unlimited profit potential for lower cost and defined risk parameters.

Bear Put Spread

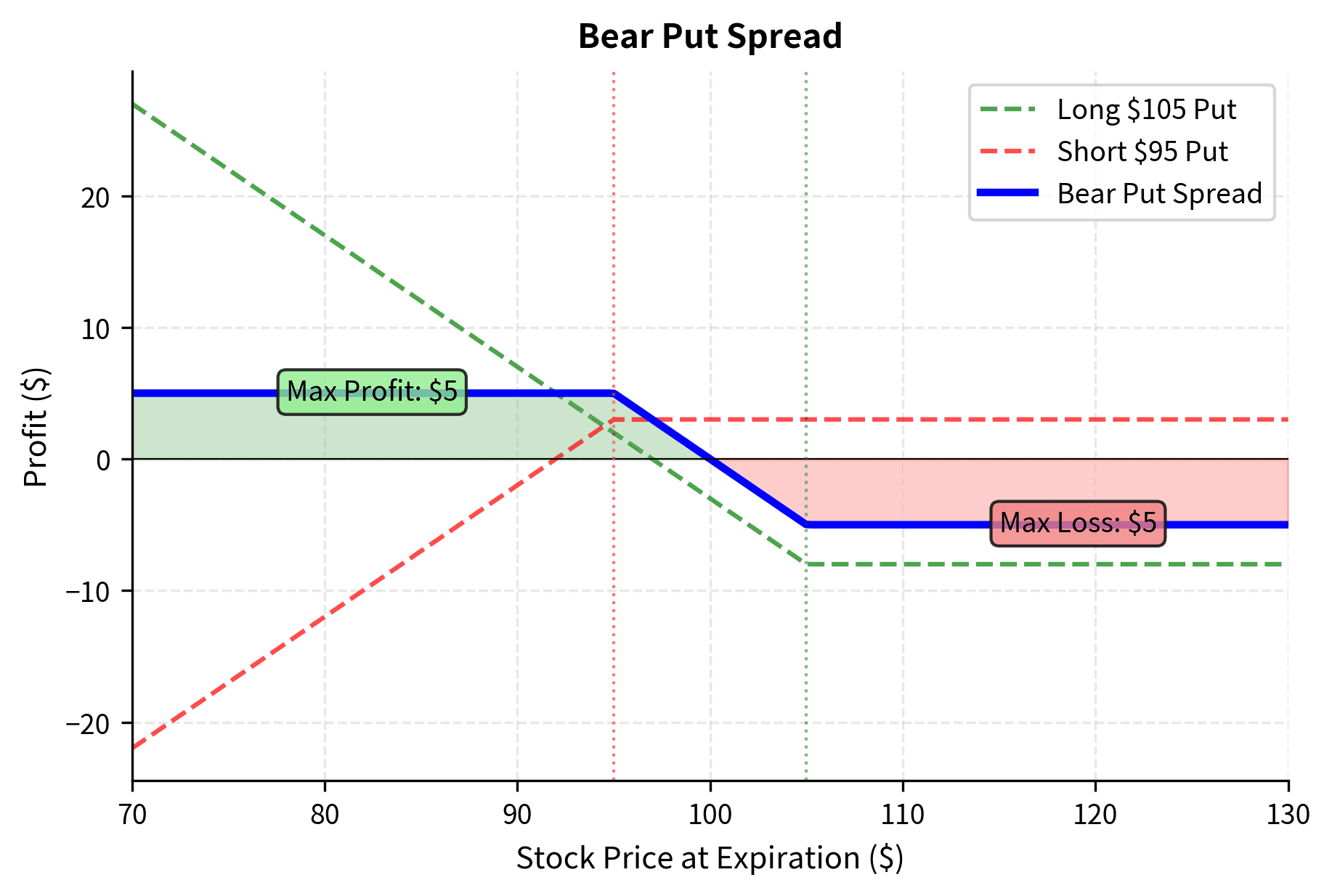

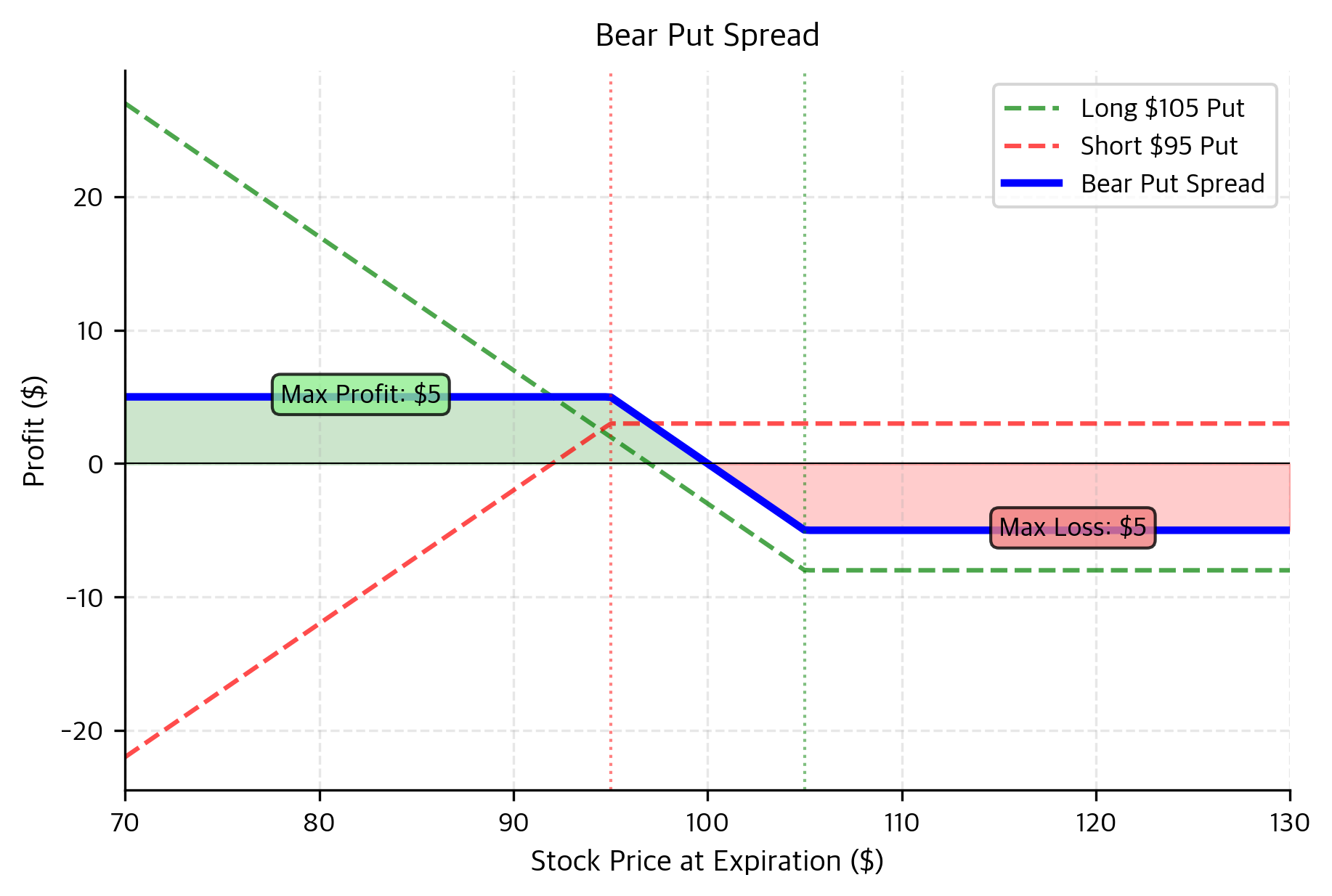

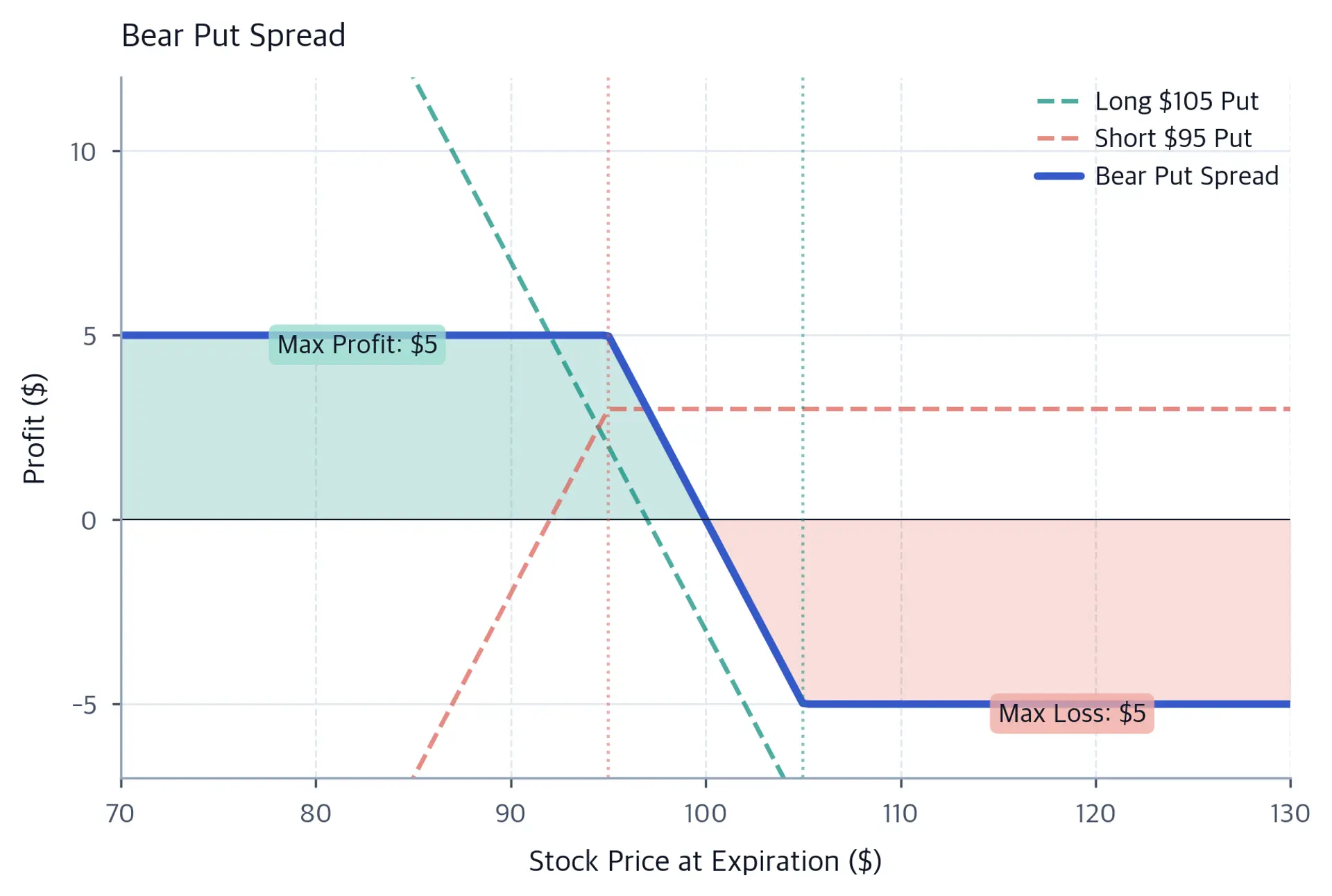

A bear put spread is the bearish counterpart to the bull call spread. You construct it by:

  1. Buying a put at a higher strike price K2K_2
  2. Selling a put at a lower strike price K1K_1 (where K1<K2K_1 < K_2)

The strategy profits when the underlying price falls moderately. The construction mirrors the bull call spread but uses puts instead of calls and profits from downward price movement rather than upward movement. The put you buy at the higher strike gains value as the stock falls, while the put you sell at the lower strike limits your profit potential but reduces the cost of the position.

In[15]:
Code
## Bear put spread
K1_bear = 95  # Lower strike (sell put)
K2_bear = 105  # Higher strike (buy put)
P1 = 3  # Premium received for lower-strike put
P2 = 8  # Premium paid for higher-strike put
net_debit_bear = P2 - P1

S = np.linspace(70, 130, 200)

## Component payoffs
long_put_K2 = put_payoff(S, K2_bear, P2, "long")
short_put_K1 = put_payoff(S, K1_bear, P1, "short")

## Combined spread
bear_put_spread = long_put_K2 + short_put_K1

## Calculate key metrics
max_profit_bear = (K2_bear - K1_bear) - net_debit_bear
max_loss_bear = net_debit_bear
Out[16]:
Visualization
Bear put spread payoff profile composed of a long higher-strike put and a short lower-strike put. The strategy profits from moderate price declines with risk limited to the net debit paid and profit capped at the spread width minus the cost. This defined-risk structure provides a cost-effective way to express a bearish market view.
Bear put spread payoff profile composed of a long higher-strike put and a short lower-strike put. The strategy profits from moderate price declines with risk limited to the net debit paid and profit capped at the spread width minus the cost. This defined-risk structure provides a cost-effective way to express a bearish market view.

Spread Economics

Why use spreads instead of single options? The key tradeoff is cost versus profit potential.

Suppose we are bullish and want to buy a call option. A single at-the-money call might cost $8. If we are right and the stock rises $15 above the strike, our profit is $7. If wrong, our loss is $8. With a bull call spread, we might pay $5 net after selling the higher-strike call. If we are right and the stock rises beyond the upper strike, our profit is capped at perhaps $5 (the spread width minus the net cost). But if wrong, our loss is only $5 instead of $8.

The spread has a better risk/reward ratio in the sense that both the maximum loss and maximum gain are reduced, but the breakeven point is also lower.

Spreads are particularly attractive when implied volatility is high, making single options expensive. By selling an option as part of the spread, you partially offset the inflated premium you're paying.

Out[17]:
Visualization

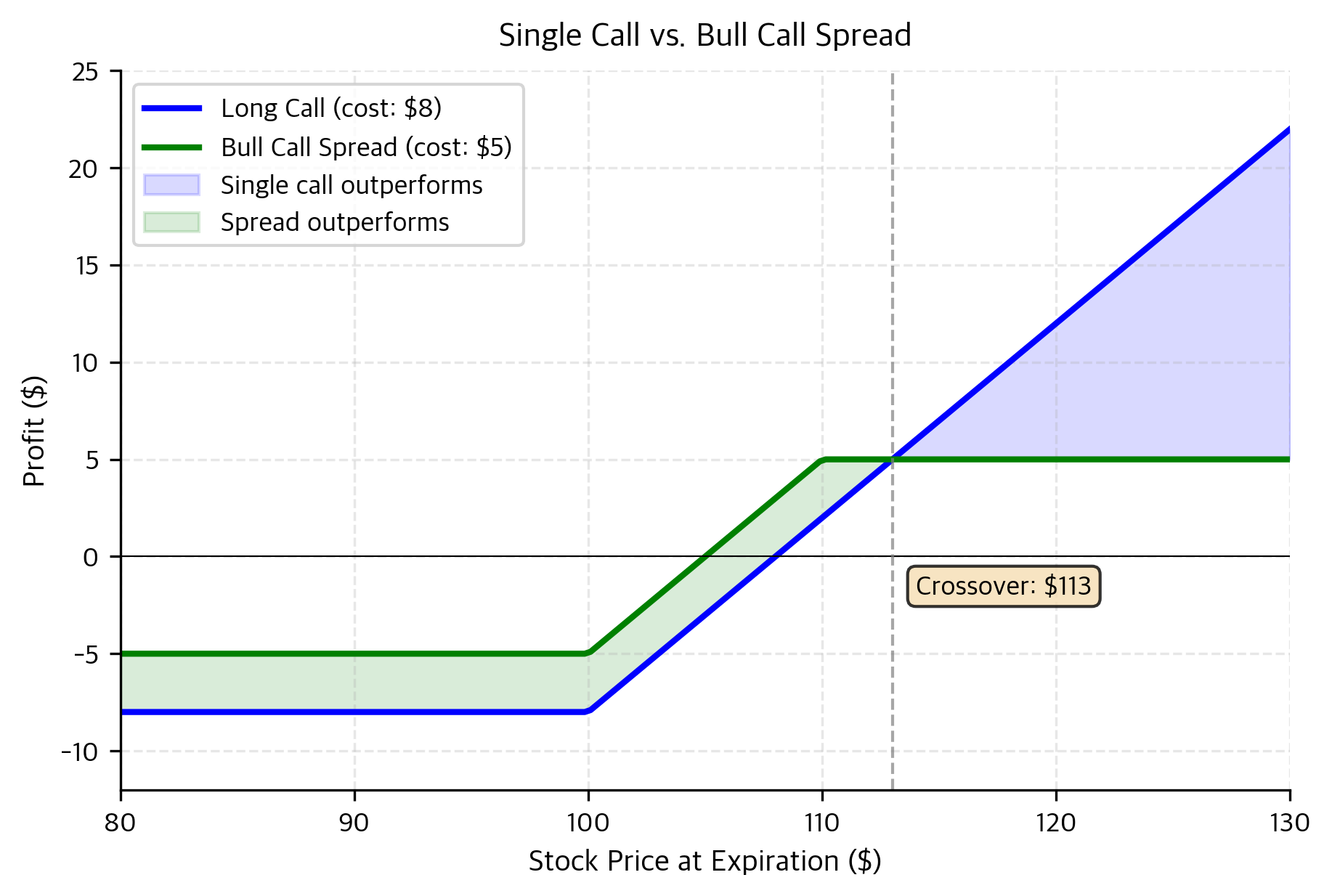

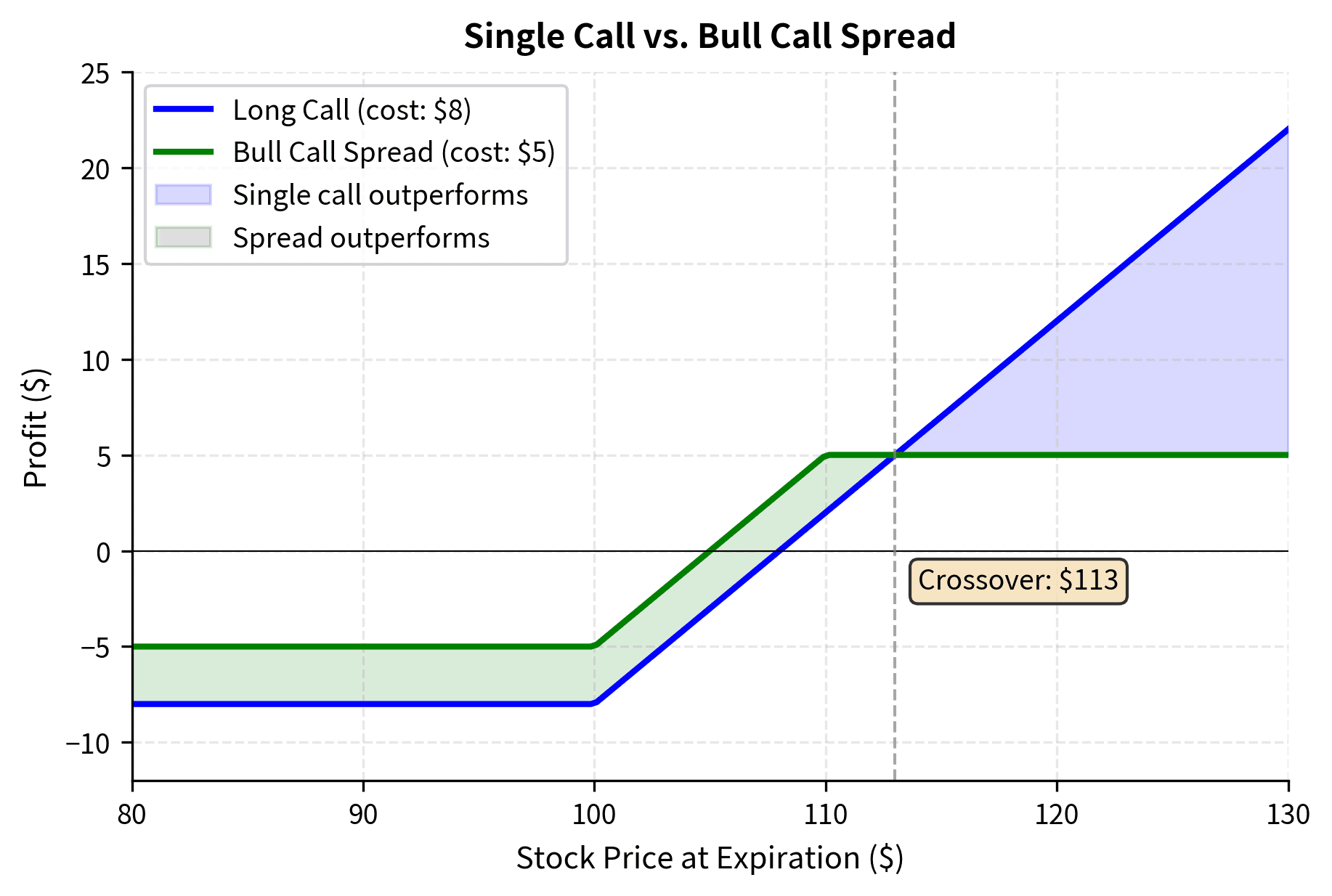

Performance comparison between a single long call and a bull call spread. The spread reduces the upfront capital requirement and maximum risk compared to the single call, but caps the potential profit. The crossover point marks the price level where the uncapped single call begins to outperform the capped spread strategy.
Performance comparison between a single long call and a bull call spread. The spread reduces the upfront capital requirement and maximum risk compared to the single call, but caps the potential profit. The crossover point marks the price level where the uncapped single call begins to outperform the capped spread strategy.

Volatility Strategies

You don't have a strong view on direction but do have a view on volatility. You believe the underlying will either move significantly (without knowing which direction) or stay relatively stable. Volatility strategies express these views.

Long Straddle

A long straddle involves buying both a call and a put with the same strike price and expiration, typically at-the-money. The strategy profits from large moves in either direction and loses if the underlying stays near the strike.

The combined payoff is:

Long_Straddle=max(STK,0)+max(KST,0)(C+P)\text{Long\_Straddle} = \max(S_T - K, 0) + \max(K - S_T, 0) - (C + P)

where:

  • STS_T: stock price at expiration
  • KK: strike price (same for both call and put)
  • CC: premium paid for the call
  • PP: premium paid for the put
  • (C+P)(C + P): total cost to establish the straddle

This formula adds together the payoffs of the long call and long put, then subtracts the total premium paid for both options. The structure guarantees that at least one of the two max terms contributes positive value at expiration. If the stock ends above the strike, the call is in-the-money. If the stock ends below the strike, the put is in-the-money. The only way to lose the full premium is if the stock expires exactly at the strike, where both options are worthless.

The straddle structure ensures that one option is always in-the-money: the call profits when the stock rises above KK, while the put profits when the stock falls below KK. At any price, at least one option has positive intrinsic value. The total premium paid represents the cost of this bidirectional exposure.

This payoff structure can be expressed more simply by recognizing that exactly one of the two max terms is always positive. When ST>KS_T > K, the call is in-the-money with value (STK)(S_T - K) and the put is worthless. When ST<KS_T < K, the put is in-the-money with value (KST)(K - S_T) and the call is worthless. In both cases, the total intrinsic value equals the absolute distance from the strike. This observation simplifies the formula.

This simplifies to:

Profit=STK(C+P)\text{Profit} = |S_T - K| - (C + P)

where:

  • STK|S_T - K|: absolute distance of the stock price from the strike (always positive)
  • (C+P)(C + P): total premium paid (the breakeven threshold)

This elegant form shows that profit equals the absolute price movement away from the strike, minus the cost of the straddle. The straddle profits when the stock moves more than (C+P)(C + P) in either direction from the strike. The absolute value function captures the directional indifference of the straddle: you don't care which way the stock moves, only how far it moves. This is why straddles are called volatility strategies rather than directional strategies.

The two breakeven points occur where profit equals zero. Setting STK(C+P)=0|S_T - K| - (C + P) = 0 and solving:

STK=C+PSTK=±(C+P)ST=K±(C+P)\begin{aligned} |S_T - K| &= C + P \\ S_T - K &= \pm(C + P) \\ S_T &= K \pm (C + P) \end{aligned}

where:

  • KK: strike price of both options
  • C+PC + P: total premium paid for the straddle
  • K(C+P)K - (C + P): lower breakeven point
  • K+(C+P)K + (C + P): upper breakeven point

The derivation above shows why the straddle has two symmetric breakeven points equidistant from the strike. The absolute value equation has two solutions because the stock can move either up or down by the required amount. The distance from the strike to each breakeven equals the total premium paid, which represents the market's expectation of how much the stock might move.

In[18]:
Code
## Long straddle
K_straddle = 100  # At-the-money strike
call_prem = 6  # Call premium
put_prem = (
    5.5  # Put premium (slightly cheaper due to put-call parity adjustments)
)
total_premium = call_prem + put_prem

S = np.linspace(70, 130, 200)

## Component payoffs
straddle_call = call_payoff(S, K_straddle, call_prem, "long")
straddle_put = put_payoff(S, K_straddle, put_prem, "long")

## Combined straddle
long_straddle = straddle_call + straddle_put

## Calculate key metrics
lower_be = K_straddle - total_premium
upper_be = K_straddle + total_premium
Out[19]:
Visualization

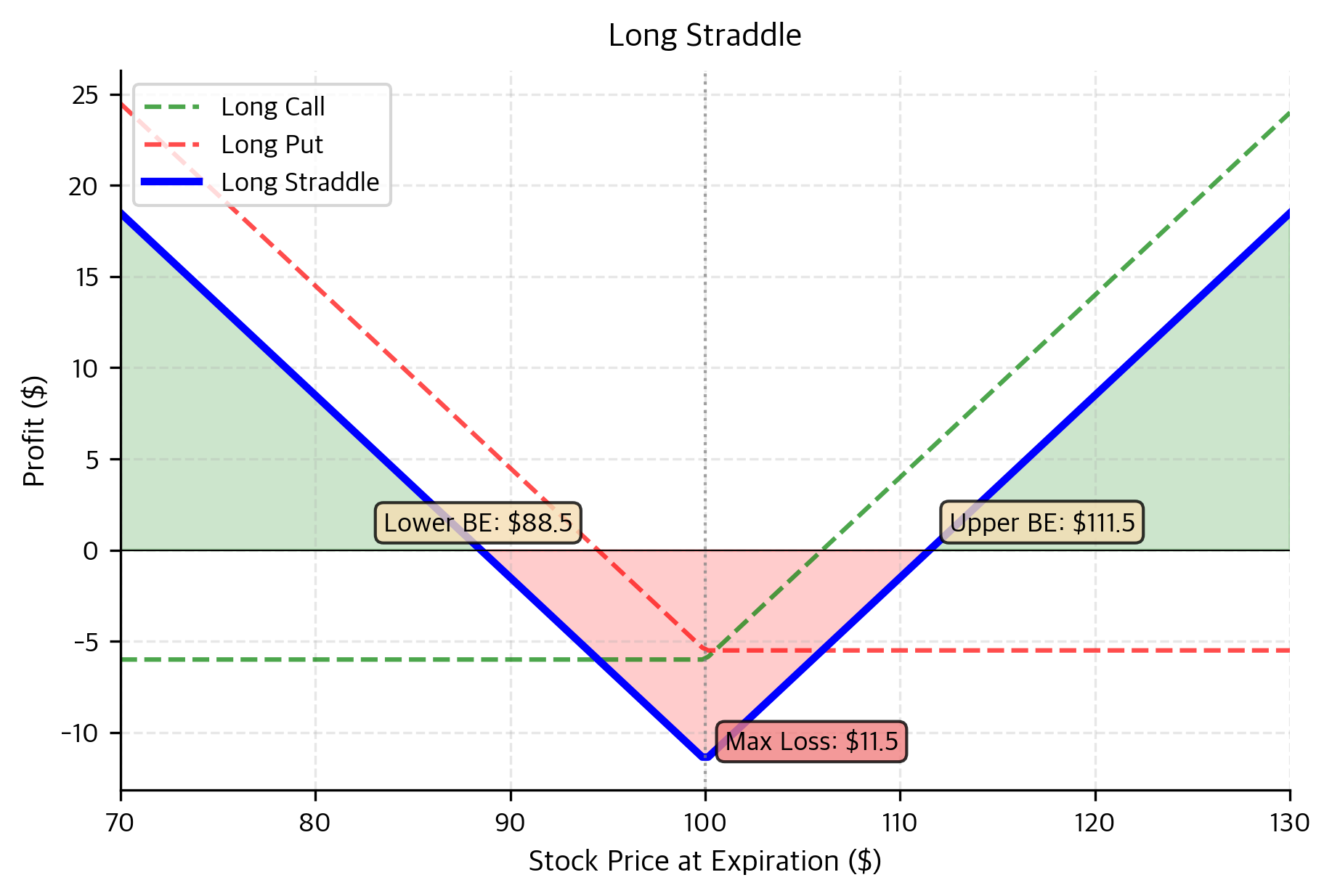

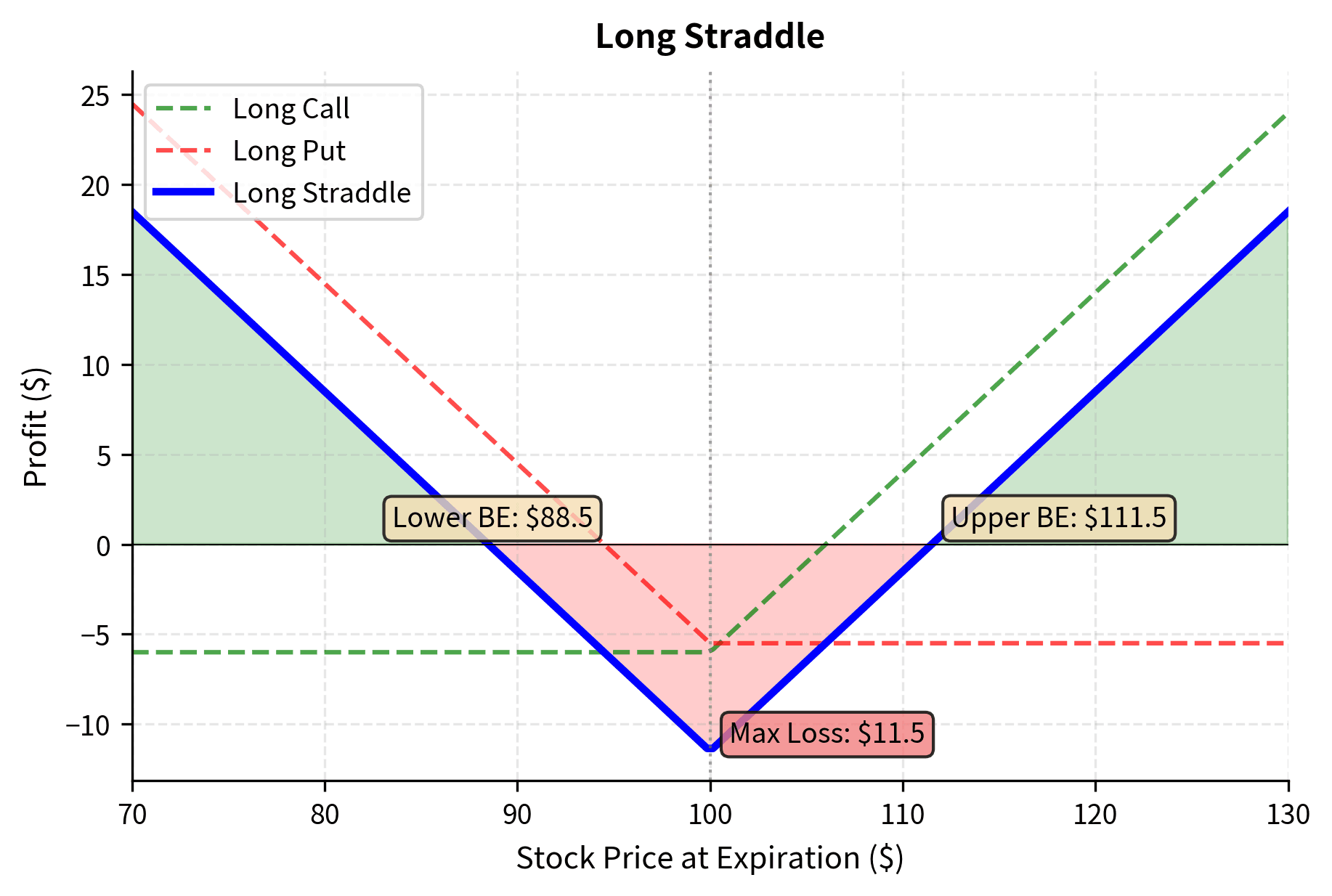

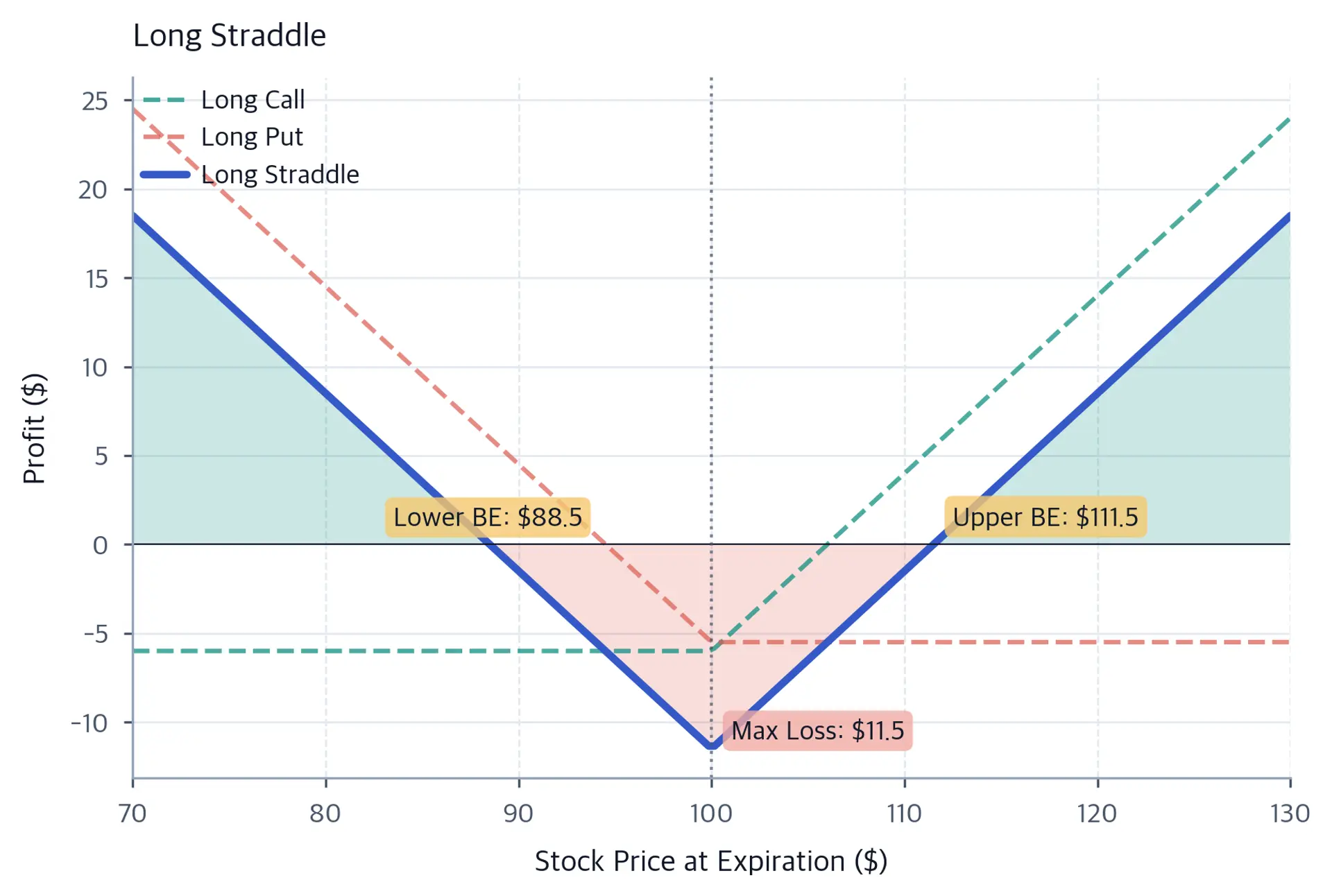

Long straddle payoff profile involving a long call and long put at the same strike price. The V-shaped profit curve demonstrates that the strategy profits from significant price movement in either direction, with losses limited to the total premium paid if the stock remains near the strike. This volatility strategy requires a move exceeding the total premium to reach breakeven.
Long straddle payoff profile involving a long call and long put at the same strike price. The V-shaped profit curve demonstrates that the strategy profits from significant price movement in either direction, with losses limited to the total premium paid if the stock remains near the strike. This volatility strategy requires a move exceeding the total premium to reach breakeven.
Out[20]:
Console
Lower Breakeven: $88.50
Upper Breakeven: $111.50
Maximum Loss: $11.50

The straddle requires a significant move in either direction from the strike to reach the breakeven points. Maximum loss occurs only when the stock expires exactly at the strike price, as both options expire worthless. The total premium paid reflects the market's implied volatility expectations. Profit equals the absolute distance from the strike minus the total cost, creating symmetric payoff in both directions once breakeven is achieved.

The long straddle is a bet that the underlying will move more than the market expects. The total premium paid represents the market's implied expectation of volatility. If the actual move exceeds this expectation, the straddle profits. This is why straddles are often described as "buying volatility."

A critical consideration: buying straddles before major announcements (earnings, FDA decisions, elections) is typically not profitable. The market anticipates these events and prices options accordingly. The implied volatility is already elevated, making the straddles expensive. After the announcement, implied volatility collapses, often overwhelming any gains from the directional move.

Long Strangle

A long strangle is similar to a straddle but uses different strike prices: you buy an out-of-the-money call and an out-of-the-money put. This reduces the premium paid but requires a larger move to become profitable.

The strangle structure places the call strike above the current price and the put strike below the current price. Both options are out-of-the-money at initiation, making them cheaper than the at-the-money options used in a straddle. However, this lower cost comes with a tradeoff: the stock must move further before either option gains intrinsic value.

In[21]:
Code
## Long strangle
K_call_strangle = 105  # OTM call strike
K_put_strangle = 95  # OTM put strike
call_prem_str = 3.5  # Lower premium because OTM
put_prem_str = 3  # Lower premium because OTM
total_premium_str = call_prem_str + put_prem_str

S = np.linspace(70, 130, 200)

## Component payoffs
strangle_call = call_payoff(S, K_call_strangle, call_prem_str, "long")
strangle_put = put_payoff(S, K_put_strangle, put_prem_str, "long")

## Combined strangle
long_strangle = strangle_call + strangle_put

## Calculate key metrics
lower_be_str = K_put_strangle - total_premium_str
upper_be_str = K_call_strangle + total_premium_str
cost_savings = total_premium - total_premium_str
Out[22]:
Visualization

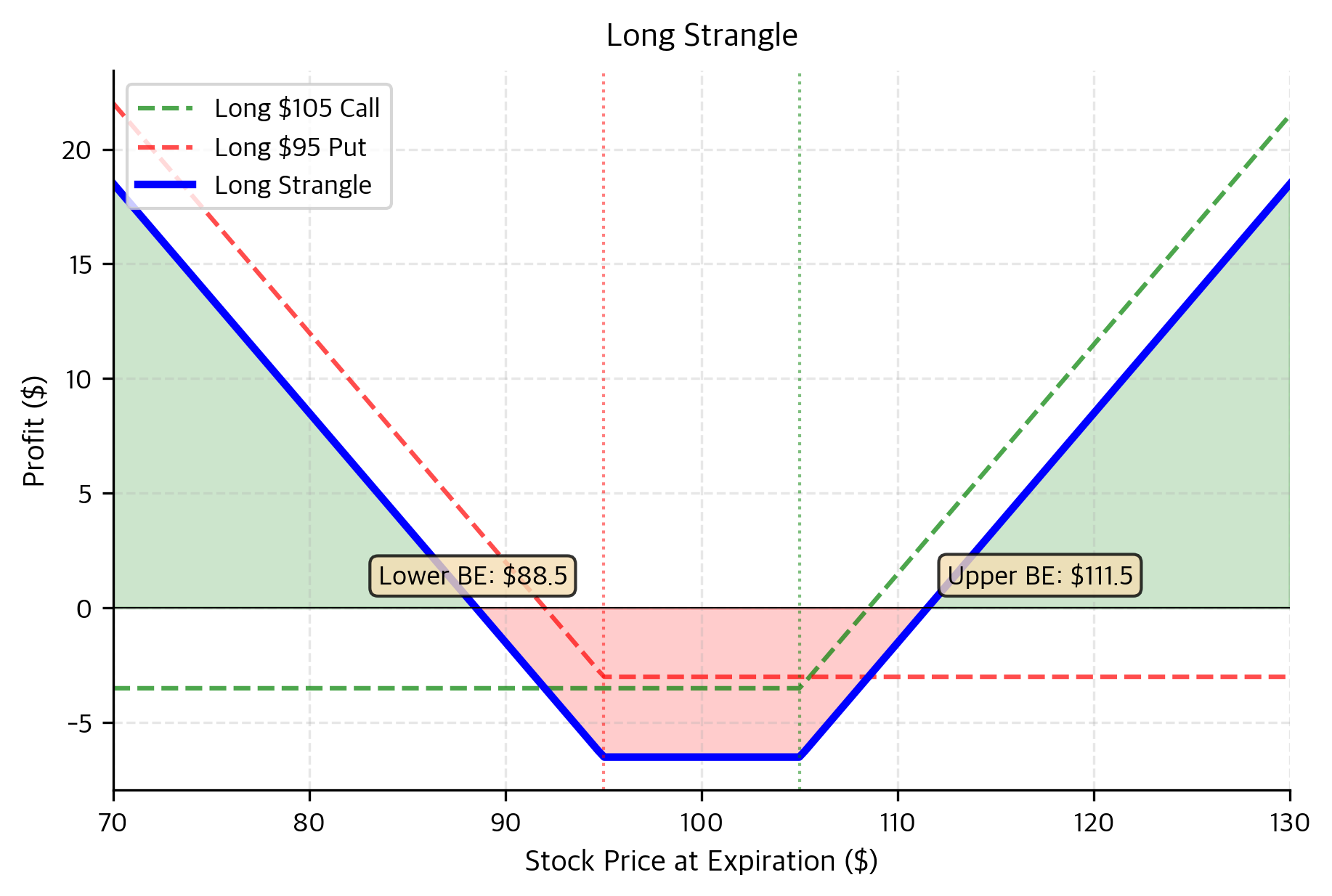

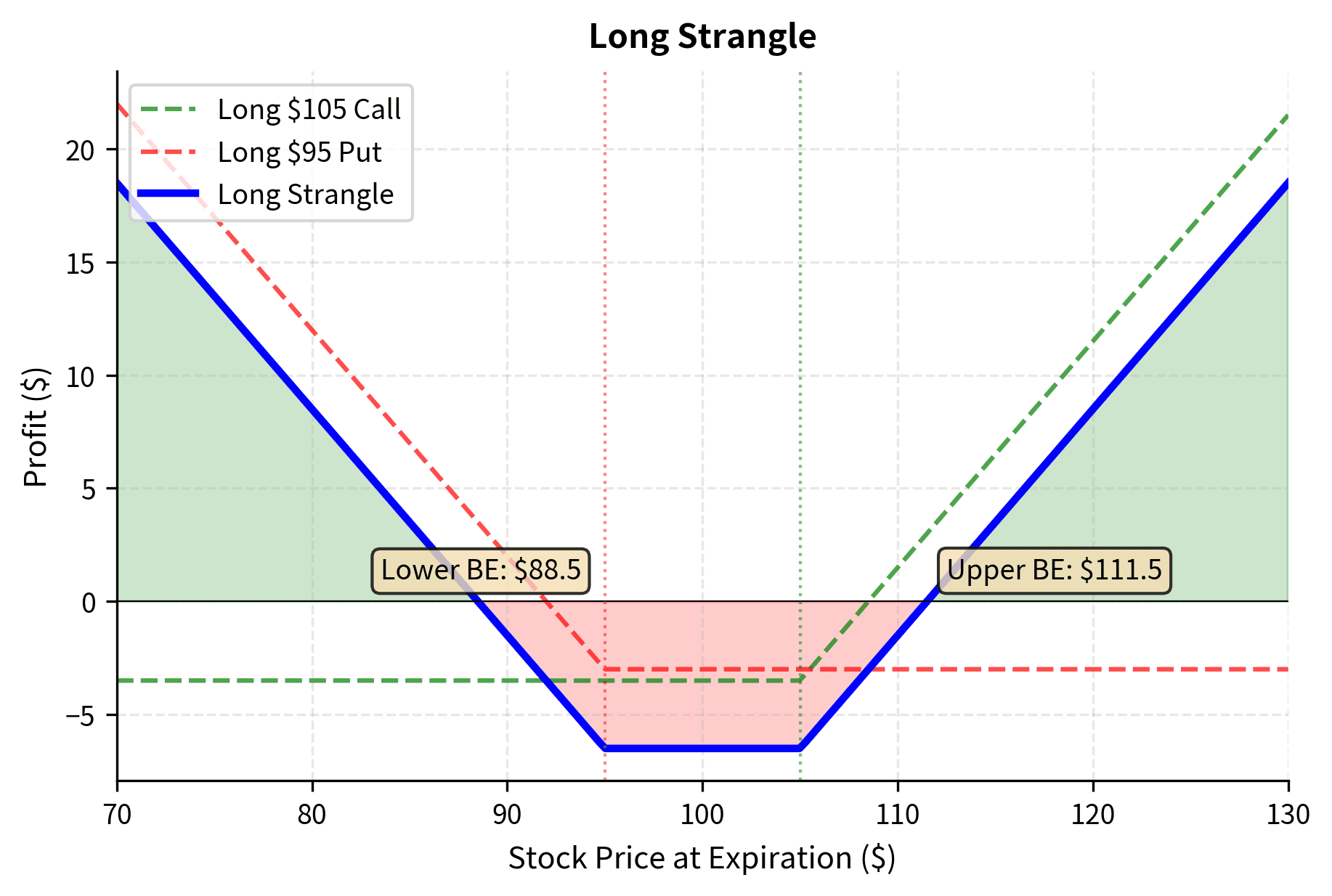

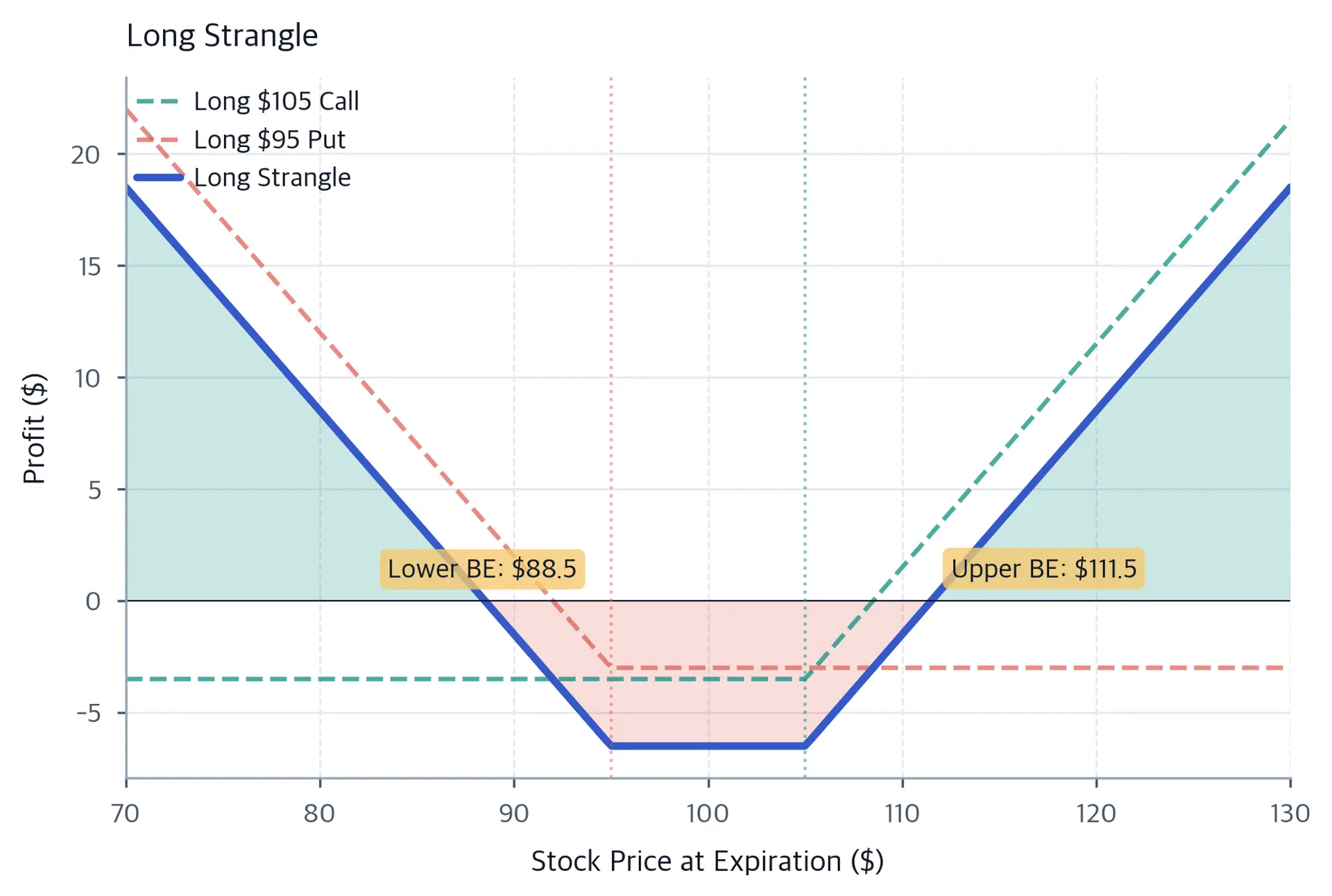

Long strangle payoff profile using out-of-the-money options to lower the entry cost compared to a straddle. The flat region between strikes represents the zone of maximum loss where both options expire worthless. While cheaper to establish, the stock must move significantly further to overcome the wider breakeven points.
Long strangle payoff profile using out-of-the-money options to lower the entry cost compared to a straddle. The flat region between strikes represents the zone of maximum loss where both options expire worthless. While cheaper to establish, the stock must move significantly further to overcome the wider breakeven points.
Out[23]:
Console
Strangle Cost: $6.50
Cost Savings vs Straddle: $5.00
Lower Breakeven: $88.50
Upper Breakeven: $111.50
Range Between Strikes: $10.00

The strangle costs less than the straddle but has wider breakeven points. The probability of maximum loss is higher because any price within the range between the strikes results in both options expiring worthless. The cost savings come at the expense of requiring a larger absolute move to reach profitability. The dead zone between strikes increases the likelihood of maximum loss. This tradeoff makes sense when you expect a very large move and want to minimize capital at risk while accepting lower probability of profit.

Out[24]:
Visualization

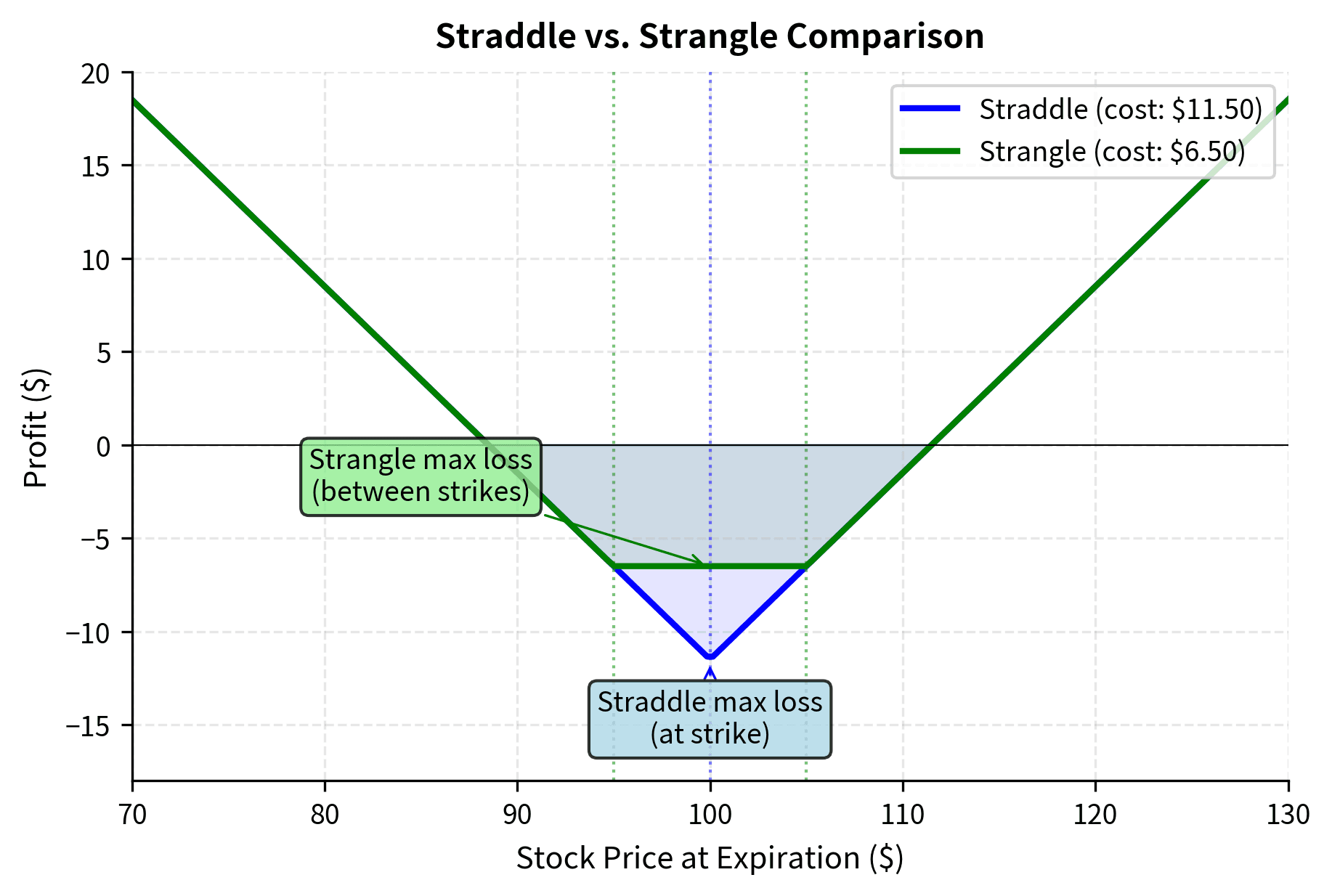

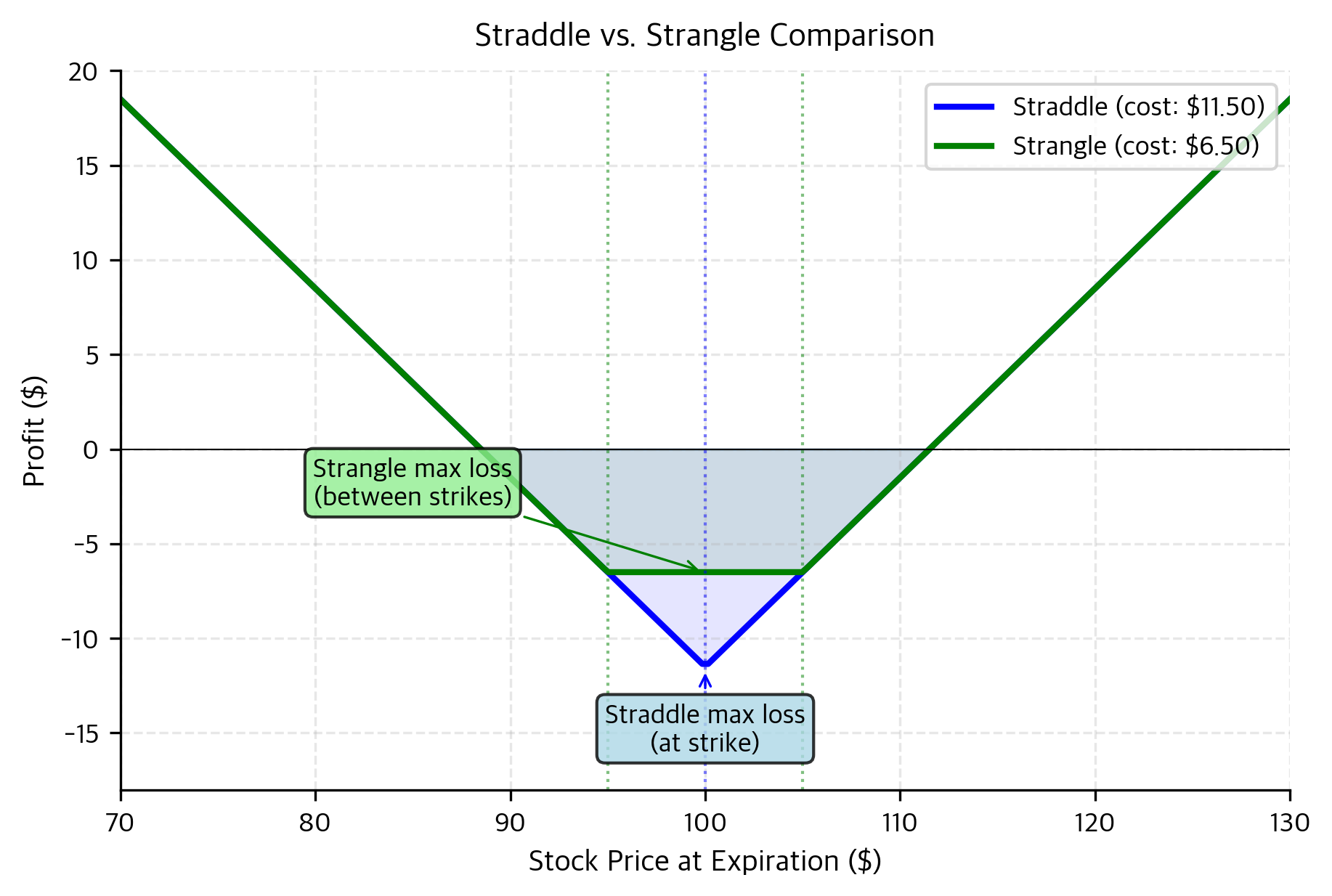

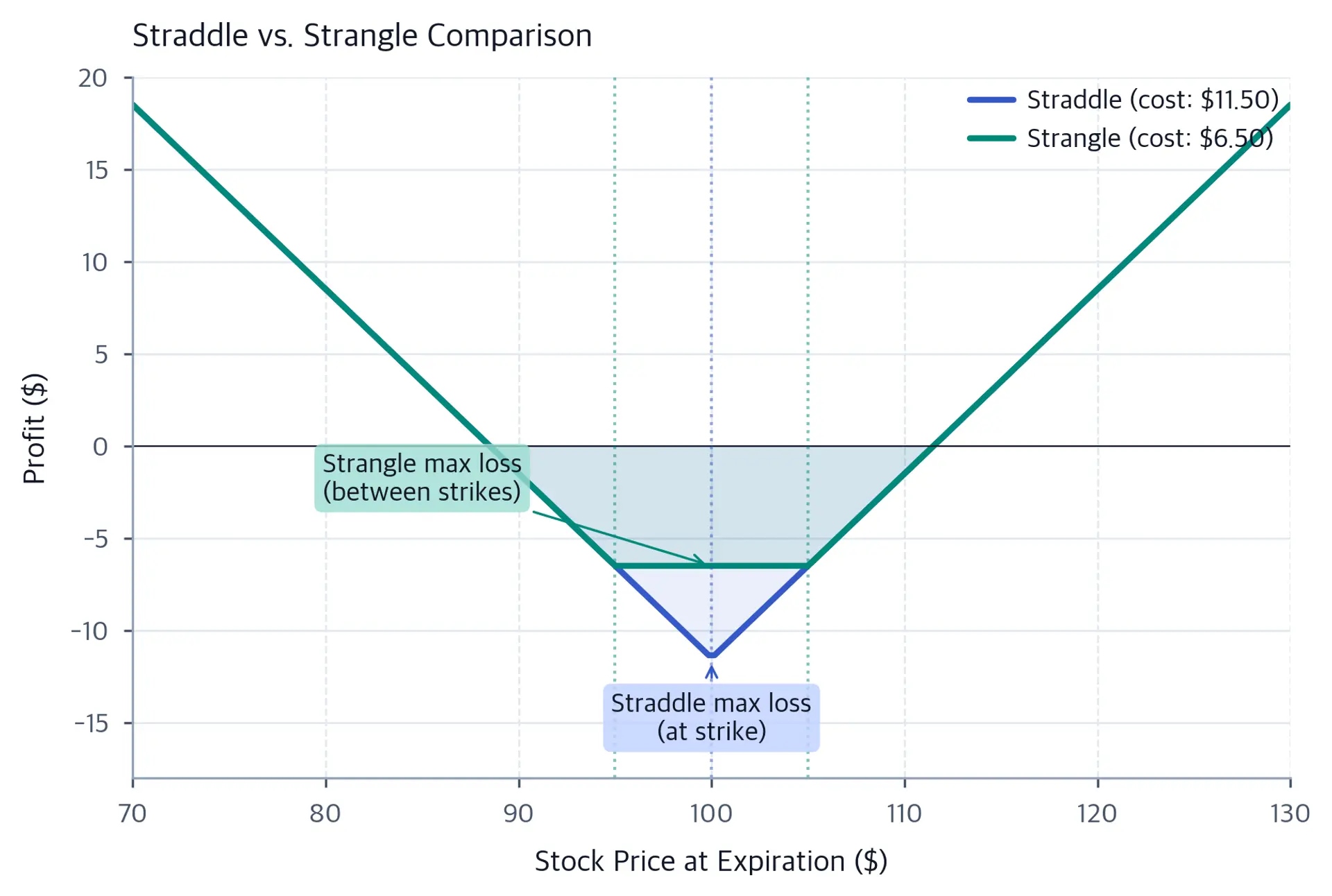

Overlay comparison of long straddle and long strangle profitability. The straddle offers a higher probability of profit with narrower breakeven points but requires a larger capital outlay (higher max loss). The strangle reduces the maximum risk and cost but requires a larger price swing to achieve profitability due to the gap between strikes.
Overlay comparison of long straddle and long strangle profitability. The straddle offers a higher probability of profit with narrower breakeven points but requires a larger capital outlay (higher max loss). The strangle reduces the maximum risk and cost but requires a larger price swing to achieve profitability due to the gap between strikes.

Short Straddles and Strangles

Selling straddles or strangles reverses the payoff profile: you profit from stability and lose from large moves. Short volatility positions collect premium upfront but have unlimited risk if the underlying makes a significant move.

These strategies are popular among traders who believe implied volatility is overstated relative to realized volatility. However, they require careful risk management because the potential losses are theoretically unlimited on the upside (for the short call component) and substantial on the downside (limited only by the stock going to zero).

Out[25]:
Visualization

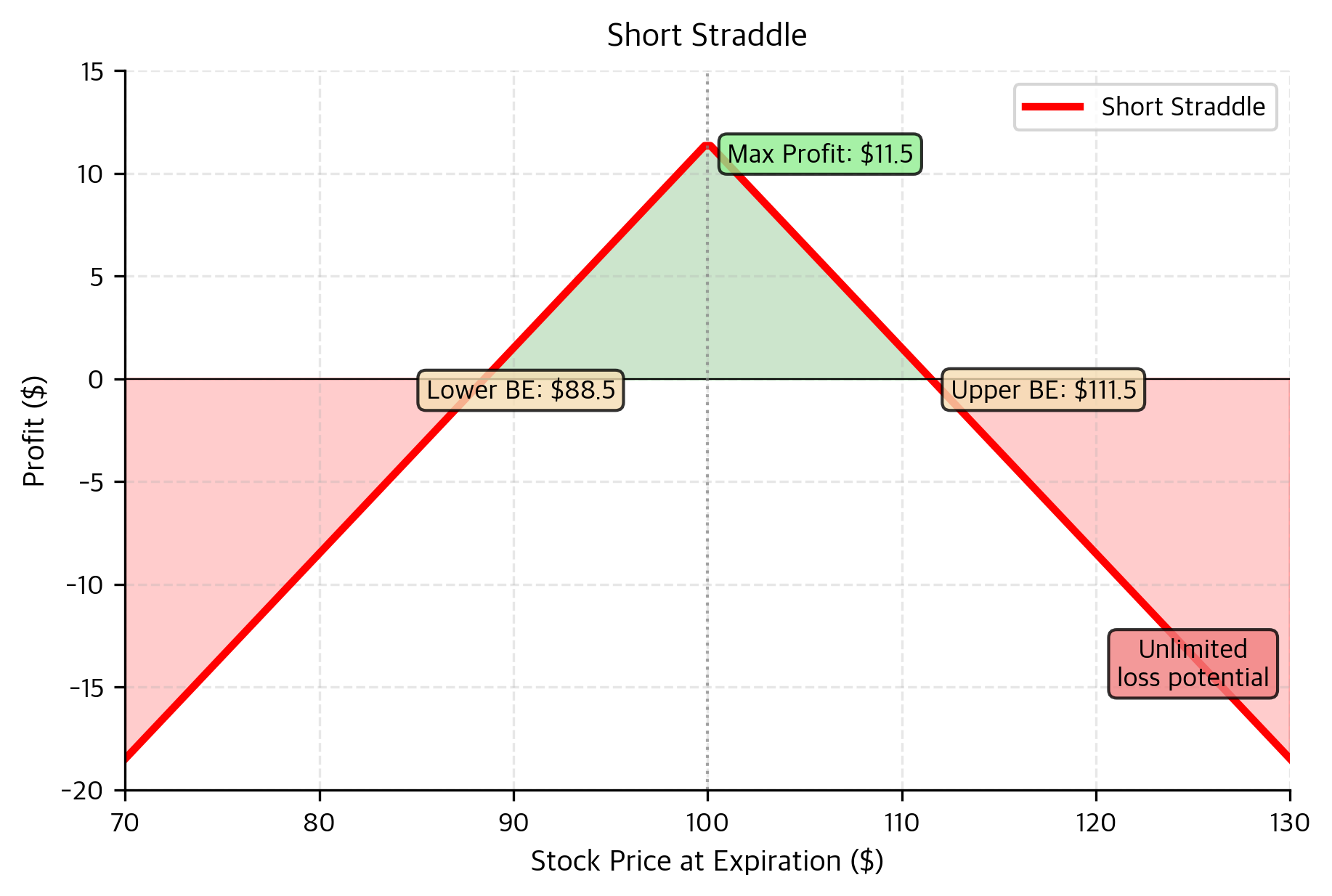

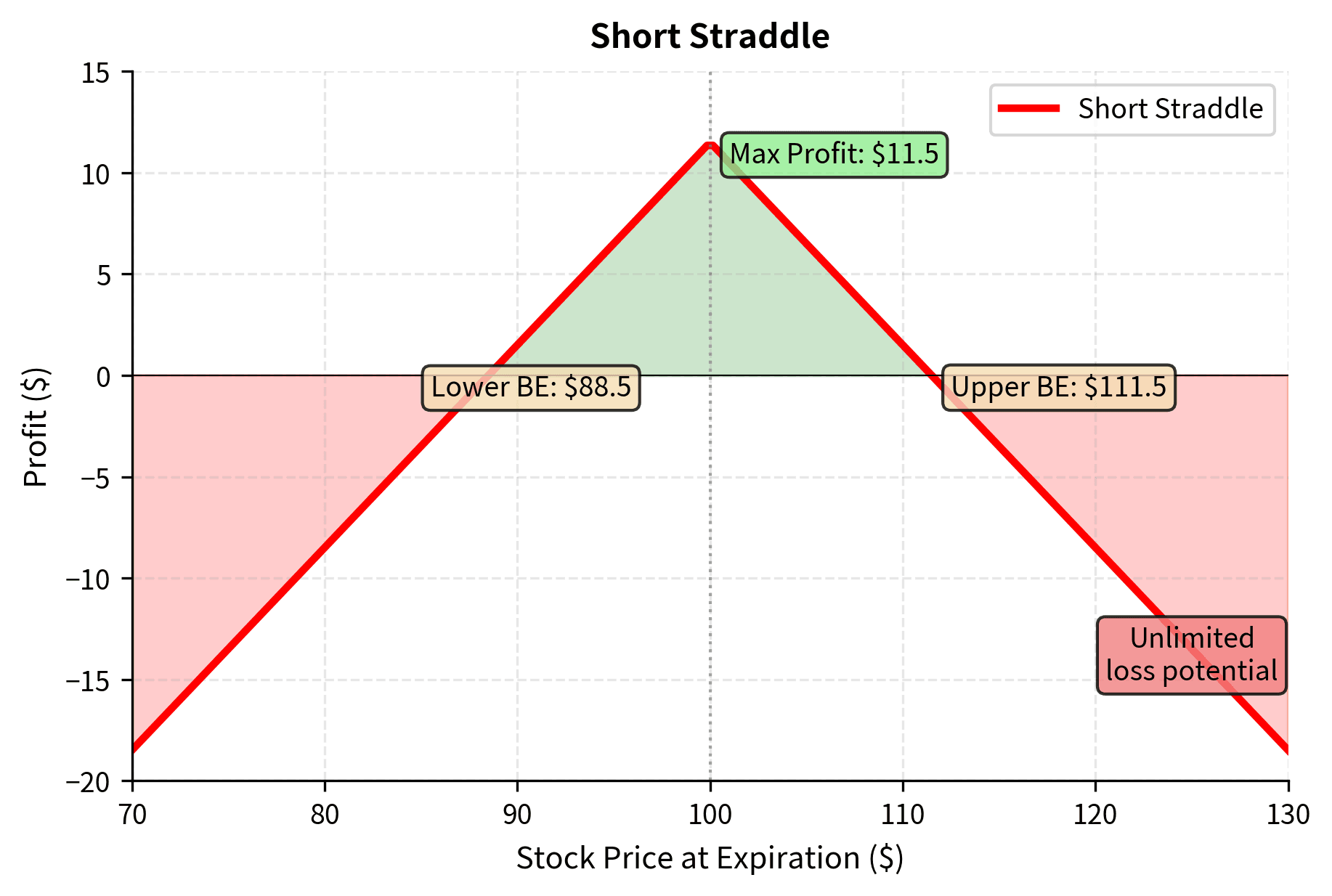

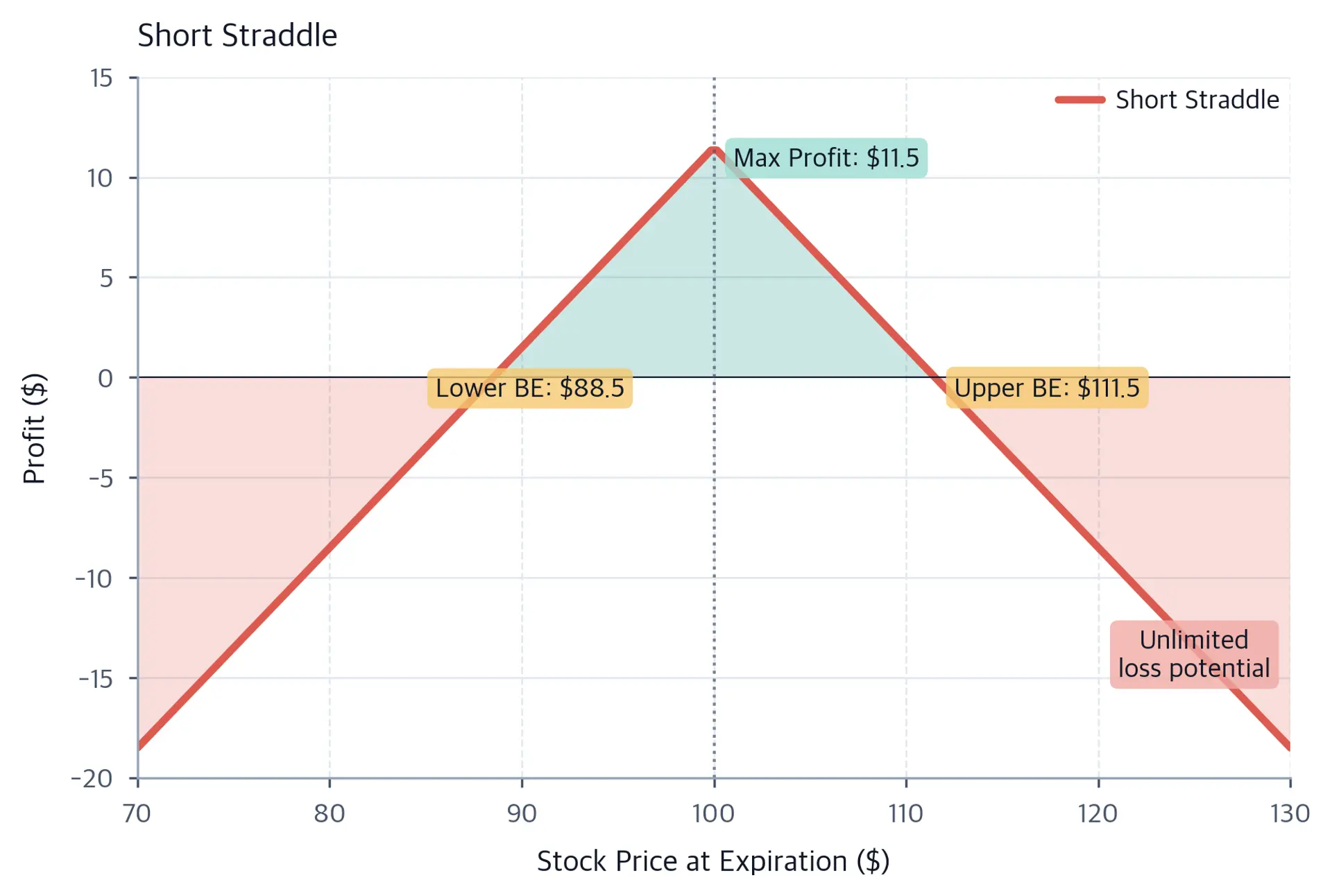

Short straddle payoff profile illustrating the high risk of selling volatility. The strategy generates maximum profit if the stock remains exactly at the strike price at expiration but faces theoretically unlimited losses if the price moves significantly in either direction. This inverted V-shape highlights the danger of selling volatility without protection as losses accelerate with larger price movements.
Short straddle payoff profile illustrating the high risk of selling volatility. The strategy generates maximum profit if the stock remains exactly at the strike price at expiration but faces theoretically unlimited losses if the price moves significantly in either direction. This inverted V-shape highlights the danger of selling volatility without protection as losses accelerate with larger price movements.

Advanced Spread Strategies

More complex strategies combine multiple options to create precisely shaped payoff profiles. Two common advanced strategies are butterfly spreads and iron condors.

Butterfly Spread

A butterfly spread bets that the underlying will expire near a specific price, with limited risk if it doesn't. You can construct it using calls, puts, or a combination of both.

Using calls, a long butterfly involves:

  1. Buy one call at K1K_1 (lower strike)
  2. Sell two calls at K2K_2 (middle strike, typically at-the-money)
  3. Buy one call at K3K_3 (higher strike)

The strikes are typically equally spaced, so K2K1=K3K2K_2 - K_1 = K_3 - K_2.

The butterfly structure creates a tent-shaped payoff through careful balance of long and short positions. The single long call at the lowest strike provides upside exposure that kicks in first as the stock rises. The two short calls at the middle strike then begin to erode profits as the stock continues higher. Finally, the single long call at the highest strike limits losses if the stock rises substantially.

The equal spacing of strikes is essential to the butterfly's characteristic shape. When strikes are evenly spaced, the gains from the long calls at the wings exactly offset the losses from the short calls at the body once the stock moves beyond the outer strikes. This creates the flat loss regions outside the butterfly's wings.

In[26]:
Code
## Long call butterfly
K1_bf = 95  # Lower strike
K2_bf = 100  # Middle strike (ATM)
K3_bf = 105  # Upper strike
C1_bf = 8  # Premium for K1 call
C2_bf = 5  # Premium for K2 call
C3_bf = 2.5  # Premium for K3 call

## Net cost = buy 1 K1 + buy 1 K3 - sell 2 K2
net_cost_bf = C1_bf + C3_bf - 2 * C2_bf

S = np.linspace(70, 130, 200)

## Component payoffs
long_K1 = call_payoff(S, K1_bf, C1_bf, "long")
short_K2 = 2 * call_payoff(S, K2_bf, C2_bf, "short")  # Two contracts
long_K3 = call_payoff(S, K3_bf, C3_bf, "long")

## Combined butterfly
butterfly = long_K1 + short_K2 + long_K3

## Calculate key metrics
max_profit_bf = (K2_bf - K1_bf) - net_cost_bf
max_loss_bf = net_cost_bf
risk_reward_ratio = max_loss_bf / max_profit_bf if max_profit_bf != 0 else 0
Out[27]:
Visualization

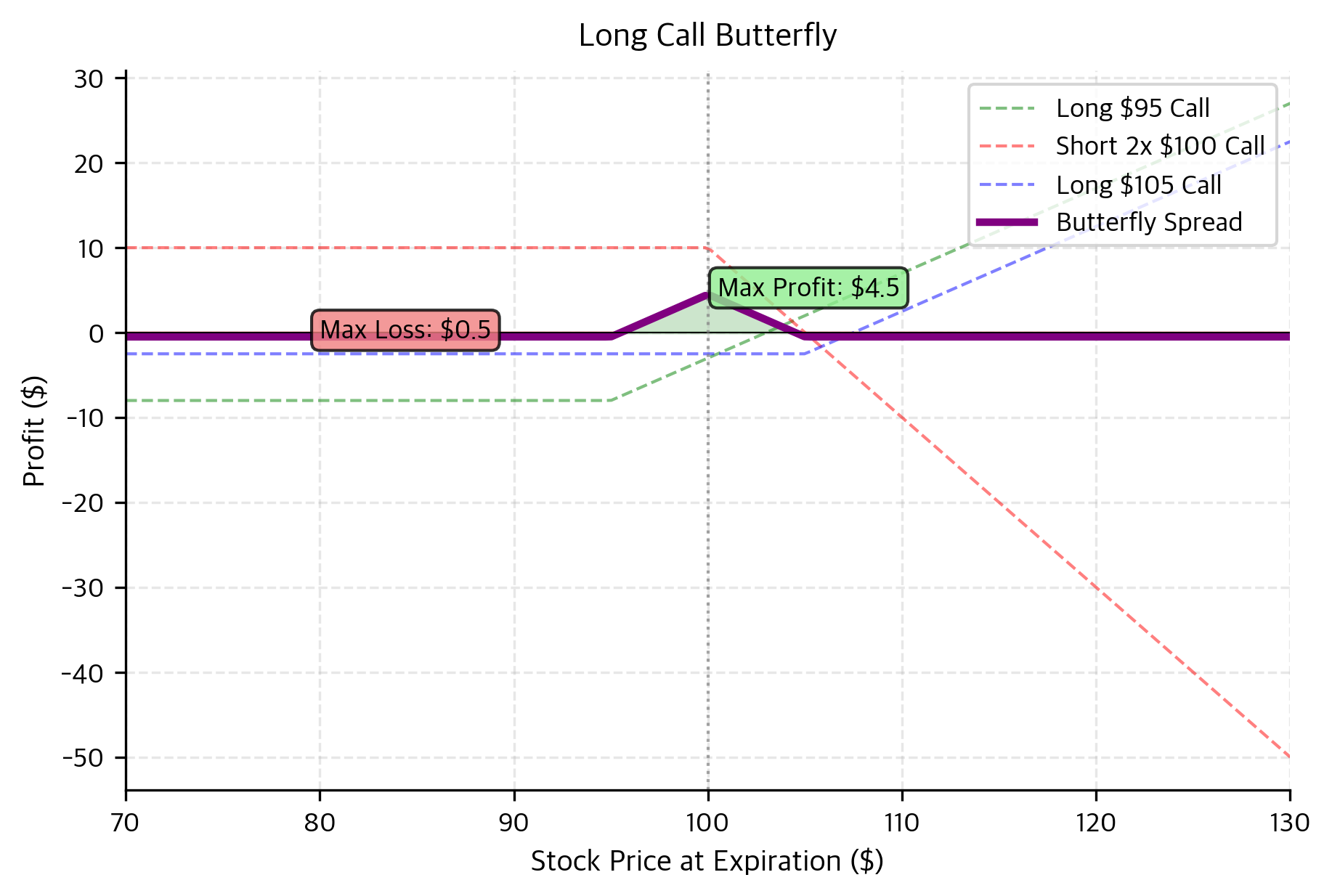

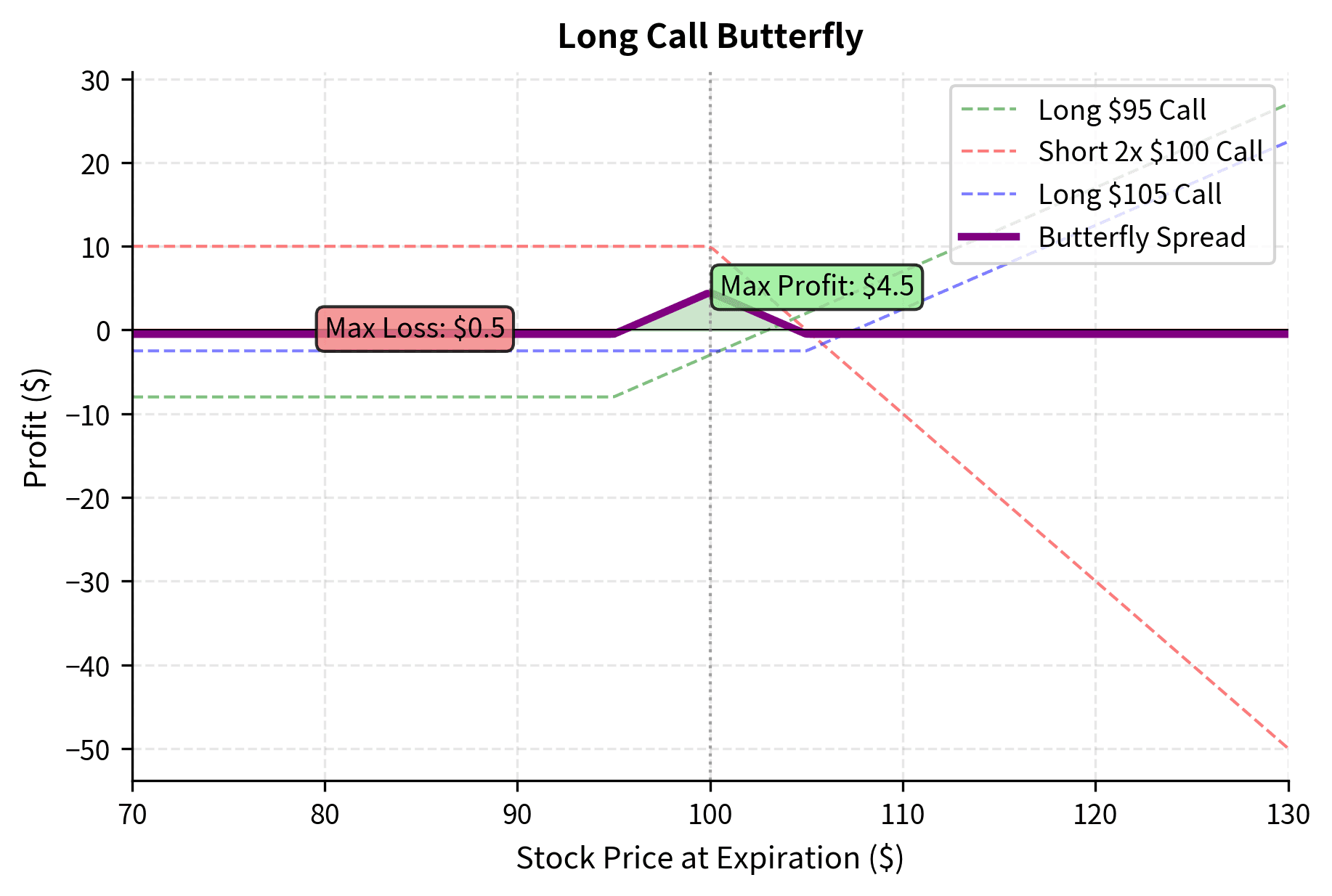

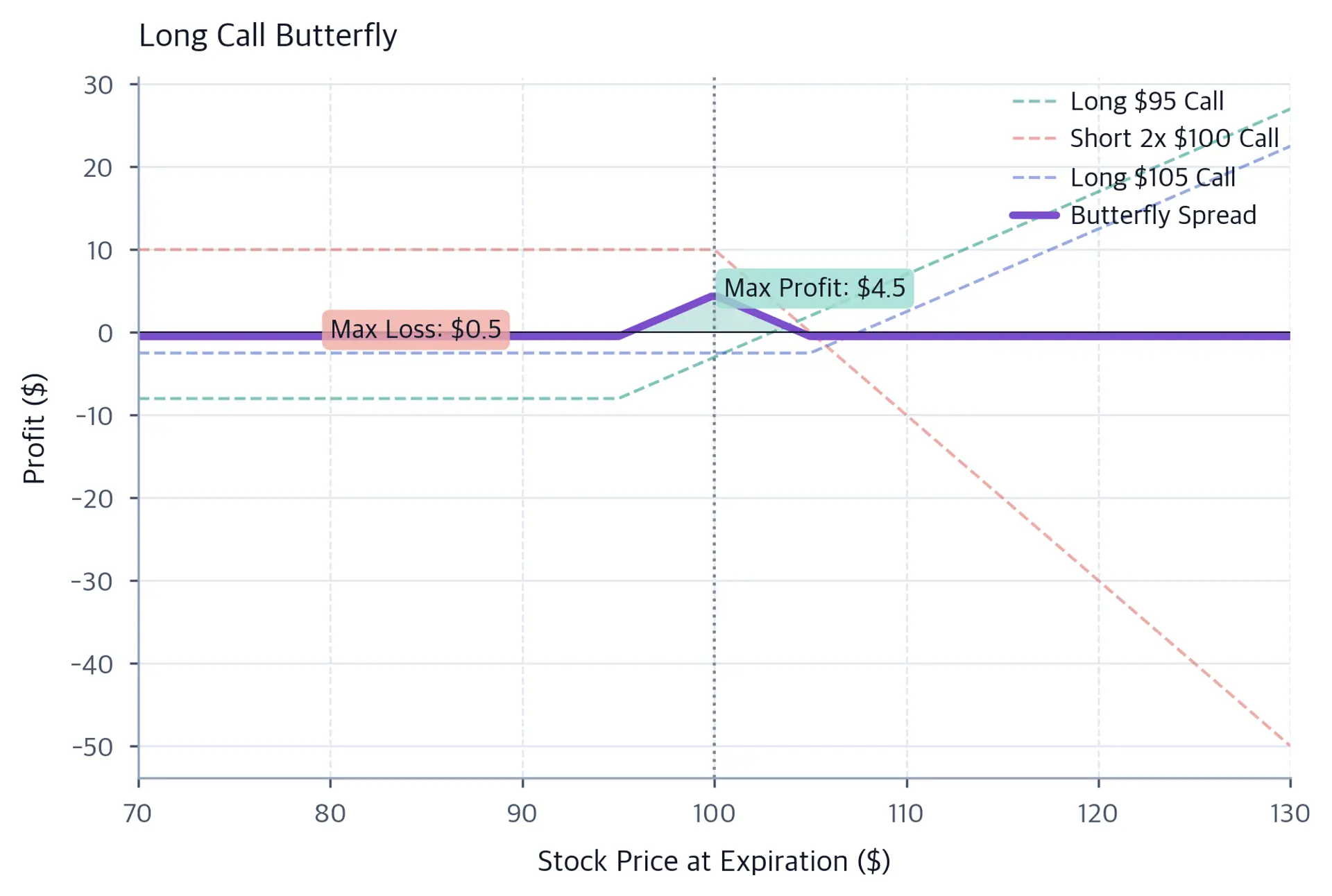

Long call butterfly spread payoff profile showing a targeted profit zone. The tent-shaped structure achieves maximum profit at the center strike while limiting losses to the net debit paid. This strategy allows you to bet on low volatility and precise price targeting with a favorable risk-to-reward ratio.
Long call butterfly spread payoff profile showing a targeted profit zone. The tent-shaped structure achieves maximum profit at the center strike while limiting losses to the net debit paid. This strategy allows you to bet on low volatility and precise price targeting with a favorable risk-to-reward ratio.
Out[28]:
Console
Maximum Profit: $4.50
Maximum Loss: $0.50
Risk/Reward Ratio: 0.11:1

The butterfly spread creates a tent-shaped payoff with maximum profit when the stock expires exactly at the center strike, with limited losses at the wings. The maximum profit occurs only when the stock expires at the middle strike, giving this strategy a low probability of achieving its best outcome. The favorable risk/reward ratio and low cost make butterflies attractive for you to express a view that the underlying will trade in a narrow range around a specific price level.

Iron Condor

An iron condor combines a bull put spread with a bear call spread to create a wider profit zone. The strategy profits from low volatility: as long as the underlying stays within a range, you keep the premium collected.

The iron condor uses four strikes to create a position that benefits from price stability. The inner two strikes, where you sell options, define the edges of your profit zone. The outer two strikes, where you buy options, provide protection and define your maximum loss. This four-legged structure creates a flat profit region in the center with sloped loss regions on either side.

In[29]:
Code
## Iron condor
K1_ic = 90  # Long put strike (lowest)
K2_ic = 95  # Short put strike
K3_ic = 105  # Short call strike
K4_ic = 110  # Long call strike (highest)

## Premiums (approximate)
P1_ic = 1.5  # Long put premium (pay)
P2_ic = 3.5  # Short put premium (receive)
C3_ic = 3.5  # Short call premium (receive)
C4_ic = 1.5  # Long call premium (pay)

net_credit_ic = (P2_ic - P1_ic) + (C3_ic - C4_ic)

S = np.linspace(70, 130, 200)

## Component payoffs
long_put_K1 = put_payoff(S, K1_ic, P1_ic, "long")
short_put_K2 = put_payoff(S, K2_ic, P2_ic, "short")
short_call_K3 = call_payoff(S, K3_ic, C3_ic, "short")
long_call_K4 = call_payoff(S, K4_ic, C4_ic, "long")

## Combined iron condor
iron_condor = long_put_K1 + short_put_K2 + short_call_K3 + long_call_K4

## Calculate key metrics
max_profit_ic = net_credit_ic
max_loss_ic = (K2_ic - K1_ic) - net_credit_ic
profit_range = K3_ic - K2_ic
Out[30]:
Visualization

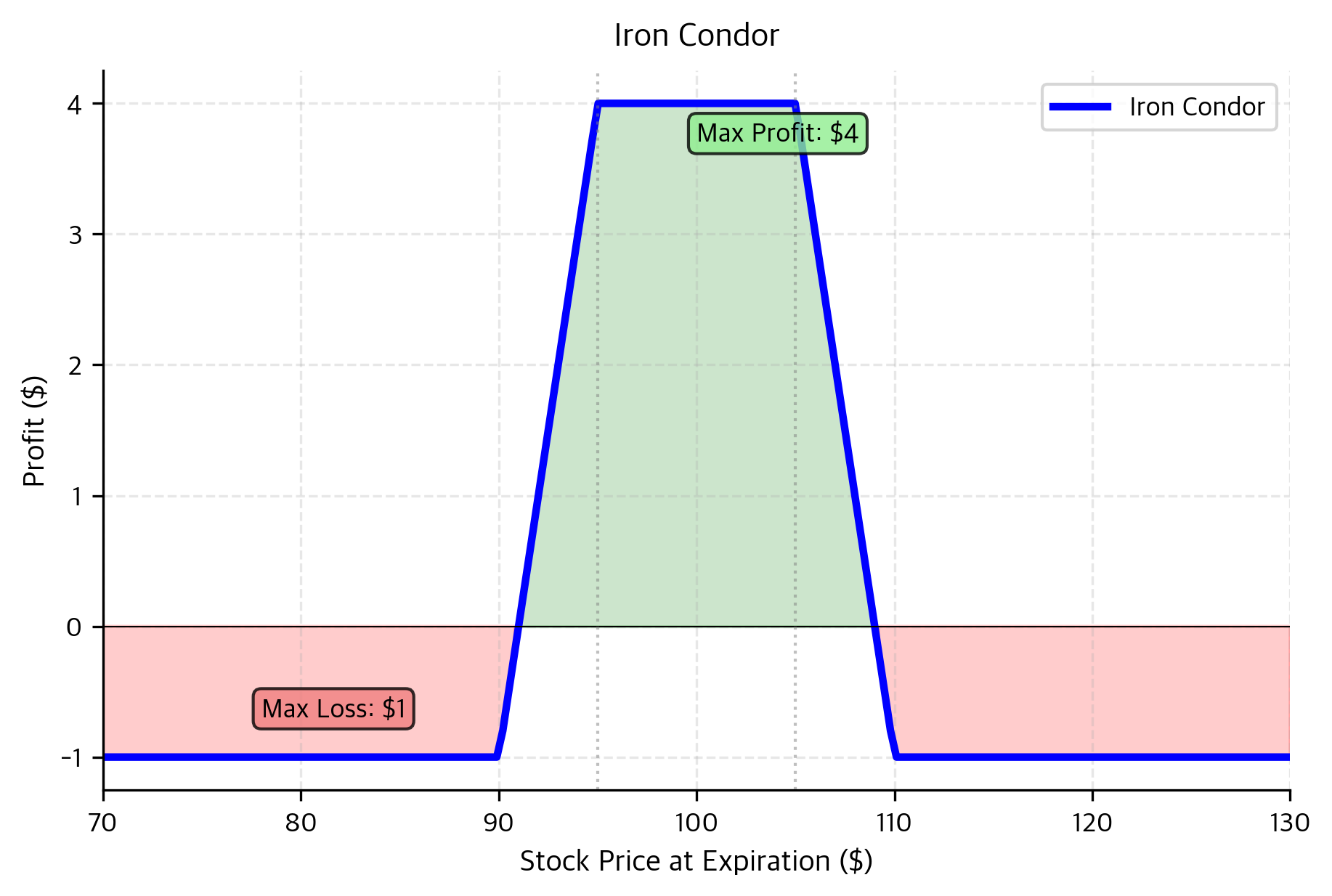

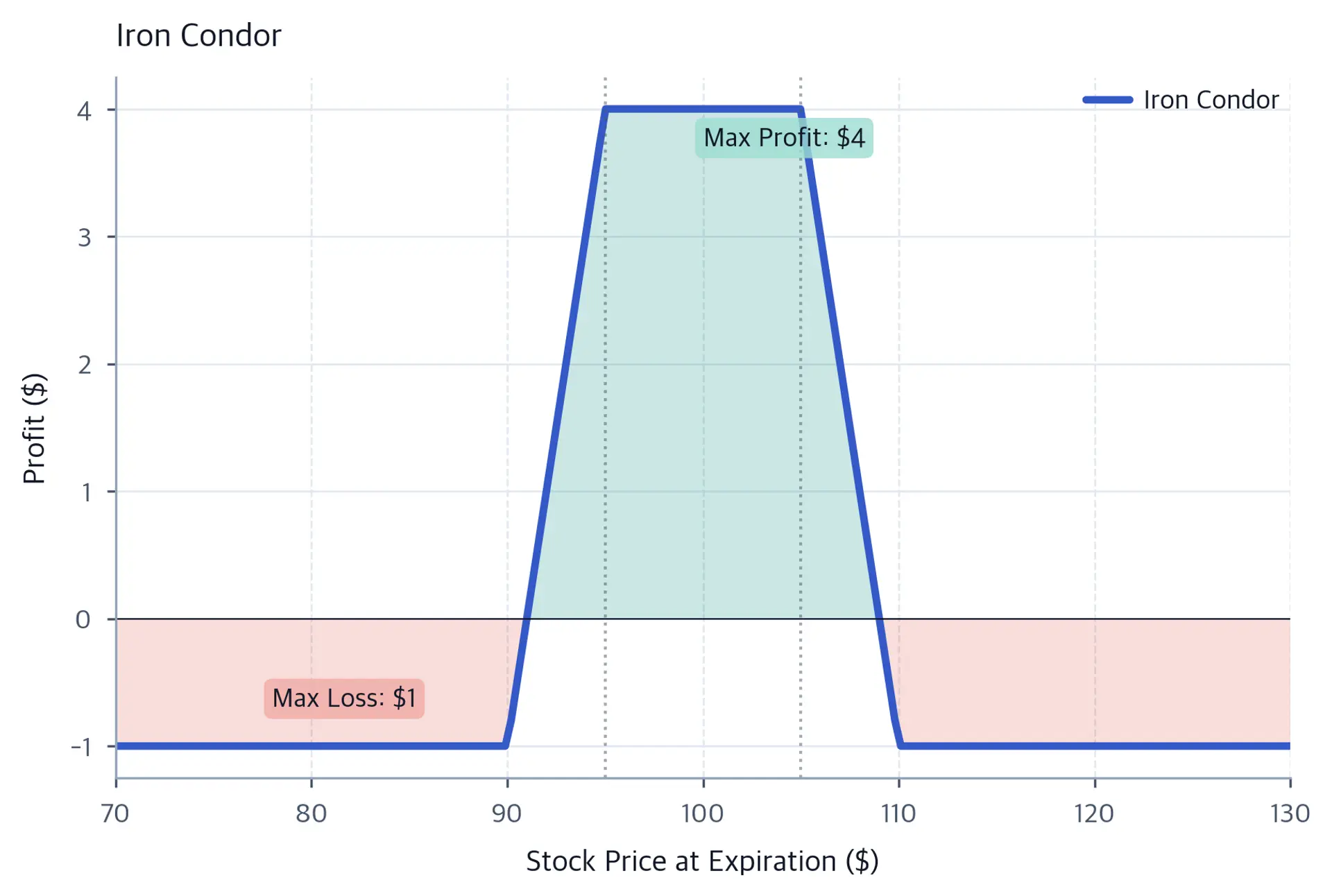

Iron condor payoff profile demonstrating a strategy designed to profit from market stability. The plateau in the center represents the maximum profit (net credit received) when the stock price remains between the short strikes. The defined wings limit the maximum loss, creating a bounded risk profile suitable for neutral market outlooks.
Iron condor payoff profile demonstrating a strategy designed to profit from market stability. The plateau in the center represents the maximum profit (net credit received) when the stock price remains between the short strikes. The defined wings limit the maximum loss, creating a bounded risk profile suitable for neutral market outlooks.
Out[31]:
Console
Net Credit Collected: $4.00
Maximum Profit: $4.00
Maximum Loss: $1.00
Profit Zone Width: $10.00

The iron condor collects a net credit upfront and profits when the underlying stays within the range between the short strikes. This credit represents maximum profit, while maximum loss equals the spread width minus the credit received. The wide profit zone gives the strategy a high probability of success in stable market conditions. The long options at the outer strikes serve as protective wings that cap losses, making this a defined-risk strategy suitable for accounts with limited capital.

Synthesizing Custom Payoffs

One of the most powerful concepts in options is that you can combine standard building blocks to create virtually any payoff structure. This principle underlies much of financial engineering.

The Replication Principle

Any piecewise linear payoff can be replicated using a portfolio of options. The key insight is that:

  • A call option with strike KK adds a "kink" in the payoff diagram at price KK, with slope +1 above and 0 below
  • A put option with strike KK adds a "kink" at KK, with slope -1 below and 0 above

By combining options at different strikes, you can create payoffs with multiple kinks, effectively designing custom piecewise linear functions.

This principle has profound implications. If you can describe your desired payoff as a function of the terminal stock price, you can work backward to determine which options you need to replicate that function. Each strike price represents a potential kink point, and the number of options at each strike determines how much the slope changes at that point.

Consider how this works mechanically. Suppose you want a payoff that starts flat, rises linearly for a while, then becomes flat again. You need one kink to start the rise (achieved with a long call at the first strike) and another kink to stop the rise (achieved with a short call at the second strike). The result is a bull call spread, which you now recognize as engineered to produce exactly this shape.

In[32]:
Code
## Example: Creating a "collar", capped upside and protected downside
S0_collar = 100
K_put_collar = 95  # Floor
K_call_collar = 110  # Cap
put_prem_collar = 3
call_prem_collar = 2.5
net_cost_collar = (
    put_prem_collar - call_prem_collar
)  # Often structured to be zero-cost

S = np.linspace(70, 130, 200)

## Stock + long put + short call = collar
stock_pnl = S - S0_collar
long_put_collar = put_payoff(S, K_put_collar, put_prem_collar, "long")
short_call_collar = call_payoff(S, K_call_collar, call_prem_collar, "short")

collar = stock_pnl + long_put_collar + short_call_collar

## Calculate key metrics
max_gain_collar = K_call_collar - S0_collar + call_prem_collar - put_prem_collar
max_loss_collar = S0_collar - K_put_collar + net_cost_collar
Out[33]:
Visualization

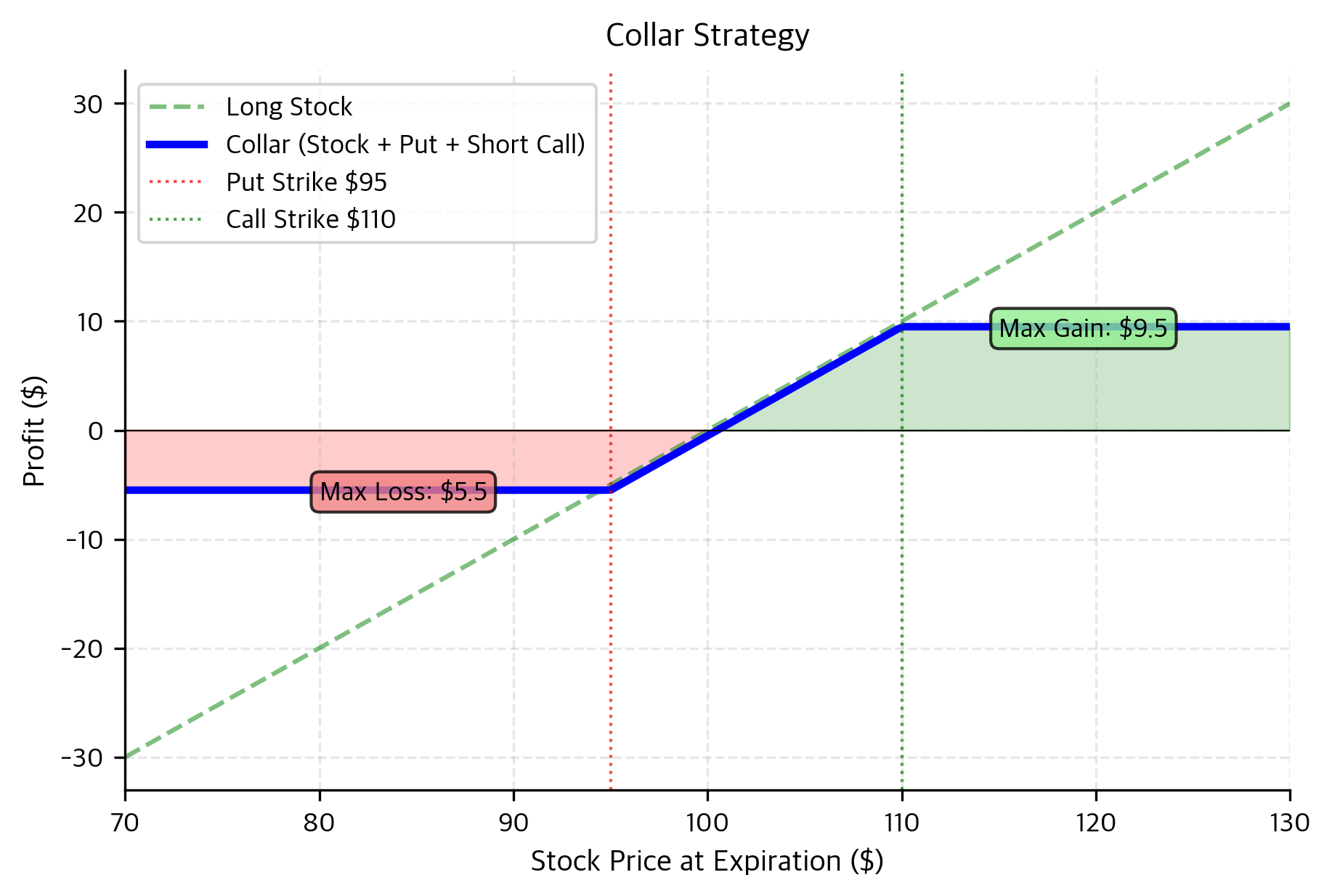

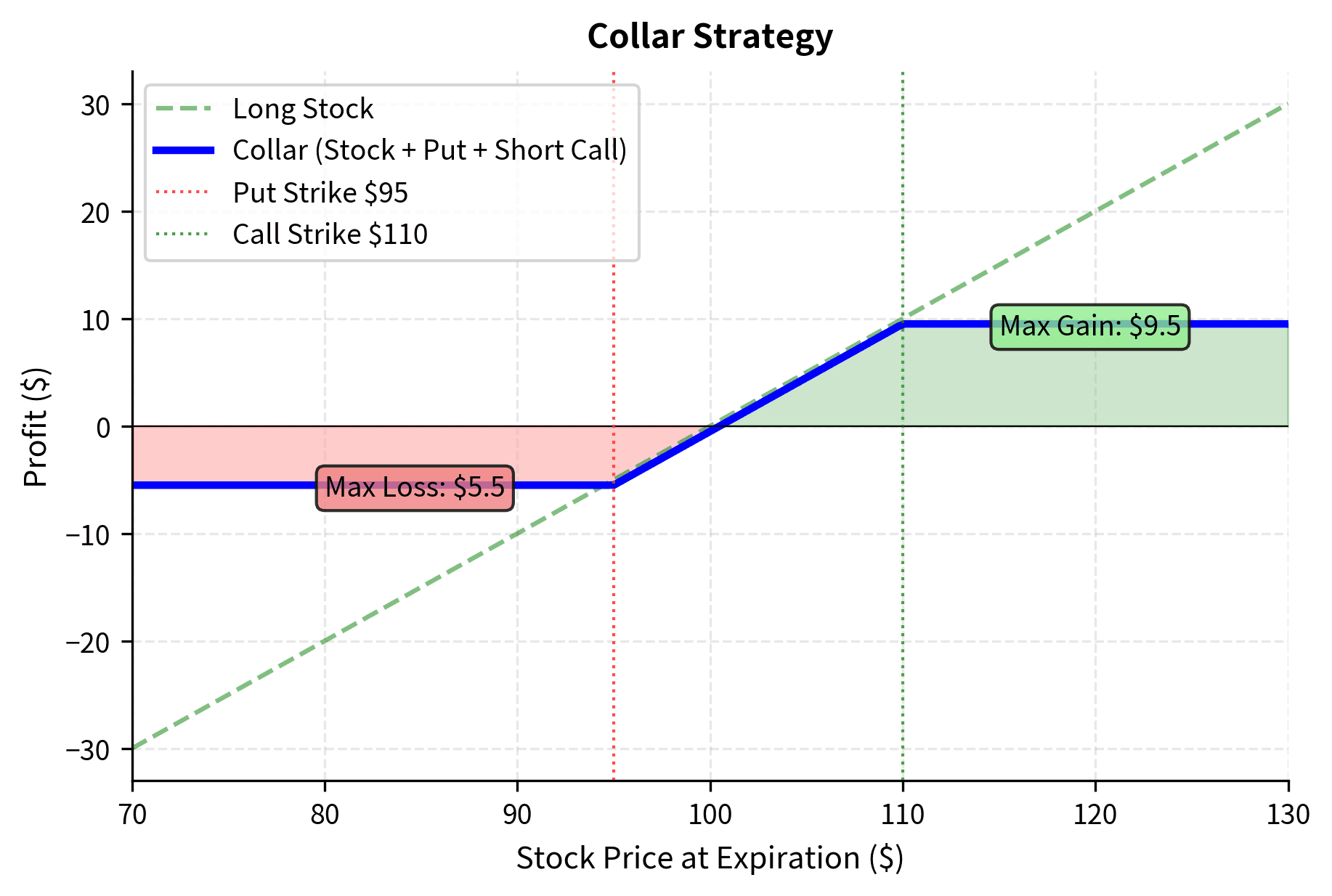

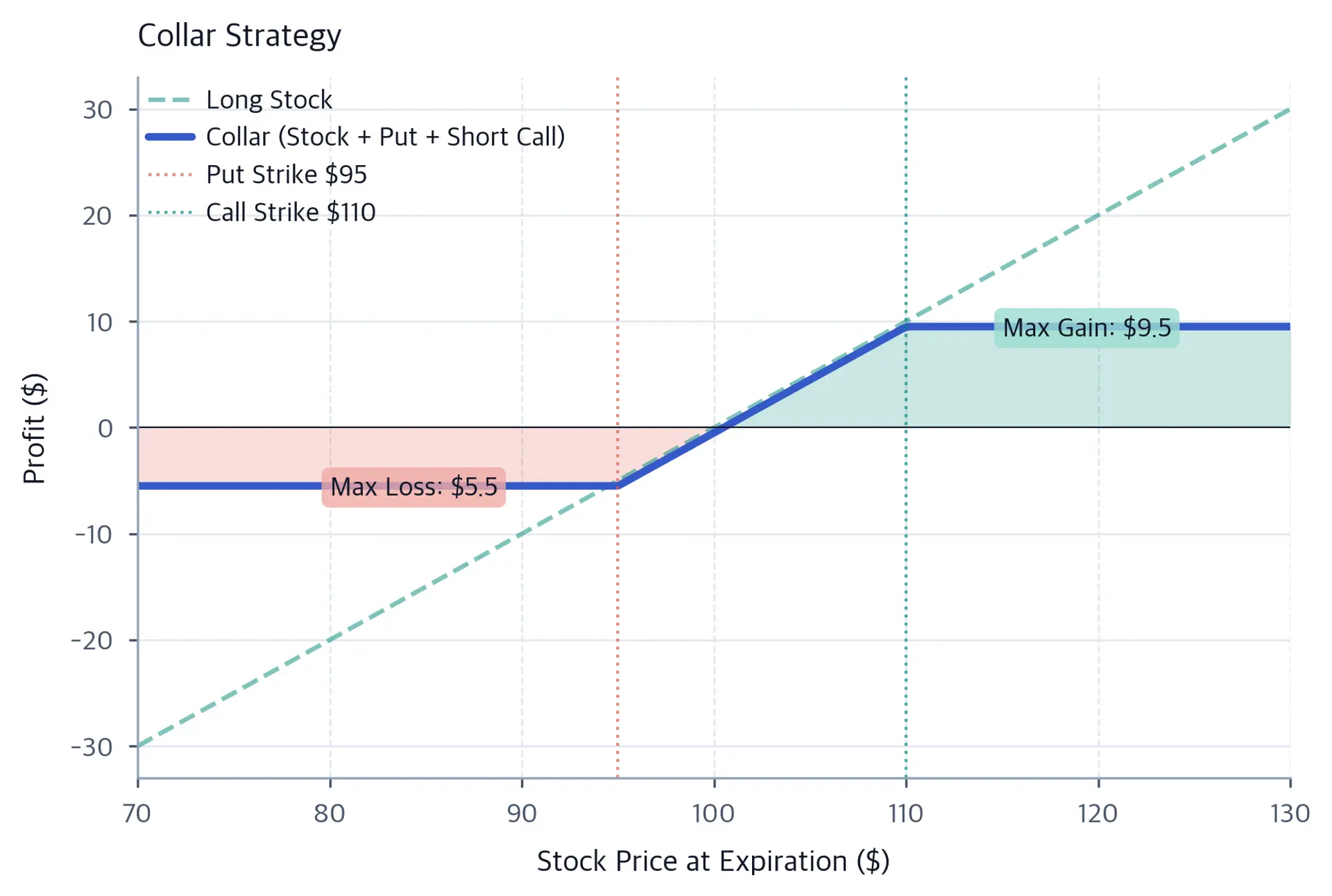

Collar strategy payoff profile combining a long stock position with a protective put and a covered call. The resulting structure limits both the maximum loss and the maximum gain, creating a narrow band of potential outcomes. This hedging technique effectively locks in a range of portfolio values, often at little to no net cost.
Collar strategy payoff profile combining a long stock position with a protective put and a covered call. The resulting structure limits both the maximum loss and the maximum gain, creating a narrow band of potential outcomes. This hedging technique effectively locks in a range of portfolio values, often at little to no net cost.
Out[34]:
Console
Maximum Gain: $9.50
Maximum Loss: $5.50
Net Cost: $0.50

The collar is a fundamental risk management tool that limits losses while capping gains, with a minimal net cost. It's essentially a protective put financed by selling a covered call. You can use collars to hedge concentrated stock positions without triggering immediate tax events from selling.

Strategy Selection Framework

Choosing the right strategy depends on your market view across two dimensions: direction and volatility.

Out[35]:
Visualization

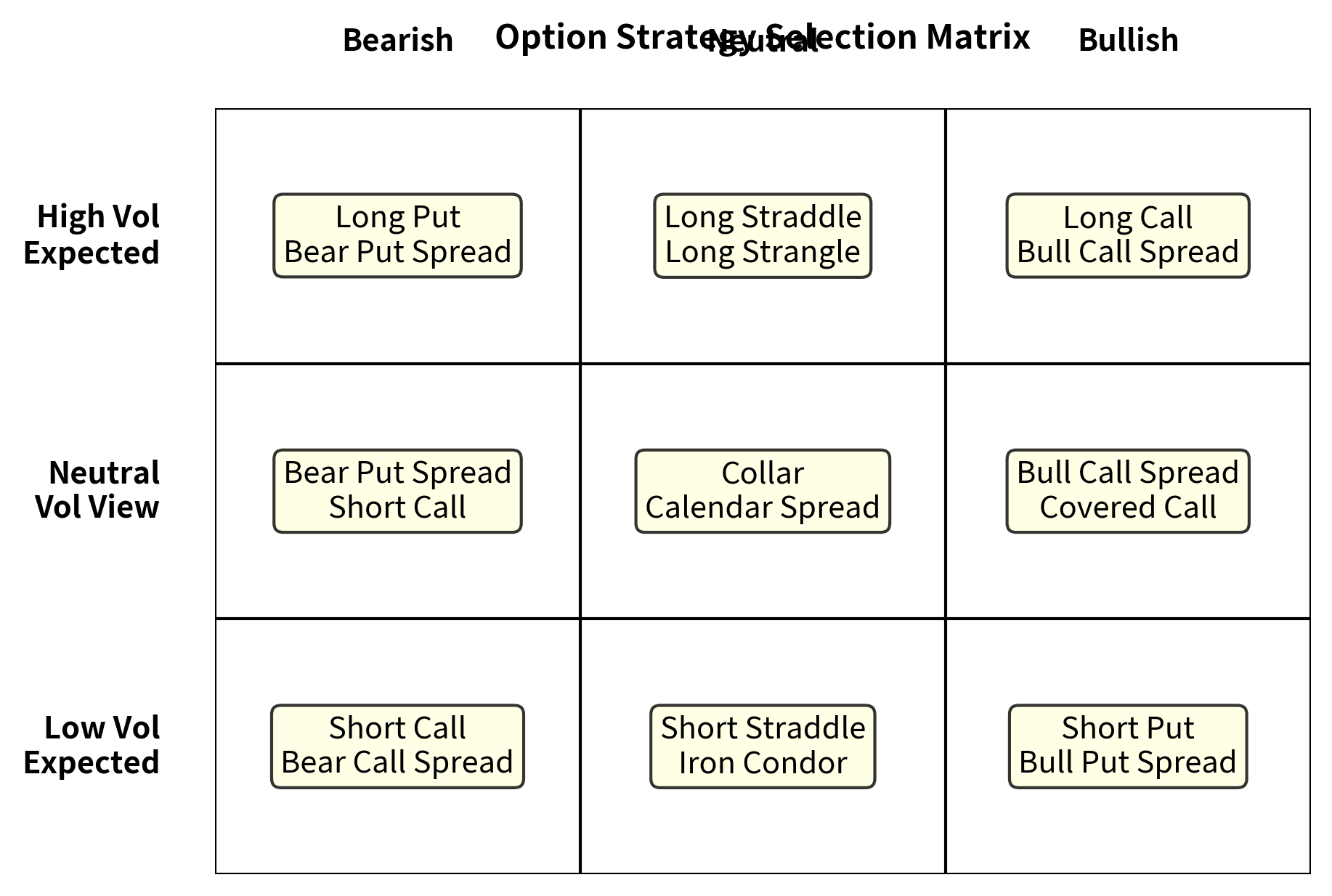

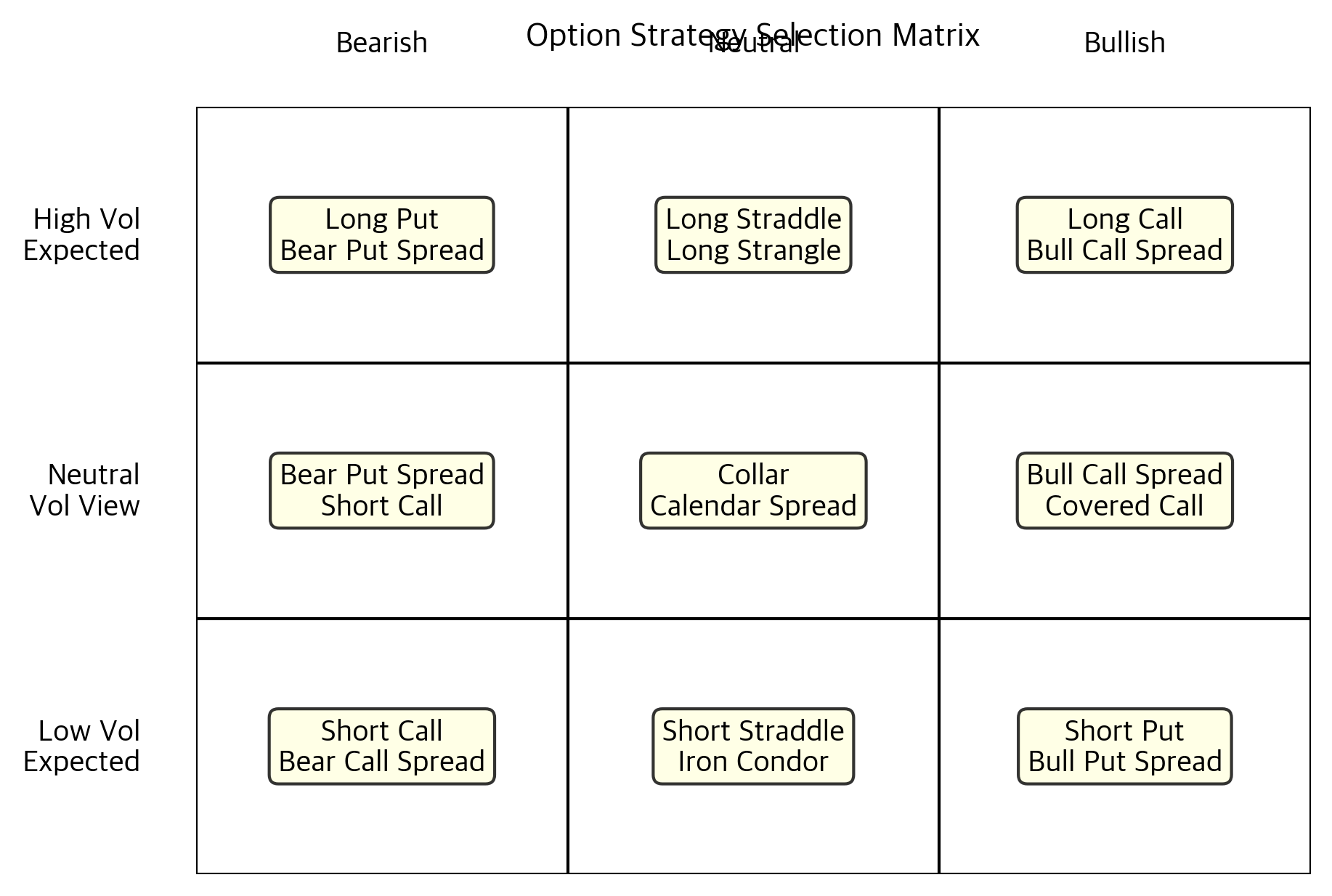

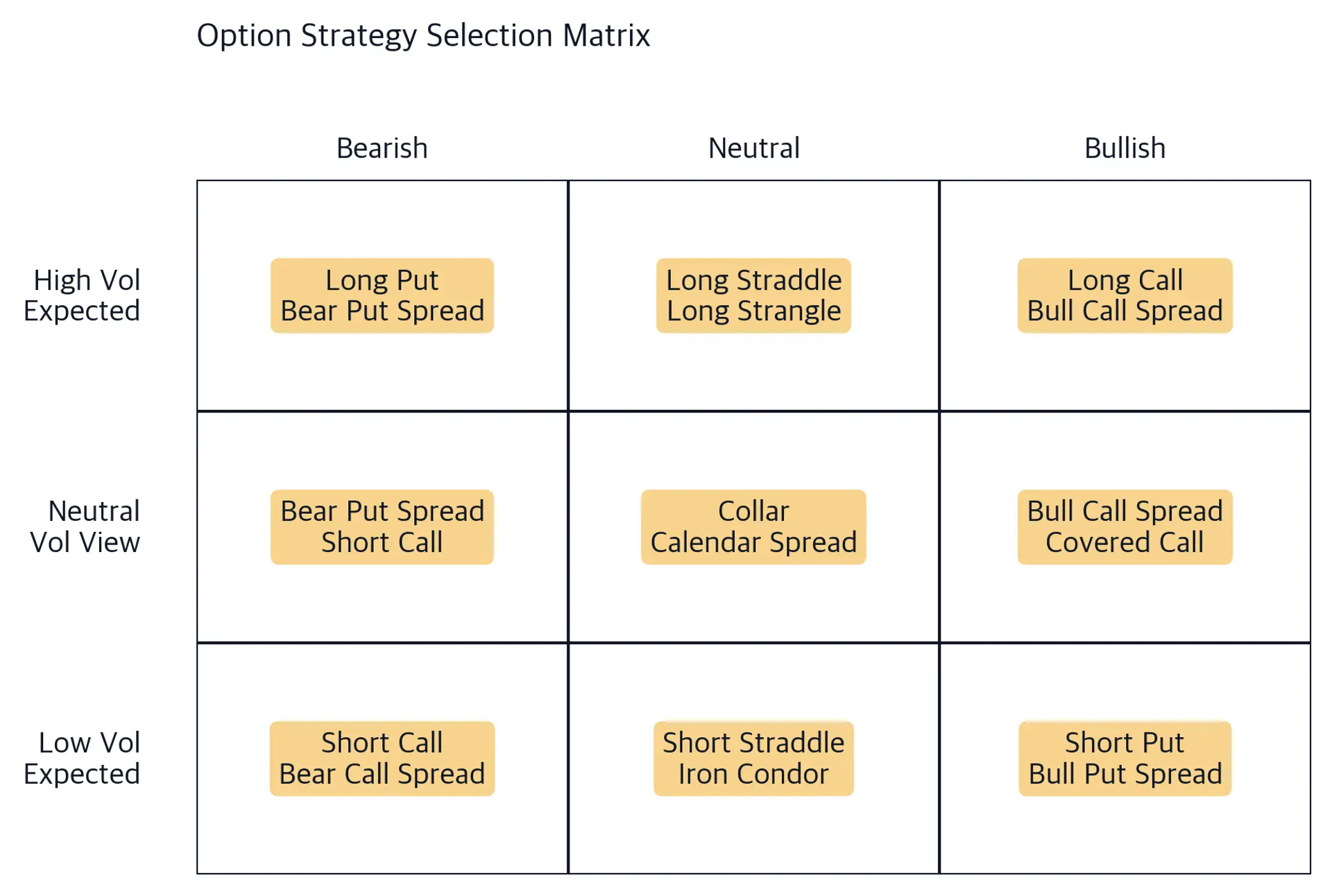

Option strategy selection matrix based on directional view and volatility expectations. The grid categorizes common strategies into nine quadrants, guiding you to the appropriate instrument structure (e.g., Bull Call Spread for bullish direction with high volatility) based on their specific market outlook.
Option strategy selection matrix based on directional view and volatility expectations. The grid categorizes common strategies into nine quadrants, guiding you to the appropriate instrument structure (e.g., Bull Call Spread for bullish direction with high volatility) based on their specific market outlook.

The matrix illustrates how your two-dimensional view maps to strategy selection:

  • Bullish + high volatility: Long calls or debit call spreads capture upside while benefiting from volatility
  • Bearish + high volatility: Long puts or debit put spreads profit from decline and volatility
  • Neutral + high volatility: Straddles and strangles profit from movement in either direction
  • Neutral + low volatility: Iron condors and short straddles collect premium from stability
  • Moderate directional views: Spreads limit risk while expressing direction
Out[36]:
Visualization

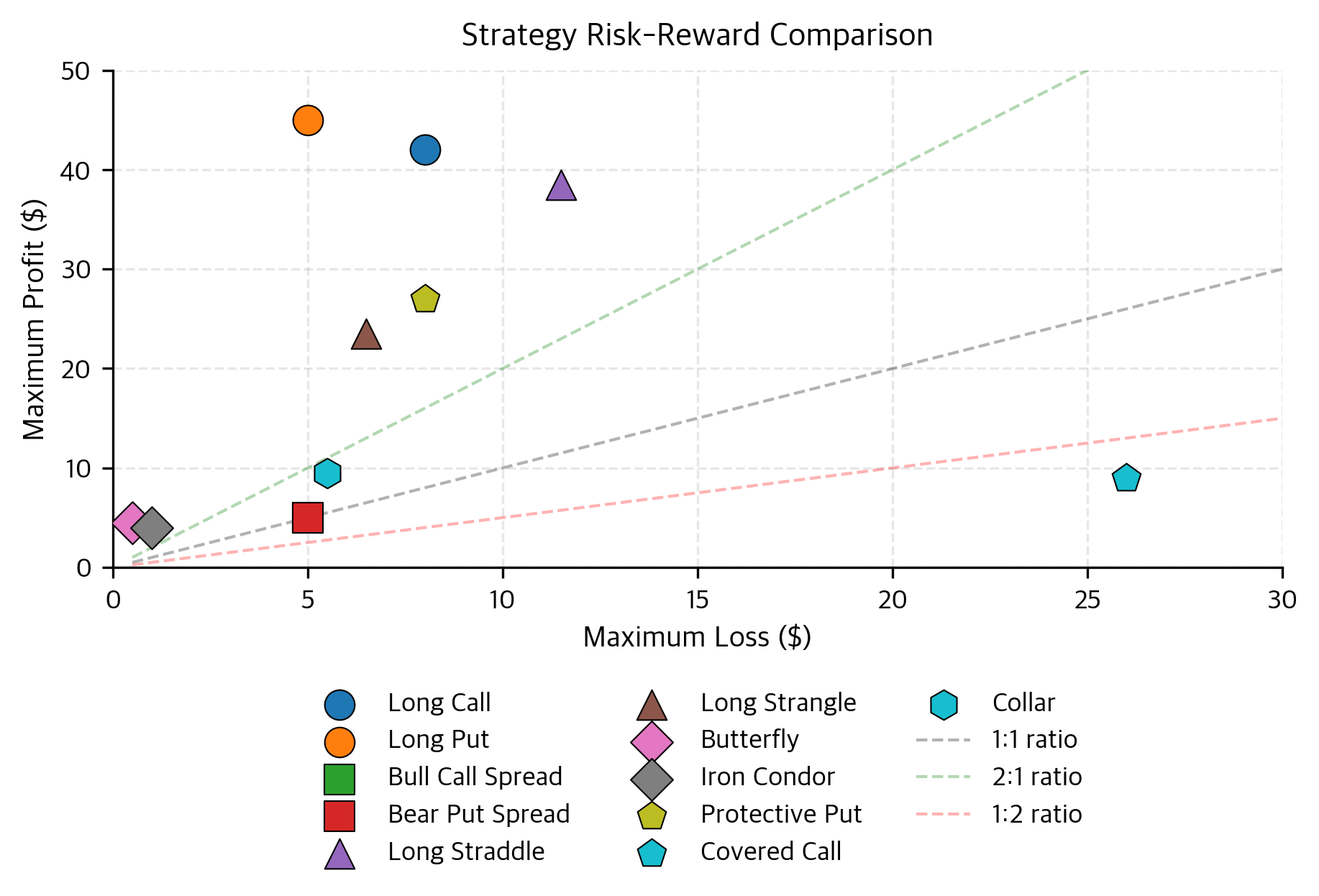

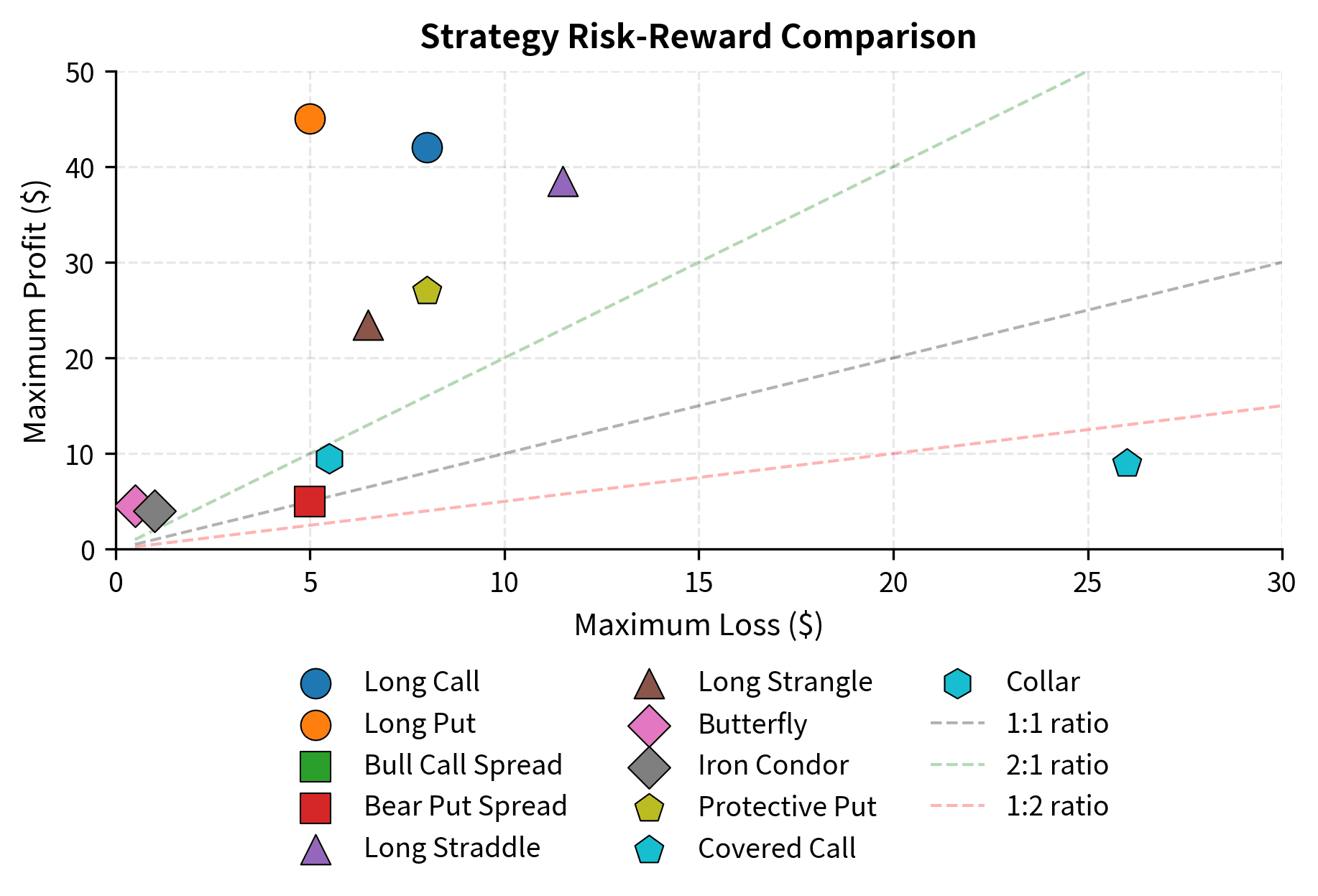

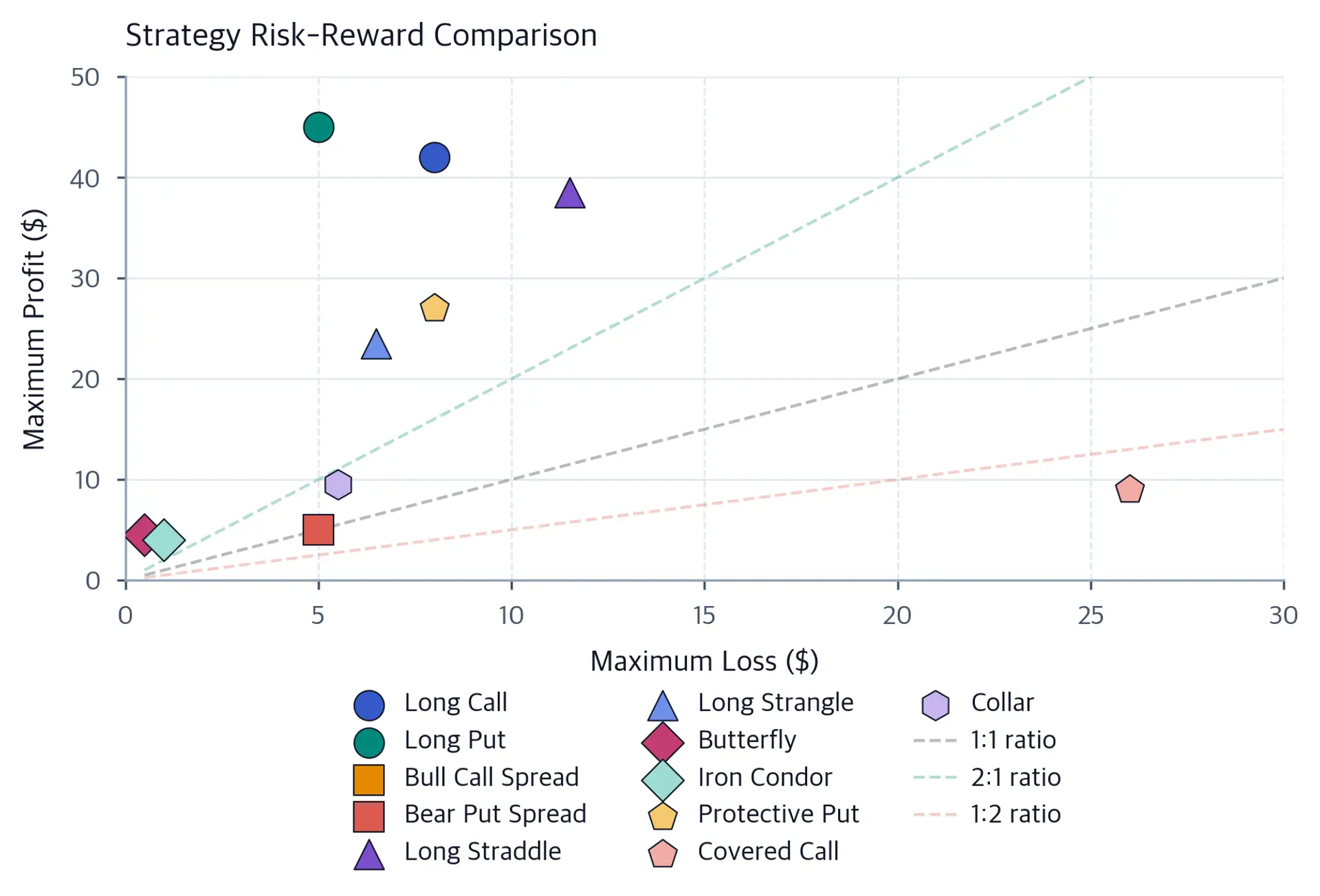

Scatter plot comparing the maximum theoretical profit and loss for various option strategies. The distribution reveals the trade-offs inherent in strategy selection, where defined-risk strategies (squares, diamonds) cluster in the lower-left, while unlimited risk or reward strategies (circles, triangles) extend to the edges. Diagonal lines indicate specific risk-reward ratios for reference.
Scatter plot comparing the maximum theoretical profit and loss for various option strategies. The distribution reveals the trade-offs inherent in strategy selection, where defined-risk strategies (squares, diamonds) cluster in the lower-left, while unlimited risk or reward strategies (circles, triangles) extend to the edges. Diagonal lines indicate specific risk-reward ratios for reference.

Limitations and Practical Considerations

Option strategies offer powerful tools for expressing market views and managing risk, but they come with significant limitations that you must understand.

A primary limitation is transaction costs. Each leg of a multi-leg strategy incurs bid-ask spread costs. A butterfly spread involves four option transactions, and an iron condor involves four as well. If each leg has a $0.05 bid-ask spread, you are immediately down $0.20 to $0.40 before the trade even begins. For strategies with narrow profit ranges, these costs can consume a large percentage of potential profits. You can mitigate this by trading liquid options, using limit orders, and avoiding strategies with too many legs on illiquid underlyings.

Execution risk is another challenge. Multi-leg strategies must be executed simultaneously to achieve the intended payoff profile. If you are trying to establish a butterfly and get filled on two legs but not the third, you have an unintended position with different risk characteristics, creating unwanted exposure. Most brokerages offer multi-leg order types that execute all legs atomically, but these may not fill at all if market prices don't align with your limits.

Early exercise risk affects American-style options. If you are short an in-the-money option, the counterparty may exercise early, particularly before ex-dividend dates for calls or when interest rates make early exercise optimal for deep in-the-money puts. This can disrupt carefully constructed strategies. For example, if one leg of your butterfly gets exercised early, you suddenly have an exposed position requiring immediate action.

Margin requirements constrain capital efficiency. Short option positions require margin, and the requirements can be substantial for undefined-risk strategies like short straddles. Even defined-risk strategies like iron condors tie up margin equal to the maximum loss, limiting how many positions you can hold simultaneously and affecting return calculations when measuring strategy performance.

Finally, the Greeks we explored in previous chapters interact in complex ways for multi-leg strategies. A butterfly might be delta-neutral at initiation but develop significant delta as the underlying moves. Gamma and theta work in opposite directions: positive theta benefits from time decay while negative gamma suffers from price movements. Strategies that benefit from time decay (positive theta) typically suffer from adverse moves (negative gamma). Managing these exposures requires continuous monitoring and adjustment, which adds complexity and cost.

Despite these limitations, option strategies have fundamentally transformed risk management and speculation in financial markets. The structured products industry, which creates principal-protected notes, autocallables, and other retail products, relies entirely on combining vanilla options to create custom payoff profiles. The ability to precisely express views on direction, magnitude, timing, and volatility created new possibilities for traders. Portfolio insurance strategies gave institutions tools to manage tail risks. Income generation strategies like covered calls and iron condors provide alternatives to traditional fixed-income in low-yield environments.

Summary

This chapter developed your ability to think about options as building blocks that combine into powerful strategies. The key concepts are:

Payoff addition: When you combine options, their payoffs add linearly. This simple principle enables complex payoff engineering. A long stock plus a long put equals a synthetic long call. A long call plus a short call at a higher strike equals a bull call spread.

Protective strategies: The protective put (stock + put) provides downside insurance while maintaining upside participation. The covered call (stock + short call) generates income but caps upside gains. The protective put is economically equivalent to a long call. The covered call is equivalent to a short put. These relationships follow from put-call parity.

Vertical spreads: Bull call spreads and bear put spreads express directional views with defined risk and reward. They cost less than single options but cap profit potential. The tradeoff is appropriate when implied volatility is high or when you expect a moderate move to a specific level.

Volatility strategies: Straddles and strangles profit from large moves in either direction. Long versions buy volatility; short versions sell it. The premium paid or received represents the market's implied expectation of future volatility.

Advanced combinations: Butterfly spreads bet on price stability near a specific level. Iron condors profit from the underlying staying within a range. These strategies offer attractive risk/reward ratios but have low probability of maximum profit.

Synthesis principle: Any piecewise linear payoff can be replicated using combinations of calls, puts, and the underlying asset. Each option adds a 'kink' at its strike price, allowing you to construct arbitrary piecewise linear functions. This principle underlies financial engineering and structured product design.

The next chapter will explore how these strategies interact with the Greeks, showing how to manage the dynamic risk exposures that emerge from complex option positions.

Key Parameters

The key parameters for option strategy construction are:

  • S or S_T: Current stock price or stock price at expiration. Determines which options are in-the-money and the strategy's profit/loss.
  • S0: Initial stock purchase price. Used to calculate profit/loss for strategies involving stock positions.
  • K (or K1, K2, K3, K4): Strike prices of the options. The choice and spacing of strikes define the strategy's risk/reward profile and breakeven points.
  • C (or C1, C2, C3): Call option premium. Higher premiums reduce profit for long positions but increase income for short positions.
  • P (or P1, P2): Put option premium. Cost of downside protection for long positions, income source for short positions.
  • premium, call_premium, put_premium, or total_premium: Total cost to establish the strategy. Determines breakeven points and maximum loss for debit strategies.
  • net_debit: Net cost paid for spread strategies. Represents maximum loss and affects breakeven calculation.
  • net_credit: Net premium received for credit strategies. Represents maximum profit for strategies like iron condors.
  • position: String indicating 'long' or 'short' position in option payoff calculations.

Quiz

Ready to test your understanding? Take this quick quiz to reinforce what you've learned about option strategies and payoff combinations.

Loading component...

Reference

BIBTEXAcademic
@misc{optionstrategiesspreadscombinationspayoffdiagrams, author = {Michael Brenndoerfer}, title = {Option Strategies: Spreads, Combinations & Payoff Diagrams}, year = {2025}, url = {https://mbrenndoerfer.com/writing/option-strategies-payoff-diagrams-spreads}, organization = {mbrenndoerfer.com}, note = {Accessed: 2025-12-31} }
APAAcademic
Michael Brenndoerfer (2025). Option Strategies: Spreads, Combinations & Payoff Diagrams. Retrieved from https://mbrenndoerfer.com/writing/option-strategies-payoff-diagrams-spreads
MLAAcademic
Michael Brenndoerfer. "Option Strategies: Spreads, Combinations & Payoff Diagrams." 2025. Web. 12/31/2025. <https://mbrenndoerfer.com/writing/option-strategies-payoff-diagrams-spreads>.
CHICAGOAcademic
Michael Brenndoerfer. "Option Strategies: Spreads, Combinations & Payoff Diagrams." Accessed 12/31/2025. https://mbrenndoerfer.com/writing/option-strategies-payoff-diagrams-spreads.
HARVARDAcademic
Michael Brenndoerfer (2025) 'Option Strategies: Spreads, Combinations & Payoff Diagrams'. Available at: https://mbrenndoerfer.com/writing/option-strategies-payoff-diagrams-spreads (Accessed: 12/31/2025).
SimpleBasic
Michael Brenndoerfer (2025). Option Strategies: Spreads, Combinations & Payoff Diagrams. https://mbrenndoerfer.com/writing/option-strategies-payoff-diagrams-spreads
