Sum of Squared Errors (SSE): Measuring Model Performance

The Sum of Squared Errors (SSE) is a fundamental metric in regression analysis that quantifies how well a model fits the data by measuring the total squared differences between observed and predicted values. SSE serves as the foundation for many other important metrics in data science and machine learning, including R-squared, mean squared error, and the optimization objective for least squares regression.

Introduction

SSE is one of the most important concepts in regression analysis because it directly measures prediction accuracy and forms the mathematical foundation for finding the best-fitting line in linear regression. When we fit a regression model, we're essentially trying to minimize SSE - finding the parameters that make the sum of squared differences between our predictions and actual values as small as possible.

The concept of SSE extends beyond simple linear regression to multiple regression, machine learning algorithms, and model evaluation across the entire data science workflow. Understanding SSE is crucial for interpreting model performance, comparing different models, and understanding why certain optimization algorithms work the way they do.

Mathematical Foundation

The SSE Formula

The Sum of Squared Errors is defined as:

Where:

• $y_i$: The actual (observed) value for the $i$-th observation
• $\hat{y}_i$: The predicted value for the $i$-th observation from our model
• $n$: The total number of observations
• The summation runs over all $n$ data points

Key Components

Residuals: The difference $(y_i - \hat{y}_i)$ is called a residual - it represents how far off our prediction is from the actual value. A residual can be positive (prediction too low) or negative (prediction too high).

Squaring: We square each residual to:

• Eliminate the sign (make all differences positive)
• Penalize larger errors more heavily (squared errors grow quadratically)
• Ensure the metric is always non-negative

Summation: Adding up all squared residuals gives us the total error across all observations.

Alternative Notations

SSE is also known by several other names in different contexts, which can sometimes lead to confusion when reading different textbooks or research papers. While the underlying calculation remains the same, the terminology may shift depending on the field or the author's preference. Here are some of the most common alternative names for SSE:

• Sum of Squared Residuals (SSR): Emphasizes that we're measuring residuals
• Residual Sum of Squares (RSS): Another common notation
• Error Sum of Squares: Focuses on the error component

All refer to the same mathematical concept: $\sum_{i=1}^n (y_i - \hat{y}_i)^2$

SSE values provide a direct measure of how well a regression model fits the observed data. However, interpreting the magnitude of SSE requires context:

• Absolute values are context-dependent: The scale of SSE depends on the units and range of your target variable ($y$). For example, an SSE of 100 might indicate a poor fit for a dataset where $y$ ranges from 0 to 10, but could be excellent if $y$ ranges from 0 to 10,000.
• Relative comparison is key: SSE is most useful when comparing different models on the same dataset. A lower SSE indicates that the model's predictions are, on average, closer to the actual values.
• Zero is the ideal: An SSE of 0 means the model predicts every data point perfectly—this is rare in practice and may indicate overfitting if achieved on training data.

It's important to remember that SSE by itself does not account for the number of data points or the complexity of the model. For more interpretable or comparable metrics, practitioners often use related measures such as Mean Squared Error (MSE), Root Mean Squared Error (RMSE), or R-squared, all of which are derived from SSE.

Relationship to Other Metrics

The Sum of Squared Errors (SSE) is foundational for several key regression metrics that provide more interpretable or standardized assessments of model performance. By understanding SSE, you can more easily interpret related measures such as Mean Squared Error (MSE), Root Mean Squared Error (RMSE), and R-squared, all of which are derived directly from the SSE calculation. Here's how these related metrics are defined and interpreted:

Mean Squared Error (MSE)

MSE represents the average squared difference between the observed values and the predicted values. By dividing SSE by the number of observations ($n$), MSE provides a scale-adjusted measure of model error that is easier to compare across datasets of the same target variable. Lower MSE values indicate better model performance.

Root Mean Squared Error (RMSE)

RMSE is simply the square root of the MSE. This brings the error metric back to the original units of the target variable ($y$), making it more interpretable in practical terms. For example, if $y$ is measured in dollars, RMSE is also in dollars. Like MSE, lower RMSE values indicate a better fit.

R-squared ($R^2$)

where $SST$ is the total sum of squares:

$R^2$ measures the proportion of variance in the observed data that is explained by the model. It ranges from 0 to 1 for models that do not overfit, with higher values indicating a better fit. An $R^2$ of 1 means the model explains all the variability in the data, while an $R^2$ of 0 means it explains none.

Summary Table

These metrics, all derived from SSE, are commonly used to evaluate and compare regression models. They each provide a different perspective on model performance, and are often reported together for a comprehensive assessment.

Visualizing SSE

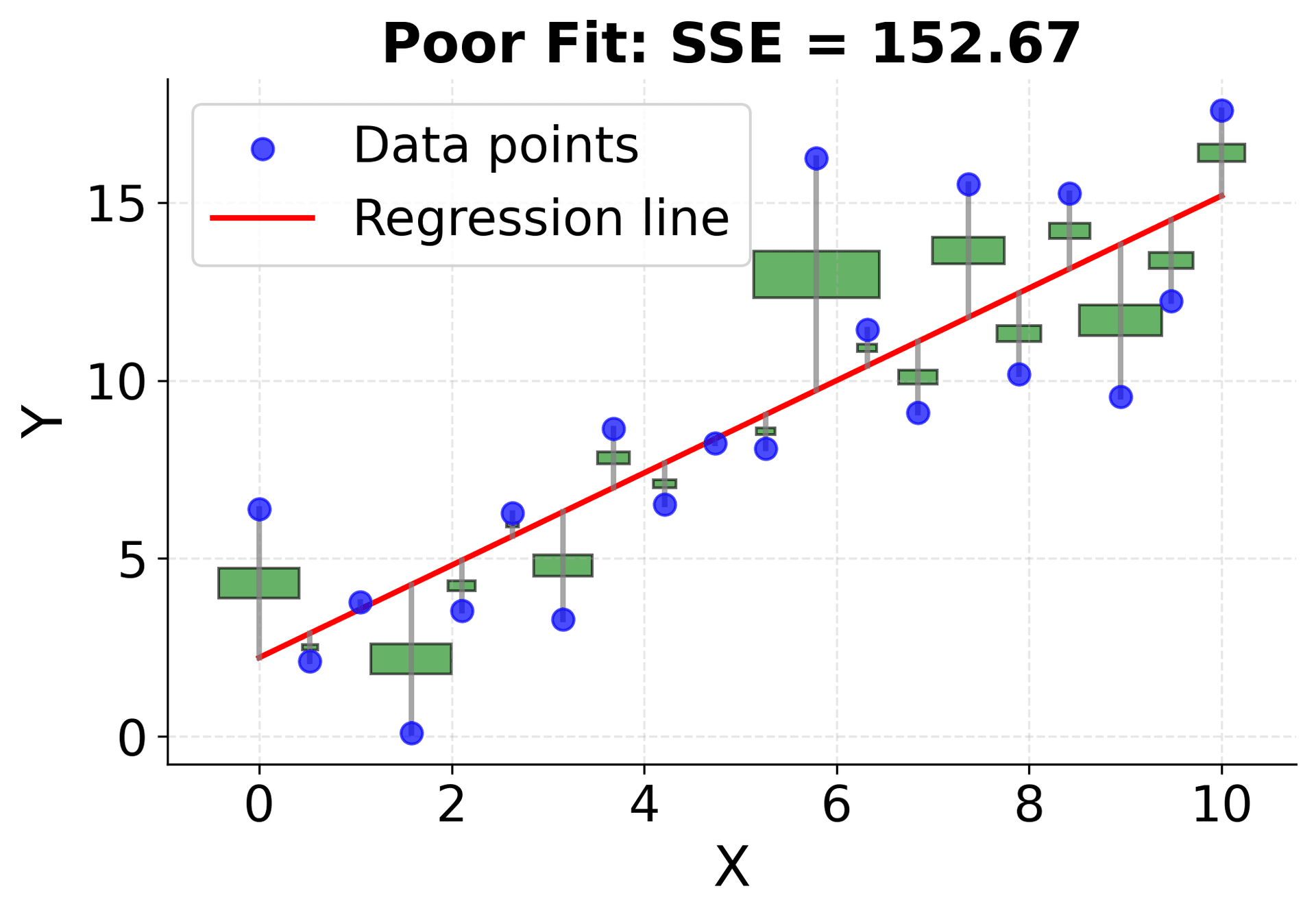

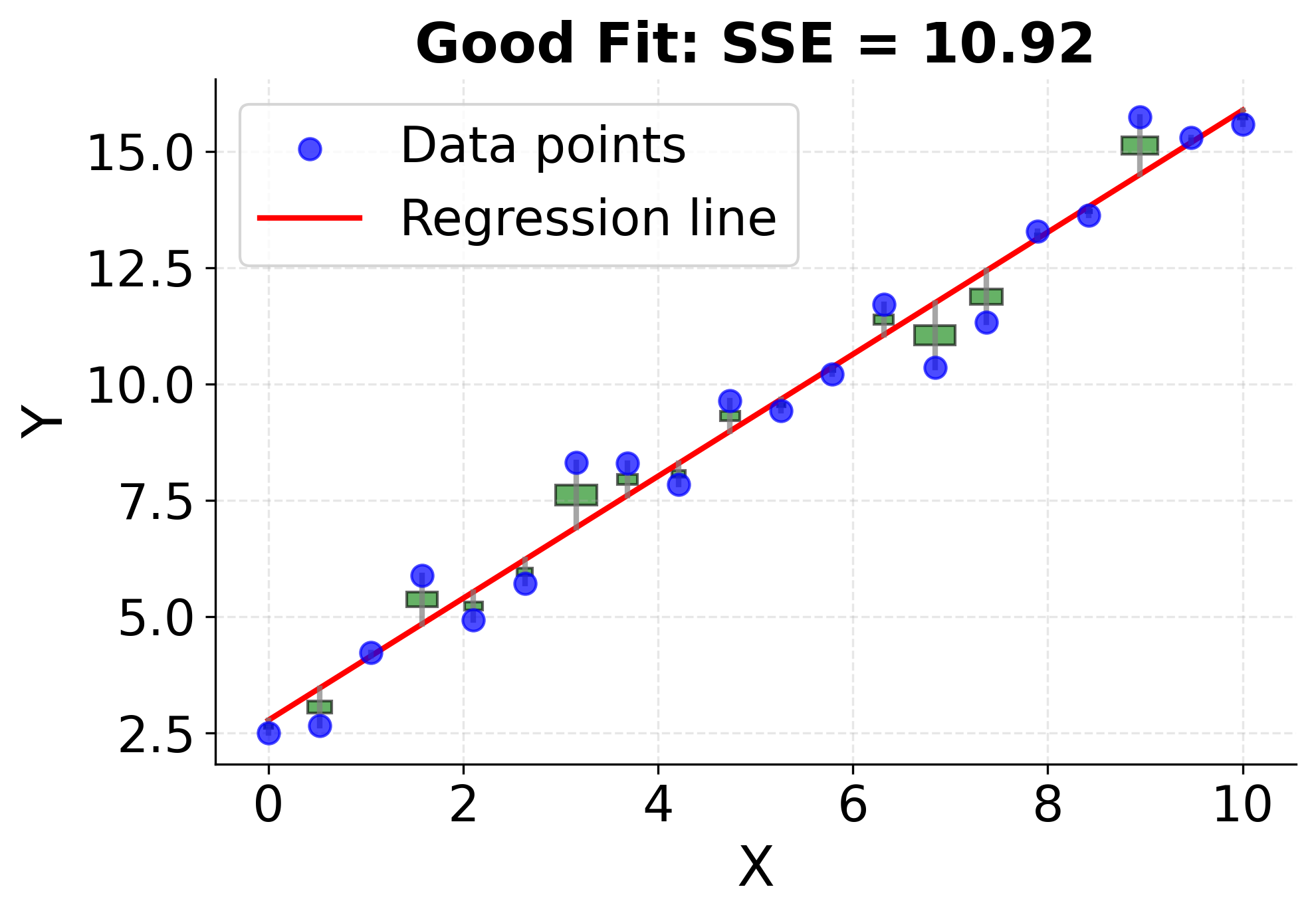

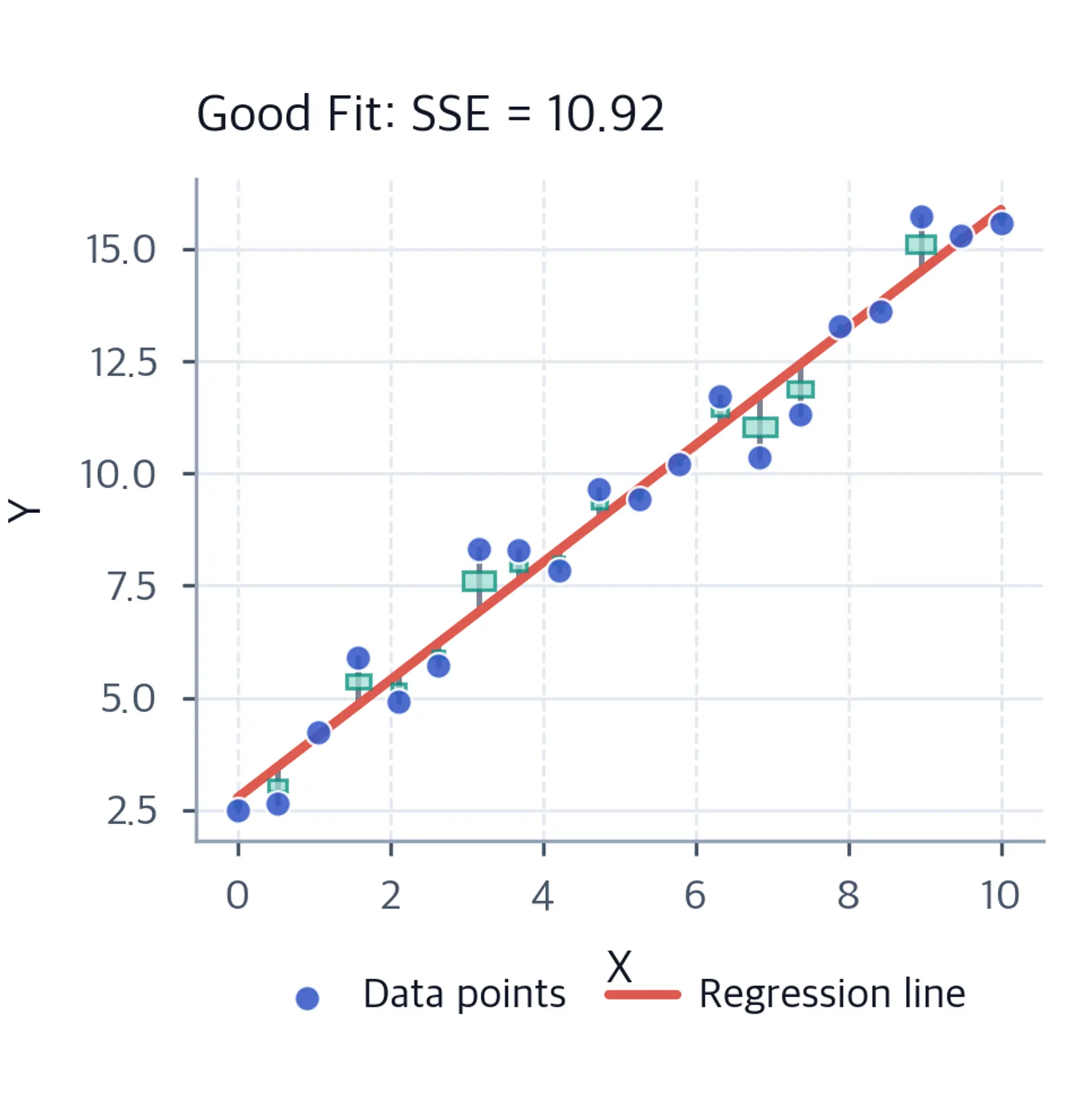

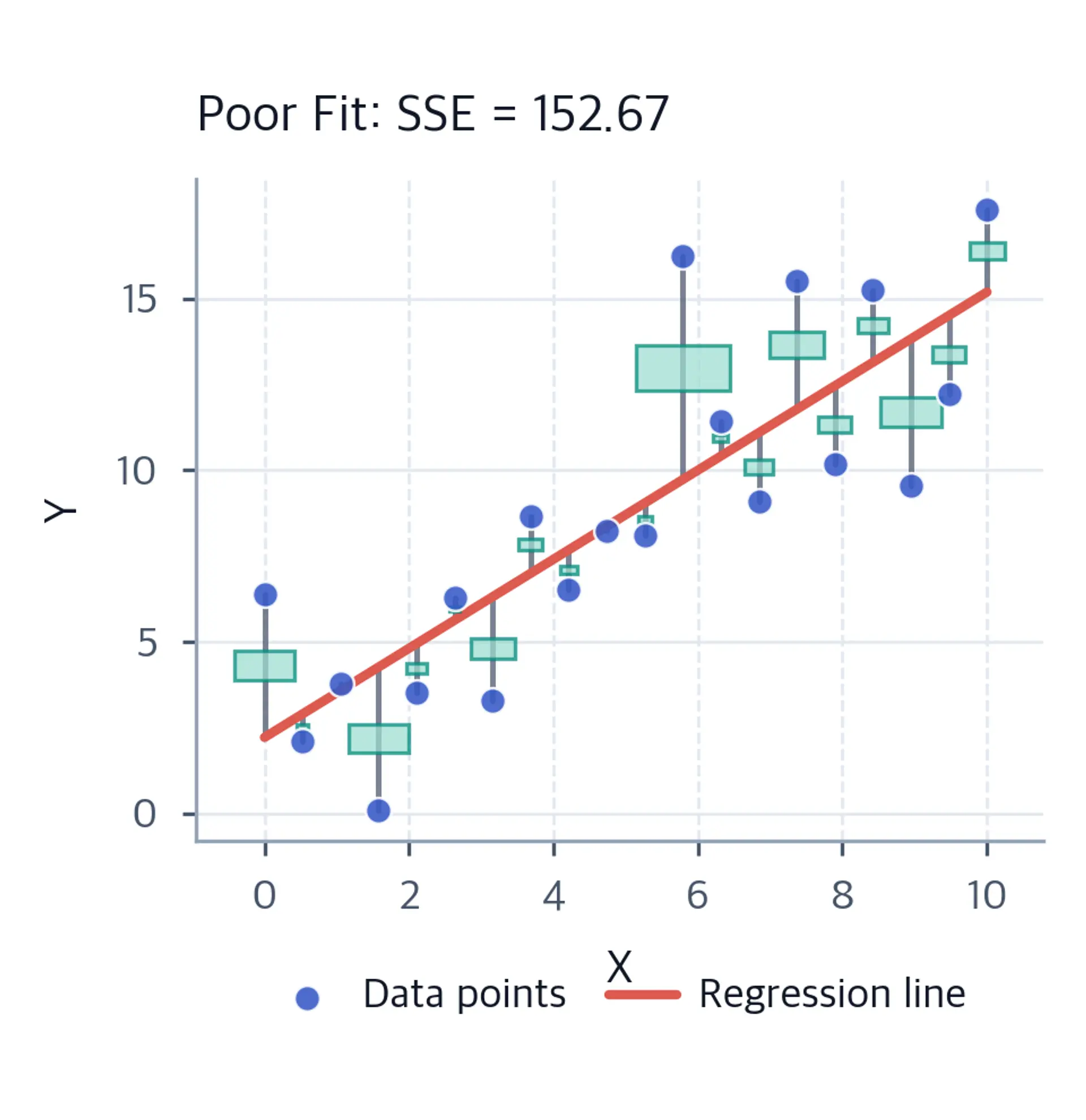

Visualizing SSE helps illustrate model fit by showing residuals and their squared values. This example demonstrates how SSE changes with different model fits and shows the geometric interpretation of squared residuals:

Understanding the Visualization

The gray vertical lines show the residuals (differences between actual and predicted values), while the green squares represent the squared residuals. The area of each square is proportional to the squared error for that point. This geometric interpretation helps understand why SSE is such an effective measure of model fit - it visually represents the total "error area" that the model is trying to minimize.

SSE in Least Squares Regression

The Optimization Objective

In linear regression, we find the best-fitting line by minimizing SSE. This is why the method is called "least squares" - we're finding the line that results in the least (smallest) sum of squared errors.

For a linear model $\hat{y} = \beta_0 + \beta_1 x$, we solve:

Why Squared Errors?

Using squared errors (rather than absolute errors) offers several important mathematical and practical advantages in regression analysis:

1. Differentiability: The squared error function, $(y_i - \hat{y}_i)^2$, is smooth and differentiable everywhere with respect to the model parameters. This property is crucial for optimization algorithms, such as gradient descent, which rely on taking derivatives to find the minimum error. In contrast, the absolute error function $|y_i - \hat{y}_i|$ is not differentiable at zero, making optimization more challenging and often requiring specialized algorithms.

2. Penalizes large errors more heavily: Squaring the residuals means that larger errors have a disproportionately greater impact on the total SSE. For example, if a prediction is off by 2 units, it contributes $2^2 = 4$ to the SSE, while an error of 1 unit contributes only $1^2 = 1$. This property encourages models to avoid large mistakes, as they are penalized much more than small ones. In contrast, using absolute errors would treat all errors linearly, regardless of their size.

3. Mathematical tractability and closed-form solutions: The use of squared errors leads to elegant mathematical properties that make analysis and computation more straightforward. In particular, minimizing the sum of squared errors in linear regression yields a closed-form solution for the optimal parameters, known as the normal equations. This allows for efficient computation and a clear understanding of how the solution depends on the data. We cover this in the section on ordinary least squares (OLS).

4. Desirable statistical properties: Under the classical assumptions of linear regression—such as errors being independent, identically distributed, and normally distributed with constant variance—the least squares estimator (which minimizes SSE) is the Best Linear Unbiased Estimator (BLUE) according to the Gauss-Markov theorem. This means it has the lowest variance among all linear unbiased estimators. Additionally, when errors are normally distributed, the least squares estimator coincides with the maximum likelihood estimator, providing further justification for its use.

5. Interpretability and connection to variance: The mean squared error (MSE), which is SSE divided by the number of observations, is directly related to the variance of the residuals. This connection makes it easy to interpret the goodness-of-fit of a model and compare models using familiar statistical concepts.

In summary, the use of squared errors in regression is not arbitrary—it is motivated by a combination of mathematical convenience, optimization efficiency, and desirable statistical properties that make it the standard choice in most regression settings.

Connection to Normal Equations

The normal equations in linear regression are derived by taking the derivative of SSE with respect to the parameters and setting them equal to zero. This process reveals why SSE is central to the entire regression framework.

Practical Applications

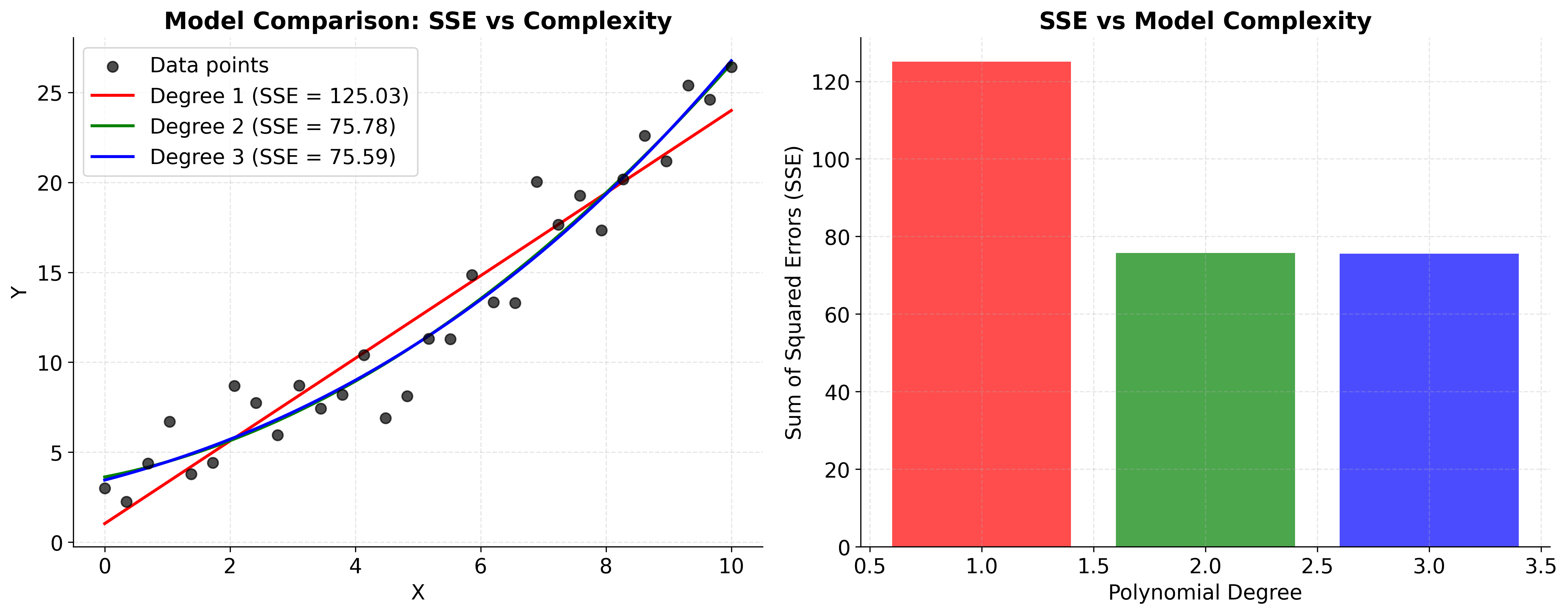

Model Comparison

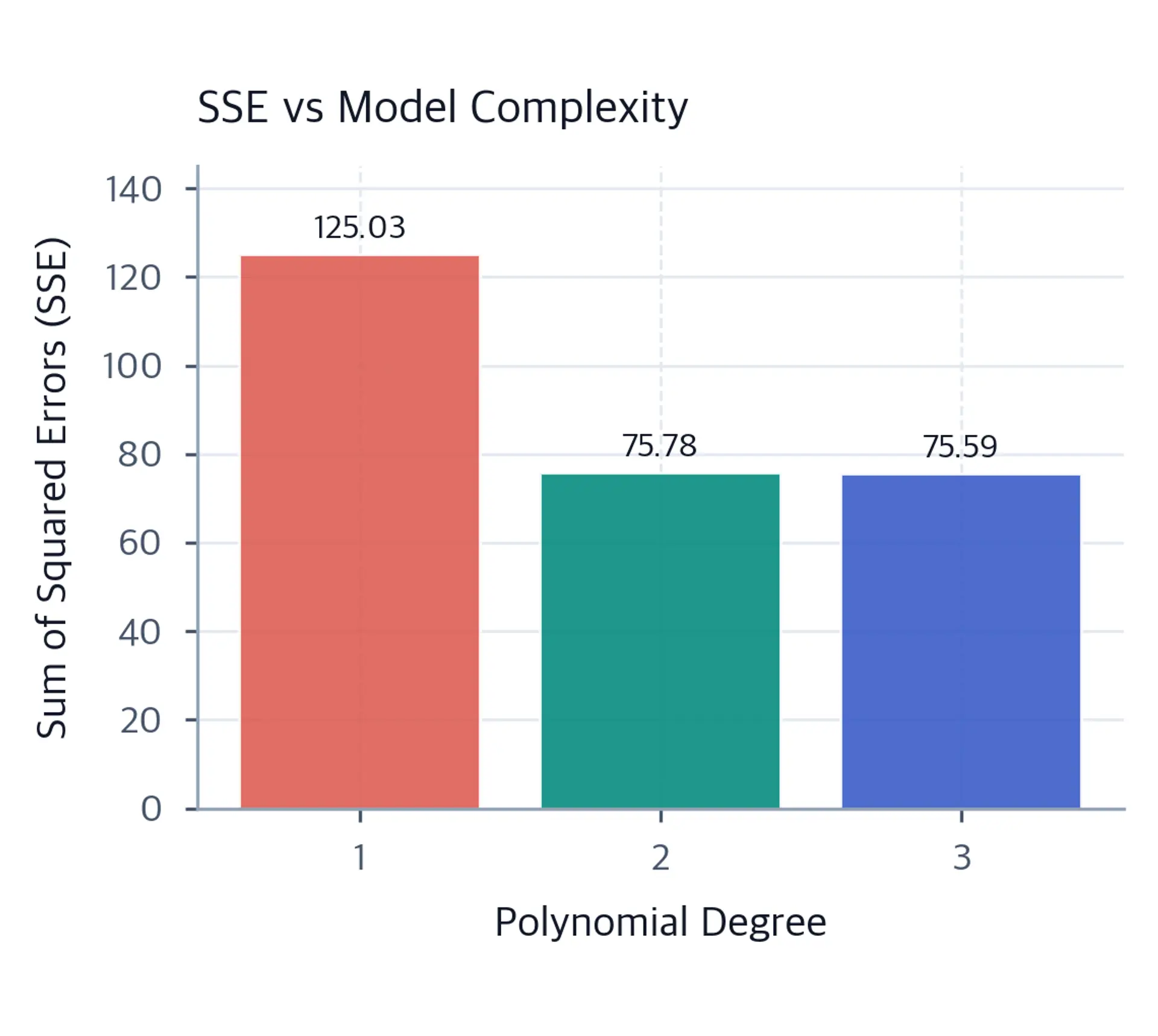

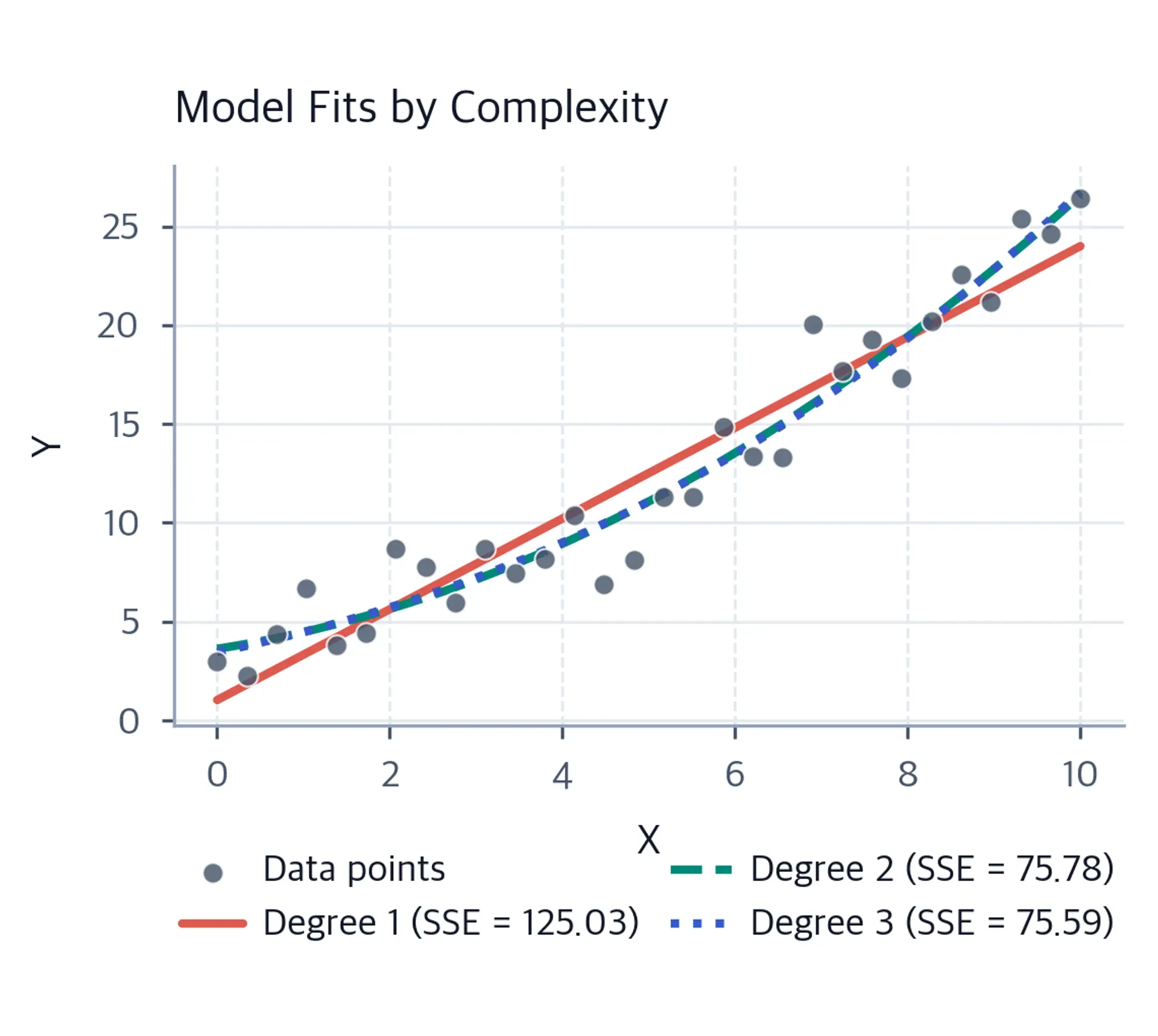

SSE is fundamental for comparing different models on the same dataset:

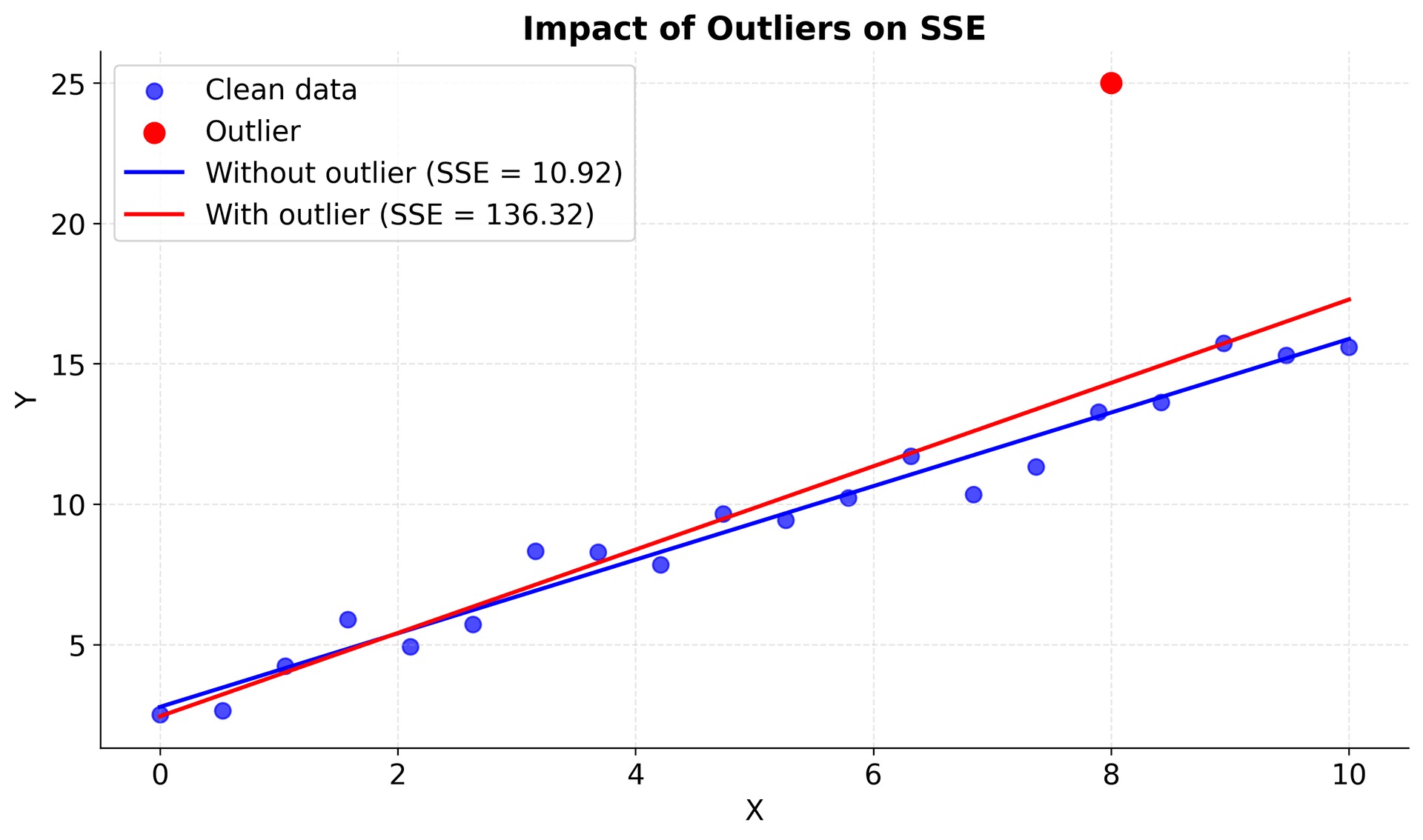

Outlier Impact

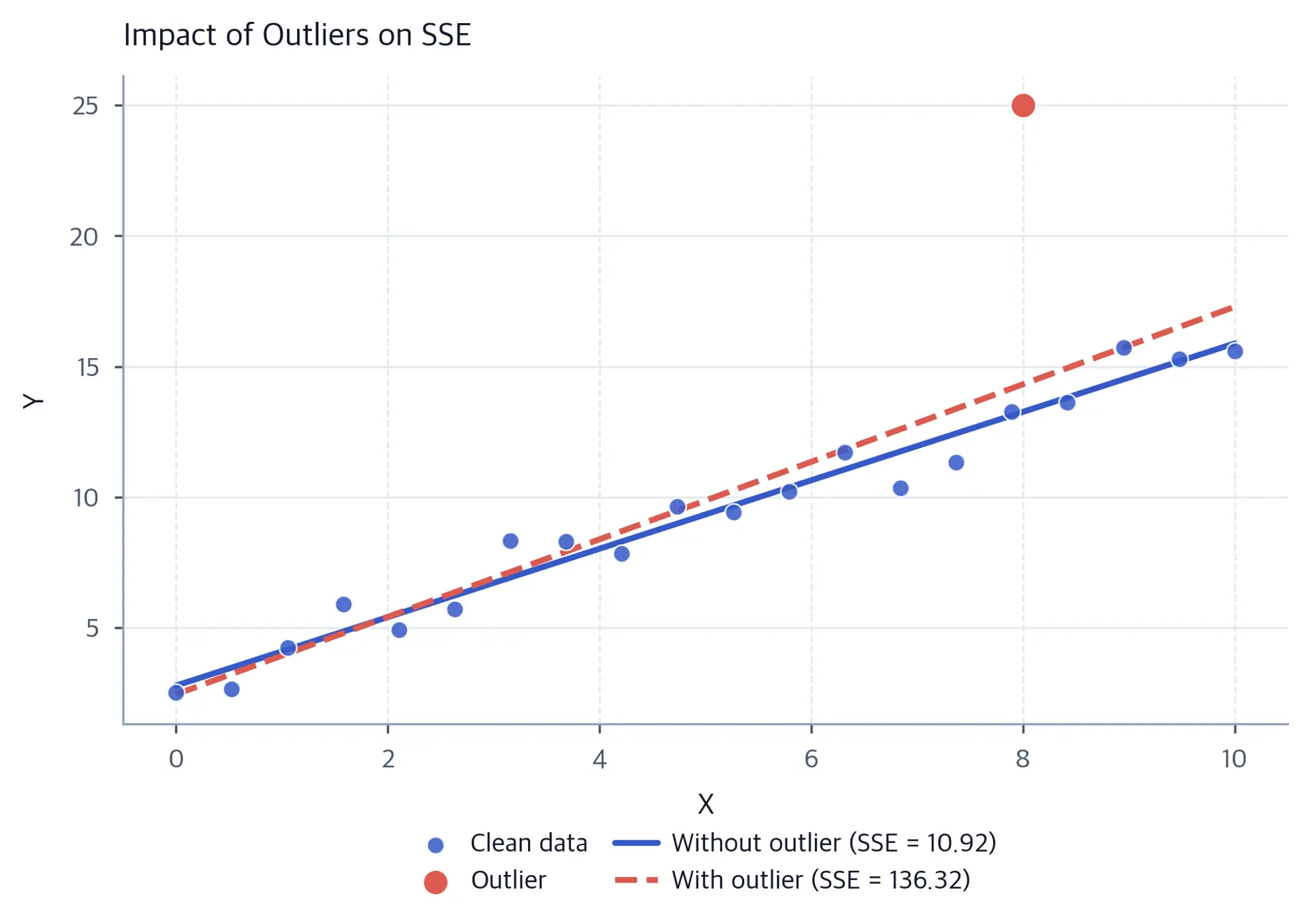

SSE is sensitive to outliers because squaring amplifies large errors:

Limitations and Considerations

SSE Limitations

SSE is a foundational metric, but it is not always the best or only choice for evaluating model performance. Here are some important limitations and considerations to keep in mind when using SSE:

• Scale dependency: SSE is measured in the squared units of the target variable. This means that if your target variable is measured in thousands, the SSE will be in millions, making it difficult to interpret or compare across datasets with different scales. For this reason, metrics like Mean Squared Error (MSE), Root Mean Squared Error (RMSE), or R-squared are often preferred for interpretability and comparison.

• Sensitivity to outliers: Because errors are squared, a single large error (outlier) can disproportionately increase the SSE. This makes SSE highly sensitive to outliers, as demonstrated in the previous visualization. If your data contains outliers or is not normally distributed, consider using more robust metrics such as Mean Absolute Error (MAE).

• No upper bound: SSE does not have a natural upper limit. Its value depends on the number of data points and the scale of the target variable, making it difficult to judge what constitutes a "good" or "bad" SSE without additional context.

• Sample size dependency: SSE generally increases as the number of observations increases, even if the model's performance per observation remains the same. This means SSE is not directly comparable across datasets of different sizes.

• Not always aligned with business goals: In some applications, large errors may be more costly than small ones, or vice versa. SSE penalizes large errors more heavily, which may or may not align with the real-world costs associated with prediction errors in your specific context.

Because of these limitations, it is important to use SSE alongside other evaluation metrics and to consider the context of your data and modeling goals. Check for outliers, consider the scale of your variables, and use cross-validation to assess how well your model generalizes to new data.

When SSE Might Not Be Appropriate

SSE may not be the most appropriate metric in certain situations. For example, when the error distribution is heavy-tailed and does not follow a normal distribution, SSE can be misleading. Similarly, if your data contains many outliers, more robust alternatives such as Mean Absolute Error (MAE) may provide a better assessment of model performance. Additionally, when comparing models across different target variables that are measured on different scales, SSE can be difficult to interpret and may not allow for fair comparisons.

Best Practices

When working with SSE, it is best practice to use relative metrics such as Mean Squared Error (MSE), Root Mean Squared Error (RMSE), or R-squared, as these provide more interpretable and comparable measures of model performance. Examine your data for outliers or influential points before relying solely on SSE, since outliers can have a disproportionate impact on the metric. To assess how well your model generalizes to new data, apply SSE (or related metrics) to validation or test sets using cross-validation techniques. For a more robust analysis—especially in the presence of outliers—consider alternative metrics such as Mean Absolute Error (MAE), which are less sensitive to extreme values.

Summary

The Sum of Squared Errors (SSE) is a fundamental concept in regression analysis that measures the total squared differences between observed and predicted values. It serves as the optimization objective for least squares regression and forms the foundation for many other important metrics like MSE, RMSE, and R-squared.

A solid understanding of SSE is essential for several key aspects of regression analysis. First, it enables effective model evaluation by providing a direct measure of how well a model fits the data. SSE also plays a central role in model comparison, allowing you to choose between different models applied to the same dataset based on their total error. From an optimization perspective, SSE is at the heart of least squares regression, explaining why this method seeks to minimize the sum of squared errors. Additionally, analyzing SSE can aid in diagnostics, helping to identify outliers and reveal potential inadequacies in the model.

While SSE is a powerful and mathematically elegant metric, it's important to be aware of its limitations, particularly its sensitivity to outliers and scale dependency. In practice, SSE is often used alongside other metrics to provide a comprehensive assessment of model performance.

The geometric interpretation of SSE as the sum of squared distances from data points to the regression line provides valuable intuition for understanding regression analysis and model evaluation in data science and machine learning.
