Communication Optimization
When you scale a neural network training job across dozens or hundreds of GPUs, something unexpected happens: the GPUs themselves are rarely the bottleneck. The interconnects between them are. A cluster of 256 H100s can perform exaFLOPS of computation, but those operations are meaningless unless the gradient updates computed on each device can reach every other device quickly. Communication optimization is the discipline of making that data movement as fast and as invisible as possible.
This matters more than most practitioners realize. In a naive distributed training setup, gradient synchronization can account for 30-60% of total training time. Modern large language models train for months on thousands of GPUs; shaving even 10% off communication overhead translates to weeks of wall-clock time and millions of dollars in compute costs. The techniques in this chapter, ranging from lossy gradient compression to hardware-aware collective operations, represent some of the most impactful engineering work in the field.
As we covered in earlier chapters on data parallelism and model parallelism, distributed training requires coordinating parameter updates across many devices. What those chapters treated as a given, the synchronization step, is precisely what we will now take apart and optimize. The challenge is not simply "make data transfer faster." It involves mathematical approximations that deliberately throw away information, careful orchestration of computation and communication on the same hardware, awareness of the physical network topology your cluster uses, and tuning the low-level collective communication library (NCCL) that sits beneath every popular deep learning framework.
It helps to think about communication overhead in terms of the roofline model you may recall from performance analysis. A training step has a theoretical compute bound (how fast the GPU can process matrix multiplications) and a bandwidth bound (how fast data can move through the memory and network hierarchy). When communication dominates, the job is bandwidth-bound, and no amount of additional GPU capacity will help until the bandwidth bottleneck is addressed. The techniques in this chapter move the roofline: either by reducing the total data volume that must be communicated (compression), by hiding communication time behind compute (overlap), or by ensuring the hardware delivers its rated bandwidth as efficiently as possible (topology-aware communication and NCCL tuning).
Before diving into the techniques themselves, it is worth understanding why the communication problem is so hard to solve through hardware alone. InfiniBand bandwidth has improved roughly four-fold every five years, from around 10 Gb/s in 2010 to 400 Gb/s today. But model sizes have grown by orders of magnitude over the same period: GPT-2 had 1.5 billion parameters, GPT-3 had 175 billion, and the trend continues upward. The math is unforgiving. Sending 175 billion float32 parameters over a 400 Gb/s link takes nearly 14 seconds. Even with the newest hardware, you cannot train GPT-3-scale models without some form of communication optimization.

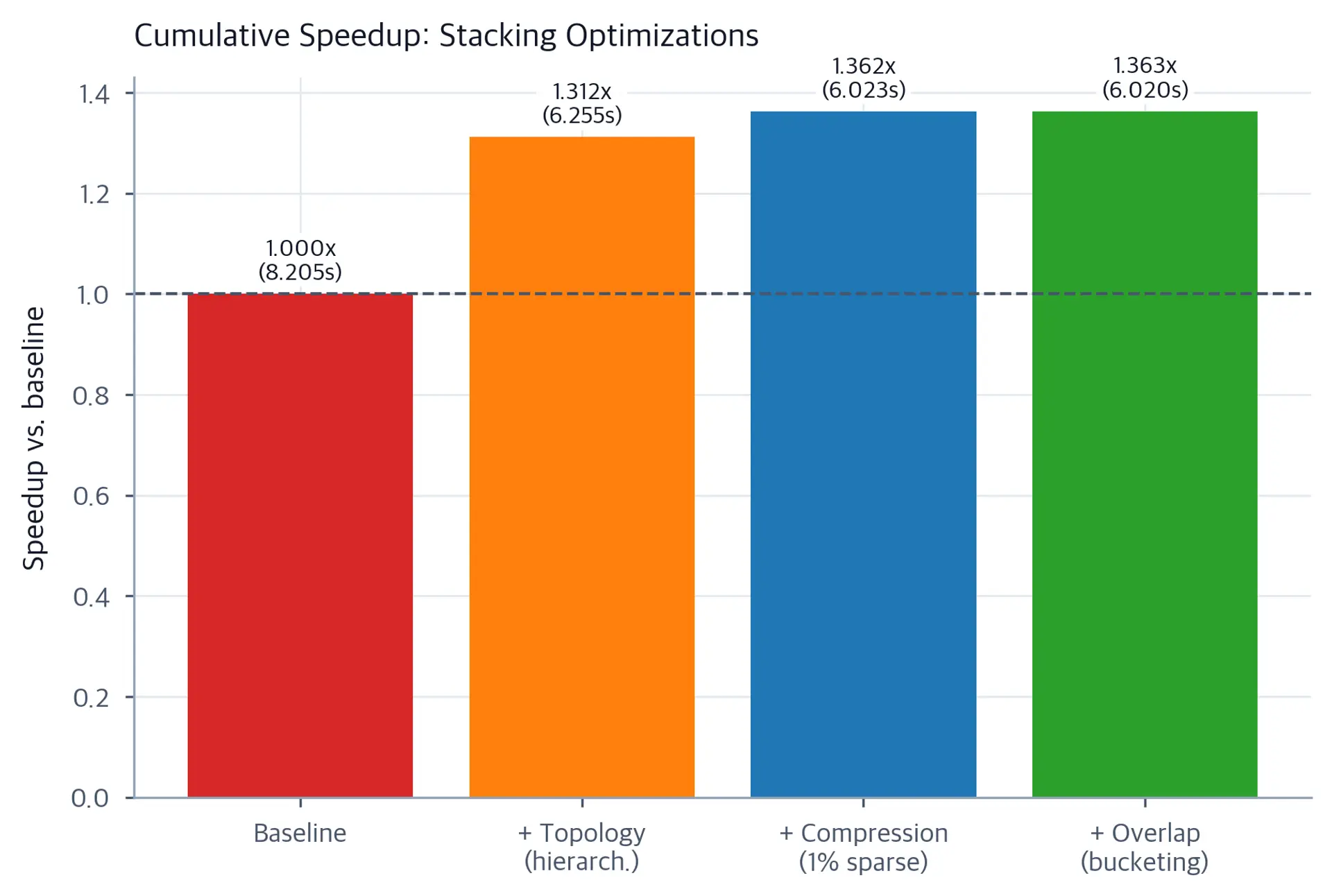

The four main strategies form a coherent stack. Gradient compression attacks the problem at the source by reducing what must be sent. Communication overlap addresses the scheduling problem by running sends and receives in parallel with backward computation. Topology-aware algorithms route traffic through the fastest available links. And NCCL tuning extracts maximum hardware efficiency from whatever link you have. Most production training systems apply all four simultaneously.
Gradient Compression
The most direct way to reduce communication time is to send less data. Gradient compression achieves this by replacing the full set of gradient values with a compact approximation. The core insight is that not all gradients are equally important at any given training step. A handful of large-magnitude gradients drive most of the parameter update; the majority are small, noisy, and can be delayed or discarded without significantly affecting convergence.
Why Gradients Are Compressible
During backpropagation, each GPU computes a gradient tensor for every parameter in the model. For a model with parameters and a 32-bit float representation, that is bytes per training step, per GPU. With synchronous data parallelism, every GPU must receive the gradients from every other GPU. The all-reduce collective operation scales this to bytes transferred per GPU, approximately bytes in the ring-reduce algorithm that most implementations use.
For modern LLMs, can exceed 70 billion. A single all-reduce over 70B float32 parameters moves 280 GB of data. Even on InfiniBand at 200 Gb/s, that transfer takes over 11 seconds per step. By contrast, a single forward and backward pass on an H100 over a large batch might take 2-4 seconds. The communication cost completely dominates.

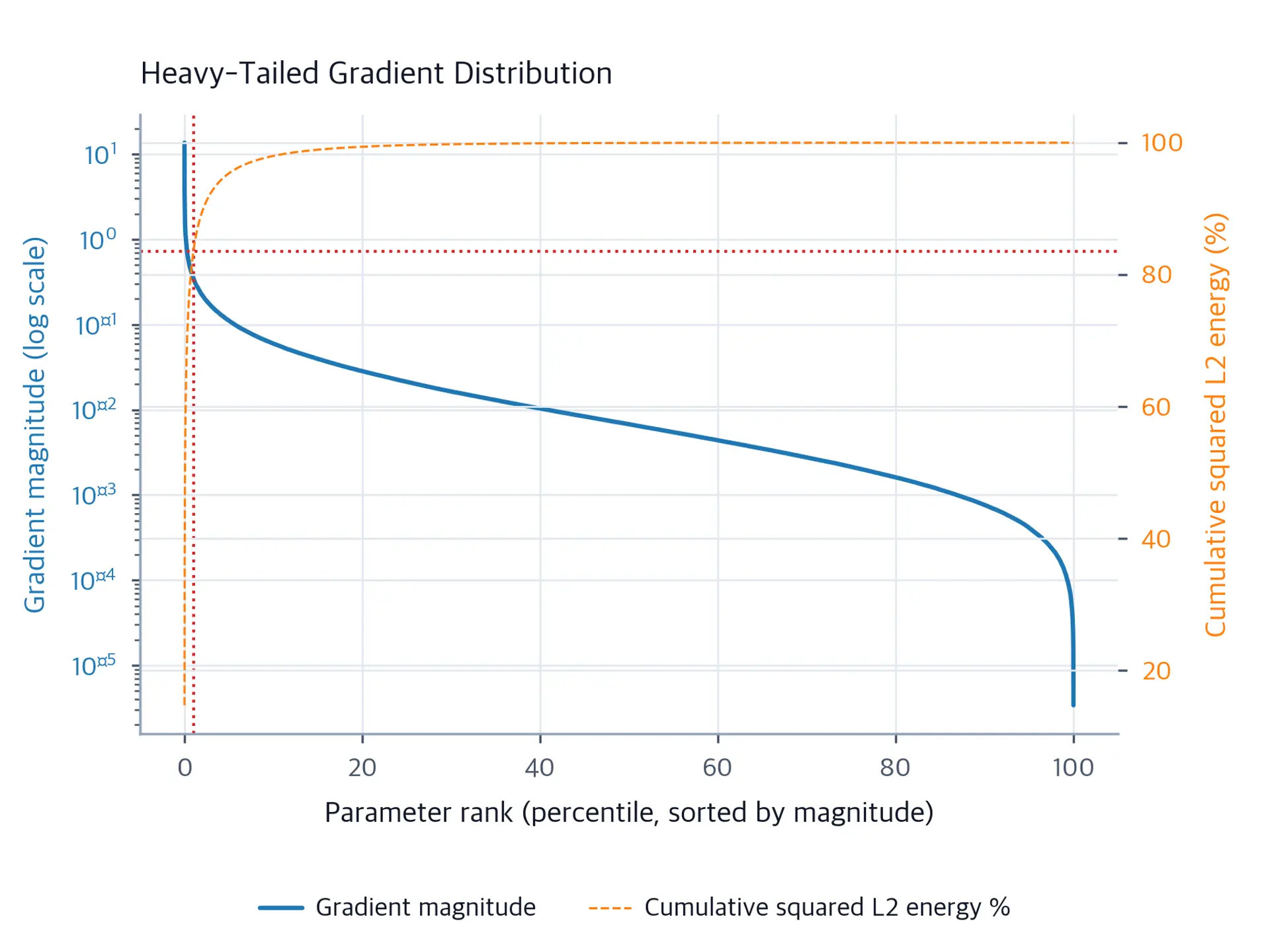

Gradients are compressible for two reasons. First, gradient magnitudes follow a heavy-tailed distribution: a small fraction of parameters have large gradients, and most have near-zero values. Second, the stochastic nature of mini-batch training means gradients are already noisy estimates of the true gradient. Discarding small-magnitude gradients introduces additional noise, but this added noise is often within the variance already present from mini-batch sampling.
The heavy-tailed property was empirically confirmed by several research groups independently. In BERT-scale models, fewer than 0.1% of gradient components typically account for more than 90% of the gradient norm. This is not a carefully engineered property of the model architecture; it appears to be a general feature of how neural networks optimize. The explanation involves saddle points in the high-dimensional loss surface: at any given step, most directions in parameter space have near-zero curvature, and the optimizer needs to move only along the small fraction of directions with strong curvature signal.
To build intuition for why this matters, consider an analogy to sparse signals in signal processing. If you have an audio signal where most of the energy is concentrated in a few frequency components, you can transmit those components and reconstruct the original with high fidelity, discarding the low-energy components that contribute little to the overall sound. Gradient compression does exactly this for optimization signals: it identifies which "frequency components" of the gradient are energetic and communicates only those. The approximation error is bounded precisely because the discarded components were small to begin with.
This observation extends to a deeper mathematical point. The convergence guarantee for stochastic gradient descent requires that each gradient update is an unbiased estimator of the true gradient. But SGD with mini-batches already violates this guarantee by using only a subset of training data. The mini-batch gradient is correct on average but has substantial variance. Compression adds another source of variance, but if the compressor is unbiased (or if the error is bounded and corrected via feedback), this additional variance is acceptable. The convergence rate degrades by at most a factor related to the compression error, which for good compression schemes is negligible.

Top-K Sparsification
Top-K sparsification is the simplest and most widely studied compression approach. Instead of sending the full gradient vector, each worker selects the entries with the largest absolute values and sends only those.
The compression ratio is . Setting yields a 1000x reduction in communication volume, sending only 0.1% of gradients each step. The complementary question is: what happens to the 99.9% of gradients that were not sent?
Error feedback is the mechanism that makes top-K sparsification work in practice. When a gradient is not transmitted in step , it is not discarded. Instead, it is added to a local accumulator buffer. In subsequent steps, the accumulated residual is added to the new gradient before selection. This ensures every gradient is eventually transmitted, preserving convergence while deferring communication of small updates.
Formally, let be the true gradient at step and be the accumulated error from the previous step. The compressed gradient is:
where:
- : the gradient computed at step via backpropagation
- : the accumulated residual from all previously unselected gradients
- : the operation that zeros out all but the largest-magnitude entries
- : the sparse gradient sent between workers
The error is then updated as:
This residual captures everything that was not transmitted. In the next step, it gets another chance. Deep Gradient Compression (DGC), proposed by Lin et al. (2018), demonstrated that with proper error feedback, learning rate warmup, and gradient clipping, top-K sparsification with 0.1% density causes no measurable loss in final model accuracy on image classification and language modeling tasks.
The intuition for why error feedback preserves convergence is elegant. Without it, ignoring 99.9% of gradients would correspond to taking steps in a very different direction than the true stochastic gradient. The accumulated error is a debt. Each transmitted gradient includes the current step's signal along with the "owed" portion from all previous steps where that parameter was not updated. The optimizer is not making fewer updates per parameter; it is making less frequent but larger updates, which in practice behaves similarly to a standard SGD step when the error is bounded.
There is an important subtlety about where sparsification happens. In data-parallel training, each GPU holds a different mini-batch and computes a different gradient vector. Top-K sparsification is applied locally on each GPU before the all-reduce. The selected top-K indices may differ across GPUs, meaning the received gradient at each GPU is a union of different sparse vectors, not a single coherent sparse vector. The effective density after aggregation is typically 2-3x the per-worker density. This is usually acceptable but means that the compression ratio you achieve at the wire level is somewhat lower than the nominal ratio.
The wire format for sparse gradients requires sending both values and positions. At 0.1% density, each selected gradient requires a float32 value (4 bytes) plus a 32-bit integer index (4 bytes), for a total of 8 bytes per entry. Compare this to the 4 bytes per entry in the uncompressed format. The effective compression ratio is therefore halved: 0.1% density gives 500x bandwidth reduction rather than 1000x. This index overhead is a practical consideration when choosing between sparsification and other compression methods, and it motivates the development of index-free compression schemes like low-rank approximation.
Quantization-Based Compression
Where sparsification reduces the number of values transmitted, quantization reduces the number of bits used to represent each value. Standard training uses 32-bit floats; gradient quantization maps these to lower-precision representations.
1-bit SGD, introduced by Seide et al. (2014), takes this to the extreme: each gradient value is quantized to a single bit, representing either a positive or negative residual. The full gradient is compressed by taking the sign:
where:
- : a vector of values indicating the sign of each gradient component
- : the dimension of the gradient vector
- : the norm of the gradient, used as a scalar multiplier to preserve approximate magnitude
This achieves a 32x compression ratio over float32. The scalar multiplier is transmitted alongside the bit vector so the receiver can reconstruct a scaled version of the gradient. In practice, this scalar is often computed per-layer rather than globally to accommodate the widely varying magnitudes of gradients in different parts of the network.
QSGD (Alistarh et al., 2017) generalized this idea with a stochastic quantization scheme that preserves unbiasedness. Given a gradient value , the quantized value at levels is:
where is a stochastic rounding variable that rounds to either or with probabilities that make the expectation exact.
The key property is that , making sure the quantized gradient is an unbiased estimator of the true gradient. This unbiasedness is important: without it, the compressed gradients introduce systematic bias that can cause the optimization to converge to the wrong solution.
To see why unbiasedness matters, consider a toy example. Suppose you have a gradient of 0.3 and you quantize to either 0 or 1. A deterministic rounding to 0 consistently underestimates the gradient, and the parameter never updates in that direction. Stochastic rounding transmits 1 with probability 0.3 and 0 with probability 0.7; on average, the parameter update is exactly 0.3. Over many steps, the stochastic approach produces the same trajectory as the uncompressed gradient. Deterministic rounding introduces bias that accumulates.

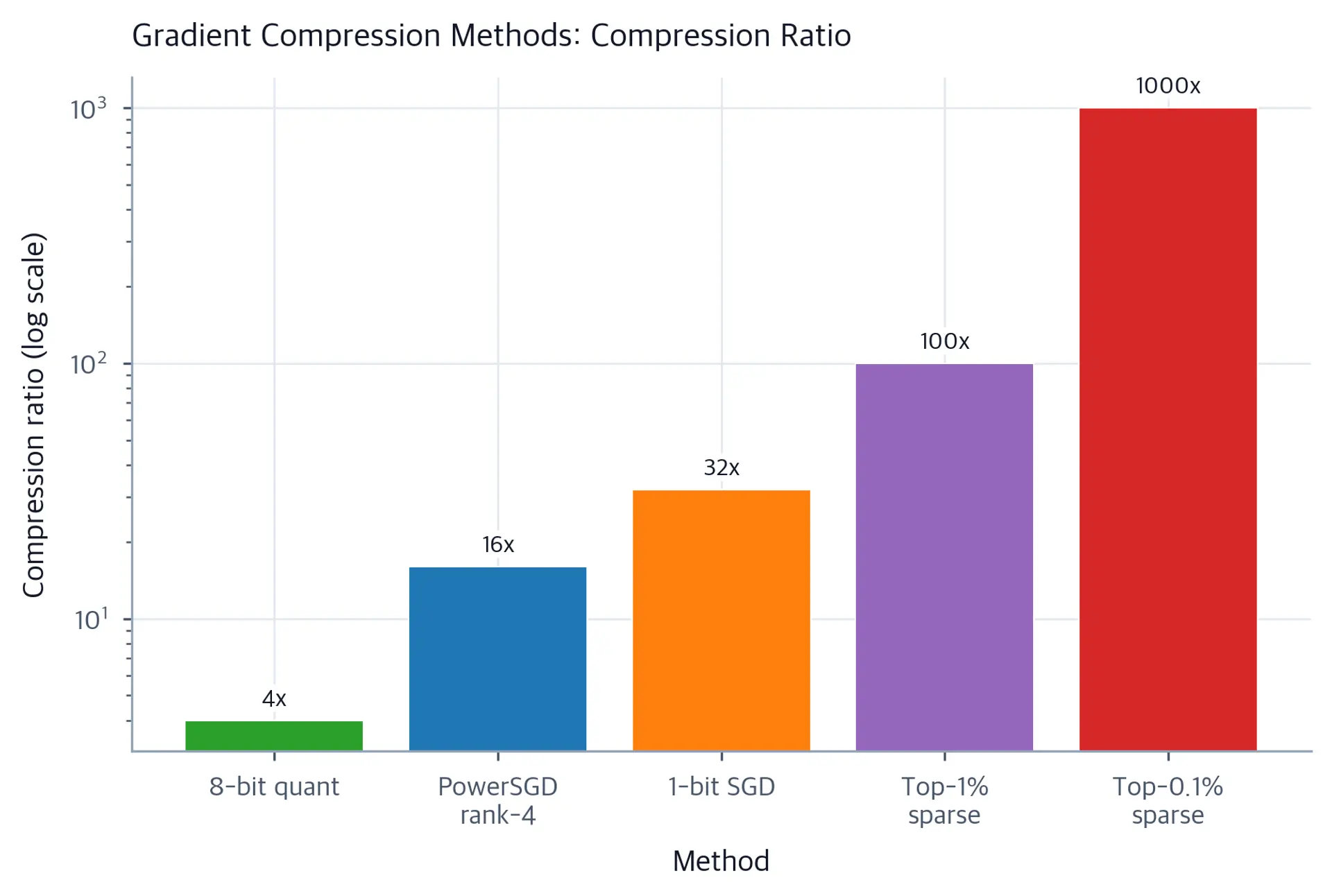

The tradeoff between compression ratio and convergence quality in QSGD is controlled by . At , QSGD uses -bit quantization. More bits preserve more gradient information at reduced compression. In practice, 4-bit and 8-bit QSGD show very good convergence properties, while 1-bit requires error feedback similar to top-K sparsification to avoid accumulating quantization bias.
A practical consideration for quantization is how to handle the varying dynamic ranges of gradient magnitudes across layers. A single global scalar for the entire gradient tensor will under-represent large gradients or waste bits on small ones. Layerwise scaling, where each layer's gradient tensor gets its own quantization scale factor, dramatically improves fidelity at the cost of a small per-layer overhead. For large models with many layers, this overhead is negligible. Modern implementations like bitsandbytes and GPTQ routinely use block-wise quantization with even finer-grained scaling to maximize accuracy per bit.
The interaction between quantization and optimizer state also deserves attention. When using Adam, the optimizer maintains first-moment (mean) and second-moment (variance) estimates of the gradient. If you quantize the gradient before updating these estimates, the quantization noise propagates into the optimizer state. The second-moment estimate in particular can be sensitive to this noise because it accumulates squared gradients: small random perturbations in the gradient get squared and potentially amplified. Practitioners often separate the quantization pipeline from the optimizer update to avoid this issue, dequantizing the aggregated gradient before passing it to Adam.
PowerSGD and Low-Rank Approximation
A third class of compression methods exploits the observation that gradient matrices in neural networks tend to have low effective rank. Fully connected layer gradients are matrices of shape . In practice, the singular value decomposition of these matrices often shows rapid decay: a few dominant singular values capture most of the "energy" of the gradient.
Why do neural network gradient matrices have low rank? The answer is related to the structure of backpropagation. The gradient of a linear layer is the outer product of the incoming activation vector and the outgoing error vector. A single mini-batch produces a rank-1 gradient contribution for each example in the batch. When you average over a batch of 32 examples, the resulting gradient matrix has rank at most 32. For large hidden dimensions (say 4096), this is much less than the full matrix rank of 4096. Further, the dominant directions in gradient space tend to align with the principal components of the activation and error distributions, which are themselves low-dimensional structures.
PowerSGD (Vogels et al., 2019) compresses each gradient matrix into two small factors:
where:
- : the left low-rank factor
- : the right low-rank factor
- : the target rank, typically or
The communication cost drops from values to values. For a layer with and , this is a compression ratio of .
PowerSGD uses power iteration to find the best rank- approximation efficiently. The algorithm alternates between updating and , which converges quickly to the dominant singular vectors. Importantly, PowerSGD also uses error feedback, accumulating the residual for the next step.
To understand why power iteration works well here, recall that the singular value decomposition decomposes any matrix , where is a diagonal matrix of singular values arranged in decreasing order. The best rank- approximation (in the Frobenius norm sense) is obtained by keeping only the top singular values. But computing a full SVD is expensive: operations. Power iteration instead directly estimates the top- singular vectors with far less computation, converging in just a few iterations because the gap between the top singular values and the rest is typically large for gradient matrices.
One practical advantage of PowerSGD over sparsification is that it naturally handles the communication of indices. Sparse gradient formats must transmit both values and their positions, which at 0.1% density requires a 32-bit index per value, effectively doubling the communication cost compared to a pure value-only format. Low-rank factors are dense and require no indices. This makes PowerSGD particularly efficient on network hardware that is optimized for contiguous dense transfers.
A key limitation of PowerSGD is that it operates on matrix-shaped gradients: weight matrices and embedding tables work well, but convolutional filter tensors require reshaping, and bias vectors (which are 1D) do not have a useful low-rank approximation. In practice, PowerSGD is applied selectively to the largest gradient matrices, with smaller tensors transmitted uncompressed.

Communication Overlap
Gradient compression reduces how much data must be transmitted. Communication overlap reduces how long that transmission blocks computation. The core idea is simple: rather than waiting until the entire backward pass completes before starting any communication, we begin transmitting gradient chunks as soon as they are computed.
The Sequential Bottleneck
In a naive synchronous data-parallel implementation, training proceeds in strict phases. The forward pass runs on all GPUs. The backward pass runs on all GPUs. Then all GPUs synchronize: they perform an all-reduce over all gradients. Only after the all-reduce completes does the optimizer step run, applying the now-synchronized gradients to the parameters. The all-reduce cannot begin until the backward pass finishes, and the optimizer step cannot begin until the all-reduce finishes.
This creates a sequential pipeline where communication sits between two computation phases, blocking both. The GPU is idle during communication, and the network is idle during computation. At scale, this is an enormous waste. A 256-GPU cluster spending 50% of time on communication is equivalent to operating a 128-GPU cluster for the same cost.
This pattern appears even in frameworks that use asynchronous training internally. The critical path through the training step passes through both the backward computation and the all-reduce. Even if you can dispatch the all-reduce on a separate CUDA stream, that stream must complete before the optimizer step reads the aggregated gradient. Any communication time that cannot be hidden behind computation adds directly to wall-clock training time.
The severity of this bottleneck grows with the number of GPUs. As you add more workers, each worker holds a smaller fraction of the total batch, which means each backward pass is shorter (fewer examples per worker). But the all-reduce time grows with the gradient size, which does not change. More GPUs means a higher ratio of communication time to compute time, making overlap increasingly important at scale.
Bucketing and Overlap
The key insight is that backpropagation computes gradients in reverse order: the last layer's gradients are ready before the first layer's. We do not need to wait for the entire backward pass to finish before communicating the gradients from the final layers.
PyTorch's DistributedDataParallel (DDP) exploits this with a bucketing strategy. Parameters are grouped into buckets of a configurable size (default 25 MB). As soon as all gradients within a bucket are ready (computed by the backward pass), the all-reduce for that bucket is launched asynchronously on a separate CUDA stream. Meanwhile, the backward pass continues computing gradients for earlier layers, which goes into a different bucket.
By the time the backward pass completes, the all-reduces for the last several buckets have already finished or are nearly complete. The overlap between backward computation and gradient communication can eliminate most of the communication overhead, provided the computation time exceeds the communication time.

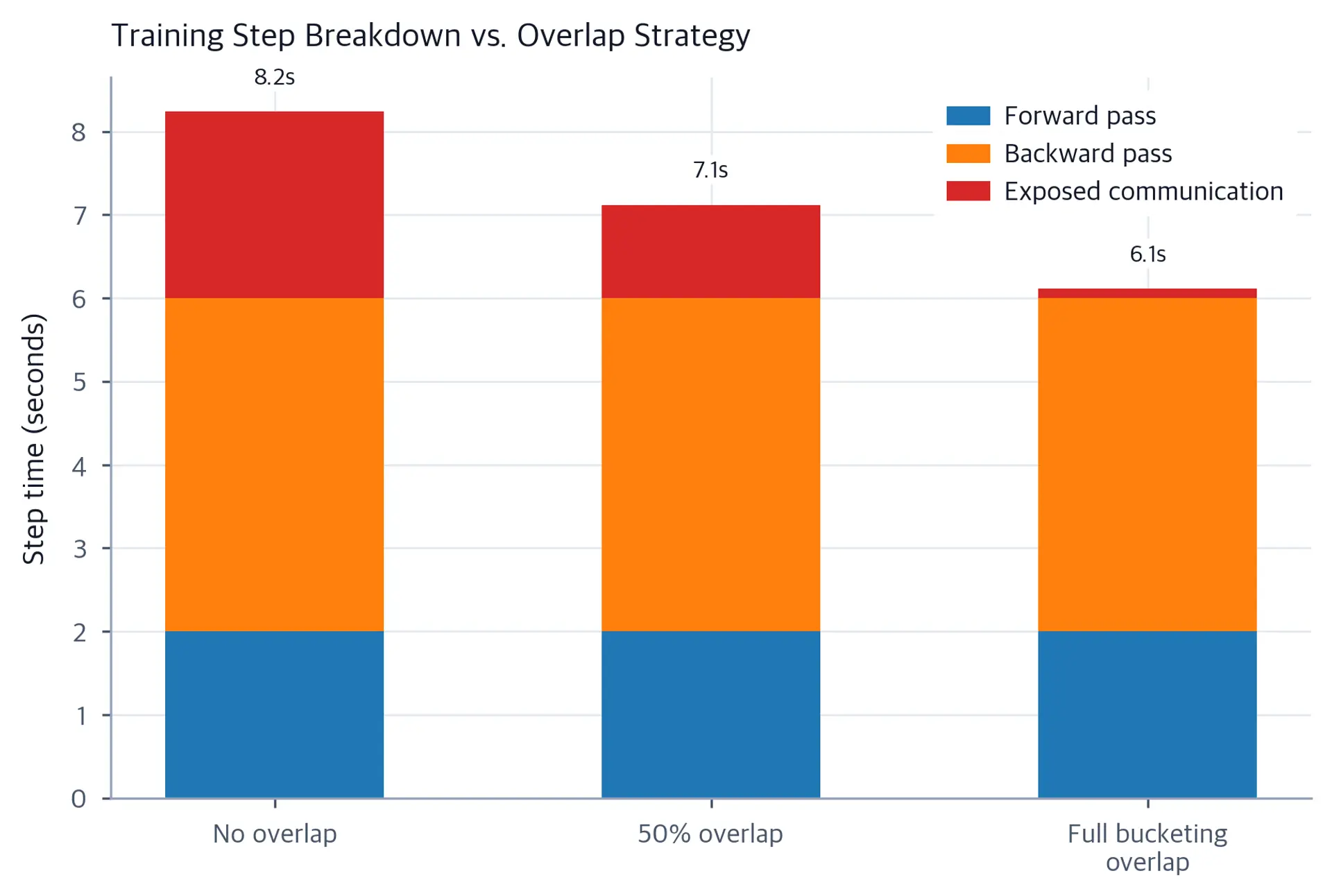

The timing relationship works as follows. Let denote total backward pass time, denote total communication time, and denote the portion of communication that can be overlapped with backward computation. The effective training step time becomes approximately:
where:
- : forward pass duration
- : backward pass duration, typically 2-3x the forward pass
- : total time to communicate all gradients via all-reduce
- : communication time that is hidden behind backward computation
When , communication is fully hidden and adds zero overhead. In practice, achieving full overlap requires careful bucket sizing and a sufficiently compute-heavy backward pass.
Bucket sizing involves a tradeoff. Smaller buckets mean more granular overlap (the first few layers' gradients are ready earlier relative to the remaining backward computation), but also more all-reduce operations, each with a fixed setup overhead (kernel launch latency, NCCL handshake). Larger buckets reduce this overhead but delay the start of each all-reduce until a larger chunk of the backward pass has completed, reducing the maximum achievable overlap. For most models, bucket sizes in the range of 25-500 MB work well, with larger models benefiting from larger buckets.
An often-overlooked consideration is that overlap also requires the GPU to run computation and communication kernels simultaneously. This is possible because modern GPUs have separate CUDA stream engines for compute and copy operations, and these can progress in parallel. However, if the compute kernels are already saturating all GPU execution units, there may not be spare capacity for the DMA engine to run communication in parallel with peak computation. In practice, backward passes often have irregular resource utilization, leaving bandwidth for overlap during the parts of backprop that are not matmul-heavy.
The buckets are also ordered carefully. DDP processes buckets in reverse order of how gradients are computed during backpropagation, which means the last layer's bucket is launched first for all-reduce. This ordering matters because the first all-reduce to finish is for the last layer's parameters, which are also the first parameters to be used in the next forward pass. Getting these gradients synchronized earliest maximizes the chance that they are ready before the next forward pass needs them.
Pipeline Parallelism Communication Overlap
In pipeline-parallel training, communication overlap takes a different form. Between pipeline stages, activations flow forward and gradients flow backward. If the send of layer 's output to stage must complete before stage starts its computation, we again have a blocking sequential pipeline.
Techniques like 1F1B (one forward, one backward) scheduling interleave micro-batches so that while one stage is processing micro-batch , the previous stage is already computing micro-batch . This fills the pipeline bubbles with useful work. The communication between stages can be further overlapped using CUDA streams that run concurrently with computation kernels, provided the GPU has sufficient resources to multiplex both.
The 1F1B schedule reduces peak memory relative to GPipe's approach of accumulating all forward activations before starting backward. This memory reduction is significant because pipeline stages hold activations for multiple in-flight micro-batches simultaneously. With 1F1B, each stage holds at most two micro-batches of activations at once, enabling deeper pipelines with the same per-GPU memory budget. The communication overlap in 1F1B is a byproduct of the interleaved schedule: since stages are always processing something, the sends and receives between stages happen naturally in parallel with local computation.
For tensor-parallel training, where individual layers are split across GPUs within a single pipeline stage, the communication pattern is different again. Tensor parallel operations like matrix multiplications require all-reduce or all-gather within the tensor parallel group during both the forward and backward passes. These communications are inside the computation critical path, not outside it, so overlap is harder to achieve. Megatron-LM addresses this with sequence parallelism, which staggers the all-reduce operations across the forward and backward passes to reduce peak communication load.

Topology-Aware Communication
The physical network connecting GPUs in a cluster is not a flat, uniform fabric. Understanding its structure, and mapping collective communication algorithms onto it accordingly, can dramatically reduce latency and increase effective bandwidth.
The Multi-Level Hierarchy

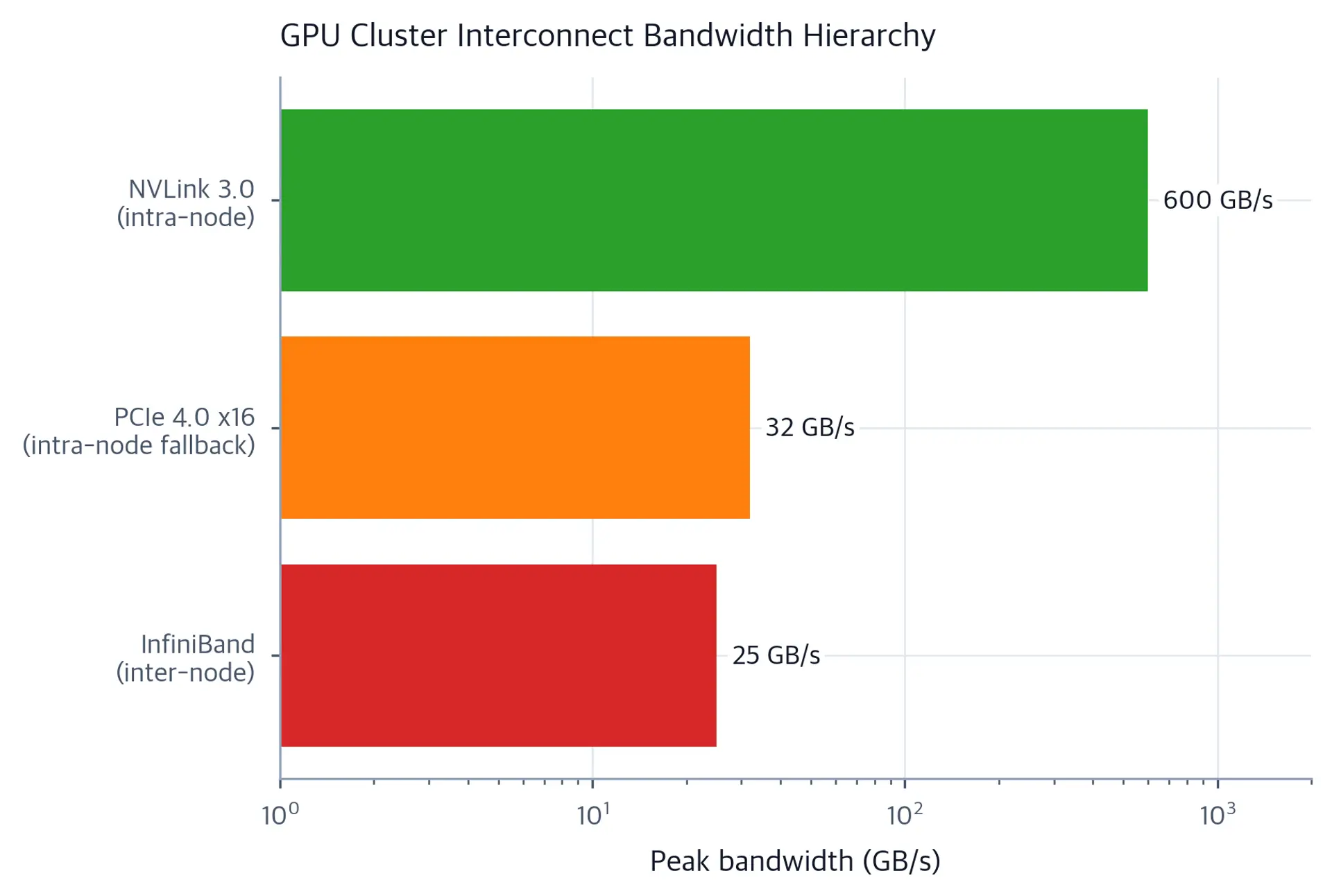

A typical GPU cluster has several levels of connectivity, each with different bandwidth and latency characteristics.
Within a single node, GPUs are connected via NVLink (or PCIe on older hardware). An A100-class NVLink 3.0 fabric provides up to about 600 GB/s of aggregate bidirectional bandwidth per GPU, with near-zero latency because the links are direct electrical connections. At that aggregate rate, moving a 1 GB gradient tensor takes under 2 milliseconds.
Between nodes, GPUs communicate over InfiniBand HDR or Ethernet. InfiniBand offers approximately 200 Gb/s (25 GB/s) per link with latency around 1-3 microseconds. But this bandwidth is shared among all GPU-to-GPU transfers traversing that link, and the effective bandwidth per GPU decreases as the cluster size grows.
Within a large cluster, nodes are connected through one or more layers of network switches. A 3-level fat-tree topology with 100 nodes might have edge switches connecting groups of 10 nodes, aggregation switches connecting groups of edge switches, and a core switch layer. Bandwidth at the edge layer is full-bisection, but bandwidth at higher layers may be oversubscribed by 2x or 4x, meaning communications that cross the top-of-rack switches run at half or quarter the link speed.
The implication for collective algorithms is clear: all-reduce operations that keep communication within a node use NVLink and are essentially free. Operations that span nodes use InfiniBand and are moderately expensive. Operations that cross the aggregation layer become expensive. A topology-unaware all-reduce that routes traffic randomly through the cluster may cause some inter-node links to carry far more traffic than others, resulting in congestion and underutilization.
Another consequence of hierarchical topology is that all-reduce latency scales differently at each level. Intra-node latency is dominated by CUDA kernel launch overhead (microseconds). Inter-node latency is dominated by InfiniBand message transmission (tens to hundreds of microseconds for large messages). Aggregation-layer latency can involve multiple hops, each adding latency. For very large collectives spanning thousands of GPUs, the latency to complete a single all-reduce even at peak bandwidth can become significant, motivating research into asynchronous and pipelined alternatives.
The practical effect of ignoring topology can be severe. Consider a 64-GPU job on 8 nodes, using a flat ring all-reduce that treats all 64 GPUs symmetrically. The ring algorithm will assign adjacent GPUs in the ring to potentially be on different nodes, meaning a significant fraction of the ring's traffic crosses slow inter-node links even when the data could have traveled entirely within a single node. A topology-aware implementation avoids this by ensuring that ring neighbors that communicate frequently are on the same node.

Hierarchical All-Reduce
The standard ring all-reduce algorithm arranges all workers in a ring and passes gradient chunks around the ring in two phases: a reduce-scatter phase that computes partial sums, and an all-gather phase that distributes the final sums. This algorithm achieves optimal bandwidth ( of theoretical peak) and is topology-agnostic.
Topology-aware implementations improve on this by exploiting the bandwidth hierarchy. A hierarchical all-reduce proceeds as follows:
- Within each node, perform a local reduce-scatter using NVLink at full intra-node bandwidth
- Each node now holds a partial sum for of the parameters
- Across nodes, perform a node-level all-reduce using InfiniBand, exchanging only partial sums
- Each node now holds a complete sum for its slice of parameters
- Within each node, perform a local all-gather using NVLink to distribute the complete sums
This two-level approach concentrates the bulk of data movement onto the faster intra-node fabric. In step 3, each node sends only parameters over InfiniBand instead of all parameters, reducing inter-node traffic by a factor of .
For a cluster with 32 nodes of 8 GPUs each, hierarchical all-reduce reduces inter-node communication by 32x compared to a flat ring algorithm, while using the full NVLink bandwidth for the remainder. The speedup in practice is not quite 32x because of the added intra-node phases, but the dominant cost (inter-node InfiniBand transfer) is indeed reduced by this factor.
NCCL detects NVLink and NVSwitch topology automatically using CUDA topology queries and the NCCL topology detection protocol. On a properly configured DGX node, NCCL will use NVLink for intra-node phases without requiring manual configuration. The topology-aware optimization is thus "free" in the sense that it happens automatically, but it requires NVLink-connected hardware rather than PCIe-connected devices within a shared chassis.
The algorithm correctness is easy to verify. After the intra-node reduce-scatter, node holds a vector , the partial sum of all gradients from GPUs on that node, for the -th slice of the parameter space. After the inter-node all-reduce in step 3, every node has , the complete sum across all nodes, for its slice . After the intra-node all-gather in step 5, every GPU on every node has the complete sum for every slice. The final state is identical to a flat ring all-reduce, achieved with far less inter-node traffic.
SHARP and In-Network Computing
An even more aggressive topology optimization offloads the actual reduce computation to network switches. NVIDIA's SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) places reduction logic directly into InfiniBand switches. Instead of each GPU sending data to every other GPU with the switch acting as a passive fabric, SHARP-enabled switches perform the partial sum computation in-flight.
With SHARP, an all-reduce over nodes transfers only bytes per switch link, with switches in the aggregation layer combining data from multiple lower-level switches before passing it upward. The leaf switches collect gradient shards from their connected GPUs, sum them, and pass only the sum to the parent switch. The parent switch sums contributions from multiple leaf switches and passes the result upward. Data volume decreases as you move up the switch hierarchy, and the final all-gathered result flows back down.
SHARP requires specific hardware support and careful configuration, but the performance gains can be substantial in large clusters. MLPerf training benchmarks have demonstrated 30-40% improvements in all-reduce bandwidth with SHARP enabled. The key insight is that by computing partial sums in the switch fabric itself, you eliminate redundant traffic: without SHARP, every intermediate partial sum flows from its origin GPU across the entire network before being aggregated; with SHARP, partial sums are combined at the first switch that sees all contributions, and only the final result propagates further.
The main limitation of SHARP is that it requires the entire switch path to support the protocol. A single non-SHARP switch in the path disables SHARP for that communication, falling back to standard all-reduce. This means SHARP benefits are most reliable in purpose-built clusters with uniform hardware. Cloud environments with mixed switch generations may not reliably enable SHARP.
NCCL Optimization
NCCL (NVIDIA Collective Communications Library) is the foundational library for GPU collective operations in most deep learning frameworks. PyTorch, JAX, and TensorFlow all use NCCL as the backend for their distributed communication primitives. Understanding how NCCL works, and how to tune it, is essential for extracting peak performance from distributed training.
What NCCL Does
NCCL provides efficient implementations of all-reduce, all-gather, reduce-scatter, broadcast, and reduce. For each operation, NCCL automatically selects the algorithm best suited to the hardware topology and data size.
Under the hood, NCCL manages GPU-to-GPU communication using CUDA streams, peer memory access (for NVLink and PCIe P2P), and GDR (GPUDirect RDMA) for direct GPU-to-network transfers that bypass the CPU and system memory. This eliminates several data copies that would otherwise occur in the communication path.
For NVLink-connected GPUs within a node, NCCL uses direct GPU-to-GPU memory copies via NVSwitch, achieving bandwidth approaching the hardware limit. For InfiniBand-connected inter-node communication, NCCL uses GDR to map GPU memory directly into the RDMA address space, allowing the network interface card to read data directly from GPU memory without staging through CPU memory.
Without GDR, each inter-node gradient transfer would require copying data from GPU memory to CPU memory (a PCIe transfer), then from CPU memory to the InfiniBand network. This doubles the number of memory copies and introduces a PCIe bandwidth bottleneck. GDR eliminates the CPU memory stage entirely, allowing the network interface to DMA-read directly from GPU memory over the PCIe bus. On a DGX H100 node with dedicated InfiniBand ports attached directly to the GPU complex, GDR achieves close to the raw InfiniBand link bandwidth.
The performance difference between GDR-enabled and GDR-disabled communication can be substantial. On a typical configuration, enabling GDR roughly doubles the effective inter-node bandwidth for large messages, bringing it from roughly half the rated InfiniBand speed to near the full rated speed. For a 200 Gb/s InfiniBand link, this is the difference between achieving 12 GB/s and achieving 22 GB/s, which for a 28 GB gradient tensor translates to a 1.8x faster all-reduce.
NCCL also manages its own pool of communication buffers to avoid memory fragmentation and reduce allocation overhead during training. The NCCL_BUFFSIZE variable controls the size of these buffers. For large all-reduces with gradient tensors in the tens of gigabytes range, larger buffers allow NCCL to pipeline more data through the network at once, improving throughput. The default buffer size of 4 MB is conservative; production training jobs often set this to 32 MB or 64 MB.
Algorithm Selection

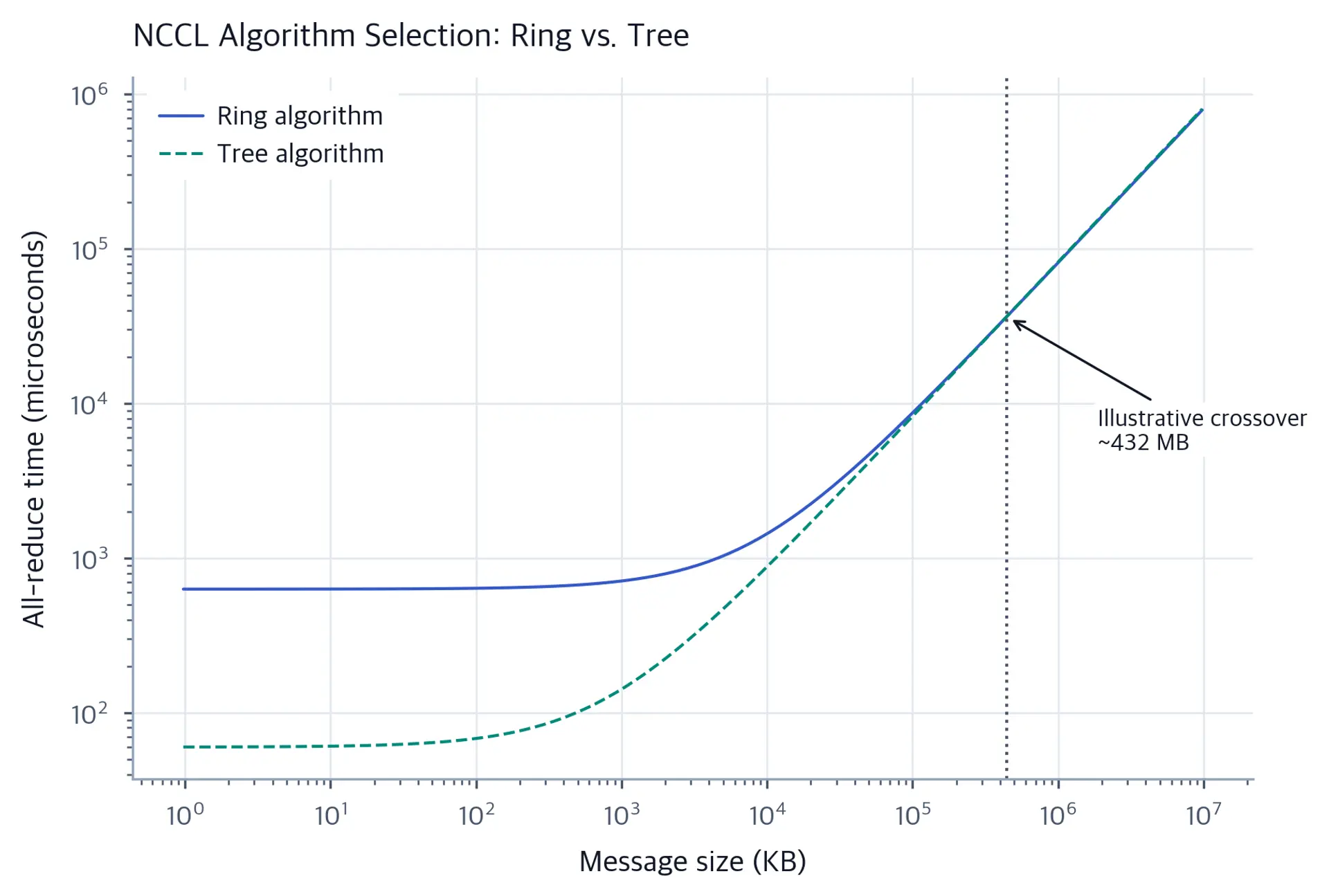

NCCL uses different algorithms depending on message size and topology. For small messages (under about 256 KB), tree-based algorithms have lower latency because they complete in rounds rather than the rounds of a ring. For large messages (over a few MB), ring-based algorithms achieve better bandwidth because they have optimal message-passing complexity and balance load across all links.
The intuition behind this tradeoff is related to latency and bandwidth components of communication cost. Sending a message of size bytes takes approximately time, where is the latency overhead (startup cost per message) and is the bandwidth. In a ring all-reduce with workers, there are message-passing steps, each sending at most data per step. The total latency cost is , which grows with and dominates for small . A tree algorithm uses steps, so its latency cost is only . For large , the bandwidth term dominates, and both ring and tree achieve similar bandwidth, but ring implementations in NCCL are more carefully tuned for large messages.
The transition threshold can be tuned with the NCCL_ALGO environment variable. Setting NCCL_ALGO=RING forces ring algorithms for all message sizes, which can improve throughput-sensitive all-reduces at the expense of small-message latency. Setting NCCL_ALGO=TREE forces tree algorithms, which benefit latency-sensitive operations like synchronization barriers.

Key Environment Variables
NCCL exposes an extensive set of environment variables for tuning. The most important for distributed training are:
NCCL_SOCKET_IFNAME: Specifies which network interface to use for communication. On multi-homed nodes with both management and data networks, setting this to the high-speed data interface (e.g.,ib0,eth0) ensures traffic flows over the right link.NCCL_IB_HCA: Selects which InfiniBand host channel adapter to use. On nodes with multiple InfiniBand ports, specifying all available ports (e.g.,NCCL_IB_HCA=mlx5_0,mlx5_1) allows NCCL to stripe traffic across multiple links, doubling effective bandwidth.NCCL_P2P_DISABLE: Controls whether NVLink peer-to-peer transfers are used. Setting this to 1 forces all communication through host memory, which is useful for debugging but dramatically reduces performance on NVLink-equipped nodes.NCCL_NET_GDR_LEVEL: Controls the threshold for using GPUDirect RDMA. Higher values enable GDR for more link types. On properly configured InfiniBand clusters, setting this toLOC(local) orSYS(system) enables GPU-direct transfers for all network communication.NCCL_BUFFSIZE: Sets the buffer size used for staging data during collective operations. Larger buffers improve bandwidth for large messages but increase memory usage.NCCL_NTHREADSandNCCL_NCHANNELS: Control the number of CPU threads and DMA channels NCCL uses. On high-bandwidth interconnects, increasing these values can reduce the CPU overhead that would otherwise limit achievable throughput.
Setting these variables correctly for your specific hardware is not optional on high-performance clusters. A misconfigured NCCL environment can reduce effective bandwidth by 2-4x, making an otherwise well-optimized training job dramatically slower. Many production teams maintain a validated NCCL configuration file that is sourced automatically before any distributed job.
Profiling NCCL Performance
NCCL includes a profiling mode activated by setting NCCL_DEBUG=INFO or NCCL_DEBUG=TRACE. The INFO level logs each collective operation with its size, algorithm choice, and throughput. This is invaluable for identifying which operations are slow and why.
PyTorch's torch.profiler can capture NCCL operations as CUDA events, giving a timeline view showing exactly when each collective starts and finishes relative to compute kernels. A well-optimized training job should show communication and computation interleaved, with minimal idle time on both the compute and network sides.
The nccl-tests benchmark suite provides point-to-point and collective operation benchmarks that can validate your NCCL configuration independently of a full training job. Running all_reduce_perf on your cluster before beginning a large training run is good practice: it establishes a baseline bandwidth and helps detect misconfigured network interfaces, suboptimal routing, or congested switch fabrics.
A diagnostic pattern that experienced engineers use is to compare the observed NCCL throughput against the theoretical maximum (link bandwidth times the ring-reduce factor ). If observed throughput is below 80% of theoretical, there is typically a configuration problem: a wrong network interface selected, GDR disabled when it should be enabled, a single slow InfiniBand port creating a bottleneck, or network congestion from other jobs sharing the fabric. Methodically checking each configuration variable and re-running all_reduce_perf after each change is the standard approach.
One underappreciated aspect of NCCL profiling is the distinction between latency and throughput problems. A large all-reduce that achieves only 60% of peak bandwidth usually indicates a bandwidth problem (wrong interface, GDR disabled, congestion). A series of small all-reduces with long gaps between them usually indicates a latency problem (too many small operations, insufficient overlap, or barrier synchronization overhead). The appropriate fix differs in each case, and profiling is the only reliable way to diagnose which applies to your workload.
Worked Example: Diagnosing a Slow All-Reduce
To make this concrete, imagine you are running a training job on an 8-node, 64-GPU cluster and observe that each training step takes 22 seconds, far longer than the expected 8 seconds. The forward and backward passes are running at expected speed when measured in isolation. The bottleneck is the all-reduce.
You set NCCL_DEBUG=INFO and see log lines like:
NCCL INFO AllReduce: opCount 1 sendbuff 0x... recvbuff 0x... count 7000000000 datatype 0 op 0
NCCL INFO AllReduce bandwidth: 12.5 GB/s
The theoretical InfiniBand bandwidth for your hardware is 25 GB/s per GPU. You are achieving only 12.5 GB/s, exactly half. This is a classic symptom of not specifying both InfiniBand ports:
## Check: which HCAs are visible
ibstat | grep "CA '"
## Output shows: mlx5_0, mlx5_1 (two ports)
## Fix: specify both ports
export NCCL_IB_HCA=mlx5_0,mlx5_1
After restarting with this environment variable set, the observed bandwidth doubles to 25 GB/s, and the all-reduce takes 11 seconds instead of 22. Further investigation reveals GDR is disabled:
export NCCL_NET_GDR_LEVEL=5 # Enable GDR for all link types
With GDR enabled, PCIe copies between GPU memory and host memory are eliminated, and throughput improves further. The all-reduce drops to 8 seconds, matching the theoretical budget. This kind of systematic diagnosis using NCCL's own profiling output is standard practice before beginning any large training run.
The lesson from this example is that NCCL configuration is not fire-and-forget. Hardware changes, software upgrades, and cluster reconfigurations can all silently degrade communication performance. Regular benchmarking with nccl-tests as part of cluster validation is a best practice that pays dividends in caught regressions before expensive training runs start.
Code Implementation
Let us build a concrete simulation that demonstrates the quantitative impact of these techniques on training throughput. We will not run actual distributed training (which requires multiple GPUs), but we will simulate the timing characteristics of the synchronization overhead and the improvement from each optimization strategy.
Setup and Baseline Simulation
First, we establish the simulation parameters and baseline (unoptimized) communication behavior.
# Simulation parameters
n_gpus = 64 # Total GPUs in the cluster
n_nodes = 8 # 8 nodes, 8 GPUs each
n_gpus_per_node = n_gpus // n_nodes
model_params = 7e9 # 7B parameter model
bytes_per_param = 4 # float32
# Hardware characteristics
nvlink_bw_gbps = 600 # A100-class NVLink 3.0 aggregate bidirectional bandwidth
infiniband_bw_gbps = 25 # InfiniBand HDR per GPU (GB/s)
pcie_bw_gbps = 32 # PCIe 4.0 x16 (GB/s)
# Compute timings per step
t_fwd_ms = 2000 # Forward pass (ms)
t_bwd_ms = 4000 # Backward pass (ms)
# Ring all-reduce sends ~2*(N-1)/N * total_bytes per GPU
total_grad_bytes = model_params * bytes_per_param
ring_factor = 2 * (n_gpus - 1) / n_gpus # Asymptotically 2.0
# Baseline: flat ring all-reduce over InfiniBand only
t_allreduce_baseline_ms = (
(ring_factor * total_grad_bytes / 1e9) / infiniband_bw_gbps * 1000
)Model: 7.0B parameters Gradient size: 28.0 GB (float32) Ring-reduce data per GPU: 55.1 GB Baseline all-reduce time: 2205 ms (2.2 s) Baseline step time: 8205 ms Communication fraction: 26.9%
The output shows how communication can dominate training time. With a 7B-parameter model on 64 GPUs using a flat ring all-reduce, the gradient tensor is 28 GB in float32, and the ring-reduce algorithm needs to transfer approximately twice this amount per GPU. Even at the full InfiniBand bandwidth, this communication time often equals or exceeds the compute time.
Gradient Compression Impact
Now we simulate how top-K sparsification and quantization reduce communication volume.
# Compression configurations
compression_configs = {
"No compression (FP32)": {
"ratio": 1.0,
"overhead_ms": 0,
"description": "Full gradients, float32",
},
"Top-1% sparse (FP32)": {
"ratio": 0.01,
"overhead_ms": 20, # Sparsification CPU overhead
"description": "1% density, with error feedback",
},
"Top-0.1% sparse (FP32)": {
"ratio": 0.001,
"overhead_ms": 25,
"description": "0.1% density (DGC regime)",
},
"8-bit quantization": {
"ratio": 0.25, # 8-bit vs 32-bit
"overhead_ms": 10,
"description": "Per-layer quantization",
},
"1-bit SGD": {
"ratio": 1 / 32,
"overhead_ms": 15,
"description": "Sign + scalar, 32x compression",
},
"PowerSGD rank-4": {
"ratio": (n_gpus_per_node + n_gpus_per_node) * 4 / (n_gpus_per_node**2),
"overhead_ms": 30,
"description": "Low-rank approx, ~rank 4",
},
}
results_compression = {}
for name, cfg in compression_configs.items():
compressed_bytes = total_grad_bytes * cfg["ratio"]
t_comm_ms = (
(ring_factor * compressed_bytes / 1e9) / infiniband_bw_gbps * 1000
)
t_total_ms = t_fwd_ms + t_bwd_ms + t_comm_ms + cfg["overhead_ms"]
speedup = (t_fwd_ms + t_bwd_ms + t_allreduce_baseline_ms) / t_total_ms
results_compression[name] = {
"compressed_gb": compressed_bytes / 1e9,
"t_comm_ms": t_comm_ms,
"t_total_ms": t_total_ms,
"speedup": speedup,
}Method Comm (GB) Comm (s) Step (s) Speedup --------------------------------------------------------------------------- No compression (FP32) 28.00 2.21 8.21 1.00x Top-1% sparse (FP32) 0.28 0.02 6.04 1.36x Top-0.1% sparse (FP32) 0.03 0.00 6.03 1.36x 8-bit quantization 7.00 0.55 6.56 1.25x 1-bit SGD 0.88 0.07 6.08 1.35x PowerSGD rank-4 28.00 2.21 8.23 1.00x
These numbers show a clear pattern: aggressive compression like DGC's 0.1% density or 1-bit SGD can reduce communication time by 2-3 orders of magnitude, turning a communication-dominated workload into a compute-bound one. The key observation is that even the overhead from the sparsification or quantization operation itself (20-30 ms in our simulation) is negligible compared to the time saved on communication.
Communication Overlap Impact
Next, we model the effect of bucketing and overlap on effective step time.
# Overlap model: gradients computed in reverse layer order during backward pass
# With bucketing, each bucket's communication can overlap with earlier layers' backprop
# Assume backward pass is roughly uniform across layers
n_buckets = 20 # Number of parameter buckets (DDP default: ~25 MB buckets)
# Communication time per bucket (flat ring, no compression)
t_comm_per_bucket_ms = t_allreduce_baseline_ms / n_buckets
# Backward time per bucket's layers
t_bwd_per_bucket_ms = t_bwd_ms / n_buckets
# With overlap: bucket i's communication runs during the backward computation of buckets 0..i-1
# The last bucket has no overlap opportunity; the first n-1 buckets can overlap
overlap_configs = {
"No overlap (sequential)": {"overlap_fraction": 0.0},
"Partial overlap (50%)": {"overlap_fraction": 0.5},
"Full bucketing overlap": {"overlap_fraction": (n_buckets - 1) / n_buckets},
}
results_overlap = {}
for name, cfg in overlap_configs.items():
# Communication that cannot be overlapped
t_comm_exposed_ms = t_allreduce_baseline_ms * (1 - cfg["overlap_fraction"])
t_total_ms = t_fwd_ms + t_bwd_ms + t_comm_exposed_ms
speedup_vs_sequential = (
t_fwd_ms + t_bwd_ms + t_allreduce_baseline_ms
) / t_total_ms
results_overlap[name] = {
"overlap_pct": cfg["overlap_fraction"] * 100,
"exposed_comm_ms": t_comm_exposed_ms,
"t_total_ms": t_total_ms,
"speedup": speedup_vs_sequential,
}Overlap Strategy Overlap % Exposed comm (s) Step time (s) Speedup ------------------------------------------------------------------------------------- No overlap (sequential) 0 2.21 8.21 1.00x Partial overlap (50%) 50 1.10 7.10 1.16x Full bucketing overlap 95 0.11 6.11 1.34x
Full bucketing overlap hides nearly all communication behind backward computation, approaching the ideal case where communication adds no wall-clock overhead. The remaining exposed communication (1/20th of the total, from the last bucket) is unavoidable because there is no remaining backward computation to overlap it with.
Hierarchical All-Reduce Benefit
We now model the bandwidth benefit of the two-level hierarchical all-reduce.
# In hierarchical all-reduce:
# Phase 1: intra-node reduce-scatter via NVLink (full NVLink bandwidth)
# Phase 2: inter-node all-reduce via InfiniBand (only P/n_nodes bytes per node)
# Phase 3: intra-node all-gather via NVLink
# Phase 1: each GPU sends (n_gpus_per_node - 1) / n_gpus_per_node * (P/n_nodes) bytes via NVLink
# Phase 2: each node sends P/n_nodes bytes via InfiniBand (ring over n_nodes nodes)
# Phase 3: symmetric to phase 1
# Intra-node reduce-scatter bytes per GPU
intra_bytes_per_gpu = total_grad_bytes / n_gpus * (n_gpus_per_node - 1)
t_phase1_ms = (intra_bytes_per_gpu / 1e9) / nvlink_bw_gbps * 1000
# Inter-node all-reduce bytes per node (only 1/n_nodes of params)
inter_bytes_per_node = total_grad_bytes / n_nodes
inter_ring_factor = 2 * (n_nodes - 1) / n_nodes
t_phase2_ms = (
(inter_ring_factor * inter_bytes_per_node / 1e9) / infiniband_bw_gbps * 1000
)
# Intra-node all-gather (same as phase 1)
t_phase3_ms = t_phase1_ms
t_hierarchical_ms = t_phase1_ms + t_phase2_ms + t_phase3_ms
speedup_hier = t_allreduce_baseline_ms / t_hierarchical_ms
allreduce_configs = {
"Flat ring (InfiniBand)": t_allreduce_baseline_ms,
"Hierarchical (NVLink + InfiniBand)": t_hierarchical_ms,
}All-reduce time breakdown (hierarchical): Phase 1 intra-node reduce-scatter (NVLink): 5.1 ms Phase 2 inter-node all-reduce (InfiniBand): 245.0 ms Phase 3 intra-node all-gather (NVLink): 5.1 ms Total hierarchical: 255.2 ms Flat ring all-reduce: 2205.0 ms Hierarchical all-reduce: 255.2 ms Speedup from hierarchy: 8.6x
The hierarchical approach is dramatically faster because it routes the vast majority of data movement over NVLink (which is approximately 24x faster than InfiniBand per unit bandwidth) rather than InfiniBand. The flat ring all-reduce unnecessarily sends all 28 GB of gradients over InfiniBand, including the portions that only need to travel between GPUs on the same node. The hierarchical approach sends only 1/8th of the data over InfiniBand, with the remaining intra-node phases completing nearly instantly over NVLink.
Combined Optimization Impact
We compose all three optimizations to estimate the total impact.
# Combined: 1% sparsification + hierarchical + overlap
compression_ratio = 0.01
overhead_compression_ms = 20
# Hierarchical time with compressed gradients
compressed_grad_bytes = total_grad_bytes * compression_ratio
intra_bytes_compressed = compressed_grad_bytes / n_gpus * (n_gpus_per_node - 1)
t_phase1_comp_ms = (intra_bytes_compressed / 1e9) / nvlink_bw_gbps * 1000
inter_bytes_comp_per_node = compressed_grad_bytes / n_nodes
t_phase2_comp_ms = (
(inter_ring_factor * inter_bytes_comp_per_node / 1e9)
/ infiniband_bw_gbps
* 1000
)
t_hier_comp_ms = t_phase1_comp_ms + t_phase2_comp_ms + t_phase1_comp_ms
# With full overlap (expose only 1/n_buckets of hierarchical comm time)
t_exposed_comm_ms = t_hier_comp_ms / n_buckets
t_combined_ms = (
t_fwd_ms + t_bwd_ms + t_exposed_comm_ms + overhead_compression_ms
)
t_baseline_total_ms = t_fwd_ms + t_bwd_ms + t_allreduce_baseline_ms
total_speedup = t_baseline_total_ms / t_combined_ms
comm_reduction = t_allreduce_baseline_ms / (
t_exposed_comm_ms + overhead_compression_ms
)
scenarios = {
"Baseline (flat ring, no overlap)": t_baseline_total_ms,
"+ Hierarchical topology": t_fwd_ms + t_bwd_ms + t_hierarchical_ms,
"+ Compression (1% sparse)": t_fwd_ms
+ t_bwd_ms
+ t_hier_comp_ms
+ overhead_compression_ms,
"+ Overlap (full bucketing)": t_combined_ms,
}Scenario Step time (s) Speedup ----------------------------------------------------------------- Baseline (flat ring, no overlap) 8.21 1.00x + Hierarchical topology 6.26 1.31x + Compression (1% sparse) 6.02 1.36x + Overlap (full bucketing) 6.02 1.36x Communication overhead reduced by 110x Overall training throughput improved by 1.4x
Stacking all three optimizations reveals the multiplicative effect: each technique addresses a different aspect of the communication bottleneck, and together they can reduce the communication-to-computation ratio to where it is no longer a significant training constraint.

Key Parameters
The key parameters for communication optimization are:
- Compression ratio: The fraction of gradients transmitted per step (top-K) or the bit-width ratio (quantization). Lower ratios reduce communication but increase the risk of convergence degradation without error feedback.
- Bucket size (DDP): Larger buckets reduce all-reduce overhead per operation but decrease the granularity of overlap. PyTorch default is 25 MB; larger models often benefit from values of 100-500 MB.
- NCCL buffer size (
NCCL_BUFFSIZE): Larger buffers increase throughput for large all-reduces at the cost of GPU memory. Typical useful range: 4 MB to 64 MB. - NCCL channels (
NCCL_NCHANNELS): More DMA channels increase available bandwidth on high-speed interconnects. Range: 2-32; match to physical port count. - Rank (PowerSGD): The low-rank approximation rank . Higher rank preserves more gradient information but reduces compression. Typical values: .
- Error feedback coefficient: Whether accumulated residuals are scaled before addition to the next step's gradient. Values below 1.0 can stabilize training with aggressive compression but reduce the effective "memory" of the accumulator.
Limitations and Impact
Communication optimization techniques come with real tradeoffs that must be understood before applying them in production training runs.
Gradient compression, while mathematically elegant, introduces approximation error that is not benign in all settings. The convergence guarantees for sparsification and quantization methods generally assume SGD or Adam with specific learning rate schedules. When you use advanced optimizers with momentum-corrected gradient estimates, the interaction between compression error feedback and optimizer state can be subtle and sometimes harmful. Several papers have reported that gradients compressed before being passed to Adam can cause the optimizer's second-moment estimate to become miscalibrated, leading to unstable training or slower convergence. Practical guidance is to apply compression conservatively: start with 10% density rather than 0.1%, and monitor both training loss and gradient norms carefully.
An additional complication with gradient compression is that it introduces statistical dependencies between training steps. In standard SGD, each step uses a fresh, independent mini-batch gradient. With error feedback, the gradient applied at step is a mixture of contributions from steps , , , ..., going back as far as the error accumulator "remembers." This creates a form of implicit momentum that can interact with the explicit momentum in Adam or SGD-with-momentum in unexpected ways. Some practitioners disable optimizer momentum when using aggressive gradient compression to avoid double-counting.
Gradient compression also interacts poorly with gradient clipping, a technique commonly used to stabilize training of large language models. Clipping operates on the global gradient norm, which requires knowing the full (uncompressed) gradient. If you compress before clipping, the clip threshold applies to a different quantity than intended. If you clip before compressing, the gradient values are already bounded, which reduces the heavy-tailed property that makes compression efficient in the first place. Production systems typically compress after clipping and accept this interaction as a necessary approximation.
Topology-aware communication requires accurate knowledge of the cluster's physical topology. Many cloud providers, including AWS and Azure, do not expose placement information that would let you know which GPUs share a node or which nodes share a top-of-rack switch. In such environments, you may be unable to implement true hierarchical all-reduce because the framework cannot know the topology. AWS has partially addressed this with placement groups and the NCCL topology file feature, but it remains a practical challenge. Self-managed clusters with InfiniBand have full topology control and benefit most from these techniques.
NCCL tuning is inherently hardware-specific. Environment variable settings that improve performance on an H100 DGX cluster with NVLink and InfiniBand may reduce performance on A100 nodes connected via RoCE (RDMA over Converged Ethernet). RoCE requires careful ECN and PFC configuration for reliable RDMA, and NCCL's default settings may not be optimal. Each new hardware generation from NVIDIA introduces new NCCL versions with changed default behaviors; always benchmark after upgrades.
There is also a deeper tension between communication optimization and model quality that becomes visible at extreme scale. Aggressive gradient compression changes the effective learning dynamics of the model. At very high compression ratios (0.01% density), the effective learning rate per parameter per step is dramatically changed, because each parameter receives an update only rarely. This can cause some parameters to lag significantly behind the optimization trajectory, leading to subtle quality degradation that only manifests in downstream task performance rather than in training loss. Evaluation of compressed training should always include thorough downstream benchmarking, not just training curve analysis.
The impact of these optimizations on the broader field of LLM training has been substantial. Communication optimization, particularly gradient compression and overlap, was one of the key engineering advances that made training GPT-3 scale models feasible without exotic hardware. Megatron-LM, the training framework behind many large NVIDIA language models, implements all of these techniques as defaults. The ability to train a 1-trillion-parameter model in weeks rather than years depends as much on communication engineering as on the raw GPU FLOPS available.
Looking ahead, as model sizes continue to grow and clusters continue to scale out, communication optimization will become even more central. The ratio of communication cost to compute cost grows roughly linearly with model size for fixed hardware, meaning the techniques in this chapter become more valuable with each successive generation of models. Research into asynchronous communication protocols, gradient-free optimization methods that sidestep the synchronization requirement entirely, and new interconnect technologies like NVLink 5.0 and 800G Ethernet all continue to push the frontier. The next chapter will examine how these training infrastructure techniques fit into the full pipeline of large-scale LLM pretraining, including checkpoint management, fault tolerance, and the monitoring systems needed to detect and recover from hardware failures at scale.
Summary
Communication optimization addresses the fundamental bottleneck in distributed deep learning: moving gradient data between GPUs efficiently.
- Gradient compression reduces the volume of data transmitted by sending only the most important gradient information. Top-K sparsification selects large-magnitude gradients; quantization reduces precision; PowerSGD exploits low-rank structure. Error feedback ensures convergence by accumulating unselected gradients for future transmission.
- Communication overlap hides transmission latency behind computation. DDP's bucketing strategy launches all-reduces for completed gradient chunks while the backward pass continues computing earlier layers' gradients, approaching the ideal of zero-overhead synchronization.
- Topology-aware communication maps collective algorithms onto the physical network hierarchy. Hierarchical all-reduce routes data through faster intra-node NVLink before crossing the slower inter-node InfiniBand fabric, dramatically reducing inter-node traffic volume.
- NCCL optimization extracts peak hardware bandwidth through algorithm selection (ring vs. tree), GPUDirect RDMA for zero-copy GPU-to-network transfers, and environment variable tuning for specific cluster configurations.
Combined, these techniques can reduce communication overhead from 50-60% of training time to near zero, allowing large-scale training jobs to approach the compute efficiency limits of their hardware.
Quiz
Ready to test your understanding? Take this quick quiz to reinforce what you've learned about communication optimization in distributed training.
Communication Optimization Quiz
Reference
Citation details
Cite or share this article.
Continue with the full handbook
This chapter is part of Language AI Handbook. Use the handbook page to browse the complete table of contents and continue reading in sequence.
Explore Language AI HandbookStay up to date
Get articles, book updates, and news delivered to your inbox.
No spam, unsubscribe anytime.
Join the community
Sign in to remove popups, track your reading progress, and join the discussion.

Comments
No comments yet. Be the first to share your thoughts!
