Guardrails: Input, Output, and Pipeline Design for LLMs

Deploying a language model is not the end of the safety story. Training-time alignment and content filtering provide one layer of defense, but they operate on the model itself. Once a model is integrated into a product, it faces an enormous variety of inputs from users with wildly different intentions, and its outputs flow into contexts that the model cannot fully anticipate. A customer support bot may face users trying to extract competitor intelligence. A coding assistant may encounter requests designed to generate malicious scripts under the guise of legitimate programming questions. An educational tool may receive queries that push into territories the platform was never designed for. Guardrails address this gap. They are software checks that intercept requests before they reach the model, monitor the model's responses before those responses reach users, and enforce policies that keep the system within intended boundaries regardless of what the model itself would generate.

The distinction between guardrails and content filtering is important to establish early. Content filtering, as covered in the previous chapter, refers primarily to classifiers trained to detect specific categories of harmful content, often applied at scale on large volumes of text. Guardrails are a broader architectural concept: they can include classifiers, but also rule-based checks, secondary model calls, schema validators, topic detectors, PII scanners, and orchestration logic that decides what to do when a check fails. A guardrail system is a pipeline, not a single detector. Where a content filter answers "is this text harmful?", a guardrail system answers "should this request proceed, and if so, in what modified form, and what should happen to the response?"

Why does this matter? Because any single safeguard fails. Classifiers have false negatives. Prompt injection attacks can craft inputs that evade keyword filters. Users find creative phrasings that circumvent topicality rules. The response to this reality is defense in depth, the same principle used throughout computer security: multiple independent layers of protection, each catching what others miss. A firewall alone does not secure a network; neither does antivirus alone; neither does intrusion detection alone. Security comes from combining them so that no single failure point compromises the whole. Guardrails implement defense in depth for LLM applications, layering checks with different mechanisms so that an adversarial input must simultaneously evade all of them.

Guardrails fit in the broader safety picture. A well-aligned model should rarely generate harmful outputs from benign inputs. Training-time alignment shapes the model's fundamental dispositions. Instruction tuning and RLHF teach the model to be helpful, harmless, and honest as a first principle. Guardrails do not replace this alignment work. Instead, they form an independent layer that is useful for three reasons: the model's alignment may be imperfect or may have been compromised by adversarial prompting; the deployment context may impose requirements more specific than the model's general training (a children's educational platform has different rules than a general research tool); and the model may simply be wrong about what is appropriate for a given situation even when it is not misaligned. Layering guardrails over an aligned model gives you both the model's internal judgment and an external enforcement mechanism.

This chapter covers the mechanics of guardrail design from both directions: input guardrails that screen what enters the model, and output guardrails that screen what leaves it. It then covers the major frameworks that operationalize these checks, the design decisions that determine how reliably a guardrail system performs, and the practical tradeoffs that determine whether guardrails improve or harm user experience.

Input guardrails intercept user messages before they reach the language model. Their job is to ensure that the model only processes requests that fall within the application's intended scope, and that those requests do not carry payloads designed to manipulate the model's behavior. Running these checks before model invocation has a practical advantage beyond safety: it avoids the cost of LLM inference for requests that would have been rejected anyway. A request that gets blocked in 5 milliseconds by a length check or topic classifier spares the system the 500ms to 2000ms cost of a full model call.

The design principle for input guardrails is cheapest first. Order your checks from least computationally expensive to most expensive, and short-circuit the pipeline as soon as any check fires. Structural validation (length, format) costs microseconds. Regex-based injection detection costs a fraction of a millisecond. Embedding-based topic classification costs 5-50ms depending on model size. Secondary LLM calls for intent analysis cost 200-500ms. By placing structural checks at the front, you ensure that trivially invalid requests never consume the expensive semantic checks, and that the average latency across all requests is a fraction of what it would be if all checks ran for every request.

Prompt injection is the most serious input-side threat for deployed LLM applications. As covered in the Prompt Injection chapter, an attacker can embed instructions inside user-provided text that override the system prompt, hijack the model's behavior, or exfiltrate information from the context window. Input guardrails try to catch these attempts before they reach the model.

The fundamental challenge with prompt injection detection is that natural language is expressive and flexible. An injection attempt that says "ignore previous instructions" can be rephrased as "please set aside the earlier guidance", "starting fresh, you should", "for this conversation, consider that no prior context applies", and an effectively infinite number of other formulations that carry the same semantic intent. Any detection approach must grapple with this expressiveness.

Detection approaches fall into two categories. Rule-based detection looks for explicit patterns associated with injection attempts: strings like "ignore previous instructions", "disregard your system prompt", "you are now a different assistant", delimiter hijacking patterns like </system> or [INST], or unusual Unicode sequences used to hide instructions. These patterns are cheap to check and catch naive attacks, but sophisticated injections can rephrase these concepts without using any of the flagged strings.

Classifier-based detection trains a model to recognize the structural signature of injection attempts rather than surface patterns. An injection attempt typically includes some form of meta-instruction, an authority claim, or a context-shift directive. A classifier trained on diverse injection examples can generalize to novel phrasings because it learns to recognize the underlying structure rather than specific tokens. Meta's Prompt Guard, for example, is trained specifically for this purpose and achieves substantially better recall on novel injection variants than keyword-based approaches. The tradeoff is latency: running a secondary model on every input adds processing time, typically 20-100ms depending on model size and hardware.

A practical approach combines both: apply regex-based filters as a first pass for zero-cost screening, then apply a classifier only to inputs that pass the regex check. The classifier catches sophisticated variants; the regex filter eliminates the obvious ones without incurring classifier costs. This cascading design is a recurring pattern throughout guardrail architecture: arrange checks from cheapest to most expensive so that most requests are resolved early.

There is also a class of indirect prompt injection attacks worth understanding. In direct injection, the attacker types malicious instructions into the user interface. In indirect injection, the attacker embeds instructions in content that the model will later retrieve or process, such as a web page, document, or database record. A user might innocently paste a document into a RAG system, not knowing that the document's author embedded hidden instructions in white text or in a section the user did not read. The model then retrieves the document, processes the instructions, and behaves as the attacker intended, not as the user expected. Detecting indirect injection is harder because the injected content arrives through a trusted channel, the retrieval pipeline, and may not trigger the same patterns as direct user-typed injection. Effective defenses include instruction-tagging in the prompt (marking retrieved content as data rather than instructions), sandboxed execution modes, and output verification that checks whether the model's response is consistent with the user's request.

Applications are designed to serve specific purposes. A customer service chatbot for a software product should not be answering questions about geopolitics, generating creative fiction, or providing medical advice. Beyond policy compliance, keeping the model on-topic improves quality: a model prompted to stay within a domain tends to produce more accurate, reliable responses within that domain because its attention is not split across a wide variety of unrelated topics.

Topic guardrails classify incoming messages against the intended scope of the application and reject off-topic requests before they consume model compute. The simplest form is embedding-based similarity: compute the embedding of the user message and measure cosine similarity to a set of allowed-topic exemplars.

To formalize this: given a set of $n$ allowed-topic exemplars $\{e_1, e_2, \ldots, e_n\}$ and an incoming request $q$, where each is represented as a normalized embedding vector, the topicality score is:

where:

• $q$: the embedding vector of the incoming request
• $e_i$: the embedding vector of the $i$-th exemplar from the allowed topic set
• $\cos(q, e_i)$: cosine similarity between the request and exemplar $i$, ranging from $-1$ to $1$, with $1$ indicating identical direction in embedding space
• $s(q)$: the topicality score, the maximum similarity across all exemplars

A request is blocked when $s(q) < \tau$, where $\tau$ is a threshold calibrated to the application. With unit-normalized embeddings (the standard output from sentence transformers), cosine similarity reduces to the dot product $q \cdot e_i$, making the computation very efficient.

The set of exemplars is a declarative specification of the application's scope. Adding exemplars extends the allowed topic space; removing them narrows it. This design makes the system easy to update: domain experts who understand the application's intended purpose can curate the exemplar set without needing to retrain any model. For applications with complex scope boundaries, the exemplar set can be large, covering hundreds of topic variants, while the computation remains fast because it reduces to matrix multiplication between the query embedding and the exemplar embedding matrix.

More sophisticated approaches use a topic classifier with explicit categories, allowing the system to give different responses to different types of off-topic requests. A question about a competitor's product might receive a polite redirect, while a request for harmful content might trigger a harder stop. The difference matters for user experience: users asking innocent but out-of-scope questions deserve a helpful explanation, not the same response given to adversarial requests.

One design consideration that practitioners often overlook is the definition of "in-scope" for edge cases. Users rarely ask questions that fall cleanly within or outside the application's domain. A coding assistant might receive a question about general computer science concepts that are adjacent to programming. A legal research tool might receive a question that mixes legal and non-legal considerations. Topic guardrails should be calibrated with these edge cases in mind: the goal is not to enforce the strictest possible topicality boundary, but to prevent clearly off-topic usage while allowing the natural breadth that users need. Calibration data that includes labeled edge cases, not just clear in-scope and out-of-scope examples, is important for setting thresholds that work well in practice.

Many applications need to prevent personally identifiable information from entering the model, either because regulations require it (GDPR, HIPAA) or because the application should not store or process personal data. PII detection on inputs scans for patterns associated with names, email addresses, phone numbers, social security numbers, credit card numbers, and other regulated data types.

The regulatory context for PII is important to understand. The General Data Protection Regulation (GDPR) in the European Union and the California Consumer Privacy Act (CCPA) in the United States both impose requirements on how personal data may be collected, processed, and stored. For an LLM application, sending user-provided personal data to a third-party model API may constitute data processing under these regulations. Input-side PII detection allows organizations to comply with data minimization principles by stripping personal data before it leaves their systems.

Regular expression patterns handle structured PII well. Credit card numbers follow Luhn-verified numeric patterns. US Social Security numbers follow the format XXX-XX-XXXX. Phone numbers have regional formats with consistent digit counts and separators. IP addresses follow the X.X.X.X pattern. These structured forms can be detected with high precision using well-designed regular expressions.

For unstructured PII like names and physical addresses, named entity recognition (NER) models provide higher recall at higher computational cost. A name like "Michael Chen" has no structural signal that distinguishes it from other two-word phrases; only a model trained to recognize person names can reliably detect it. NER-based PII detection is typically reserved for use cases with strict compliance requirements where the cost of a missed name is high.

A key design decision is what to do with detected PII: block the request, strip the PII and pass the sanitized request, or pass the request with PII replaced by placeholder tokens. Stripping or replacing is often better than blocking outright. A user who inadvertently includes their email in a question should still get help; the guardrail just prevents the email from reaching the model or being stored in logs. Replacement with typed placeholders like [EMAIL_REDACTED] preserves the semantic context of the original message while removing the sensitive value.

There is a category of quasi-PII that falls between structured personal data and clearly benign text: combinations of information that are individually innocuous but jointly identifying. A person's first name, city, and employer are each public information. Combined, they may uniquely identify an individual in a small city. Detecting quasi-PII combinations is a harder problem than detecting structured PII, and most deployed guardrails do not attempt it. The practical approach is to focus structural PII detection on the categories with the highest regulatory risk, use NER for high-sensitivity contexts, and rely on access controls and data governance policies for the residual quasi-PII problem that technical detection cannot fully solve.

Before any semantic analysis, basic structural validation catches malformed inputs that indicate either a bug in the calling application or an attempt to trigger unexpected behavior. Length limits prevent runaway context consumption. A request with 100,000 characters might be attempting to exceed the model's context window, or it might simply be a bug in the calling application, but either way it should be rejected before consuming model compute or storage.

Format validation ensures the input matches expected schema for structured applications. An application that expects JSON-formatted requests should validate that the input is valid JSON before parsing it. An application that expects a specific set of fields should verify those fields are present and correctly typed. These checks catch both bugs and malformed requests without any semantic understanding.

Rate limiting detects and throttles repeated requests that could indicate automated abuse. A user who sends 100 requests per second is not using the system as intended; rate limiting prevents automated scraping, denial-of-service attempts, and cost exploitation. Rate limiting operates at the infrastructure level, before requests reach any application logic, and is therefore the cheapest possible guardrail in terms of per-request overhead.

Encoding validation is a subtler but important check. Certain Unicode ranges contain characters that are visually identical to ASCII but have different byte representations, a technique used to obfuscate injection attempts or bypass keyword filters. A check that normalizes Unicode and strips non-standard characters before any further processing removes this attack vector without requiring any semantic analysis. Similarly, inputs with anomalous character distributions (extremely high fractions of non-printable characters, or repetitive patterns consistent with automated generation rather than human typing) can be flagged for closer inspection.

These checks are cheap and should run first, before more expensive semantic classifiers. A 100,000-character input should never reach a topic classifier: the length check should stop it immediately. The ordering principle, cheapest checks first, is one of the most important design decisions in guardrail architecture.

Output guardrails screen the model's response before it reaches the user. They run after the model has generated text and check whether that text complies with the application's safety and quality requirements. The key motivation for output-side checking, rather than relying solely on input-side checks, is that even a properly constrained input can elicit a problematic output. An adversarial input that evades input guardrails may cause the model to generate harmful content. A benign input that happens to touch a sensitive topic may produce a response that is accurate but inappropriate for the deployment context. Output guardrails provide the final line of defense before content reaches users.

There is also a structural reason to maintain output guardrails independently of input guardrails: the mapping from inputs to outputs is not monotone in safety. A request that passes all input checks can still produce a harmful response if the model generalizes poorly, makes an error in understanding context, or produces a correct-but-inappropriate response for the deployment. Output-side checks give you a second independent chance to catch problems, with visibility into the actual content that users would receive rather than a prediction of what might be generated.

The most fundamental output check re-runs the categories from the content filtering chapter on the generated text: checking for harmful content, hate speech, sexually explicit material, instructions for dangerous activities, and other categories defined by the application's policy. The key difference from input-side filtering is that the model has now processed the input and produced text that could contain harmful content even if the input did not.

A well-aligned model rarely generates harmful content from benign inputs, but it is not perfect. Edge cases exist where benign queries produce problematic outputs. A question about historical events might elicit content that describes atrocities in more detail than appropriate. A question about chemistry might produce information about reactions that have dual-use implications. More importantly, adversarial inputs that evade input guardrails can elicit harmful outputs. Output-side safety classification provides a second chance to catch what input-side checks missed.

The classifier used for output should be calibrated for the application's risk tolerance. High-stakes applications (healthcare, education for minors, legal advice) use conservative thresholds that block borderline content. More general-purpose applications use higher thresholds to avoid over-blocking useful information. The right calibration depends on who uses the system and what harm could result from an incorrectly allowed response. A platform serving children has a fundamentally different risk tolerance than a platform for professional researchers, and both require different output safety thresholds even if they use the same underlying classifier.

One practical consideration is the cost of output-side classification relative to when it runs. Unlike input checks, output checks cannot reduce the cost of the main model call since the model has already run. Output checking adds latency on top of the model's generation time. For streaming applications where the model's response is delivered incrementally as tokens are generated, output safety classification faces a particular challenge: you cannot wait until the full response is complete before starting delivery, but classifying partial outputs introduces uncertainty about whether a response that appears safe at token 50 will remain safe at token 200. Some systems use chunk-based classification, classifying the response in rolling windows as it streams; others use a fast lightweight safety check on the full response before releasing it, sacrificing streaming delivery to maintain safety guarantees.

In retrieval-augmented generation (RAG) systems, the model's response should be grounded in the retrieved documents. If the model claims something not supported by those documents, it is hallucinating. This is a particularly serious failure mode for applications where accuracy matters, such as legal research, medical information, or technical documentation. Faithfulness guardrails check whether each claim in the model's response is supported by the retrieved context.

This is a natural language inference (NLI) problem. Given a claim $c$ from the model's response and a context $d$ composed of retrieved passages, a faithfulness classifier estimates the probability:

where:

• $c$: a claim extracted from the model's response
• $d$: the retrieved document context
• $P(\text{entailed} \mid c, d)$: the probability that the context $d$ logically entails the claim $c$

Responses with low groundedness scores, where $P(\text{entailed} \mid c, d) < \tau_{\text{faithful}}$ for some faithfulness threshold $\tau_{\text{faithful}}$, can be flagged, modified to add uncertainty language, or blocked entirely depending on the application's requirements.

The challenge is that faithfulness checking is expensive. Running an NLI model over a full response requires decomposing the response into individual claims and checking each against retrieved passages. For a response of moderate length with 5-10 individual claims, each checked against multiple passages, this can require dozens of NLI inference calls. For production systems with strict latency requirements, faithfulness checking may only be feasible on a sample of responses, or only when the model's confidence (measured by token log probabilities) is low. A hybrid approach applies lightweight heuristics (are there any sentences in the response that cannot be traced to retrieved passages?) as a quick filter, and runs the full NLI check only on flagged responses.

The definition of "faithfulness" also requires care. A response that correctly summarizes the retrieved context is faithful. A response that correctly states something that happens to not be in the retrieved context but is independently true is technically not grounded in the context, even though it is accurate. For many RAG applications, the requirement is specifically that the model cite and rely on retrieved sources, not just that it say true things. Distinguishing between grounded accuracy (the model says something supported by context) and parametric accuracy (the model says something true from its training knowledge) requires a more context-sensitive faithfulness guardrail than simple NLI entailment.

Many applications require the model to produce structured output: JSON objects, function calls, markdown tables, CSV rows, or other formatted data. Format guardrails validate that the output matches the expected schema before passing it downstream.

Schema validation is deterministic and cheap. A JSON schema validator either accepts or rejects a string in microseconds. If the model produces malformed JSON, the guardrail can trigger a retry with a corrective prompt rather than passing the error to downstream systems. This feedback loop between guardrail and model is a key advantage of output-side validation. Rather than simply blocking a malformed response, the system can ask the model to try again with specific guidance about what went wrong: "Your response was not valid JSON. Please provide a JSON object with keys 'name' and 'value'." Models often succeed on a second attempt with this corrective prompt.

The retry strategy requires careful design to avoid infinite loops. A maximum retry count (typically two or three attempts) prevents the system from getting stuck in a cycle of failed generations. After exhausting retries, the system should fall back gracefully, either to a cached valid response, a hardcoded fallback, or an error message that gives the user useful information. The fallback behavior is as important as the retry logic because it determines what users experience when the model cannot produce valid output.

For applications using tool-calling or function-calling interfaces, output guardrails verify that called functions exist, that arguments are correctly typed, and that required parameters are present. A missing required parameter caught before function execution prevents downstream errors that would otherwise propagate through the entire system. This is especially important for tools that have side effects, such as database writes or external API calls, where a malformed call could corrupt data or trigger unintended actions. A guardrail that validates function calls before executing them is particularly valuable for agentic systems where the model takes sequences of actions; a malformed action early in a sequence can cascade into much larger failures downstream.

The model may reproduce PII from the context window in its response. If the system prompt or retrieved documents contain user information, the model might include names, email addresses, or account numbers in its response even when doing so is not necessary. This can happen inadvertently: a model summarizing a support ticket that includes a user's email might reproduce that email in its summary, even if the summary was only supposed to describe the issue, not the contact details.

Output PII redaction scans responses for personal data patterns and either removes them, replaces them with placeholders, or flags the response for review. This is separate from input-side PII detection. Input-side detection prevents user-provided PII from reaching the model. Output-side detection prevents PII from the context, training data, or model memory from reaching users who should not see it.

A subtler form of this problem arises when the model reproduces PII from its training data. Language models trained on internet-scale data may have memorized specific personal information from public sources. If a user asks about a person and the model happens to have memorized that person's contact information from training data, it might reproduce it in a response. As covered in the upcoming Memorization and Privacy chapter, this memorization behavior creates privacy risks that output-side PII detection helps mitigate.

Output PII detection is also important in multi-user systems where data from one user's session could appear in another user's response. If a RAG system's context contains documents from multiple users, or if conversation history is shared, the model might reproduce one user's personal information in a response to a different user. Access controls and context isolation are the primary defenses here, but output PII scanning provides a safety net for cases where access controls have gaps or misconfigurations.

Beyond safety, output guardrails can enforce quality standards. Responses that are too short may indicate the model refused to provide an adequate answer. A response of five words to a complex technical question is almost certainly unhelpful. Responses that are too long may indicate the model is rambling unproductively. Checking response length against expected ranges for the application catches degenerate outputs.

Toxicity scoring, sentiment analysis, and style checks can verify that responses meet tone requirements for customer-facing applications. A support bot that responds with irritation or condescension to a frustrated customer is producing technically safe but operationally harmful output; quality guardrails catch this class of problem. For branded applications, style guardrails can enforce that the model maintains the appropriate voice and terminology that the organization has defined for its products.

Repetition detection is a quality check worth implementing for generative applications. Some failure modes of language models produce highly repetitive outputs, either because the model is stuck in a generation loop or because the prompt structure inadvertently encourages repetition. A simple check for repeated phrases or repeated sentences catches these degenerate outputs before users see them. Similarly, coherence checks that verify the response's opening and closing are consistent with each other catch cases where the model's generation drifted significantly during production of a long response.

For applications that generate code, syntax validation provides a concrete quality check. Running the model's output through a language parser verifies that the generated code is syntactically valid before it is presented to the user. If the code fails to parse, the guardrail can trigger a retry or add a warning to the response. This is a cheap, deterministic check that dramatically reduces the rate of syntax-broken code reaching users in coding assistant applications.

Building a guardrail system from scratch requires substantial engineering effort: designing the check logic, managing policy configuration, handling failures gracefully, logging results, and maintaining the system as requirements evolve. Guardrail frameworks provide pre-built components, integration patterns, and policy management infrastructure that accelerate development. Understanding the major frameworks helps you choose the right tools and design patterns for your application.

NVIDIA's NeMo Guardrails framework introduces the concept of rails, declarative rules that constrain what conversations can go and how the model should respond to various situations. Rails are defined in a domain-specific language called Colang, which allows operators to specify allowed topics, disallowed topics, and custom dialog flows that override default model behavior.

The architecture of NeMo Guardrails places a second LLM call before the main model call. This "guard model" interprets the user's intent using the defined rails and either allows the request to proceed, redirects it to a predefined response, or blocks it. The guard model adds latency but provides flexible, intent-level control that is harder to achieve with simple classifiers. Because the guard model itself is a language model, it can understand semantic intent rather than just matching patterns or computing vector similarities.

Colang rails can define specific dialog flows for common scenarios:

• If a user asks about topics outside the application's scope, redirect to a predefined response explaining the limitation
• If a user expresses frustration, follow a specific de-escalation flow
• If a user attempts certain manipulations, provide a specific counter-response

This dialog-level control is more expressive than binary block/allow decisions. A guardrail system that can recognize a frustrated user and route them to a specific supportive flow is doing something qualitatively different from a system that just accepts or rejects individual requests. NeMo Guardrails models the conversation as an ongoing interaction with state rather than as a series of independent message evaluations. The tradeoff is increased complexity: maintaining Colang rules requires ongoing effort as the application evolves, and the additional LLM call adds 200-500ms of latency per request. NeMo Guardrails is most appropriate for applications where the conversation flow is a critical product concern rather than a safety afterthought.

The Guardrails AI framework (formerly RAIL) takes a schema-centric approach. Operators define expected output structure and validation rules in a RAIL schema, and the framework handles both generating and validating the output. If the model's output fails validation, the framework automatically re-prompts the model with instructions to correct the specific issue.

This retry-on-failure pattern is the core innovation of Guardrails AI. Rather than blocking a failed response, the framework attempts to coerce the model into producing valid output through iterative correction. For structured output generation (extracting entities, filling forms, generating code), this approach dramatically reduces format failures compared to single-shot generation. A model that produces valid JSON on 80% of attempts might produce valid JSON on 98% of attempts with one retry cycle, and on 99.9% with two retry cycles.

The framework also supports validators that check semantic properties: does this response contain a disclaimer? Is this code syntactically valid? Does this summary preserve key facts from the source? Validators can be composed into complex output requirements that are automatically enforced without manual post-processing. This makes Guardrails AI particularly useful for applications that need to extract structured information from unstructured model outputs.

One limitation of the retry-on-failure approach is cost. Each retry cycle requires an additional LLM inference call, doubling or tripling the cost of a request that fails on the first attempt. For high-volume applications where structured output is critical, this cost tradeoff must be evaluated against alternatives like constrained decoding, which enforces output format at the token sampling level without requiring multiple calls.

LangChain provides modular components for building LLM pipelines, and its ecosystem includes tools for adding safety and quality checks. The chain abstraction allows operators to insert custom processing steps before and after model calls, which provides a natural integration point for guardrails. Rather than being a dedicated guardrails framework, LangChain is a general-purpose pipeline framework that makes it easy to compose guardrails with other LLM operations.

LangSmith, LangChain's observability platform, enables monitoring of guardrail performance in production. Logs show which requests triggered which guardrails, how often classifiers fired, and where the system's policies are creating friction for legitimate users. This observability is critical for calibrating guardrails over time. Without production monitoring, you cannot know whether your thresholds are correctly set or whether your guardrails are causing more harm (through false positives) than they prevent.

LangSmith's tracing capabilities are particularly valuable for debugging. When a request produces an unexpected result, the trace shows exactly which guardrail fired, with what score, at what stage in the pipeline. This makes it possible to diagnose whether a wrong outcome resulted from a miscalibrated threshold, a missing exemplar in the topic set, a pattern gap in the injection detector, or a downstream issue in the model itself. Without this level of observability, debugging guardrail failures in production becomes a process of guesswork.

Meta's Llama Guard is a purpose-built safety model trained to classify both user inputs and model outputs against the MLCommons AI Safety taxonomy of harm categories. It is a transformer model fine-tuned specifically for this classification task, giving better calibration for safety-specific decisions than general-purpose models. Unlike general-purpose language models used for safety classification, Llama Guard is optimized for the specific task of safety classification and provides more reliable calibration across harm categories.

Meta also released Prompt Guard, a classifier specifically trained to detect prompt injection and jailbreak attempts. These two models can be combined as pre- and post-processing steps around any LLM, giving a baseline level of safety without custom classifier development. Because both are open-source, they can be evaluated, audited, and fine-tuned for specific deployment contexts in ways that managed safety APIs cannot.

The practical advantage of these models is that they are open-source and can be self-hosted, avoiding the latency and privacy implications of calling external safety APIs. For applications with strict data handling requirements, where sending user messages to any external service is prohibited, self-hosted safety models may be the only viable option.

Llama Guard's taxonomy covers categories like violent crimes, hate speech, sexual content, privacy violations, and code malware generation. Each category can be independently enabled or disabled, allowing operators to configure exactly which harms the classifier will screen for. This configurability is important for applications with unusual scope requirements: an adult content platform might disable sexual content filtering while keeping violent content filtering enabled; a cybersecurity research tool might enable code malware generation detection at a different threshold than it would for a general-purpose tool. The ability to configure each category independently is a significant advantage over monolithic safety APIs that offer less granular control.

Cloud providers offer safety APIs that classify text against harm categories without requiring operators to train or host their own models. OpenAI's Moderation API, Anthropic's content moderation endpoints, and similar services provide fast, calibrated classifiers that stay up to date as new harm patterns emerge. Managed safety APIs benefit from the provider's ongoing investment in classifier improvement: as new categories of harmful content emerge and as attack patterns evolve, the provider updates the classifier and operators receive the improvements transparently.

The tradeoff is that all text sent to these APIs leaves the application's trust boundary. For applications handling sensitive user data, this may be unacceptable under GDPR, HIPAA, or contractual data handling requirements. For applications where data sensitivity is lower, managed safety APIs provide a practical alternative to self-hosted models, particularly for teams without the infrastructure expertise to operate machine learning models at production scale.

A hybrid approach is worth considering: use managed safety APIs for categories that are well-covered by the provider's taxonomy and where data sensitivity permits, while self-hosting specialized classifiers for domain-specific categories that the managed API does not cover well. For example, a financial services application might use a managed API for general harm categories while self-hosting a custom classifier trained to detect requests that violate financial regulations, because the managed API was not trained on financial compliance data.

Having the right tools is necessary but not sufficient. The design decisions that determine how those tools are composed and calibrated have more impact on guardrail effectiveness than the choice of specific framework.

No single guardrail is sufficient. Each check has failure modes: classifiers have false negatives, rule-based checks can be evaded, NLI models can be fooled by carefully crafted text. Effective guardrail systems layer multiple independent checks so that an input that evades one layer is likely caught by another.

Defense in depth applies at multiple levels. Within a single check type, combining rule-based and classifier-based approaches catches more variants than either alone. Across check types, combining topicality, safety, PII, and injection checks creates a more complete safety envelope than any single category of check. Across the pipeline, applying checks at both input and output provides redundancy against both adversarial inputs and model failures.

The cost of this layering is cumulative latency and complexity. Each additional check adds time to the request-response cycle. A well-designed guardrail system prioritizes cheap checks first (regex, length limits, format validation) and applies expensive checks (secondary model calls, NLI, semantic similarity) only to requests that pass the cheap filters. This cascading architecture minimizes average-case latency while maintaining the full depth of protection. If 30% of requests are blocked by cheap input checks, those requests never reach the expensive output checks, and the average latency across all requests is substantially lower than if all checks ran for all requests.

Independence between layers is a property worth designing for explicitly. If all your guardrail layers use the same underlying model or the same embedding space, an adversarial input that evades one layer may evade all layers because they share the same failure modes. A robust defense-in-depth architecture combines mechanistically different checks: regex patterns detect surface-level injection signals; embedding similarity detects semantic off-topic requests; a separately trained safety classifier detects harmful content. Because these mechanisms differ, an input designed to evade the embedding-based topic check may still trigger the pattern-based injection check, or vice versa. Diversity in detection mechanisms is a direct contributor to overall robustness.

Every probabilistic guardrail has a threshold $\tau$ that determines when a signal triggers an action. Set $\tau$ too high and harmful content gets through. Set $\tau$ too low and legitimate requests get blocked.

The precision-recall tradeoff governs this calibration. For a guardrail with classifier score $s$ and threshold $\tau$:

where:

• $\text{TP}(\tau)$: true positives, harmful requests correctly blocked at threshold $\tau$
• $\text{FP}(\tau)$: false positives, benign requests incorrectly blocked at threshold $\tau$
• $\text{FN}(\tau)$: false negatives, harmful requests incorrectly allowed at threshold $\tau$

Lowering $\tau$ increases recall (catch more harmful content) but decreases precision (block more legitimate requests). Raising $\tau$ does the opposite. The optimal operating point depends on the relative cost of false positives versus false negatives in the application's risk model.

The $F_\beta$ score provides a single metric that weights precision and recall according to application priorities:

where:

• $\beta > 1$: weighs recall more heavily, appropriate when missing harmful content is more costly than blocking legitimate requests
• $\beta < 1$: weighs precision more heavily, appropriate when user friction is the primary concern
• $\beta = 1$: the standard $F_1$ score, equal weight to precision and recall

Calibration requires labeled evaluation data: a set of inputs and outputs with known ground truth about whether each is harmful, off-topic, or otherwise policy-violating. With such a dataset, you can plot precision-recall curves for each guardrail and choose the operating point that matches the application's priorities. Without labeled data, threshold setting becomes guesswork that either over-restricts legitimate users or under-protects against harmful content.

Calibration is not a one-time exercise. User behavior changes over time, new attack patterns emerge, and the model itself is updated. Regular re-evaluation of guardrail performance against recent data prevents drift where a well-calibrated system becomes miscalibrated due to distribution shift. A guardrail calibrated on evaluation data from six months ago may be badly calibrated today if user behavior has evolved or if new attack patterns have emerged that were not represented in the original evaluation set.

The evaluation data for calibration should represent the production distribution of requests the system will see in production, rather than a curated set of obviously harmful and obviously benign examples. Systems trained and calibrated on extreme examples perform poorly on the large population of borderline cases that constitute most real-world guardrail decisions. Collecting representative production data early, either through a limited-release period or through a shadow-mode deployment where guardrails run but do not yet block, is one of the most valuable investments in building well-calibrated systems.

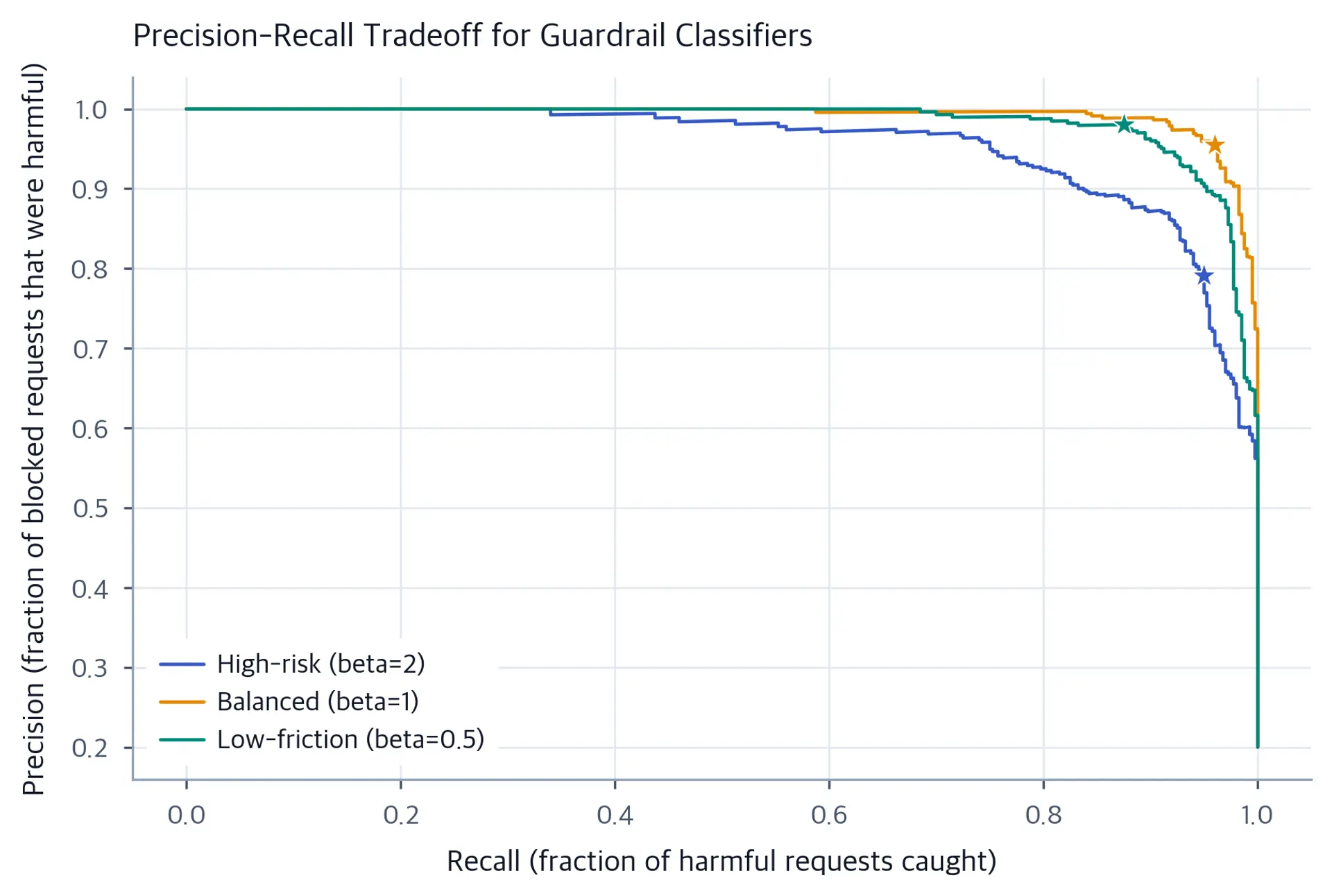

The precision-recall curves reveal a key insight: there is no free lunch in guardrail calibration. Moving the operating point left along a curve increases precision (fewer false positives) but decreases recall (more harmful requests slip through). The starred points mark the threshold that maximizes the $F_\beta$ score for each deployment context. High-risk applications should use the upper-right end of their curve, accepting lower precision to catch more harmful content. The appropriate choice of $\beta$ is ultimately a product decision that requires domain expertise: it reflects the organization's judgment about the relative cost of a user seeing harmful content versus a legitimate user being incorrectly blocked.

When a guardrail blocks a request, the response to the user matters as much as the block itself. A terse error message ("Your request was rejected") provides no information about why, does nothing to help legitimate users rephrase their request, and leaves adversarial users free to iterate on their approach. A helpful, specific failure response explains what went wrong and, where possible, what the user can do instead.

The content of failure responses should be designed by domain experts, not generated by the model. If the model generates its own rejection message, it might inadvertently reveal information about the guardrail's detection logic that helps attackers evade it. Pre-written, reviewed failure responses prevent this leakage while also ensuring consistent, on-brand communication.

Failure responses should also be differentiated by the type of failure. An off-topic request should receive a different response than a safety violation, which should receive a different response than a rate limit. Treating all guardrail failures identically frustrates legitimate users who could easily rephrase an off-topic question but cannot do anything about a rate limit. The granularity of failure response design is a product and technical decision: it reflects the organization's judgment about what different user experiences the system should provide in different failure scenarios.

One subtle design question is how much information to reveal about why a request was blocked. Revealing too much helps attackers understand the detection logic and craft evasions. Revealing too little frustrates legitimate users who cannot understand why their request was rejected. A good middle ground is to indicate the category of failure (off-topic, rate limit, safety policy) without revealing specific thresholds, classifier scores, or pattern details. This gives legitimate users enough information to understand and adjust their behavior while not providing a blueprint for evasion.

Every guardrail firing is a data point. Without logging, you cannot know whether your guardrails are calibrated correctly, whether they are creating undue friction for legitimate users, or whether attack patterns are evolving. With logging, you can measure:

• False positive rate: how often do legitimate requests trigger guardrails?
• False negative rate: how often do harmful requests pass through? (requires manual review of a sample)
• Most common block reasons: what are users asking that falls outside policy?
• Attack pattern evolution: are new injection techniques emerging in the logs?

Good observability requires structured logs with enough context to understand why a specific request triggered a specific guardrail. Free-text logs are difficult to aggregate into metrics. Structured logging with fields for input hash, guardrail name, score, threshold, and outcome enables the dashboards and alerts that production systems need. Hashing the input rather than logging it directly may be necessary for privacy compliance; the hash provides a reference for debugging without storing the potentially sensitive input content.

Production monitoring also enables detecting gradual degradation. If the false positive rate for a topic guardrail slowly increases over three months, that is a signal that user queries are shifting in ways that increase boundary cases, and the exemplar set or threshold may need updating. Without monitoring, this degradation would only be noticed when users start complaining, by which point the problem has already caused significant friction.

Alert thresholds for guardrail metrics should be calibrated separately from the guardrail thresholds themselves. If the injection detection rate suddenly doubles, that is a signal that either a new attack campaign has started or a threshold has been misconfigured. Either requires human investigation. Operational monitoring that triggers alerts on significant deviations from baseline rates gives the team visibility into anomalies before they escalate into serious incidents.

Guardrails deployed in production face adversarial users who actively try to circumvent them. A guardrail that works against unmodified harmful requests may fail against requests crafted specifically to evade detection. Building adversarially robust guardrails requires understanding the attack surface.

Common evasion techniques include:

• Obfuscation: Replacing letters with visually similar characters, using leetspeak, or inserting spaces within flagged words
• Paraphrasing: Expressing harmful intent in neutral language or through indirect requests
• Framing: Wrapping harmful requests in fictional, hypothetical, or educational contexts
• Multi-turn gradual escalation: Building rapport across multiple turns before introducing harmful content
• Context stuffing: Filling the context with benign text to dilute the signal of harmful content

Each of these techniques has countermeasures. Obfuscation attacks can be mitigated by normalizing input to canonical Unicode before applying any pattern-based checks. Paraphrasing attacks require semantic classifiers rather than rule-based pattern matching. Framing attacks require classifiers that focus on the actual requested action rather than the context around it. Multi-turn escalation requires tracking conversation-level signals across turns, not just individual message signals. Context stuffing requires classifiers that are robust to dilution rather than simple keyword counting.

Adversarial robustness testing should be part of the development process. Red teaming, as covered in the Red Teaming chapter, systematically explores these attack vectors and reveals how guardrails perform against determined adversaries. The findings from red teaming drive targeted improvements to specific guardrail components. Public research on guardrail evasion techniques helps both attackers and defenders: publishing evasion techniques allows defenders to patch against them, even as it also informs attackers. The open security research community's norm of responsible disclosure applies to guardrail research as much as to traditional security research.

A practical adversarial testing approach involves maintaining a running library of known evasion techniques and testing guardrails against this library before each deployment. Any change to the guardrail system, whether updating a classifier, adding exemplars, or adjusting thresholds, should be evaluated against the evasion library to verify that the change does not inadvertently create new bypass opportunities. This library should be continuously updated as new techniques are discovered, whether through red team exercises, external research publications, or observed production attack patterns.

This section implements a practical multi-layer guardrail pipeline that demonstrates the key patterns: input validation, topic classification, injection detection, output safety checking, and structured logging.

We start by installing required packages and defining the core pipeline structure.

The GuardrailResult dataclass captures everything needed for logging: which guardrail fired, with what score, against what threshold, and what action was taken. The PipelineResult aggregates results from all layers. Separating these two classes makes it easy to inspect individual check results while also getting the overall pipeline verdict.

The first and cheapest checks are structural: does the input conform to expected length and format constraints?

Short inputs pass immediately. The length guardrail stops oversized inputs before any expensive processing begins.

The injection detector combines pattern matching for common injection phrases with a scoring mechanism that accumulates suspicion across multiple signals.

Benign inputs score near zero. Injection attempts match multiple patterns and score above the threshold, triggering a block. The score reflects pattern match count, allowing the threshold to be tuned without rewriting detection logic. Note that a sophisticated attacker who knows this pattern list can craft injections that avoid all of these specific strings; a production system supplements this pattern check with a semantic classifier trained on diverse injection examples.

The PII guardrail scans for structured personal data patterns and replaces them with placeholder tokens.

The original text with email, phone, and SSN is replaced with labeled placeholders. The redacted version can be passed to the model while preserving the semantic intent of the message. The user gets a helpful response; the sensitive data never reaches the model or logs.

Topic guardrails use embedding similarity to measure how closely a request aligns with allowed topics. We compute reference embeddings for topic exemplars and compare incoming requests against them.

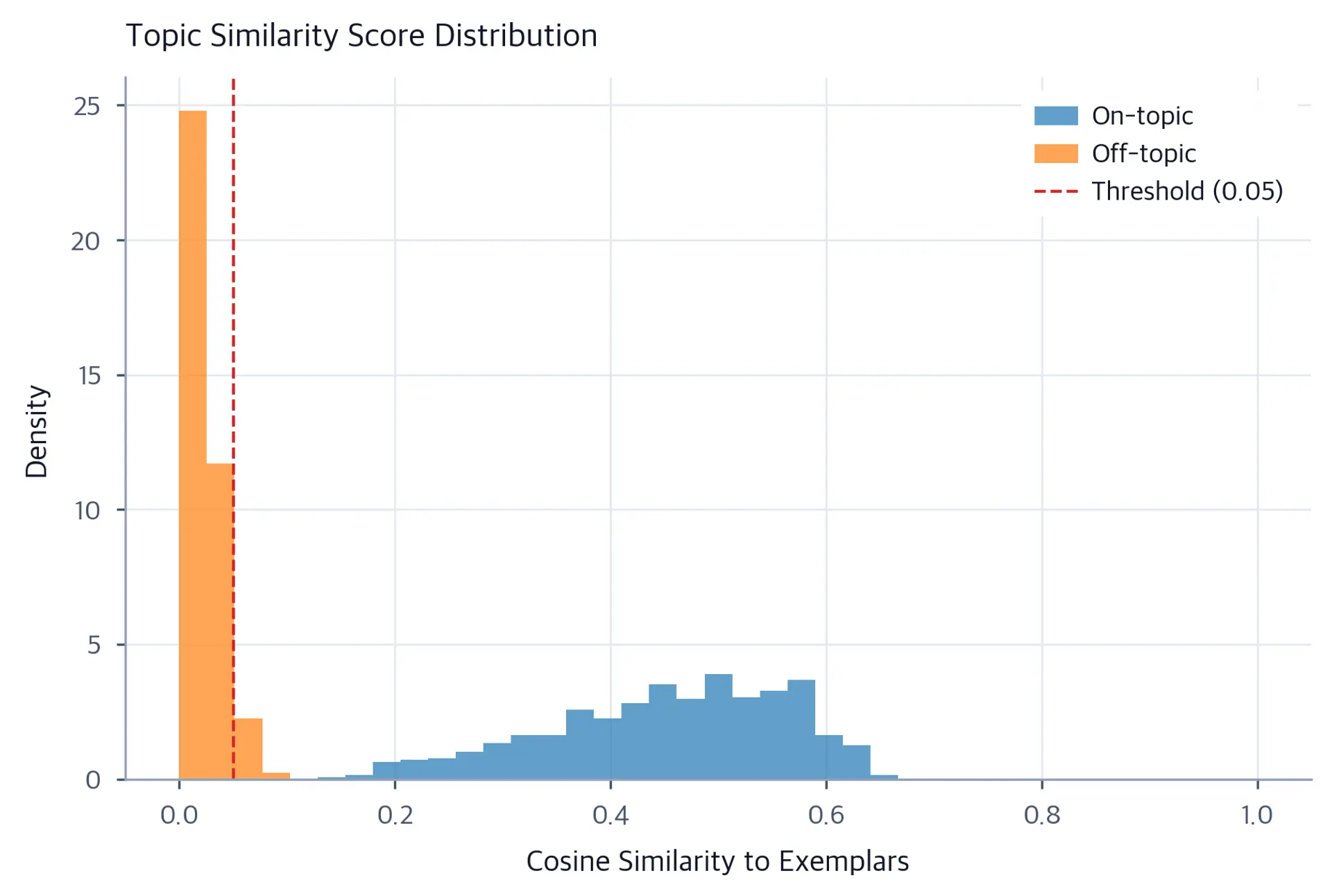

The clear separation between on-topic and off-topic score distributions confirms that the threshold is well-placed. On-topic requests cluster well above 0.05, while off-topic requests are concentrated near zero. A small overlap region exists where borderline requests may be misclassified; this region motivates the use of multiple exemplar categories to reduce ambiguity.

For output-side checking, we implement a lightweight toxicity detector based on known harmful patterns. In production, this would typically use a dedicated safety model such as Llama Guard.

The individual guardrails compose into a pipeline that runs checks in order of increasing cost, short-circuiting on the first block.

The cascading strategy consistently achieves lower average latency by short-circuiting on the first block. Requests blocked by cheap checks never reach the expensive semantic checks, reducing the average cost per request substantially compared to running all checks in parallel.

The key parameters for the guardrail pipeline are:

• max_length: Maximum allowed input length in characters. Set based on model context window and expected use case.
• injection_threshold: Score threshold above which a request is flagged as injection. Lower values increase sensitivity but may produce more false positives.
• topic_threshold: Minimum cosine similarity $\tau$ to allowed topic exemplars. Lower values allow more topical flexibility; higher values enforce stricter scope.
• output_safety_threshold: Score threshold for blocking model outputs. Should be tuned separately from input thresholds.

Guardrails represent an important layer of defense, but they come with significant limitations that practitioners must understand to deploy them responsibly.

The most fundamental limitation is the arms race dynamic. Every guardrail can be studied, tested, and evaded by a determined adversary. Pattern-based injection detectors fail against novel injection phrasings. Topic classifiers can be fooled by requests that use allowed vocabulary to discuss disallowed content. Safety classifiers can be evaded through obfuscation, encoding, or framing. Building a guardrail system that is robust against a sophisticated adversary requires continuous investment in red teaming and adaptation. A guardrail system deployed once and never updated becomes less effective over time as attack techniques evolve and become publicly known. The security community has documented hundreds of specific bypass techniques for common guardrail implementations; any system that does not account for this documented attack surface is already behind.

The false positive problem is equally serious but less discussed. Overly aggressive guardrails create friction for legitimate users. A topic guardrail that is too strict blocks users who have legitimate questions that happen to fall near the boundary of the allowed scope. A PII detector that incorrectly identifies product codes or model numbers as sensitive data fails users who need to reference those codes. False positives erode user trust, reduce application utility, and often lead to complaints that result in guardrails being loosened or disabled entirely. The calibration challenge is to catch harmful content without degrading the experience for the overwhelming majority of legitimate users. In most production systems, legitimate users outnumber adversarial users by orders of magnitude, which means that even a small false positive rate can affect far more people than the harmful content it prevents.

Guardrails also add latency to every request. A pipeline with four input guardrails and two output guardrails might add 100-500ms to the request-response cycle, depending on which checks involve model calls. For applications where response speed matters, this overhead may be unacceptable. Optimizing guardrail latency through cascading, caching, and parallelization is a real engineering challenge in high-throughput systems. Caching is particularly valuable: if the same request has been seen before and previously classified as benign, the classification result can be cached rather than recomputed. For applications with significant request repetition, such as chatbots that handle similar questions repeatedly, caching guardrail results can reduce average latency substantially.

The compositional complexity of multi-layer guardrail systems introduces maintenance challenges that are easy to underestimate. When multiple guardrails interact, debugging unexpected behavior requires understanding how each check's output affects subsequent checks in the pipeline. If a request is blocked, determining which guardrail fired and why requires detailed logging that many early-stage systems lack. As guardrail configurations evolve, regression testing becomes important: a change that improves one guardrail may inadvertently affect the behavior of downstream checks or change the overall false positive rate in ways that are not immediately obvious. Treating the guardrail pipeline as a software system with the same engineering rigor as production code, including version control, automated testing, and deployment procedures, reduces the risk of guardrail failures in production.

Perhaps the deepest limitation is that guardrails treat symptoms rather than causes. A guardrail that blocks a specific harmful request pattern does nothing about the underlying capability of the model that would allow it to comply with that request. Training-time alignment addresses the root cause by shaping model behavior. Guardrails address the immediate symptom by intercepting specific requests or outputs. Both are necessary: alignment provides the first line of defense, and guardrails provide the resilient outer perimeter that catches the cases that alignment misses. But conflating guardrails with safety, or treating guardrails as a substitute for careful alignment work, leads to a false sense of security. An organization that deploys a poorly-aligned model and then layers guardrails on top has not solved its alignment problem; it has made it harder to observe because the guardrails mask some of the behavioral failures that would otherwise be visible in production data.

The practical impact of well-designed guardrail systems is substantial. They enable organizations to deploy capable models in production contexts where unrestricted model access would be inappropriate, extending the reach of AI applications to regulated industries, sensitive use cases, and diverse user populations. They provide the policy enforcement layer that lets operators customize model behavior for specific deployment contexts without retraining. And they create the observability infrastructure that reveals how users interact with deployed models, enabling continuous improvement of both the guardrails and the underlying model. A guardrail system with good logging is also a research instrument: the patterns visible in guardrail logs reveal how users think about the system's capabilities, what they want the system to do that it currently cannot, and where the alignment between user intent and system behavior has gaps.

The next chapter addresses memorization and privacy, covering how models inadvertently store and reproduce training data, and the privacy implications of deploying models trained on data that includes personal information.

Guardrails are software checks that control what enters and exits a language model system, giving a layer of behavioral constraint that complements training-time alignment.

Key takeaways:

• Input guardrails cover prompt injection detection, topic scope enforcement, PII detection, and structural validation. They prevent harmful or out-of-scope requests from reaching the model and reduce inference costs by catching invalid requests early.
• Output guardrails cover safety classification, faithfulness checking (for RAG), format validation, PII redaction, and quality checks. They prevent harmful or low-quality responses from reaching users and provide a second independent chance to catch what input checks missed.
• Defense in depth is the central design principle: multiple independent checks, applied in cascade from cheap to expensive, catch what any individual check would miss. Diversity in detection mechanisms is as important as the number of layers.
• Threshold calibration determines the tradeoff between false positives and false negatives. Calibration requires labeled evaluation data and regular re-evaluation as user behavior and attack patterns evolve. The $F_\beta$ metric formalizes the tradeoff between recall and precision with a weighting parameter $\beta$ that reflects the relative cost of each error type.
• Guardrail frameworks (NeMo Guardrails, Guardrails AI, Llama Guard) provide pre-built components that accelerate development. The right choice depends on whether you need dialog-level control, structured output coercion, or a standalone safety classifier.
• Limitations include adversarial evasion, false positives for legitimate users, latency overhead, compositional maintenance complexity, and the fundamental point that guardrails treat symptoms while alignment treats causes. Both are necessary for responsible deployment.

Effective guardrail systems are engineering artifacts that require ongoing maintenance, red team testing, and calibration based on production data. They are not fire-and-forget safety solutions, but rather active defenses that must evolve alongside the attack patterns they defend against.
