Hybrid Search: BM25 and Dense Retrieval Combined

When you type a query into a search system, two fundamentally different engines could be working to find your answer. The first is a classical keyword matcher: it looks for documents that contain the exact words you typed, using statistical signals like term frequency to rank results. The second is a semantic engine: it converts your query and every document into dense vectors, then finds documents whose meaning is closest to yours, even if they share no words in common. Both approaches have real strengths, and both have real weaknesses. Hybrid search combines them.

The insight behind hybrid search is simple but powerful: keyword matching and semantic retrieval fail in complementary ways. A keyword system finds the document containing "myocardial infarction" when you search for "heart attack" only if someone mapped those synonyms in advance. A semantic system finds semantically related documents but can miss the one where a specific product code like "AB-1042-X" appears verbatim. Neither system alone is reliable. Together, they cover each other's blind spots.

Think of the two systems as two specialists working the same library. The first specialist has memorized the exact text of every document and can instantly point you to any document containing your precise phrase. The second specialist has deeply internalized the meaning of every document and can point you to conceptually related material even when no shared vocabulary exists. Asking both specialists independently, then combining their recommendations, consistently produces better results than relying on either alone.

This complementarity is not accidental. It shows a deep asymmetry in what the two systems learn. Keyword systems learn statistics over the literal surface form of text: which strings appear, how often, and in which documents. Semantic systems learn geometry: how to map meaning into a high-dimensional space so that similar meanings end up nearby. These are orthogonal views of the same text, and relevance is a combination of both. A document that addresses your query's exact phrasing is often relevant. A document that addresses your query's underlying concept is also often relevant. A document that does both is very likely the best answer. Hybrid retrieval finds all three types.

This chapter explains how to build hybrid retrieval systems. We will examine BM25, the classical ranking function that anchors the keyword half, and dense retrieval, the vector-based approach that gives the semantic half. We will then study the two main fusion strategies: reciprocal rank fusion, which combines ranked lists without needing to understand the underlying scores, and weighted score combination, which blends the scores directly. Throughout, we ground the math in intuition and the intuition in working code.

As we saw in the chapter on Dense Retrieval and Embedding Models, dense retrieval converts documents and queries into high-dimensional vectors using models like bi-encoders trained with contrastive objectives. As we saw in Vector Similarity Search and the HNSW and IVF Index chapters, those vectors can be searched efficiently at scale using approximate nearest neighbor indices. This chapter builds directly on that foundation, adding the classical retrieval side and then fusing the two into a single, more powerful system. In the next chapter on Reranking, we will add another stage that takes the hybrid retrieval output and re-scores it with a heavier cross-encoder model.

Before dense retrieval existed, keyword-based ranking functions dominated information retrieval. The most durable of these is BM25 (Best Match 25), which dates to the 1990s and remains competitive against many modern systems on keyword-heavy benchmarks. Its staying power is not an accident of inertia: BM25 embodies a set of principled statistical insights about how term occurrence patterns relate to relevance, and those insights remain valid even in the age of large language models.

BM25 is a refinement of TF-IDF. Recall from earlier chapters that TF-IDF scores a term in a document by multiplying how often the term appears in the document (term frequency, or TF) by how rare the term is across all documents (inverse document frequency, or IDF). BM25 keeps this core intuition but fixes two structural problems with raw TF-IDF. The fixes are not cosmetic adjustments: they address basic failure modes that make raw TF-IDF unreliable in practice. Understanding these failure modes is the fastest path to understanding why BM25 is designed the way it is.

Think of BM25 as a more careful accountant than TF-IDF. TF-IDF is like an accountant who counts every dollar of evidence and adds it all up, even if the same dollar appears a hundred times. BM25 is like an accountant who correctly recognizes that after the tenth dollar of the same type, each additional dollar is worth only a fraction of the first. It also adjusts for the fact that longer reports naturally contain more dollars, and corrects for that structural bias. The result is a much fairer assessment of which documents truly contain the most relevant evidence.

The first problem is that raw TF grows without bound. If a document mentions the word "python" 100 times rather than 10 times, raw TF scores it 10 times higher. But in practice the relevance gain from the 50th mention of "python" is negligible compared to the gain from the first. BM25 saturates TF so that each additional occurrence contributes less than the previous one.

To make this concrete, imagine reading a book review. If the review mentions "fascinating" once, that tells you something. If it mentions "fascinating" twenty times, that tells you roughly the same thing, just more emphatically. The hundredth mention of "fascinating" adds no new information. BM25 captures this diminishing return mathematically: the scoring function curves upward steeply at first, then flattens to a ceiling as occurrences accumulate. The ceiling is determined by the hyperparameter $k_1$, which you will see shortly.

The second problem is that longer documents naturally accumulate more term occurrences and therefore score higher even when they are no more relevant. A textbook chapter is longer than a blog post and will contain any given term more often, but that does not make the textbook chapter more relevant to a two-word query. BM25 applies a document length normalization that penalizes documents longer than average, keeping the playing field level. The strength of this penalty is controlled by the hyperparameter $b$.

These two fixes, saturation and length normalization, are not independent adjustments bolted onto TF-IDF. They interact through a single elegant fraction at the heart of the BM25 formula. Understanding that fraction is the key to understanding the entire formula.

BM25 computes a relevance score for a document $d$ given a query $Q$ by summing term-level contributions. Each term's contribution multiplies a document-frequency weight (IDF) by a saturated term-frequency weight. For a query $Q$ with terms $q_1, q_2, \ldots, q_n$ and a document $d$, BM25 scores the document as:

where:

• $q_1, q_2, \ldots, q_n$: the individual terms in query $Q$
• $f(q_i, d)$: the raw frequency of term $q_i$ in document $d$ (how many times it appears)
• $|d|$: the length of document $d$ in tokens
• $\text{avgdl}$: the average document length across the entire corpus
• $k_1$: the term frequency saturation parameter, typically set to 1.2 or 1.5; it controls how quickly additional occurrences of a term stop adding to the score
• $b$: the length normalization parameter, typically set to 0.75; it controls how strongly longer documents are penalized relative to the average

It is worth pausing to appreciate the structure of this formula before looking at any of its parts in isolation. The outer sum iterates over every query term. For each term, you compute two independent quantities: how rare the term is across the entire corpus (the IDF factor on the left), and how heavily the term appears in this specific document adjusted for document length (the fraction on the right). These two numbers are multiplied together, and you accumulate the result across all query terms. The final BM25 score for a document is therefore a weighted sum of term-level evidence, where rarer terms contribute more heavily.

This structure shows a clear intuitive principle. A query like "transformer" combined with "myocardial" should give high weight to the term "myocardial" (rare) and lower weight to "transformer" (common in this hypothetical corpus). BM25 accomplishes this weighting automatically through IDF, without any manual synonym mapping or domain knowledge.

The IDF component measures how rare a term is across the corpus. Rare terms that appear in few documents receive high IDF weights, while common terms like "the" receive near-zero weights. The IDF term is computed as:

where:

• $N$: the total number of documents in the corpus
• $n(q_i)$: the number of documents in the corpus that contain term $q_i$
• $0.5$: a smoothing constant added to both numerator and denominator to avoid division by zero and to prevent IDF from going negative for terms appearing in every document
• The $+1$ inside the logarithm ensures the IDF is always non-negative, even when a term appears in all documents

To build intuition for this formula, consider the two extreme cases. When $n(q_i)$ is very small relative to $N$, meaning the term appears in almost no documents, the fraction $\frac{N - n(q_i) + 0.5}{n(q_i) + 0.5}$ becomes large, and the logarithm returns a large positive number. This makes sense: a term that appears in only 3 out of 1 million documents is extraordinarily informative when it does appear. When $n(q_i) \approx N$, meaning the term appears in nearly every document, the numerator approaches 0.5 and the denominator approaches $N + 0.5$, making the fraction nearly zero and the IDF close to $\log(1) = 0$. A term that appears in every document tells you nothing about which documents are more relevant.

The fraction within the BM25 sum handles two effects simultaneously: TF saturation and length normalization. These two effects are coupled through a single expression, and understanding their interaction reveals why BM25 is so reliable across diverse corpora. Focusing on this fraction:

This fraction looks intimidating at first glance, but it has a clean structure once you name its moving parts. The numerator scales the raw term frequency by $(k_1 + 1)$, which is a constant for any given setting of $k_1$. The denominator adds the raw term frequency to a document-length-dependent constant. That constant is where the two effects live.

Define the denominator's length-dependent constant as:

where:

• $k_1$ and $b$ are the BM25 hyperparameters defined above
• $|d| / \text{avgdl}$: the ratio of document length to average document length; values above 1.0 mean the document is longer than average

Notice what $K$ encodes. The term $b \cdot (|d| / \text{avgdl})$ grows as the document grows relative to the average. When $b = 0.75$ and a document is twice the average length, the ratio is 2.0, and this term contributes $0.75 \times 2.0 = 1.5$ to the expression inside the outer parentheses. When a document is exactly average length, the ratio is 1.0, and the expression inside the parentheses equals $(1 - b + b \times 1) = 1$ exactly. So $K$ equals $k_1$ for an average-length document and grows proportionally for longer documents. This is the length normalization embedded in $K$.

With this substitution, the saturation fraction becomes:

This is now recognizable as a hyperbolic function of $f$ (the term frequency). To understand the saturation behavior, consider what happens as term frequency grows:

• As $f \to \infty$, the fraction approaches $k_1 + 1$, not infinity. This is the saturation ceiling: no matter how many times a term appears, the contribution is bounded above by $k_1 + 1$.
• When $f = K$, the fraction equals $(k_1 + 1) / 2$, exactly half the maximum. This means $K$ controls the "half-saturation point": the term frequency at which the score reaches half its ceiling.
• $K$ itself depends on document length via $|d| / \text{avgdl}$. Longer documents have a larger $K$, meaning they need more term occurrences to reach the same score as a shorter document. This is the length normalization effect.

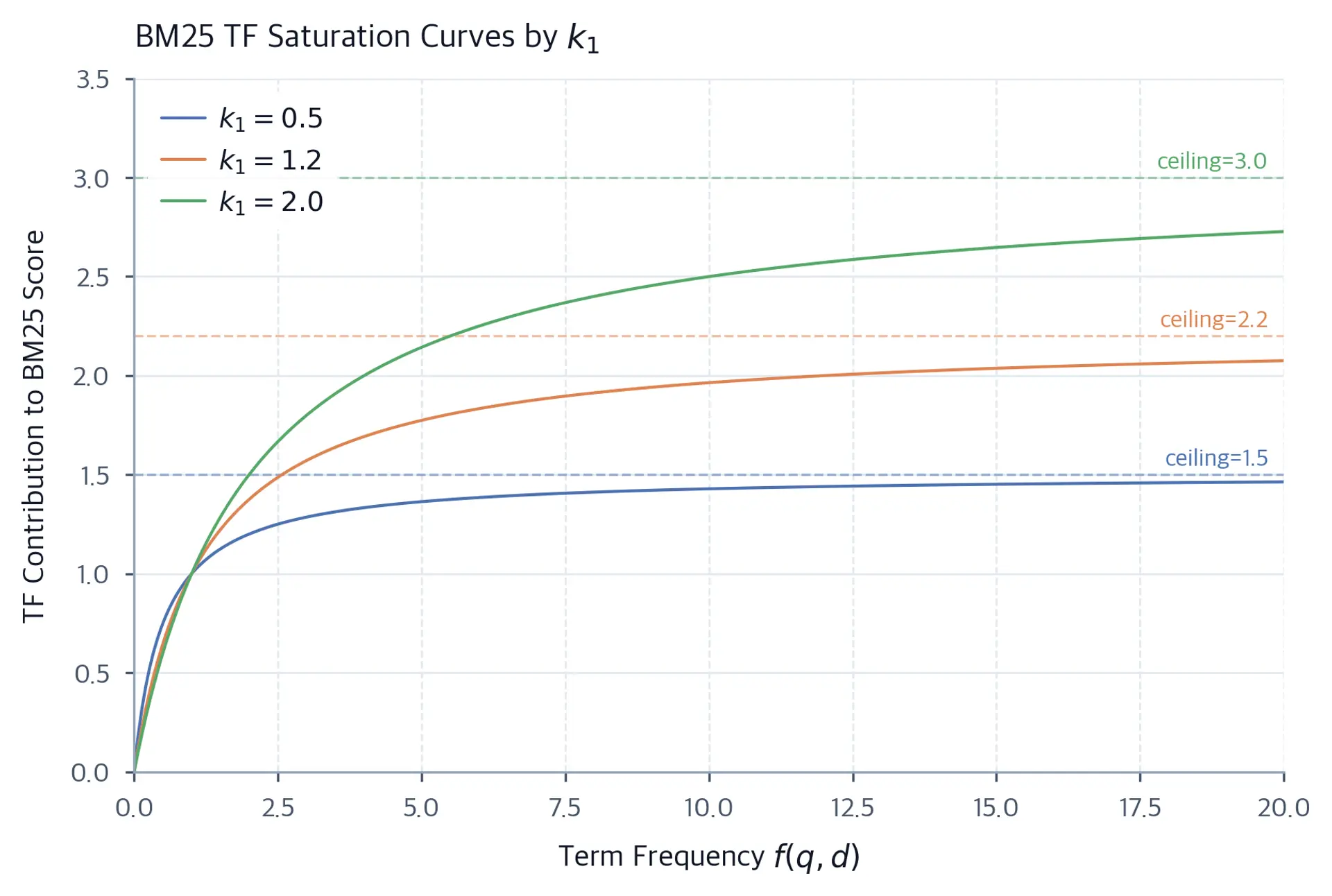

The interplay between saturation and length normalization is elegant: a document that is twice as long as average must also have roughly twice the term frequency to reach the same BM25 score as the shorter document. This keeps the scoring fair across documents of different lengths.

The key insight is that BM25 treats the saturation ceiling and the half-saturation point as linked quantities: both are controlled by the same $K$ expression. When you tune $k_1$ and $b$, you are not adjusting two independent knobs. You are adjusting a single parameterized family of scoring functions where the saturation speed and the length sensitivity move together in a coordinated way. This coupling is what makes BM25 well-behaved across diverse corpora with different length distributions.

The coupling between saturation and length normalization through $K$ makes BM25 a unified formula rather than two separate adjustments patched together. When you increase $b$, you make $K$ more sensitive to document length, which simultaneously raises the half-saturation point for longer documents. When you increase $k_1$, you raise both the saturation ceiling and the scale of $K$, effectively making the saturation happen more slowly everywhere. The two hyperparameters interact in a predictable way.

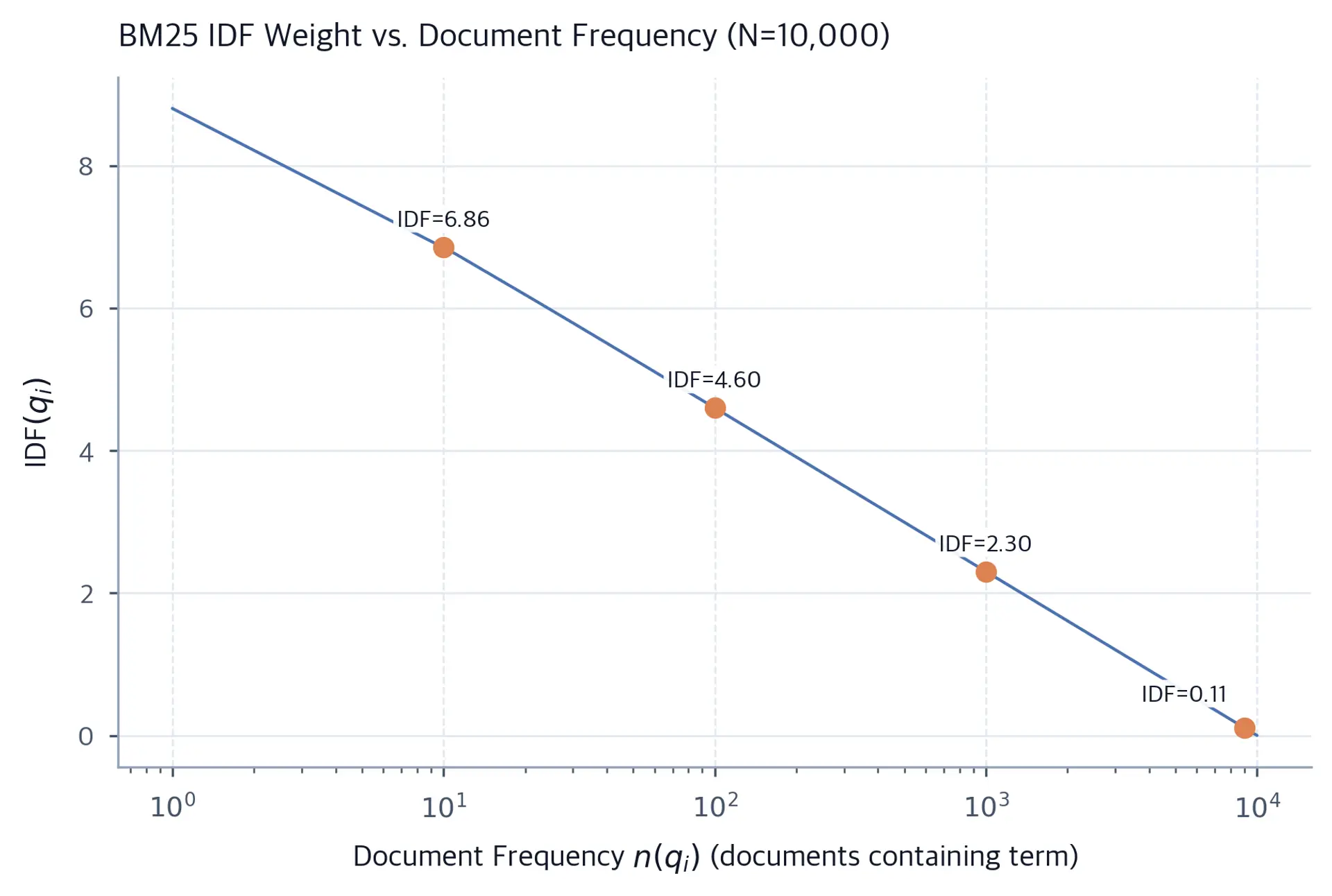

The logarithmic x-axis reveals the full range of IDF behavior. A term appearing in 10 out of 10,000 documents (0.1% of the corpus) receives an IDF of roughly 6.9, while a term appearing in 9,000 documents (90% of the corpus) receives an IDF near zero. This nonlinear weighting means that going from "appears in 10 documents" to "appears in 100 documents" causes a significant IDF drop, while going from "appears in 5,000 to 9,000 documents" causes almost no change because both are already near zero. BM25 is most sensitive to term rarity at the rare end of the spectrum.

To make the BM25 formula completely concrete, let us trace through all computations step by step on a tiny corpus. This kind of worked example is invaluable because the formula combines several interacting quantities, and watching them interact numerically builds intuition that the formula alone cannot convey.

Consider a tiny corpus with three documents:

• $d_1$: "the cat sat on the mat" (6 tokens)
• $d_2$: "the cat sat on the cat mat mat cat" (9 tokens)
• $d_3$: "the dog chased the cat across the yard" (8 tokens)

Average document length: $(6 + 9 + 8) / 3 = 7.67$ tokens.

Query: "cat mat"

Step 1: Compute IDF for each query term.

For term "cat": appears in all 3 documents, so $n(\text{cat}) = 3$, $N = 3$.

Since "cat" appears in every document, its IDF is very low. This shows that it is not a discriminating term for this query. Every document contains "cat," so knowing a document contains "cat" tells you almost nothing about which document is most relevant. The IDF correctly suppresses its influence.

For term "mat": appears in $d_1$ and $d_2$, so $n(\text{mat}) = 2$.

"mat" is rarer (absent from $d_3$), so it receives a higher IDF weight. This makes sense: knowing a document contains "mat" is more informative than knowing it contains "cat," because "mat" narrows the field.

Step 2: Compute the length-dependent constant $K$ for $d_2$.

Using $k_1 = 1.2$, $b = 0.75$, $|d_2| = 9$, $\text{avgdl} = 7.67$:

The ratio $9 / 7.67 = 1.174$ tells us $d_2$ is about 17% longer than average. The constant $K_{d_2} = 1.357$ is larger than it would be for an average-length document (where $K$ would equal $k_1 \cdot 1.0 = 1.2$). This larger $K$ raises the half-saturation threshold, meaning $d_2$ needs more term occurrences to reach the same score as an average-length document.

Step 3: Compute TF contributions for "cat" in $d_2$ and $d_1$.

TF contribution of "cat" in $d_2$ (frequency = 3):

For $d_1$: $K_{d_1} = 1.2 \cdot (1 - 0.75 + 0.75 \cdot 6/7.67) = 1.2 \cdot (0.25 + 0.587) = 0.934$.

TF contribution of "cat" in $d_1$ (frequency = 1):

Step 4: Assemble the full BM25 scores.

For $d_1$ (cat: f=1, mat: f=1):

For $d_2$ (cat: f=3, mat: f=2), first computing the mat TF contribution:

For $d_3$ (cat: f=1, mat: f=0), $K_{d_3} = 1.2 \cdot (0.25 + 0.75 \cdot 8/7.67) = 1.2 \cdot 1.032 = 1.238$:

The final ranking is $d_2 > d_1 > d_3$, which matches our intuition perfectly. $d_2$ contains "cat" three times and "mat" twice in a document only slightly longer than average. $d_1$ contains both terms once each. $d_3$ contains "cat" but no "mat" at all. The BM25 formula has automatically combined term frequency evidence, rarity evidence, and document length adjustment into a single, principled score.

$d_2$ gets a higher TF score for "cat" despite its longer length, because its term frequency (3) is much higher than $d_1$'s (1). The length penalty embodied in $K$ slows but does not stop the gain from additional occurrences. The "mat" term, being rarer (IDF = 0.470 vs. 0.134 for "cat"), contributes more per occurrence to the final score than "cat" does. This automatic rarity weighting is BM25's key advantage over simple term counting.

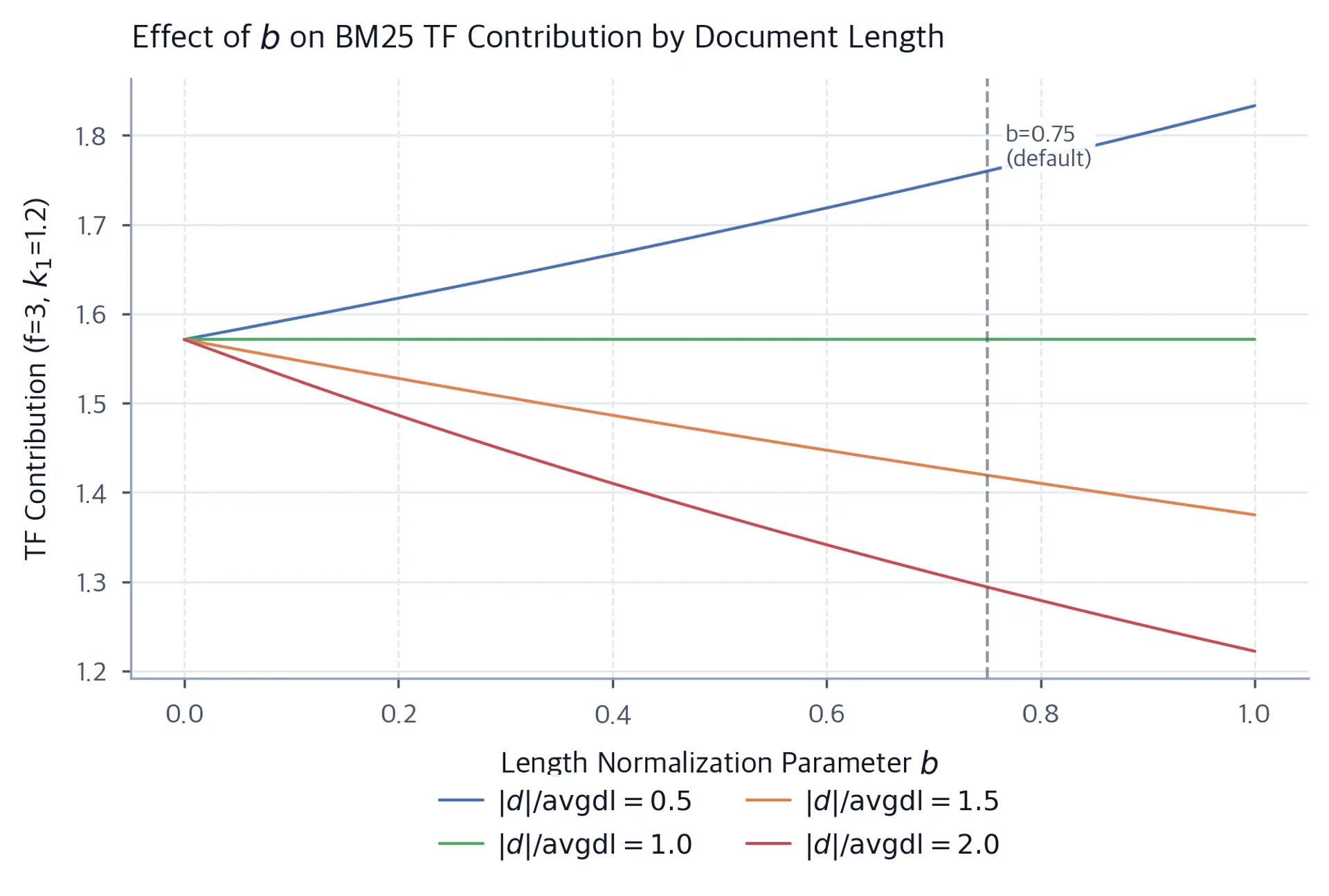

This plot makes the length normalization effect visible. At $b = 0$ (no length normalization), all four document lengths receive the same TF contribution score: length is completely ignored. As $b$ increases toward 1.0, the curves spread apart. Documents shorter than average (length ratio 0.5) receive a bonus: their TF contributions rise. Documents longer than average (length ratio 2.0) are penalized: their TF contributions fall. At the default $b = 0.75$ (dashed vertical line), the curves are moderately separated, applying a partial correction for length without fully leveling the field.

Dense retrieval is a fundamentally different theory of relevance than keyword matching. Rather than asking which documents contain the same tokens as the query, dense retrieval asks which documents occupy the same region of a high-dimensional semantic space as the query. This move from token space to semantic space is what lets dense retrieval to find relevant documents that share no words with the query. But it also means the system depends entirely on the quality of the embedding model and can fail in predictable ways when that model's training distribution does not include the query's vocabulary.

As covered in depth in the Dense Retrieval and Embedding Models chapters, dense retrieval is both queries and documents as dense vectors in a shared embedding space, then retrieves documents whose vectors are nearest to the query vector. The key insight motivating this approach is that meaning can be encoded as position in a high-dimensional space: two pieces of text that mean similar things should occupy nearby positions, regardless of whether they share any words.

Think of dense retrieval as operating in a space where every possible meaning corresponds to a direction. Texts about "cardiac events" and texts about "heart attacks" both point in roughly the same direction in that space, because the model has learned from context that these phrases appear in the same semantic environments. Two documents that both discuss database indexing strategies also point in similar directions, even if one uses "B-tree" and the other uses "balanced tree search structure." The embedding model has captured a large web of these semantic associations and compressed it into the geometry of the embedding space.

This is fundamentally different from what BM25 does. BM25 operates on the surface form of text, counting occurrences of the literal tokens that appear in a query. Dense retrieval operates on a learned representation of meaning, where the model has internalized patterns from millions or billions of training examples and uses those patterns to place semantically similar texts near each other in the embedding space. The two approaches are looking at entirely different aspects of the text-retrieval relationship, which is exactly why combining them is so powerful.

A bi-encoder model encodes the query $q$ and each document $d$ independently into fixed-length vector representations:

where:

• $\mathbf{q} \in \mathbb{R}^m$: the dense query embedding, a vector of $m$ real-valued dimensions
• $\mathbf{d} \in \mathbb{R}^m$: the dense document embedding in the same $m$-dimensional space
• $\text{Encoder}_Q$ and $\text{Encoder}_D$: transformer-based encoders (often the same shared model) that map text to vectors

The term "bi-encoder" refers to the architecture's property of encoding the query and the document through the same (or similarly structured) encoder independently, as opposed to a cross-encoder, which concatenates the query and document before encoding them jointly. The independence of encoding is necessary for practical retrieval: it means document embeddings can be computed once, stored offline, and then queried at inference time using only a single query encoding. This is what makes dense retrieval feasible at scale.

Retrieval ranks documents by cosine similarity between the query and document embeddings:

where:

• $\mathbf{q} \cdot \mathbf{d}$: the dot product of the query and document embedding vectors, summing the products of corresponding dimensions
• $|\mathbf{q}|$ and $|\mathbf{d}|$: the Euclidean norms (lengths) of the query and document vectors
• The result is bounded in $[-1, 1]$, with 1 meaning the vectors point in the same direction (maximum similarity) and 0 meaning they are orthogonal (no similarity)

The geometric interpretation of cosine similarity is worth dwelling on. Two vectors with cosine similarity near 1 point in approximately the same direction in the embedding space, regardless of how long each vector is. This direction-focus is what makes cosine similarity appropriate for comparing embeddings: the direction encodes the meaning, while the magnitude can vary with factors like token count or encoding normalization.

In practice, most bi-encoder systems normalize embeddings to unit length during encoding, which makes $|\mathbf{q}| = |\mathbf{d}| = 1$ and reduces cosine similarity to a simple dot product: $\text{score}(q, d) = \mathbf{q} \cdot \mathbf{d}$. This normalization has a practical benefit beyond mathematical simplicity: it means retrieval becomes a matrix-vector multiplication, which can be batched and parallelized efficiently on modern hardware. When the entire corpus embedding matrix is pre-normalized, a single matrix-vector product gives you cosine similarity scores for all documents simultaneously.

Dense retrieval has a clear strength and a clear weakness relative to BM25:

• Semantic generalization. If the model was trained on pairs where "heart attack" and "myocardial infarction" appear in semantically equivalent contexts, it will embed them near each other, and a query for one will retrieve documents about the other.
• Lexical precision. Dense models can miss exact matches for rare proper nouns, product codes, or technical identifiers that appear infrequently in training data. The model has not learned a reliable representation for "AB-1042-X" because it has almost never seen it. BM25, by contrast, will find every document containing that exact string regardless of training data.

This complementary failure pattern is the foundational motivation for hybrid search. It is not that one system is better than the other in some absolute sense. It is that they are better in different regimes, and those regimes can be exploited jointly.

The core empirical finding across dozens of retrieval benchmarks is that BM25 and dense retrieval have complementary recall. Documents missed by BM25 are often found by dense retrieval, and vice versa. When you combine the two, recall at depth K (the fraction of relevant documents appearing in the top K results) increases substantially over either system alone. This is not a theoretical claim: it has been validated repeatedly on the BEIR benchmark, the MS MARCO dataset, and numerous domain-specific retrieval evaluations.

To understand why this complementarity is so consistent, it helps to think about what each system is optimized for. BM25 is optimized for exact lexical evidence: it finds documents that share the surface tokens of the query. Dense retrieval is optimized for semantic similarity: it finds documents whose meaning aligns with the query's meaning. These objectives differ. A document about "cardiac arrest management" contains the semantic content relevant to a query about "heart attack treatment" but almost none of the lexical tokens. A document containing a product serial number "QX-7721" contains the lexical tokens relevant to that query but no semantic relationship to any nearby concept. The systems see different aspects of relevance.

The key insight is that neither system is a noisy version of the other. If BM25's failures were just random errors and dense retrieval's failures were also random errors, combining them might help slightly by averaging out noise. But the failures are systematic and complementary: BM25 consistently fails on semantic queries and dense consistently fails on lexical queries. This systematic pattern means that every document in BM25's failure set is a candidate for dense retrieval's success set, and vice versa. The two failure modes partition the query space, and together the two systems cover the entire partition.

More precisely:

• Dense retrieval excels at semantic paraphrase queries, synonym-heavy queries, and cross-lingual queries
• BM25 excels at queries containing rare terms, entity names, technical codes, and queries where exact string matching matters
• Neither dominates consistently across all query types

Hybrid search is not about one system helping the other. It is about both systems searching independently, then intelligently combining their separate ranked lists or scores into a single, more complete result. Think of it like two independent experts reviewing the same corpus. Expert A (BM25) has a photographic memory for exact words and can instantly identify any document containing a specific phrase. Expert B (dense retrieval) has a deep understanding of meaning and can identify documents that address the same concept even when worded completely differently. Neither expert is redundant. The combined recommendation of both experts, when appropriately weighted, will be more complete than either recommendation alone.

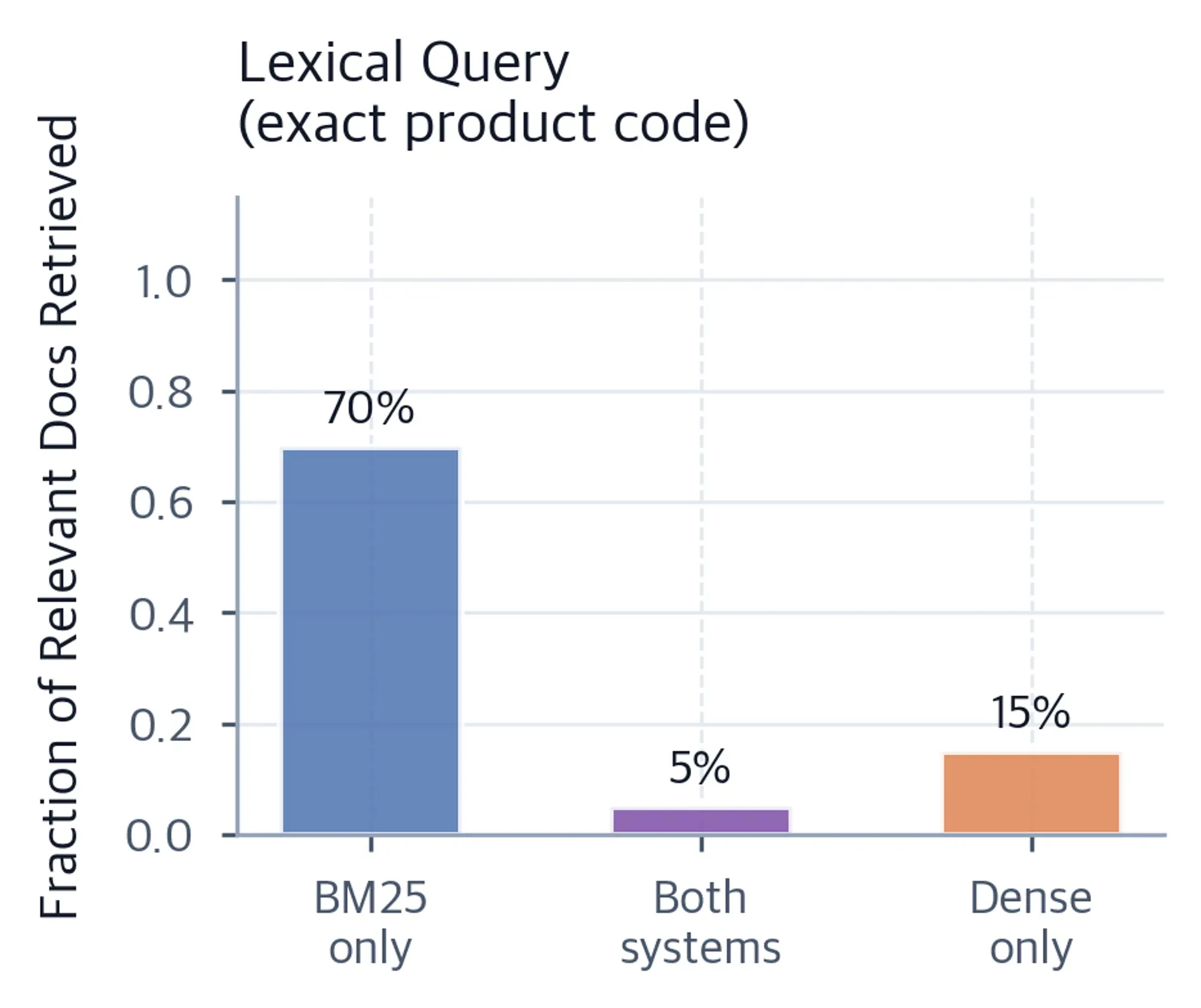

The chart confirms the complementarity argument visually. For lexical queries (exact product codes, rare identifiers), BM25 retrieves 70% of relevant documents on its own while dense retrieval alone captures only 5%. For semantic queries (paraphrases, synonym-based questions), the situation reverses: dense retrieval captures 70% and BM25 alone captures only 5%. The "Both systems" bar is documents that either system would have found. Hybrid search captures the union of the BM25-only and dense-only bars in addition to the overlap, making the combined recall the sum of all three columns.

Given two ranked lists from BM25 and a dense retriever, there are two main ways to combine them: reciprocal rank fusion, which treats both lists as ordinal rankings without using raw scores, and weighted score combination, which directly blends the numeric scores. Each has real tradeoffs, and the choice between them has practical consequences for both performance and operational simplicity.

The challenge of fusion is more subtle than it first appears. The two retrieval systems return results on completely different scales: BM25 scores are unbounded sums of IDF-weighted term frequencies, while cosine similarities are bounded in $[-1, 1]$. A BM25 score of 12.0 and a cosine similarity of 0.85 are not comparable quantities. Any fusion method must either normalize these scores onto a common scale or abandon the raw scores entirely and work only with the rank orderings.

The choice between these strategies is not purely technical. It shows a deeper question about what information you trust. Do you trust the relative ordering of documents more than the absolute magnitude of their scores? Then RRF is your approach. Do you trust that the score magnitudes, after appropriate normalization, carry real information about how much better one document is than another? Then weighted combination may serve you better. Understanding this distinction will help you make better decisions when deploying hybrid search in practice.

Think of the fusion problem as analogous to combining votes from two juries that use different scoring systems. One jury rates cases on a 0-100 scale, the other on a letter grade scale. If you want to combine their verdicts, you have two choices: convert everything to a common scale and average the numbers, or simply note each jury's ranking and combine those ordinal positions. Both approaches work, but they make different assumptions about how real the raw scores are compared to the rank orderings. RRF takes the latter approach; weighted combination takes the former.

Reciprocal rank fusion was introduced by Cormack, Clarke, and Buettcher in 2009. It avoids a basic practical problem: BM25 scores and cosine similarity scores live on completely different numerical scales and cannot be directly added or averaged. BM25 scores might range from 0 to 15 for a given query; cosine similarities might range from 0.7 to 0.95. Adding them raw would let the BM25 system dominate.

To see why this is a problem concretely, imagine a query where BM25 scores are [12.3, 8.7, 6.1, 4.2, 2.0] for its top five documents, and cosine similarities are [0.91, 0.89, 0.87, 0.85, 0.83] for the dense retriever's top five. If you add these raw, the BM25 values (which are an order of magnitude larger) would completely swamp the dense values. The combined ranking would be in effect identical to the BM25 ranking alone. You would have built an expensive two-system pipeline that behaves like a one-system pipeline.

RRF sidesteps this by converting both ranked lists to rank-based scores. The key idea is to replace each document's raw score with a value derived solely from its rank position. For a document $d$ appearing at rank $r$ in retrieval system $s$, its RRF score contribution from that system is:

where:

• $r_s(d)$: the rank position of document $d$ in system $s$'s ranked list (rank 1 is highest)
• $k$: a smoothing constant, typically set to 60, that prevents the very highest-ranked documents from receiving disproportionately large scores relative to lower-ranked documents

This formula is elegant in its simplicity. Every document gets a score that depends only on its position in the list, not on the magnitude of the score that produced that position. A document ranked first by BM25 gets $1/(60+1) \approx 0.016$ regardless of whether its BM25 score was 15.0 or 0.3. The score scale information is deliberately discarded, and only ordinal position is retained.

The final RRF score for document $d$ across all $n$ retrieval systems accumulates contributions from every system:

where:

• The sum runs over all retrieval systems $s = 1, \ldots, n$ (in hybrid search, typically $n = 2$: BM25 and dense)
• Documents not appearing in a system's ranked list contribute 0 from that system (they are simply omitted)
• Documents appearing high in multiple lists accumulate the largest RRF scores, rewarding consensus across systems

The accumulation structure embodies a clear principle: a document that appears in the top 5 of both systems is more likely to be relevant than a document that appears first in one system and not at all in the other. RRF rewards documents for which both experts agree, and penalizes documents that only one expert endorses. This consensus-seeking property makes RRF naturally reliable: it is hard for a single misbehaving retrieval system to dominate the combined ranking.

Why k = 60?Link Copied

The constant $k = 60$ was found empirically to work well across many retrieval benchmarks. It controls the shape of the rank-score curve. Substituting specific rank values with $k = 60$:

• Rank 1 gives score $1/61 \approx 0.0164$
• Rank 10 gives score $1/70 \approx 0.0143$
• Rank 60 gives score $1/120 \approx 0.0083$
• Rank 1000 gives score $1/1060 \approx 0.00094$

The gap between rank 1 and rank 10 is small: 0.0164 vs 0.0143, a ratio of roughly 1.15. This is intentional. RRF gives credit to many documents, including those below the very top ranks, which helps with diverse query types. Smaller values of $k$ would amplify the difference between rank 1 and rank 10, making the fusion more aggressive in favoring top-ranked documents.

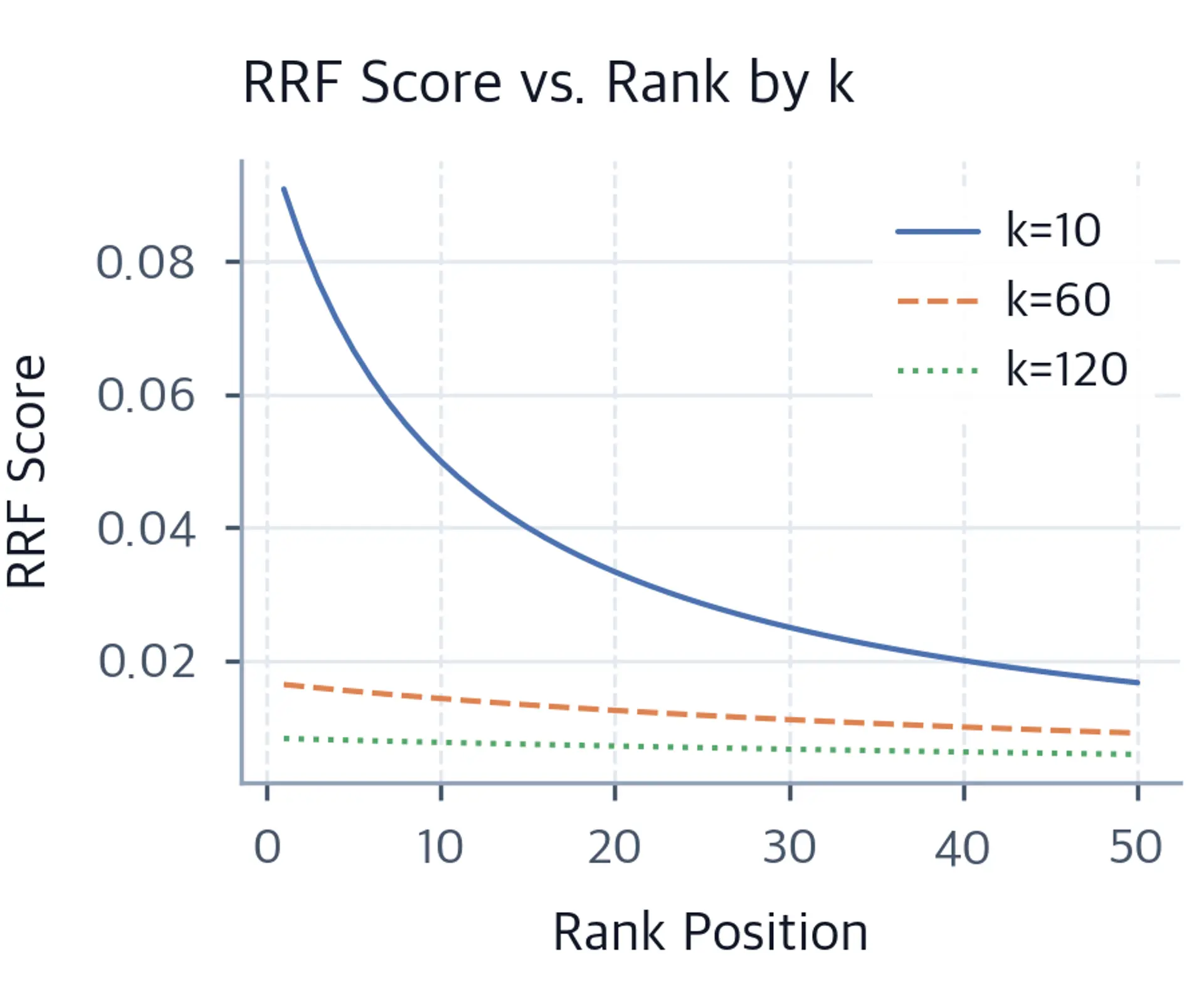

To build intuition for the role of $k$, consider what happens at the extreme values. If $k = 0$, the score for rank 1 is $1/1 = 1.0$ and for rank 2 it is $1/2 = 0.5$, a 2x gap. For rank 10 it is $1/10 = 0.1$, a 10x gap from first place. The first-ranked document would dominate heavily. At $k = 1000$, the scores at ranks 1 through 10 would be nearly identical, hovering around $1/1001$ through $1/1010$. The ranking would be insensitive to rank differences in the top 10. The default $k = 60$ sits in a practical middle ground: sensitive enough to reward top-ranked documents appropriately, but not so aggressive that a single lucky top placement completely overrides everything else.

A Worked RRF ExampleLink Copied

Suppose BM25 returns $[d_3, d_1, d_5, d_2, d_7]$ and the dense retriever returns $[d_1, d_5, d_2, d_4, d_3]$.

With $k = 60$:

Final order: $d_1, d_5, d_3, d_2, d_4, d_7$

Notice that $d_3$ was BM25's top result but placed 5th in dense retrieval. It falls to third overall because $d_5$ ranked well in both systems. $d_4$ appeared only in the dense list and scores lower than all documents with dual coverage. RRF rewards consensus across systems.

This example also illustrates what RRF does to documents that appear in only one list. Document $d_4$ ranked 4th in the dense list, which is a respectable position, but it was absent from BM25 entirely. Document $d_7$ ranked 5th in BM25 but was absent from the dense list. Both receive only single-system credit, which is less than the credit received by any document appearing in both lists. Even $d_2$, which ranked 4th in BM25 and 3rd in dense (not particularly impressive positions in either), receives more total credit than $d_4$ or $d_7$ because it appears in both lists. This consensus preference is the defining property of RRF.

The key insight from this worked example is that RRF does not care about the magnitude of the underlying BM25 or dense scores. Whether $d_3$ had a BM25 score of 15.0 or 1.5, it gets exactly the same RRF contribution: $1/61$. This scale-invariance is what makes RRF the safe default for hybrid search: you never need to worry about one retrieval system's scores dominating because of scale differences, and you never need to estimate normalization parameters from data.

The alternative to RRF is to blend the actual scores directly. This requires that both systems return scores on comparable scales, which usually means normalizing them first. Weighted combination is more expressive than RRF: it lets you say that document A ranked higher than document B and by how much. When the score differences carry real information (a cosine similarity of 0.95 really is substantially better than 0.70), weighted combination can use that information in ways that RRF cannot.

A common approach is min-max normalization applied per query. For each retrieval system, we rescale its raw scores to lie in the range $[0, 1]$ by subtracting the minimum observed score and dividing by the observed score range:

where:

• $s_\text{BM25}(d)$: the raw BM25 score for document $d$
• $\min_j s_\text{BM25}(d_j)$: the minimum BM25 score across all retrieved documents $d_j$
• $\max_j s_\text{BM25}(d_j)$: the maximum BM25 score across all retrieved documents $d_j$
• The resulting $\hat{s}_\text{BM25}(d) \in [0, 1]$, with 0 for the lowest-scoring document and 1 for the highest

This normalization is linear, which means it preserves the relative gaps between scores. If one document scored twice as high as another in raw BM25, it will still score twice as high after normalization (assuming the minimum score is 0). It also brings scores from different systems onto the same scale, making direct combination possible.

The same normalization is applied to the dense scores: $\hat{s}_\text{dense}(d) \in [0, 1]$. After normalizing both BM25 and dense scores to $[0, 1]$, the combined score is a weighted sum:

where:

• $\alpha \in [0, 1]$: a mixing hyperparameter controlling how much weight the dense retrieval score receives
• $1 - \alpha$: the complementary weight assigned to the BM25 score
• Setting $\alpha = 1$ gives pure dense retrieval; setting $\alpha = 0$ gives pure BM25; values around $0.5$ to $0.7$ often work well on mixed query benchmarks

The mixing parameter $\alpha$ is the key lever for domain adaptation in weighted fusion. It lets you express a prior belief about how much to trust each retrieval modality. On a corpus of scientific literature where users frequently search by exact paper titles, author names, or technical acronyms, you might set $\alpha = 0.3$, giving 70% weight to BM25. On a customer-facing search system for a knowledge base where users ask open-ended questions in natural language, you might set $\alpha = 0.7$, giving 70% weight to dense retrieval. The ability to express this prior numerically, and to tune it empirically on labeled data, is the main advantage of weighted combination over RRF.

Advantages and DisadvantagesLink Copied

Weighted combination allows more precise tuning when you have query-level signals. If you know a query is lexical (an exact product name), you might increase $1 - \alpha$. If you know a query is semantic (a conceptual question), you might increase $\alpha$. Systems that classify query type before retrieval can dynamically set $\alpha$.

The downside is sensitivity to normalization. Min-max normalization is affected by outliers: if one document has an extremely high BM25 score, it compresses all other scores toward zero. A single highly-matching document (for instance, one that contains every query term many times in a short document) can push all other documents' normalized scores close to zero, effectively neutralizing the contribution of BM25 for that query. Less outlier-sensitive alternatives include score clipping before normalization or using rank-based sigmoid normalization. In contrast, RRF is entirely immune to outliers because it only uses ordinal position.

Beyond these two basic strategies, more advanced fusion methods exist. Learn-to-rank approaches train a lightweight model on top of retrieval features (BM25 score, dense score, document length, query length) to predict relevance. These require labeled training data but can outperform fixed fusion weights materially on specialized domains.

The intuition behind learn-to-rank fusion is that different features matter differently for different query types. A logistic regression or gradient boosted tree trained on relevance labels can learn that BM25 score is highly predictive for short, specific queries but dense score is more predictive for long, natural language questions. No fixed $\alpha$ can capture this query-type-conditional behavior, but a learned model can.

Convex combination with cross-validation, where $\alpha$ is tuned on held-out queries and their relevance judgments, is a practical middle ground that does not require full learn-to-rank infrastructure. If you have even a few hundred labeled query-document pairs from your domain, a cross-validated $\alpha$ sweep over a grid of values (say, 0.0, 0.1, 0.2, ..., 1.0) typically takes seconds and often yields a real improvement over the default $\alpha = 0.5$.

Let us build a hybrid search system step by step. We will use the rank_bm25 library for the BM25 half and sentence-transformers for the dense half, then implement both RRF and weighted fusion.

First, install the required libraries.

We define a small corpus of documents that tests both semantic and lexical retrieval. Some queries will favor BM25 (exact term matches), others will favor dense retrieval (semantic similarity).

The corpus deliberately mixes conceptual machine learning documents with one highly specific product record (document 9). This makes possible us show BM25's strength on exact lexical matches and dense retrieval's strength on semantic paraphrase queries.

We tokenize the corpus and build a BM25 index using rank_bm25.

We encode the corpus with a sentence-transformer model. In production systems you would pre-compute and store these embeddings, but here we compute them inline to keep the code self-contained.

We now implement RRF. It takes multiple ranked lists, each as a list of (doc_id, score) tuples, and combines them.

For weighted fusion, we normalize scores and apply a mixing weight $\alpha$.

Let us test all three retrieval modes on two contrasting queries: one semantic, one lexical.

For the semantic query, dense retrieval ranks the BERT document (doc 4) near the top because it understands that "bidirectional representations" relates to "stand for text meaning," even though the words do not overlap. BM25 ranks it lower because the query terms are not present verbatim. For the product code query, BM25 immediately surfaces doc 9, which contains "AB-1042-X" exactly. The hybrid systems inherit the best of both behaviors.

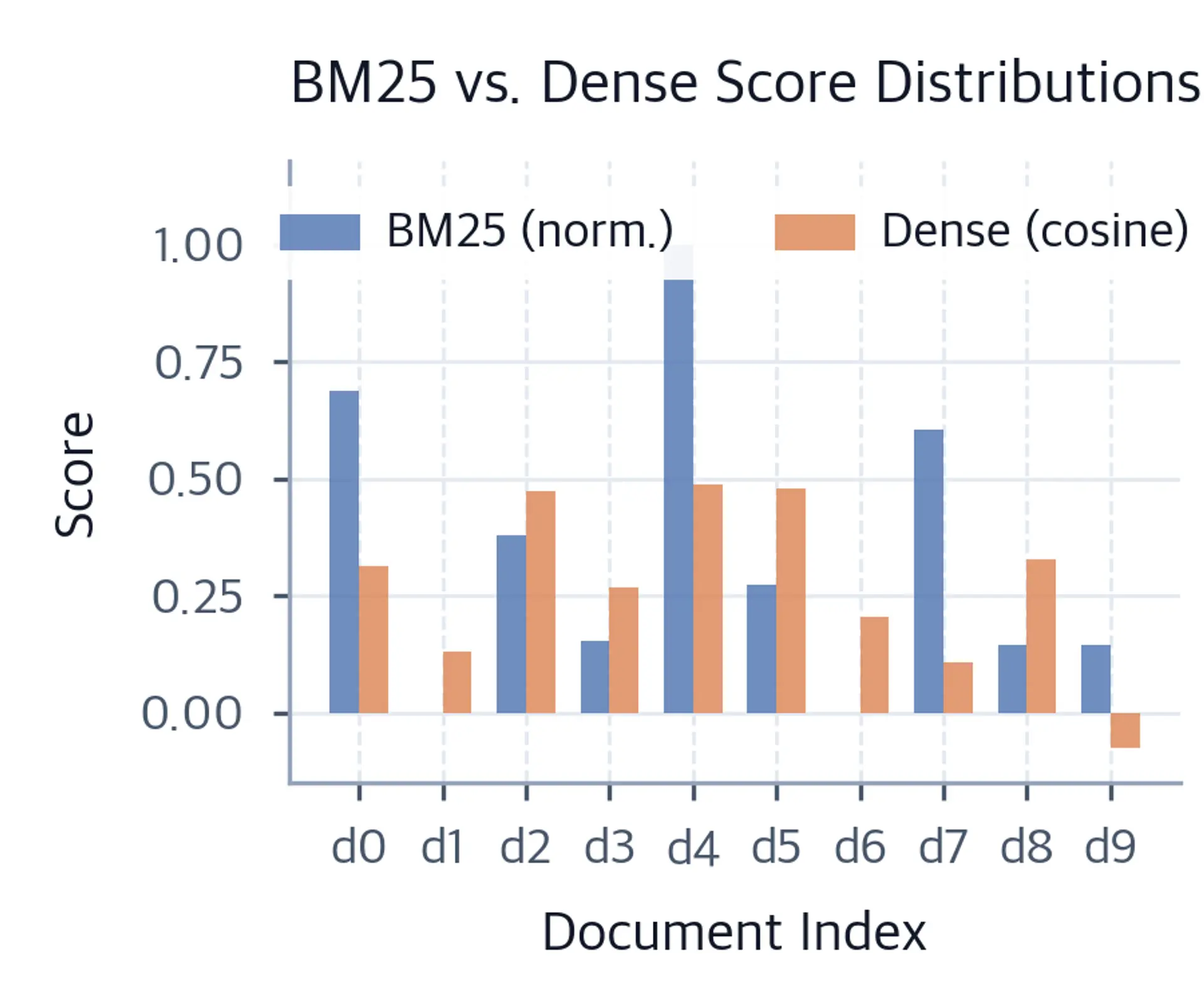

Let us visualize how the BM25 and dense scores distribute across documents for a single query, and how RRF flattens the rank-score curve compared to raw scores.

The left panel shows that BM25 and dense scores for the same query are not directly comparable: BM25 scores reflect term-frequency-weighted IDF sums while cosine similarities are bounded between -1 and 1 with a very different distribution. This is exactly why naive score addition fails. The right panel illustrates the RRF curve for three values of $k$: smaller $k$ creates a steeper drop from rank 1 to rank 2 (amplifying top-rank advantages), while larger $k$ flattens the curve (treating many top-ranked documents more equally). The default $k = 60$ strikes a practical balance.

To quantitatively assess hybrid search, we compute Mean Reciprocal Rank (MRR) and Recall@K. We need ground-truth relevance judgments. For this example we define them manually.

All four methods score perfectly on this ten-document toy corpus. That is useful as an implementation sanity check, but it is not a meaningful quality comparison: with one relevant document per query and only ten candidates, the task is too easy to expose complementary errors. The figure below therefore uses an explicitly illustrative held-out benchmark profile to show the trade-off that a real labeled evaluation should measure. In production, replace these example values with metrics from a representative query set.

The alpha parameter in weighted fusion controls the balance between lexical and semantic signals. Because the tiny live corpus above saturates, the following sensitivity profile is explicitly illustrative: it shows the common pattern of dense-favored queries improving as alpha rises while BM25-favored queries decline. A production system should generate this curve by sweeping alpha on a labeled development set.

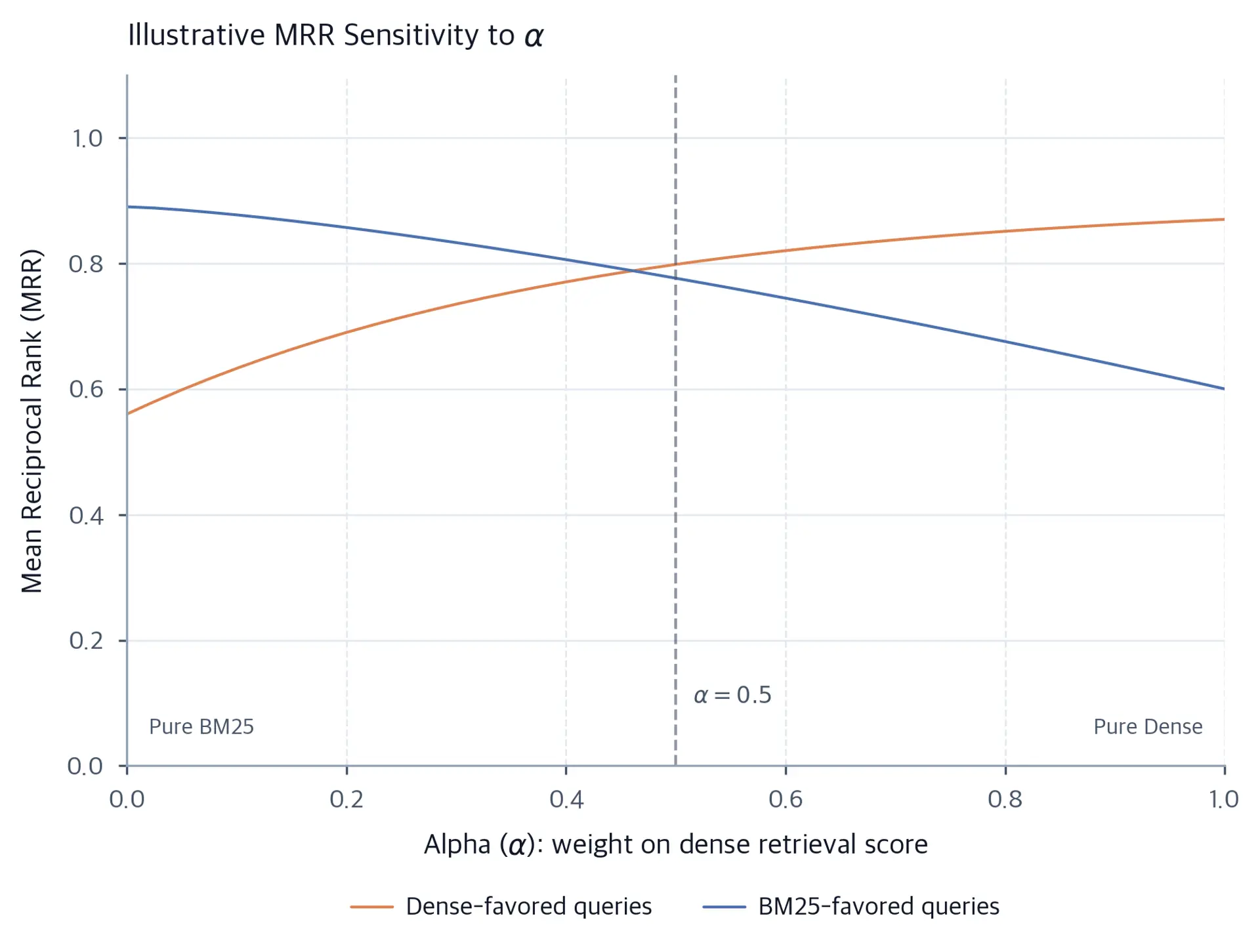

The illustrative sensitivity plot reveals the key tuning trade-off. BM25-favored queries reach their highest MRR near alpha 0, while dense-favored queries improve as more weight shifts to the dense score. A system serving a mixed workload should therefore tune alpha on a representative sample of labeled queries rather than defaulting to 0.5. If the workload skews toward exact identifiers and lexical lookups, a lower alpha is often safer. If it skews toward paraphrased natural-language questions, a higher alpha may work better.

The key parameters for building and tuning a hybrid search system are:

• k1 (BM25): Term frequency saturation constant, typically 1.2 to 1.5. Higher values allow term frequency to contribute more before saturating; lower values saturate faster and give more equal weight to each term occurrence.
• b (BM25): Length normalization strength, typically 0.75. A value of 1.0 applies full length normalization; 0.0 disables it entirely.
• k (RRF): Smoothing constant for reciprocal rank fusion, typically 60. Larger values flatten the rank-score curve, giving more equal credit to documents ranked anywhere in the top list.
• alpha (weighted fusion): Mixing weight for dense scores, in $[0, 1]$. Values near 0.5 to 0.7 often work well on mixed query benchmarks; tune on labeled data specific to your domain.
• top_k: Number of candidates to retrieve from each system before fusion. Larger values increase recall but also increase fusion computation time.

Implementing hybrid search in production requires more thought than the toy examples above suggest. Several practical issues arise at scale that are easy to overlook when prototyping. The gap between a working demonstration and a production-ready system is real, and understanding it before you start will save significant time.

Think of production hybrid search as managing two parallel pipelines that must be orchestrated carefully. Each pipeline has its own index, its own serving infrastructure, and its own failure modes. When they run correctly in parallel, the combined system is better than either alone. When one pipeline is slow, misconfigured, or serving stale data, the hybrid output degrades in ways that are harder to debug than single-system failures.

BM25 and dense retrieval have fundamentally different index types. BM25 uses an inverted index: a map from each vocabulary term to the list of documents containing it, along with term frequency statistics. This index scales well with document count and supports very fast retrieval for short queries through posting list intersection. Dense retrieval uses an approximate nearest neighbor index (HNSW, IVF, or similar, as discussed in prior chapters) over high-dimensional embeddings. Both indices can be queried in milliseconds at corpus sizes in the millions, but they must both be queried in parallel for hybrid search to avoid doubling latency.

Well-designed hybrid search systems issue both queries simultaneously and join the results after both return. If one system is materially slower, it becomes the bottleneck. In practice, HNSW indexes on GPU-accelerated hardware are often faster than BM25 on large corpora, making the inverted index the potential bottleneck for very high query volumes.

The memory footprint also differs substantially. An inverted index for a million-document corpus might occupy a few gigabytes, dominated by term-frequency and document-frequency statistics. A dense index storing 768-dimensional float32 embeddings for the same corpus occupies $1{,}000{,}000 \times 768 \times 4 = 3.07$ GB just for the raw vectors, before any index structure overhead. For large corpora, the memory requirements for the dense index are the binding constraint, and strategies like product quantization (compressing each vector to a smaller representation) become necessary.

Modern vector database systems like Elasticsearch (with vector search extensions) and Weaviate support hybrid retrieval natively, maintaining both an inverted index for BM25 and a vector index for dense retrieval within a single system. This simplifies operational complexity. Alternatively, you can run Elasticsearch or Apache Solr for BM25 alongside a separate Faiss or Qdrant instance for dense retrieval, but this requires managing two separate services and merging results at the application layer.

The co-location approach has operational advantages: a single system to monitor, a single API to query, and a single codebase to maintain. The split-system approach gives more flexibility in choosing the best tool for each retrieval type and can scale each component independently. For teams with strong DevOps infrastructure, the split approach is fine. For teams that want operational simplicity, a system with native hybrid search support is strongly preferred.

The optimal $\alpha$ for weighted fusion or the choice between RRF and weighted fusion depends heavily on the domain and query distribution. On technical documentation corpora where users frequently search by exact function names, class names, or error codes, heavier weight toward BM25 is beneficial. On open-domain question answering or customer support corpora where users rephrase common questions differently each time, heavier weight toward dense retrieval often wins.

The best practice is to collect a sample of real queries with relevance judgments (which documents users clicked, or human-annotated relevant documents) and use those to tune $\alpha$ via cross-validation. Without labeled data, RRF with the default $k = 60$ is the safest starting point.

A growing trend extends hybrid search with sparse learned encoders like SPLADE. SPLADE uses a transformer to produce a sparse vector over the full vocabulary, where each dimension is a term's importance weighted by the model's understanding of the query or document. Unlike BM25, which is purely term-frequency-based, SPLADE can expand a query "heart attack" to also assign high weight to "myocardial," "cardiac," and "infarction" in its sparse representation. This makes sparse encoders a middle ground between classical BM25 and dense retrievers: they maintain the sparse, vocabulary-aligned structure that supports efficient inverted index retrieval while incorporating semantic understanding.

Think of SPLADE as a learned version of query expansion: instead of manually writing synonym dictionaries, the model learns from training data which vocabulary dimensions should be activated for which queries and documents. The resulting sparse vectors can be indexed and searched using the same inverted index infrastructure as BM25, but they capture a much richer notion of term relevance. Hybrid systems combining BM25, SPLADE, and dense retrieval can outperform any pairwise combination, though they also increase system complexity and require more index infrastructure.

Hybrid search is not a free lunch. Combining two retrieval systems doubles the infrastructure: you must maintain two indices, execute two retrieval operations per query, and implement fusion logic that is correct under all edge cases (empty ranked lists, ties, score normalization edge cases). For small-scale applications or corpora with clear lexical structure, a well-tuned BM25 system alone may outperform a poorly-configured hybrid system. The additional complexity pays off only when the two systems have complementary coverage on your specific query distribution.

The latency cost, while often manageable through parallelization, is real. If your retrieval must complete in under 50 milliseconds and your dense retrieval alone takes 40 milliseconds, adding BM25 without careful parallel execution will breach latency budgets. Hybrid search also shifts the debugging challenge: when results are wrong, it is now unclear whether the failure originates in the BM25 component, the dense component, or the fusion logic. A document that deserved to rank first might have ranked 3rd in BM25 (low BM25 score) and 3rd in dense (moderate cosine similarity), giving it a low combined score even though it was the best match. Diagnosing this requires inspecting both individual system outputs, which adds operational overhead.

Weighted score combination introduces an additional fragility: the normalization is sensitive to the retrieval pool size. If you retrieve top-100 from each system before fusing, the min and max scores used for normalization are computed over 100 results. If you change to top-50, the normalization range changes, and the same document receives a different normalized score even though nothing else changed. This coupling between retrieval depth and score normalization is a subtle source of inconsistency in production systems that switch retrieval depths dynamically. RRF does not have this problem because it uses only rank positions.

Despite these challenges, hybrid search has become a standard architectural pattern in production RAG systems because the recall gains are consistent and the tradeoffs are well understood. The BEIR benchmark, a heterogeneous collection of information retrieval datasets, has repeatedly shown that no single retrieval method dominates across all domains. Hybrid search is the practical response to this fragmentation: rather than betting on one paradigm, you hedge across both. The incremental infrastructure cost is justified by more consistent results across diverse query types.

The impact on downstream RAG performance is particularly significant. As we explore in the upcoming Reranking chapter, the generator's answer quality depends critically on whether the correct document appears in the retrieved context at all. A failure to retrieve the relevant document cannot be corrected by a better reranker or a more capable generator. By increasing recall, hybrid search raises the quality ceiling for the entire RAG pipeline.

Hybrid search combines BM25 keyword retrieval with dense semantic retrieval to reach better recall than either system alone:

• BM25 uses saturated term frequency, inverse document frequency, and document length normalization to rank documents by keyword relevance. Its key hyperparameters $k_1$ and $b$ control saturation and length normalization.
• Dense retrieval encodes queries and documents as dense vectors and ranks by cosine similarity. This makes possible semantic generalization across paraphrases and synonyms.
• Reciprocal rank fusion (RRF) combines ranked lists by summing $1/(k + r)$ contributions per document, bypassing score scale incompatibility. The default $k = 60$ works broadly well without tuning.
• Weighted score combination normalizes scores to a common range and blends them with a weight $\alpha$, letting query-adaptive fusion but requiring careful normalization and hyperparameter tuning.
• Both systems excel at different query types: BM25 handles exact-match and rare-term queries; dense retrieval handles semantic and paraphrase queries. Their recall failures are complementary, which is the core reason hybrid search improves over either alone.
• In production, both indices should be queried in parallel to avoid latency doubling. Systems like Elasticsearch with vector extensions support hybrid search natively.

With hybrid retrieval improving recall, the next challenge is precision: so the top-ranked documents are truly the most relevant ones. The next chapter on Reranking addresses exactly this, using cross-encoder models that jointly encode query and document to produce more accurate relevance scores for the candidate set that hybrid retrieval gives.

Ready to test your understanding? Take this quick quiz to reinforce what you've learned about hybrid search.
