Mixtral 8x7B: Sparse Mixture of Experts Architecture

In December 2023, Mistral AI released Mixtral 8x7B, which demonstrated that Mixture of Experts architectures could match or exceed the performance of models five times larger while using a fraction of the compute per forward pass. Mixtral was a measurable milestone, being the first widely accessible open-weight MoE model. It proved the efficiency gains discussed in previous chapters could deliver real-world performance improvements rather than remaining theoretical. The release came at a particularly measurable moment: the open-source community had been watching proprietary labs scale models to 100B+ parameters while wondering whether smaller organizations could ever compete. Mixtral's answer was a resounding yes, but through cleverness rather than brute-force scaling.

To understand why Mixtral matters, consider the basic tension in large language model design. Larger models generally perform better, but they are also more expensive to serve. A 70B parameter model is roughly five times more expensive to run than a 13B model, yet users want 70B quality at 13B cost. Conventional scaling gives no escape from this tradeoff: doubling parameters roughly doubles inference cost. Sparse architectures break this relationship by storing more parameters than you compute with. Think of it as a large library where, instead of reading every book before answering a question, you read only the two most relevant ones. The knowledge stored in all the unread books is still available, but you only pay the cost of retrieving what you need.

Mixtral combines the architectural innovations from Mistral 7B (which we covered in Part XXIX) with a sparse MoE layer that routes each token through two of eight expert networks. The result is a model with 46.7 billion total parameters, of which only 12.9 billion are active during any single forward pass. As a result, Mixtral can match Llama 2 70B's quality while requiring roughly the same inference cost as a 13B dense model. This is not a modest improvement: it is a major change in what is possible with a given compute budget, and it arrived as a freely available open-weight model that anyone could download and run.

The timing of Mixtral's release also reflected the maturation of MoE research. The Mixture of Experts concept dates back to the 1990s, and transformer-scale MoE research accelerated with Google's Switch Transformer in 2021 and GShard before it. But these earlier models were research systems unavailable to the public. Mixtral was different: a production-ready, instruction-tuned model with an open license that practitioners could immediately deploy, fine-tune, and study. The release effectively democratized MoE architectures in the same way that LLaMA had democratized large language models more broadly.

Mixtral's design philosophy prioritizes practical deployability over theoretical purity: eight experts rather than thousands, top-2 routing rather than top-1, large experts rather than many small ones, and a simple linear router rather than complex learned routing mechanisms. These choices reflect quality and stability tradeoffs. Understanding them is the central goal of this chapter.

This chapter examines Mixtral's architecture in detail, explaining how it integrates the MoE concepts from earlier chapters into a cohesive design. We'll explore its expert structure, analyze performance benchmarks, and understand the efficiency tradeoffs that make sparse models increasingly attractive for production deployment. By the end, you will understand what Mixtral does, why each design decision was made, and what alternatives exist.

Mixtral builds directly on the Mistral 7B foundation. If you recall from Part XXIX, Mistral 7B introduced several efficiency-focused innovations: sliding window attention for long contexts, Grouped Query Attention (GQA) for faster inference, and RoPE for position encoding. Mixtral preserves all these components in its attention layers while replacing the dense feed-forward networks with MoE layers. This choice shows a key architectural insight: the attention mechanism handles sequence-level reasoning and information routing, while the feed-forward layers serve as the model's knowledge storage and feature transformation engine. By making only the feed-forward layers sparse, Mixtral maintains the attention mechanism's ability to integrate information across the full sequence and gains efficiency benefits from conditional computation in the knowledge-intensive FFN components.

Think of the attention layers as the brain's working memory, holding all relevant context simultaneously while deciding what matters. The feed-forward layers, by contrast, act more like long-term memory, translating a momentary representation into stored knowledge about language and facts, including reasoning patterns. This analogy motivates the architectural choice precisely: it makes sense to specialize long-term memory access (the FFN) while keeping working memory (attention) general-purpose and sequence-wide. Replacing only the FFN with sparse experts gives you specialized knowledge retrieval at inference time while preserving the model's ability to attend to the full context globally.

Another way to appreciate this design is to consider what would happen if attention were made sparse instead. Sparse attention would limit which tokens can communicate with which others, potentially breaking the global context understanding that lets tasks like question answering and summarization. Sparse feed-forward computation carries no such penalty: each token is processed independently by the FFN, so routing different tokens through different experts introduces no information loss. The MoE transformation of each token is computed in isolation, meaning the router can freely assign different tokens to different experts without creating dependencies that would break the attention computation.

The high-level architecture uses the decoder-only transformer pattern we've seen throughout the GPT family. Each Mixtral layer consists of the following components:

1. Multi-head attention with sliding window masking, GQA, and RoPE, identical to Mistral 7B
2. MoE feed-forward layer replacing the standard FFN, with 8 experts and top-2 routing

The key hyperparameters define the model's scale:

• Layers: 32 transformer blocks
• Hidden dimension: 4,096
• Attention heads: 32, with 8 key-value heads via GQA
• Experts per layer: 8
• Active experts per token: 2
• Expert FFN intermediate dimension: 14,336
• Vocabulary size: 32,000
• Context length: 32,768 tokens (with 4,096 sliding window)

These hyperparameters were not chosen arbitrarily: they reflect a careful study of the quality-efficiency frontier. The choice of 8 experts with top-2 routing, for instance, means 25% of expert capacity is activated per token. Fewer experts (say, 4) would reduce memory requirements but limit specialization. More experts (say, 64) would allow finer specialization but exponentially increase memory while giving diminishing returns in quality. The intermediate dimension of 14,336 is particularly noteworthy: it is substantially larger than the 11,008 used in Llama 2 7B's dense FFN. This shows the insight that each expert should be large enough to function as a capable specialist rather than a weak classifier. Smaller experts would require more of them to reach the same quality, worsening the memory footprint without improving efficiency.

The parameter count calculation reveals why Mixtral is simultaneously large and efficient. To understand this, we trace through where the parameters reside. Each expert FFN contains roughly 5.6 billion parameters. This count arises from the three projections (gate, up, and down) that map from hidden dimension 4,096 to intermediate dimension 14,336 and back, using the SwiGLU activation function. Specifically, each projection matrix contributes approximately $4096 \times 14336 \approx 58.7$ million parameters, and with three projections per expert and 8 experts across 32 layers, the total FFN parameters reach approximately 45 billion. The attention layers, embeddings, and output projections add another 1.7 billion, bringing the total to about 46.7 billion parameters.

However, since only 2 of 8 experts activate per token, the effective parameter count during inference is closer to 12.9 billion, comparable to running a 13B dense model. This distinction between total and active parameters is central to MoE efficiency: the model stores knowledge across all experts, but the computational cost per forward pass depends only on the subset that processes each token.

Mixtral's expert design follows the principles we established in the Expert Networks chapter, with each expert implemented as a standard SwiGLU feed-forward network. This architecture uses gating to selectively activate different parts of the feed-forward computation. The intuition is straightforward: rather than passing every feature through the same transformation, a gated architecture lets the network learn which features matter most for a given input, emphasize those, and suppress others. This selective activation is more expressive than a simple linear transformation followed by a nonlinearity.

Think of each expert as a specialist who has developed a personal toolkit for handling certain kinds of inputs. When you route a token about Python list comprehensions to a code-focused expert, that expert applies its learned transformations for processing programming concepts. When you route a token from a French sentence to a language-fluency expert, a different set of transformations applies. But critically, neither expert needs to know about the other's domain: each operates independently on its assigned inputs, creating an output vector in the same representational space so the results can be combined. The expertise is encoded in the weights of each expert's projection matrices, which were learned during training to excel at their respective specializations.

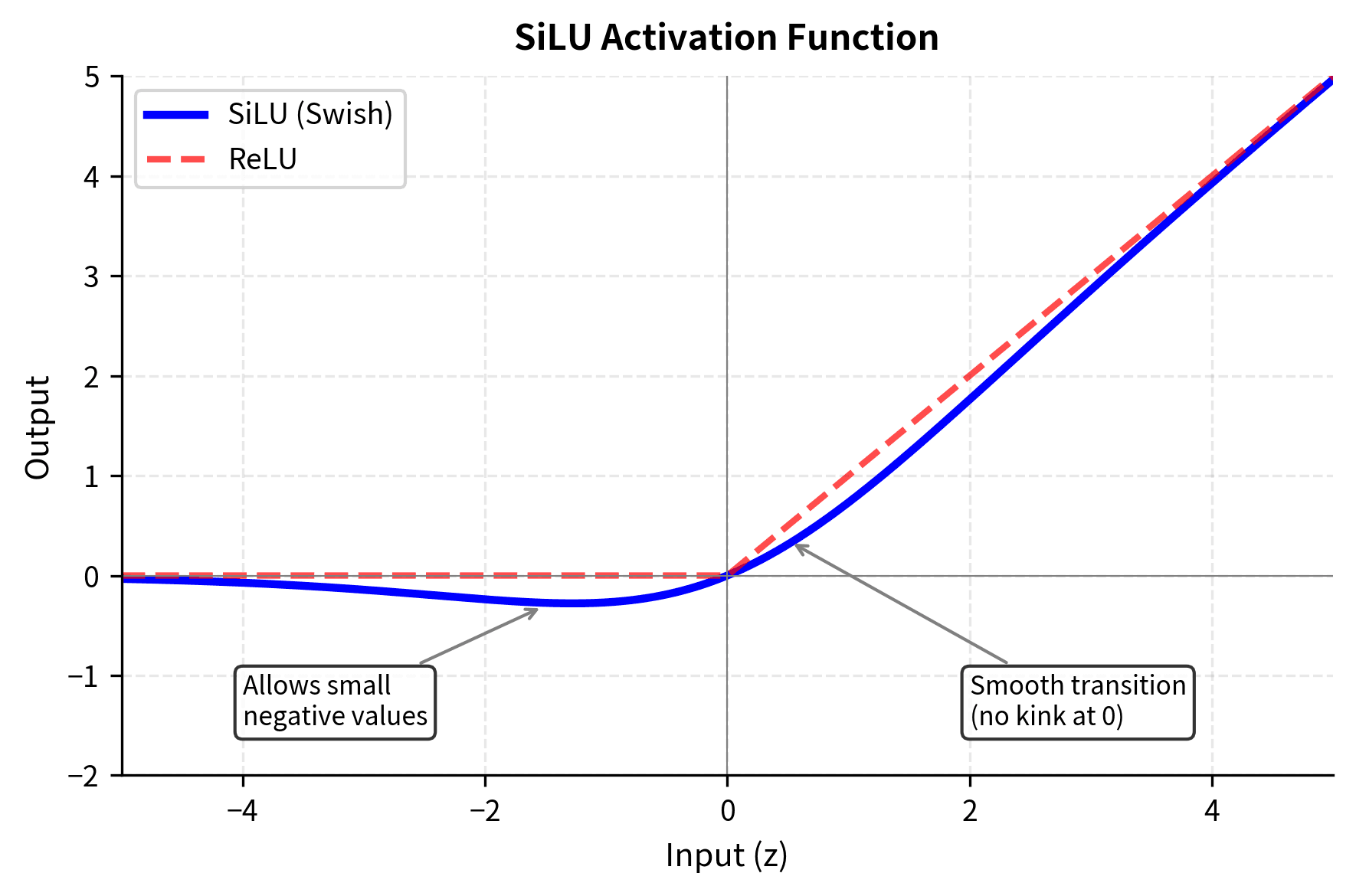

SwiGLU is well-suited for experts because its gating mechanism lets each expert make soft decisions about which input features are relevant to its domain. An expert specialized in mathematical reasoning might learn to gate on features that encode numerical context, suppressing linguistically relevant features that another expert handles better. This adaptive feature selection lets each expert process the same input differently, producing diverse transformations for the weighted output combination.

Building on our discussion of Gated Linear Units from Part XV, each expert computes a gated transformation of its input. The SwiGLU activation uses gating to control information flow. Each expert transforms the input through three learned projection matrices, combining a gating mechanism with element-wise multiplication to selectively activate features. Given an input vector $x$, expert $i$ computes a two-branch structure. One branch determines which features to emphasize (the gate), while the other gives the features to be gated (the up projection). The element-wise product of these two branches creates a filtered representation that is then projected back to the original dimension.

With routing weights determined, the final MoE layer produces its output by taking a weighted sum of the selected experts. Since the router selects exactly two experts per token, the computation aggregates their outputs in a straightforward manner. The formula computes a convex combination, where each expert processes the input independently, creating its own output vector, and the router weights (which sum to 1) determine how much each expert contributes to the final result. This blending allows the model to combine complementary knowledge from multiple experts rather than relying solely on one expert's output. For instance, a token related to "Python programming for data science" might route to both a code-focused expert and a math-focused expert, blending their perspectives.

The MoE output combines the selected experts using their routing weights:

where:

• $x \in \mathbb{R}^{d_{\text{model}}}$: the input hidden state vector for a single token
• $\text{TopK}(g(x)) \subset \{1, 2, ..., 8\}$: the set of exactly two expert indices selected by the router
• $g_i(x) \in [0, 1]$: the normalized routing weight for expert $i$ from the softmax output. Represents the proportion of expert $i$'s contribution.
• $\text{Expert}_i(x) \in \mathbb{R}^{d_{\text{model}}}$: the output vector produced by expert $i$ when applied to input $x$.
• $\sum_{i \in \text{TopK}(g(x))} g_i(x) = 1$: routing weights sum to 1. Ensures the output magnitude is comparable to a single expert.
• $\text{MoE}(x) \in \mathbb{R}^{d_{\text{model}}}$: the final layer output, a weighted blend of two expert outputs

For Mixtral, this sum always contains exactly two terms because of the top-2 routing constraint. To make this concrete, consider a specific example: if experts 3 and 7 are selected with weights 0.6 and 0.4, the output becomes:

where:

• $0.6$ and $0.4$: routing weights from $g(x)$ for experts 3 and 7, summing to 1
• $\text{Expert}_3(x)$ and $\text{Expert}_7(x)$: the output vectors from applying each expert's SwiGLU transformation to input $x$
• The final output is a weighted average, so the magnitude stays consistent with single-expert outputs

The weighted average formulation has an important property. Because the weights sum to 1, the output magnitude remains stable regardless of which experts are selected. If weights did not sum to 1, the MoE layer's outputs would vary in scale depending on routing decisions, potentially destabilizing training and which makes it harder for subsequent layers to process the representations consistently.

This design differs from Switch Transformer, which we covered in the previous chapter, in one key aspect: Mixtral uses top-2 routing rather than top-1. The additional expert gives redundancy and smoother gradient flow during training, though it doubles the compute per token compared to Switch's more aggressive sparsity.

The choice of k=2 is a deliberate tradeoff between efficiency and quality. This choice illuminates the basic design tensions in sparse architectures. Before examining the benefits, it is worth appreciating that the choice of $k$ affects training and inference, with further consequences for deployment that are not obvious from the formula alone.

Higher $k$ values give several benefits, as we discussed in the Top-K Routing chapter:

• Gradient diversity: More experts receive gradients per token, which accelerates learning. When only one expert processes a token, only that expert's parameters are updated. With two experts, both receive learning signal from the same token, speeding up convergence.
• Redundancy: If one expert produces poor output, the other compensates. This reduces sensitivity to individual expert failures or poorly matched routing decisions.
• Smoother specialization: Experts can develop overlapping competencies rather than hard boundaries. This prevents the model from fragmenting knowledge into non-communicating silos.

The cost is straightforward: top-2 routing requires twice the FLOPs of top-1. For Mixtral, this means each token processes through two 14,336-dimensional FFNs rather than one. This is not a trivial increase, and the Mistral team's choice to accept this cost indicates they found the quality benefits substantial.

Let's quantify this compute cost. Each SwiGLU expert performs three matrix multiplications: gate projection, up projection, and down projection. Each projection maps between the model dimension and the FFN intermediate dimension. Since top-2 routing activates two experts, the per-expert cost is doubled.

To calculate FLOPs, we count the multiply-accumulate operations for each matrix multiplication. For a matrix multiplication mapping from dimension $d_{\text{model}}$ to $d_{\text{ffn}}$, the cost is approximately $d_{\text{model}} \times d_{\text{ffn}}$ FLOPs (simplified from $2 \times d_{\text{model}} \times d_{\text{ffn}}$ by omitting constant factors for clarity). Activating two experts requires computing three projections (gate, up, down) for each of the two selected experts. The total computational cost is:

where:

• The factor of 2 accounts for the two active experts selected by top-2 routing
• The factor of 3 is the three projection matrices in each SwiGLU expert (gate, up, and down projections)
• $d_{\text{model}} = 4096$: the model's hidden dimension
• $d_{\text{ffn}} = 14336$: the intermediate dimension of each expert's feed-forward network
• The product $d_{\text{model}} \times d_{\text{ffn}}$ estimates FLOPs for one matrix multiplication, simplified from $2 \times d_{\text{model}} \times d_{\text{ffn}}$ by omitting the constant factor

To build intuition for what this compute cost means in practice, it helps to compare it to an equivalent dense model. A dense FFN that performs the same number of FLOPs would have intermediate dimension:

where:

• $d_{\text{ffn,dense}}$: the intermediate dimension of an equivalent dense FFN, which would perform the same number of FLOPs as Mixtral's top-2 MoE routing
• The factor of 2 comes from activating two experts, each with dimension 14,336
• A dense FFN with this intermediate dimension would perform the same three projections (gate, up, down) but process all tokens through a single large FFN instead of routing to different experts

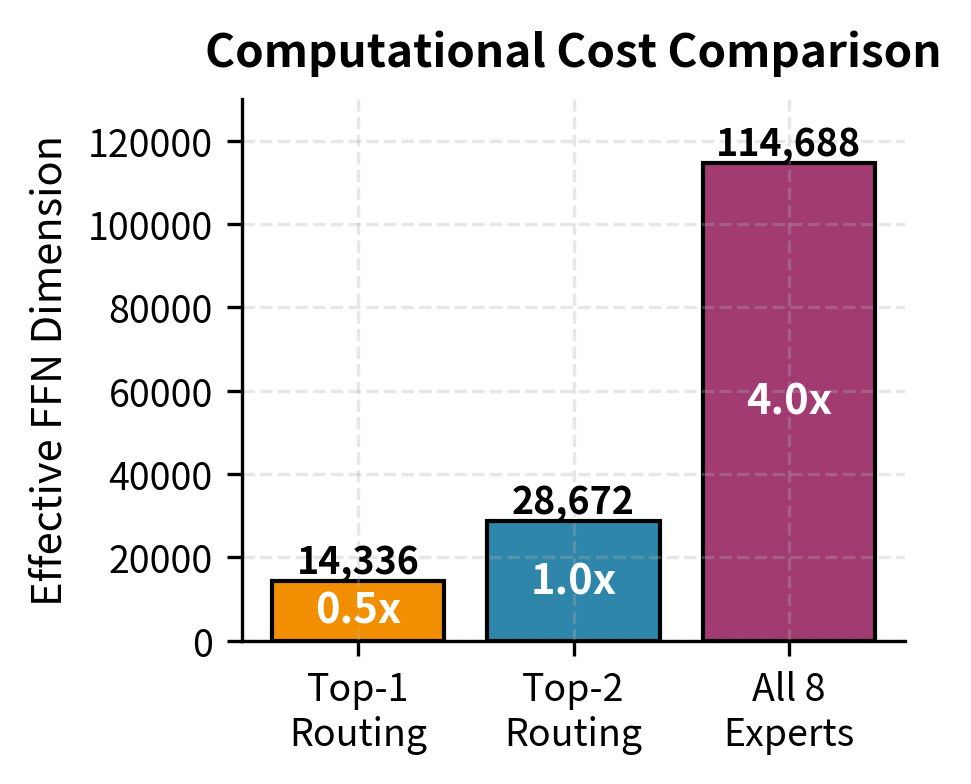

This comparison reveals a key insight: top-2 MoE has the same computational cost as a moderately-sized dense FFN, yet maintains access to 8 experts worth of capacity (8 × 14,336 = 114,688 total expert parameters). The sparsity allows the model to select from a much larger parameter space without proportionally increasing compute. Put another way, Mixtral pays the compute cost of a 28K-width FFN but gets to choose which 28K-worth of parameters to use from a pool of 114K-worth. This is far cheaper than the alternative of using all 8 experts. If all experts were active, the effective FFN dimension would be:

where:

• $d_{\text{ffn,all}}$: the intermediate dimension if all 8 experts processed every token
• The factor of 8 accounts for all experts being active simultaneously
• This dimension would result in approximately 4 times the computational cost of top-2 routing (since $114688 / 28672 \approx 4$)

The sparsity from top-2 routing therefore gives a 4x compute savings compared to activating all experts, while still maintaining access to the full 8 experts' worth of learned knowledge. This is the basic efficiency proposition of MoE. Store more parameters than you compute with, selecting the relevant subset dynamically based on the input.

Empirically, Mistral AI found that top-2 routing materially outperformed top-1 at matched compute budgets, suggesting the quality benefits outweigh the efficiency loss for their target applications.

Mixtral's router is remarkably simple compared to some MoE variants. This simplicity is itself a deliberate design choice. More complex routing schemes with learned temperatures, hierarchical decisions, or attention-based mechanisms have been explored, yet Mixtral shows that a straightforward linear projection suffices for effective routing. Each layer has an independent linear router that maps hidden states to expert scores.

The router receives the hidden state of a token after the attention layer has integrated context from neighboring tokens. Its decision is therefore informed by the sequence context up to that point rather than the token in isolation. A token like "integral" in the sentence "compute the integral of the function" will have a hidden state that reflects the surrounding mathematical context, making it more likely to route toward math-specialized experts than the word "integral" in "integral to our mission."

Think of the router's weight matrix as a learned matching function between token representations and expert capabilities. During training, the router learns that tokens with certain patterns in their hidden states tend to be processed more accurately by particular experts. Over thousands of gradient updates, the router converges on a routing policy that maximizes overall prediction accuracy. The simplicity of a linear projection is an asset here: with no nonlinearities in the router itself, the routing decision is fully differentiable and the router can receive clean gradient signal about which routing decisions led to good predictions and which did not.

The independence of routers across layers is another important design choice. Layer 5's router makes completely separate decisions from Layer 15's router, with no parameter sharing. This means different layers can develop their own routing specializations. Early layers might route based on surface-level syntactic features, while deeper layers route based on semantic content or task type. This layer-wise independence gives the model flexibility to develop layered expertise, where each transformer block's routing shows the representation at that particular depth in the network.

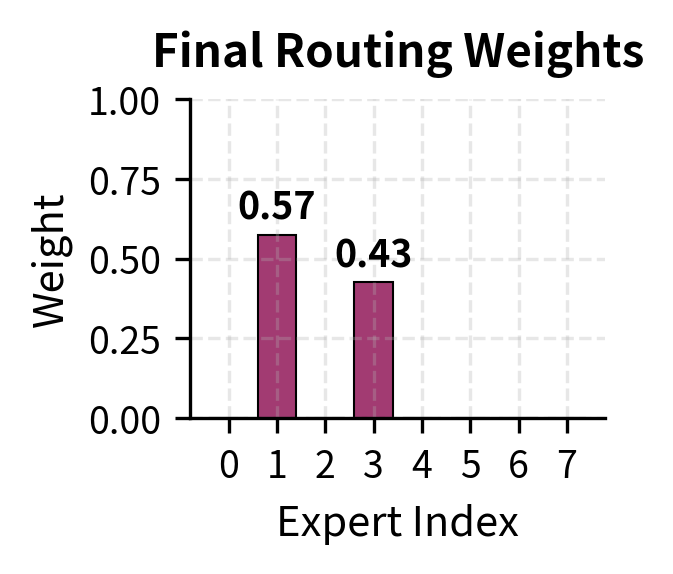

The first token in the batch routes to two specific experts, with routing weights determining each expert's contribution. The weights sum to exactly 1.0000, confirming proper softmax normalization. This normalization ensures the MoE output magnitude stays consistent regardless of which experts are selected, preventing the weighted combination from scaling outputs up or down based on routing decisions.

With routing decisions made, the MoE layer must execute the selected experts and combine their outputs. The naive implementation loops over tokens, executing each token's two selected experts sequentially, but this is inefficient for GPU execution because it creates many small matrix operations that underutilize GPU parallelism. GPUs reach their performance by executing thousands of operations simultaneously. Small matrix multiplications cannot saturate the available compute resources.

Think of GPU compute as a factory floor with thousands of workstations operating in parallel. Dense matrix multiplication is like feeding a long continuous assembly line where every workstation is always busy. Routing tokens to experts is like suddenly assigning different subsets of workstations to different tasks: some workstations sit idle waiting for their expert's tokens to arrive, while others are temporarily overwhelmed. The key challenge in efficient MoE execution is reorganizing the work so that all workstations stay busy as much as possible, which requires batching tokens by expert rather than processing them in their original order.

The key insight is that the output of the MoE layer does not depend on the order in which tokens are processed by experts. Each token's output is computed independently using only that token's hidden state and the selected experts' weights. We can therefore collect all tokens assigned to expert $k$ into a single batch, run one large matrix multiplication, and scatter the results back to their original positions. This reordering preserves correctness while creating the large, regular matrix operations that GPUs execute efficiently.

A more practical approach processes all tokens assigned to each expert in parallel: group all tokens routed to expert 1, process them in a single batched operation, then move to expert 2, and so on. This expert-centric iteration creates larger matrix multiplications that GPUs can execute efficiently. Instead of computing 20 tokens one at a time through expert 1, we batch all 20 into a single matrix multiplication. The ordering of tokens does not matter for the expert computation since experts process tokens independently, so we can reorganize the computation for efficiency without affecting correctness:

The shape preservation (input and output both have shape [2, 16, 256]) confirms the MoE layer acts as a drop-in replacement for a standard FFN. The output magnitude checks that values remain reasonable rather than degenerate. The expert-utilization histogram reveals load distribution: with 32 total tokens (2 batches × 16 sequence length) and top-2 routing, we expect 64 total expert assignments. The visualization shows whether routing is balanced or whether certain experts dominate. In a well-trained model, this distribution should be relatively balanced, though some variation is expected if experts specialize in different input types.

A complete Mixtral layer combines attention and MoE with the standard pre-norm residual pattern we covered in Part XV. The pre-norm design applies layer normalization before each sub-layer rather than after, which improves training stability in deep networks. Residual connections allow information to flow directly through the network, preventing vanishing gradients and letting the model to learn incremental refinements at each layer.

The elegance of the MoE integration is that it requires no changes to the surrounding architecture. The residual connections, normalization scheme, and overall data flow of the transformer block remain identical to a dense model. Only the FFN sub-layer is replaced. This architectural cleanliness has practical implications: any optimization, quantization technique, or hardware adaptation developed for dense transformers applies directly to Mixtral's attention layers, and only the expert routing logic requires MoE-specific handling.

One subtle but important aspect of the pre-norm residual pattern is how it interacts with MoE outputs. Because the MoE output is added back to the residual stream via $\text{hidden\_states} = \text{residual} + \text{MoE}(\text{normalized\_hidden\_states})$, the routing weights determine which experts contribute and how much their contributions affect the overall representation. If an expert produces a large-magnitude output but its routing weight is small, its influence on the residual stream is dampened. If routing weights were not normalized to sum to 1, different routing decisions would result in MoE outputs of different magnitudes, causing erratic updates to the residual stream and training instability. The softmax normalization of routing weights is therefore a important stability mechanism rather than a mathematical convenience.

The only structural difference from a dense transformer block is the replacement of the FFN with the MoE layer. The attention mechanism, normalization, and residual connections remain unchanged from Mistral 7B. This modular design lets MoE models use architectural innovations developed for dense transformers: sliding-window attention, RMSNorm, and RoPE transfer directly to MoE models.

The mathematical reason this composability works is that the MoE layer maintains the same input and output dimensionality as a standard FFN, both mapping $\mathbb{R}^{d_{\text{model}}} \to \mathbb{R}^{d_{\text{model}}}$. The internal computation differs substantially, with routing, multiple expert networks, and weighted combination, but the interface remains identical: from the perspective of surrounding layers, the MoE layer is indistinguishable from a dense FFN. The sparse expert layer acts as a drop-in replacement for the dense FFN, making MoE an architectural enhancement rather than a completely different model family that would require redesigning the entire transformer stack.

A natural question about MoE models is whether experts specialize or simply provide redundant capacity. If experts all learned the same function, the MoE layer would be no more expressive than a single expert, just more expensive. Analysis of Mixtral's routing patterns confirms specialization.

The question of specialization is both theoretically interesting and practically important. From a theoretical standpoint, specialization is what gives MoE its representational advantage: if all experts learned to approximate the same function, the model would waste parameters on redundant capacity that gives no benefit over a single large expert. From a practical standpoint, understanding specialization patterns tells you something about how the model is different types of knowledge and can inform decisions about fine-tuning, distillation, or pruning.

Think of expert specialization like the division of expertise in a hospital. A hospital does not have doctors who each know everything equally well. Instead, it has cardiologists, neurologists, orthopedic surgeons, and so on, each deeply specialized in a domain. But no doctor is so narrowly specialized that they cannot handle a patient who does not fit neatly into one category. A cardiologist encountering a patient with both cardiac and neurological symptoms does not refuse to treat the cardiac component: they handle their specialty while coordinating with a neurologist for the other aspects. Mixtral's experts work similarly, with statistical preferences for certain domains while maintaining general capability.

Empirical studies of Mixtral show that specialization is probabilistic rather than deterministic. No expert exclusively handles a single domain, but experts show statistically significant preferences that differ from uniform routing. This soft specialization makes the model reliable on unusual inputs and reduces the risk that a token outside an expert's specialty is processed poorly.

Mixtral's experts show soft specialization rather than hard domain boundaries. Rather than cleanly dividing into discrete categories like code, math, or language, specialization appears at a more granular level.

Token position effects: Some experts prefer beginning-of-sequence tokens versus mid-sequence tokens. This positional preference may reflect different processing needs, where early tokens often establish context, while later tokens build upon established patterns.

Domain tendencies: While not exclusive, experts show statistical preferences for certain topics. An expert might activate 50% more often on mathematical content but still process many natural language tokens.

Let's simulate expert specialization analysis:

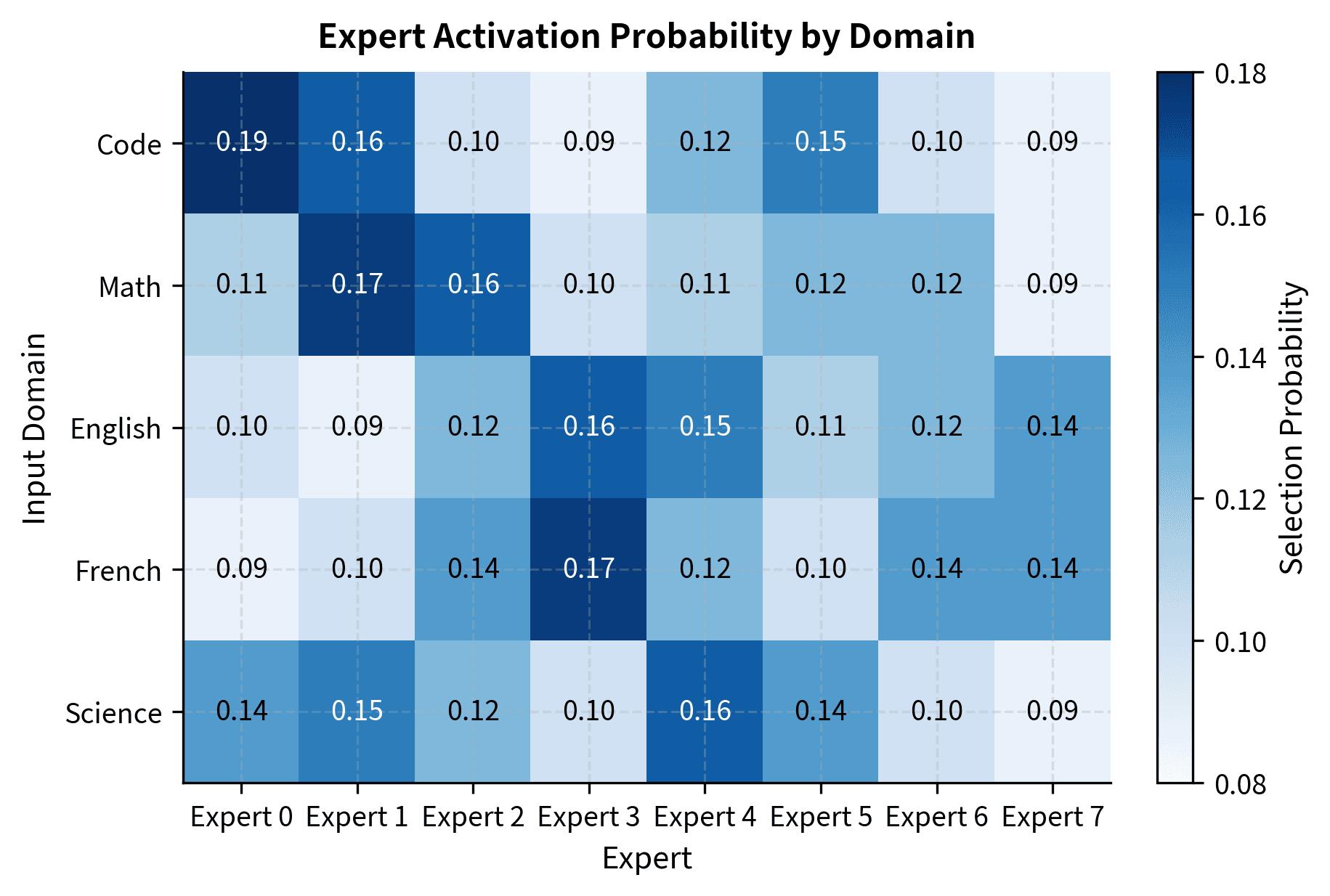

The heatmap illustrates a key characteristic of Mixtral's routing. No expert is completely specialized or completely general. Expert 1 has higher activation for code and math, Expert 3 activates more for natural language, but all experts receive traffic from all domains.

This soft specialization has practical implications that affect how the model can be used and modified. It means you cannot simply prune experts to create domain-specific models, as each expert contributes to all tasks. For example, even if Expert 1 activates more frequently on code, it still processes 8 to 12% of tokens from all other domains; removing it would degrade performance across all tasks, not just code. The routing weights form a distributed representation where knowledge is spread across experts rather than being partitioned into isolated specialists. This also makes the model less brittle. It does not catastrophically fail on out-of-distribution inputs that might not match any expert's specialty; multiple experts can contribute complementary knowledge even for unusual inputs.

Mixtral's release included complete benchmarks comparing it against both open and proprietary models. The results demonstrated that sparse models could compete with dense models having materially more parameters, validating the efficiency thesis of MoE architectures.

Benchmarking language models is difficult to interpret because different benchmarks measure different capabilities, and models can be implicitly tuned for specific evaluation formats without improving the underlying capability. Mixtral's benchmark results remain informative because they show consistent performance across a diverse range of tasks. A model that scores well on MMLU (a broad knowledge benchmark), GSM8K (mathematical reasoning), HumanEval (code generation), and multilingual QA simultaneously demonstrates breadth rather than narrow optimization.

The comparison to GPT-3.5 is particularly striking. GPT-3.5 was, at the time of Mixtral's release, a widely used commercial API serving millions of requests daily. Matching or exceeding its performance with an open-weight model that could run locally was a significant broader access event. Organizations that previously had to pay per-token API costs for GPT-3.5-level quality could now run equivalent capability on their own hardware, with full control over data privacy and without ongoing API costs.

Benchmarks do not capture instruction following, safety alignment, edge-case handling, or output-format consistency well. The instruction-tuned variant of Mixtral (Mixtral 8x7B Instruct) addressed some of these concerns with fine-tuning on instruction-following data, but raw benchmark numbers evaluate the base model's knowledge and reasoning capacity rather than its practical usability as an assistant. Interpreting the results requires keeping this distinction in mind.

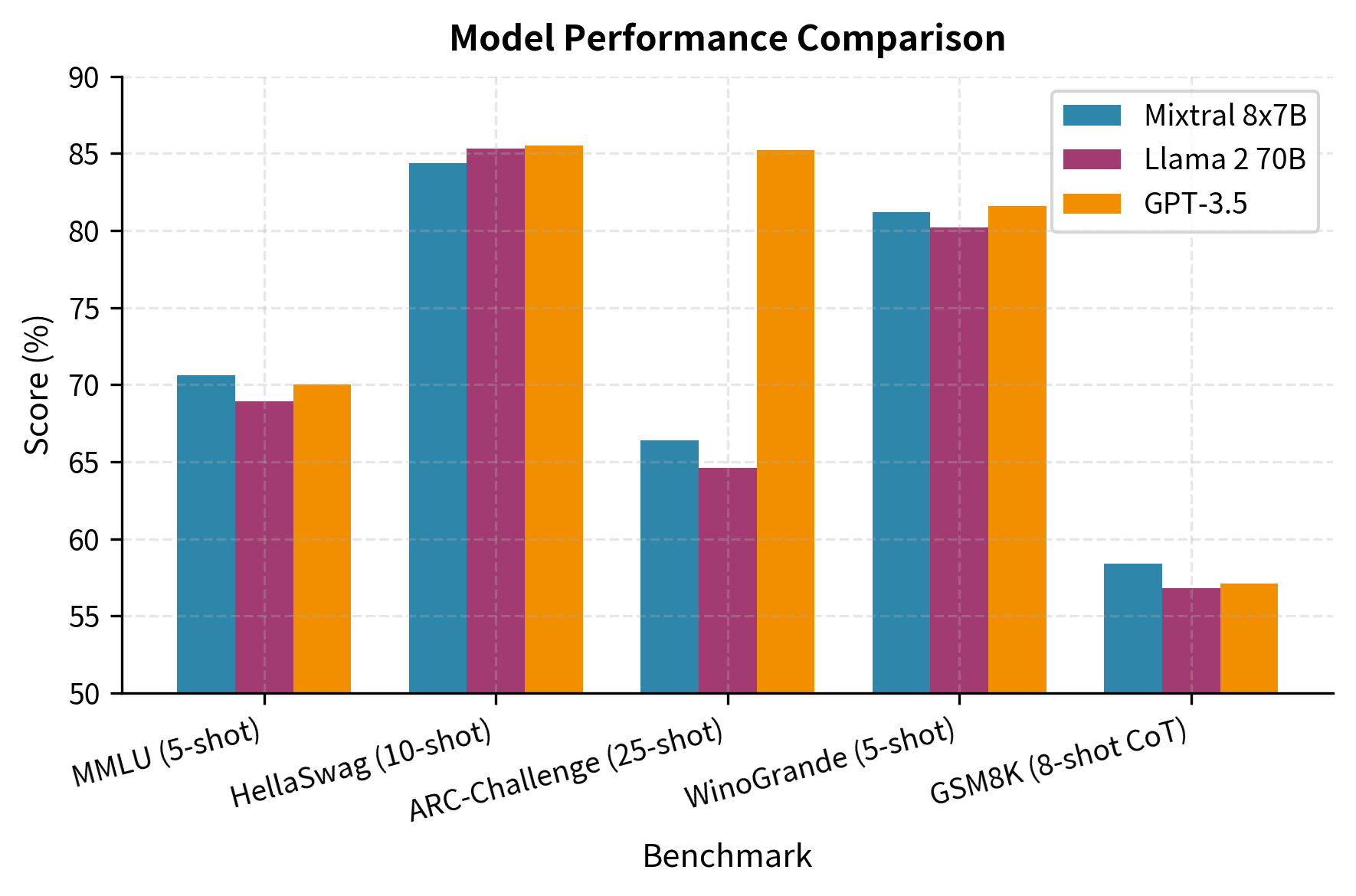

On standard LLM benchmarks, Mixtral 8x7B outperformed Llama 2 70B despite using fewer active parameters:

Several patterns emerge from the benchmark data:

Knowledge benchmarks (MMLU): Mixtral's total parameter count gives a knowledge capacity advantage, storing more facts across its 46.7B parameters. While Mixtral has fewer total parameters than Llama 2 70B, the 8 experts give diverse pathways for encoding knowledge. This diversity can be understood as a form of ensemble learning within a single model: different experts may encode overlapping information in complementary ways, effectively increasing knowledge capacity beyond what the raw parameter count would suggest.

Reasoning tasks (GSM8K): The additional expert capacity appears to help with multi-step reasoning, though gains are modest. Complex reasoning may require integrating knowledge from multiple experts; top-2 routing lets this integration.

Commonsense (HellaSwag, WinoGrande): Performance roughly matches larger dense models, suggesting these tasks depend more on pre-training data than on model architecture.

Mixtral showed particularly strong results on code generation and multilingual tasks:

The multilingual gains are particularly specific. Mixtral materially outperforms Llama 2 70B on French and German QA despite being trained on similar data mixtures. This suggests the MoE architecture may give better capacity for handling multiple languages simultaneously. Different experts potentially specialize in language-specific patterns, letting more efficient multilingual representation. Rather than forcing a single set of parameters to handle the distinct grammatical structures and vocabularies of multiple languages, MoE allows the model to develop specialized processing pathways that can be dynamically selected based on the input language.

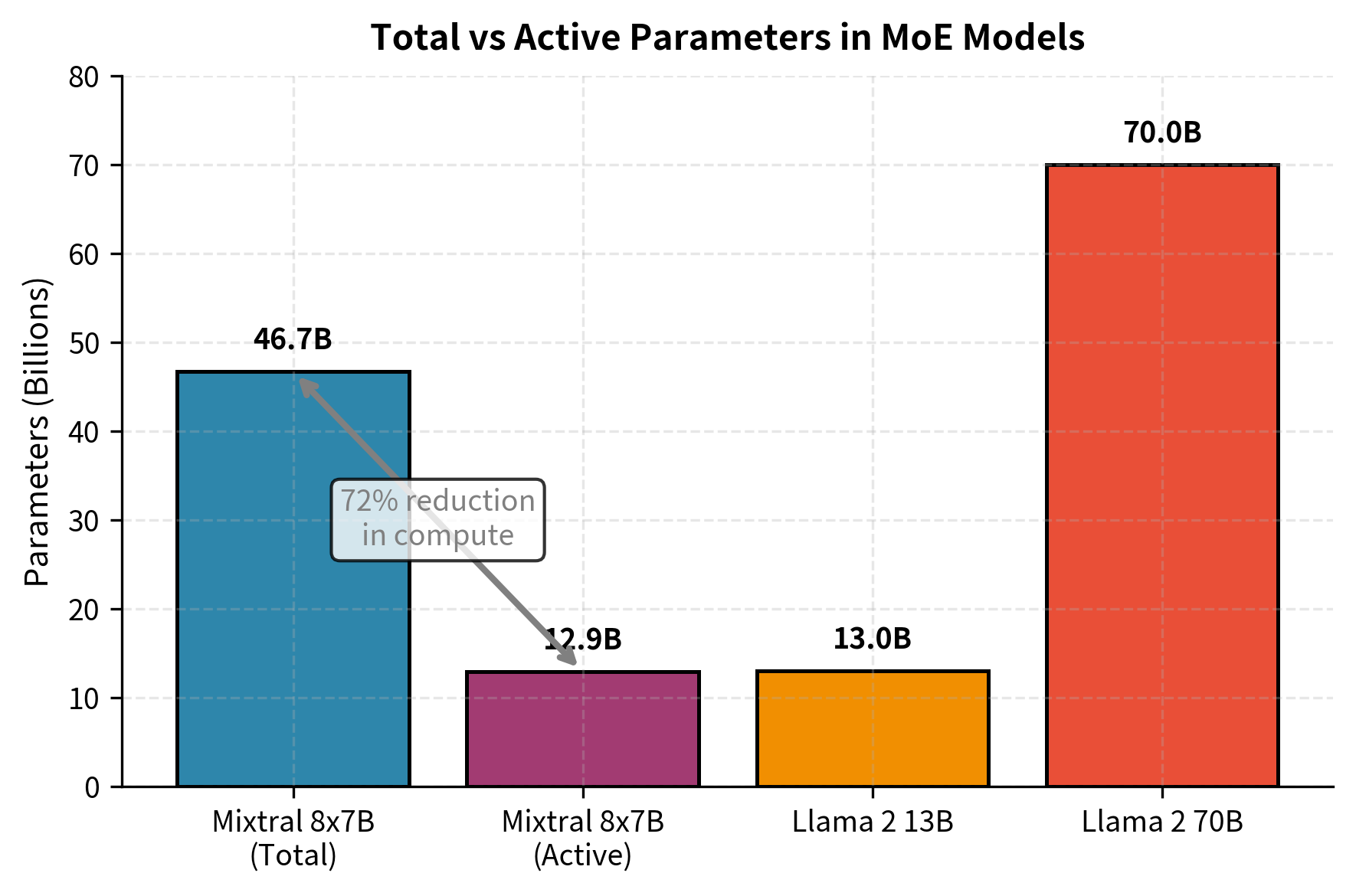

The efficiency case for Mixtral centers on the ratio between total and active parameters. While the model requires storing all 46.7B parameters in memory, each forward pass only activates 12.9B; this results in a 72% reduction in compute compared to a hypothetical model that activated all parameters. This section quantifies these efficiency gains precisely.

Efficiency is often discussed loosely in the LLM literature, with claims about parameter counts, FLOPs, and inference speed sometimes conflated or used interchangeably. For a precise analysis of Mixtral, we need to distinguish between three different metrics that each tell a different part of the story. First, total parameter count determines how much GPU memory you need to load the model. Second, active parameter count per forward pass determines compute cost and therefore throughput: this is the metric that makes Mixtral fast despite being large. Third, training compute is the product of active parameters, training tokens, and training steps: MoE models are efficient at inference but not necessarily at training, because every parameter must be updated during training even if it is rarely active.

Think of the distinction between total and active parameters as the difference between the size of a city's library system and the number of books you check out per visit. The library needs physical shelf space for every book (total parameters), but you only read a few books at a time (active parameters). A larger library with more specialized books does not slow down your reading if you are selective about what you check out. Mixtral's efficiency comes from maintaining a large, specialized library while only "reading" a small, carefully chosen subset for each token.

The memory-compute gap is Mixtral's most important practical characteristic. It creates a situation where Mixtral is slow to load (requires ~93GB in FP16 to store all weights) but fast to run once loaded (processes tokens with 12.9B active parameters worth of compute). This makes Mixtral well-suited for workloads where the model stays loaded and handles many requests, but poorly suited for occasional-use scenarios where the model is loaded and unloaded frequently.

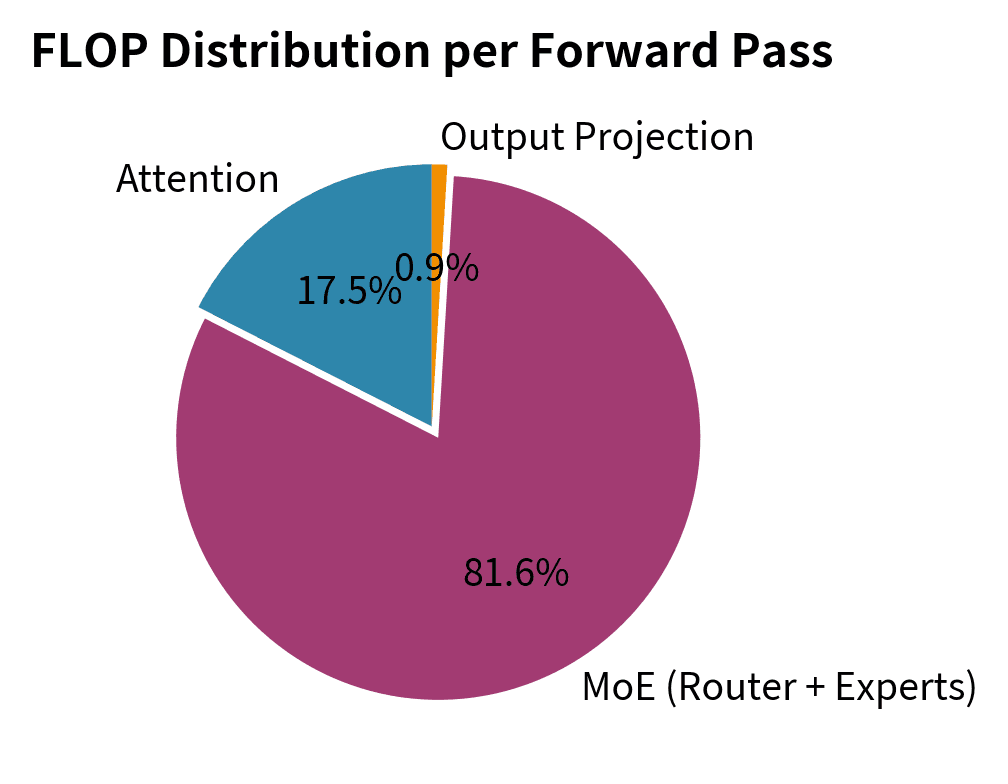

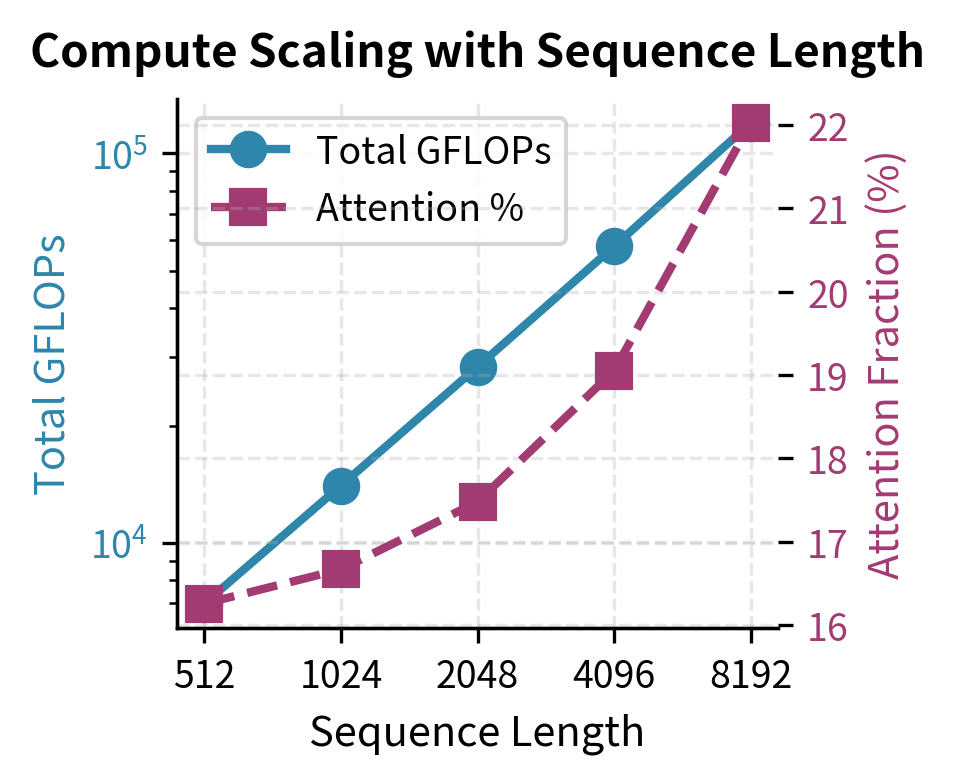

Let's calculate the actual FLOPs for a forward pass.

While compute scales with active parameters, memory requirements include all parameters. This distinction is important for deployment planning; you can reach fast inference with MoE, but you still need enough memory to store the full model.

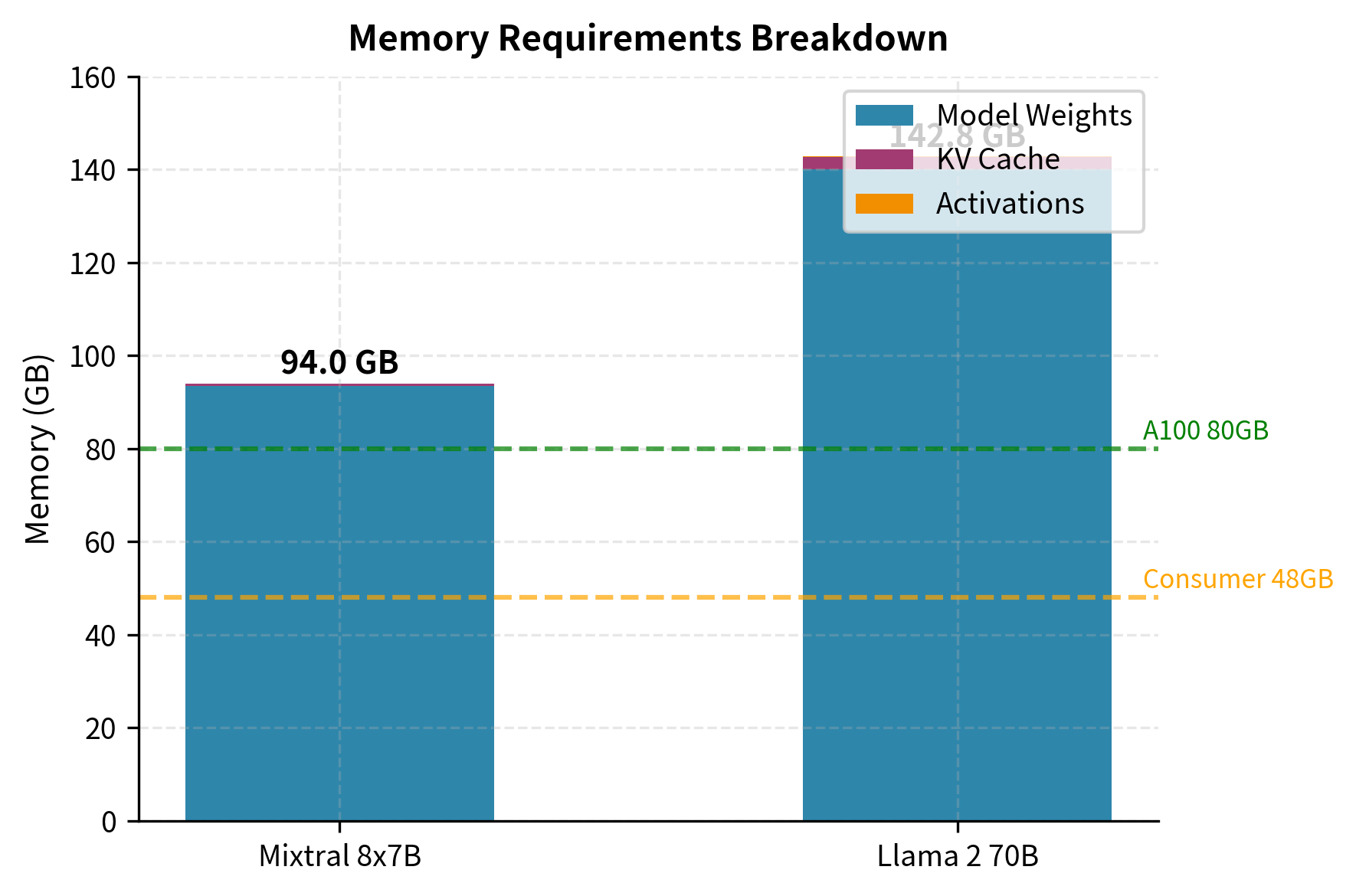

Mixtral requires materially less memory than Llama 2 70B, primarily due to fewer total parameters and a smaller KV cache, thanks to GQA and smaller hidden dimension. At FP16, the estimate still exceeds a single 80 GB accelerator; quantization or multiple devices are required. The lower total makes Mixtral easier to deploy than Llama 2 70B, but not a 48 GB single-card model at this precision.

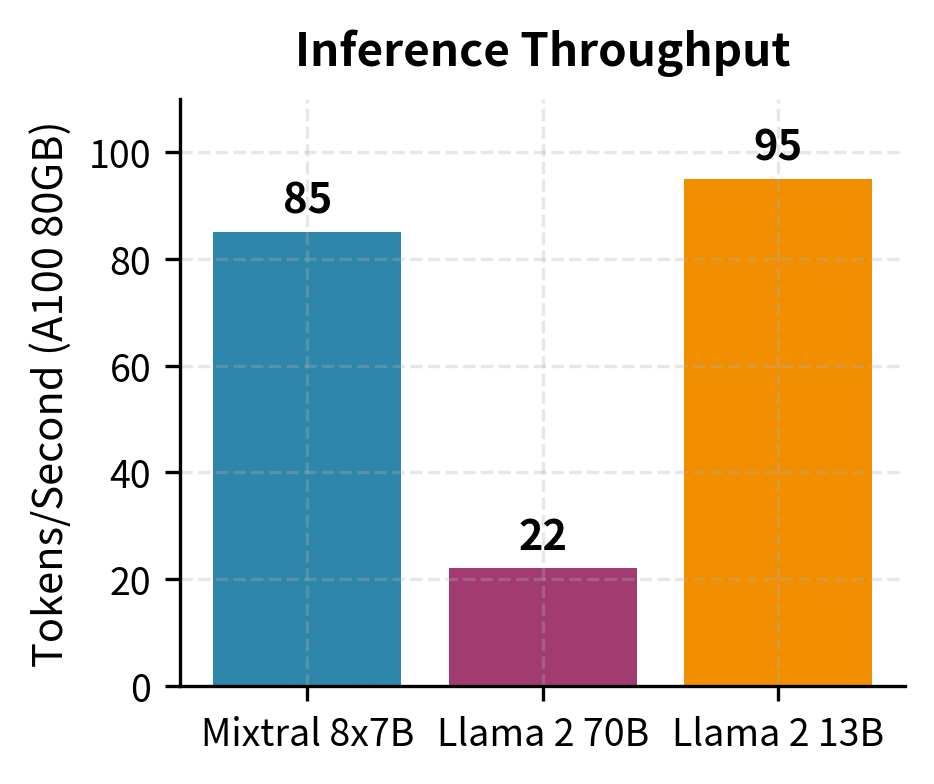

The efficiency gains translate directly to inference speed. Mixtral typically reaches 3 to 6 times higher throughput than Llama 2 70B for equivalent quality outputs.

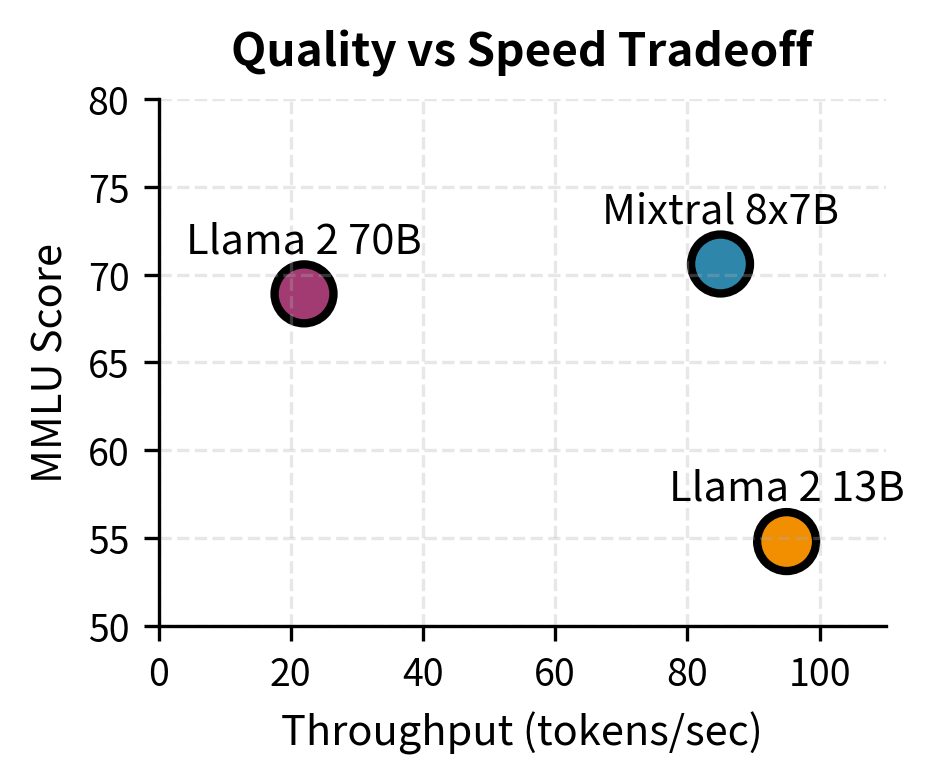

The scatter plot reveals the key efficiency insight. Mixtral occupies a unique position in the quality-speed tradeoff space. Llama 2 13B offers similar throughput but much lower quality. Llama 2 70B matches Mixtral's quality but at 4 times lower throughput. Mixtral effectively breaks the linear quality-compute tradeoff that dense models exhibit, achieving high quality at materially lower compute cost.

To make the abstract architecture concrete, let us trace a single token through one complete Mixtral MoE layer step by step. Suppose we are processing the token "gradient" appearing in the sentence "The gradient of the loss function guides training." After the attention layer has integrated context from surrounding tokens, we receive a hidden state vector representing this token in context.

We begin with a hidden state vector $\mathbf{x} \in \mathbb{R}^{4096}$. For our worked example, we will use a small toy version with $d_{\text{model}} = 4$ and $n_{\text{experts}} = 4$ with top-2 routing, to keep the numbers tractable by hand.

Step 1: Router computes logits.

The router weight matrix $W_g \in \mathbb{R}^{4 \times 4}$ maps our hidden state to a score for each of 4 experts. Suppose:

and the router produces logits:

where:

• $\mathbf{s} \in \mathbb{R}^{n_{\text{experts}}}$: the raw router logits, one per expert
• $s_0 = 2.1$: Expert 0 scores highest, likely a math or technical expert given our context
• $s_2 = 1.7$: Expert 2 scores second, perhaps a science/reasoning expert
• $s_1 = 0.4, s_3 = 0.3$: Experts 1 and 3 score much lower

Step 2: TopK masking selects exactly 2 experts.

We keep the top-2 scores and set the rest to $-\infty$:

Only experts 0 and 2 are eligible to receive this token.

Step 3: Softmax converts masked scores to routing weights.

where:

• $g_0 \approx 0.599$: Expert 0 receives 60% of the weight
• $g_2 \approx 0.401$: Expert 2 receives 40% of the weight
• $g_0 + g_2 = 1.000$: Weights sum to exactly 1 by construction of softmax over the selected pair

Step 4: Selected experts process the input.

Expert 0 applies its SwiGLU transformation to $\mathbf{x}$, creating output $\mathbf{e}_0 \in \mathbb{R}^{4}$. Expert 2 independently applies its SwiGLU transformation to the same $\mathbf{x}$, creating $\mathbf{e}_2 \in \mathbb{R}^{4}$. These experts have different learned weight matrices, so they produce different outputs even from the same input.

For our toy example, suppose:

Step 5: Weighted combination produces the MoE output.

where the final output is a convex combination of the two expert outputs, with Expert 0's contribution weighted more heavily because it received the higher router score.

Step 6: Residual connection adds the MoE output back.

The MoE output is added to the pre-normalization residual:

This residual connection ensures the MoE layer learns incremental refinements rather than complete replacements, which is why pre-training deep networks with residual connections is so much more stable than without them.

This six-step process repeats independently for every token in the sequence and for every layer in the 32-layer network, with each layer having its own independent set of 8 experts and its own router. The full forward pass through Mixtral involves 32 such routing decisions per token, with each decision potentially selecting different pairs of experts from the available 8.

Having covered Switch Transformer in the previous chapter, it's worth comparing the two MoE approaches:

Switch Transformer prioritizes extreme sparsity, using many small experts with top-1 routing to minimize compute per token. Mixtral takes a more moderate approach, using fewer, larger experts with top-2 routing to maintain quality while still achieving substantial efficiency gains.

The design philosophies reflect different use cases and different eras of research. Switch Transformer was primarily a research contribution showing that MoE could scale to thousands of experts while remaining trainable. The training instabilities that plagued early MoE models were addressed through explicit load balancing losses and careful initialization, but the resulting models were not optimized for inference throughput or memory efficiency. Mixtral, by contrast, was designed from the ground up for practical deployment: it uses a modest number of large experts that fit comfortably on modern hardware, avoids the load imbalance problems that arise with extreme sparsity, and maintains quality high enough to serve real-world use cases.

Switch Transformer is a research prototype for extreme sparsity, whereas Mixtral is a production-oriented architecture. Switch Transformer expanded understanding of how far sparse models can scale, and Mixtral incorporated that insight into an architecture practitioners can deploy.

One underappreciated difference is how each approach handles load balancing. Switch Transformer requires explicit auxiliary losses during training to prevent all tokens from routing to the same expert. Mixtral uses balancing losses during training but does not require them during inference, and the trained routing distribution is stable enough that explicit inference-time constraints are unnecessary. This simplicity at inference time is a significant practical advantage: serving infrastructure does not need to implement capacity limits or overflow handling, which are complex engineering concerns that add latency and failure modes.

The design philosophies reflect different use cases:

• Switch Transformer: Research-oriented. This shows what is possible with maximum sparsity while focusing on training efficiency.
• Mixtral: Production-oriented, balancing efficiency with deployment practicality and focusing on inference efficiency.

Despite its impressive efficiency, Mixtral presents several challenges for real-world deployment that practitioners should understand before adopting MoE architectures. These limitations are not disqualifying: for many applications, Mixtral remains the right choice. But they stand for real engineering tradeoffs that differ from the challenges of deploying dense models, and practitioners who are accustomed to dense model deployment will encounter surprises.

The basic tension in Mixtral's design is that it optimizes for compute efficiency while accepting memory inefficiency. This tradeoff is a good one in many production scenarios where inference throughput is the bottleneck, but it can be a poor choice in memory-constrained environments. Understanding the precise nature of this tradeoff, and when it works in your favor versus against you, is the needed skill for Mixtral deployment.

Mixtral uses only 12.9B parameters per forward pass, but all 46.7B parameters must remain in memory or be accessible for expert switching. This creates a gap between theoretical and practical efficiency. A 13B dense model requires only 13B parameters in memory. Mixtral needs 3.6 times more storage (46.7B parameters) for the same compute. For memory-constrained deployments, this can eliminate much of the efficiency advantage.

Expert offloading techniques can partially address this by keeping inactive experts on CPU or disk. However, the latency overhead from loading experts on demand often negates throughput gains. Effective deployment typically requires keeping all experts in GPU memory, which demands 80GB or more VRAM for FP16 inference. This hardware requirement places Mixtral beyond the reach of consumer GPUs in its full-precision form, though quantization to 4-bit or 8-bit precision can reduce the footprint to approximately 24GB or 48GB respectively, letting deployment on high-end consumer hardware.

The memory-compute gap also has implications for cost modeling. Cloud GPU instances are typically priced by memory capacity as much as by compute. Full FP16 weights exceed a single A100 80GB once runtime state is included, so deployment commonly uses multiple accelerators or reduced-precision weights. If your workload requires only occasional inference and can tolerate loading overhead, running Mixtral in quantized form on a smaller GPU may be more economical than keeping several high-memory accelerators warm for a sparse-access model.

MoE models face unique challenges with batched inference. When processing multiple sequences simultaneously, different tokens route to different experts, creating irregular computation patterns that are harder to parallelize efficiently than the regular matrix operations in dense models.

The irregularity problem is more subtle than it first appears. In a dense model, processing a batch of 16 sequences through an FFN is a single matrix multiplication of shape $[16, d_{\text{model}}] \times [d_{\text{model}}, d_{\text{ffn}}]$. This is a highly regular operation that modern BLAS libraries and GPU kernels are extremely efficient at. In Mixtral, those 16 sequences produce 32 tokens-per-sequence × 16 sequences = 512 total token slots, each independently routed to one of 8 experts. If routing were perfectly uniform, each expert would receive exactly 64 token slots (512 / 8) per forward pass, creating a balanced batched matrix multiplication of shape $[64, d_{\text{model}}] \times [d_{\text{model}}, d_{\text{ffn}}]$ for each of 8 experts. The reality is that routing is never perfectly uniform, and some experts may receive 80 tokens while others receive only 30. This creates a synchronization barrier: the transformer layer cannot proceed to the next step until all 8 experts have finished processing their unequal loads, meaning the slowest (most loaded) expert determines the overall latency.

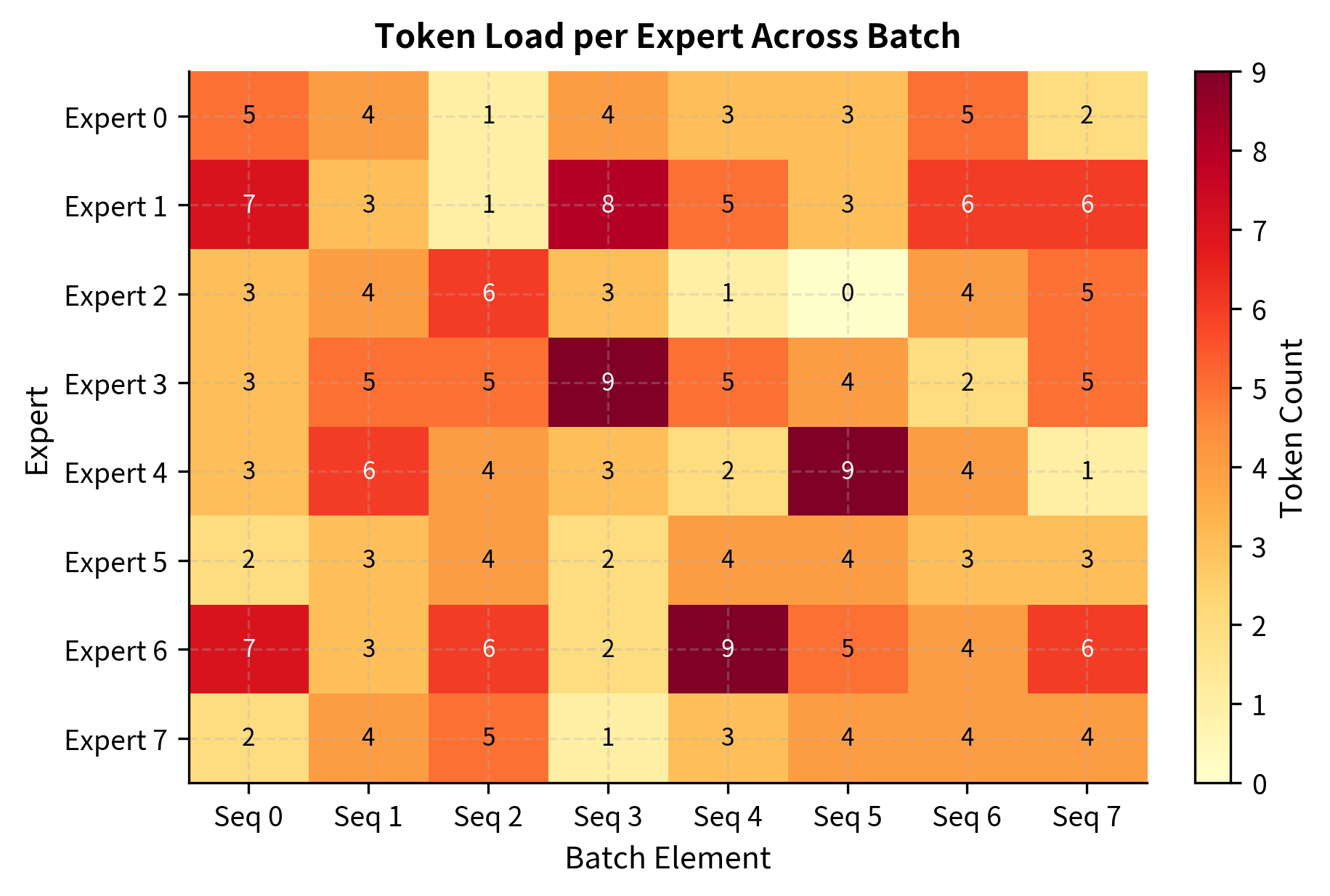

Consider a batch of 8 sequences where expert assignments vary.

The table shows the number of tokens assigned to each expert for each batch element. With top-2 routing and 16 tokens per batch element, each row should sum to 32 (16 tokens × 2 experts per token). The max load imbalance metric reveals the ratio between the most and least utilized experts, quantifying how uneven the distribution is. Higher imbalance values indicate that some experts become bottlenecks while others sit idle, reducing parallelization efficiency. Unlike the expert parallelism strategies discussed in Part XXXIII which assume roughly balanced loads, this imbalance leaves GPUs idle while waiting for the most loaded expert to finish.

Training MoE models requires careful handling of the router to prevent mode collapse. In mode collapse, most tokens route to a small subset of experts. As we covered in the Load Balancing and Auxiliary Loss chapters, various techniques address this, though they add complexity and hyperparameter sensitivity to training.

The mechanism behind routing instability is a feedback loop that can develop early in training. Suppose expert 3 happens to receive slightly better-initialized weights and therefore produces slightly lower loss on its early token assignments. The gradient update rewards the router for choosing expert 3 more often, which means expert 3 gets more training signal while the other experts stagnate. As other experts fall behind, the router increasingly prefers expert 3, creating a self-reinforcing collapse where one or two experts dominate while the rest degenerate. Auxiliary load balancing losses interrupt this feedback loop by penalizing uneven expert utilization, but tuning the strength of this penalty requires care: too weak and collapse proceeds anyway, too strong and the penalty dominates the training objective, forcing even routing at the expense of learning quality routing decisions.

Mixtral's training process included load balancing losses, but the released model does not expose these details. This makes it difficult for practitioners to reproduce or fine-tune the model with the same routing stability; fine-tuning Mixtral often requires re-implementing balancing losses and tuning their coefficients, adding friction compared to fine-tuning dense models. Open-source Mixtral fine-tuning implementations (such as those using the Axolotl or LLaMA-Factory frameworks) have developed conventions for these hyperparameters, but there is no universally accepted recipe, and results can vary materially depending on the fine-tuning dataset and task.

When fine-tuning Mixtral on narrow domains, there is a risk of expert collapse, where the router learns to route all tokens to a small number of experts. This effectively reduces the model to a smaller dense network and loses the capacity benefits of MoE. Preventing this requires either explicit balancing losses during fine-tuning or careful learning rate scheduling. Parameter-efficient fine-tuning approaches can help mitigate these issues.

Expert collapse during fine-tuning is especially problematic for narrow-domain applications. If you fine-tune Mixtral exclusively on medical records, the router may learn that most medical tokens map well to one or two generalist experts while the other six become inactive. The resulting model then behaves like a small dense network with the inference cost of a 46.7B model: you pay the full memory overhead but get none of the capacity benefits. Monitoring expert utilization statistics during fine-tuning is needed for detecting this problem early, before too much training compute has been spent on a collapsing model.

Another limitation worth acknowledging is that Mixtral's MoE architecture makes model comparison and interpretation harder. Dense models have a relatively straightforward relationship between parameter count and capability: a 70B model is generally better than a 13B model because it has more capacity distributed uniformly. With MoE models, the relationship between reported parameter counts and actual capability is more complex. "46.7B total parameters" and "12.9B active parameters" convey different things, and different downstream applications may care more about one or the other. As MoE models become more prevalent, the field needs better conventions for reporting model size that reflect both dimensions.

Mixtral 8x7B demonstrated that Mixture of Experts architectures could deliver production-quality language models with sharply improved efficiency. By combining Mistral 7B's architectural innovations with a carefully designed MoE layer, Mixtral achieved performance matching Llama 2 70B while requiring only 18% of the active parameters per token.

The central lesson of Mixtral is that model scale and inference cost can be decoupled. For decades, scaling a model meant paying proportionally more at every inference call. MoE architecture breaks this assumption by storing knowledge across many experts while activating only a small subset per token. Mixtral is the first widely accessible demonstration that this approach works at production scale, and studying it gives you the conceptual foundation to understand an increasingly important family of models.

The key design choices that let Mixtral's success are:

• Top-2 routing: Balances compute efficiency with quality by giving expert redundancy and smoother gradient flow compared to top-1 routing.
• Large experts: Each expert is a full SwiGLU FFN with 14,336 intermediate dimension. This gives large per-expert capacity.
• Moderate expert count: Eight experts per layer gives enough specialization without excessive memory overhead.
• Simple routing: A linear projection to expert scores followed by softmax over top-k keeps routing overhead minimal. More complex routing schemes such as learned temperature scaling, hierarchical routing, or attention-based selection were considered but found to give minimal quality gains while introducing training instability and inference latency. The linear projection learns effective routing through standard backpropagation without requiring specialized optimization techniques.

The efficiency implications are significant for deployment. Mixtral offers approximately 3 to 4 times faster inference than Llama 2 70B for comparable quality, making high-capability language models accessible on single-GPU systems. However, the full memory footprint still exceeds what the active parameters would suggest, and batch inference presents unique optimization challenges due to irregular expert utilization patterns.

Looking beyond Mixtral itself, its release established a template for future MoE models. The key parameters of the design space it explored, namely 8 experts per layer, top-2 routing, and large per-expert FFN capacity, have become defaults that subsequent models such as Mixtral 8x22B, DeepSeek-V2, and others have iterated on. The field has moved toward both larger expert counts (to increase total capacity) and more advanced routing mechanisms (to improve load balancing and reduce dead experts), but Mixtral's core insight that a modest number of large experts outperforms many small ones remains influential.

For practitioners, the key takeaway is that Mixtral requires a different deployment mindset than dense models. You are not deploying a 13B model with impressive quality; you are deploying a 47B model with 13B inference cost. The memory requirements, hardware minimums, and fine-tuning procedures all reflect the 47B character of the model. If your infrastructure can accommodate the memory footprint, you get 70B-class quality at 13B inference cost, which is an excellent trade. If memory is your binding constraint, quantization or a different architecture may serve you better.

Mixtral's success has accelerated interest in MoE architectures across the industry, with subsequent models like Mixtral 8x22B and various open-source implementations building on its foundation. As the field pushes toward larger models, the compute efficiency of sparse architectures becomes increasingly attractive. MoE designs will likely play a growing role in future language model development, and the concepts you have learned in this chapter give the vocabulary to understand that evolution as it unfolds.

The key parameters for Mixtral's MoE implementation are:

• num_experts: Number of expert networks per layer (8 in Mixtral). More experts increase model capacity but also increase memory requirements.
• top_k: Number of experts activated per token (2 in Mixtral). Higher values improve quality but increase compute cost.
• hidden_dim: Model's hidden dimension (4,096). Determines the input/output size of expert networks.
• ffn_dim: Intermediate dimension of each expert FFN (14,336). Larger values give more expert capacity.
• num_layers: Number of transformer blocks with MoE layers (32). Each layer routes tokens to experts independently.

Ready to test your understanding? Take this quick quiz to reinforce what you've learned about Mixtral and Mixture of Experts architectures.
