Let's build a payoff calculator that handles any combination of options and stock positions. This tool will help you analyze strategies before putting capital at risk.

In[22]:

Code

import numpy as np


class OptionPosition:
    """Represents a single option or stock position."""

    def __init__(self, position_type, quantity, strike=None, premium=0):
        """
        Initialize an option position.

        Parameters:
        -----------
        position_type : str
            'long_call', 'short_call', 'long_put', 'short_put', 'long_stock', 'short_stock'
        quantity : float
            Number of contracts (positive for long, but sign handled by position_type)
        strike : float
            Strike price (None for stock positions)
        premium : float
            Premium paid (positive) or received (negative handled by type)
        """
        self.position_type = position_type
        self.quantity = abs(quantity)
        self.strike = strike
        self.premium = premium

    def payoff(self, S_T):
        """Calculate payoff at expiration price S_T."""
        S_T = np.atleast_1d(S_T)

        if self.position_type == "long_call":
            return self.quantity * np.maximum(S_T - self.strike, 0)
        elif self.position_type == "short_call":
            return -self.quantity * np.maximum(S_T - self.strike, 0)
        elif self.position_type == "long_put":
            return self.quantity * np.maximum(self.strike - S_T, 0)
        elif self.position_type == "short_put":
            return -self.quantity * np.maximum(self.strike - S_T, 0)
        elif self.position_type == "long_stock":
            return self.quantity * S_T
        elif self.position_type == "short_stock":
            return -self.quantity * S_T
        else:
            raise ValueError(f"Unknown position type: {self.position_type}")

    def profit(self, S_T):
        """Calculate profit at expiration price S_T."""
        if "long" in self.position_type:
            return self.payoff(S_T) - self.quantity * self.premium
        else:  # short position
            return self.payoff(S_T) + self.quantity * self.premium

In[23]:

Code

def analyze_strategy(positions, S_range):
    """
    Analyze an option strategy across a range of expiration prices.

    Parameters:
    -----------
    positions : list of OptionPosition
        The positions in the strategy
    S_range : array-like
        Range of stock prices to analyze

    Returns:
    --------
    dict with total_profit, max_profit, max_loss, breakevens
    """
    S_range = np.array(S_range)
    total_profit = np.zeros_like(S_range, dtype=float)

    for pos in positions:
        total_profit += pos.profit(S_range)

    max_profit = np.max(total_profit)
    max_loss = np.min(total_profit)

    # Find breakeven points (where profit crosses zero)
    sign_changes = np.where(np.diff(np.sign(total_profit)))[0]
    breakevens = []
    for idx in sign_changes:
        # Linear interpolation to find exact breakeven
        x1, x2 = S_range[idx], S_range[idx + 1]
        y1, y2 = total_profit[idx], total_profit[idx + 1]
        breakeven = x1 - y1 * (x2 - x1) / (y2 - y1)
        breakevens.append(breakeven)

    return {
        "S_range": S_range,
        "total_profit": total_profit,
        "max_profit": max_profit,
        "max_loss": max_loss,
        "breakevens": breakevens,
    }

Let's use this calculator to analyze an iron condor, a popular income-generating strategy:

In[24]:

Code

import numpy as np

# Iron Condor: Sell OTM call spread + Sell OTM put spread
# Profits if stock stays in a range

positions = [
    OptionPosition("short_put", 1, strike=90, premium=2.0),  # Sell 90 put
    OptionPosition(
        "long_put", 1, strike=85, premium=1.0
    ),  # Buy 85 put (protection)
    OptionPosition("short_call", 1, strike=110, premium=2.0),  # Sell 110 call
    OptionPosition(
        "long_call", 1, strike=115, premium=1.0
    ),  # Buy 115 call (protection)
]

S_range = np.linspace(70, 130, 500)
results = analyze_strategy(positions, S_range)

# Calculate initial credit (net premium received)
initial_credit = sum(
    p.premium if "short" in p.position_type else -p.premium for p in positions
)

Out[25]:

Console

Iron Condor Analysis
==================================================
Net credit received: $2.00
Maximum profit: $2.00
Maximum loss: $-3.00
Breakeven points: ['$88.00', '$112.00']
Profit zone: $88.00 to $112.00

Out[26]:

Visualization

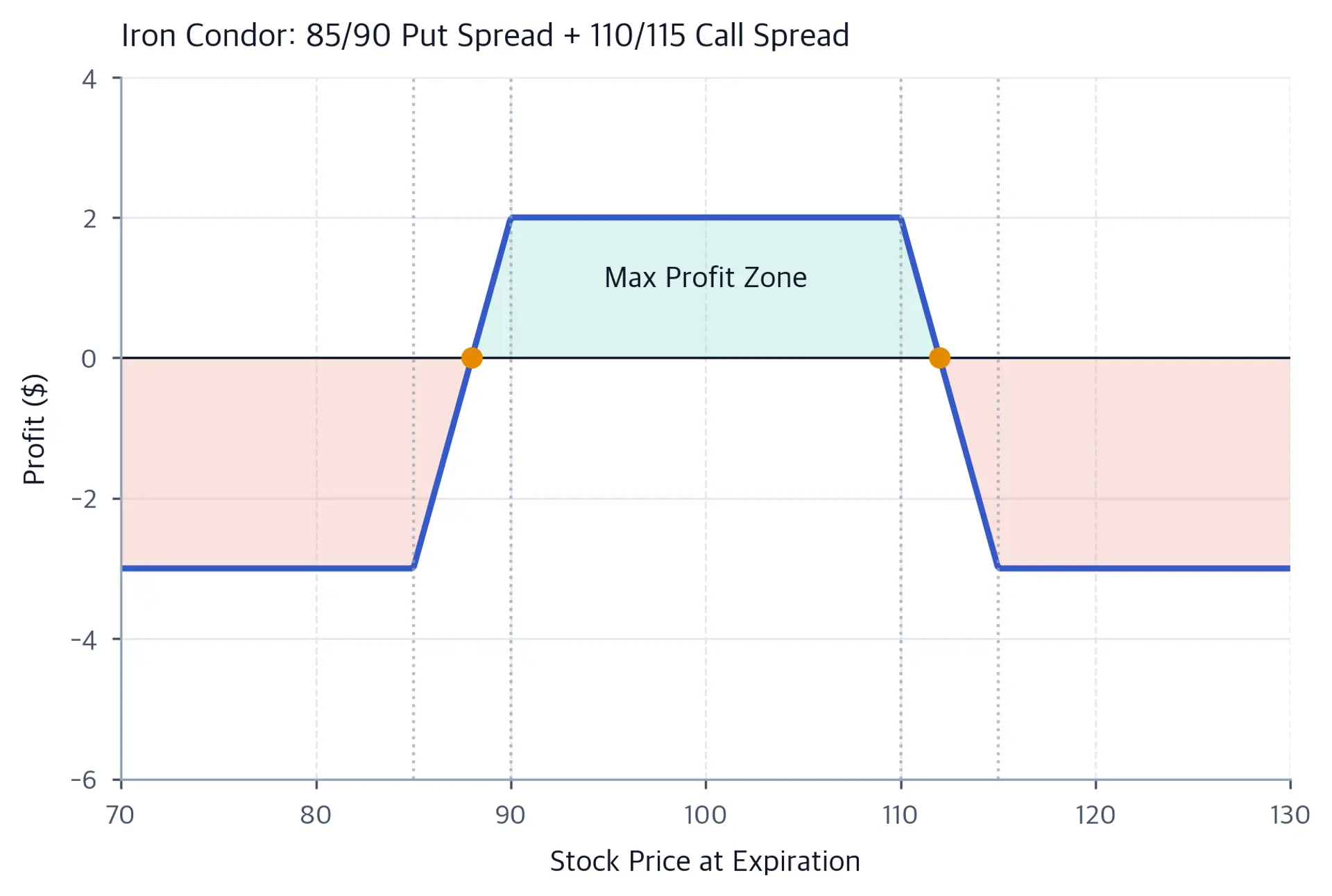

Profit diagram with a flat $2 maximum-profit plateau from stock prices $90 to $110, breakeven markers at $88 and $112, and losses capped at $3 beyond $85 and $115. — Iron condor profit at expiration. The strategy earns its maximum $2 net credit when the stock finishes between the short strikes at $90 and $110, breaks even at $88 and $112, and reaches its limited $3 maximum loss beyond the protective long strikes at $85 and $115.

The iron condor collects a net credit of $2.00 (the maximum profit) and risks a maximum loss of $3.00. It demonstrates several key option concepts:

Defined risk: Maximum loss is capped by the long options (protection)
Income generation: Profits from time decay if the stock stays in the range
Probability trade-off: High probability of small profit vs. low probability of larger loss
