Implied Volatility and Volatility Smile › Practical Applications

The CBOE Volatility Index (VIX) is perhaps the most famous application of implied volatility. It represents the market's expectation of 30-day volatility for the S&P 500 index, derived from the prices of SPX options across a range of strikes and two near-term expirations. The VIX has become a standard benchmark for market stress and is widely used by traders, portfolio managers, and the financial media as a barometer of investor sentiment.

The VIX calculation uses a model-free approach that does not rely on Black-Scholes assumptions. Instead of computing implied volatility from a single option, the VIX methodology integrates option prices across out-of-the-money calls and puts to extract the market's implied variance. This approach captures the entire distribution of expected returns implied by option prices across all strikes, not just at-the-money. The formula is:

$$\sigma^2_{VIX} = \frac{2}{T} \sum_i \frac{\Delta K_i}{K_i^2} e^{rT} Q(K_i) - \frac{1}{T}\left(\frac{F}{K_0} - 1\right)^2$$

This formula encapsulates the market's expectation of variance over the next 30 days. The first term sums up the contributions from all out-of-the-money options, where each option's contribution is weighted by the width of the strike interval divided by the square of the strike price. The exponential factor converts prices to forward prices, and $Q(K_i)$ is the observed market price. The second term is a small adjustment that accounts for the gap between the forward price and the nearest strike.

Each component of this formula has a specific interpretation:

• $\sigma^2_{VIX}$: VIX variance (squared volatility)
• $T$: time to expiration
• $r$: risk-free interest rate
• $K_i$: strike price of the $i$-th out-of-the-money option
• $\Delta K_i$: interval between strike prices
• $Q(K_i)$: midpoint of the bid-ask spread for the option with strike $K_i$
• $F$: forward index level derived from option prices
• $K_0$: first strike price below the forward index level $F$

The formula decomposes variance into two parts: the summation term captures the weighted prices of out-of-the-money options across all strikes, while the second term adjusts for the difference between the forward price and the central strike $K_0$. This decomposition allows the VIX to reflect the entire shape of the implied volatility surface rather than a single point.

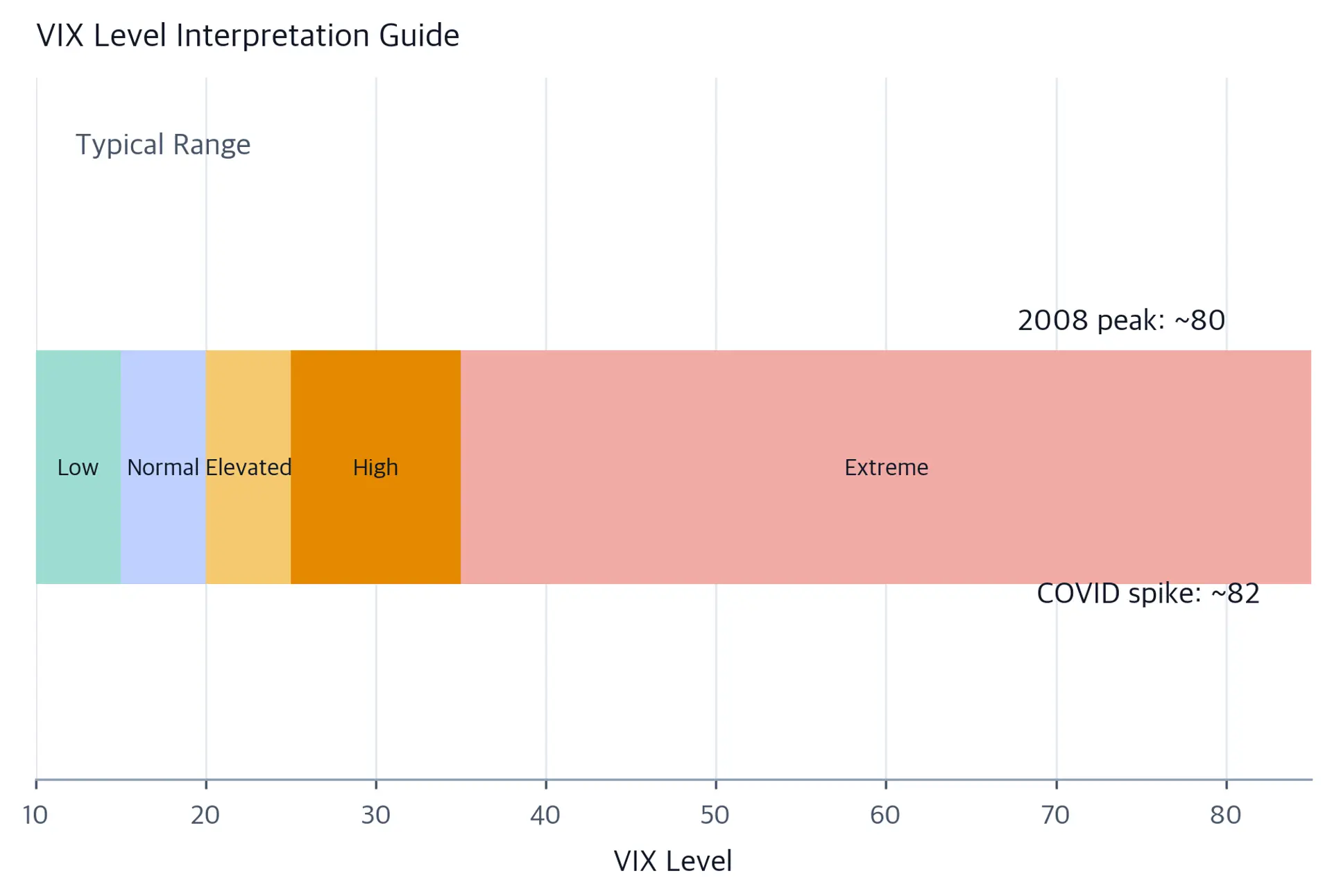

The VIX is quoted in annualized volatility points. A VIX of 20 means the market expects the S&P 500 to move approximately $20\% / \sqrt{12} \approx 5.8\%$ over the next 30 days. This reflects the square root of time scaling that converts annual volatility to monthly terms. Variance accumulates linearly with time while volatility scales with the square root of time.

The VIX spiked to 80 during the 2008 financial crisis and exceeded 80 again briefly in March 2020 during the COVID-19 market crash. These extreme readings indicated that the market expected daily moves of approximately $80\% / \sqrt{252} \approx 5\%$, which is extraordinary for a broad market index.

Professional options traders quote prices in volatility terms rather than dollar terms. This convention simplifies communication and comparison.

When a trader says "I'll bid 22 vol for the 90 put," they mean they are willing to buy the 90-strike put at an implied volatility of 22%. Similarly, "The 100-105 call spread is offered at 1 vol" means the spread can be bought at a net implied volatility of 1%.

This quoting convention also facilitates relative value analysis. A trader might observe that the 95-strike put trades at 25 vol while the 105-strike call trades at only 18 vol. The 7-vol difference reflects the equity skew. If the trader believes the skew is too steep, they might sell the 95 put and buy the 105 call to capture the difference.

For portfolios of options, risk managers need to understand how the portfolio's value changes when the entire volatility surface shifts. The key risks include parallel shift risk (the entire surface moves up or down uniformly, similar to vega risk aggregated across the portfolio), skew risk (the slope changes: if skew steepens, low-strike options become relatively more expensive), and term structure risk (the relationship between short-dated and long-dated implied vol changes, affecting portfolios with mixed maturities).

Sophisticated traders hedge the level of implied volatility along with its slope and curvature across strikes and maturities.
