We have examined implied volatility across strikes for a single expiration. In reality, options trade across many expiration dates, and the implied volatility structure varies with both strike and maturity. This two-dimensional structure is called the volatility surface.

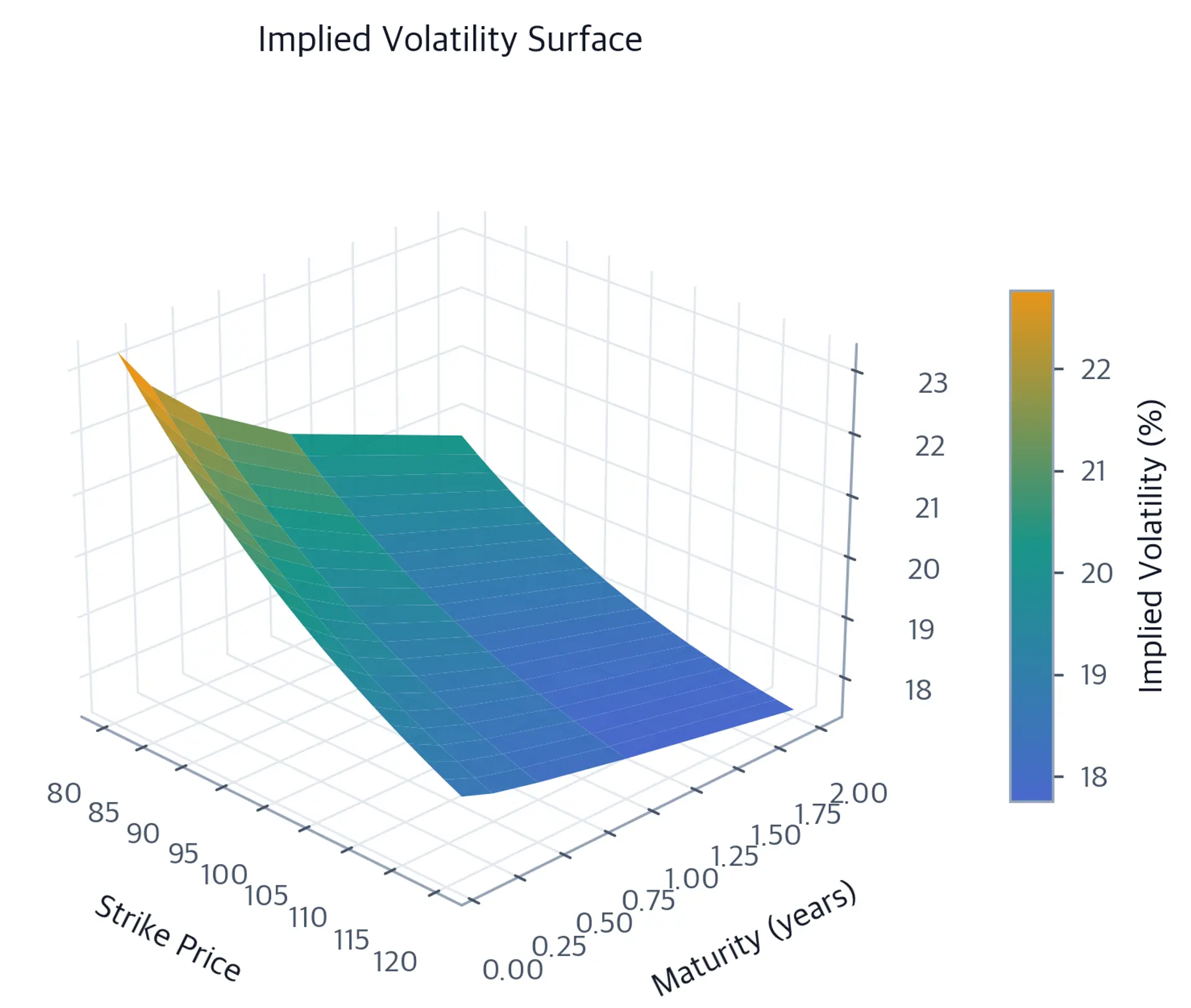

The volatility surface is the three-dimensional plot of implied volatility as a function of strike price and time to expiration. It captures the complete structure of option prices across all strikes and maturities for a given underlying asset.
The volatility surface encapsulates all the information embedded in option prices across the entire market. Rather than analyzing individual options, traders and risk managers view the entire surface as a single object. It shifts and deforms in response to market events. Understanding the shape and dynamics of this surface is needed for pricing exotic options, managing portfolio risk, and identifying relative value opportunities.
Let's construct and visualize a volatility surface:
import numpy as np
def generate_vol_surface(
K,
T,
S=100,
atm_vol=0.20,
skew_slope=-0.012,
curvature=0.0008,
term_slope=0.02,
):
"""
Generate a realistic implied volatility surface.
Includes:
- Skew: IV decreases with strike (equity-style)
- Smile: IV curves up at extreme strikes
- Term structure: IV typically decreases with longer maturity
"""
moneyness = np.log(K / S)
# Base volatility adjusts with term structure
base_vol = atm_vol - term_slope * (np.sqrt(T) - np.sqrt(0.25))
# Near-term downside skew attenuates as maturity increases
skew_attenuation = 1 / np.sqrt(1 + 2 * T)
# Add maturity-dependent skew and smile
vol = (
base_vol
+ skew_slope * skew_attenuation * moneyness * 10
+ curvature * moneyness**2 * 100
)
return max(vol, 0.05) # Floor at 5%
# Create strike and maturity grids
strikes_grid = np.linspace(80, 120, 21)
maturities = np.array([0.0833, 0.25, 0.5, 1.0, 2.0]) # 1M, 3M, 6M, 1Y, 2Y
# Build the surface
vol_surface = np.zeros((len(maturities), len(strikes_grid)))
for i, T in enumerate(maturities):
for j, K in enumerate(strikes_grid):
vol_surface[i, j] = generate_vol_surface(K, T)

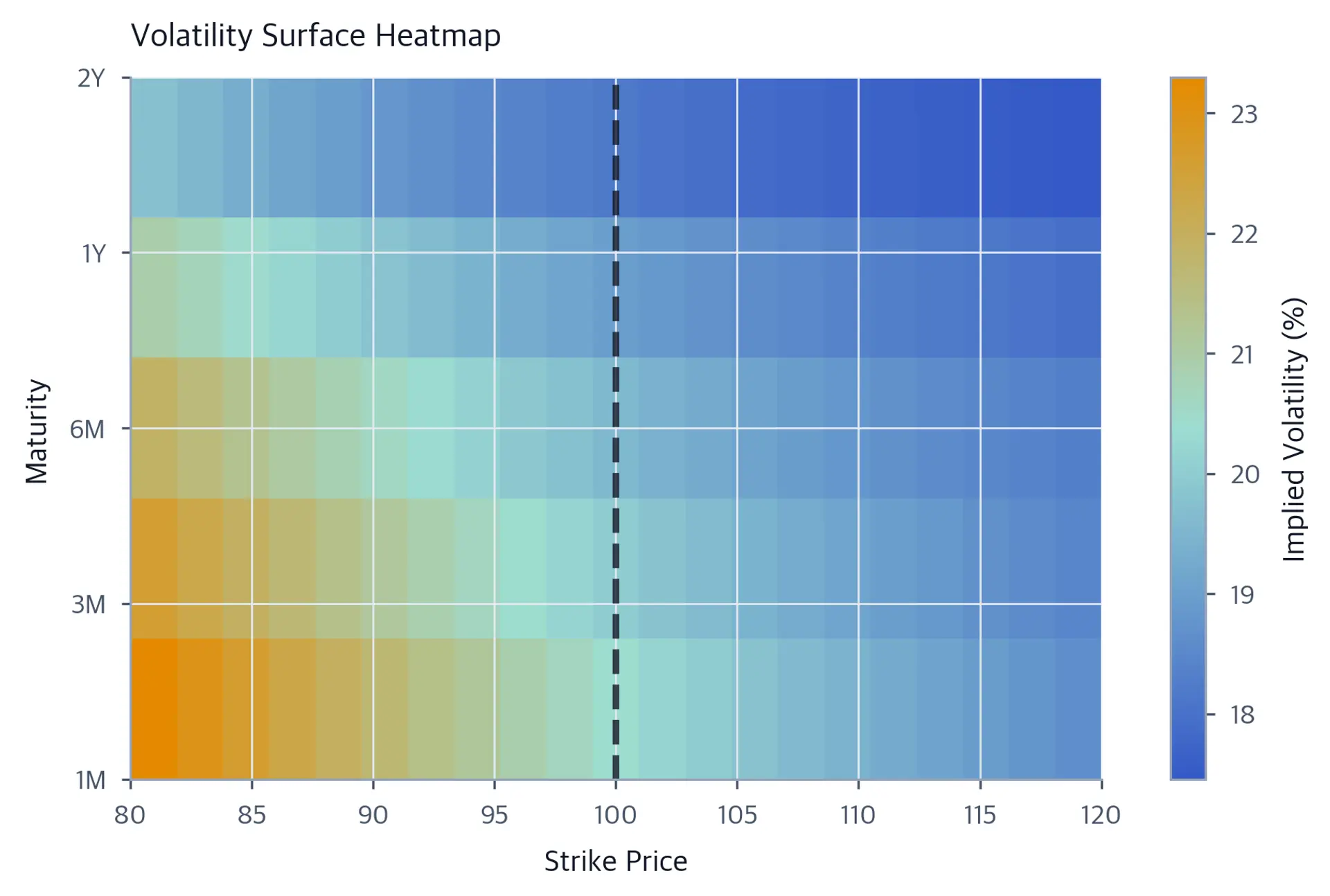

The surface exhibits several characteristic features:
Skew along the strike dimension: For any fixed maturity, implied volatility decreases as strike increases (the equity skew pattern). This reflects the market's assessment that downside risk exceeds upside risk, with out-of-the-money puts commanding a premium over out-of-the-money calls.
Term structure along the maturity dimension: Implied volatility often varies with time to expiration. When near-term uncertainty is high, such as before an earnings announcement or election, short-dated options have higher implied vol than long-dated options. In calmer periods, the term structure may invert. The term structure captures how the market's uncertainty evolves over different time horizons.
Smile attenuation with maturity: The smile or skew tends to flatten for longer maturities. A 3-month option might show a steep skew, while a 2-year option shows a milder slope. This occurs because over longer horizons, the distribution of returns becomes more stable and less influenced by near-term tail risks. The central limit theorem suggests that as the time horizon increases, the sum of many small returns approaches a normal distribution, which would imply a flatter smile.

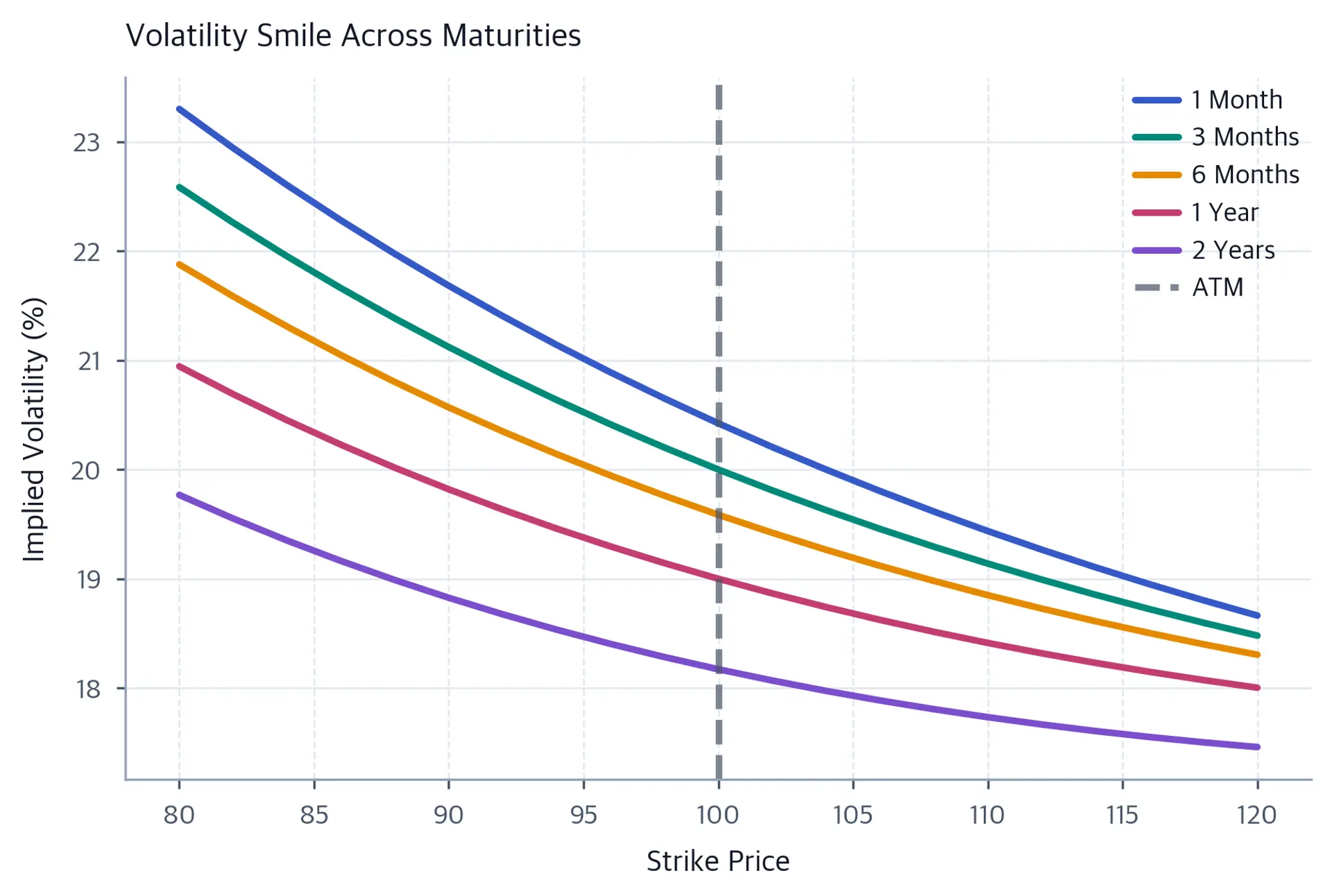

Visualizing Smile Across Maturities
A useful way to examine the surface is to plot implied volatility versus strike for several maturities simultaneously:
Notice how the 1-month curve has the steepest skew, while the 2-year curve is nearly flat. This pattern reflects the mean-reversion of volatility: over short horizons, current market conditions dominate, but over longer horizons, volatility tends to revert toward historical averages. The market recognizes that extreme conditions are unlikely to persist indefinitely, so long-dated options do not command the same tail-risk premium as short-dated options.
