PCA provides powerful tools for understanding and managing portfolio risk. We'll explore two key applications: risk decomposition and hedging. These applications demonstrate how the mathematical framework of PCA translates into practical risk management techniques.

Risk Decomposition by Principal ComponentLink Copied

For a portfolio with weights $\mathbf{w}$ , the portfolio variance is:

\sigma_p^2 = \mathbf{w}^T \mathbf{\Sigma} \mathbf{w}

where:

$\sigma_p^2$ : portfolio variance
$\mathbf{w}$ : vector of portfolio weights
$\mathbf{\Sigma}$ : covariance matrix

This quadratic form compresses the full covariance structure into a single number representing total portfolio risk. However, this summary obscures the underlying sources of that risk. By substituting the spectral decomposition $\mathbf{\Sigma} = \sum_{k=1}^{p} \lambda_k \mathbf{v}_k \mathbf{v}_k^T$ into the variance formula, we can decompose this into contributions from each principal component:

\begin{aligned} \sigma_p^2 &= \mathbf{w}^T \left( \sum_{k=1}^{p} \lambda_k \mathbf{v}_k \mathbf{v}_k^T \right) \mathbf{w} && \text{(substitute spectral decomposition)} \\ &= \sum_{k=1}^{p} \lambda_k (\mathbf{w}^T \mathbf{v}_k) (\mathbf{v}_k^T \mathbf{w}) && \text{(rearrange terms)} \\ &= \sum_{k=1}^{p} \lambda_k (\mathbf{w}^T \mathbf{v}_k)^2 && \text{(simplify)} \end{aligned}

where:

$\lambda_k$ : variance of the $k$ -th component
$\mathbf{v}_k$ : $k$ -th eigenvector
$\mathbf{w}$ : portfolio weights
$\sigma_p^2$ : portfolio variance
$p$ : total number of variables

This decomposition reveals the anatomy of portfolio risk. The term $\mathbf{w}^T \mathbf{v}_k$ represents the portfolio's exposure to the $k$ -th principal component, meaning its square $(\mathbf{w}^T \mathbf{v}_k)^2$ scales that component's contribution to total variance. Each component's contribution depends on two things: the variance of that component ( $\lambda_k$ ) and the portfolio's exposure to it. A portfolio can have low total variance either by avoiding exposure to high-variance components or by having low exposure to many components.

In[32]:

Code

import numpy as np

# Create an example portfolio (equal-weighted)
portfolio_weights = np.ones(n_sectors) / n_sectors

# Calculate portfolio variance
portfolio_variance = portfolio_weights @ cov_returns @ portfolio_weights

# Decompose by principal component
pc_exposures = portfolio_weights @ eigenvectors_ret
variance_contributions = eigenvalues_ret * pc_exposures**2
variance_pct_contributions = 100 * variance_contributions / portfolio_variance

Out[33]:

Console

Portfolio Risk Decomposition:
--------------------------------------------------
Total portfolio variance: 0.00011424
Portfolio volatility (daily): 1.0688%

Variance contribution by principal component:
  PC1:  99.77% of variance (exposure: 0.3101)
  PC2:   0.01% of variance (exposure: -0.0099)
  PC3:   0.01% of variance (exposure: -0.0120)
  PC4:   0.02% of variance (exposure: -0.0195)
  PC5:   0.00% of variance (exposure: 0.0039)

The decomposition shows that most portfolio variance comes from exposure to the first few principal components. For a market-neutral portfolio, we would want near-zero exposure to PC1 (the market factor).

Out[34]:

Visualization

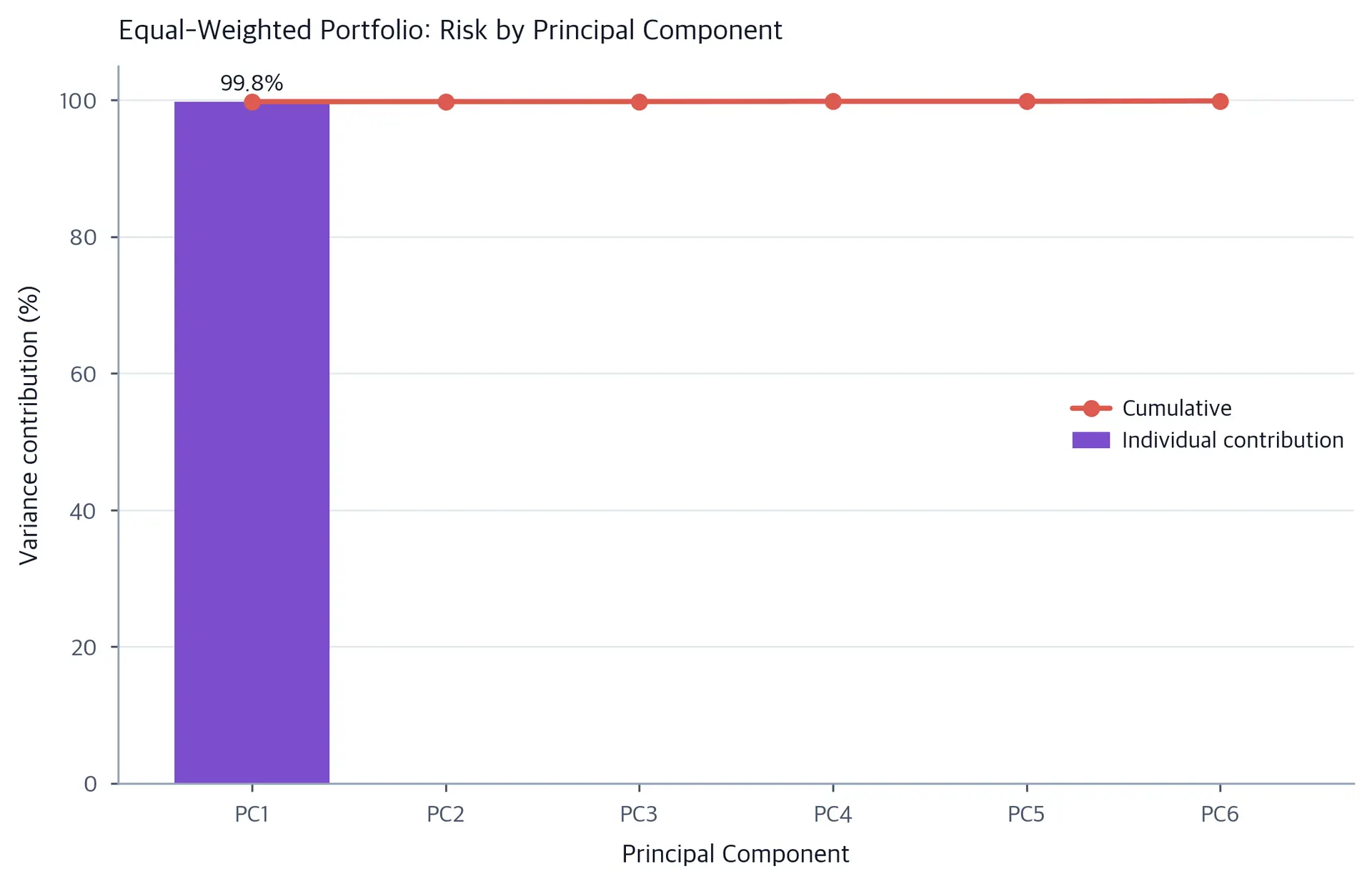

Bar chart showing the percentage of equal-weighted portfolio variance attributable to each principal component, with a secondary line showing cumulative variance. PC1 accounts for the largest share by far. — Portfolio variance decomposition by principal component. The bar chart shows the percentage of total portfolio variance attributable to each principal component. The dominance of PC1 indicates that market risk is the primary driver of portfolio volatility for an equal-weighted portfolio.

Constructing Factor-Hedged PortfoliosLink Copied

Understanding principal component exposures allows us to construct portfolios with specific factor characteristics:

In[35]:

Code

import numpy as np

# Create a portfolio that hedges out PC1 (market) exposure
# Start with a long position in Tech, hedge with other sectors

# Original position: long Tech
initial_weights = np.zeros(n_sectors)
initial_weights[sectors.index("Technology")] = 1.0

# Calculate PC1 exposure of initial position
pc1_loading = eigenvectors_ret[:, 0]
if pc1_loading.mean() < 0:
    pc1_loading = -pc1_loading

initial_pc1_exposure = initial_weights @ pc1_loading

# Find hedge portfolio: short the market factor
# We'll use a diversified basket weighted by PC1 loadings
hedge_weights = -pc1_loading / pc1_loading.sum()  # Normalize
hedge_weights[sectors.index("Technology")] = 0  # Exclude Tech from hedge

# Scale hedge to neutralize PC1 exposure
hedge_pc1_exposure = hedge_weights @ pc1_loading
scale = (
    -initial_pc1_exposure / hedge_pc1_exposure if hedge_pc1_exposure != 0 else 0
)

# Combined portfolio
hedged_weights = initial_weights + scale * hedge_weights
hedged_weights = (
    hedged_weights / np.abs(hedged_weights).sum()
)  # Normalize leverage

# Analyze initial portfolio
initial_variance = initial_weights @ cov_returns @ initial_weights

# Analyze hedged portfolio
hedged_pc1_exposure = hedged_weights @ pc1_loading
hedged_variance = hedged_weights @ cov_returns @ hedged_weights
variance_reduction = 1 - hedged_variance / initial_variance

Out[36]:

Console

Portfolio Hedging Analysis:
--------------------------------------------------

Initial Portfolio (Long Technology):
  PC1 exposure: 0.3444
  Variance: 0.00021117

Hedged Portfolio:
  Weights:
    Technology: +48.1%
    Healthcare: -5.3%
    Financials: -6.1%
    Consumer: -5.9%
    Industrials: -6.1%
    Energy: -7.2%
    Materials: -6.7%
    Utilities: -3.2%
    Real Estate: -4.4%
    Communications: -6.9%

  PC1 exposure: 0.0000
  Variance: 0.00002106
  Variance reduction: 90.0%

By hedging out exposure to the first principal component, we significantly reduce portfolio variance. The hedged portfolio's performance will depend more on sector-specific factors (Technology's outperformance of other sectors) rather than overall market movements.

Out[37]:

Visualization

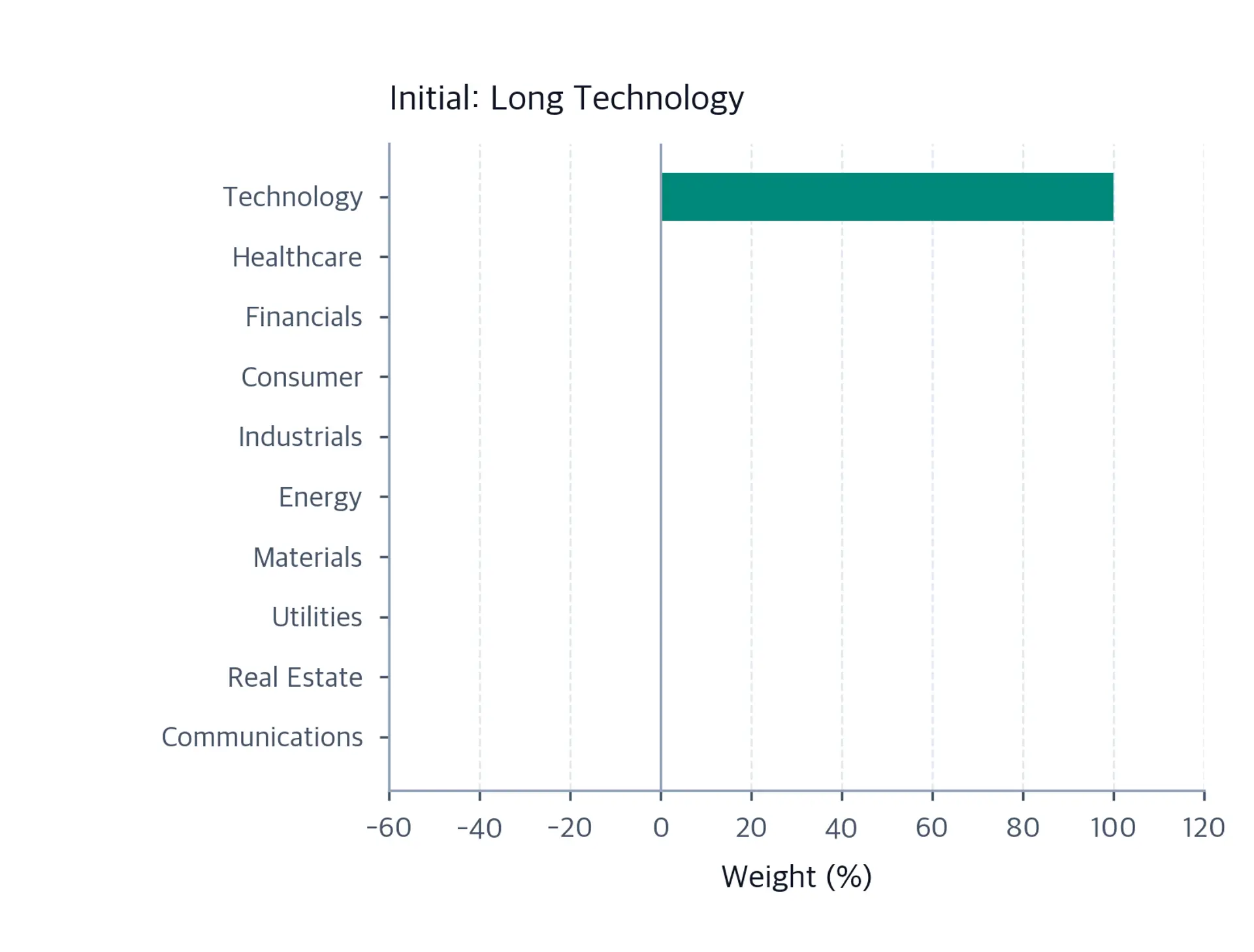

Horizontal bar chart of initial portfolio weights showing 100% allocation to Technology and zero elsewhere. — Initial portfolio with a pure long position in Technology. All weight is concentrated in one sector, resulting in maximum market exposure.

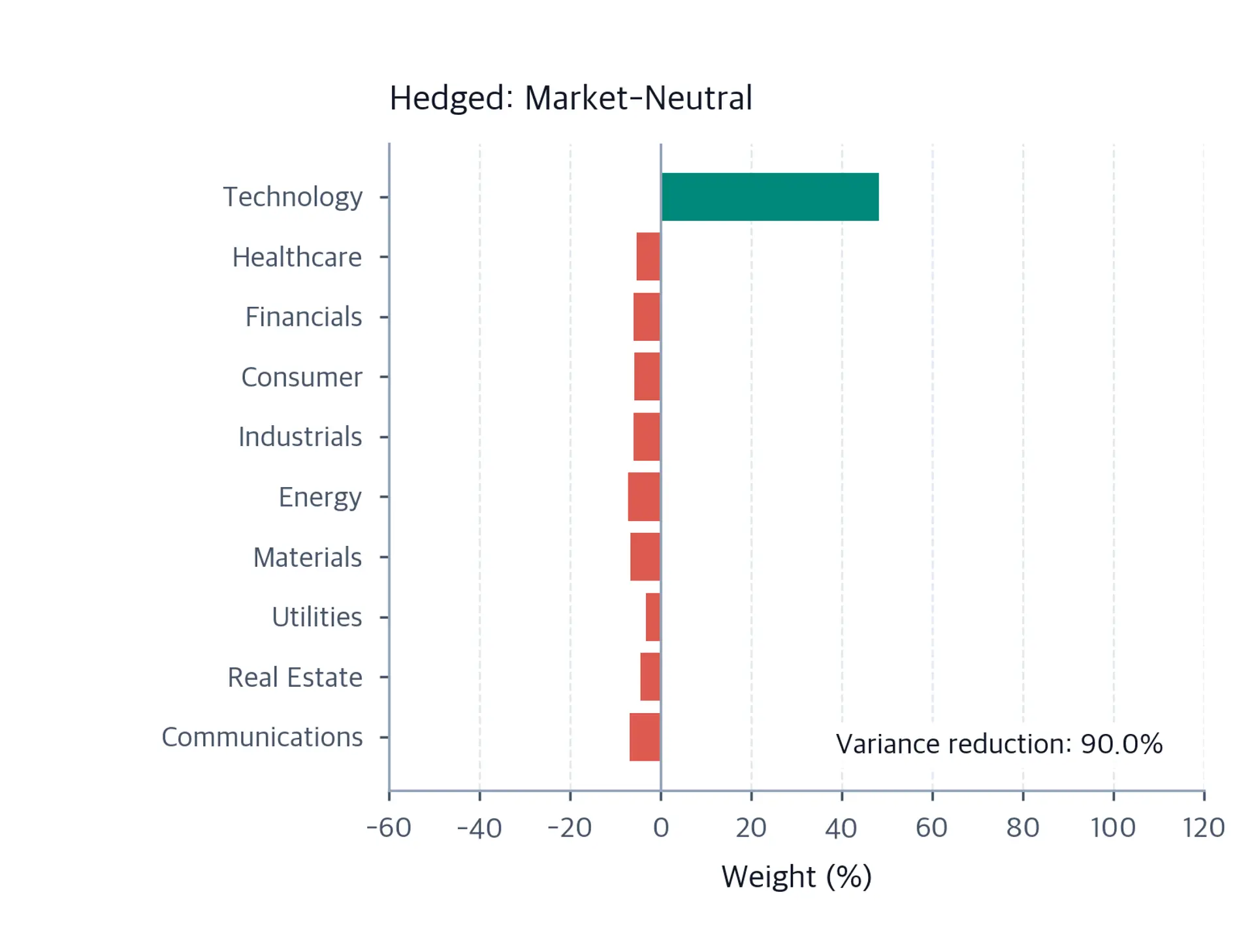

Horizontal bar chart of hedged portfolio weights showing a long Technology position offset by short positions in other sectors. — Hedged market-neutral portfolio. Short positions in other sectors offset the market (PC1) exposure of the Technology long, isolating the sector-specific component of returns.
