Let's create a simulation that demonstrates how smooth underlying improvements can appear as emergent transitions when measured with accuracy. This visualization will make the abstract mathematics concrete by showing exactly how the same underlying capability trajectory produces different apparent patterns depending on our choice of metric.

In[7]:

Code

import numpy as np


# Simulate a model capability that improves smoothly with scale
def smooth_capability(
    log_compute: np.ndarray,
    start: float = 0.7,
    end: float = 0.98,
    midpoint: float = 22,
) -> np.ndarray:
    """
    Simulate smooth per-token capability improvement.
    Uses a sigmoid to model gradual saturation.
    """
    # Linear improvement in logit space (common for neural networks)
    slope = 0.5
    logits = slope * (log_compute - midpoint)
    capability = start + (end - start) / (1 + np.exp(-logits))
    return capability


def accuracy_from_capability(
    capability: np.ndarray, sequence_length: int
) -> np.ndarray:
    """Convert per-token capability to sequence accuracy."""
    return capability**sequence_length


# Generate data across model scales
log_compute = np.linspace(18, 26, 100)  # ~10^18 to 10^26 FLOPs
per_token_cap = smooth_capability(log_compute)

# Calculate accuracy for different sequence lengths
acc_short = accuracy_from_capability(per_token_cap, 5)
acc_medium = accuracy_from_capability(per_token_cap, 20)
acc_long = accuracy_from_capability(per_token_cap, 50)

Out[8]:

Visualization

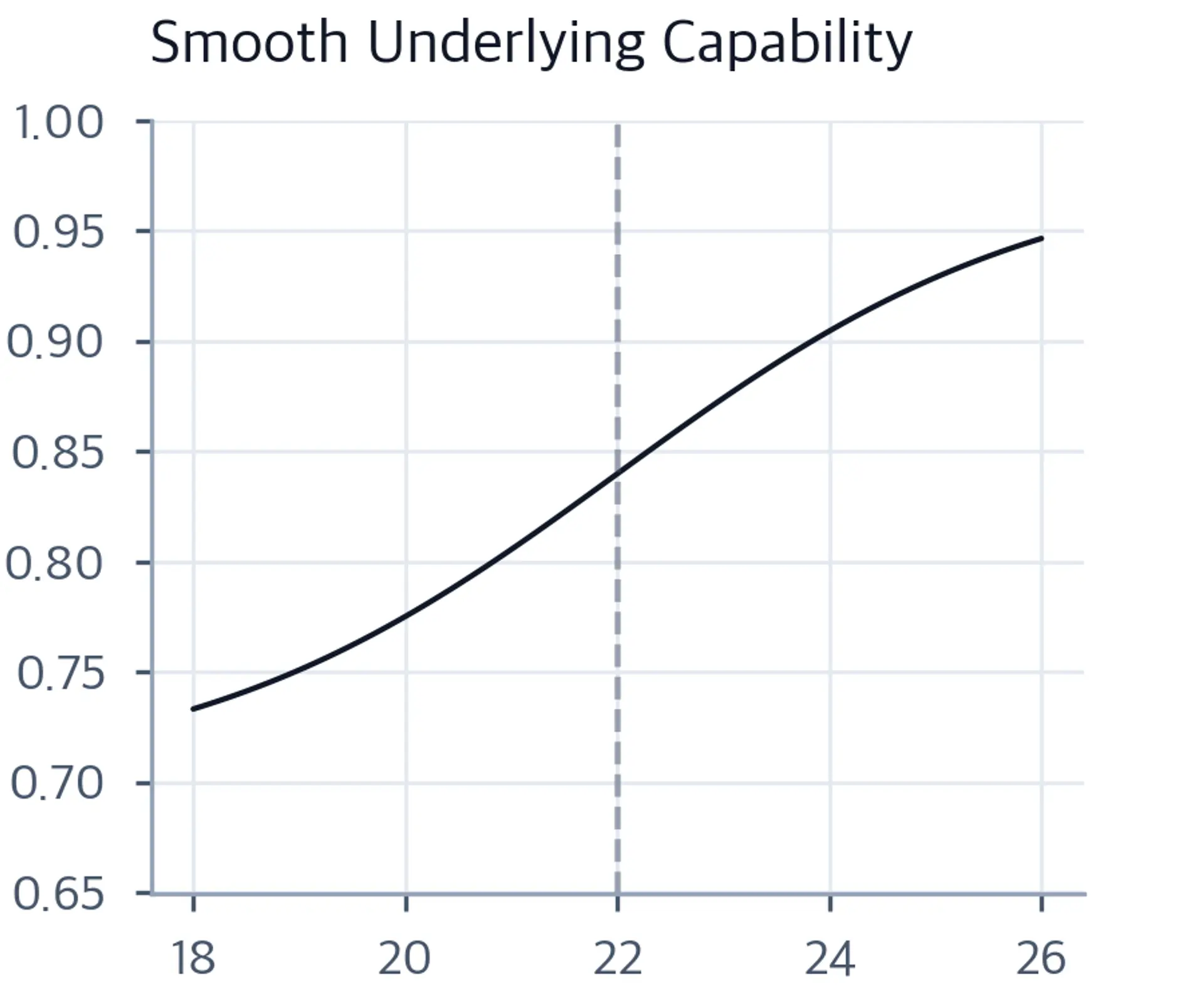

Line plot showing smooth sigmoid improvement in per-token accuracy as training compute increases. — Smooth sigmoid improvement in per-token probability as training compute increases from 10^18 to 10^26 FLOPs. The underlying capability develops gradually without abrupt transitions.

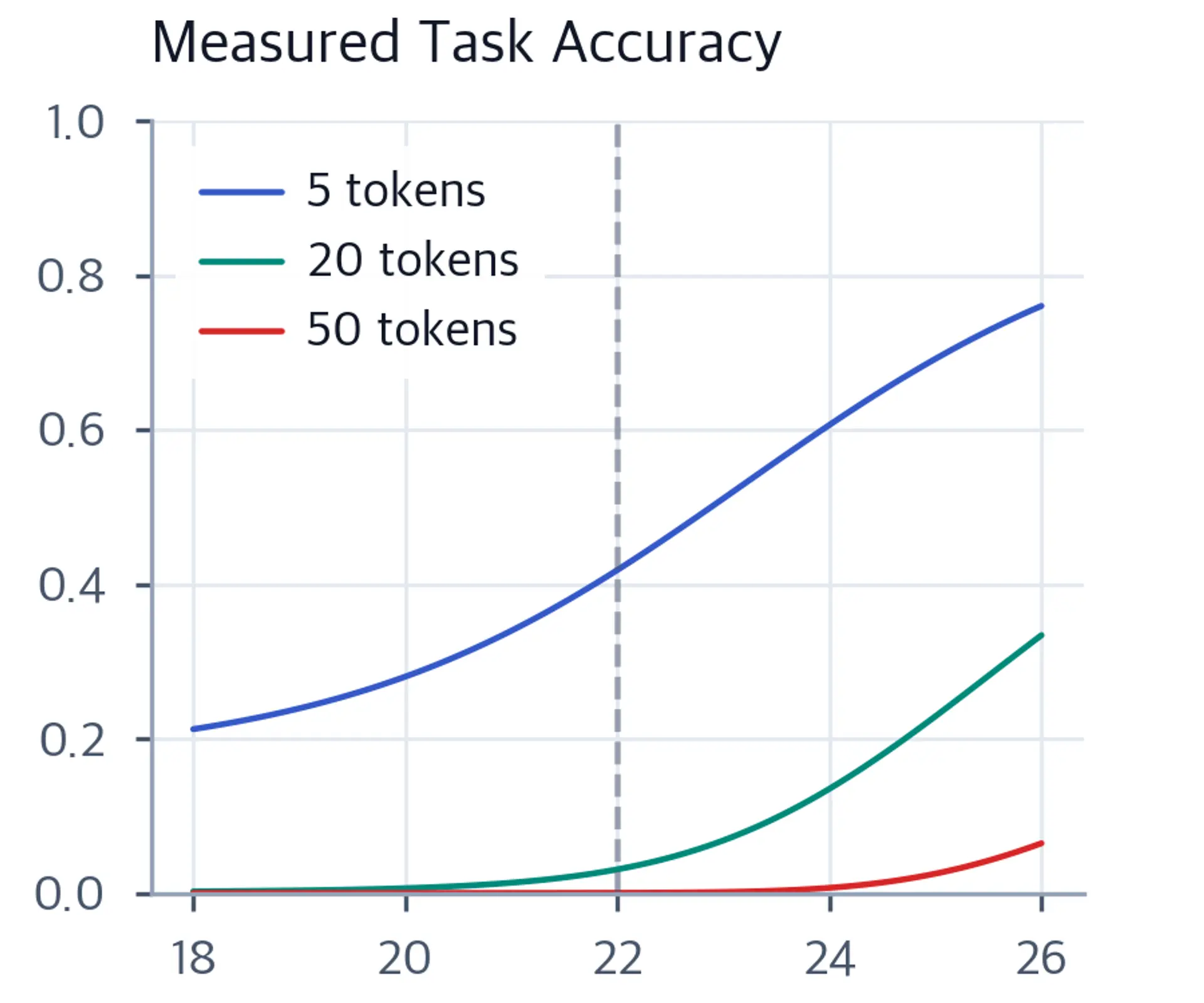

Line plot showing increasingly sharp S-curve transitions in sequence accuracy for longer sequences. — Sequence accuracy curves for different output lengths, showing increasingly sharp S-curve transitions. Tasks requiring longer outputs (50 tokens) exhibit dramatic emergence around 10^24 FLOPs, while shorter sequences (5 tokens) show more gradual improvement.

The left panel shows smooth, gradual improvement in the model's underlying capability. The right panel shows how this same improvement appears when measured by accuracy on sequences of different lengths. The 50-token task appears to "emerge" suddenly around $10^{24}$ FLOPs, while the 5-token task shows more gradual improvement. Yet the underlying capability change is identical. This visualization shows the core argument: emergence can be an optical illusion created by our measurement choices, not a basic property of how capabilities develop.
