Whisper Architecture: Encoder-Decoder Speech Recognition

Speech recognition has traditionally required specialized pipelines: acoustic models, pronunciation dictionaries, language models, and task-specific fine-tuning for every new language or domain. This fragmentation meant that building a speech system for a new language required linguistic expertise, curated datasets, and months of engineering effort. OpenAI's Whisper broke from this approach by showing that a single, large-scale transformer can handle multilingual speech recognition, speech translation, and language identification within a unified framework. The key insight was treating every speech processing task as a text-to-text translation problem, conditioning the decoder on special tokens that specify the desired operation. This approach eliminates the need for separate pipelines, letting the same model to transcribe English podcasts, translate Spanish interviews, or identify the language of an unknown audio clip, all without architectural modifications.

Unlike the decoder-only autoregressive models we explored in Part XXVIII: GPT Architecture, Whisper employs an encoder-decoder architecture similar to T5 and BART. This design choice allows the encoder to process the full acoustic sequence in parallel while the decoder generates text autoregressively, attending to both previous text tokens and the encoded audio representation. The encoder-decoder separation is particularly important for speech, as acoustic sequences are dense and continuous, requiring complete bidirectional context to disambiguate phonemes and word boundaries. The decoder, by contrast, operates sequentially to generate discrete text tokens, a process that naturally suits autoregressive generation. What makes Whisper distinctive is its architecture and its multitask training paradigm, where a single model learns to transcribe, translate, and align speech through a unified token vocabulary that includes timestamps, language identifiers, and task specifiers. This unification means that knowledge learned from one task or language transfers to others. This creates a reliable system that generalizes across acoustic conditions and linguistic boundaries.

Before diving into the architecture, it helps to understand the historical context of what Whisper replaced. Traditional ASR systems were modular: a front-end feature extractor computed MFCCs or filterbank features, an acoustic model (often a Hidden Markov Model combined with a neural network) estimated the likelihood of phoneme sequences, a pronunciation dictionary mapped phonemes to words, and a language model re-scored hypotheses to prefer fluent word sequences. Each component required domain-specific expertise and training data. If you wanted to add a new language, you needed a new pronunciation dictionary, new acoustic training data labeled at the phoneme level, and often a new language model. Whisper replaces this entire stack with a single end-to-end model that learns all these mappings implicitly from raw audio and text pairs, requiring only transcripts rather than phonetic annotations.

The design philosophy carries an important implication for robustness. Because each component in the traditional pipeline could fail independently, errors accumulated across stages. A misidentified phoneme influenced word choices, which influenced language model scores, creating cascading failures in noisy conditions. Whisper's end-to-end approach means that the model optimizes directly for the final transcription objective, learning features that are relevant for the complete task rather than for intermediate representations that may not transfer perfectly to downstream stages. This property explains why Whisper often outperforms much more complex traditional systems on out-of-domain audio, such as phone call recordings, heavily accented speech, or content from new domains not seen during training.

To appreciate the magnitude of what Whisper accomplishes, consider a concrete comparison. A production-grade Spanish ASR system built on traditional methods might require 500 hours of phonetically transcribed speech, a Spanish pronunciation dictionary with 100,000 entries, a 4-gram language model trained on hundreds of millions of words, and an acoustic model fine-tuned specifically for the recording conditions expected at deployment. Building this system from scratch requires teams of linguists and engineers working over months. Whisper's Spanish recognition capabilities, by contrast, emerged from joint training across 99 languages where Spanish data was mixed with English, French, German, and dozens of others. The model never saw language-specific phonetic transcriptions: it learned Spanish phonetics implicitly by observing that certain acoustic patterns correspond to Spanish words.

This scaling-by-data approach is a philosophical shift in how we think about building speech systems. Traditional approaches concentrated human expertise in the model architecture and training procedure, encoding linguistic knowledge into the design. Whisper instead concentrates human effort in data collection and curation, trusting the model to discover the relevant linguistic knowledge from the training signal. The 680,000 hours of training audio that OpenAI collected spans many speakers and accents across varied recording conditions and topics. This gives the model the coverage needed to generalize far beyond any single specialized dataset.

The training data collection strategy is worth understanding because it directly explains Whisper's generalization properties. Rather than building a carefully curated dataset with human annotators, OpenAI scraped transcribed audio from the internet: podcasts, lectures, audiobooks, news broadcasts, and other content where human-generated transcripts were available alongside the audio. This "weakly supervised" approach produced imperfect labels (internet transcripts contain errors, inconsistent formatting, and occasional misalignments), but the scale more than compensated for the noise. The model learned to be reliable to label noise precisely because it encountered so much of it, developing the ability to produce coherent transcriptions even when the acoustic signal is ambiguous. This property generalizes to deployment conditions where recording quality may be far from ideal, which explains why Whisper works well on real-world audio that differs materially from controlled lab recordings.

While we assume familiarity with speech representations from the previous chapter, Whisper's specific input format warrants detailed review. The model consumes raw audio converted into log-mel spectrograms, which capture frequency content over time in a format suitable for neural processing. This representation bridges the gap between raw acoustic waveforms and the structured patterns that transformer architectures can effectively process.

The choice of log-mel spectrograms shows decades of speech processing research. The mel scale approximates human auditory perception, compressing high frequencies where the human ear is less discriminative and expanding low frequencies where fine distinctions matter for speech intelligibility. The logarithmic compression of amplitude mimics the human ear's nonlinear response to loudness, while also stabilizing the variance across different recording conditions. This preprocessing gives the model input aligned with human hearing rather than raw physical measurements.

To understand why these choices matter, consider the alternative of feeding raw waveforms directly. A 30-second audio clip at 16kHz contains 480,000 samples. Processing this sequence with a transformer's quadratic-complexity self-attention would be computationally prohibitive, and the raw waveform representation contains enormous redundancy since most of the information relevant for speech lies in the frequency domain rather than the time domain. The Short-Time Fourier Transform (STFT) projects the time-domain signal into a time-frequency representation, revealing which frequencies are active at each moment. By compressing these frequencies onto the mel scale, we reduce the frequency axis to 80 bins while stressing the frequency ranges most relevant to human speech (roughly 0 to 8kHz).

The logarithm of the power spectrum serves two purposes. First, it compresses the dynamic range: a whisper and a shout might differ by six orders of magnitude in raw power, but the log compression brings them into a more similar numerical range that neural networks can handle without extreme weight scaling. Second, it aligns with Weber's law from psychoacoustics, which states that the just-noticeable difference in loudness is roughly proportional to the current loudness level. The log transformation encodes this perceptual property directly into the feature representation.

Whisper processes audio in 30-second chunks sampled at 16kHz. The raw waveform undergoes a Short-Time Fourier Transform (STFT) to produce a spectrogram, which is then mapped to 80 mel-frequency bins. The logarithm of these values yields the input features. Unlike image-based approaches that might use raw waveforms or complex feature engineering, Whisper follows the tradition of ASR systems while keeping the preprocessing minimal and fixed. This standardization means that the model learns to be reliable to variations in recording quality, background noise, and speaker characteristics directly from the data, rather than relying on hand-engineered feature extraction that might fail in novel acoustic environments.

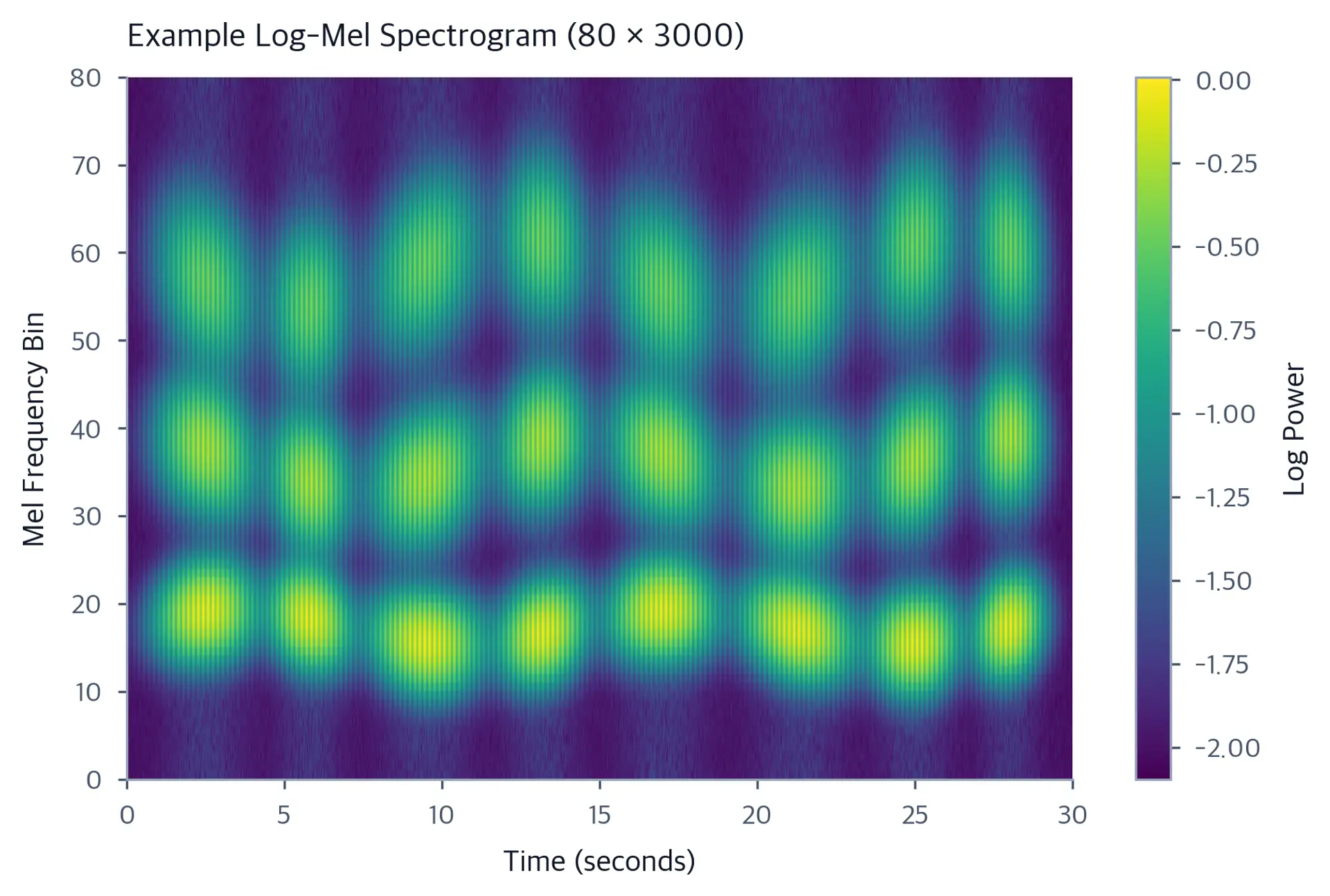

The resulting input tensor has shape $(80, 3000)$, representing 80 mel channels across 3000 time frames (since 30 seconds at 16kHz with a hop length of 160 samples yields 3000 frames). This two-dimensional representation is the "image" that Whisper's encoder processes. The fixed 30-second window gives enough context for most utterances while keeping computational requirements predictable and batch processing efficient. For audio shorter than 30 seconds, the sequence is padded with silence; for longer content, the audio is segmented into overlapping windows, though this introduces the boundary challenges we will discuss in the limitations section.

The specific parameter choices deserve attention. A hop length of 160 samples at 16kHz corresponds to 10 milliseconds between successive frames. This temporal resolution is finer than a typical phoneme duration (roughly 50 to 150 milliseconds). This keeps phoneme transitions appear as smooth trajectories in the spectrogram rather than abrupt discontinuities. The window length of 400 samples (25 milliseconds) is long enough to estimate frequency content accurately while short enough to track rapid changes. These values stand for the standard choices from decades of speech processing research, and Whisper inherits their acoustic desirability while discarding the complex feature processing stages that traditionally followed.

Whisper's architecture follows the standard transformer blueprint established in Part XVI: Transformer Architectures, with specific modifications for acoustic input and multitask output generation. The architecture must bridge the modality gap between continuous acoustic signals and discrete text tokens, requiring careful handling of sequence lengths and positional information. Understanding why each component exists and how it solves specific challenges in speech processing reveals the thoughtfulness of the design.

The encoder-decoder split is not arbitrary. In speech recognition, the encoder's job is to build rich contextual representations of the acoustic input, while the decoder's job is to convert those representations into text. These are fundamentally different tasks: the encoder needs to attend globally across the audio to resolve ambiguities (such as determining whether a phoneme belongs to one word or another based on context), while the decoder needs to generate tokens causally, conditioning each word on previous words and the entire audio representation. Separating these concerns into distinct modules allows each to be optimized for its specific role.

An alternative architecture would use a decoder-only model that autoregressively processes audio frames interleaved with text tokens, similar to how GPT-4o handles audio. This approach has appeal for streaming applications, since the model can generate text tokens as audio frames arrive without waiting for the complete audio. However, Whisper's encoder-decoder design has key advantages for batch offline processing: the encoder can attend bidirectionally to the complete audio before any text is generated, letting it to resolve ambiguities that only become clear in retrospect. A speaker who begins a sentence with an ambiguous word might disambiguate it five seconds later; the bidirectional encoder sees both parts simultaneously, while a causal decoder-only model would have already committed to an interpretation based on the early frames alone.

The overall information flow through Whisper's architecture proceeds in three phases. First, the encoder turns the raw spectrogram into a sequence of contextualized acoustic representations, one per 20-millisecond frame, integrating information from the full audio context. Second, these representations are frozen and stored as the encoder memory. Third, the decoder generates text token by token, at each step using cross-attention to query the encoder memory for the most relevant acoustic information. This separation means the encoder runs only once per audio clip (regardless of output length), while the decoder runs once per output token. For long transcripts with many words, this amortizes the encoder's computational cost effectively.

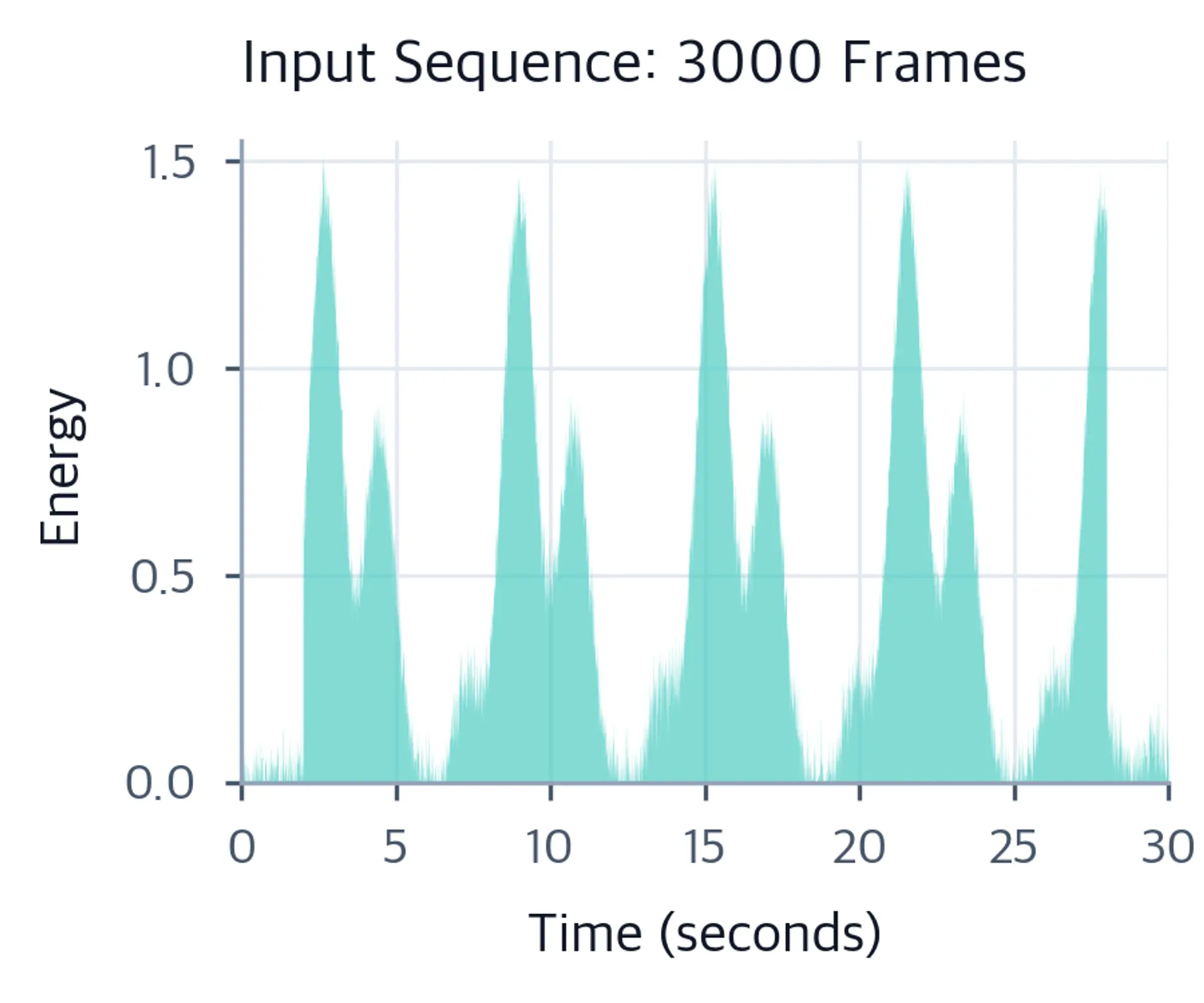

Before transformer layers process the spectrogram, Whisper applies a two-layer convolutional stem that downsamples the temporal resolution and projects the feature dimension. This preprocessing step is needed for computational efficiency and effective feature extraction. Without this downsampling, the transformer would face sequences of 3000 time steps, creating prohibitive computational costs for standard self-attention, which scales quadratically with sequence length as we discussed in Part XVII: Efficient Attention. A sequence of length 3000 would require attention matrices with 9 million entries per head per layer, rapidly exhausting memory resources during training and inference.

The first convolutional layer uses 3x3 kernels with stride (1, 2) along the time dimension, processing across frequency and time. This initial layer captures local spectral patterns, such as formant transitions and harmonic structures, while beginning the compression of the temporal dimension. The second layer uses stride (1, 1) with GELU activation. This gives nonlinear gating mechanisms that help the model select relevant acoustic features. This architecture reduces the sequence length from 3000 to 1500 while increasing the feature dimension to the model's hidden size (typically 768 for the "small" model or 512 for the "base" model).

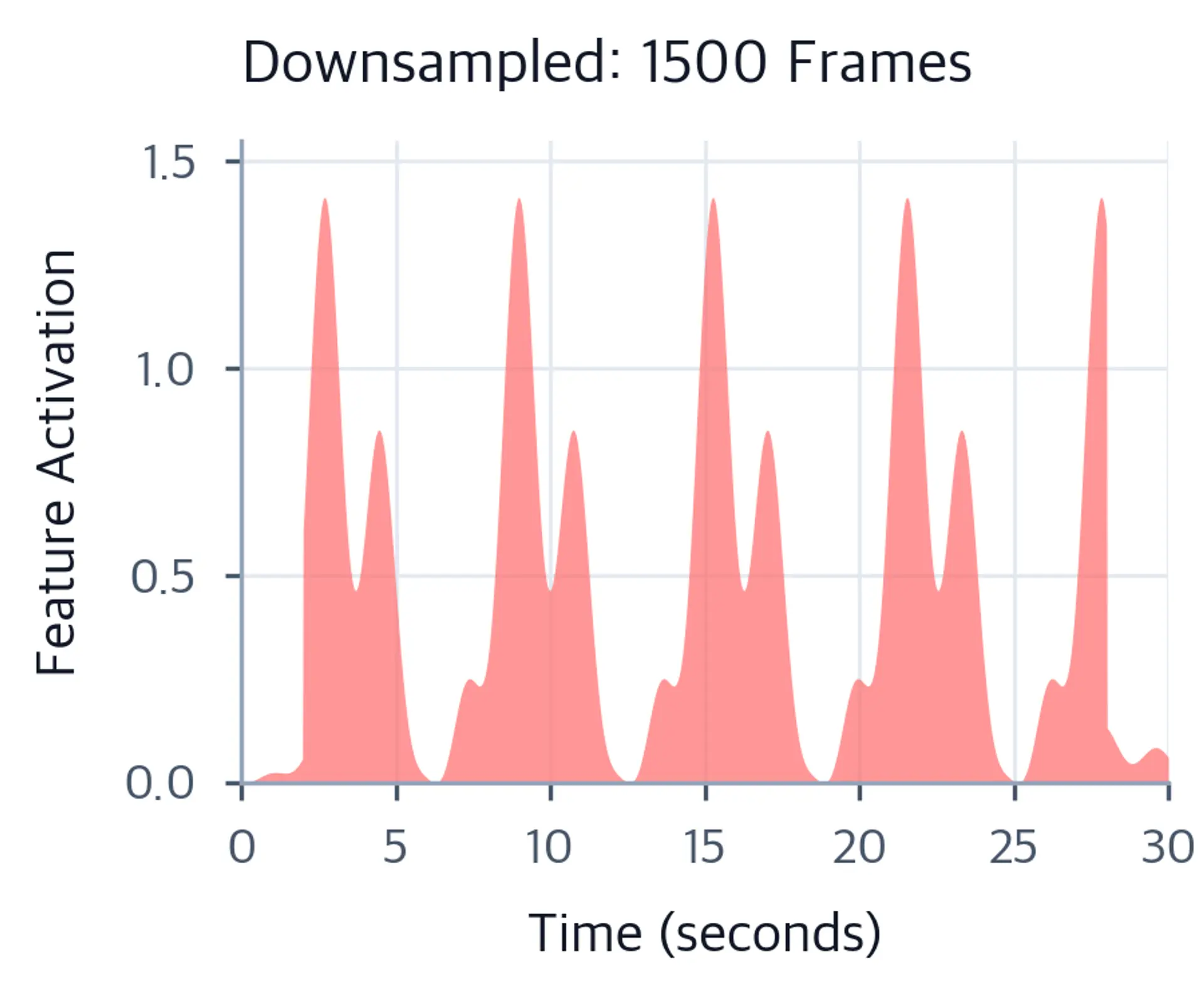

This convolutional preprocessing serves multiple purposes beyond mere downsampling. Consider the analogy with computer vision: convolutional layers in image classifiers learn to detect edges, corners, and textures before higher-level features like faces and objects. Similarly, Whisper's convolutional stem learns to detect local spectral patterns like formant transitions, harmonic structures, and fricative noise characteristics before the transformer layers process higher-level linguistic patterns. The CNN layers pool information across adjacent time frames, effectively giving each position a wider temporal receptive field before the attention layers begin processing. This means the self-attention layers can focus on relationships between acoustic units (phonemes and syllables) rather than between individual spectrogram frames, which would be noisy and redundant.

The choice of a two-layer convolutional stem with stride 2 is a deliberate balance. A single strided layer would give less feature extraction depth, potentially leaving the transformer to handle too much low-level processing. A deeper stem or larger stride would lose temporal precision needed for accurate timestamp prediction. Two layers with total stride 2 is the sweet spot: sufficient local feature extraction without sacrificing temporal resolution. This design mirrors successful approaches in other audio processing models, including wav2vec 2.0, which also uses convolutional feature extractors before transformer layers.

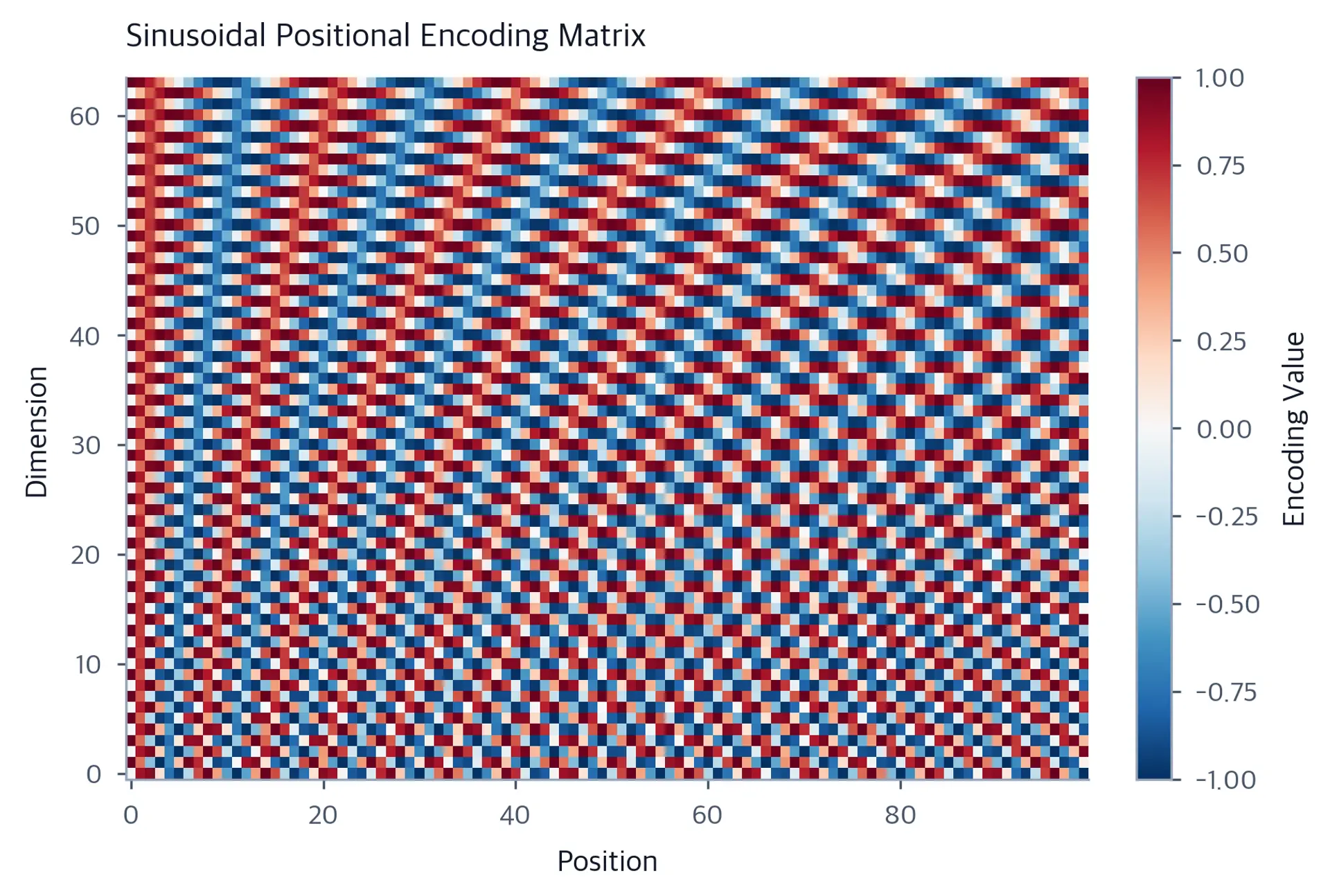

Following the convolutional stem, Whisper adds fixed sinusoidal position embeddings to the sequence. Since the transformer architecture processes all positions in parallel without inherent sequential information, we must explicitly encode where each element occurs in the sequence. This is particularly important for speech because temporal order determines linguistic meaning; reversing the order of phonemes changes the word entirely, unlike in certain text processing scenarios where bag-of-words approaches might suffice.

As we explored in Part XIV: Positional Encoding, these embeddings map each position index to a unique vector using sine and cosine functions of varying wavelengths:

where:

• $PE_{(pos, 2i)}$: the positional encoding value at position $pos$ for even dimension index $2i$, computed using the sine function
• $PE_{(pos, 2i+1)}$: the positional encoding value at position $pos$ for odd dimension index $2i+1$, computed using the cosine function
• $pos$: the position of the token in the input sequence (from 0 to maximum sequence length)
• $i$: the dimension index within the embedding vector (from 0 to $d_{model}/2 - 1$)
• $d_{model}$: the total dimensionality of the model's hidden representations (e.g., 512 for the base model)
• $10000^{2i/d_{model}}$: the denominator scaling factor, ranging from 1 to 10000, which produces sinusoids with geometrically increasing wavelengths from $2\pi$ to $10000 \cdot 2\pi$

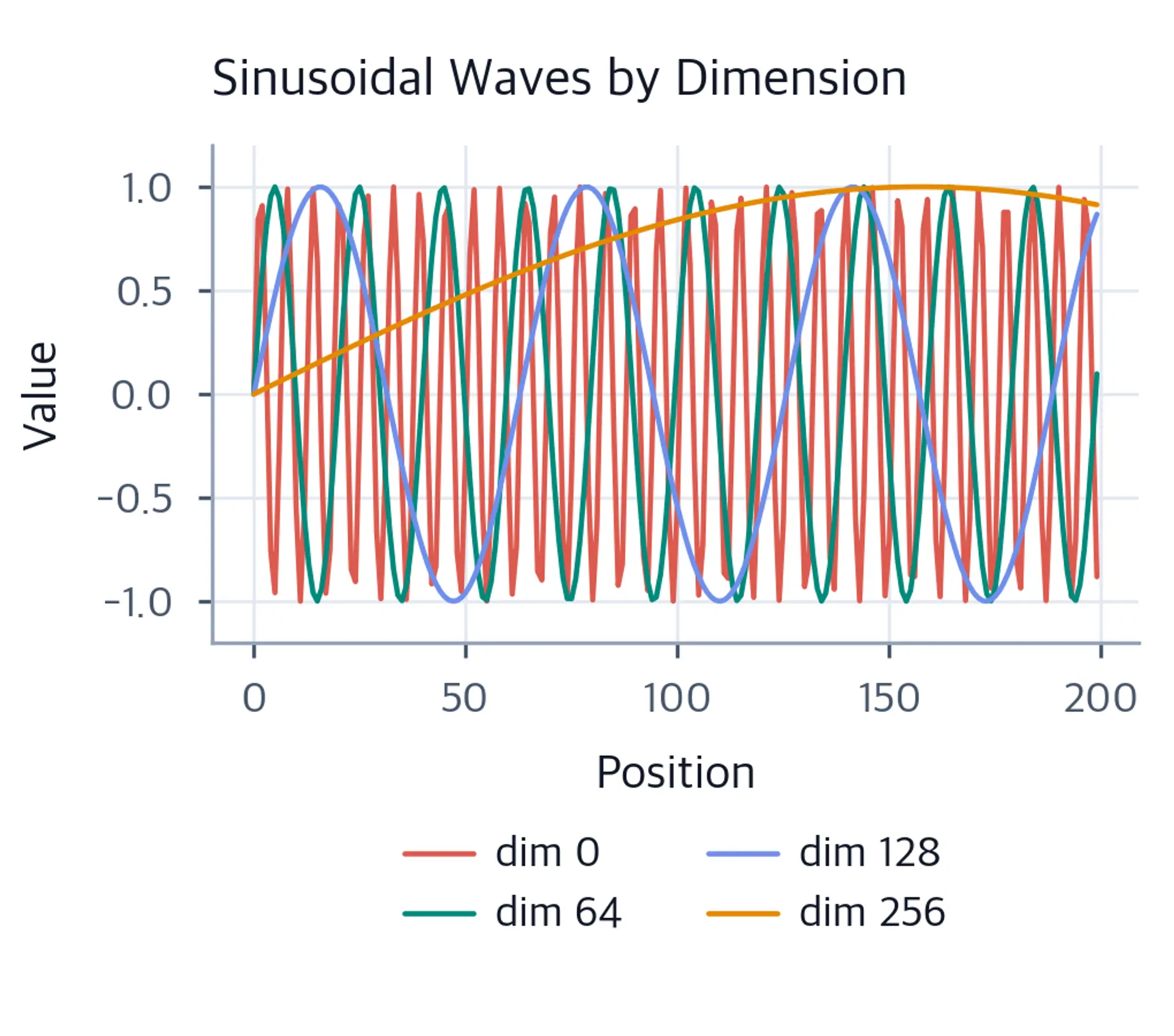

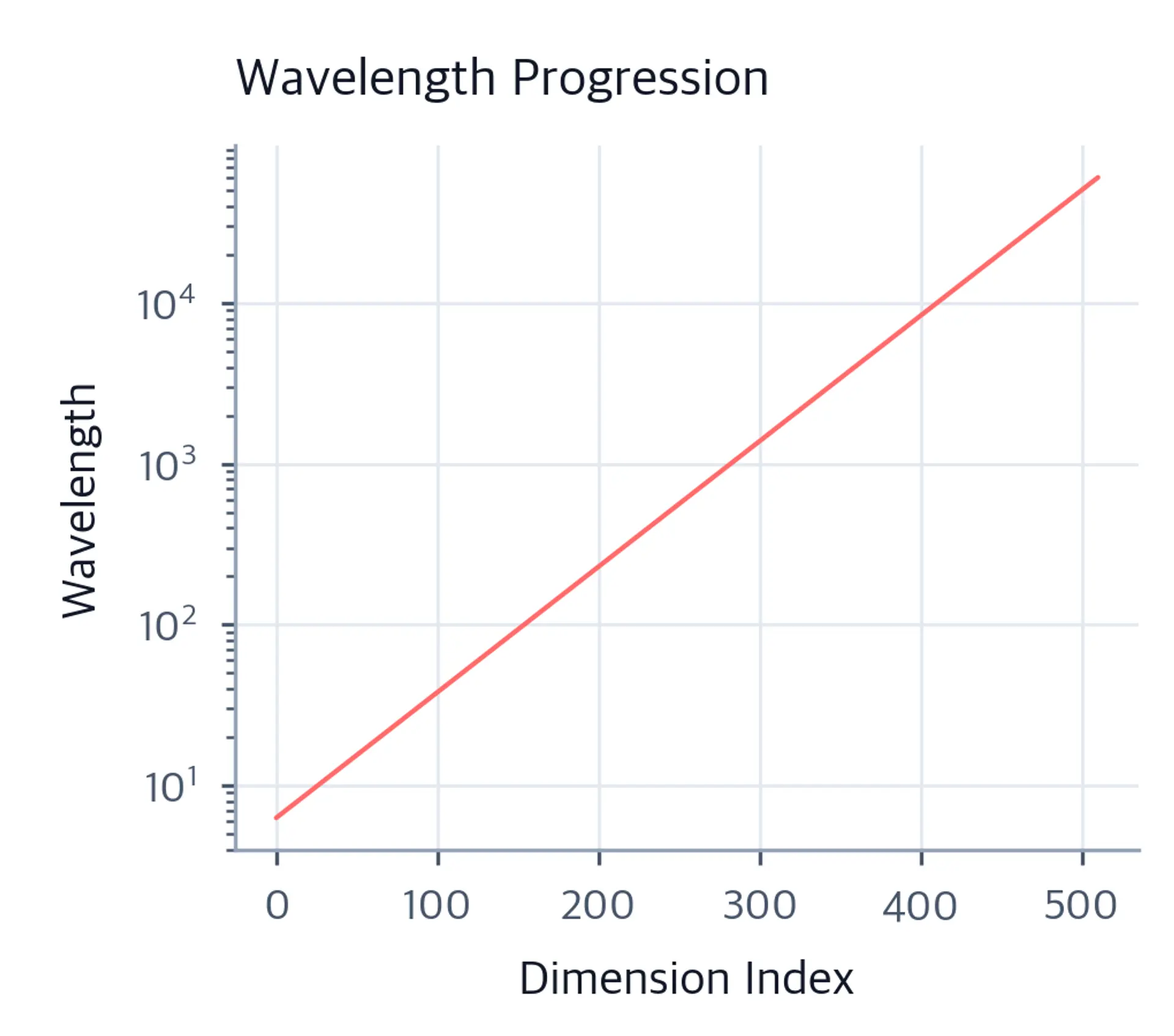

This geometric progression of wavelengths allows the model to attend to relative positions. For any fixed offset $k$, the relationship between the embeddings at positions $pos$ and $pos+k$ depends only on the offset $k$, not the absolute position $pos$. This property lets the model to learn position-invariant attention patterns and generalize to sequence lengths not seen during training. In the acoustic domain, this means the model can recognize that a certain phoneme pattern indicates a word boundary, regardless of whether that pattern occurs at the beginning or end of the 30-second window.

An important subtlety: sinusoidal positional encodings are added to the representations, not concatenated. This means the model must learn to disentangle content information from positional information through the attention mechanism. The addition is possible because the embeddings are designed so that different dimensions encode different wavelengths, letting the network to attend to specific frequency components of the positional signal. In practice, this works remarkably well: transformer models learn to extract positional information from the embedding dimensions that encode the relevant wavelengths while treating other dimensions as content features.

The choice of sinusoidal rather than learned positional embeddings for the encoder connects to an important practical concern: generalization to audio lengths not seen during training. Learned position embeddings are tied to specific integer positions, so a model trained on sequences up to length 1500 cannot gracefully handle longer sequences at inference time. Sinusoidal embeddings, by contrast, produce well-defined values for any position index, and the relative position property means the model's attention patterns can generalize from trained positions to untrained ones. For Whisper specifically, this matters less than for language models (since the encoder always sees exactly 1500 positions), but the choice shows the established best practice for encoder models designed to process fixed-length inputs with precise temporal structure.

It is also worth contrasting Whisper's approach to temporal encoding with rotary positional embeddings (RoPE), which we explored in Part XIV: Positional Encoding. RoPE encodes relative positions by rotating the query and key vectors before computing attention, which theoretically gives cleaner relative position information than additive sinusoidal embeddings. More recent speech models have adopted RoPE, and it is plausible that Whisper's architecture would benefit from it. However, additive sinusoidal embeddings were the standard when Whisper was designed, and they have proven sufficient for high-quality transcription, suggesting that positional encoding quality is not the limiting factor in Whisper's performance. The primary bottleneck is training data scale and acoustic diversity rather than positional encoding precision.

Whisper uses these fixed embeddings for the encoder only. The decoder, which generates text tokens, uses learned position embeddings instead. This asymmetry shows different requirements: the encoder must handle fixed-length acoustic sequences where relative position matters absolutely, while the decoder benefits from the flexibility of learned embeddings for variable-length text generation. The fixed sinusoidal embeddings ensure that the encoder maintains consistent geometric relationships between time steps, which is important for accurate timestamp prediction and temporal alignment. Learned embeddings are constrained to the sequence lengths seen during training, but since text output is always short relative to the 30-second audio window, this constraint does not cause issues in practice.

Both encoder and decoder consist of standard transformer blocks. The encoder uses full bidirectional self-attention, where every position can attend to every other position, capturing global acoustic context. The decoder uses causal (masked) self-attention, where each token can only attend to previous tokens. This keeps the model cannot "cheat" by looking at future text. The decoder additionally contains cross-attention layers that allow text generation to be conditioned on the encoder's acoustic representations.

Each block in both encoder and decoder includes:

• Multi-head self-attention to capture dependencies within the sequence (Part XIII)
• Cross-attention in the decoder only, connecting text generation to encoder outputs (Part XVI)
• Feed-forward networks with GELU activation (Part XV)
• Pre-normalization with LayerNorm before each sub-layer (Part XV)
• Residual connections around each sub-layer to preserve information flow

The attention mechanism follows the scaled dot-product formulation from Scaled Dot-Product Attention, computing attention weights between all positions in the sequence. For the encoder, this means every time frame can attend to every other frame, capturing long-range acoustic dependencies like prosody and speaker characteristics across the full 30-second context. This global receptive field allows the encoder to resolve ambiguities using distant context, such as determining whether a muffled syllable is part of a word based on the speaker's intonation pattern established seconds earlier.

The choice of pre-normalization (applying LayerNorm before the attention and FFN sub-layers rather than after) is important for training stability. As we discussed in Part XV: Transformer Blocks, pre-norm architectures train more reliably at large scale without learning rate warmup, because the gradients flowing through the residual path remain well-scaled even in early training. Whisper benefits from this property given the scale of its training data and the diversity of acoustic conditions it must handle.

The feed-forward networks in each transformer block use GELU (Gaussian Error Linear Unit) activation rather than the ReLU common in earlier models. GELU gives smooth, differentiable nonlinearity near zero, which has been shown empirically to improve training convergence for language models. In the speech domain, this smoother activation may help the model learn gradual spectral transitions more accurately than ReLU, which introduces a hard zero at negative inputs.

The decoder's self-attention uses causal masking to enforce left-to-right generation. Each token can only attend to previous tokens in the sequence, preventing the decoder from "seeing the future" during training and so that the generation process at inference time is consistent with how the model was trained. This is implemented by adding a mask matrix to the attention logits before the softmax, setting future positions to negative infinity so that their attention weights become zero.

Causal masking is necessary for technical correctness and for proper language modeling. If the decoder could attend to future tokens during training, it could trivially copy output text from future positions rather than learning to predict it from acoustic evidence and previous text. The causal constraint forces the model to develop real predictive capabilities, which is exactly what lets autoregressive generation at inference time.

The interaction between causal self-attention and cross-attention in each decoder layer deserves careful consideration. In each decoder block, the causal self-attention processes the current text sequence, building representations that integrate the history of previously generated tokens. These representations then attend to the encoder output through cross-attention, pulling in acoustic evidence. The combination means that the model conditions each new token on two sources of information: what has been said (via self-attention) and what was heard (via cross-attention). This dual conditioning is precisely what makes encoder-decoder models powerful for sequence-to-sequence tasks.

Cross-attention in the decoder is the mechanism that connects acoustic representations to text generation. When the decoder generates each text token, it uses cross-attention to look back at all 1500 encoder positions and determine which acoustic features are most relevant for the current token. This is where the model performs the basic mapping from sound to symbol.

The cross-attention computation follows the standard formulation. Given decoder hidden states $\mathbf{Q}$ (queries) and encoder outputs $\mathbf{K}$, $\mathbf{V}$ (keys and values):

where:

• $\mathbf{Q} \in \mathbb{R}^{t_{dec} \times d_k}$: query matrix from decoder hidden states, where $t_{dec}$ is the current decoder sequence length
• $\mathbf{K} \in \mathbb{R}^{1500 \times d_k}$: key matrix derived from encoder outputs, covering all 1500 acoustic positions
• $\mathbf{V} \in \mathbb{R}^{1500 \times d_v}$: value matrix derived from encoder outputs, containing the acoustic content to be retrieved
• $d_k$: the key dimension, used as a scaling factor to prevent the dot products from becoming too large

The scaling by $\sqrt{d_k}$ prevents the dot products from growing so large that the softmax saturates, which would cause vanishing gradients. As $d_k$ increases, the dot products grow proportionally to $d_k$ in expectation, so dividing by $\sqrt{d_k}$ keeps them at a manageable scale regardless of model size.

Critically, cross-attention uses no masking on the encoder side: the decoder can attend to any position in the encoder output at any step of generation. This is what makes encoder-decoder architecture powerful for speech: the model can use information from the end of an utterance to resolve ambiguity encountered at the beginning. If the speaker says something muffled early in the audio but uses a clarifying phrase later, the decoder can access that later acoustic information when generating the ambiguous word's transcription.

An important efficiency consideration is that the keys and values for cross-attention, computed from the encoder output, are the same at every decoder step. Since the encoder output does not change during generation, these key-value matrices can be computed once and cached, avoiding redundant computation. This key-value caching is standard practice in transformer inference and is one reason that long-form generation with Whisper is more efficient than it might initially appear: the expensive bidirectional encoder computation happens only once, and subsequent decoder steps are relatively cheap.

The number of cross-attention heads matches the number of self-attention heads in each model variant. This means the cross-attention mechanism can specialize across heads just as self-attention does, with different heads learning to focus on different aspects of the acoustic-linguistic alignment. Interpretability research on similar encoder-decoder models has found that some attention heads learn to track word boundaries, while others focus on prosodic features like pitch and stress. These specializations emerge from training without any explicit supervision. Multi-head attention can therefore learn several interacting aspects of the relationship between audio and text.

Whisper's most innovative aspect is its treatment of diverse speech tasks as conditional text generation. Rather than training separate models for English transcription, Spanish-to-English translation, and language identification, Whisper uses special tokens to specify the desired operation within a unified decoding framework. This approach treats the decoder as a universal interface for speech understanding, where the same autoregressive mechanism can produce transcripts, translations, or language labels simply by varying the initial prompt tokens.

The idea draws direct inspiration from T5's text-to-text formulation, where every NLP task was recast as a sequence-to-sequence problem by prepending task descriptors to the input. Whisper applies the same principle to speech: since the decoder's output is text, all tasks that produce text from audio fit naturally within the autoregressive generation framework. The innovation is extending this to timestamp prediction, where the model interleaves temporal markers with text tokens to produce aligned transcripts.

The decoder's vocabulary extends beyond standard text tokens to include control tokens that structure the prediction task. These tokens function as instructions to the model, directing its behavior without requiring architectural changes or separate output heads. The full set includes:

• <|startoftranscript|>: Signals the beginning of generation and initializes the decoder state
• Language tokens: <|en|>, <|es|>, <|fr|>, etc. (99 tokens covering languages from Afrikaans to Welsh)
• Task tokens: <|transcribe|> or <|translate|>
• Timestamp tokens: <|0.00|> through <|30.00|> in 0.02-second increments (1500 tokens total)
• <|notimestamps|>: Disables timestamp prediction for that sample
• <|endoftext|>: Terminates generation

These tokens are part of the vocabulary in exactly the same way as ordinary text tokens. The model does not have a separate classification head for language detection or a separate regression head for timestamps. Instead, it predicts these control tokens through the same softmax output layer as all other tokens. This unification has a important training advantage: the model shares parameters between tasks, letting knowledge from one task to transfer to others. A model that has learned to identify Spanish phonemes for transcription has also learned features useful for Spanish-to-English translation.

This design mirrors the text-to-text framework we encountered in T5, where every task is cast as generating target text from source text. In Whisper's case, the "source" is the acoustic encoding, and the "target" is structured text prefixed with control tokens. By including language and task information in the target sequence itself, the model learns to condition its predictions on these explicit cues, letting zero-shot task transfer. A model trained on Spanish transcription and French translation can perform Spanish translation without ever seeing that specific task-language combination during training, provided it understands the individual components.

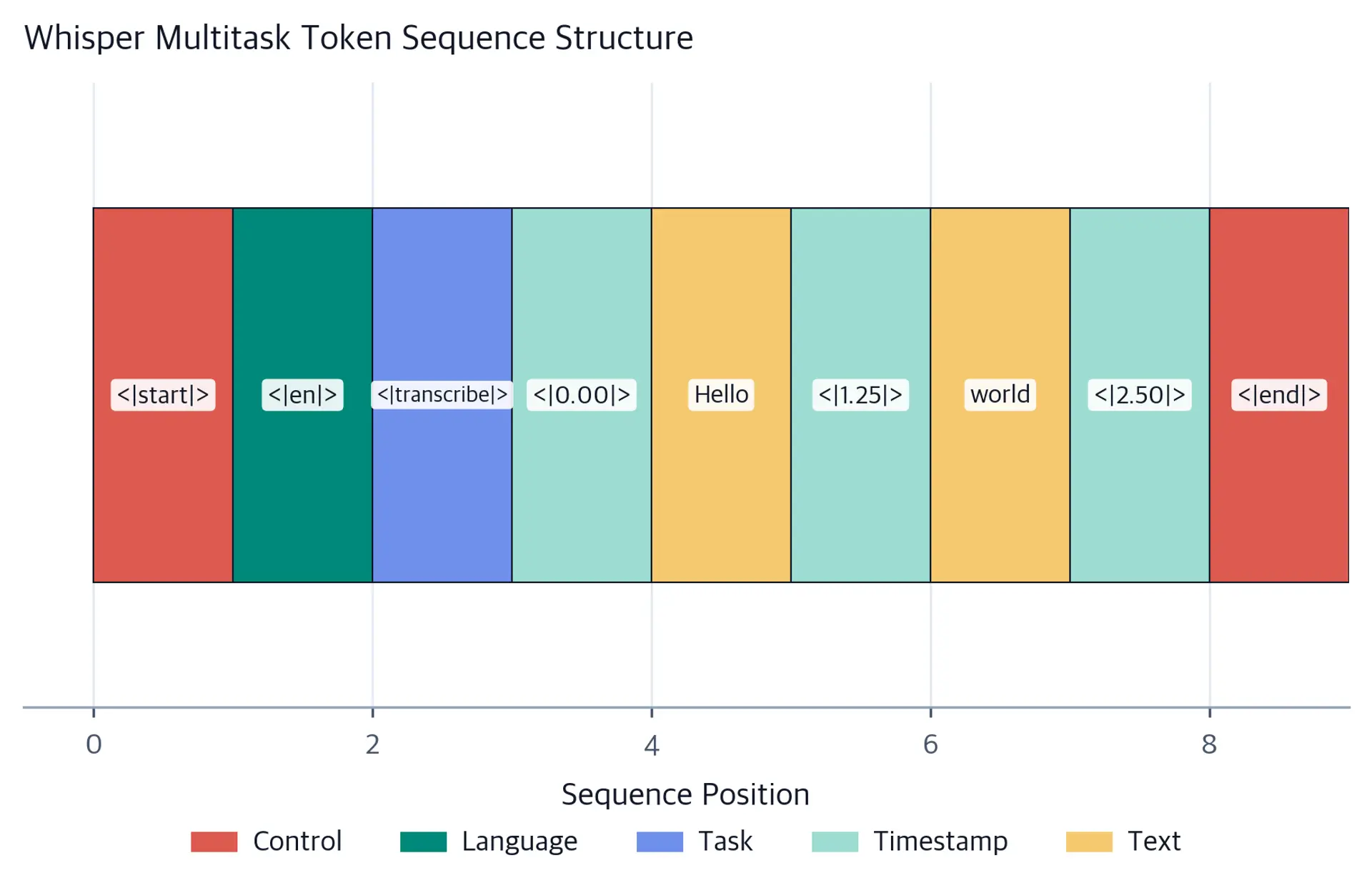

A typical decoding sequence for English transcription with timestamps appears as:

For translation from Spanish to English:

Note the order: language identification first (what language is being spoken), then task specification (transcribe vs translate), then potentially target language for translation, followed by the content. This hierarchical structuring allows the model to narrow its internal representation space progressively. First, it selects the appropriate acoustic and linguistic model for the source language. Second, it determines the output modality and target language. Finally, it generates the content under these constraints. This explicit conditioning prevents mode collapse, where the model might otherwise default to its most common training configuration.

The language token is particularly interesting from a multitask learning perspective. During inference, you can either force the language token to specify which language to expect, or allow the model to predict it freely from the acoustic content. The latter case performs automatic language identification as a byproduct of the generative process, using the same acoustic representations that will guide transcription. This means the model cannot be "tricked" into language misidentification the way a separate classifier might be: if the model predicts French because the audio sounds French, the subsequent transcription will use French linguistic patterns. The tasks are coupled by design.

During training and inference, the initial tokens are "forced" or prepended to the decoder input to condition the model:

1. <|startoftranscript|> always comes first to initialize the generation process
2. The language token is predicted by the model or specified by you based on the acoustic content
3. The task token specifies the operation to perform on that audio
4. If timestamps are enabled, timestamp tokens interleave with text tokens at appropriate boundaries

This conditioning allows a single model to serve multiple functions without architectural changes. The model learns to associate specific acoustic patterns with language identities and to map the same Spanish audio to either Spanish text (transcription) or English text (translation) based on the task token. During training, the model sees all these variations, learning that the same acoustic encoding can yield different text outputs depending on the decoder prompt. This multitask learning creates positive transfer between tasks: learning to translate improves the model's phonetic understanding, which in turn improves transcription accuracy.

The forcing mechanism also lets a useful inference strategy called "language forcing": instead of relying on the model's automatic language identification, you can force the language token to a specific value. This is useful when you already know the source language and want to prevent the model from misidentifying accented speech as a different language. Similarly, you can force the task token to override the default behavior. This keeps transcription rather than translation even when the model might otherwise prefer the latter.

Traditional ASR systems output text without temporal alignment, requiring forced alignment algorithms to map words to audio timestamps. These post-processing steps often involve dynamic programming algorithms like dynamic time warping or hidden Markov model alignment, adding complexity and potential error accumulation to the pipeline. Whisper integrates timestamp prediction directly into the generative process, making speech recognition and alignment an end-to-end task.

This design choice has direct practical implications. Applications like subtitle generation, meeting transcription with speaker turns, and audio indexing all require knowing what was said and when it was said. In the traditional pipeline, alignment was always an afterthought, estimated by a separate system that might disagree with the ASR output. Whisper's integrated approach means that timestamps and text are generated jointly. This keeps consistency between the two.

Whisper discretizes the 30-second audio window into 1500 possible timestamp positions, each representing 0.02 seconds (20 milliseconds). These become additional vocabulary tokens that the decoder can predict at any point during generation:

• <|0.00|>, <|0.02|>, <|0.04|>, ..., <|30.00|>

When the model predicts a timestamp token, it indicates that the following text occurs at that specific time offset in the audio. The model learns to place these tokens at word or phrase boundaries, effectively segmenting the transcript temporally. This quantization balances precision with vocabulary size: 20 milliseconds is finer than typical word durations, letting precise alignment, while 1500 tokens remains computationally manageable compared to predicting raw continuous values or finer granularities.

The decision to discretize time into tokens rather than regress continuous values is architecturally important. A regression head would require the model to produce a scalar output in addition to the categorical token vocabulary, complicating the output representation and requiring separate training objectives. By treating timestamps as tokens, Whisper maintains a single unified output head: softmax over the full vocabulary, where the vocabulary happens to include both text tokens and time tokens. The model learns which output token is appropriate at each step through the same cross-entropy training objective used for text prediction. This simplicity is one of the elegances of Whisper's design: the entire system, including timing, is trained through standard language modeling.

During decoding, text and timestamp tokens interleave to create a structured temporal transcript:

The decoder must learn two coupled skills: recognizing linguistic content (what was said) and predicting temporal boundaries (when it was said). This is particularly challenging because the model must attend to the acoustic encoding to determine precise timing while maintaining linguistic coherence in the text generation. The timestamp tokens act as anchors, grounding the text generation in the temporal flow of the audio.

When the model predicts <|3.45|>, it must have determined from the encoder representations that approximately 3.45 seconds of audio have elapsed, which requires understanding the relationship between acoustic sequence position and real time, accounting for the convolutional downsampling and variable speech rates. The cross-attention mechanism is central here: the decoder positions that should predict timestamps attend strongly to the corresponding acoustic frames in the encoder output, learning a correspondence between text segments and acoustic positions.

An interesting emergent behavior is that timestamp prediction lets the model to handle silences gracefully. When the speaker pauses, the timestamp advances without corresponding text tokens, and the model learns to predict this pattern from the acoustic evidence of silence in the encoder representations. This natural silence handling is something that traditional ASR systems must handle with explicit pause detection and silence models.

You can disable timestamp prediction by including the <|notimestamps|> token in the decoder prompt. In this mode, the model generates only text tokens, similar to traditional ASR systems. This flexibility allows Whisper to serve applications requiring precise alignment (subtitling, diarization) and those needing only transcription (note-taking, search indexing). The no-timestamp mode also reduces the sequence length and computational cost slightly, as the model does not need to predict additional tokens for timing information. During training, the model encounters both modes, learning to condition its output format on the presence or absence of the timestamp control token.

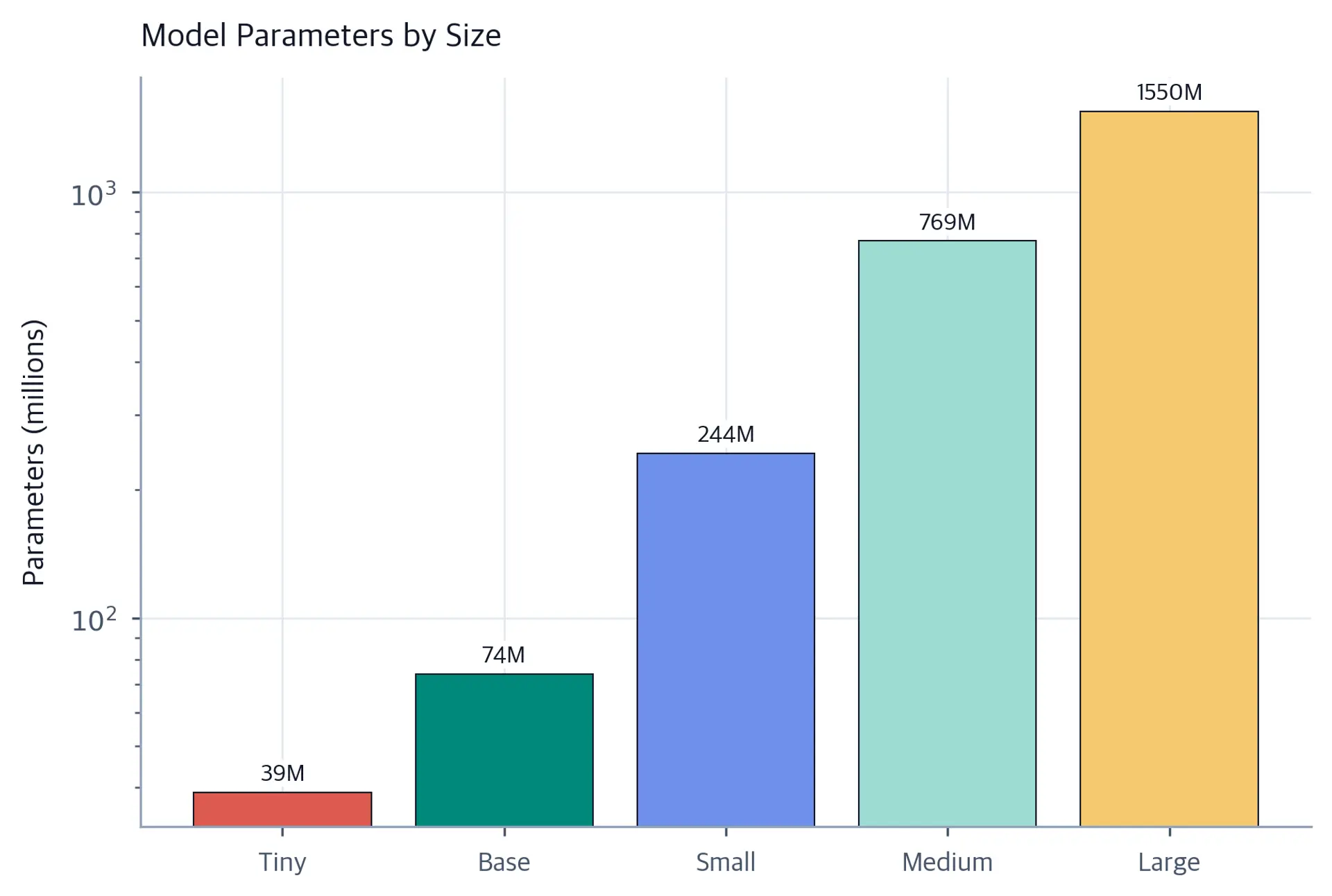

Whisper comes in several sizes, from Tiny (39M parameters) to Large-v3 (1550M parameters), letting deployment across different computational constraints:

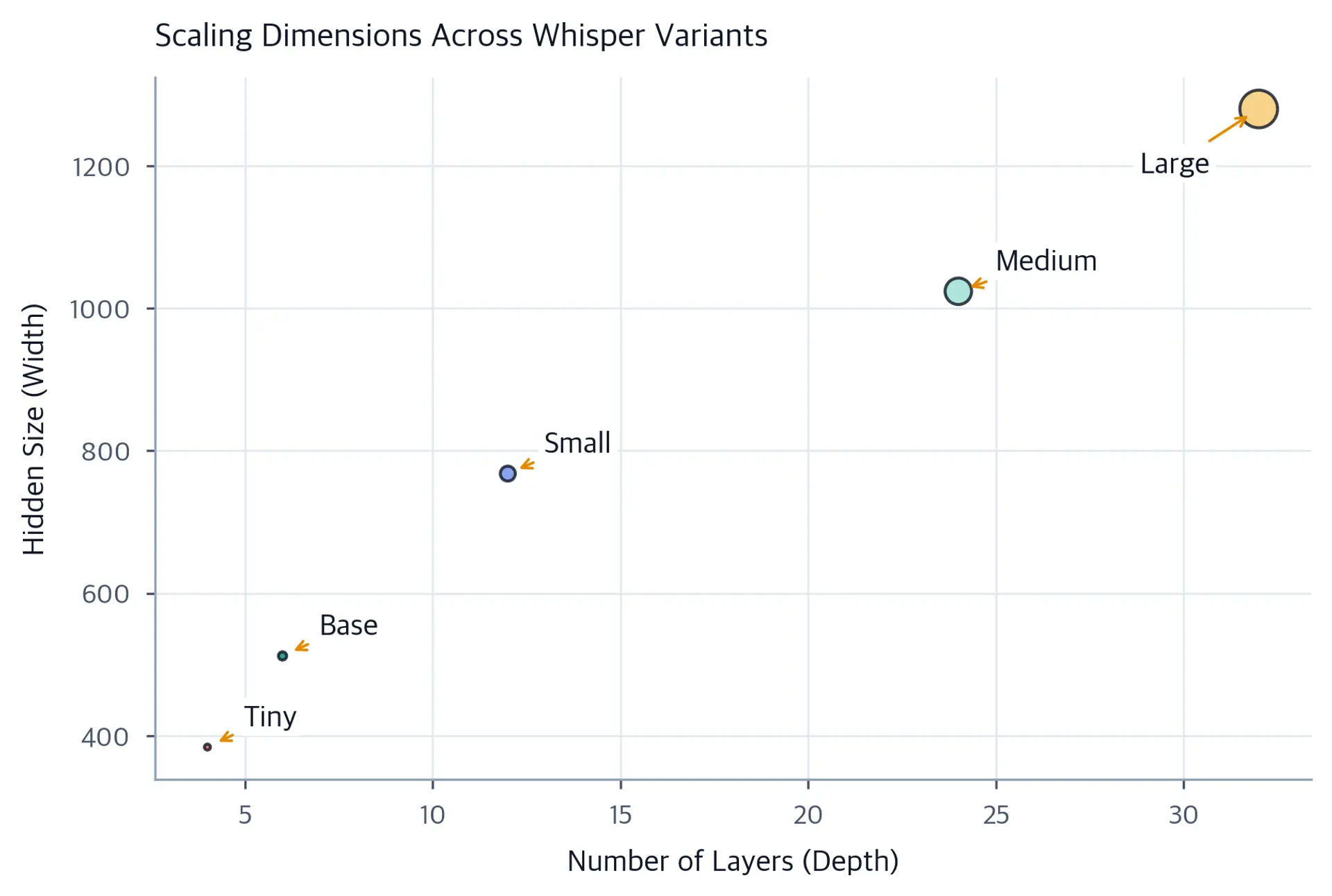

The table encodes an important scaling strategy. Each step roughly doubles the number of layers and increases the width by a factor of roughly 1.3 to 1.5. This joint scaling of depth and width mirrors the principles from Part XXIII: Scaling Laws, where optimal compute allocation allocates parameters to both dimensions rather than scaling only one. A model with 32 layers but narrow width would struggle to stand for complex acoustic patterns in its limited hidden state, while a very wide but shallow model would lack the compositional depth to build hierarchical representations of speech.

The number of attention heads also scales with model size, following the convention that each head operates on a $d_{model}/n_{heads}$ dimensional subspace. For the base model, each of the 8 heads operates on 64-dimensional queries and keys; for the large model, each of the 20 heads operates on 64 dimensions as well. This consistency in per-head dimension is deliberate: each head learns to specialize in a different aspect of the acoustic or linguistic representation, and the dimension needs to be large enough to encode real patterns but consistent enough that learned attention patterns transfer between model sizes when distilling or fine-tuning.

All variants share the same architecture blueprint, differing only in depth, width, and attention heads. This scaling follows the patterns we explored in Part XXIII: Scaling Laws, where increased model capacity improves recognition accuracy, particularly for low-resource languages and noisy audio conditions. The smaller variants let deployment on edge devices and real-time applications where latency is necessary, while the Large model gives state-of-the-art accuracy for offline transcription and challenging acoustic environments. The consistent architecture across scales also means that techniques and fine-tuning strategies developed for one size typically transfer to others, letting practitioners to prototype with Tiny and deploy with Large without changing their processing pipeline.

The version history of Whisper's large models illustrates an important point about continued improvement without architectural change. The original Large model, Large-v2, and Large-v3 all share the same architecture but differ in training data and data augmentation strategies. Large-v2 introduced improved training procedures with better regularization and data filtering, reducing word error rates substantially on several benchmarks. Large-v3 further improved by training on a larger and more carefully filtered dataset with better multilingual coverage. This progression shows that for speech models at this scale, training data quality and quantity remain the primary drivers of performance improvement, consistent with the scaling laws we studied earlier.

A practical consideration when choosing between variants is the speed-accuracy tradeoff. The Tiny model runs in real-time on a modern CPU, which makes it suitable for applications where immediate transcription is more important than perfect accuracy, such as live captioning or voice command recognition. The Base and Small models offer improved accuracy at the cost of modestly higher latency, fitting well on GPU-equipped edge devices. The Medium model approaches Large-quality accuracy while running on consumer GPUs with 8-16GB of VRAM. The Large model requires at least 10GB of GPU memory just for the weights, which makes it practical primarily for server-side deployment or high-end workstations. Quantization techniques can reduce the memory footprint of all models by roughly 2 to 4 times without major accuracy degradation, making the Medium model usable on 4GB GPUs and the Large model on 8GB GPUs when precision requirements allow for INT8 inference.

To see all these pieces work together, let's trace how Whisper processes a 10-second English audio clip from raw audio to structured text output.

Before tracing through the complete pipeline, note that this example uses a 10-second clip to keep the numbers concrete. In practice, Whisper is most commonly applied to clips that are already segmented into roughly sentence-length utterances by a preprocessing step, or to full recordings that are chunked with overlap to handle the 30-second limit. The tracing below focuses on the single-chunk case, which is the atomic unit of Whisper's processing regardless of how the audio was segmented.

Step 1: Input Processing. The audio is sampled at 16kHz, giving 160,000 raw samples for 10 seconds. The STFT computes frequency content at each 10-millisecond frame, creating a spectrogram with roughly 1000 time frames. Mapping to 80 mel bins gives a $(80, 1000)$ array. This is padded with silence to $(80, 3000)$ to fill the required 30-second window, since Whisper always expects fixed-size input.

Step 2: Convolutional Stem. The two-layer convolutional network processes the $(80, 3000)$ spectrogram. The first layer with stride 2 in time reduces the temporal dimension to 1500 frames while projecting to $d_{model}$ feature dimensions. The second layer with stride 1 applies further nonlinear transformations, creating a $(1500, d_{model})$ feature sequence.

Step 3: Positional Encoding. Sinusoidal positional embeddings are added to each of the 1500 positions, encoding temporal location information. Each frame now carries both its acoustic content and its temporal position.

Step 4: Encoder Processing. All 1500 positions pass through the encoder's transformer blocks. Because self-attention is bidirectional, every frame can attend to every other frame. The encoder builds contextual representations where each position encodes local acoustic features and information about the entire 30-second context, including what came before and after. After all encoder layers, we have a $(1500, d_{model})$ matrix of contextualized acoustic representations.

Step 5: Decoder Initialization. The decoder begins with the <|startoftranscript|> token. This single token is embedded and processed through the first decoder layer's self-attention (trivially, since there is only one token), followed by cross-attention that queries all 1500 encoder positions to determine the most relevant acoustic features.

Step 6: Language Identification. The decoder predicts the next token, which should be a language identifier. The cross-attention mechanism focuses on gross acoustic features like pitch range, vowel quality, and consonant patterns that distinguish languages. The model predicts <|en|> for English, conditioning all subsequent generation on English linguistic patterns.

Step 7: Task Specification. With the language established, the decoder predicts the task token. For this example, the model predicts <|transcribe|>, showing verbatim transcription.

Step 8: Content Generation. The decoder now enters the main generation loop:

• Predicts <|0.00|>, anchoring the start of speech at time zero
• Predicts "Hello" as the first word, using cross-attention to the early acoustic frames
• Predicts <|1.25|>, showing the timestamp after "Hello"
• Predicts "and" attending to the next acoustic segment
• Continues until speech ends

Step 9: Termination. The decoder predicts <|endoftext|> when the cross-attention weights indicate no more speech content remains in the encoder representations.

Each prediction attends to the encoder output via cross-attention and all previously generated tokens via causal self-attention, exactly as described in Part XIII: Cross-Attention. The decoder cannot attend to future tokens. This keeps the model respects the temporal order of speech and maintains causality in its predictions.

Let's implement Whisper inference using the Hugging Face Transformers library to see these architectural components in action. We'll examine the special token vocabulary, show timestamp prediction, and inspect the intermediate representations.

The model configuration reveals the standard transformer hyperparameters. Notice the vocabulary size includes text tokens along with the special timestamp and control tokens we discussed. The vocabulary expansion accommodates the 1500 timestamp tokens plus language and task identifiers, materially exceeding typical text-only vocabularies. The base model's 74M parameters split roughly evenly between encoder and decoder, with each handling 6 transformer layers.

Whisper's tokenizer includes specific tokens for the multitask format. Examining them reveals how the control vocabulary maps to integer indices:

The 1500 timestamp tokens allow precise alignment at 20-millisecond resolution across the 30-second window. This granularity exceeds typical word-level alignment needs while remaining computationally manageable. The discrete token approach simplifies the training objective compared to regressing continuous time values, framing alignment as a classification problem that fits naturally into the existing language modeling framework.

Let's examine the feature shapes as audio flows through the model:

The input features have shape $(1, 80, 3000)$, representing batch size 1, 80 mel-frequency channels, and 3000 time frames. Even though the audio is only 5 seconds, it is padded to 30 seconds with silence. The model receives this padded input and learns to ignore the silent padding, focusing cross-attention on the frames containing actual speech content.

The output shows the interleaving of timestamp tokens with text tokens. In a real speech sample, you would see actual words between the timestamp markers. The forced_decoder_ids parameter constrains the first few tokens. This keeps the model operates in the correct language and task mode. The return_timestamps=True flag signals the model to include timestamp tokens in its generation, activating the temporal alignment capability.

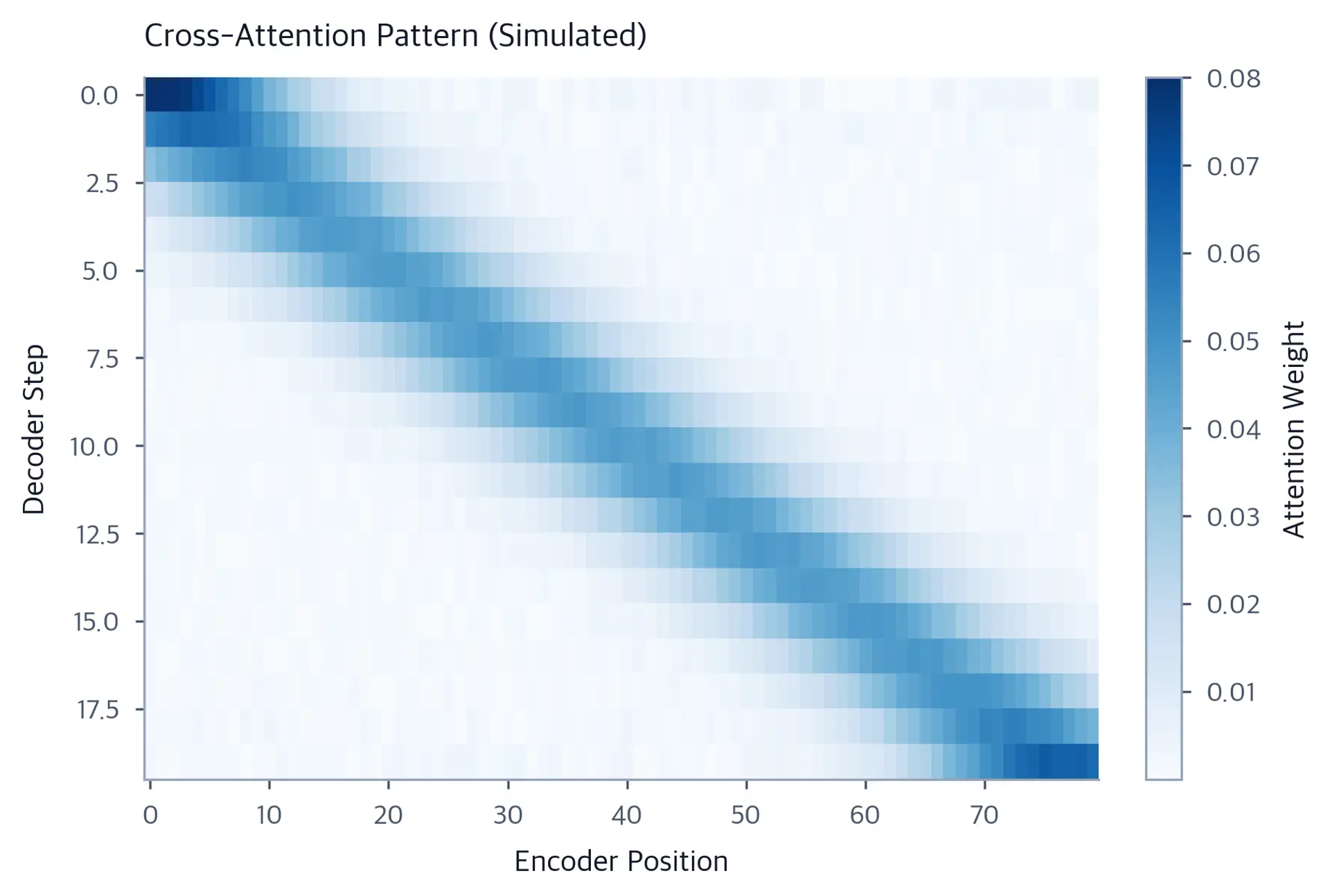

The simulated cross-attention pattern illustrates how the decoder generally attends to acoustically relevant encoder positions when generating each token. In practice, real attention weights show this diagonal structure with additional off-diagonal attention for control tokens like language and task identifiers, which attend broadly across the full encoder output.

The key parameters for Whisper inference control both the model's architecture and its generation behavior:

• model_size: The variant (tiny, base, small, medium, large) determining layers, width, and attention heads. Larger models reach lower word error rates but require more memory and compute.
• encoder_layers / decoder_layers: Number of transformer blocks in each component (6 for base, up to 32 for large). Depth lets hierarchical feature extraction.
• d_model: Hidden dimension (512 for base, 1280 for large). Wider representations can encode more complex acoustic and linguistic patterns simultaneously.
• encoder_attention_heads: Number of attention heads (8 for base, 20 for large). More heads allow the model to attend to more types of acoustic relationships in parallel.
• vocab_size: Total tokens including text, language identifiers, task specifiers, and timestamp tokens. The extended vocabulary is what lets the multitask format.
• return_timestamps: Boolean flag letting temporal alignment prediction at 0.02-second resolution. When enabled, the model interleaves timestamp tokens with text during generation.
• forced_decoder_ids: List of (position, token_id) tuples conditioning generation on specific language or task tokens. Use this to override automatic language detection.
• max_length: Maximum sequence length for generation (default 448 tokens). Setting this too low can truncate long transcripts.

Whisper's unified architecture is a basic change in speech recognition, but it carries specific constraints that practitioners must understand. The model's strength, its generalization across languages and tasks, also creates limitations when specialized accuracy is required.

The 30-second context window imposes a basic constraint on long-form transcription. While the model can process arbitrary-length audio by chunking, this introduces challenges at boundaries: cross-sentence dependencies may break, and speaker changes occurring at chunk edges can confuse the model. If a question ends at the 29-second mark and the answer begins at the 31-second mark, the model processing the second chunk lacks the context of the question, potentially leading to incorrect pronoun resolution or intonation interpretation. Unlike Part XVIII: Long Context solutions for text transformers, Whisper does not employ recurrence or memory mechanisms to maintain state across chunks. The Whisper large-v2 and large-v3 models address some of these issues by implementing overlap-based chunking strategies, but the basic context limit remains.

Long-form audio also exposes a failure mode called hallucination: the model generates plausible-sounding text that does not correspond to the actual audio. This happens most often in silent or near-silent regions, where the model lacks strong acoustic evidence but still generates tokens because it was trained to produce output for 30-second windows. The model may generate repeated phrases, invent words that sound like they could appear in context, or continue generating after the speech has ended. Detecting and filtering hallucinations requires monitoring timestamp patterns (very long gaps or very rapid timestamp advancement) or using voice activity detection as a pre-filter.

Computational requirements present another barrier. The Large model's 1.5 billion parameters and quadratic attention complexity make real-time transcription challenging on consumer hardware. While techniques from Part XLII: Inference Optimization like FlashAttention and quantization can materially reduce memory and latency, Whisper remains more resource-intensive than specialized small-vocabulary ASR systems designed for single-language deployment on embedded devices. Applications requiring sub-100-millisecond end-to-end latency may need the Tiny or Base models even if the Large model gives better accuracy.

Language coverage, while extensive at 99 languages, exhibits uneven performance. High-resource languages like English and Spanish reach near-human word error rates on standard benchmarks, while low-resource languages may suffer from higher error rates, particularly in code-switching scenarios where speakers alternate between languages within an utterance. The model's reliance on language tokens assumes unilingual input per 30-second chunk, so sudden language switches can confuse the decoder until sufficient context establishes the new language. This creates challenges for multilingual conversations or regions where code-switching is common in everyday speech.

Timestamp prediction, while revolutionary for eliminating post-processing alignment steps, lacks the precision of dedicated forced alignment systems. The 20-millisecond quantization introduces timing jitter, and the model occasionally places timestamps at suboptimal word boundaries, particularly for fast speech where word boundaries are acoustically indistinct. For applications requiring frame-perfect alignment, such as phonetic analysis, prosody research, or precise subtitle synchronization with video, traditional alignment algorithms like the Montreal Forced Aligner may still outperform Whisper's integrated approach. The model also struggles with overlapping speakers, where the single-channel architecture cannot separate concurrent voices.

Fine-tuning Whisper on domain-specific data presents a fine-grained challenge. The model's strength comes from its breadth of training, but fine-tuning on a narrow domain can inadvertently reduce this breadth while improving accuracy on the target domain. A model fine-tuned on medical transcriptions might improve at recognizing clinical terminology but degrade on casual speech or different recording conditions. This catastrophic forgetting problem, which we explored in Part XXXIV: Fine-tuning Fundamentals, can be mitigated by using parameter-efficient methods like LoRA that modify only a small fraction of the model's weights, or by mixing domain-specific data with samples from the original training distribution during fine-tuning. The community has developed several recipes for domain adaptation that balance these competing concerns, typically using small learning rates and limited training steps to avoid over-specializing the model.

Another limitation worth understanding is the model's behavior on non-speech audio. Whisper was trained primarily on speech recordings, and when presented with music, environmental sounds, or silence, it may generate hallucinated transcriptions rather than creating empty output. A piece of music might receive a transcript of song lyrics, even if those lyrics are not being sung. Background noise in an otherwise empty room might trigger transcription of words that were never spoken. This behavior shows the model's prior: having seen 680,000 hours of speech, it strongly expects acoustic inputs to contain words. For applications that process arbitrary audio, a pre-filter that detects the presence of speech (a voice activity detector or VAD) before invoking Whisper can prevent these hallucination artifacts.

Despite these limitations, Whisper significantly changed speech AI. By showing that speech recognition can follow the same "pre-train once, deploy everywhere" paradigm as GPT-3 and BERT, it eliminated the need for language-specific acoustic models and pronunciation dictionaries. Organizations can now deploy a single model that handles dozens of languages, reducing maintenance overhead and deployment complexity by an order of magnitude. The open-source release of Whisper's weights catalyzed a wave of community fine-tuning projects, adapting the model to specialized domains like medical transcription, legal proceedings, and technical lectures with minimal labeled data.

The multitask token format inspired subsequent speech-language models that handle emotion recognition, speaker diarization, and audio question-answering through similar conditioning mechanisms. The architecture also demonstrated that audio processing and text processing can share the same underlying transformer machinery, pointing toward the multimodal language models that integrate speech, vision, and text in a single framework. As we explore in the next chapter on Whisper training, the model's robustness stems not from architectural novelty but from the scale and diversity of its training data paired with this flexible multitask formulation. The 680,000 hours of weakly supervised audio that Whisper was trained on dwarfs most supervised ASR datasets and is the primary reason the model generalizes so effectively across acoustic conditions and recording environments.

Whisper shows that speech recognition benefits from the same architectural principles that changed text NLP: the transformer encoder-decoder structure, scaled pre-training, and task unification through special tokens. Together, these architectural decisions support many tasks and deployment settings while maintaining reliable recognition.

Key takeaways include:

• Encoder-Decoder Design: The encoder processes full 30-second spectrograms through a convolutional stem (compressing 3000 frames to 1500) and sinusoidal position embeddings, while the decoder generates text autoregressively with learned position embeddings and cross-attention to audio features. This separation allows global acoustic context modeling alongside causal text generation.

• Convolutional Preprocessing: The two-layer convolutional stem reduces computational load by half while extracting local spectral features like formant patterns and harmonic structures, giving the transformer layers better-organized acoustic inputs to process.

• Multitask Token Format: Special tokens control model behavior entirely through the decoder's vocabulary. Language identifiers (<|en|>, <|es|>), task specifiers (<|transcribe|>, <|translate|>), and timestamp tokens (<|0.00|>) interleave with text to create a unified output vocabulary that lets zero-shot task transfer.

• Integrated Temporal Alignment: Timestamp prediction at 20-millisecond resolution eliminates the need for separate forced alignment algorithms, making Whisper truly end-to-end for subtitling and temporal indexing applications. The 1500 timestamp tokens map directly to the 1500 encoder positions produced by the convolutional stem.

• Scale Variants: Models range from 39M to 1550M parameters, following joint depth-width scaling principles. This range allows deployment from mobile devices (Tiny) to high-accuracy offline systems (Large) without changing the processing pipeline or token format.

The architecture's elegance lies in its simplicity: by treating speech tasks as conditional text generation and controlling behavior through decoder prompts, Whisper reaches zero-shot generalization across languages and acoustic conditions without task-specific fine-tuning. This approach foreshadows the convergence of speech and language models we will explore in subsequent chapters on speech-language integration and multimodal systems, where the same transformer backbone processes audio, text, and vision.
