Multimodal Evaluation: VQA Benchmarks, Metrics

Evaluating multimodal models presents challenges that extend far beyond the text-only metrics explored in earlier chapters. When a system processes both images and text, or generates visual content from language, we must verify its understanding of each modality and the relationships between them: Does the model recognize objects in an image? Can it reason about spatial relationships? Does it ground generated text in visual evidence, or does it hallucinate details that aren't present?

These questions highlight the complexity of cross-modal understanding. Unlike text-only evaluation, where we can compare token sequences directly, multimodal evaluation requires bridging the representational gap between continuous visual signals and discrete linguistic symbols. A model might perfectly identify a "golden retriever" in an image, but evaluation becomes complicated when we consider that "dog," "puppy," "canine," and "retriever" are all valid descriptions. Similarly, when generating images from text, we face the inverse problem: multiple pixel configurations might satisfy the same prompt, making pixel-level comparison impossible.

As we transition from unimodal language models to vision-language systems like CLIP and LLaVA alongside Flamingo, our evaluation frameworks must evolve to capture cross-modal reasoning, compositional understanding, and fine-grained perception. The training of these models involves aligning visual and linguistic representations in a shared embedding space, a process explored in the chapter on CLIP and contrastive learning. Evaluation must then verify that this alignment is real and generalizes to tasks beyond the training distribution.

This chapter examines the benchmarks and metrics that define progress in multimodal AI, from Visual Question Answering (VQA) datasets that test visual reasoning to the emerging standards for evaluating large multimodal models on expert-level tasks. We will explore how VQA benchmarks evolved from simple recognition to complex compositional reasoning, examine the move from narrow perceptual tasks to complete multimodal understanding, and analyze the unique challenges of evaluating generative outputs, where pixel-perfect fidelity matters less than semantic coherence and human preference. Throughout, we'll see that evaluation is more than a measurement exercise: the way we define success shapes the models we build, and poorly designed evaluation inevitably leads to systems that game the metrics rather than achieving real understanding.

Visual Question Answering (VQA) tasks ask models to answer natural language questions about images, requiring both visual perception and linguistic understanding. This seemingly simple formulation masks significant complexity: a model must parse the question, identify relevant image regions, perform reasoning (counting, comparing, attributing), and generate or select an appropriate answer.

This difficulty arises because VQA combines multiple AI challenges. The model must handle syntactic ambiguity in questions (does "What is the man eating?" refer to the food or the action?), resolve visual coreference (determining which object "the large one" refers to when multiple objects are present), and integrate commonsense knowledge about physical properties and social contexts. Unlike pure object detection or image classification, VQA requires dynamic, task-specific visual processing guided by the linguistic query. The question directs attention: "What is the color of the car?" and "How many windows does the building have?" both refer to the same image but require entirely different visual processing strategies.

The success of a VQA model therefore tests more than either perception or language understanding in isolation. It tests the model's ability to orchestrate multiple cognitive processes based on a linguistic instruction, making it a useful proxy for general visual intelligence. This is why VQA became the first dominant benchmark for early vision-language models and continues to serve as a foundation for more advanced evaluations.

In standard VQA, we have an image $I$ and a question $Q$ (a sequence of tokens $q_1, q_2, \ldots, q_n$). The model produces an answer $A$ from a predefined set or as open-ended text. The benchmark gives a set of triplets $\{(I_i, Q_i, A_i)\}_{i=1}^N$ where multiple human annotators give answers for each question.

This triplet structure shows the dataset collection process. Researchers present images to human annotators and ask them to generate questions that another person could answer by looking at the image. Then, different annotators answer these questions, creating a distribution of valid responses rather than a single ground truth. This distribution captures the natural variability of human language and perception, acknowledging that different people attend to different aspects of an image and express the same concept using different words.

The decision to collect multiple answers per question was itself a deliberate design choice, motivated by the realization that language is inherently variable. Early datasets that collected a single ground-truth answer found that reasonable model outputs were incorrectly penalized for paraphrasing. Collecting 10 answers per question creates a richer supervision signal that better shows the breadth of valid human responses.

The evaluation metric must account for the variability in how humans phrase identical concepts. Consider the question "What color is the car?" Valid answers include "blue," "dark blue," "navy," and "azure." Simple string matching would penalize synonymous responses, creating a mismatch between the metric and human judgment. A model that says "azure" when humans said "blue" has understood the image correctly but would receive a failing grade under exact match criteria. This mismatch between metric and understanding was one of the central problems that shaped VQA evaluation from the outset.

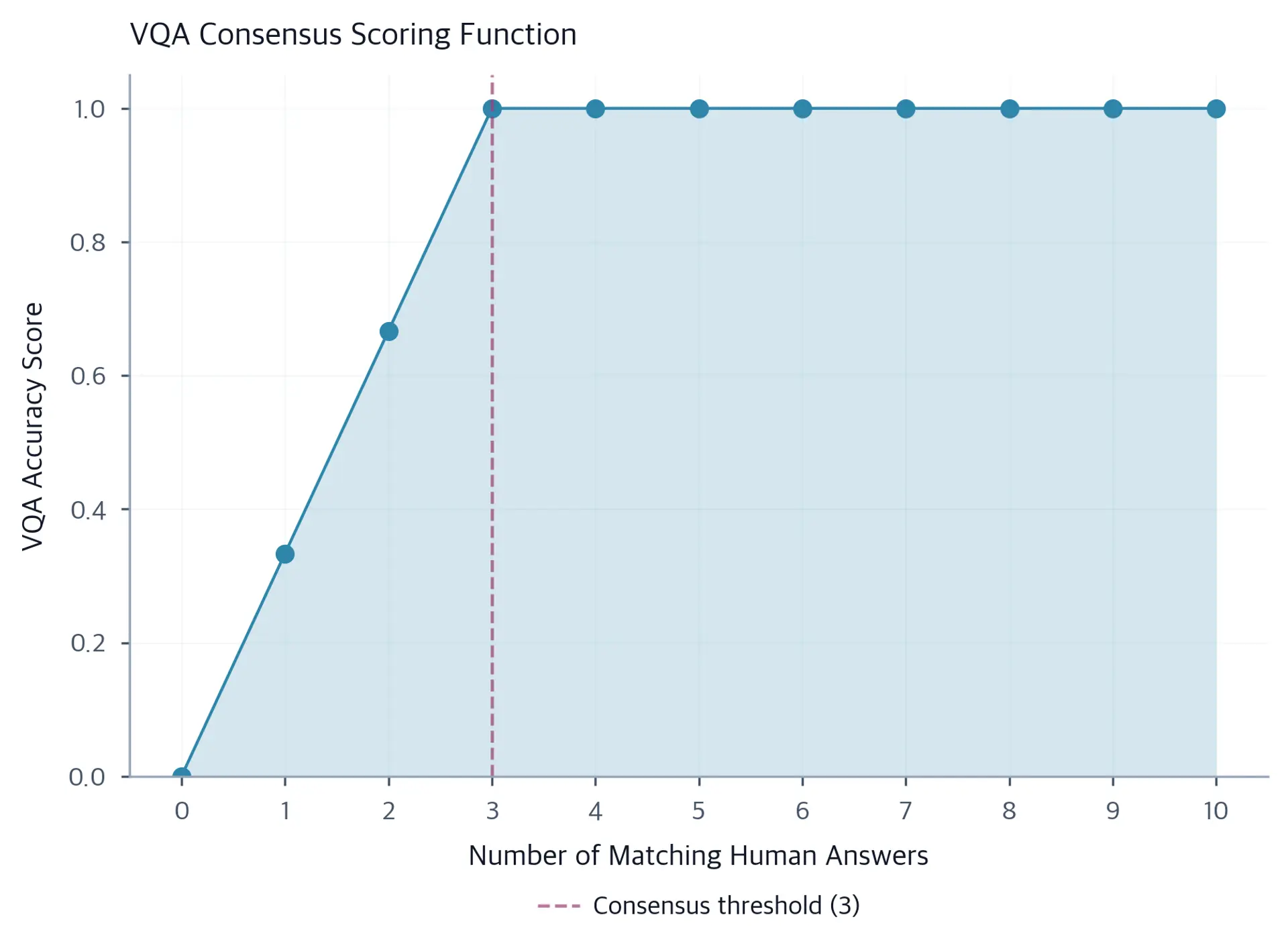

The standard VQA accuracy metric handles answer variability through consensus. Given that 10 human annotators give answers, the score for a candidate answer $A$ is:

where:

• $A$: the candidate answer being evaluated (a string)
• $\text{count}(A \text{ in human answers})$: the number of human annotators (out of 10) who provided answer $A$ exactly
• $3$: the consensus threshold, meaning at least 3 matching human answers are needed for full credit
• $\min(\cdot, 1)$: caps the score at 1.0 (100%), so 3 or more matches yield perfect credit

The threshold of 3 is a balance between rewarding consensus and penalizing rare answers. Researchers determined this value empirically to ensure that answers receiving full credit reflect common human expression while still letting for some linguistic diversity. Fewer than 3 matches yields partial credit proportional to the fraction, acknowledging that the answer is valid but not the most common expression.

This "soft accuracy" gives partial credit when an answer matches at least one of multiple human responses. If 3 out of 10 annotators said "blue," an answer of "blue" receives accuracy 1.0 (capped). If only 2 annotators said "azure," the model receives $2/3 \approx 0.67$. This grading scheme acknowledges that "azure" is semantically correct even if less common, but recognizes that extremely rare answers might indicate misunderstanding or hallucination.

The design of this metric shows a broader insight: evaluation should measure what we care about, not what is easy to compute. String matching is computationally trivial, but human judgment is the true standard. Consensus scoring approximates human judgment by aggregating multiple annotator perspectives, trading off the cost of human evaluation against the quality of automated assessment.

For multiple-choice VQA, standard classification accuracy applies because the answer space is constrained and each option is distinct. For open-ended generation, exact match against the most common human answer or automated metrics like BLEU serve as proxies, though both have well-documented shortcomings that we discuss throughout this chapter.

VQA has evolved through several generations, each addressing limitations of its predecessors. Understanding this progression illuminates the core challenges of multimodal evaluation and the design decisions required to measure what we care about.

VQA v1 and VQA v2 established the foundational protocol. These datasets contain approximately 200K real images from COCO and 50K abstract scenes. VQA v2's complementary pairs mechanism ensures visual grounding is necessary for correct answers. Questions span three categories: yes/no questions (binary), number questions (counting), and "other" questions (open-ended descriptions). These datasets established the practice of collecting multiple answers per question and using consensus-based evaluation, setting the standard for subsequent benchmarks. The three-category breakdown proved useful for diagnosing model weaknesses: early models often performed well on yes/no questions (which could be gamed by frequency heuristics) but struggled with precise counting and open-ended description.

GQA (Graphical Question Answering) took a fundamentally different approach by using scene graphs to generate questions programmatically. Scene graphs stand for images as structured data: nodes stand for objects (with attributes like color and size), and edges stand for relationships (spatial or semantic). By traversing these graphs, GQA creates precise compositional questions testing specific reasoning skills: transitive relations ("What is left of the object behind the red cube?"), attribute comparisons, and logical operations. The structured generation lets fine-grained analysis of model capabilities across 20+ reasoning types. This allows researchers to identify whether failures stem from object recognition, relationship understanding, or logical inference. This diagnostic precision was a measurable advance over aggregate accuracy numbers.

The insight behind GQA is that natural VQA questions are noisy. Human annotators ask about whatever catches their eye, creating a dataset that tests diverse but uncontrolled reasoning types. GQA's programmatic generation creates a controlled evaluation environment where each reasoning type is systematically represented, letting targeted improvement. If a model scores 90% on color questions but 40% on spatial relationship questions, developers know exactly where to focus their efforts.

OK-VQA (Outside Knowledge VQA) recognized that real-world visual reasoning often requires information not present in the image itself. Answering "Why is this person wearing a helmet?" requires understanding bicycle safety norms or construction regulations, not just recognizing the helmet. This bridges visual perception with world knowledge, anticipating the capabilities of modern large multimodal models. The benchmark tests whether models can retrieve and apply external facts to interpret visual situations, moving beyond pure perception to real understanding. A model that sees a person in a white coat holding a stethoscope must know about medical professions to correctly answer "What is this person's job?"

A-OKVQA extends OK-VQA with rationales and multiple-choice formats. This makes possible evaluation of chain-of-thought reasoning in visual contexts. This allows researchers to assess whether models answer correctly and whether they can articulate their reasoning. Collecting rationales turns the benchmark from a simple accuracy measure to a window into model cognition. This gives insight into how multimodal models combine visual evidence with background knowledge. A model that gets the right answer for the wrong reason (guessing based on superficial image features rather than real reasoning) can be identified through rationale analysis.

TextVQA and ST-VQA focus on reading and reasoning about text that appears within images: signs and labels as well as receipts and menus. They require OCR capabilities integrated with visual reasoning, testing whether models can read "Stop" on a sign and answer "What should the driver do here?" These tasks are important for applications like assistive technology for the visually impaired and autonomous navigation. Early vision-language models largely ignored text within images because they treated images as broad semantic content rather than structured visual scenes containing multiple information types. TextVQA exposed this blind spot and drove development of models that treat in-image text as a first-class signal.

ScienceQA is a multimodal science question-answering dataset with detailed lectures and explanations, targeting educational applications and testing multimodal reasoning on scientific diagrams. Questions often require interpreting complex figures and charts alongside experimental setups from textbooks, demanding both domain expertise and visual understanding. The educational context also lets evaluation of explanation quality: a model that correctly identifies a graph's trend should also be able to explain why that trend occurs. ScienceQA laid groundwork for the more complete expert-level benchmarks that followed.

While VQA evaluates specific visual reasoning skills, modern large multimodal models (LMMs) require complete assessment across diverse capabilities. Recent benchmarks evaluate perception, domain expertise, multi-image reasoning, and instruction following in visual contexts.

These complete benchmarks reflect the move from specialized models trained for single tasks to generalist foundation models capable of handling diverse visual and linguistic inputs. Just as language models evolved from narrow task-specific systems to general assistants, multimodal models now function as visual assistants that can answer questions, analyze documents, and reason about complex scenes. A single model that once required fine-tuning for each new task now handles VQA, OCR, chart analysis, and scientific diagram interpretation through a unified interface. Evaluating such generalist systems requires benchmarks that are equally complete.

The evolution from VQA to modern benchmarks shows the expanding capabilities of foundation models. Early benchmarks tested object recognition and attribute detection, where success meant correctly identifying what was in an image. Contemporary benchmarks demand much more, organizing evaluation across a hierarchy of cognitive levels.

At the base of this hierarchy sits perception: object detection, optical character recognition, chart and table understanding, and fine-grained recognition tasks like distinguishing dog breeds or identifying plant species. These tests establish whether the model extracts basic visual information accurately. Above perception lies cognition: reasoning tasks that require manipulating visual information, including spatial relationships, temporal sequences, causal inference, and multi-step planning. At the top sits domain expertise: problems that require professional-level knowledge in mathematics, physics, chemistry, biology, or medicine, applied to visual content like diagrams, experimental apparatus, or medical images.

MMMU (Massive Multi-discipline Multimodal Understanding) is the most prominent expert-level benchmark, testing models on college-level problems across 30+ disciplines including art and business as well as science and medicine. Questions often require interpreting complex diagrams and charts alongside specialized notation. A physics question might show a circuit diagram and ask for current calculations; an art history question displays a painting and asks about period techniques; a medical question shows a histology slide and asks about cellular morphology. This benchmark pushes models beyond commonsense reasoning to expert-level understanding, testing whether they can interpret the specialized visual languages of different disciplines. MMMU revealed that models achieving near-human performance on standard VQA still struggled substantially with expert-level tasks, exposing the gap between surface-level visual understanding and deep domain reasoning.

MMBench introduced a methodological innovation called circular evaluation to test response reliability. For each multiple-choice question, MMBench tests the model multiple times with the answer choices permuted in different orders. A model that truly understands the question should select the same answer regardless of whether the correct option appears as choice A, B, C, or D. Models that rely on positional biases (many models disproportionately favor option A or the first listed option) or on spurious correlations between answer text and position will fail this consistency check. By reporting both raw accuracy and consistency scores, MMBench gives a more rigorous evaluation than single-pass testing. The benchmark covers 20+ ability dimensions including logical reasoning, object localization, and attribute recognition, letting detailed capability profiling.

SEED-Bench focuses on instance-level evaluation with multiple-choice questions across 9 categories including spatial understanding, temporal reasoning, and arithmetic. By giving detailed per-instance annotations, SEED-Bench lets fine-grained error analysis. Rather than asking "what is the model's average accuracy?", SEED-Bench lets researchers to ask "which specific types of questions cause failures and why?", helping identify targeted improvements. The temporal understanding component is particularly useful as it evaluates whether models can reason about video content, tracking objects and events across time.

MM-Vet evaluates integrated capabilities, recognizing that real tasks require combining multiple skills simultaneously. A question might require OCR (reading text in an image), mathematical reasoning (performing calculations on those values), and world knowledge (interpreting what the calculation means). MM-Vet uses GPT-4 as a judge for response quality when traditional string-matching metrics fail, acknowledging that complex reasoning cannot always be reduced to multiple-choice selection. This LLM-as-judge approach is increasingly common for evaluating generative responses where the space of valid outputs is too large for fixed-answer evaluation, though it introduces its own biases related to GPT-4's preferences and potential alignment with its own output style.

Modern benchmarks employ advanced protocols to ensure reliable evaluation. These methodological choices matter materially: a poorly designed protocol can make an excellent model look bad or a mediocre model look good.

In-Context Evaluation follows the paradigm from large language model assessment. Multimodal models are often evaluated few-shot by including exemplars of the task format in the prompt. This tests the model's ability to learn task structures from demonstrations without fine-tuning. For example, the prompt might show two examples of questions about images with their correct answers before presenting the target question, testing whether the model can generalize from these examples. This protocol better shows real-world deployment, where users often give examples to guide model behavior rather than expecting zero-shot performance on every task.

Chain-of-Thought Evaluation assesses reasoning quality beyond final answer correctness. For reasoning-heavy tasks, benchmarks like ScienceQA and MMMU evaluate whether models show their work by creating intermediate steps. This requires parsing intermediate reasoning steps and verifying logical correctness, not just final answers. A model might correctly answer a physics question about forces, but chain-of-thought evaluation reveals whether it understands the underlying principles or guessed based on surface patterns. This distinction matters for trust: a model that reaches the right answer through incorrect reasoning may fail systematically on slightly different problems. Evaluating chains of thought also lets researchers to identify where in the reasoning process errors occur. This gives more actionable feedback for model improvement.

Cross-Modal Consistency testing verifies that model responses are reliable to question rephrasing and distractor modifications. If asked "Is there a dog?" and shown an image of a cat, the model should answer "no" regardless of how the question is phrased. This tests for reliable grounding rather than superficial pattern matching. Some adversarial evaluation approaches go further, showing the correct answer embedded in a distractor image to test whether models ignore plausible but incorrect visual evidence when conflicting with real reasoning.

While accuracy remains the primary metric, modern benchmarks report detailed breakdowns to give diagnostic insights that aggregate scores cannot.

Per-subject accuracy in benchmarks like MMMU reveals whether performance is uniform across domains or concentrated in certain areas. A model that reaches 75% overall might score 95% on art history questions (where visual patterns are relatively straightforward) while scoring only 50% on chemistry problems (where interpreting molecular diagrams requires specialized training). This subject-level breakdown guides both research priorities and appropriate deployment decisions: a model with strong medical imaging accuracy but poor physics diagram interpretation might be well-suited for clinical documentation tools but inappropriate for educational physics tutoring.

Per-skill accuracy in benchmarks like GQA breaks performance down by the type of reasoning required. Accuracy on "color" questions might reach 90%, while accuracy on "spatial" questions (left/right, above/below, inside/outside) might fall to 60%. This granularity helps identify specific representational gaps: perhaps the model's visual encoder adequately captures color attributes but fails to stand for spatial relationships between objects, suggesting the need for training data or architectural modifications that emphasize relational understanding.

Consistency scores capture a dimension of reliability that accuracy misses. A model might reach 70% accuracy while being perfectly consistent (always giving the same answer to paraphrased versions of a question) or highly inconsistent (giving different answers to equivalent questions half the time). The latter situation is dangerous in deployment: users cannot predict or trust the model's behavior. Benchmarks like MMBench explicitly measure consistency to reveal this distinction.

Calibration error measures whether model confidence matches actual accuracy. A well-calibrated model that says "I'm 80% confident" should be correct 80% of the time. Poorly calibrated models might be overconfident (claiming 95% confidence while achieving only 70% accuracy) or underconfident (hedging excessively even when correct). For multimodal models deployed in high-stakes applications like medical diagnosis, calibration matters as much as accuracy: an overconfident model that pushes users toward its incorrect predictions is more dangerous than an accurate but appropriately uncertain one.

Evaluating generation presents fundamentally different challenges from understanding tasks. When a model generates an image from text (text-to-image) or describes an image (image captioning), we lack ground truth references in the same way we do for classification tasks.

The basic difference lies in the many-to-many mapping between modalities. For image captioning, multiple valid descriptions exist for any single image. For text-to-image generation, multiple pixel configurations might satisfy the same text prompt. This ambiguity makes evaluation inherently probabilistic rather than deterministic, requiring metrics that capture distributional similarity or semantic alignment rather than exact matches.

This problem is not unique to multimodal generation, as we encounter it in text generation evaluation as well (discussed in the chapter on machine translation evaluation). But multimodal generation adds extra dimensions of challenge: captions need linguistic quality and visual accuracy, while image generation requires semantic adherence to a text prompt and perceptual quality along dimensions like sharpness and coherence alongside realism.

Image captioning requires generating natural language descriptions of images. Evaluation metrics compare generated captions against human-written references, using statistical properties of the comparison to estimate quality.

BLEU (Bilingual Evaluation Understudy) and ROUGE were originally designed for machine translation and text summarization respectively. BLEU measures n-gram precision: the fraction of n-grams in the generated caption that appear in the reference captions. BLEU-4 specifically measures 4-gram overlap, and includes a brevity penalty to prevent very short captions from achieving artificially high precision by only using words that appear in references. The brevity penalty multiplies the n-gram precision by a factor less than 1 when the candidate is shorter than the shortest reference, penalizing the strategy of generating very short but highly precise captions.

However, n-gram metrics suffer from well-documented limitations in multimodal contexts. They penalize valid paraphrases: a model that generates "The feline is resting on the furniture" receives low BLEU scores against references saying "The cat is sitting on the couch," despite conveying the same information. They are also insensitive to word order in limited ways and entirely insensitive to semantic content beyond n-gram overlap. A nonsensical sentence that happens to share many words with a reference might outscore a coherent sentence that uses synonyms. This limitation motivated the development of semantically aware metrics.

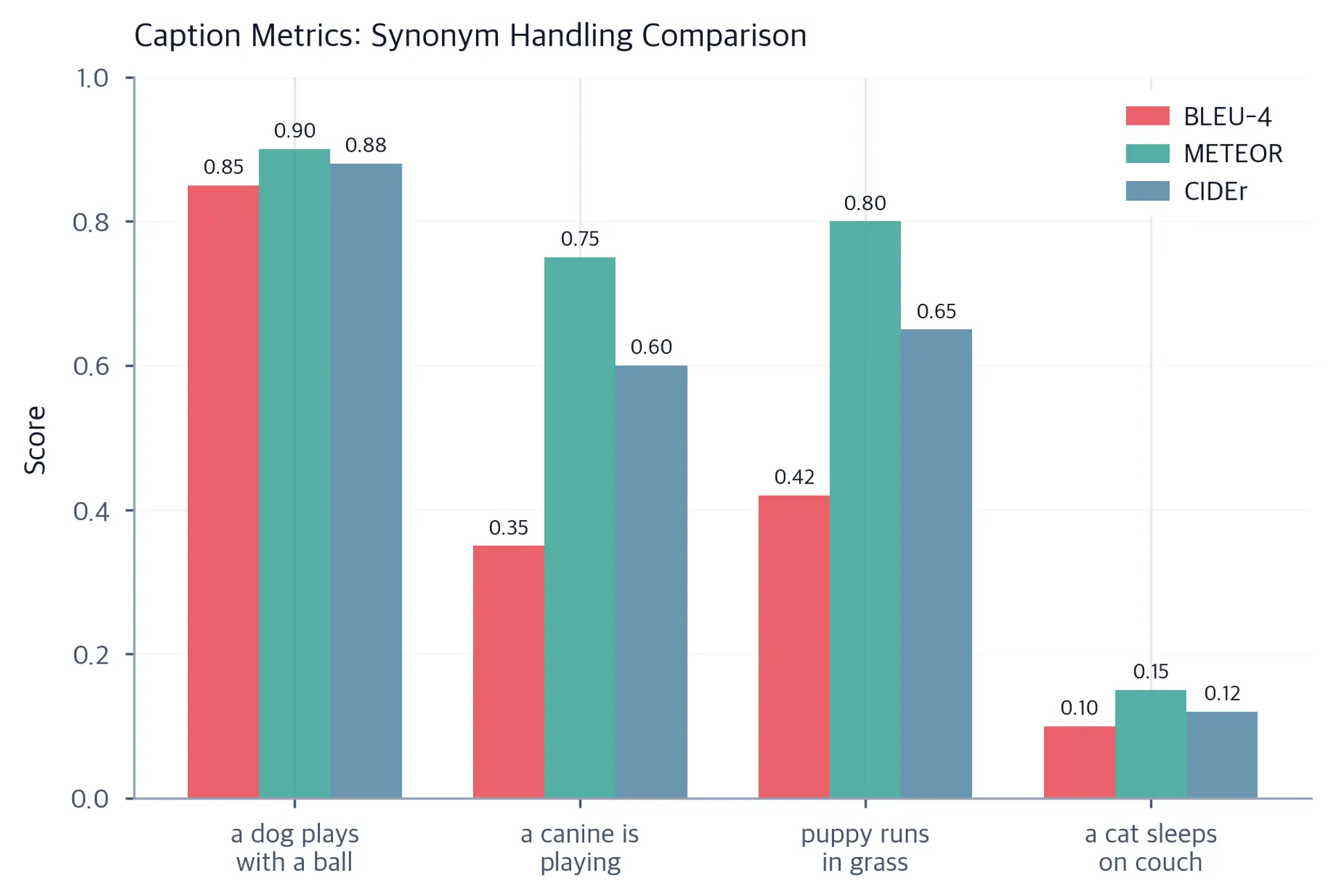

METEOR (Metric for Evaluation of Translation with Explicit ORdering) addresses BLEU's synonym blindness by letting flexible matching through WordNet synonymy and stemming. METEOR recognizes that "running" and "jogging" describe the same action, and that "walked" and "walking" are morphological variants of the same concept. This linguistic awareness makes METEOR more tolerant of valid word choices while still penalizing semantically incorrect captions. METEOR also considers word order through a fragmentation penalty, but does so more flexibly than BLEU's strict n-gram counting.

CIDEr (Consensus-based Image Description Evaluation) takes a different approach by weighting n-grams according to their specificity. Like TF-IDF in document retrieval, CIDEr gives higher weight to rare, specific n-grams that appear in both the candidate and references. Common words like "the," "a," and "is" receive low weight because they appear in nearly all captions and carry little information. But specific phrases like "yellow fire hydrant" receive high weight because they stand for precise, informative content. This weighting makes CIDEr more sensitive to content specificity than BLEU, rewarding models that capture distinctive image details rather than just using common words. CIDEr is computed using TF-IDF vectors over n-grams from both the candidate and multiple references, then measuring cosine similarity between these vectors.

SPICE (Semantic Propositional Image Caption Evaluation) takes the most radical departure from n-gram overlap by parsing captions into scene graphs. Rather than comparing word sequences, SPICE converts captions to structured representations of objects and attributes plus relationships (for example, parsing "a large black dog runs in the grass" into objects: {dog, grass}, attributes: {large, black}, relationships: {runs-in}). It then computes F-score based on the overlap between candidate and reference scene graphs. SPICE captures whether models mentioned correct objects and relationships regardless of word order or surface form, which makes it reliable to valid paraphrases that would confuse n-gram metrics. However, SPICE depends on the quality of the scene graph parser, and parser errors can penalize correct captions that use unusual phrasings.

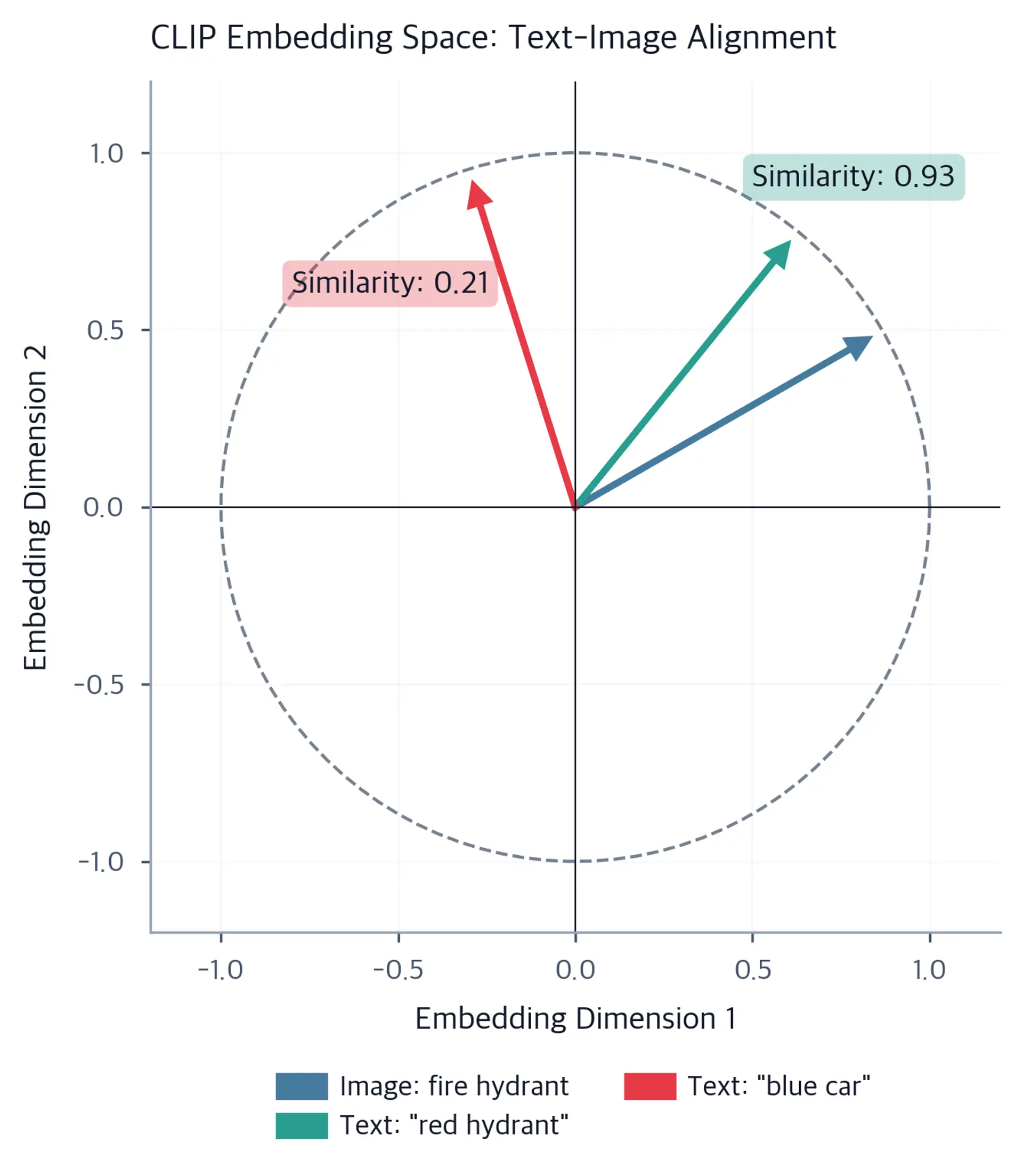

CLIPScore is a change from reference-based to reference-free evaluation. Rather than comparing a generated caption against human references, CLIPScore uses a contrastive vision-language model (specifically CLIP, discussed in the CLIP chapter) to measure how well a generated caption aligns with its source image. The caption and image are encoded into a shared embedding space, and their cosine similarity is the score. This approach requires no reference captions. This makes possible evaluation on entirely novel images where collecting references would be prohibitively expensive. CLIPScore correlates well with human judgment of caption quality and has become standard for evaluating image captioning models during development, where the speed advantage of reference-free evaluation lets rapid iteration.

The trade-offs between these metrics are real and matter for practical use. BLEU is fast and simple but severely penalizes synonyms. METEOR is more linguistically aware but depends on WordNet coverage, which is incomplete for domain-specific or informal language. CIDEr rewards specificity but is sensitive to corpus statistics and must be computed relative to a reference corpus. SPICE captures semantic structure but parser errors cascade into evaluation errors. CLIPScore requires no references but inherits CLIP's training biases. No single metric is universally superior; practitioners typically report multiple metrics to give a more complete picture of caption quality.

When models like DALL-E or Stable Diffusion generate images from text prompts, evaluation must assess both fidelity (does the image match the text?) and quality (is the image visually coherent?). These two dimensions are separable: a blurry, artifact-ridden image might accurately depict the described scene, while a photorealistic image might depict the wrong content entirely.

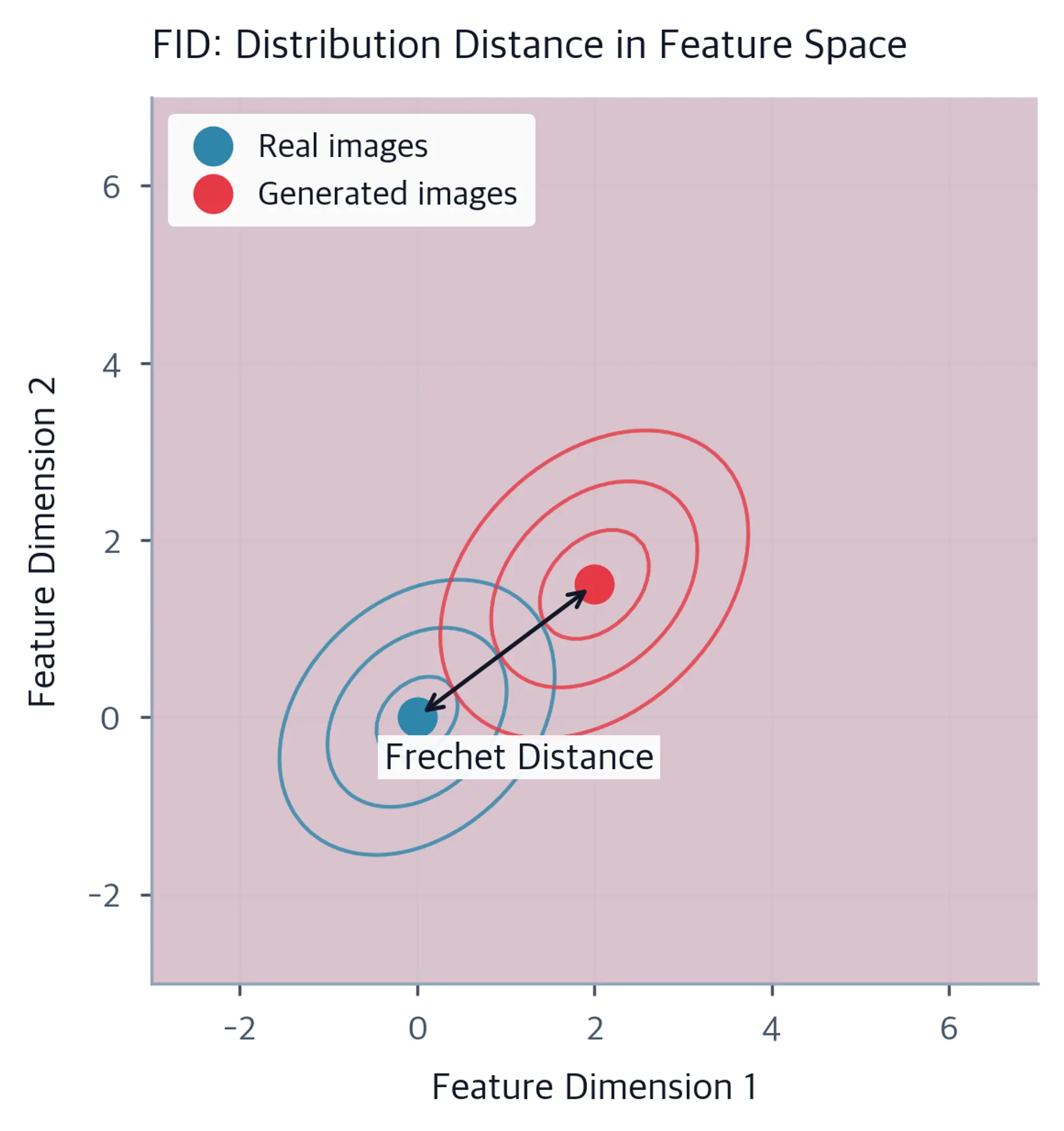

FID (Fréchet Inception Distance) measures the statistical distance between distributions of generated and real images in a feature space. The procedure works as follows: first, pass both real and generated images through a pre-trained Inception network to extract feature vectors. Second, compute the mean $\mu$ and covariance $\Sigma$ of these feature vectors for each set. Third, compute the Fréchet distance between the two resulting Gaussian distributions:

where:

• $\mu_X, \mu_Y$: mean feature vectors of the real and generated image distributions
• $\Sigma_X, \Sigma_Y$: covariance matrices of the real and generated feature distributions
• $\text{Tr}(\cdot)$: trace of a matrix (sum of diagonal elements)
• $\sqrt{\Sigma_X \Sigma_Y}$: matrix square root of the product of covariances, accounting for differences in how the distributions spread and correlate

Lower FID indicates that the generated distribution is statistically closer to the real distribution, suggesting higher quality and diversity. The metric captures both quality (low FID requires each generated image to look realistic) and diversity (FID penalizes mode collapse, where a generator produces many similar images, because the collapsed distribution would have very different covariance from the real distribution).

FID correlates reasonably well with human perception of visual quality, but it has necessary limitations. Most importantly, FID says nothing about text alignment. Two completely different images (one of a cat, one of a dog) might both produce good FID scores if they look realistic, regardless of whether the prompt asked for "a cat" or "a dog." A system that generates beautiful but topically irrelevant images would score well on FID. This limitation motivated the development of complementary alignment metrics.

IS (Inception Score) is an older metric that measures two properties simultaneously: diversity (the generated images should cover many distinct categories) and "objectness" (each individual image should clearly belong to some recognizable category). IS computes the KL divergence between the conditional class distribution $p(y \mid x)$ (what category does this specific image belong to?) and the marginal class distribution $p(y)$ (what categories appear across all generated images?). High IS requires that each image has low entropy in its class prediction (clear, recognizable objects) while the marginal distribution has high entropy (many different types of objects appear across the full set of images). Despite its intuitive appeal, IS has fallen out of favor because it is sensitive to the Inception model's classification categories and fails to detect certain failure modes like mode collapse within a category.

CLIP Score has become the standard metric for evaluating text-to-image alignment. It measures cosine similarity between the text prompt embedding and the generated image embedding in CLIP's shared representation space. A high CLIP score means the image content resembles what CLIP's vision encoder would predict from seeing that text, showing semantic alignment between prompt and image. This is directly analogous to CLIPScore for captioning, but applied in the reverse direction: rather than evaluating whether a caption matches an image, we evaluate whether an image matches a caption.

CLIP Score can be fooled in predictable ways. Images that contain the right conceptual elements but in wrong spatial configurations (a "dog on the left of the cat" where they are reversed) may still score highly because CLIP encodes overall semantic content rather than precise spatial arrangements. Images with watermarks or overlaid text matching the prompt might also score highly despite visual quality issues. These edge cases motivate complementary use of human evaluation.

Human Evaluation remains the gold standard for text-to-image generation. Human evaluators rate images on multiple dimensions:

• Image-text alignment: Does the image accurately depict the prompt, including all specified attributes and relationships?
• Image quality: Is the image visually coherent, free of artifacts, and perceptually realistic or artistically intentional?
• Aesthetic quality: Does the image exhibit compositional balance, appropriate use of color, and visual appeal according to human taste?
• Safety and appropriateness: Does the image avoid harmful, biased, or offensive content?

Human evaluation captures nuances that automated metrics miss, including artistic style, cultural appropriateness, and fine-grained compositional details like "a person on the left side of a park bench" versus "a person on the right side." However, human evaluation is expensive (each comparison costs fractions of a dollar but aggregate costs add up quickly at scale), slow (human studies take days to complete compared to milliseconds for automated metrics), and subject to individual variation in taste, cultural background, and interpretation. The standard practice for publication is to conduct human evaluation studies using methodological controls like inter-annotator agreement measures and randomized presentation order to mitigate these sources of noise.

Extending evaluation to video introduces temporal consistency requirements that don't arise for static images. Video generation must produce visually realistic individual frames and coherent sequences where objects maintain their appearance, move according to physical laws, and respond to causes specified in the prompt.

FVD (Fréchet Video Distance) extends FID to the temporal domain by using video understanding models (typically 3D convolutional networks or video transformers) to extract features that capture both spatial appearance and temporal dynamics. The same distributional distance computation as FID applies, but the features now encode how content changes over time, not just what content appears in a single frame. Lower FVD indicates that the generated videos are more statistically similar to real videos in terms of both content and motion patterns.

Frame consistency metrics use optical flow to verify temporal coherence. Optical flow measures how pixel values move between consecutive frames; unrealistic flow patterns (sudden jumps, flickering, or objects that teleport) indicate temporal incoherence. Consistency scores measure the variance of appearance features across frames (after accounting for legitimate motion), penalizing models that generate frames independently without maintaining object identity over time.

Text-video alignment extends CLIP-style metrics to temporal content by averaging alignment scores across sampled frames or using video-language models that encode full temporal sequences. A video prompt "a red ball rolling down a hill" should produce frames containing a red ball and a hill, plus progressive motion of the ball down the slope, which requires both semantic alignment and temporal coherence.

Video generation adds the dimension of temporal causality: objects must appear correct in individual frames and move according to physical laws and the prompt's specifications. This makes video generation evaluation substantially more complex than image generation evaluation, and the field is still developing reliable metrics that capture temporal quality as reliably as FID captures static image quality.

Let's work through a concrete example of VQA evaluation, computing accuracy with consensus scoring and analyzing error patterns across different question types.

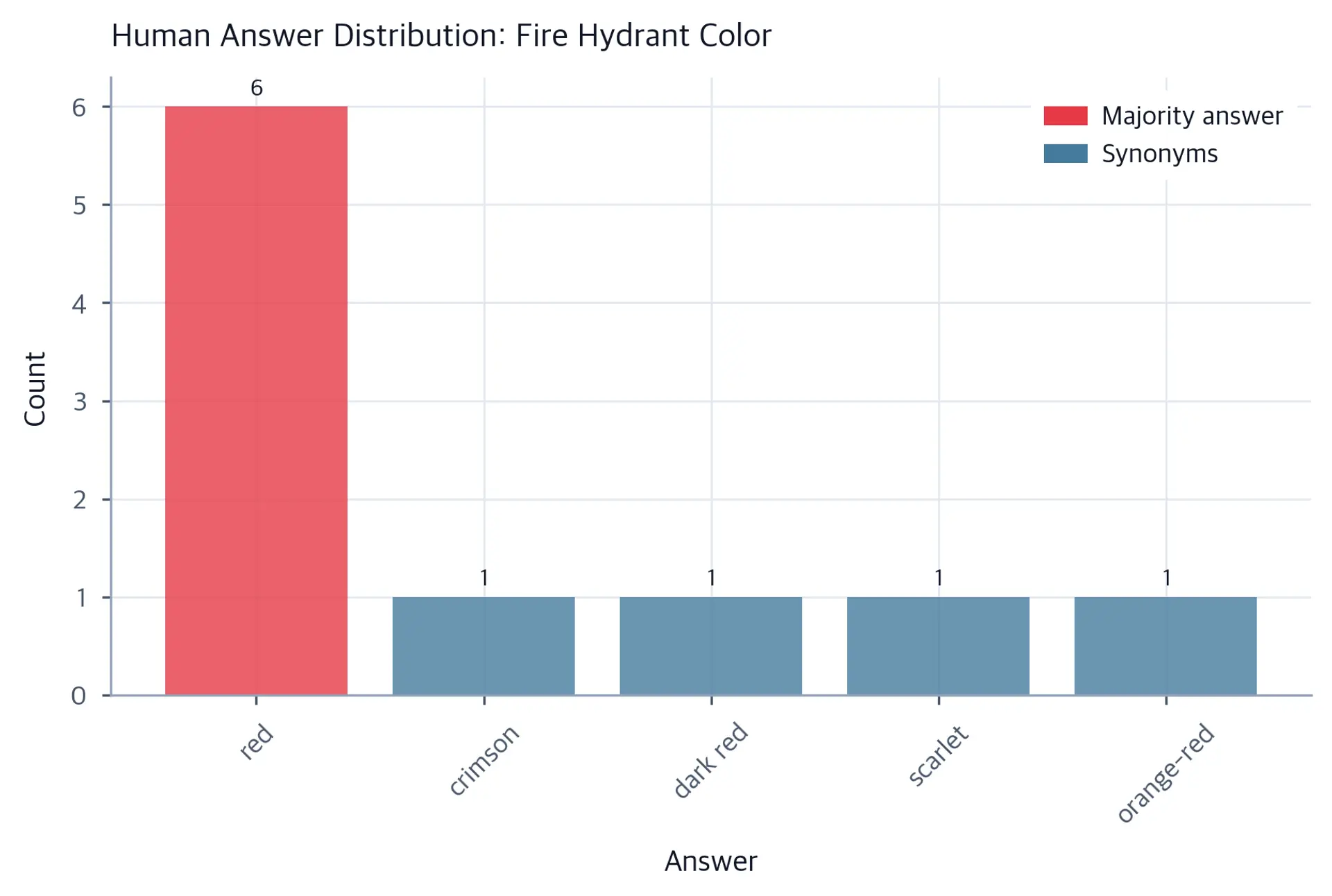

Consider a VQA example with the question "What color is the fire hydrant?" and human answers: ["red", "red", "red", "crimson", "dark red", "scarlet", "red", "red", "orange-red", "red"]. A model predicts "red".

The result reveals a basic limitation: "crimson" is semantically correct but receives partial credit of approximately 0.33 because only one human used that specific word. This penalizes valid synonymy, motivating the development of metrics like WUPS (Wu-Palmer Similarity) that use WordNet semantic hierarchy to score related words appropriately. WUPS would recognize that "crimson" and "red" occupy nearby positions in the color taxonomy, awarding similarity scores based on their distance in the hierarchy rather than requiring string identity. The trade-off is that WUPS requires maintaining a semantic taxonomy and defining distance thresholds, introducing its own hyperparameters and assumptions about what constitutes acceptable synonymy.

Let's implement a pipeline to evaluate multimodal predictions using standard libraries. We'll load VQA-style data, compute metrics, and visualize results that reveal capability gaps.

Since VQA datasets require large image files, we'll simulate a subset with the expected structure. The simulated data covers the three main VQA question types: yes/no, number, or other (open-ended). This structure mirrors the real VQA v2 annotation format exactly.

Now let's implement the standard VQA evaluation metric. The implementation reconstructs the full answer list with repetitions (matching the original VQA format) and applies the consensus scoring formula.

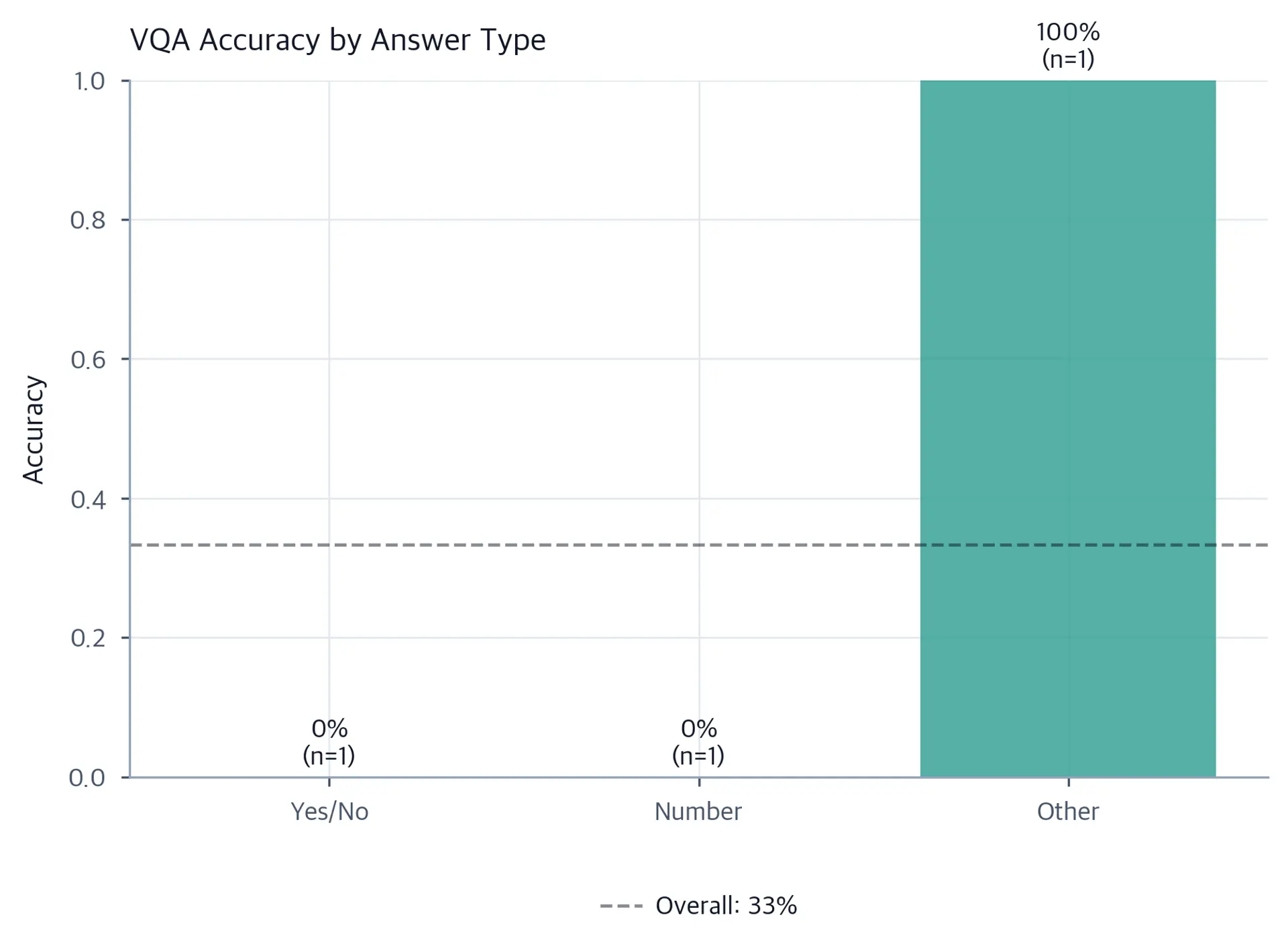

The results reveal that our simulated model struggles with number recognition and yes/no questions while correctly identifying colors. In practice, we would analyze error patterns to identify whether failures stem from visual recognition, question understanding, or answer generation. The error on question 2 likely indicates that the model miscounted due to overlapping or occluded dogs in the image, while the error on question 3 might suggest the model failed to recognize the stop sign's shape and distinctive red color, or misunderstood the question polarity.

This per-category breakdown is precisely the kind of diagnostic information that makes VQA evaluation useful beyond a single number. A model achieving 33% overall accuracy on this mini-dataset looks much worse than one achieving 60% overall, but the per-category analysis reveals that both might have identical performance on color questions while differing on counting tasks. Without this breakdown, we would have no guidance on where to improve.

Let's implement caption evaluation using n-gram based metrics. While libraries like pycocoevalcap give standard implementations, understanding the mechanics helps interpret scores and diagnose failure modes.

The BLEU score indicates moderate overlap with references. Notice that the candidate is semantically correct despite word differences ("playing" vs. "plays," "puppy" vs. "dog"). This illustrates why modern evaluation increasingly relies on semantic metrics like CLIPScore or BERTScore rather than n-gram overlap alone. BERTScore, which uses contextual embeddings from BERT to compute semantic similarity between candidate and reference tokens, would assign higher scores to semantically equivalent paraphrases. CLIPScore would evaluate alignment directly against the image without needing references at all. In practice, a research paper evaluating an image captioning model would typically report BLEU-4; METEOR; CIDEr; and either SPICE or CLIPScore, capturing both lexical and semantic dimensions of caption quality.

CLIPScore evaluates whether a caption describes an image without requiring reference captions. Let's simulate this workflow to understand the mechanics. In production, you would use the transformers library to load an actual CLIP model and compute real embeddings.

The CLIPScore successfully distinguishes between semantically aligned and misaligned text-image pairs. The geometric interpretation is intuitive: aligned pairs cluster together in the shared embedding space, while misaligned pairs point in divergent directions. In practice, researchers use CLIPScore for rapid iteration during model development, where the reference-free property lets evaluation on any new image without collecting human annotations. Final validation for publication still relies on human evaluation studies, which capture quality dimensions that CLIPScore cannot, including compositional accuracy, cultural context, and aesthetic judgment.

The key parameters for multimodal evaluation metrics are:

• consensus_threshold: The minimum number of human annotators (default 3 in VQA) required for full accuracy credit. Answers matching fewer humans receive partial credit proportional to the match count divided by this threshold. Higher thresholds require more consensus but penalize valid synonyms, while lower thresholds reward diversity but may accept incorrect answers. The value of 3 was chosen empirically in the original VQA paper.
• max_n: Maximum n-gram order for BLEU calculation (typically 4). Higher values require matching longer phrase sequences, increasing strictness for exact lexical overlap. BLEU-4 requires matching four-word sequences, which makes it sensitive to word order and exact phrasing. Lower n values (BLEU-1, BLEU-2) are more tolerant but less discriminating.
• scaling_factor: For CLIPScore, the multiplier (typically 100) that maps cosine similarity from $[-1, 1]$ to a readable percentage scale. This linear transformation makes scores interpretable without changing the underlying ranking of model outputs.
• reference_count: The number of human reference captions collected per image for captioning evaluation. More references give better coverage of valid descriptions, reducing false negatives where correct but unusual phrasings receive low scores. Standard datasets typically collect 5 references per image, balancing coverage against collection cost.

The evaluation of multimodal models faces basic challenges that remain unresolved despite years of benchmark development. Understanding these limitations is important for interpreting results and designing better evaluation protocols.

Current metrics suffer from a semantic gap between what they measure and what we care about. N-gram based metrics like BLEU and CIDEr penalize valid linguistic variation in ways that human judges would not. A model that describes a dog as "a canine" receives lower scores than one that says "a dog," even though both are correct and equally informative. SPICE addresses this by parsing semantic content into structured representations, but scene graph parsers themselves make errors and fail to stand for abstract content reliably. Abstract concepts like emotions ("a sad scene"), intentions ("the boy is about to jump"), or social dynamics ("they appear to be arguing") are difficult to stand for in scene graphs, causing SPICE to systematically undervalue descriptions that capture these important dimensions.

CLIPScore and learned metrics introduce different biases rather than eliminating them. CLIP models trained on web data associate certain phrases with visual concepts based on potentially spurious correlations. A high CLIPScore doesn't guarantee that the model understood the image; it only guarantees that the text and image embeddings align in ways similar to training data pairs. This creates an "evaluation anchor" where models optimized to maximize CLIPScore may exploit dataset-specific patterns rather than developing true visual understanding. For example, CLIP might associate certain fonts, watermarks, or image compositions with specific objects based on how these appeared together in web-scraped training data, creating exploitable shortcuts. A model trained to generate captions that maximize CLIPScore might learn to generate captions containing keywords that CLIP associates with the visual domain without describing the specific image content.

The deeper problem is that no automated metric captures the full richness of what makes a good visual description. Salience matters: a description of a birthday scene that mentions the balloons and ignores the birthday person might score well on overlap metrics while missing the most important element. Accuracy matters at the propositional level: a description that gets most details right but one important detail wrong (saying "the car is blue" when it's red) might score well overall while being clearly wrong in a important respect. These judgment-level failures are hard to encode in quantitative metrics.

As we observed with VQA v1, benchmarks often contain exploitable biases that allow models to reach high performance without real visual understanding. Even carefully constructed datasets like VQA v2 may have subtle statistical patterns: questions about "tennis" often involve green courts, questions about "kitchen" often answer "yes" to questions about whether food is present. Models trained on internet-scale data develop strong priors about these co-occurrences that can substitute for real visual reasoning in many cases.

A more insidious problem is data contamination. Models trained on internet-scale datasets may have seen benchmark images or closely related images during pre-training. The COCO images used in VQA, for example, were publicly available before many foundation models were trained, which makes it plausible that captions, annotations, or discussions of these images appeared in training data. When a model reaches near-perfect scores on a benchmark, we must ask whether it has learned general visual reasoning or simply memorized the test set. This question is difficult to answer definitively: we cannot fully audit what a model has been trained on, and even without direct memorization, a model might generalize from related training data in ways that inflate benchmark performance.

The pace of multimodal benchmark development struggles to keep up with model capabilities. When large multimodal models reach 90%+ on standard VQA benchmarks, those tasks transition from "research challenges" to "solved prerequisites," forcing the community to design harder evaluations like MMMU. This creates a Red Queen dynamic: benchmarks must continuously increase in difficulty to remain relevant, requiring ever more specialized knowledge and complex reasoning to challenge state-of-the-art models. The challenge is that harder benchmarks require more expensive data collection (hiring domain experts to annotate medical images, chemistry diagrams, and legal documents) and may cover narrower capabilities, which makes it harder to interpret performance as a measure of general visual intelligence.

Generative evaluation remains particularly fraught with basic tensions between what is measurable and what matters. FID measures statistical similarity to real images but says nothing about whether the generated image matches its text prompt. Two equally realistic images (one of a cat, one of a dog) receive the same contribution to FID regardless of whether the prompt asked for "a cat" or "a dog." A generation system could reach excellent FID by creating only the most common image types in its training distribution, completely ignoring compositional or unusual prompts.

CLIPScore addresses text alignment but is insensitive to image quality: a blurry, artifact-ridden image may score highly if its semantic content matches the text. This is a significant limitation for evaluating diffusion models and other generative systems where the visual quality of outputs varies substantially. Combining FID and CLIPScore gives a more complete picture, but the combination still misses compositional accuracy (getting all elements right but in the wrong spatial configuration) and fine-grained attributes (getting the object right but the wrong color).

Human evaluation, while authoritative, is expensive and slow, as well as subject to rater variability. Different annotators prioritize different aspects: photorealism versus creativity, literal adherence versus artistic interpretation, technical quality versus emotional resonance. This makes it difficult to compare models across studies conducted by different research groups or to track progress consistently over time. The standard response is to use specific evaluation interfaces (like HIVE or ELO-based preference rankings) that structure the comparison task to minimize noise, but these methods have their own limitations and are still substantially more expensive than automated metrics.

The scalability problem is acute in the current period of rapid model development, where new text-to-image models are released frequently and each requires evaluation. Automated metrics let rapid iteration during development, but final publication-quality evaluation requires human studies that can take weeks to complete and thousands of dollars to run. This creates pressure to rely on automated metrics that might not fully capture the quality dimensions that matter most.

Multimodal benchmarks often reflect cultural and demographic biases present in their source data, and evaluation metrics typically ignore these biases in their aggregate statistics. Images sourced primarily from Western websites depict Western contexts, leading to models that perform better on questions about snow sports than tropical agriculture, or on questions about Christian wedding traditions than Hindu or Jewish ceremonies. Evaluation metrics report aggregate accuracy that masks poor performance on underrepresented groups and contexts.

This representation bias extends to the visual concepts tested. Standard benchmarks test object recognition for the hundreds of objects most common in Western internet photography: cars, dogs, pizza, wine. They rarely test recognition of objects common in other cultural contexts: specific types of traditional clothing, regional foods, or culturally specific tools and implements. A model that reaches high benchmark accuracy while failing to recognize common objects in underrepresented cultural contexts may perform well in Western deployment contexts but fail for users from other backgrounds.

Bias also affects the metrics themselves in subtle ways. CLIP models trained on English internet text may produce better embeddings for English captions than captions in other languages, causing CLIPScore to systematically undervalue accurate non-English descriptions. Object detectors trained on Western datasets may fail to recognize culturally specific objects or to handle image styles (photography conventions, color processing, composition norms) that differ across cultures. Without careful geographic and cultural, plus linguistic, diversification of evaluation data, we risk building evaluation frameworks that implicitly define "good performance" in culture-specific ways.

Addressing these biases requires systematic effort in benchmark construction: explicit geographic and cultural diversity requirements in image collection, involvement of annotators from diverse backgrounds, translation and cross-lingual evaluation components, and reporting of performance stratified by demographic variables. Some recent benchmarks like CROSSMODAL-3600 have begun addressing linguistic diversity by collecting captions in 36 languages, but this remains the exception rather than the norm.

Despite these limitations, multimodal evaluation frameworks have driven substantial progress. The move from VQA v1 to v2 taught the community that balanced answer distributions are needed for valid evaluation, leading to more rigorous dataset construction practices that are now standard. GQA demonstrated the value of compositional, structured evaluation over aggregate accuracy, inspiring subsequent benchmarks that test specific reasoning primitives and letting targeted model improvements. CLIPScore enabled automated evaluation of text-to-image models at scale, accelerating iteration cycles and letting the rapid progress in generative modeling seen in diffusion models.

The tension between automated metrics and human judgment has pushed the field toward hybrid evaluation pipelines. During model development, automated metrics (VQA accuracy, CLIPScore, FID) give fast feedback that supports rapid iteration on training procedures and architectures alongside data curation. During validation and publication, human evaluation studies give authoritative quality assessments that capture the nuances automated metrics miss. This division uses the speed of automated metrics for the many decisions made during development while preserving the nuance of human judgment for the few decisions that matter most for research claims.

The evolution of benchmarks also shows improving understanding of what multimodal AI can and should do. Early benchmarks tested perception and simple reasoning, mirroring the capabilities of the models available at the time. Modern benchmarks test expert-level reasoning, instruction following, and integrated multi-skill tasks, mirroring the capabilities of current foundation models. As we move toward more capable multimodal agents, evaluation must continue evolving to assess interactive reasoning, tool use, and long-horizon task completion. Future benchmarks may evaluate whether models can use visual information to operate interfaces, interpret scientific data for research purposes, or collaborate with humans on complex creative projects, moving beyond question-answering to assess real multimodal intelligence operating in realistic, dynamic environments.

Multimodal evaluation spans three interconnected domains: Visual Question Answering benchmarks test discrete reasoning over images; complete understanding benchmarks assess broad capabilities across expert domains; and generation metrics evaluate the quality and alignment of synthesized content.

VQA benchmarks evolved from simple recognition tasks to complex compositional reasoning challenges, with consensus accuracy handling the variability of natural language answers. The progression from VQA v1 to v2 illustrates the importance of careful dataset design to prevent shortcut learning, while GQA shows the value of structured evaluation for diagnosing specific reasoning capabilities. OK-VQA and TextVQA pushed the frontier by requiring external knowledge and in-image text understanding respectively, anticipating the capabilities of modern large multimodal models.

Modern understanding benchmarks like MMMU push models toward expert-level reasoning across disciplines, while evaluation protocols increasingly test for consistency and calibration alongside cross-modal alignment. These benchmarks reflect the move from narrow AI systems to generalist assistants capable of handling diverse real-world tasks. The granular per-skill and per-domain breakdowns that these benchmarks give are as important as aggregate scores for guiding model development.

For generation, the field relies on a hierarchy of metrics: n-gram overlap (BLEU, CIDEr) for lexical similarity, semantic parsing (SPICE) for content accuracy, distribution distance (FID) for image quality, and learned alignment metrics (CLIPScore) for semantic correspondence. Each captures different aspects of quality, necessitating multi-metric evaluation to get a complete picture of model capabilities. Human evaluation remains the gold standard. This gives judgments of quality dimensions that no automated metric currently captures reliably.

The basic tension in multimodal evaluation lies between what is measurable and what matters. Current metrics approximate human judgment imperfectly, and benchmarks inevitably contain biases and exploitable shortcuts. Yet these evaluation frameworks have successfully tracked progress from simple bag-of-features models to advanced vision-language systems capable of complex expert-level reasoning. The lesson from the history of VQA and its successors is that evaluation design is itself a research problem: how we define and measure success shapes what systems we build, and careful attention to evaluation methodology is as important as model architecture for advancing the field. As models continue to advance, evaluation must evolve in parallel, developing harder tasks, finer-grained metrics, and better protocols for assessing the fine-grained ways humans perceive, reason about, and create multimodal content.
