During training, LoRA maintains separate paths for the original weights and the low-rank adaptation. This separation is necessary because we need to keep the original weights frozen while letting gradients to flow through only the adaptation matrices. However, this dual-path architecture introduces computational overhead during inference: each adapted layer must perform the original matrix multiplication plus the additional low-rank computation.

Think of this as having two employees handling the same customer inquiry: one who knows all the general company policies (the frozen base) and one who knows the specialized domain details (the LoRA adapter). During development, you want both employees working together and staying separate so you can update just the specialist without affecting the generalist. But once you ship the product, you can create a single merged knowledge base that combines both people's knowledge into one document, cutting the time needed to answer each question.

At inference time, we can merge the LoRA weights back into the base model, eliminating any computational overhead. The merged model produces identical outputs to the unmerged version but requires only a single matrix multiplication per layer. The merged weight matrix is:

W_{\text{merged}} = W + \frac{\alpha}{r}BA

where:

$W_{\text{merged}}$ : the consolidated weight matrix used for inference
$W$ : the original frozen weight matrix
$\alpha$ : the scaling factor
$r$ : the rank parameter
$B$ : the projection-up matrix
$A$ : the projection-down matrix
$\frac{\alpha}{r}BA$ : the effective update matrix computed from the LoRA parameters

This merging relies on the distributive property of linear transformations over addition. Specifically, applying a linear layer with weight $W$ and then adding the output of another linear operation with weight $BA$ is mathematically equivalent to applying a single linear layer with weight $W + BA$ . We can verify that the merged weight produces identical outputs to the separate paths through careful mathematical analysis. For an input vector $\mathbf{x}$ , the forward pass equivalence is derived as follows:

\begin{aligned} \mathbf{x} W_{\text{merged}}^T &= \mathbf{x} \left(W + \frac{\alpha}{r}BA\right)^T && \text{substitute merged weight} \\ &= \mathbf{x} W^T + \mathbf{x} \left(\frac{\alpha}{r}BA\right)^T && \text{linearity of transpose} \\ &= \mathbf{x} W^T + \frac{\alpha}{r} \mathbf{x} A^T B^T && \text{transpose of product: } (BA)^T = A^T B^T \end{aligned}

where:

$\mathbf{x}$ : the input vector
$W_{\text{merged}}^T$ : the transpose of the merged weight matrix used in the linear layer
$W^T$ : the transpose of the original frozen weight matrix
$\alpha$ : the scaling factor
$r$ : the rank parameter
$A^T, B^T$ : the transposes of the adaptation matrices (note the order reversal due to the transpose property)

The final expression shows exactly what our unmerged forward pass computes: the original layer output $\mathbf{x} W^T$ plus the scaled LoRA contribution $\frac{\alpha}{r} \mathbf{x} A^T B^T$ . This mathematical equivalence confirms that we can eliminate the computational overhead during inference by using a consolidated weight matrix.

The key insight is that matrix addition and matrix-vector multiplication commute in the right way: $(W_1 + W_2)\mathbf{x} = W_1\mathbf{x} + W_2\mathbf{x}$ . This linearity means we can precompute the sum $W + \frac{\alpha}{r}BA$ once at deployment time and never need to touch $A$ or $B$ again. The merged weight is just another weight matrix of the same shape as the original, meaning the inference infrastructure requires no special handling.

In[25]:

Code

def merge_lora_weights(model: nn.Module) -> nn.Module:
    """
    Merge LoRA weights into the base model weights.
    After merging, the model behaves identically but without LoRA overhead.
    """
    for name, module in model.named_modules():
        if isinstance(module, LoRALinear):
            # Compute merged weight: W + (alpha/r) * B @ A
            merged_weight = (
                module.original_layer.weight.data
                + module.scaling * (module.lora_B @ module.lora_A)
            )
            module.original_layer.weight.data = merged_weight

            # Mark as merged to skip LoRA path in forward
            module.merged = True

    return model


def unmerge_lora_weights(model: nn.Module) -> nn.Module:
    """
    Unmerge LoRA weights from the base model.
    Useful if you want to continue training after merging.
    """
    for name, module in model.named_modules():
        if isinstance(module, LoRALinear) and getattr(module, "merged", False):
            # Subtract the LoRA contribution
            unmerged_weight = (
                module.original_layer.weight.data
                - module.scaling * (module.lora_B @ module.lora_A)
            )
            module.original_layer.weight.data = unmerged_weight
            module.merged = False

    return model

Let's modify our LoRALinear class to handle merged weights in the forward pass, creating a version that can operate in either mode:

In[26]:

Code

class LoRALinearMergeable(nn.Module):
    """
    LoRA linear layer with support for weight merging.
    """

    def __init__(
        self,
        original_layer: nn.Linear,
        rank: int = 4,
        alpha: float = 1.0,
        dropout: float = 0.0,
    ):
        super().__init__()

        self.original_layer = original_layer
        self.rank = rank
        self.alpha = alpha
        self.scaling = alpha / rank
        self.merged = False

        self.in_features = original_layer.in_features
        self.out_features = original_layer.out_features

        # Freeze original weights
        for param in self.original_layer.parameters():
            param.requires_grad = False

        # Initialize LoRA matrices
        self.lora_A = nn.Parameter(torch.empty(rank, self.in_features))
        self.lora_B = nn.Parameter(torch.zeros(self.out_features, rank))
        nn.init.kaiming_uniform_(self.lora_A, a=math.sqrt(5))

        self.dropout = nn.Dropout(dropout) if dropout > 0 else nn.Identity()

    def merge(self):
        """Merge LoRA weights into the base layer."""
        if not self.merged:
            self.original_layer.weight.data += self.scaling * (
                self.lora_B @ self.lora_A
            )
            self.merged = True

    def unmerge(self):
        """Unmerge LoRA weights from the base layer."""
        if self.merged:
            self.original_layer.weight.data -= self.scaling * (
                self.lora_B @ self.lora_A
            )
            self.merged = False

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        if self.merged:
            # Just use the merged base layer
            return self.original_layer(x)

        # Standard LoRA forward
        original_output = self.original_layer(x)
        lora_output = self.dropout(x)
        lora_output = F.linear(lora_output, self.lora_A)
        lora_output = F.linear(lora_output, self.lora_B)
        lora_output = lora_output * self.scaling

        return original_output + lora_output

The merged flag in the forward method is what makes this class deployable. When merged=True, the forward pass is just a single call to original_layer, which is a standard PyTorch linear layer. Serving infrastructure that already handles linear layers requires no modification. The flag approach is also clean in that the module can be switched between modes at any time, supporting workflows where you merge for inference, then unmerge to continue fine-tuning on new data.

Let's verify that merging produces identical outputs, confirming our mathematical derivation:

In[27]:

Code

# Create a LoRA layer and process some input
base = nn.Linear(128, 128)
lora = LoRALinearMergeable(base, rank=4, alpha=4.0)

# Simulate some training by modifying LoRA weights
with torch.no_grad():
    lora.lora_A.uniform_(-0.1, 0.1)
    lora.lora_B.uniform_(-0.1, 0.1)

test_input = torch.randn(2, 10, 128)

# Output before merging (using LoRA path)
output_before = lora(test_input)

# Merge weights
lora.merge()

# Output after merging (direct from base layer)
output_after = lora(test_input)

# Check equivalence
diff = (output_before - output_after).abs().max()

Out[28]:

Console

Maximum difference after merging: 1.01e-06
Merged status: True

The outputs are identical up to floating-point precision, confirming that merged models have zero inference overhead compared to the original architecture. This verification gives confidence that you can deploy merged models in production without worrying about subtle behavioral differences. The floating-point error arises because floating-point addition is not perfectly associative: computing $W\mathbf{x} + (BA\mathbf{x})$ in sequence gives slightly different results from computing $(W + BA)\mathbf{x}$ due to rounding at each step. In practice this error is many orders of magnitude smaller than any real model output difference.

Out[29]:

Visualization

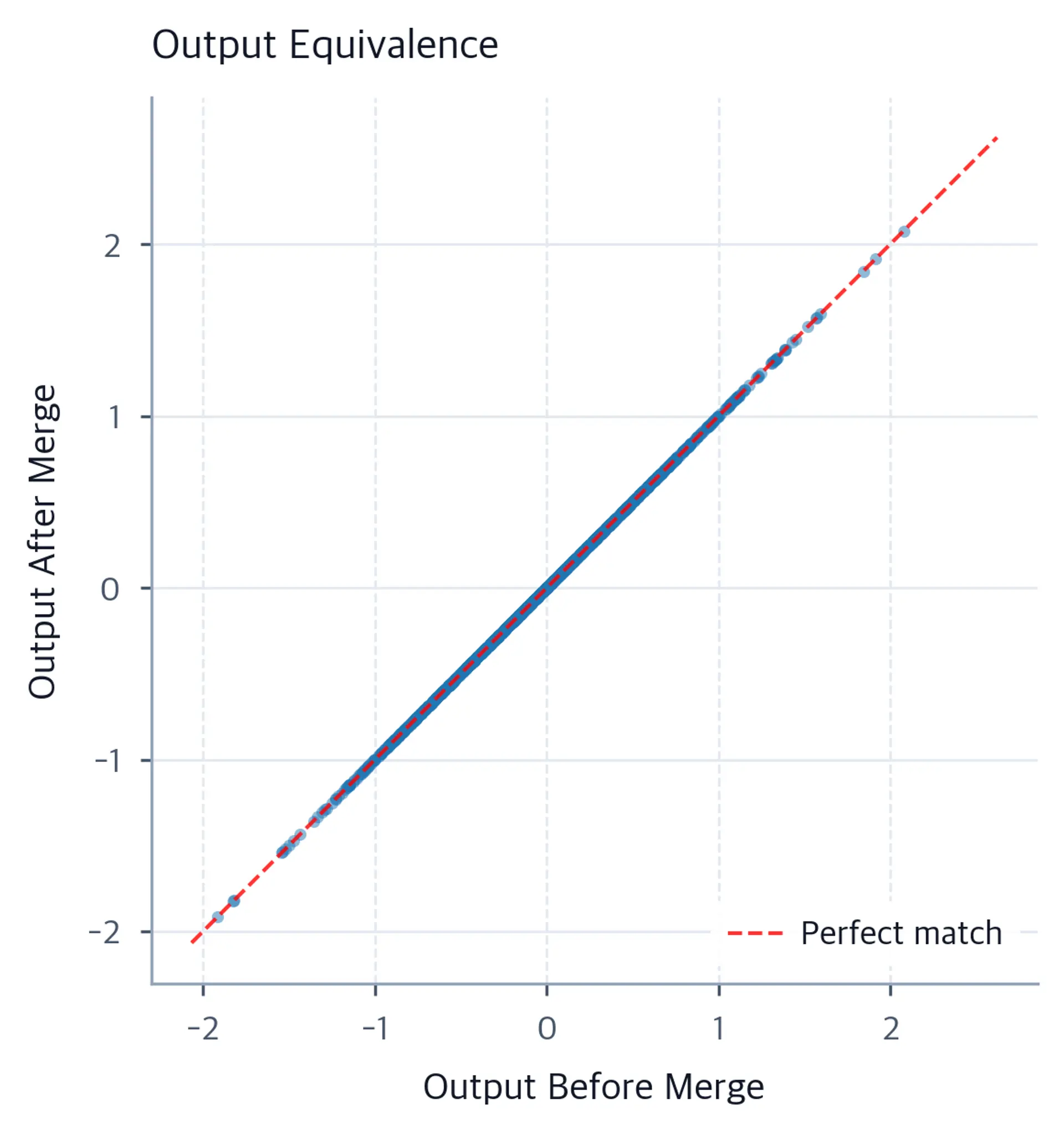

Scatter plot with output values before merging on the x-axis and output values after merging on the y-axis. All points fall exactly on a red dashed diagonal reference line, confirming perfect numerical equivalence. — Scatter plot comparing layer outputs before and after weight merging. All points lie on the diagonal line, confirming that the merged weights produce outputs numerically identical to the separate LoRA path, validating the mathematical equivalence of the two computation strategies.

Out[30]:

Visualization

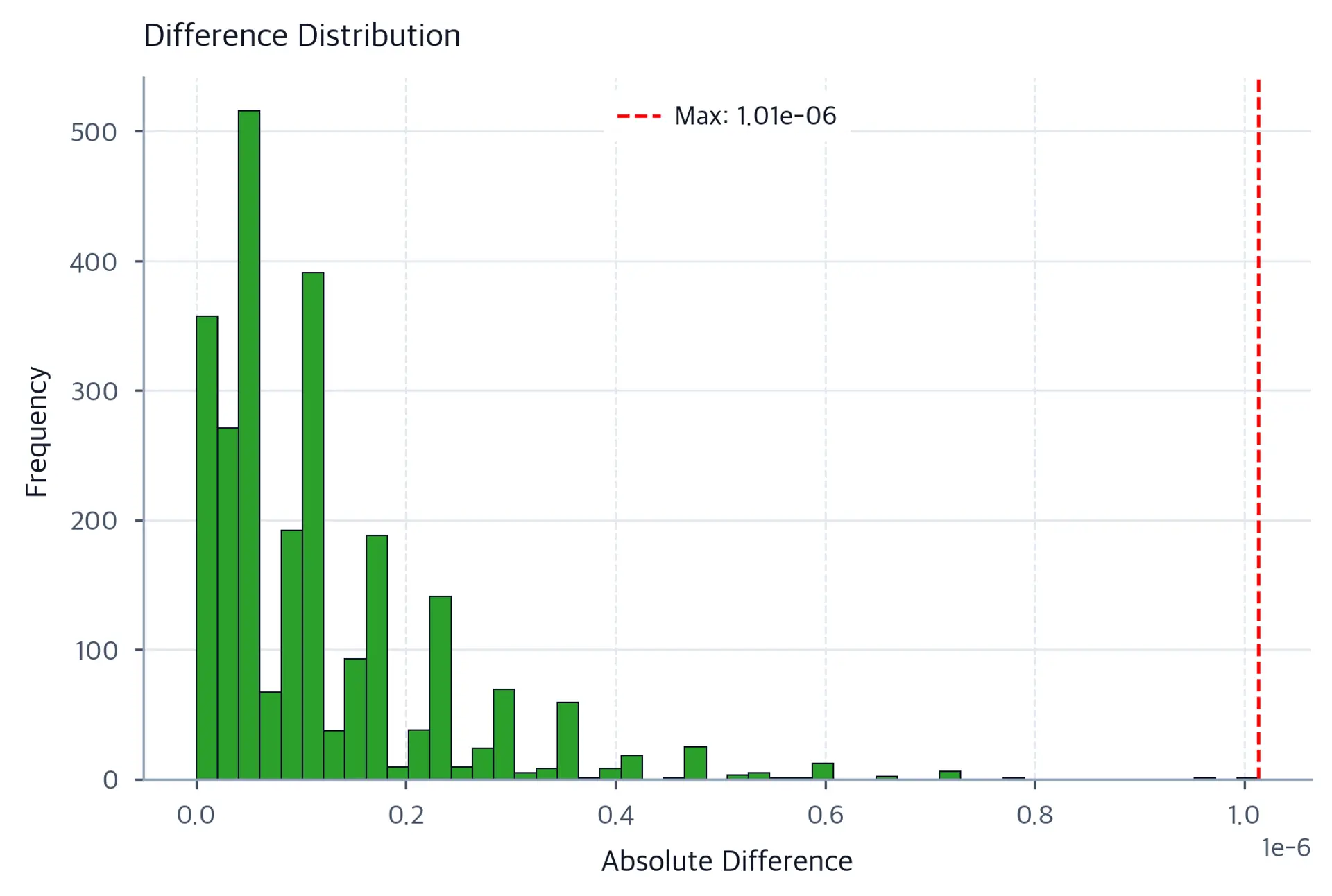

Histogram showing the distribution of absolute differences between pre-merge and post-merge outputs. All values cluster near zero in the range of floating-point precision, with a red dashed vertical line marking the maximum difference. — Histogram of absolute differences between pre- and post-merge layer outputs. The deviations are concentrated near the limits of numerical precision (around 1e-7), confirming that the weight merging process is mathematically equivalent to the dual-path LoRA architecture.

Saving and Loading LoRA WeightsLink Copied

For practical deployment, you often want to save only the LoRA weights rather than the full model. This approach lets sharing small adapter files that can be applied to any copy of the base model, creating an efficient ecosystem where you download a large base model once and then apply multiple lightweight adapters for different tasks. Think of it like a printer driver model: you buy the printer once and install it on your computer, then download small driver updates or custom profiles as needed. The profiles are tiny because they only specify the delta from the default behavior, not the entire printer functionality.

In[31]:

Code

def save_lora_weights(model: nn.Module, path: str):
    """Save only the LoRA parameters to a file."""
    lora_state_dict = {}
    for name, param in model.named_parameters():
        if "lora_" in name:
            lora_state_dict[name] = param.data.clone()
    torch.save(lora_state_dict, path)
    return lora_state_dict


def load_lora_weights(model: nn.Module, path: str):
    """Load LoRA parameters from a file."""
    lora_state_dict = torch.load(path, weights_only=True)

    model_state = model.state_dict()
    for name, param in lora_state_dict.items():
        if name in model_state:
            model_state[name] = param

    model.load_state_dict(model_state, strict=False)
    return model

In[32]:

Code

import os
import tempfile

# Demonstrate saving LoRA weights
with tempfile.TemporaryDirectory() as tmpdir:
    save_path = os.path.join(tmpdir, "lora_weights.pt")
    saved_dict = save_lora_weights(model, save_path)
    file_size = os.path.getsize(save_path)

Out[33]:

Console

LoRA weights saved: 8 parameters
File size: 35.58 KB

Saved parameter names:
  layers.0.attention.q_proj.lora_A: shape torch.Size([4, 256])
  layers.0.attention.q_proj.lora_B: shape torch.Size([256, 4])
  layers.0.attention.v_proj.lora_A: shape torch.Size([4, 256])
  layers.0.attention.v_proj.lora_B: shape torch.Size([256, 4])

The LoRA checkpoint is orders of magnitude smaller than a full model checkpoint, letting practical storage and distribution of many task-specific adaptations. You might maintain dozens of LoRA adapters for different tasks while storing just one copy of the base model, sharply reducing storage requirements compared to maintaining multiple fully fine-tuned model variants. This pattern has become standard in the open-source LLM community: the Hugging Face model hub hosts thousands of LoRA adapters for various models, letting anyone to download a base model and apply a specialized adapter without waiting for a full model upload.

The load_lora_weights function uses strict=False in load_state_dict intentionally. Since we are only loading LoRA parameters rather than the complete model state dictionary, setting strict=True would cause an error because most of the model's parameters are missing from the adapter checkpoint. The strict=False setting tells PyTorch to update only the keys that are present in the loaded dictionary, leaving all other parameters untouched. This is exactly the behavior we want: load the fine-tuned adapter weights while keeping the base model weights intact.
