Let us calculate the computational implications of different resolution choices for a VLM vision encoder to understand the practical constraints facing system designers.
Consider a ViT-L/14 encoder, which is the Large variant with 14x14 patches and 1024 hidden dimensions, processing images at various resolutions:
def calculate_vision_cost(resolution, patch_size, hidden_dim, batch_size=1):
"""
Calculate memory and compute requirements for ViT processing.
Args:
resolution: Tuple of (height, width)
patch_size: Size of square patches
hidden_dim: Hidden dimension of transformer
batch_size: Number of images in batch
"""
h, w = resolution
patches_h = (h + patch_size - 1) // patch_size # Ceiling division
patches_w = (w + patch_size - 1) // patch_size
num_patches = patches_h * patches_w
# Memory for patch embeddings (4 bytes per float32)
embedding_memory = (
batch_size * num_patches * hidden_dim * 4 / (1024**2)
) # MB
# Attention matrix memory (Q@K^T): batch * heads * patches * patches * 4 bytes
# Assume 16 heads for ViT-L
num_heads = 16
attention_memory = (
batch_size * num_heads * num_patches * num_patches * 4 / (1024**2)
) # MB
# Approximate FLOPs for attention: 2 * batch * patches^2 * hidden_dim
attention_flops = (
2 * batch_size * num_patches * num_patches * hidden_dim / 1e9
) # GFLOPs
return {
"patches": num_patches,
"sequence_length": num_patches + 1, # +1 for CLS token
"embedding_memory_mb": embedding_memory,
"attention_memory_mb": attention_memory,
"attention_gflops": attention_flops,
}
# Common configurations
configs = [
(224, 224, 14, 1024, "Standard (224px)"),
(336, 336, 14, 1024, "High-res (336px)"),
(448, 448, 14, 1024, "Very high-res (448px)"),
(224, 224, 16, 1024, "Large patches (16px)"),
(384, 384, 14, 768, "SigLIP Base (384px)"),
]Configuration Patches Emb Mem (MB) Attn Mem (MB) Attn GFLOPs -------------------------------------------------------------------------------- Standard (224px) 256 1.00 4.00 0.13 High-res (336px) 576 2.25 20.25 0.68 Very high-res (448px) 1024 4.00 64.00 2.15 Large patches (16px) 196 0.77 2.34 0.08 SigLIP Base (384px) 784 2.30 37.52 0.94

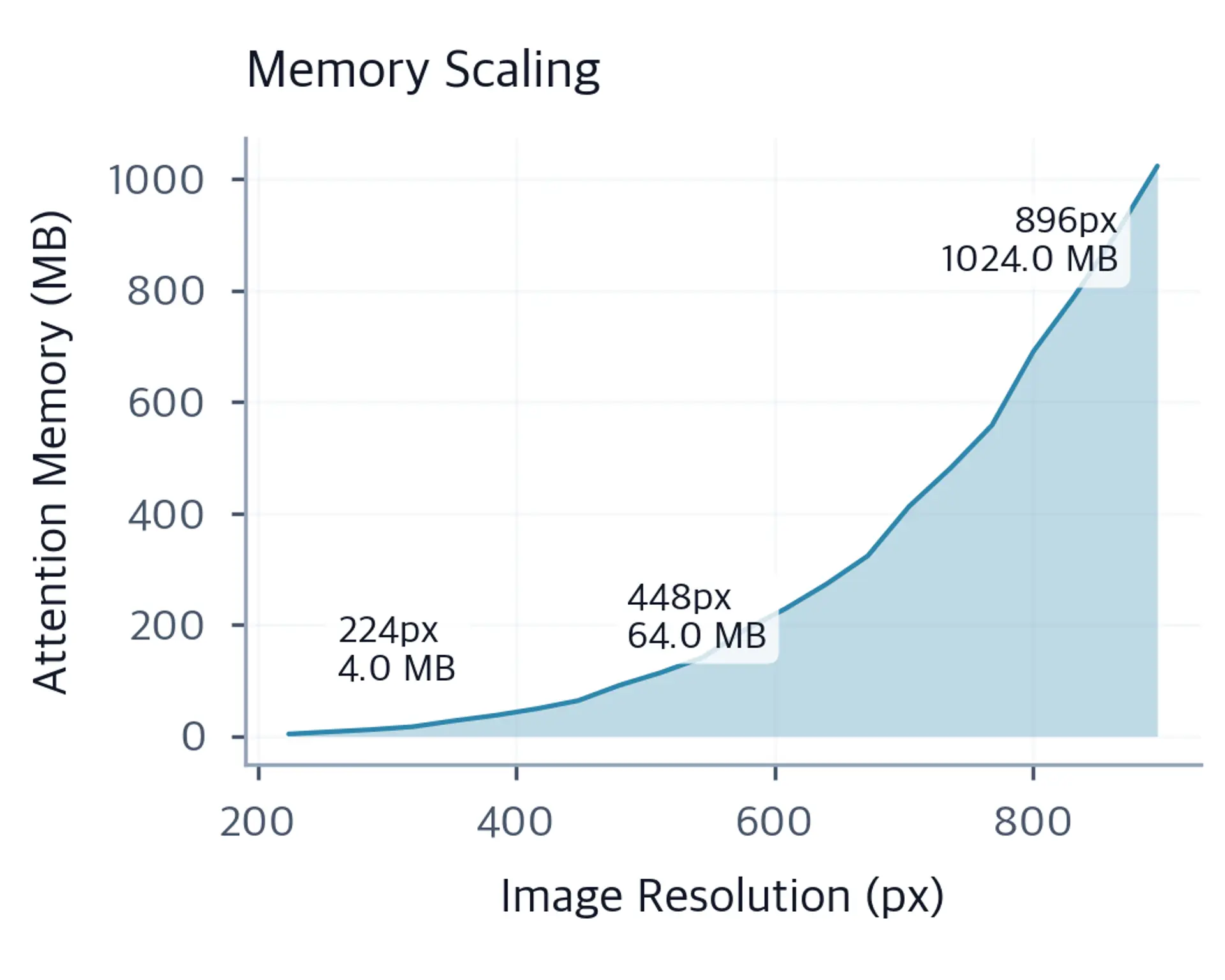

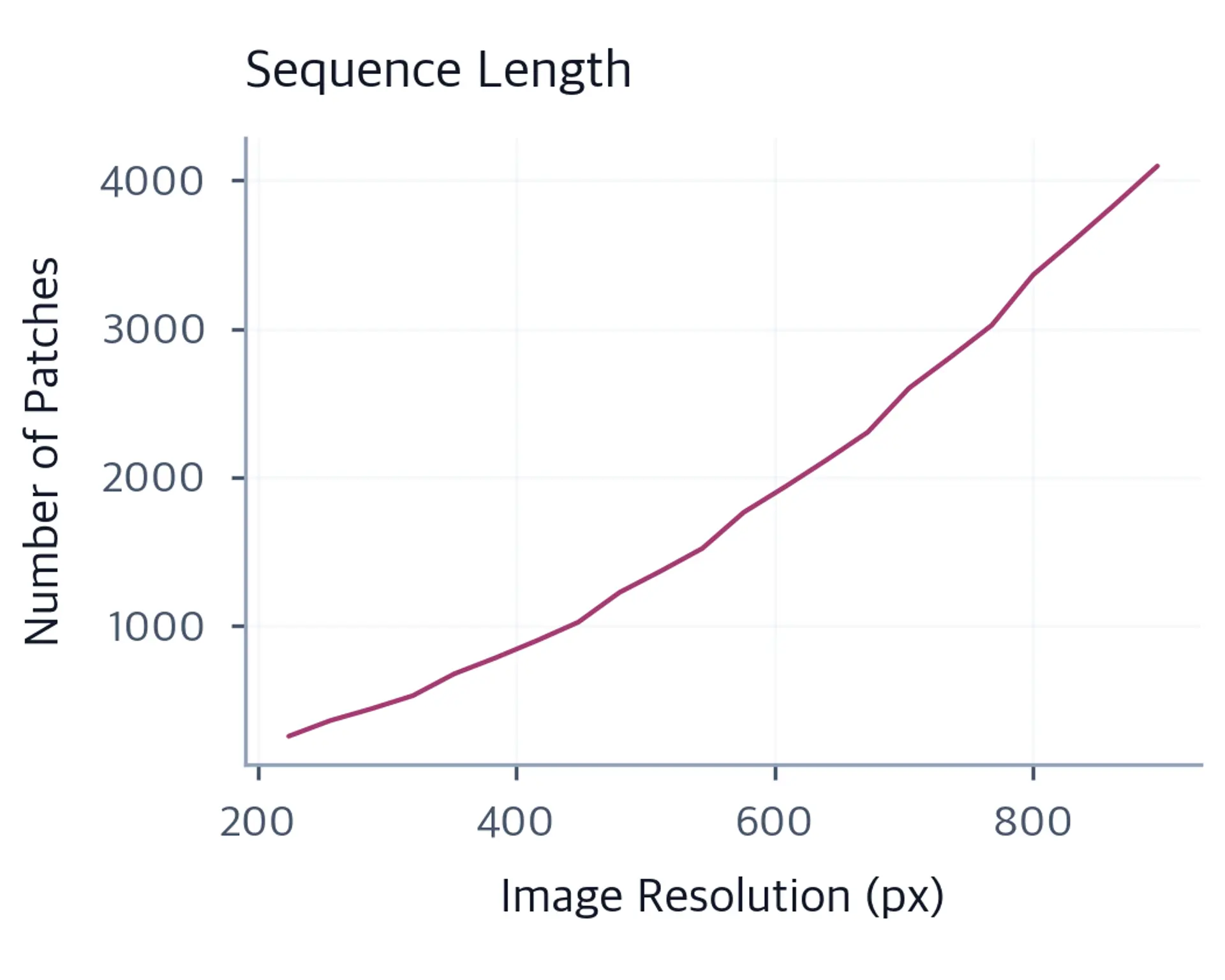

The table reveals why resolution scaling presents such a formidable challenge in VLM design. Moving from 224px to 448px increases attention memory by 16x, from approximately 3 MB to 50 MB per layer, and increases compute by 16x as well. For a 24-layer ViT-L, this represents the difference between fitting comfortably on a consumer GPU and requiring enterprise-grade hardware with substantial memory capacity.
Notice that increasing patch size from 14 to 16 reduces sequence length by 23%, from 256 patches to 196 patches. It offers a simple efficiency lever at the cost of spatial precision. This tradeoff between patch size and resolution represents a basic design decision in vision encoder architecture. The SigLIP Base configuration at 384x384 achieves a sequence length of 729 with a 768-dimensional embedding, compared to 1024 dimensions in the ViT-L configurations. The lower dimensionality helps offset the higher patch count. This shows how careful co-design of patch size and resolution alongside embedding dimension can achieve a better computational footprint than tuning any single parameter in isolation.
