Let's implement the core components of ViT to solidify our understanding. We'll build a simplified but complete version that processes images through patching and embedding before the transformer layers.
import torch
torch.manual_seed(42)We start with the patch embedding layer. This module takes an image tensor and produces a sequence of patch embeddings.
import torch.nn as nn
class PatchEmbed(nn.Module):
"""
Image to Patch Embedding.
Divides input image into non-overlapping patches and linearly projects
each flattened patch to the embedding dimension.
"""
def __init__(
self, img_size=224, patch_size=16, in_channels=3, embed_dim=768
):
super().__init__()
self.img_size = img_size
self.patch_size = patch_size
self.n_patches = (img_size // patch_size) ** 2
# Linear projection: maps P*P*C flattened patch to embed_dim
self.proj = nn.Linear(patch_size * patch_size * in_channels, embed_dim)
def forward(self, x):
# x shape: (batch_size, channels, height, width)
B, C, H, W = x.shape
# Extract non-overlapping patches using unfold
# unfold(dim, size, step) slides a window of 'size' along 'dim' with 'step'
x = x.unfold(2, self.patch_size, self.patch_size) # (B, C, H//P, P, W)
x = x.unfold(
3, self.patch_size, self.patch_size
) # (B, C, H//P, W//P, P, P)
# Permute to (B, H//P, W//P, C, P, P) then flatten spatial+channel dims
x = x.permute(0, 2, 3, 1, 4, 5)
x = x.reshape(B, self.n_patches, -1) # (B, N_patches, C*P*P)
# Project to embedding dimension: (B, N_patches, embed_dim)
x = self.proj(x)
return xNow let's test the patch embedding and inspect the output dimensions:
dummy_img = torch.randn(2, 3, 224, 224) # Batch of 2 images
patch_embed = PatchEmbed(img_size=224, patch_size=16, embed_dim=768)
patches = patch_embed(dummy_img)Input image shape: [2, 3, 224, 224] Patch embedding output: [2, 196, 768] Number of patches: 196 Patch dimensionality before projection: 768 Patch dimensionality after projection: 768
The output confirms our images are converted to sequences of 196 patch embeddings, each of dimension 768. Now let's implement the transformer building blocks. We implement multi-head attention first, returning attention weights for later visualization:
class MultiHeadAttention(nn.Module):
"""Scaled dot-product multi-head self-attention with optional attention weight output."""
def __init__(
self, dim, num_heads=8, qkv_bias=False, attn_drop=0.0, proj_drop=0.0
):
super().__init__()
self.num_heads = num_heads
self.head_dim = dim // num_heads
self.scale = self.head_dim**-0.5
# Single linear maps all tokens to Q, K, V in one pass
self.qkv = nn.Linear(dim, dim * 3, bias=qkv_bias)
self.attn_drop = nn.Dropout(attn_drop)
self.proj = nn.Linear(dim, dim)
self.proj_drop = nn.Dropout(proj_drop)
def forward(self, x):
B, N, C = x.shape
# Compute Q, K, V and reshape for multi-head processing
qkv = self.qkv(x).reshape(B, N, 3, self.num_heads, self.head_dim)
qkv = qkv.permute(2, 0, 3, 1, 4)
q, k, v = qkv[0], qkv[1], qkv[2] # Each: (B, heads, N, head_dim)
# Scaled dot-product attention
attn = (q @ k.transpose(-2, -1)) * self.scale # (B, heads, N, N)
attn = attn.softmax(dim=-1)
attn = self.attn_drop(attn)
# Aggregate values and project
x = (attn @ v).transpose(1, 2).reshape(B, N, C)
x = self.proj(x)
x = self.proj_drop(x)
return x, attn # Return attention weights for visualization
class MLP(nn.Module):
"""Feed-forward network with GELU activation and 4x hidden expansion."""
def __init__(
self, in_features, hidden_features=None, out_features=None, drop=0.0
):
super().__init__()
out_features = out_features or in_features
hidden_features = hidden_features or in_features * 4
self.fc1 = nn.Linear(in_features, hidden_features)
self.act = nn.GELU()
self.fc2 = nn.Linear(hidden_features, out_features)
self.drop = nn.Dropout(drop)
def forward(self, x):
x = self.fc1(x)
x = self.act(x)
x = self.drop(x)
x = self.fc2(x)
x = self.drop(x)
return xThe transformer block combines these two sublayers with Pre-Norm layer normalization and residual connections:
class TransformerBlock(nn.Module):
"""Standard ViT transformer block with Pre-LayerNorm."""
def __init__(
self,
dim,
num_heads,
mlp_ratio=4.0,
qkv_bias=False,
drop=0.0,
attn_drop=0.0,
):
super().__init__()
self.norm1 = nn.LayerNorm(dim)
self.attn = MultiHeadAttention(
dim,
num_heads=num_heads,
qkv_bias=qkv_bias,
attn_drop=attn_drop,
proj_drop=drop,
)
self.norm2 = nn.LayerNorm(dim)
self.mlp = MLP(
in_features=dim, hidden_features=int(dim * mlp_ratio), drop=drop
)
def forward(self, x, return_attention=False):
# Pre-norm attention with residual: z'_l = MSA(LN(z_{l-1})) + z_{l-1}
attn_out, attn_weights = self.attn(self.norm1(x))
x = x + attn_out
# Pre-norm MLP with residual: z_l = MLP(LN(z'_l)) + z'_l
x = x + self.mlp(self.norm2(x))
if return_attention:
return x, attn_weights
return xNow the complete Vision Transformer, which assembles these components with the CLS token, position embeddings, and classification head:
class VisionTransformer(nn.Module):
"""Vision Transformer for image classification."""
def __init__(
self,
img_size=224,
patch_size=16,
in_channels=3,
num_classes=1000,
embed_dim=768,
depth=12,
num_heads=12,
mlp_ratio=4.0,
drop_rate=0.0,
):
super().__init__()
self.embed_dim = embed_dim
self.patch_embed = PatchEmbed(
img_size, patch_size, in_channels, embed_dim
)
num_patches = self.patch_embed.n_patches
# Learnable CLS token: starts as noise, trained to aggregate image info
self.cls_token = nn.Parameter(torch.zeros(1, 1, embed_dim))
# Learned 1D position embeddings: one per patch + one for the CLS token
self.pos_embed = nn.Parameter(
torch.zeros(1, num_patches + 1, embed_dim)
)
self.pos_drop = nn.Dropout(p=drop_rate)
# L identical transformer blocks
self.blocks = nn.ModuleList(
[
TransformerBlock(
dim=embed_dim,
num_heads=num_heads,
mlp_ratio=mlp_ratio,
drop=drop_rate,
)
for _ in range(depth)
]
)
# Final layer norm and classification head
self.norm = nn.LayerNorm(embed_dim)
self.head = nn.Linear(embed_dim, num_classes)
# Initialize with small normal noise to break symmetry
nn.init.normal_(self.cls_token, std=0.02)
nn.init.normal_(self.pos_embed, std=0.02)
def forward(self, x, return_attention=False):
B = x.shape[0]
# Step 1: Patch embedding
x = self.patch_embed(x) # (B, N, D)
# Step 2: Prepend CLS token
cls_tokens = self.cls_token.expand(B, -1, -1) # (B, 1, D)
x = torch.cat((cls_tokens, x), dim=1) # (B, N+1, D)
# Step 3: Add position embeddings
x = x + self.pos_embed
x = self.pos_drop(x)
# Step 4: Process through transformer layers
attn_weights = []
for block in self.blocks:
if return_attention:
x, attn = block(x, return_attention=True)
attn_weights.append(attn)
else:
x = block(x)
# Step 5: Extract CLS token and classify
x = self.norm(x)
cls_output = x[:, 0] # CLS token only: (B, D)
logits = self.head(cls_output) # (B, num_classes)
if return_attention:
return logits, attn_weights
return logitsLet's instantiate a small model suitable for demonstration, verify the output dimensions, and check the parameter count:
# Small ViT configuration for demonstration
model = VisionTransformer(
img_size=224,
patch_size=16,
embed_dim=192, # Tiny model: ViT-Tiny width
depth=4, # Shallow for fast demo
num_heads=3,
num_classes=10,
)
total_params = sum(p.numel() for p in model.parameters())
test_input = torch.randn(1, 3, 224, 224)
output = model(test_input)
sample_logits = output.squeeze()[:5]Model parameters: 1,965,130 Input shape: [1, 3, 224, 224] Output shape: [1, 10] Sample logits (first 5): ['-0.094', '0.791', '0.309', '-0.657', '-0.169']
The compact model configuration yields a manageable parameter count while maintaining all the architectural properties of full-scale Vision Transformers. Now let's visualize the core patching operation that turns a 2D image into a 1D token sequence:

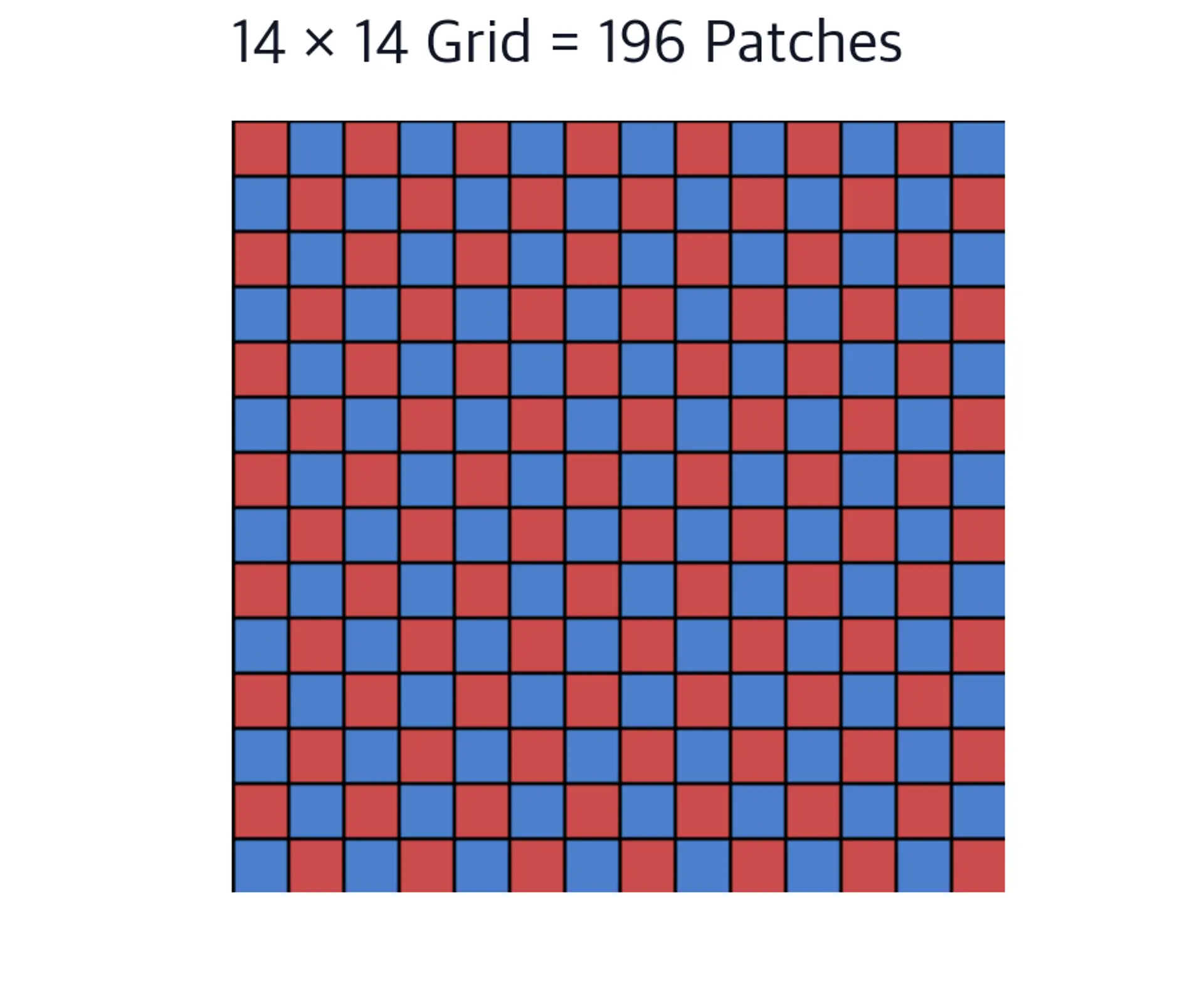

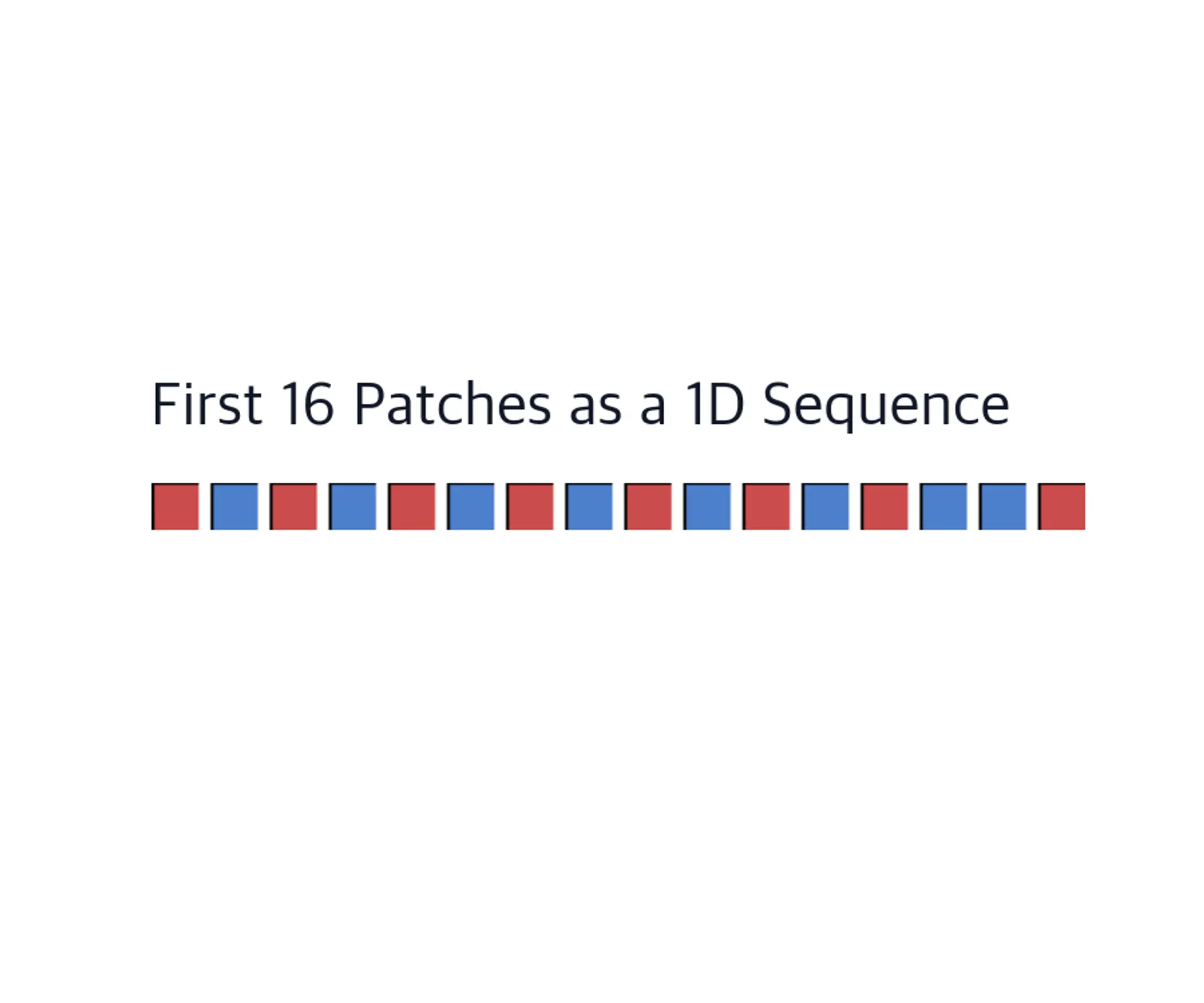

The conversion from the structured 2D image on the left to the flat sequence on the right captures the core challenge: the sequence representation loses the two-dimensional adjacency that is natural in the image. Patches that were side-by-side are now adjacent in the sequence, but patches that were vertically adjacent (14 positions apart in row-major order) appear far apart. The model must learn from position embeddings and training data to reconstruct these spatial relationships.
Finally, let's visualize how self-attention distributes weights across patches:

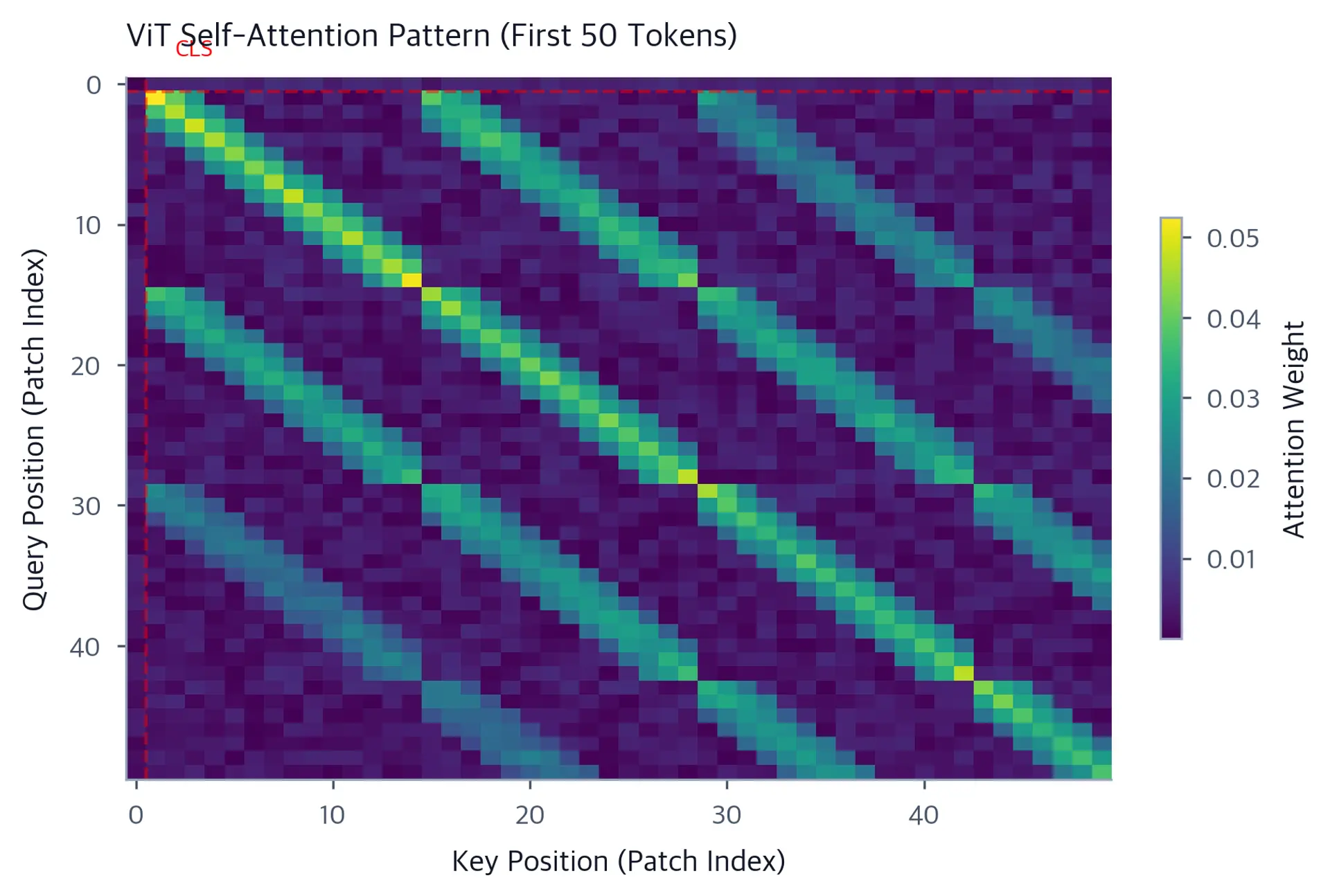

The attention heatmap illustrates two distinct learned behaviors. The top row (CLS token) exhibits diffuse, roughly uniform attention across all patches. This reflects its role as a global aggregator that must summarize the entire image for classification. The remaining rows show concentration along the diagonal. This reflects locality: patches attend most strongly to spatially adjacent patches. No convolutional architecture enforced this locality; the model discovered it from data because local correlations are a measurable statistical property of natural images. ViT learns the same visual priors as CNNs, but through gradient descent rather than architectural design.
