Adapter Layers › Adapter Architecture

The core idea behind adapters is straightforward: insert small bottleneck neural networks into each transformer layer that can learn task-specific transformations. To understand why this approach works, consider what happens when you fine-tune a pretrained model on a new task. The model needs to adjust how it processes information, but most of what it learned during pretraining remains relevant. Rather than modifying the carefully tuned weights that encode this valuable knowledge, adapters provide dedicated pathways for learning new behaviors. The pretrained weights stay frozen, preventing any degradation of the rich representations built up over billions of training tokens.

These modules are called "bottleneck" architectures because they first compress the hidden representation to a much smaller dimension, apply a nonlinearity, and then project back to the original dimension. This compression serves a dual purpose: it dramatically reduces the number of parameters needed for adaptation, and it acts as a regularizer that forces the adapter to capture only the most needed task-specific information. An adapter with a bottleneck of dimension 64 operating on a 768-dimensional hidden space must encode everything it wants to change in just 64 numbers. This constraint sounds limiting, but in practice it prevents overfitting and forces the adapter to learn generalizable patterns.

Think of the bottleneck as a narrow channel in a pipe. When water passes through a narrow section, it accelerates and the flow becomes more organized, with turbulence and noise pushed out. When information passes through a bottleneck layer, the low-capacity channel forces the adapter to prioritize: only the most important task-relevant features can make it through. The input hidden state, which encodes all the context the transformer has computed so far, gets compressed into a compact code that captures only the dimensions of variation most useful for the task.

The key insight is that most of the variation in a pretrained model's hidden representations is generic and task-independent. The adapter's bottleneck discards this generic variation during compression and reconstructs only what is needed during expansion. This is why adapters can adapt effectively with so few parameters: they do not need to encode the full richness of the pretrained representations, only the task-specific corrections to those representations.

An adapter module consists of three components arranged sequentially, each serving a specific purpose in the transformation pipeline. The architecture mirrors the structure of an autoencoder, where information is first compressed and then reconstructed, but here the goal is not reconstruction fidelity but rather learning a useful transformation of the input representation. Unlike an autoencoder, the adapter's output lives in the same space as its input, letting the necessary residual connection that we will discuss shortly.

The three components work together as follows:

1. Down-projection: A linear layer that compresses the hidden dimension $d$ to a smaller bottleneck dimension $r$. This projection acts as a learned feature selector, identifying which aspects of the high-dimensional hidden state are most relevant for the task at hand. Each row of the down-projection matrix can be thought of as a learned detector for a particular pattern in the input space.
2. Nonlinearity: An activation function, typically ReLU or GELU, that enables nonlinear transformations. Without this component, the composition of two linear layers would simply be another linear transformation, severely limiting the adapter's expressive power. The nonlinearity allows the adapter to model interactions between features in the compressed representation that no single linear projection could capture.
3. Up-projection: A linear layer that expands from dimension $r$ back to $d$. This projection reconstructs the full hidden dimension, translating the compressed task-specific representation back into a form compatible with subsequent transformer layers. The columns of the up-projection matrix define how each compressed dimension spreads its influence across the full hidden state.

Given an input hidden state $\mathbf{h} \in \mathbb{R}^d$, the adapter computes its output through the sequential application of these three components. Before we write the formula, note that we are computing a function that takes a $d$-dimensional vector, maps it to an $r$-dimensional space, applies a nonlinearity, and maps it back:

$$\text{Adapter}(\mathbf{h}) = \mathbf{W}_{up} \cdot f(\mathbf{W}_{down} \cdot \mathbf{h} + \mathbf{b}_{down}) + \mathbf{b}_{up}$$

where:

• $\text{Adapter}(\mathbf{h})$: the output of the adapter module, a vector in $\mathbb{R}^d$ representing the task-specific transformation that will be added to the original hidden state
• $\mathbf{h}$: the input hidden state, a vector of dimension $d$ that encodes the current representation at this point in the transformer
• $\mathbf{W}_{down} \in \mathbb{R}^{r \times d}$: the down-projection weight matrix, which compresses the input from dimension $d$ to $r$. Each row of this matrix defines one learned feature detector in the input space
• $\mathbf{b}_{down} \in \mathbb{R}^r$: the bias vector for the down-projection layer. This allows the adapter to shift the compressed representation independent of the input values
• $f(\cdot)$: the nonlinear activation function, such as ReLU or GELU, that enables the network to learn complex patterns. The choice of activation function affects both the expressiveness of the adapter and its training dynamics
• $\mathbf{W}_{up} \in \mathbb{R}^{d \times r}$: the up-projection weight matrix, which expands the representation back from $r$ to $d$. Each column of this matrix defines how one compressed dimension contributes to the full hidden state
• $\mathbf{b}_{up} \in \mathbb{R}^d$: the bias vector for the up-projection layer, often initialized to zero to ensure near-identity behavior at the start of training

Information flows through this formula from the inside out. First, the input hidden state is multiplied by the down-projection matrix and shifted by the bias, yielding a compressed representation in $\mathbb{R}^r$. Next, the activation function introduces nonlinearity, letting the adapter to model complex relationships in the compressed space. Finally, the up-projection expands this compressed, transformed representation back to $\mathbb{R}^d$, creating a vector that represents the adapter's desired modification to the hidden state.

An important subtlety: the adapter output is a modification to the hidden state, not a replacement. Its magnitude is typically small, especially early in training. The adapter learns to make surgical adjustments to the representations flowing through the transformer, nudging them in directions that improve performance on the target task without disrupting the rich structure encoded in those representations by pretraining.

A necessary design choice is wrapping the adapter in a residual connection. This architectural decision fundamentally shapes how the adapter integrates with the transformer and has measurable implications for both training dynamics and the nature of the learned transformation. Without the residual connection, the adapter would need to learn to reproduce all of the input's useful content in addition to the task-specific modifications. With it, the adapter can focus exclusively on what needs to change.

We want to compute a new hidden state $\mathbf{h}'$ that incorporates both the original pretrained information and the task-specific modification. The residual formulation achieves this cleanly:

$$\mathbf{h}' = \mathbf{h} + \text{Adapter}(\mathbf{h})$$

where:

• $\mathbf{h}'$: the output hidden state after applying the adapter, which will be passed to subsequent operations in the transformer
• $\mathbf{h}$: the input hidden state from the previous layer or sublayer, preserved unchanged and added to the adapter output. This is the "skip connection" that ensures information from before the adapter can flow directly forward
• $\text{Adapter}(\mathbf{h})$: the task-specific transformation computed by the bottleneck module, representing the delta, the modification, to apply to the representation

This residual structure serves multiple purposes that together make adapters both effective and practical. First, it enables the adapter to learn only the delta needed for the new task, rather than having to reproduce the entire transformation from scratch. This is conceptually powerful because the adapter need not learn to pass through information that should remain unchanged; the original representation flows through the skip connection automatically, and the adapter simply adds whatever modifications are necessary. A well-trained adapter learns to produce deltas close to zero for input positions that require no task-specific adjustment, and meaningful modifications only where the task requires it.

Second, the residual structure allows for near-identity initialization, where adapters initialized to output near-zero values will pass through the original representations essentially unchanged. This property is important for stable training because it means the model starts from a state equivalent to the pretrained model. If we simply inserted random linear layers into the transformer, the initial forward pass would produce garbage outputs and gradients would be difficult to work with. With near-zero initialization of the adapter's weights, the initial behavior of the adapted model is indistinguishable from the frozen pretrained model, and training starts from a point where all the pretrained knowledge is fully intact. From there, gradients guide the adapter toward task-specific modifications.

Third, the residual structure provides stable gradient flow during training, as we discussed in the residual connections chapter from Part XV. Gradients can flow directly through the skip connection without passing through the adapter's nonlinearity. This keeps learning signals reach all parts of the network even when the adapter produces small outputs. This is especially important early in training when the adapter weights are near zero: even though the adapter itself contributes very little signal, gradients can still propagate efficiently through the residual path.

Understanding the parameter count helps you appreciate adapter efficiency. For a single adapter module, the total number of trainable parameters is the sum of all weights and biases in the two projection layers. We can count each component systematically:

The down-projection matrix $\mathbf{W}_{down}$ has shape $r \times d$, contributing $r \cdot d$ parameters. Its bias $\mathbf{b}_{down}$ adds $r$ more. The up-projection matrix $\mathbf{W}_{up}$ has shape $d \times r$, contributing another $d \cdot r$ parameters. Its bias $\mathbf{b}_{up}$ adds $d$ more. Summing these:

$$\text{Parameters} = \underbrace{r \times d}_{\mathbf{W}_{down}} + \underbrace{r}_{\mathbf{b}_{down}} + \underbrace{d \times r}_{\mathbf{W}_{up}} + \underbrace{d}_{\mathbf{b}_{up}} = 2rd + r + d$$

where:

• $r$: the bottleneck dimension, typically chosen to be much smaller than the hidden dimension (e.g., 64 for BERT-base)
• $d$: the model's hidden dimension, determined by the base model architecture (e.g., 768 for BERT-base, 1024 for BERT-large, 4096 for LLaMA-7B)
• $r \times d$: the number of parameters in the down-projection weight matrix, one parameter for each pair of input and output dimensions
• $r$: the bias parameters for down-projection, one per output dimension
• $d \times r$: the parameters in the up-projection weight matrix
• $d$: the bias parameters for up-projection
• $2rd + r + d$: the total, which simplifies to approximately $2rd$ when $r \ll d$, since the bias terms are negligible compared to the weight matrices

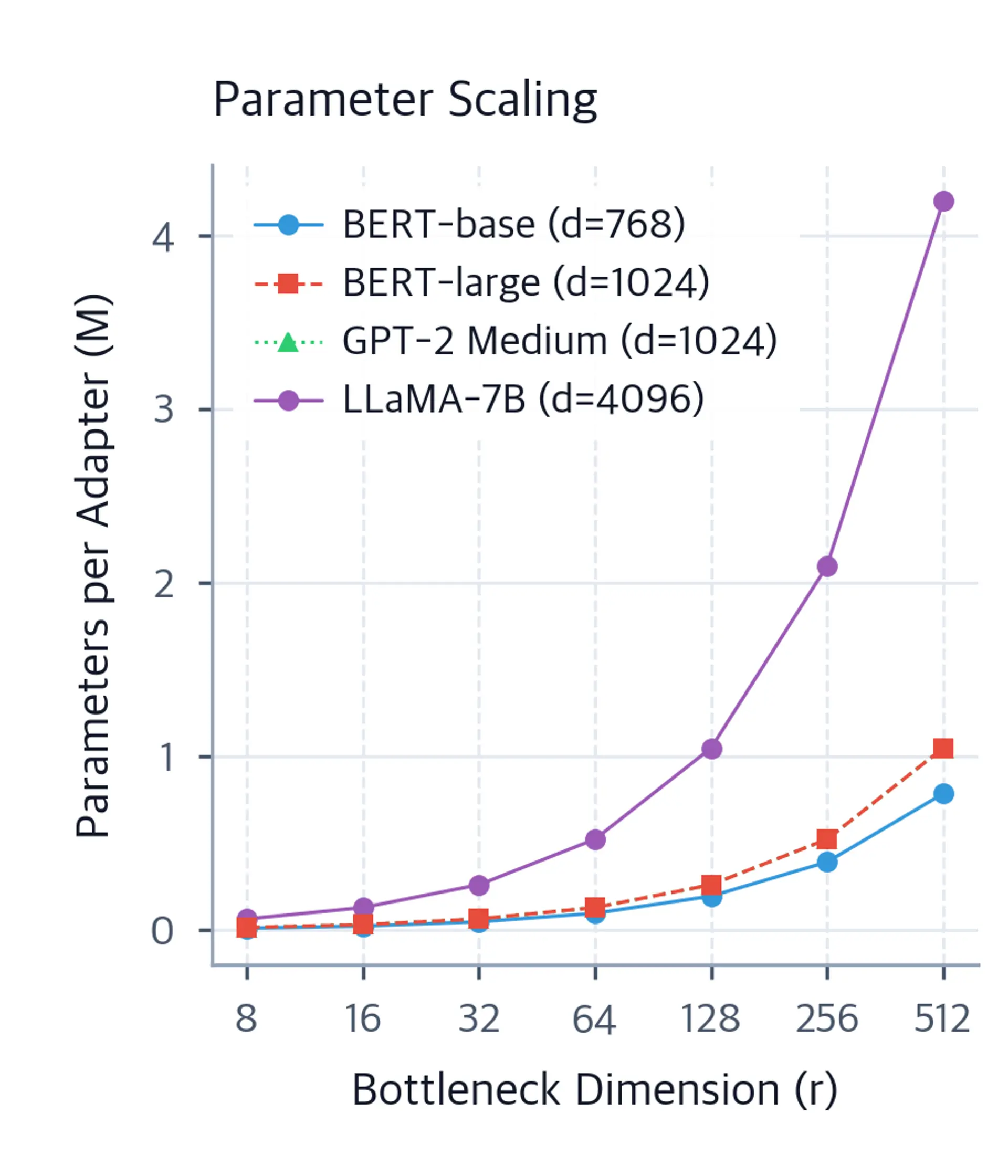

When $r \ll d$, the formula simplifies to approximately $2rd$ parameters per adapter. For a model with hidden dimension $d = 768$ and bottleneck dimension $r = 64$, each adapter contains roughly $2 \times 64 \times 768 = 98{,}304$ parameters. Compare this to a single self-attention layer in BERT-base, which has approximately $4 \times 768^2 = 2{,}359{,}296$ parameters (for the Q, K, V, and output projections combined). The adapter adds less than 5% overhead relative to the attention layer alone, and less than 0.09% of BERT-base's 110 million total parameters.

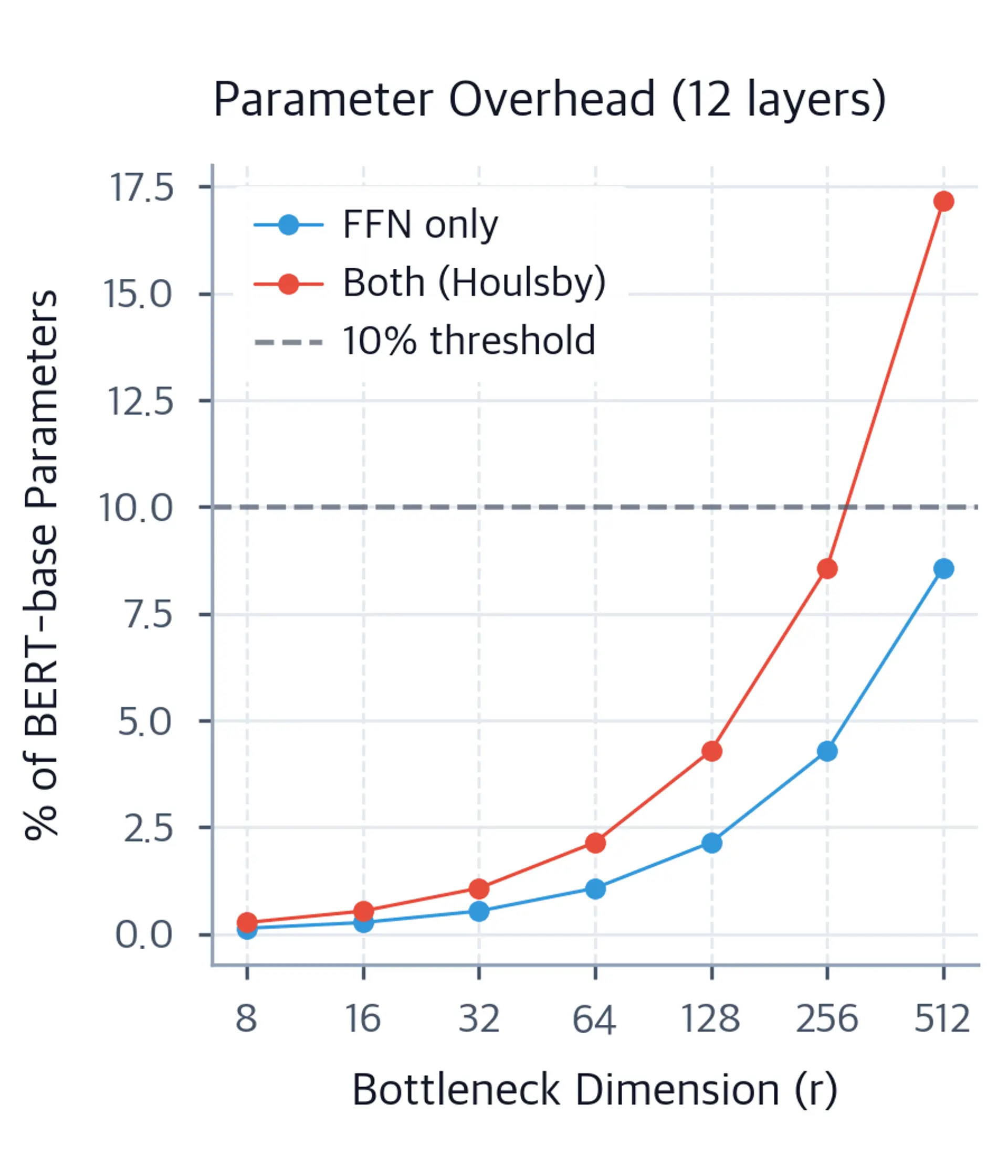

This efficiency scales favorably. For a 12-layer BERT-base model with dual adapters (one after attention, one after FFN in each layer), the total adapter count is 24. At 98K parameters each, the full adapter set adds about 2.4 million parameters, or roughly 2.2% of the base model. You could store more than 45 completely different task adapters before accumulating as many parameters as the base model itself. For an organization deploying models at scale, this means storing 45 task-specific models for roughly the cost of storing two full models.
