Sparse models introduce complexity that dense models don't face. Sparse models offer decoupled capacity and compute, but they also introduce several engineering challenges.

Load ImbalanceLink Copied

The most immediate challenge is load imbalance. If the router learns to send most tokens to a small subset of experts, the model degrades to an expensive dense network where popular experts become bottlenecks while unused experts contribute nothing. This scenario is a failure to reach the sparse model's promise: we pay for all the expert parameters in memory but only use a fraction of them effectively.

This happens naturally during training without intervention. Early in training, some experts may randomly produce slightly better outputs for common inputs. The router learns to prefer these experts, which then receive more gradient updates and improve further. Meanwhile, neglected experts fall behind, creating a rich-get-richer dynamic that can collapse the model to using just one or two experts. This collapse is self-reinforcing: once an expert dominates, it receives most training signal and becomes even more dominant, while underused experts stagnate.

The load balance coefficient quantifies this imbalance mathematically. This gives a single number that summarizes how evenly tokens are distributed across experts. For $N$ experts and $T$ total tokens, perfect balance would send $T/N$ tokens to each expert. The load balance coefficient is defined as:

\text{Load balance coefficient} = \frac{N \times \min_i(\text{tokens}_i)}{T}

where:

$N$ : the total number of experts in the layer
$T$ : the total number of tokens being processed
$\min_i(\text{tokens}_i)$ : the minimum number of tokens sent to any single expert (the most underutilized expert)
$T/N$ : the ideal load per expert under perfect balance

This coefficient equals 1.0 when all experts receive exactly $T/N$ tokens (perfect balance), and approaches 0 as the distribution becomes more skewed. A coefficient near 0 indicates severe imbalance where some experts are heavily overused while others sit idle. The focus on the minimum load is intentional: it identifies the weakest link, the expert receiving the least training signal, which determines how effectively the model uses its full capacity.

In[15]:

Code

import numpy as np


def simulate_load_imbalance(
    n_tokens: int = 1000, n_experts: int = 8, imbalance_factor: float = 0.5
):
    """Simulate expert load distribution with varying imbalance."""

    # Draw routing probabilities from a symmetric Dirichlet distribution.
    # Higher concentration produces a more uniform expert distribution.
    base_probs = np.random.dirichlet(
        np.full(n_experts, imbalance_factor, dtype=float)
    )

    # Sample routing decisions
    expert_choices = np.random.choice(n_experts, size=n_tokens, p=base_probs)

    # Count tokens per expert
    counts = np.bincount(expert_choices, minlength=n_experts)

    # Compute load balance metrics
    ideal_load = n_tokens / n_experts
    max_load = counts.max()
    min_load = counts.min()

    # Load balance coefficient: 1.0 means perfectly balanced
    load_balance_coef = (n_experts * counts.min()) / n_tokens

    return {
        "counts": counts,
        "ideal_load": ideal_load,
        "max_load": max_load,
        "min_load": min_load,
        "load_balance_coef": load_balance_coef,
        "max_overload_ratio": max_load / ideal_load,
    }

Out[16]:

Visualization

Bar chart showing token counts per expert index for an imbalanced router, where the first expert receives the majority of tokens far above the ideal dashed reference line while other experts receive far fewer. — Imbalanced routing showing a collapsed state where one expert processes the majority of tokens (low balance coefficient), creating a bottleneck.

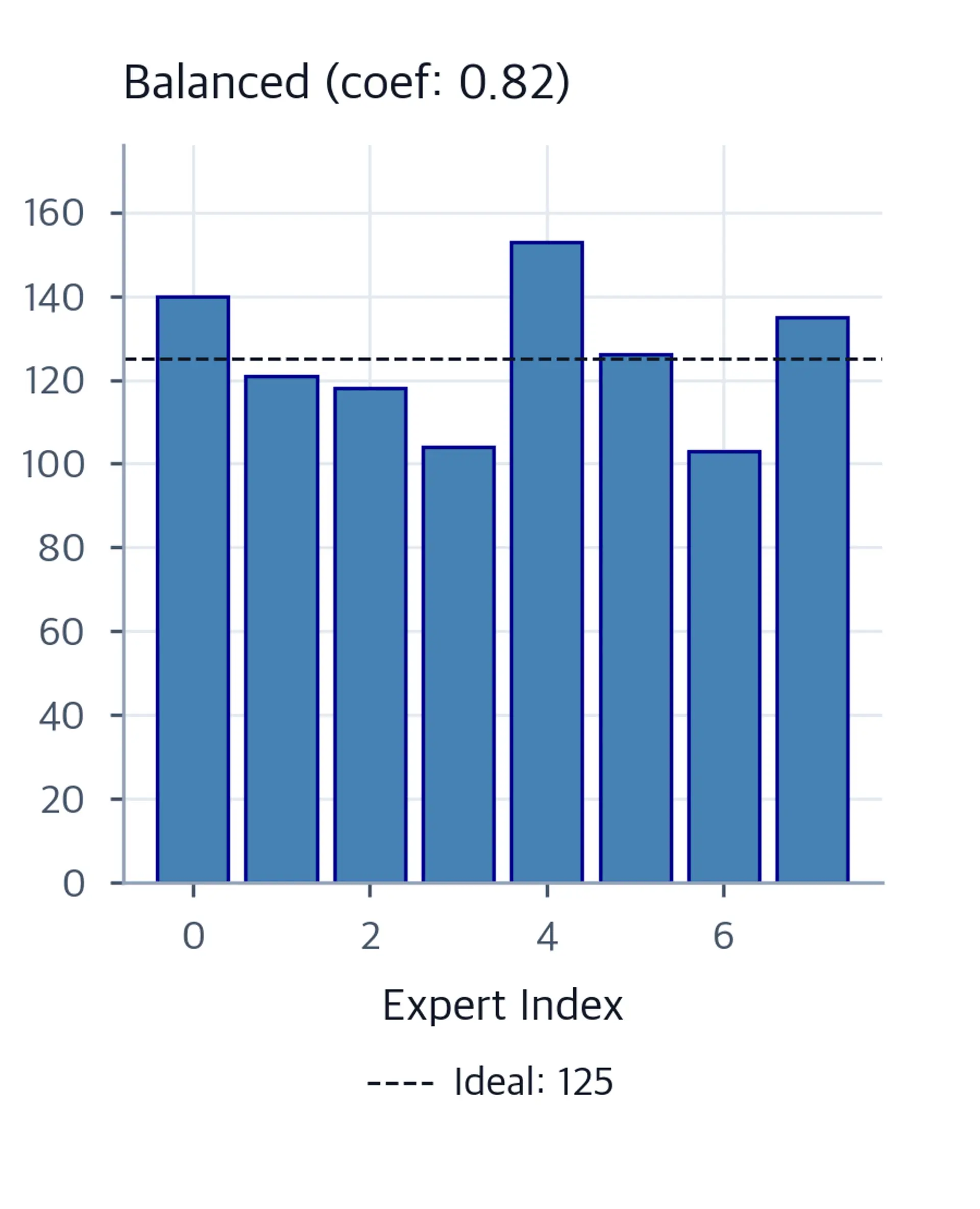

Bar chart showing token counts per expert index for a balanced router, where all eight experts receive roughly equal token loads close to the ideal dashed reference line. — Balanced routing showing effective load distribution where tokens are distributed nearly evenly across all experts, maximizing parallel processing efficiency.

The visualization shows two load distribution scenarios. The imbalanced case (left) shows a coefficient near 0, where Expert 0 receives the majority of tokens while other experts are severely underutilized. This creates a bottleneck where one expert must process most inputs sequentially. The balanced case (right) reaches a coefficient near 1.0, with all experts receiving roughly equal loads near the ideal line of 125 tokens per expert. This even distribution lets true parallel processing across all experts. Real sparse models require auxiliary loss functions during training to prevent collapse toward the imbalanced state, as the routing mechanism naturally tends toward specialization that can create bottlenecks.

Communication Overhead in Distributed SettingsLink Copied

Sparse models shine for large-scale systems, but they introduce unique distributed computing challenges. In a dense model, each GPU holds a copy of the full layer and processes its assigned batch of tokens independently. The communication pattern is regular and predictable: gradients aggregate across devices during backward passes, but forward passes require no cross-device communication within a layer. In a sparse model with experts distributed across GPUs, tokens must travel to whichever GPU holds their assigned expert, fundamentally changing the communication pattern.

This creates an all-to-all communication pattern: every GPU may need to send tokens to every other GPU and receive tokens back. The communication volume depends on how tokens route, which depends on the input data. This is fundamentally different from the predictable, structured communication patterns in tensor parallelism or pipeline parallelism for dense models. Network bandwidth becomes a potential bottleneck, and communication latency adds to the overall processing time.

In[17]:

Code

def estimate_communication_cost(
    n_tokens: int, n_experts: int, n_gpus: int, d_model: int, top_k: int = 2
):
    """Estimate all-to-all communication for expert routing."""

    # Assume experts evenly distributed across GPUs
    experts_per_gpu = n_experts // n_gpus

    # Each token goes to top_k experts
    # In worst case, all tokens go to experts on different GPUs

    # Bytes per token, assuming bfloat16 precision
    bytes_per_token = d_model * 2  # Each element is 2 bytes in bfloat16 format

    # Each token must be sent to top_k experts, potentially on different GPUs,
    # and results must be returned
    send_bytes = n_tokens * top_k * bytes_per_token
    receive_bytes = n_tokens * top_k * bytes_per_token

    # With good load balancing, communication is more local
    # Estimate: fraction of tokens going to non-local experts
    non_local_fraction = 1 - (experts_per_gpu * top_k / n_experts)
    non_local_fraction = max(0, non_local_fraction)

    actual_send = send_bytes * non_local_fraction

    return {
        "worst_case_gb": (send_bytes + receive_bytes) / 1e9,
        "estimated_gb": actual_send * 2 / 1e9,
        "non_local_fraction": non_local_fraction,
    }

Out[18]:

Console

8E/8GPU, top-2: 0.13 GB worst case, 0.10 GB estimated
64E/64GPU, top-2: 0.13 GB worst case, 0.13 GB estimated
8E/4GPU, top-2: 0.13 GB worst case, 0.07 GB estimated

Out[19]:

Visualization

Grouped bar chart comparing worst-case and estimated balanced communication volumes in gigabytes for three deployment configurations: 8 experts on 4 GPUs, 8 experts on 8 GPUs, and 64 experts on 64 GPUs, showing that larger distributed setups require materially more bandwidth. — Estimated all-to-all communication volume per forward pass for varying expert and GPU configurations. Deployments with fewer GPUs than experts (e.g., 8E/4GPU) incur lower communication costs because local routing is possible, whereas one-expert-per-GPU setups (64E/64GPU) face significant bandwidth requirements due to cross-device token movement.

This reveals an important trade-off in sparse model deployment. Configurations with fewer GPUs relative to experts show lower communication costs because multiple experts can reside on the same GPU, reducing cross-GPU traffic. Conversely, configurations with one expert per GPU or many distributed GPUs experience higher communication overhead as tokens must be routed across the network. The communication cost per layer can range from negligible to several gigabytes depending on the deployment configuration. These results show that sparse models trade reduced computation for increased communication, and this trade-off becomes favorable only when the computational savings outweigh the communication overhead.

Training InstabilityLink Copied

Sparse models introduce non-differentiable routing decisions into the computational graph. The choice of which experts to activate is discrete: tokens either go to an expert or they don't. This discreteness complicates gradient computation because the standard backpropagation algorithm requires differentiable operations to compute gradients.

Several techniques address this challenge, each with its own trade-offs:

Soft routing: Instead of hard selection, use weighted combinations of experts (though this partially defeats the computational savings)
Straight-through estimators: Approximate gradients through discrete choices
Auxiliary losses: Add terms to the training objective that encourage desirable routing behavior

The router also creates a circular dependency: the router should learn to send tokens to experts that process them well, but experts can only learn to process tokens they receive. Early training can be unstable as this chicken-and-egg problem resolves. This interplay between router learning and expert learning requires careful initialization and sometimes curriculum-based training strategies.

Inference ComplexityLink Copied

Dense model inference is straightforward: run the forward pass, and you're done. Sparse model inference requires additional bookkeeping that adds engineering complexity. For each layer, the system must:

Run the router to determine expert assignments
Group tokens by their assigned experts
Process each expert's assigned tokens
Reassemble results in the correct order

When serving requests with different inputs, the routing patterns vary, making batching less efficient than in dense models. Some inputs might activate experts heavily while others need different experts entirely. This variability complicates capacity planning and can lead to uneven GPU utilization across a serving cluster.

In[20]:

Code

def analyze_batch_efficiency(
    batch_router_decisions: np.ndarray, n_experts: int
):
    """Analyze how well a batch of inputs can be processed together."""

    # batch_router_decisions: shape [batch_size, seq_len, top_k] containing expert indices
    batch_size, seq_len, top_k = batch_router_decisions.shape

    # Total number of tokens across the entire batch
    total_tokens = batch_size * seq_len

    # Count tokens per expert
    flat_decisions = batch_router_decisions.reshape(-1, top_k)
    expert_counts = np.zeros(n_experts)

    for k in range(top_k):
        for expert in range(n_experts):
            expert_counts[expert] += (flat_decisions[:, k] == expert).sum()

    # Compute padding overhead
    # In a batched implementation, we pad to the maximum load
    max_load = expert_counts.max()
    total_with_padding = max_load * n_experts
    total_actual = expert_counts.sum()

    padding_overhead = (total_with_padding - total_actual) / total_actual

    return {
        "expert_counts": expert_counts,
        "max_load": max_load,
        "mean_load": expert_counts.mean(),
        "padding_overhead": padding_overhead,
        "utilization": total_actual / total_with_padding,
    }

Out[21]:

Console

Configuration: batch_size=16, seq_len=128, 8 experts, top-2

Expert load distribution:
  Expert 0:  1143 ██████████████████████
  Expert 1:   734 ██████████████
  Expert 2:   524 ██████████
  Expert 3:   483 █████████
  Expert 4:   354 ███████
  Expert 5:   340 ██████
  Expert 6:   267 █████
  Expert 7:   251 █████

Max load: 1143, Mean load: 512
Padding overhead: 123.2%, Compute utilization: 44.8%

Out[22]:

Visualization

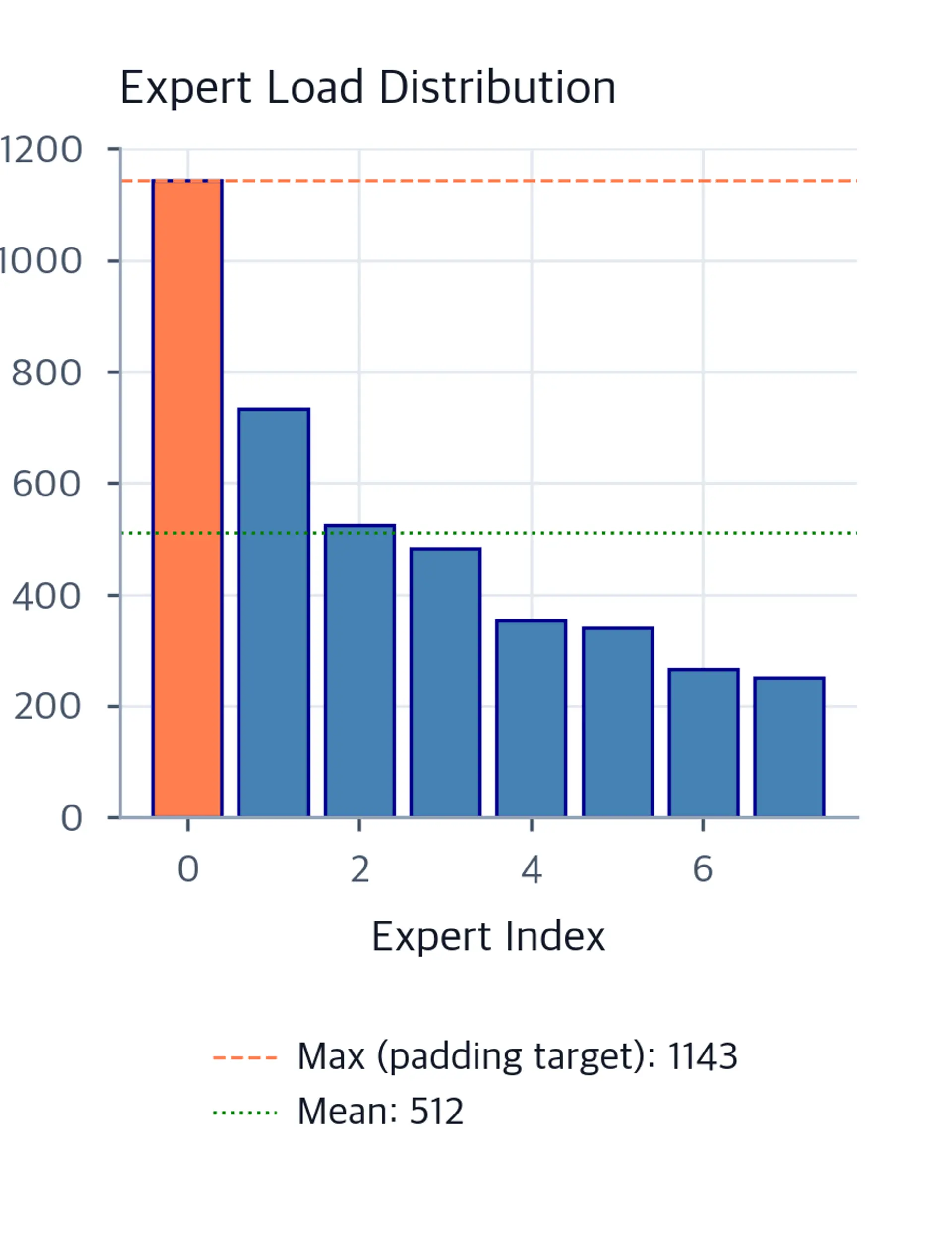

Bar chart of token counts routed to each of eight experts in a batched inference scenario, with reference lines marking the maximum load and mean load, and the highest-load expert highlighted in coral. — Expert load distribution showing varying queue lengths per expert, where the maximum load determines the batch processing time.

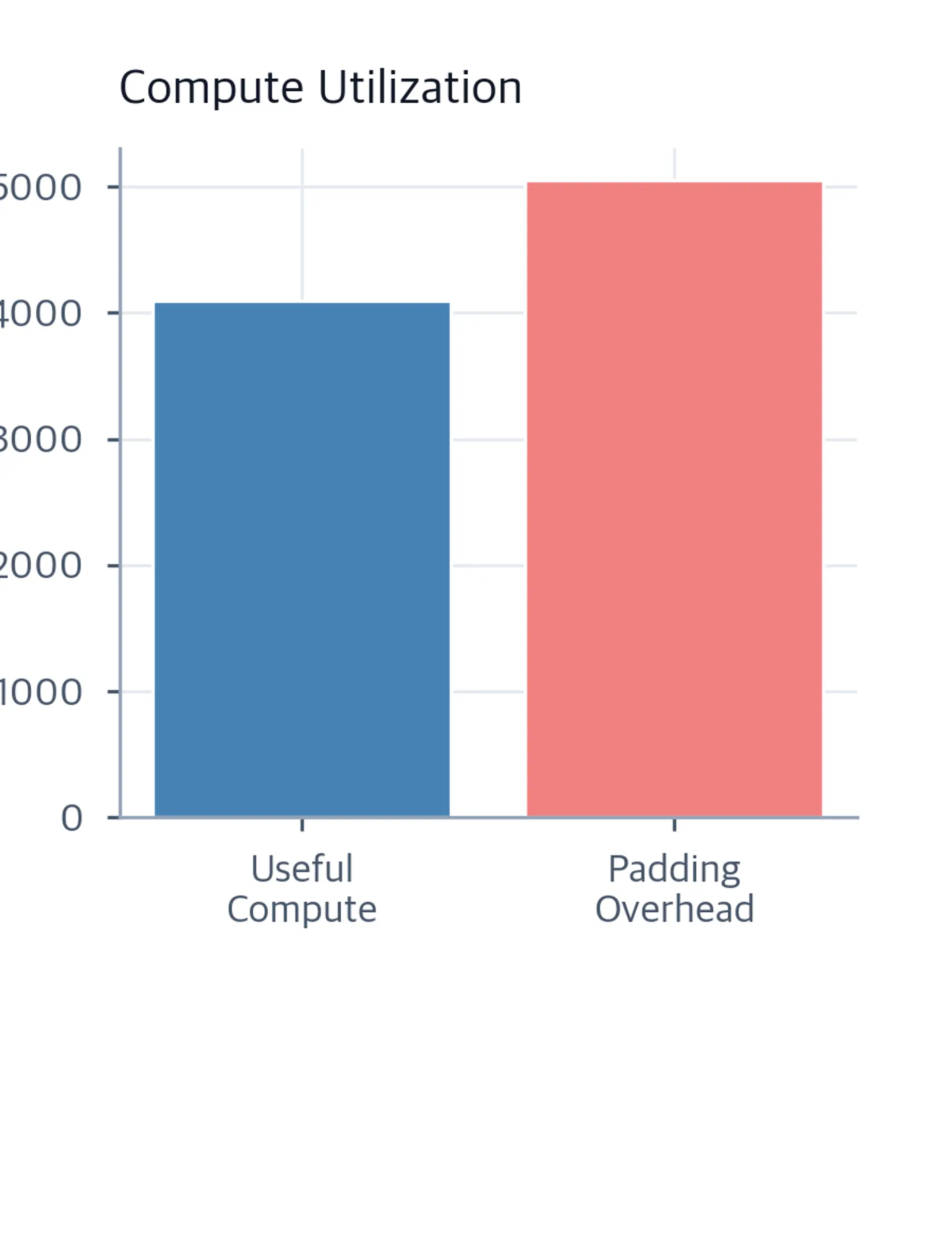

Bar chart comparing useful compute tokens versus padding overhead tokens, illustrating the wasted hardware cycles caused by load imbalance across experts during batched inference. — Compute utilization breakdown showing that a significant portion of hardware cycles are wasted on padding overhead to synchronize the parallel expert computations.

The analysis reveals significant inefficiency from uneven expert loads. The expert receiving the most tokens processes roughly twice as many as the average expert, creating substantial load imbalance. This imbalance translates to high padding overhead: when we batch process all experts in parallel, we must pad shorter queues to match the longest queue, wasting computational cycles. The compute utilization metric quantifies this waste by showing what fraction of hardware cycles perform useful computation versus processing padding. This shows why load balancing is necessary in production systems. Without it, the theoretical efficiency gains from sparsity disappear as we waste compute matching uneven loads across experts.
