Vision-Language Projection › The Q-Former Approach

Both linear and MLP projections suffer from a scalability problem: they preserve the full sequence of visual tokens. For high-resolution images or vision encoders with small patch sizes, this can yield thousands of tokens, far exceeding the context limits of many LLMs and creating computational bottlenecks due to the quadratic complexity of attention.

Consider a high-resolution image of 896×896 pixels processed with a patch size of 14×14. This yields $(896/14)^2 = 4096$ patch tokens, which would consume an entire 4096-token context window without leaving any room for text instructions or generated responses. Even with standard 224×224 images and 16×16 patches, the 197 tokens required represent a significant fraction of typical context windows, limiting the length of conversations or the complexity of reasoning chains that can involve multiple images.

The Querying Transformer (Q-Former), introduced in BLIP-2, addresses this by learning to compress variable-length visual features into a fixed number of learnable query tokens. Rather than treating all visual tokens as equally important and passing them all to the LLM, the Q-Former learns to distill the visual information into a compact set of query representations that capture the most salient aspects of the image for language understanding.

The insight behind the Q-Former is that not all visual information is linguistically relevant. A detailed texture in the background, a subtle shadow on the ground, or the precise number of leaves on a tree may be visually present but rarely matters for answering questions or generating captions. Rather than forcing the LLM to sift through hundreds of visual tokens to find the few relevant ones, the Q-Former does this filtering proactively, presenting the LLM with a compressed summary that retains what matters for language-based tasks.

The Q-Former consists of a lightweight transformer, typically BERT-base sized with around 188M parameters, positioned between the frozen vision encoder and the frozen LLM. It employs two attention mechanisms:

1. Self-attention among queries: The learnable query tokens attend to each other, letting them to coordinate and avoid redundancy
2. Cross-attention to vision features: Queries attend to the vision encoder outputs, extracting and compressing visual information

The key innovation lies in the queries themselves: a fixed set of learnable embeddings $\mathbf{Q} \in \mathbb{R}^{m \times d_q}$ where $m$ (typically 32) is a hyperparameter much smaller than the number of visual tokens. These queries attend to the vision features through cross-attention layers, effectively learning to extract and compress the most relevant visual information.

This architecture functions analogously to a database query system. Instead of presenting the LLM with the entire raw dataset (all visual tokens), the Q-Former acts as an intelligent query processor that extracts specific information based on learnable query templates. Each of the $m$ learnable queries can be thought of as a specialized probe, trained to extract particular types of visual information: global scene context, specific object categories, spatial relationships, fine-grained textures, or action cues. Through training on image-text pairs, these queries learn which aspects of the visual input are most relevant for generating accurate and informative text responses.

The fact that the query vectors are learnable parameters, not computed from the input, is important. Unlike in standard attention where queries are derived from the input sequence, Q-Former queries are persistent learned embeddings that carry their function across all images. Query 3 might always look for foreground objects; Query 15 might always probe for background context. This specialization emerges from training and enables efficient extraction without requiring each image to re-derive the extraction strategy from scratch.

The Q-Former operates similarly to the standard transformer but with a modified attention pattern. For a given layer, the self-attention over queries follows the standard scaled dot-product, letting the learnable queries to exchange information among themselves before probing the visual features:

$$\text{SelfAttn}(\mathbf{Q}) = \text{softmax}\left(\frac{\mathbf{Q}\mathbf{W}_Q (\mathbf{Q}\mathbf{W}_K)^\top}{\sqrt{d_k}}\right) \mathbf{Q}\mathbf{W}_V$$

where:

• $\mathbf{Q} \in \mathbb{R}^{m \times d_q}$: the learnable query embeddings with $m$ queries of dimension $d_q$
• $\mathbf{W}_Q, \mathbf{W}_K \in \mathbb{R}^{d_q \times d_k}$: the query and key projection matrices mapping to key dimension $d_k$
• $\mathbf{W}_V \in \mathbb{R}^{d_q \times d_q}$: the value projection matrix (typically $d_q$ in standard configurations)
• $d_k$: the dimension of the key vectors, used to scale the dot products and prevent softmax saturation at high dimensionality

The softmax is applied row-wise over the attention scores. This produces a distribution over the $m$ queries. This self-attention step allows the query tokens to share context and coordinate their strategies before extracting information from the vision features. This keeps subsequent cross-attention extracts complementary rather than redundant information. If several queries all attend to the same visual region and extract the same features, the compression is wasted; self-attention helps the queries diversify their coverage.

The cross-attention mechanism allows queries to attend to vision features $\mathbf{V}$:

$$\text{CrossAttn}(\mathbf{Q}, \mathbf{V}) = \text{softmax}\left(\frac{\mathbf{Q}\mathbf{W}_Q (\mathbf{V}\mathbf{W}_K)^\top}{\sqrt{d_k}}\right) \mathbf{V}\mathbf{W}_V$$

where:

• $\mathbf{Q}$: the learnable query embeddings (as defined previously), serving as the query source
• $\mathbf{V} \in \mathbb{R}^{n \times d_v}$: the vision encoder output with $n$ visual tokens of dimension $d_v$, serving as the key-value source
• $\mathbf{W}_Q \in \mathbb{R}^{d_q \times d_k}$: the query projection matrix for the learnable queries
• $\mathbf{W}_K, \mathbf{W}_V \in \mathbb{R}^{d_v \times d_k}$: the key and value projection matrices that transform vision features into the attention computation's space

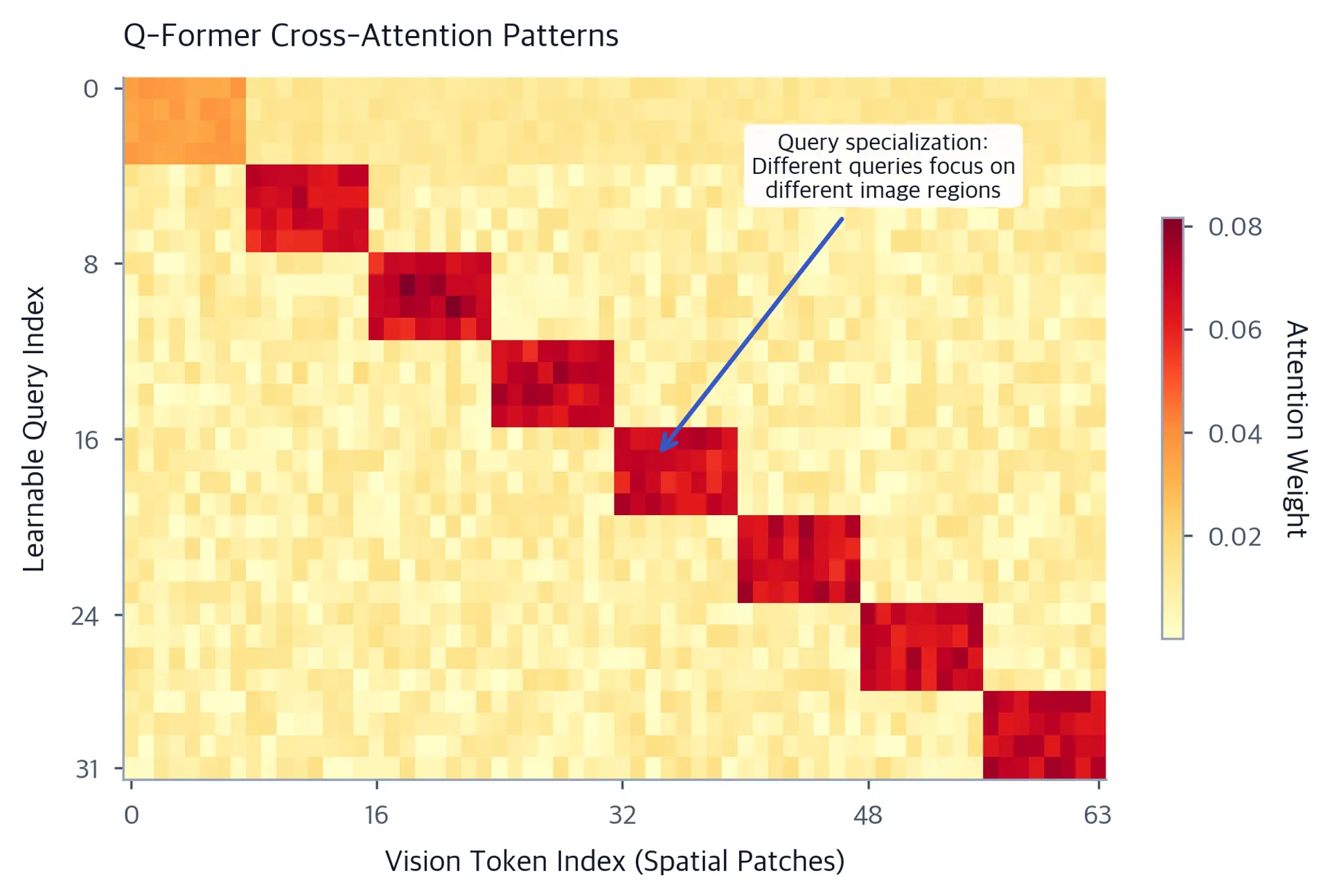

The softmax is computed over the $n$ vision tokens, letting each of the $m$ queries to attend to all visual patches. The output has shape $[m, d_k]$, compressing the variable number of vision tokens $n$ into the fixed number of query tokens $m$. This is the basic compression step: attention-weighted pooling of vision features, where the weights are determined by the learned queries.

The vision features $\mathbf{V}$ serve as keys and values but do not attend to the queries. The information flow is strictly one-directional: queries pull information from the vision features, but the vision features remain static. This asymmetry enables compression by forcing the queries to extract information, rather than allowing bidirectional flow that would maintain sequence length. It also means the Q-Former cannot modify or distort the vision features themselves, preserving the integrity of the visual representation while creating a compact summary.

The output of the Q-Former is a sequence of $m$ query embeddings, which then undergo a final linear projection into the LLM's input dimension. This compresses, for example, 197 ViT tokens into 32 query tokens, a 6x reduction in sequence length that allows the LLM to process multiple images or engage in much longer conversations without exhausting its context window.

The Q-Former employs a carefully designed multi-stage training procedure to align its queries with both the vision encoder and the LLM. This staged approach is necessary because the Q-Former must simultaneously learn two very different things: what visual information is salient for language understanding, and how to format that information for consumption by a specific language model.

The three training stages are:

Stage 1: Vision-Language Representation Learning. The Q-Former, paired with a frozen vision encoder, is trained on image-text pairs using three objectives simultaneously: image-text contrastive learning (bringing image and text representations close), image-grounded text generation (generating captions from visual features), and image-text matching (predicting whether an image and text are paired). These three objectives teach the queries different aspects of visual-linguistic alignment. Contrastive learning trains the queries to extract global semantic content that discriminates between different images. Text generation trains the queries to preserve detail needed for accurate description. Matching trains the queries to capture coherence across visual content and linguistic descriptions.

Stage 2: Bootstrap Vision-to-Language Generation. With the Q-Former's output now semantically meaningful, a frozen LLM is introduced. A lightweight linear projection maps Q-Former outputs to the LLM's embedding dimension, and the system is trained with a standard language modeling objective: predicting the next token in a caption given the compressed visual tokens. This stage trains the projection between Q-Former and LLM while freezing both the Q-Former (whose queries were just trained) and the LLM (whose parameters we want to preserve). The Q-Former is a learned "soft token" generator, and the projection layer learns to format those soft tokens in the LLM's native embedding space.

Stage 3: Task-Specific Fine-tuning. The full system is adapted to specific downstream tasks. Depending on the task and computational budget, various combinations of components may be unfrozen.

This staged approach ensures that the queries learn to extract visual information relevant to language understanding before attempting to interface with a specific LLM. The first stage teaches the queries what visual information is semantically salient, while the second stage teaches how to format that information for a specific language model's embedding space. The bootstrapping idea is particularly clever: rather than trying to train the Q-Former and projection simultaneously from scratch with respect to a frozen LLM, which creates an extremely difficult optimization problem, the staged approach first establishes a useful intermediate representation and then teaches the final projection step.
