Multimodal Training Data › Image-Text Pairs: The Foundation of Vision-Language Alignment

The simplest and most scalable form of multimodal supervision pairs a single image with a descriptive caption. This format, seemingly trivial (an image of a dog alongside the word "dog"), encodes a significant learning signal. The model must learn to map high-dimensional visual features into the same semantic space as linguistic concepts. The model needs an abstract representational space where visual semantics and linguistic semantics become interchangeable, letting zero-shot transfer between modalities.

The challenge lies in the basic difference between these modalities. Vision operates on continuous, high-dimensional pixel grids where local correlations matter intensely. Language operates on discrete, sequential tokens where syntactic structure and long-range dependencies dominate. Bridging these requires large amounts of parallel supervision, where the model learns that a specific constellation of edges and colors alongside textures in the visual field corresponds to the abstract concept denoted by a word or phrase.

Consider what the model must learn from a single pair: an image of a golden retriever beside the caption "a dog playing in autumn leaves." The word "dog" must be grounded in the visual pattern of fur, four legs, a muzzle, and ears. "Playing" must be associated with specific postures and motion cues. "Autumn leaves" requires recognizing both the presence of leaves and their brownish-orange color. None of these groundings are given; the model must discover them by processing millions of such pairs and learning that certain visual features consistently co-occur with certain linguistic tokens. This statistical discovery process is the foundation of visual representation learning.

Image-text pair datasets typically derive from three primary sources, each with distinct advantages and contamination risks.

Alt-text scraping crawls the web to extract HTML alt attributes associated with images. These alternative text descriptions were originally intended for accessibility. This gives screen reader descriptions for visually impaired users. Datasets like Conceptual Captions (CC12M/CC3M) and LAION-5B use this approach at large scale, harvesting billions of pairs from the Common Crawl corpus. The advantage is scale and diversity, capturing the long tail of human visual experience across cultures and domains as well as visual styles. The disadvantage is noise, as alt-text often contains SEO keywords, file names, or template text rather than real descriptions. A webmaster optimizing for search rankings might write "buy cheap blue widgets" in an image's alt attribute rather than describing what the image shows, and this corrupted pair would be included in the raw dataset.

Structured metadata uses titles and descriptions alongside tags from photo-sharing platforms such as Flickr, Wikimedia Commons, or e-commerce sites. These sources often give higher quality annotations because users intentionally describe their content for searchability or archival purposes. Wikimedia Commons entries, for instance, often contain detailed descriptions written by volunteers who care about accuracy and completeness. E-commerce sites give structured attributes (color, size, category) alongside descriptions. However, these sources introduce their own biases. Flickr overrepresents photography enthusiasts in wealthy countries. E-commerce sites overrepresent consumer products. Wikimedia overrepresents culturally significant landmarks and events. When models train primarily on these sources, they develop uneven coverage: excellent at recognizing consumer goods and tourist destinations, poor at everyday objects from non-Western contexts.

Synthetic generation uses captioning models or large language models to generate descriptions for unlabeled images. This approach can rapidly scale datasets by applying existing vision-language models to unlabeled image collections. However, this method risks compounding model biases and hallucinations. If the teacher model tends to describe certain demographics in stereotypical ways, or fails to recognize specific visual patterns, these errors propagate into the training data for the next generation of models. Also, synthetic captions often lack the creative variability and cultural nuance of human-written text. A model asked to caption a thousand images of coffee will tend to produce variations on the same description, lacking the linguistic diversity that makes web-scraped captions useful for learning rich language grounding.

The raw web data requires aggressive filtering. As we discussed in Part XX: Data Curation regarding text-only corpora, web-scraped multimodal data contains substantial noise. Common issues include images with missing or irrelevant alt-text, advertisements where the text describes the product being sold rather than the image content, memes with unrelated or ironic captions, and NSFW content that must be excluded for safety reasons. Without filtering, a model trained on raw web data develops confused associations: it might learn that the word "FREE" is associated with promotional banner images, or that "Click here" correlates with graphic icons, patterns that are statistically true in web data but useless for learning visual semantics.

Image-text pairs enable contrastive learning, which we explored in the context of dense retrieval in Part XLIV, Chapter 4: Contrastive Learning for Retrieval. The objective is structurally identical, using natural pairing supervision to learn a joint embedding space.

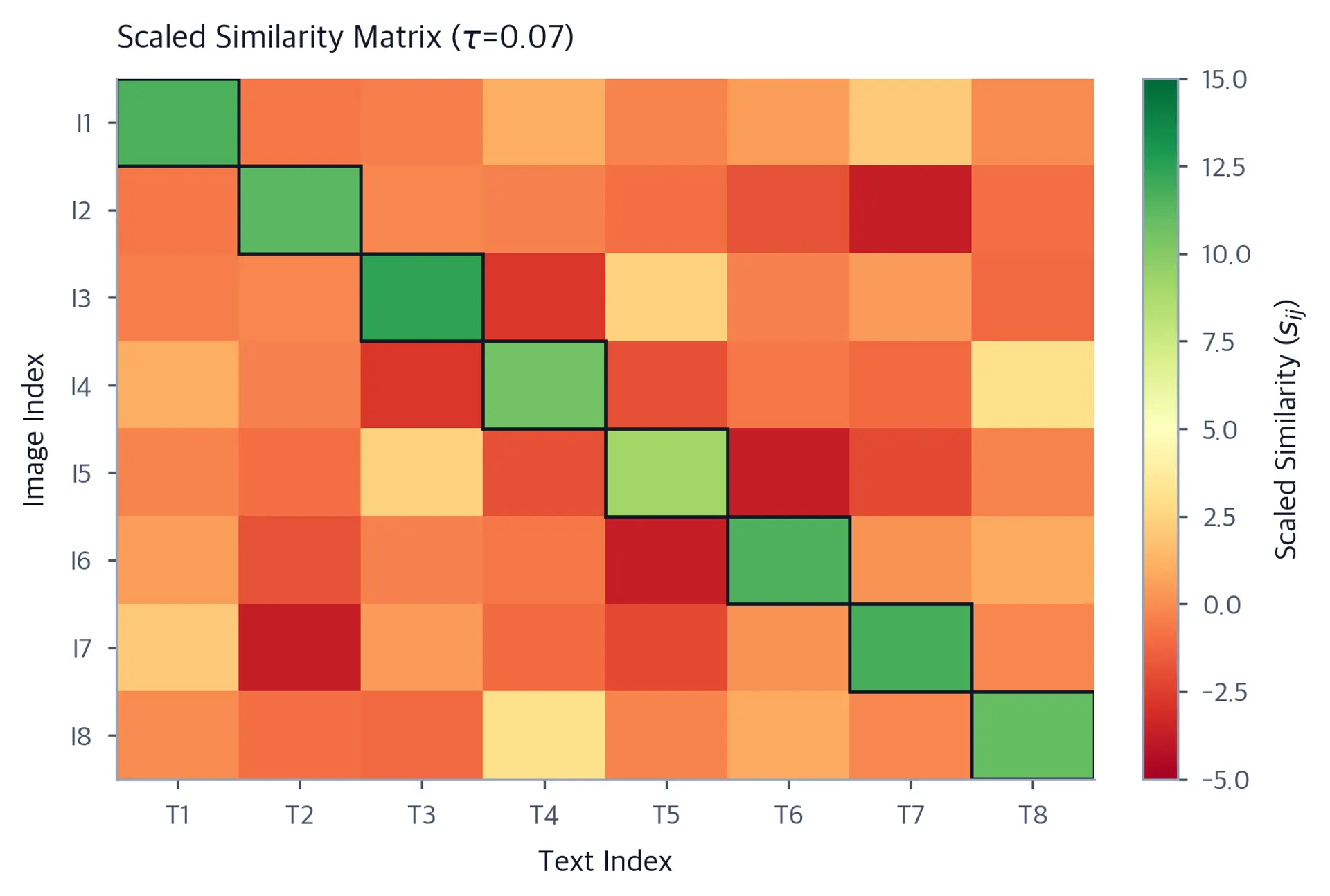

The intuition behind contrastive learning is elegant. Given a batch of $N$ image-text pairs, the model learns to maximize the similarity between the correct pairs (positive examples) while minimizing similarity between all $N^2 - N$ incorrect pairings (negative examples). This creates a discriminative task where the model must learn to distinguish the true caption for an image from a set of distractors. Because the distractors are drawn from the same batch, they are semantically plausible but visually incorrect, forcing the model to learn fine-grained visual distinctions rather than relying on coarse semantic categories.

Think of it as a large matching game. If a batch contains images of a cat, a dog, and a bird paired with their respective captions, the model must learn to match each image to its caption and not the others. With a batch size of 32,768 (which large-scale CLIP training uses), the model must correctly identify the one correct caption out of 32,768 options for each image, and vice versa. This extraordinarily hard discrimination task forces the model to develop highly specific, discriminative representations.

For a vision encoder $f_\theta$ and text encoder $g_\phi$, the similarity between image $x_i$ and text $t_j$ is:

$$s_{ij} = \frac{f_\theta(x_i) \cdot g_\phi(t_j)}{\tau}$$

where:

• $s_{ij}$: the scaled similarity score between image $i$ and text $j$
• $f_\theta(\cdot)$: the vision encoder with parameters $\theta$, mapping an image to an embedding vector
• $x_i$: the $i$-th image in the batch
• $g_\phi(\cdot)$: the text encoder with parameters $\phi$, mapping text to an embedding vector
• $t_j$: the $j$-th text caption in the batch
• $\cdot$: the dot product between embedding vectors, measuring cosine similarity before temperature scaling
• $\tau$: a learnable temperature parameter that scales the logits, controlling the sharpness of the probability distribution (lower values make the distribution more peaked)

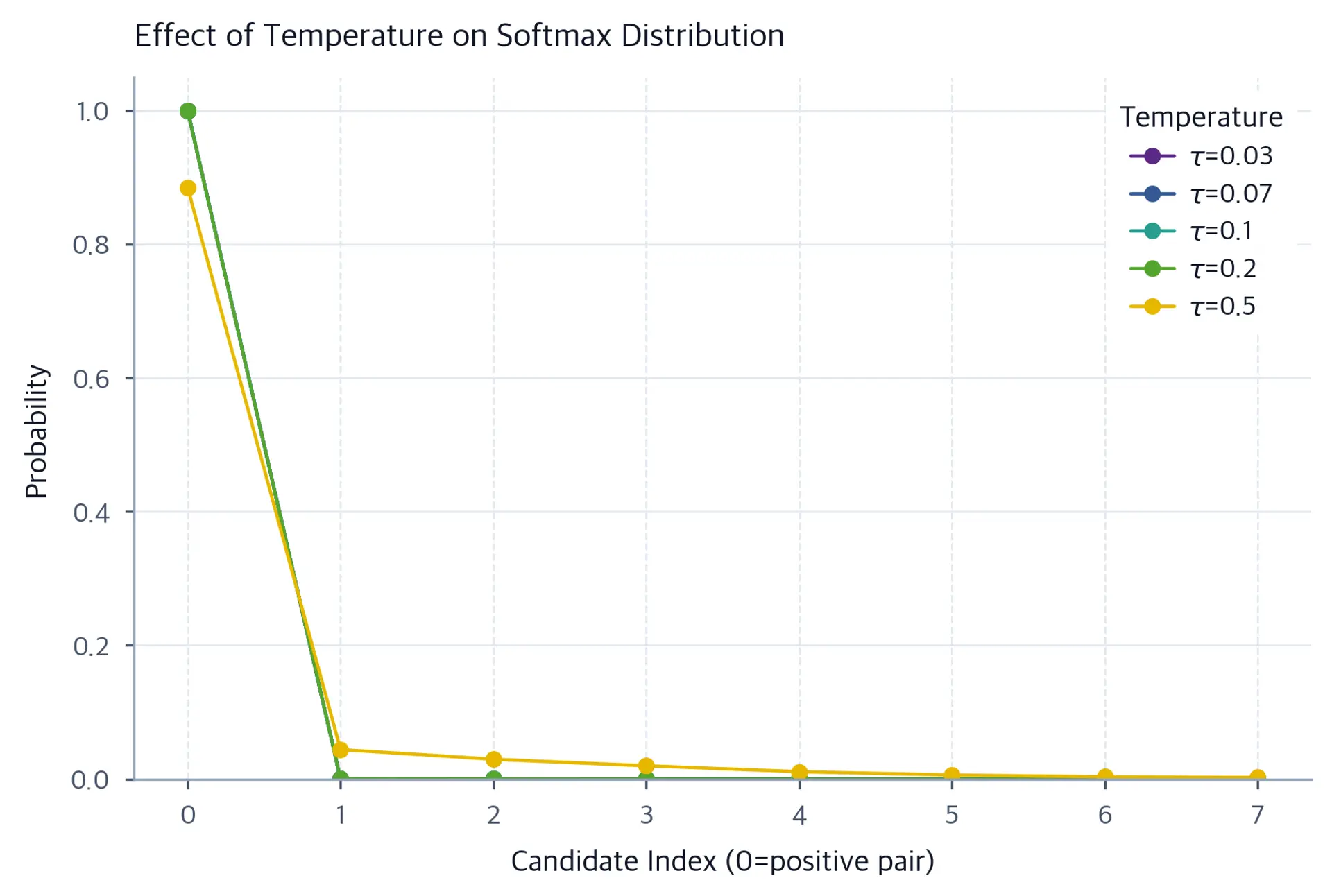

The temperature parameter plays a useful role in training dynamics. A high temperature smooths the distribution. This makes the model less confident about distinctions between similar pairs. A low temperature sharpens the distribution, forcing the model to make harder distinctions. Learning this parameter allows the model to automatically calibrate the appropriate level of discrimination for the dataset.

The success of contrastive learning on image-text pairs surprised many researchers when CLIP was introduced in 2021. Supervised learning on carefully labeled datasets had dominated computer vision, and it was unclear whether noisy web-scraped pairs would give sufficient signal. The answer turned out to be: they do, if the batch is large enough.

The key insight is that large batches implicitly construct hard negatives. In a batch of 32,768 pairs, many images share semantic similarity: there might be ten different images of dogs, five images of beaches, and several images of sporting events. When the model must distinguish between "a golden retriever catching a frisbee" and "a labrador running on the beach," it cannot rely on coarse category matching; it must learn the fine-grained visual and linguistic features that distinguish these descriptions.

Also, contrastive learning learns what things are by learning what they are not. The model develops representations where dog images cluster together and separate from cat images, not because it was told to cluster dogs, but because the only way to match captions to images is to develop these discriminative representations. This emergent clustering lets zero-shot classification: a model trained purely on noisy captions can recognize specific object categories it was never explicitly trained to classify, because it learned to place visual and linguistic representations of those categories in the same region of embedding space.

The effectiveness of contrastive pre-training scales with both dataset size and diversity, but the relationship is fine-grained. LAION-5B contains 5.85 billion image-text pairs, yet studies consistently show that filtering for aesthetic quality and text-image alignment (using CLIP similarity scores) often yields better models than using the full noisy corpus. This creates a bootstrapping paradox: we need a good model to filter data to train a better model.

This paradox has practical implications for dataset construction. Initial models trained on unfiltered data develop biases and blind spots. When these models are used to filter subsequent datasets, they may retain familiar patterns and reject novel but valid examples. For instance, an early model trained primarily on photographs might assign low similarity scores to paintings or sketches, causing them to be filtered out of future training sets and reinforcing the initial bias toward photographic imagery.

Data quality manifests through several necessary dimensions:

• Text-image alignment: The caption should describe the image content, rather than merely being co-located with it on the webpage. Web alt-text often contains SEO keywords, file names, or generic placeholders ("image", "photo", "IMG_001") that teach the model spurious correlations. If the model learns that file names predict image content, it fails to develop reliable visual understanding.

• Aesthetic quality: Low-resolution, watermarked, or artistically degraded images impair visual feature learning. The model may learn to recognize watermarks or compression artifacts as primary features rather than the underlying visual content. High-quality datasets often use aesthetic classifiers trained on human preference data to filter for technically competent photography.

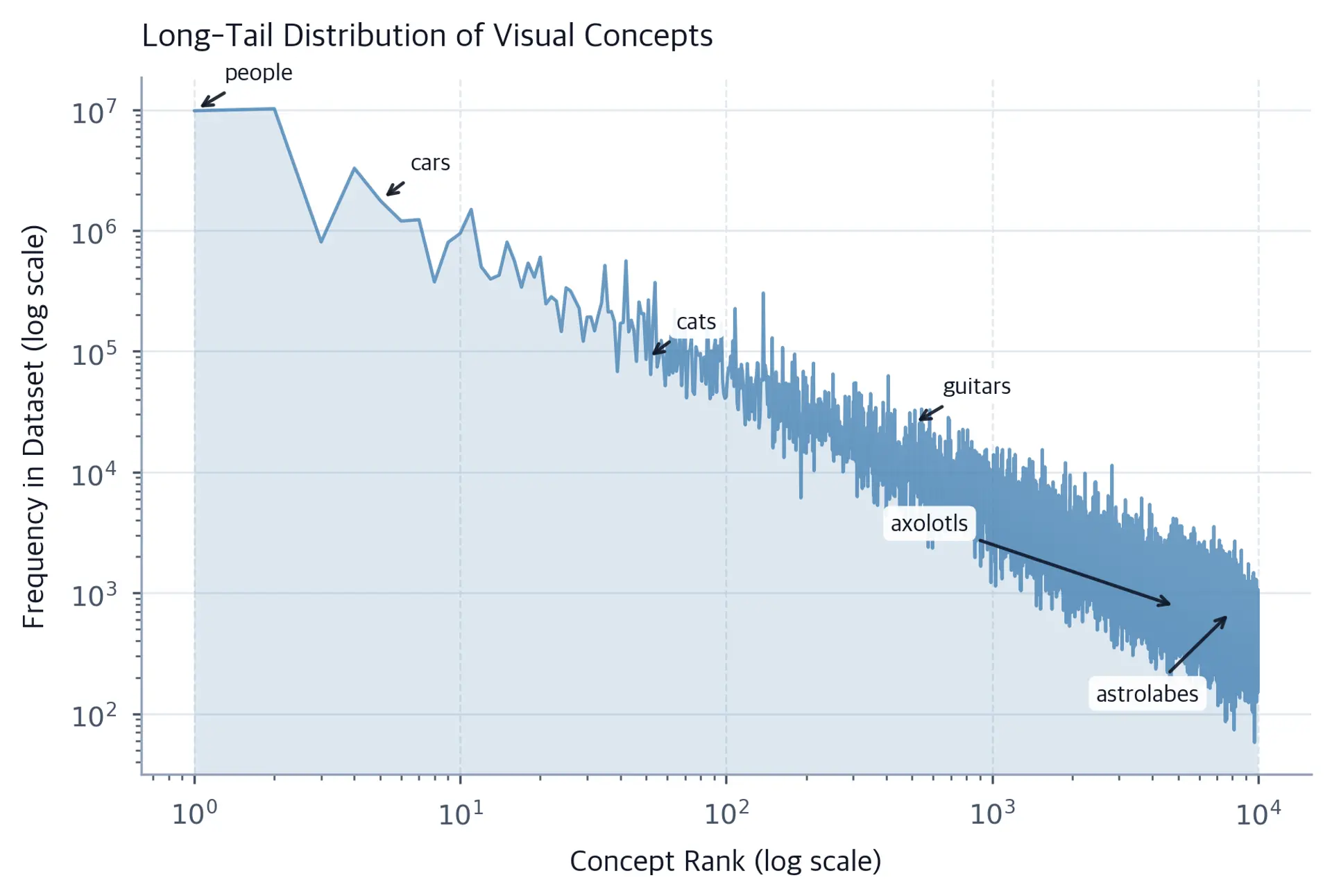

• Diversity: The dataset must cover rare concepts and underrepresented visual domains. Image-text pairs follow a long-tail distribution where common objects (cats, cars, celebrities) dominate, while specialized domains (rare bird species, technical diagrams, microscopic imagery) remain underrepresented. Without explicit stratification, models become experts on popular content while failing on niche but important domains.

• Caption informativeness: Short captions like "a person" teach less than long, specific captions like "a woman in traditional Mongolian dress performing at the Naadam festival." Longer, more descriptive captions give richer grounding but are less common in web-scraped data, where brevity is the norm.
