Let's visualize how tokens get routed to experts in a trained Switch layer. This visualization helps build intuition about what the router learns and how it distributes tokens across the available experts. We will trace through a full forward pass with concrete numbers to make the routing mechanism tangible.

In[23]:

Code

# Create a Switch layer and process some text
torch.manual_seed(7)

num_viz_experts = 8
switch_layer = SwitchLayer(
    d_model=128, d_ff=512, num_experts=num_viz_experts, capacity_factor=1.5
)

# Simulate token embeddings for a sentence
# Different semantic categories should route differently
batch_size, seq_len, d_model = 1, 20, 128
tokens = torch.randn(batch_size, seq_len, d_model) * 5.0

# Get routing decisions
with torch.no_grad():
    expert_indices, expert_weights, router_logits = switch_layer.router(tokens)
    router_probs = F.softmax(router_logits, dim=-1)

Out[24]:

Visualization

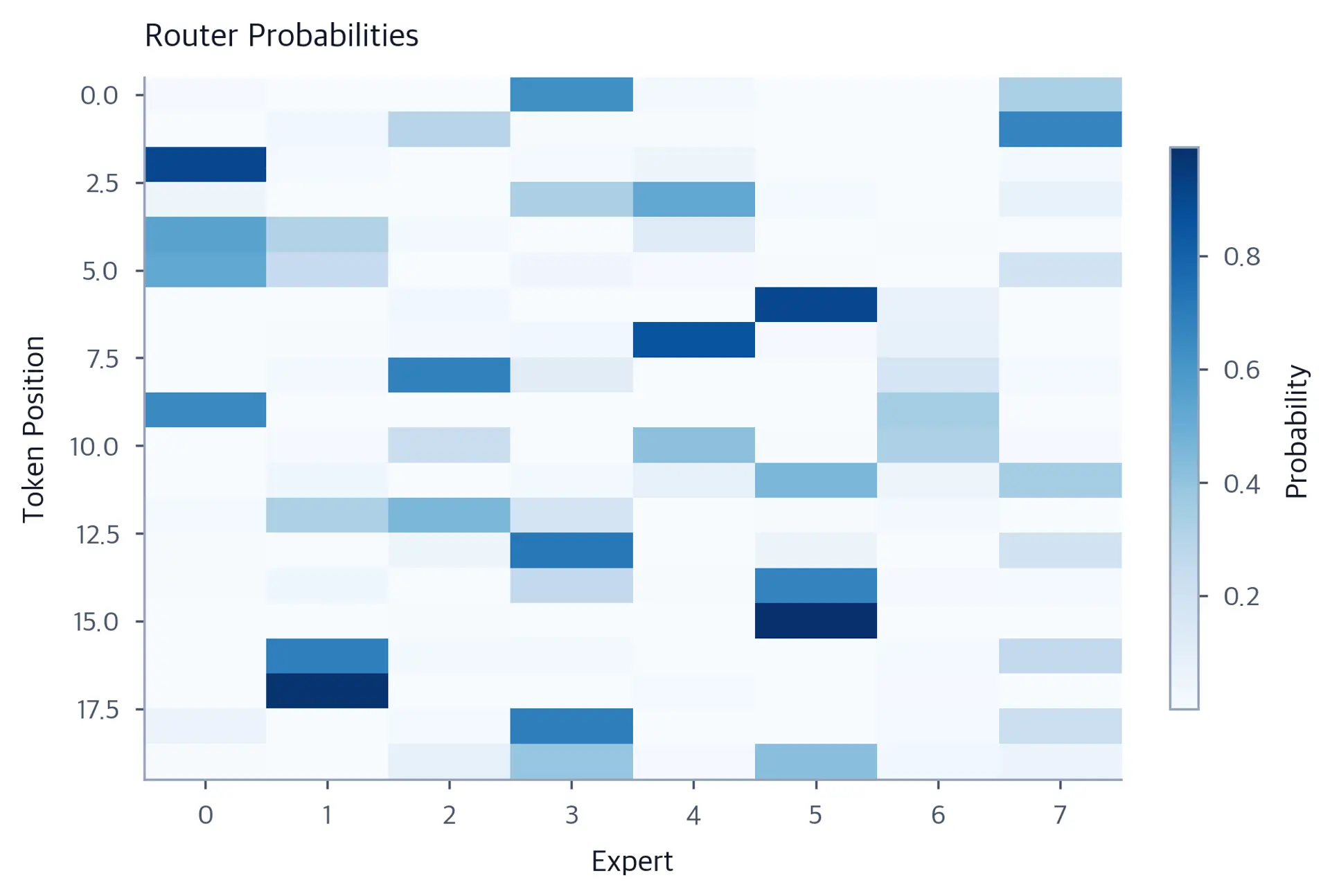

Heatmap with token position on the y-axis (0 to 19) and expert index on the x-axis (0 to 7). Most cells are pale, with a few dark-blue cells per row showing the single high-probability expert assigned to each token, illustrating sparse top-1 routing. — Router probability distribution heatmap for 20 tokens across 8 experts. Each row shows one token's probability distribution over all experts. Most tokens have a single dominant expert (dark cell), with probabilities near zero elsewhere, confirming the sparse routing behavior characteristic of Switch Transformer.

Out[25]:

Visualization

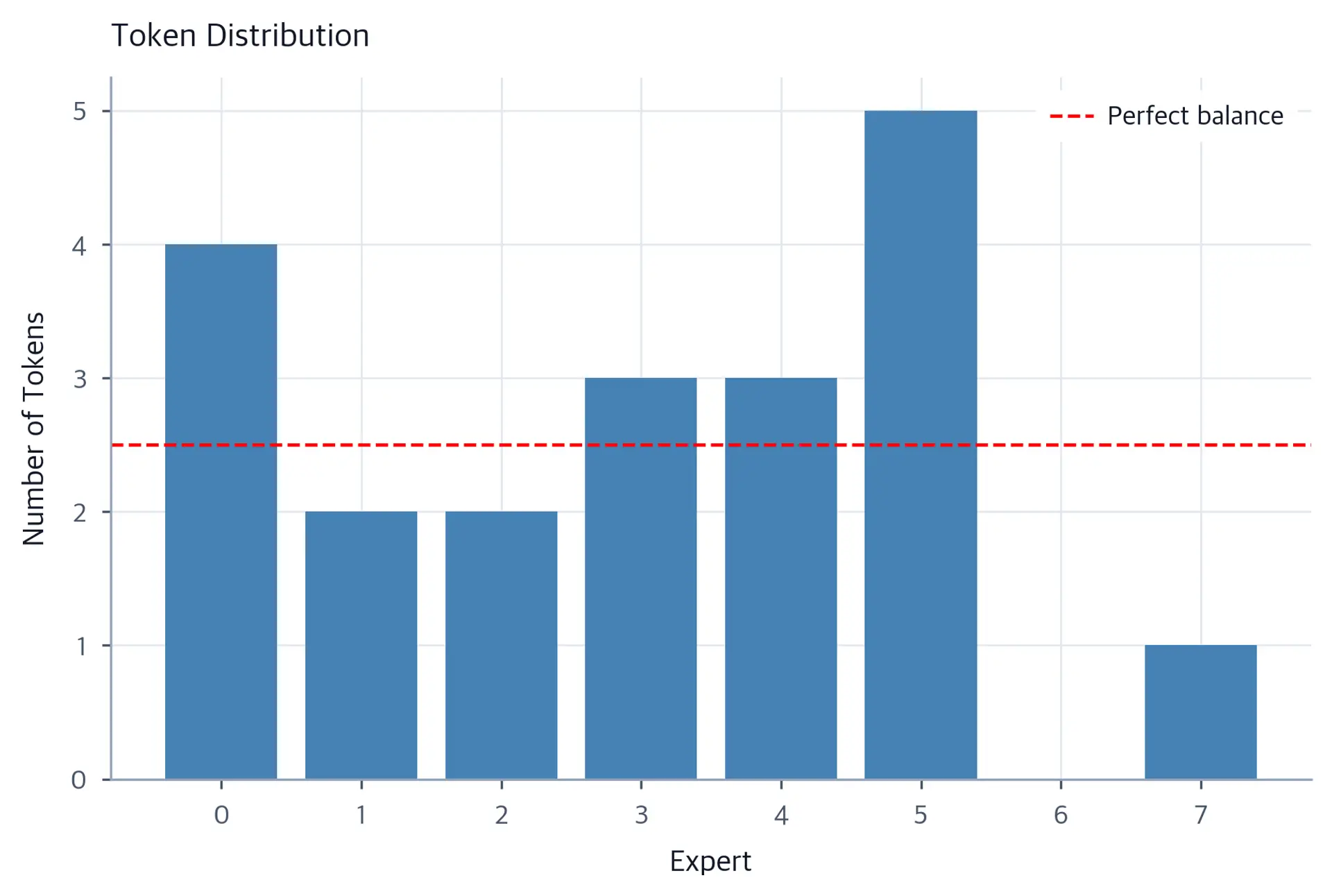

Bar chart showing the number of tokens (y-axis) assigned to each of 8 experts (x-axis, labeled 0 through 7) by a randomly initialized router. Steel-blue bars vary in height, and a horizontal red dashed line marks the perfect balance level at 2.5 tokens per expert. — Expert load distribution for a 20-token sequence with 8 experts. The bar heights show how many tokens each expert receives, with the red dashed line marking the ideally balanced allocation of 2.5 tokens per expert. A well-trained router would push this distribution toward the balance line through repeated exposure to the auxiliary load balancing loss.

The heatmap shows each token's probability distribution over experts. Notice how most tokens have one dominant expert (high probability in one column, near-zero in the others). This shows the router's confident routing decisions even with random initialization. This confidence emerges naturally from the softmax: when one logit is substantially higher than the others, the softmax output is a near-one-hot vector. The bar chart shows the actual token distribution, with the red line showing perfect balance. With random initialization, we see large variance in expert popularity. During actual training, the auxiliary load balancing loss would apply pressure to even out this distribution, driving the bar heights toward the red line while letting real departures driven by token content.
