LoRA Mathematics › Rank Selection

Choosing the rank $r$ is one of the most important decisions when applying LoRA, and it involves balancing expressiveness against efficiency. Rank is a primary hyperparameter in LoRA, and understanding its trade-offs is needed for practical application. Lower ranks use fewer parameters and computation but constrain the adaptation's capacity to represent complex changes to the model's behavior. The right rank depends on the task, the model size, the dataset size, and the computational budget.

One useful mental model: think of rank as the number of "channels" through which fine-tuning signal can flow. With $r = 1$, there is only one channel, meaning the entire adaptation is described by a single direction in the input space and a single direction in the output space. Every input gets the same type of update; only the magnitude varies. With $r = 16$, there are 16 channels, allowing the adaptation to combine 16 different patterns of input sensitivity with 16 different patterns of output change. The expressiveness grows with $r$, as does the cost, and the key question is how many channels the task needs.

To understand the efficiency gains from LoRA, we need to compare the number of trainable parameters against full fine-tuning. This comparison reveals the quantitative case for LoRA and provides a principled basis for evaluating the trade-off between expressiveness and efficiency.

For a weight matrix $W_0 \in \mathbb{R}^{d \times k}$, full fine-tuning requires learning $dk$ parameters. LoRA instead introduces:

$$\text{LoRA parameters} = dr + rk = r(d + k)$$

where:

• $d$: output dimension of the layer
• $k$: input dimension of the layer
• $r$: rank of the adaptation
• $r(d+k)$: total parameters in the two LoRA matrices, $B$ with $dr$ entries and $A$ with $rk$ entries

The parameter ratio compared to full fine-tuning reveals the compression achieved:

$$\frac{r(d + k)}{dk} = \frac{r}{d} + \frac{r}{k}$$

where:

• $dk$: total parameters in the full weight matrix
• $r(d+k)$: total parameters in the LoRA adapters
• $r$: rank of the adaptation
• $d$: output dimension
• $k$: input dimension

This ratio decreases as the layer dimensions grow, meaning LoRA becomes proportionally more efficient for larger models. This is a necessary scaling property: the absolute savings from LoRA increase with model size, which is exactly the regime where parameter efficiency matters most.

For a transformer with $d = k = 4096$, typical of modern large language models, and $r = 16$:

$$\begin{aligned} \text{LoRA parameters} &= 16 \times (4096 + 4096) = 131{,}072 \\ \text{Full parameters} &= 4096 \times 4096 = 16{,}777{,}216 \\ \text{Ratio} &= \frac{131{,}072}{16{,}777{,}216} \approx 0.78\% \end{aligned}$$

where:

• $16$: the rank $r$ used in this example
• $4096$: the input and output dimensions ($d$ and $k$)
• $0.78\%$: the resulting parameter efficiency ratio

This calculation shows that LoRA with rank 16 uses less than 1% of the parameters that full fine-tuning would require for this single layer. The dramatic reduction holds across the entire model. If we apply LoRA to all attention projections (the query, key, value, and output matrices denoted $W_Q$, $W_K$, $W_V$, $W_O$) in each layer, the total trainable parameters remain a small fraction of the original model while still adapting the most important components of the transformer architecture.

The rank determines the capacity of the adaptation, controlling how expressive the learned weight changes can be. This trade-off is not merely academic: choosing too low a rank will leave performance on the table for complex tasks, while choosing too high a rank wastes memory and computation. Understanding the spectrum of rank choices helps you make principled decisions for new applications.

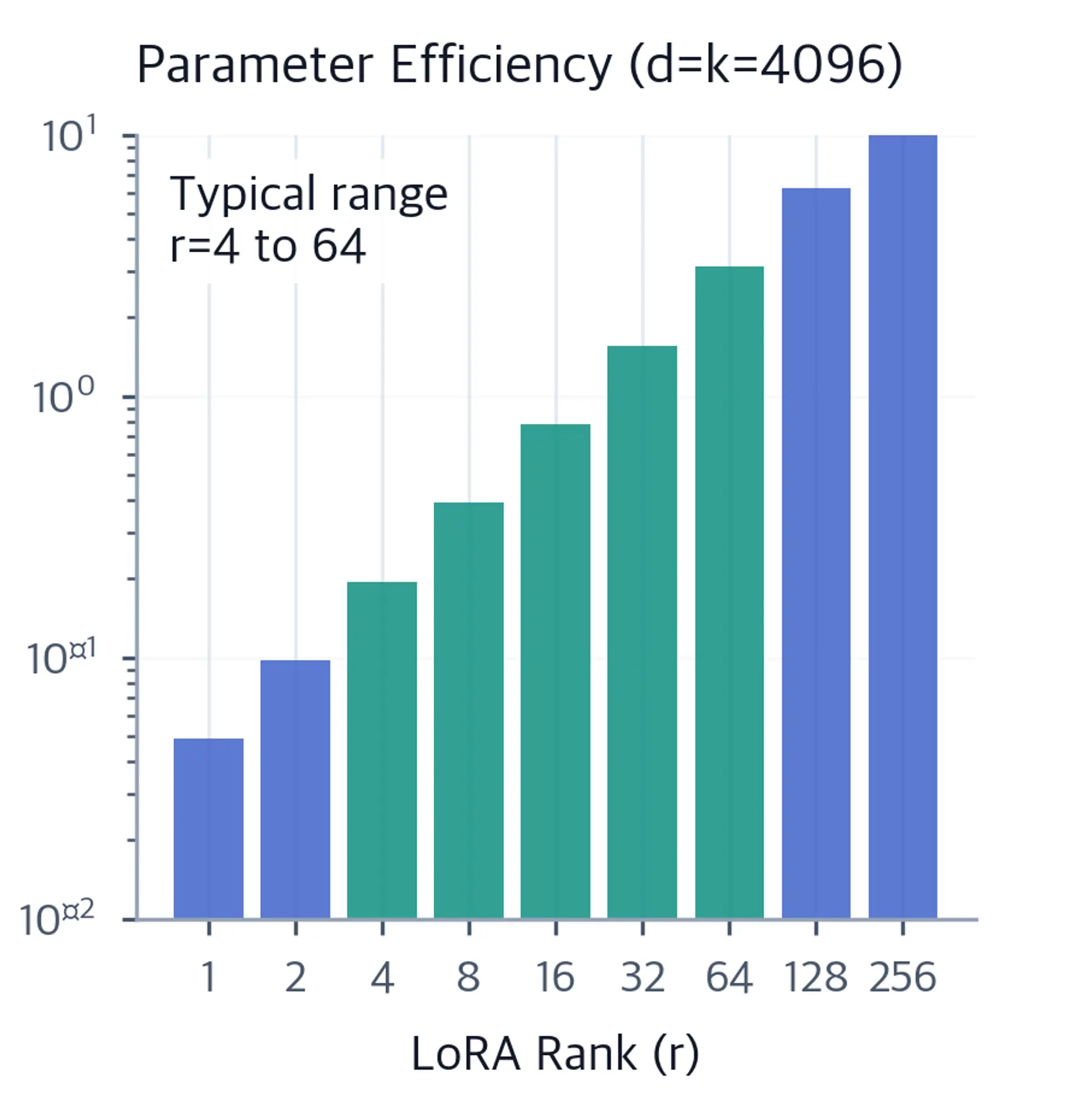

Different ranks are appropriate for different scenarios:

• $r = 1$: The update is a rank-1 matrix $\Delta W = ba^T$, an outer product of two vectors. This is highly constrained, representing the simplest possible non-trivial update. Every output dimension receives an update proportional to a fixed direction in the input, modulated by a single scalar. Despite this severe limitation, rank-1 adaptations sometimes suffice for simple tasks like binary classification where the model primarily needs to adjust a single decision boundary. The extreme parameter efficiency of rank-1 adapters makes them attractive for scenarios with very tight memory budgets.
• $r = 4$ to $r = 16$: These are common choices that balance efficiency and expressiveness for most NLP tasks. Many benchmarks show that ranks in this range achieve performance comparable to full fine-tuning while maintaining substantial parameter efficiency. This range represents the "sweet spot" for typical applications, where the rank is high enough to capture the multiple directions of adaptation that most tasks require, but low enough to provide strong parameter compression.
• $r = 64$ to $r = 256$: Higher capacity for complex adaptations, multi-task scenarios, or cases where lower ranks demonstrably underperform. These ranks sacrifice some efficiency for increased expressiveness, appropriate when the task demands more complex adaptations than lower ranks can represent. Tasks like instruction following or complex reasoning may benefit from higher ranks because they require coordinating many different aspects of the model's behavior simultaneously.
• $r = \min(d, k)$: Full rank, equivalent to unconstrained fine-tuning of the layer in terms of expressiveness. At this extreme, LoRA provides no parameter reduction but still maintains the structure of learning updates as a product of two matrices. This is primarily useful as a theoretical comparison point, confirming that the low-rank constraint is the source of both the efficiency and any performance limitations.

Empirically, rank selection depends on several factors that practitioners should consider carefully. Task complexity plays a measurable role: simple classification may need only $r = 8$, while complex generation or instruction following might benefit from $r = 64$ or higher. Dataset size interacts with rank in interesting ways. Smaller datasets benefit from lower ranks because the rank constraint provides implicit regularization, preventing overfitting by limiting the degrees of freedom available to the optimizer. Larger datasets can exploit higher ranks without overfitting and may show continued improvement as rank increases. Finally, different target modules often have different optimal ranks. Attention projections frequently need lower ranks than feed-forward layers, possibly because attention primarily routes information while feed-forward layers perform more complex transformations that require more expressive adaptations.

Trained LoRA adapters show an interesting pattern that reveals how the optimization process interacts with the rank constraint: even when $r$ is set relatively high, the effective rank of the learned $BA$ is often lower than the maximum possible. The optimization process tends to concentrate the adaptation into fewer dimensions than the allocated rank would allow, naturally discovering the minimum-rank representation that the task requires.

This phenomenon has both practical and theoretical implications. Practically, it suggests that you can sometimes set $r$ conservatively high and trust the optimizer to use only the dimensions it needs, though this comes at the cost of additional parameters and computation. Theoretically, it connects LoRA to the broader literature on implicit regularization in gradient descent, where the optimizer's geometry tends to prefer low-rank solutions even when higher-rank solutions are available.

The effective rank can be measured using the singular values of $BA$. One natural measure based on information theory is the spectral entropy:

$$\text{effective rank}(BA) = \exp\left(-\sum_{i} \tilde{\sigma}_i \log \tilde{\sigma}_i\right)$$

where:

• $\tilde{\sigma}_i$: the normalized singular values, defined so that $\tilde{\sigma}_i = \sigma_i / \sum_j \sigma_j$ and $\sum_i \tilde{\sigma}_i = 1$
• $\sigma_i$: the $i$-th singular value of the matrix $BA$
• $\exp(\cdot)$: exponential function that converts the entropy into a "perplexity" form, yielding an intuitive rank equivalent

This entropy-based measure, sometimes called the spectral entropy or perplexity of the singular value distribution, indicates how many singular values make substantial contributions to the matrix. If all $r$ singular values are equal, the normalized distribution is uniform and the effective rank equals $r$. If one singular value dominates, the distribution has low entropy and the effective rank approaches 1. Values between these extremes indicate intermediate concentration of the learned adaptation into a small number of directions.

Studies examining trained LoRA adapters consistently show that they often converge to solutions where only a few singular values dominate, even when the specified $r$ is much larger. This observation has two practical consequences. First, the actual intrinsic rank needed for the adaptation is often lower than the specified $r$, which means that practitioners can use moderate ranks without worrying much about wasting capacity. Second, the observation points toward potential improvements. Methods like AdaLoRA, covered in a later chapter, exploit this observation by adaptively adjusting the rank during training rather than fixing it in advance, allocating rank budget to layers where it is most needed.
